Environmental Specifications
Indoor Use.
Pollution Degree ：2
Maximum operating altitude : 2000m (6562 ft)
Operating temperature & Relative Humidity :
0°C - 30°C, ≦80%RH
30°C - 40°C, ≦75%RH
40°C - 50°C, ≦45%RH
Storage temperature :
-20°C - 60°C, 0 to 80% RH (no batteries).
Temperature coefficient :
0.2 x (Specified accuracy) / °C, < 18°C, > 28°C
Shock vibration : Sinusoidal vibration
MIL-PRF-28800F (5-55 Hz, 3g max.)
Drop Protection : 4 feet drop to hardwood on
concrete Floor
Limited Warranty
This Meter is warranted to the original purchaser
against defects in material and workmanship for
two years from the date of purchase. During this
warranty period, manufacturer will, at its option,
replace or repair the defective unit, subject to
verification of the defect or malfunction. This
warranty does not cover fuses, disposable
batteries, or damage from abuse, neglect,
accident, unauthorized repair, alteration,
contamination, or abnormal conditions of
operation or handling.
Any implied warranties arising out of the sale of
this product, including but not limited to implied
warranties of merchantability and fitness for a
particular purpose, are limited to the above.
The manufacturer shall not be liable for loss of
use of the instrument or other incidental or
consequential damages, expenses, or economic
loss, or for any claim or claims for such damage,
expense or economic loss. Some states or
countries laws vary, so the above limitations or
exclusions may not apply to you.

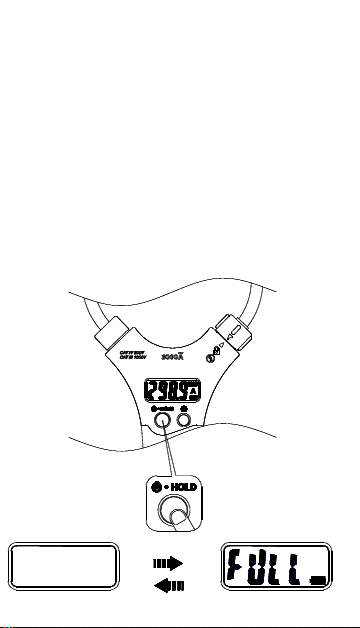

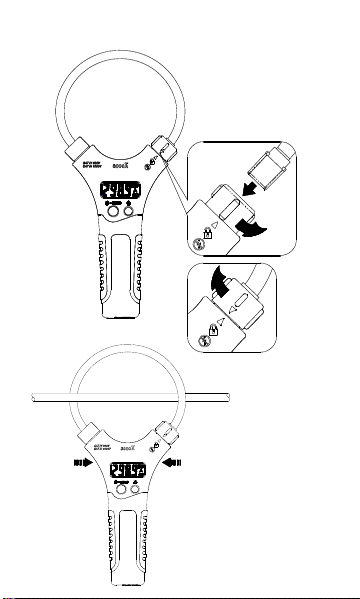

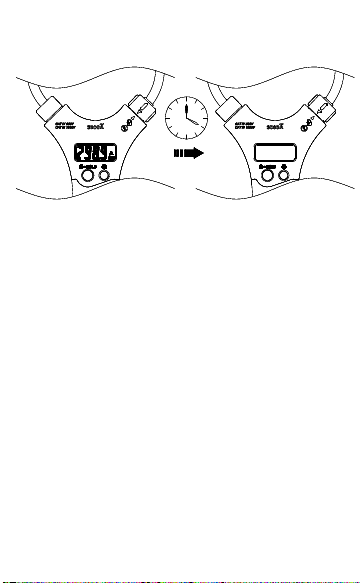

AC Current

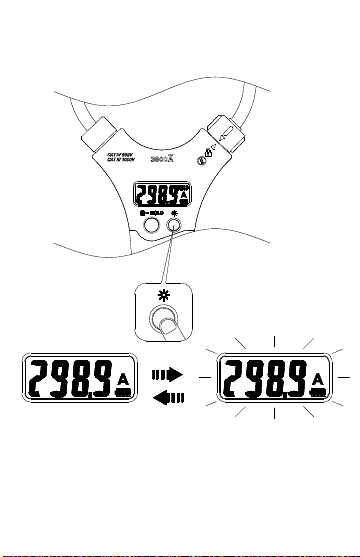

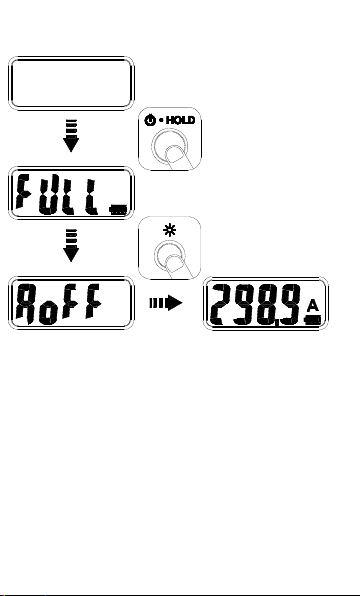

Backlight
PressPress

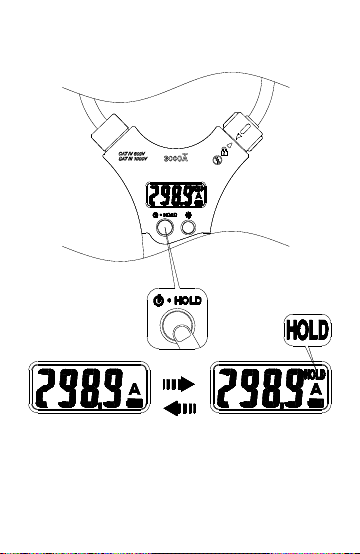

Data Hold
PressPress

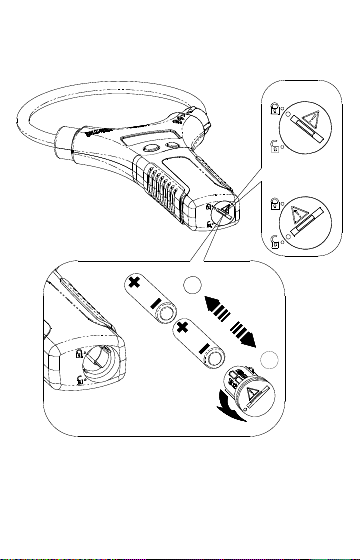

Replacing Batteries
UnlockUnlock
22
11
UnlockUnlock
LockLock
Caution
Remove Meter from conductor and turn off
power before opening the battery cover.
General Specifications
Display : 3000 counts.
Over range Display : "OL"
Dimensions (W x H x D) :
10" coil : Approx. 120mm x 280mm x 25mm
18" coil : Approx. 130mm x 350mm x 25mm
Weight(without Battery) :
10" coil : 170g
18" coil : 200g
Power Requirements : AAA Size Battery x 2
Battery Life : 200 hours ALKALINE Battery
Low Batteries Indication :
Voltage drops below operating voltage,
will flash.
Maximum Conductor Size : coil size
Safety Standard :
EN61010-1, EN61010-2-032, EN61326-1
CAT IV 600V, CAT III 1000V
Conversion Rate : 4 times/second
sFlex-10 Error
Distance from
Optimum (mm)
15 ±2.0%
25 ±2.5%
35 ±3.0%
sFlex-18 Error
Distance from
Optimum (mm)
35 ±1.0%
50 ±1.5%
60 ±2.0%
Range OL
Reading Resolution Accuracy
(45Hz~500Hz)
30.00A 33.00A 0.01A ±(3.0% + 5D)
300.0A 330.0A 0.1A ±(3.0% + 5D)
3000A 3300A 1A ±(3.0% + 5D)
LCD displays 0 counts when the reading < 10
counts.
Frequency Response : 45 - 500Hz (Sine Wave)
AC Function
ACA specifications are ac coupled, true R.M.S.
For non-sinusoidal waveforms, Additional
Accuracy by Crest Factor (C.F.):
Add 3.0% for C.F. 1.0 - 2.0.
Add 5.0% for C.F. 2.0 - 2.5.
Add 7.0% for C.F. 2.5 - 3.0.
Electrical Specifications
Accuracy is given as ±(% of reading + counts of
least significant digit) at 23°C ± 5°C, with
relative humidity Less than 80% R.H.
Accuracy is specified for a period of one year
after calibration.
Position Error of Clamp :
Accuracy and position error assumes central-
ized primary conductor at optimum position, no
external electrical or magnetic field, and within
operating temperature range.
