Arbor Technology ITX-i230D Manuale utente
- 1 -
ITX-i230D
Mini-ITX Industrial Motherboard
Quick Installation Guide
Version 1.0
CPU
Soldered onboard
Intel®Celeron J1900
Processor
Form Factor
Mini-ITX
I/O
SATA/ USB 2.0/ USB3.0/
COM
Video
HDMI/LVDS
LAN
RTL8111G-CG Gigabit
Ethernet controller
Audio
Realtek ALC662 + ALC113,
Mic-in/Line-out
Copyright®All Rights Reserved. 4041023000100P
♦ Technical Support
If you have any technical difculties, please consult the user’s manual rst at:
ftp://ftp.arbor.com.tw/pub/manual
Contact our customer service at the following addresses if your problem persists.
http://www.arbor.com.tw
E-mail: info@arbor.com.tw
♦ Declaration of Conformity
FCC Class A
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions : (1) this device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
- 2 -

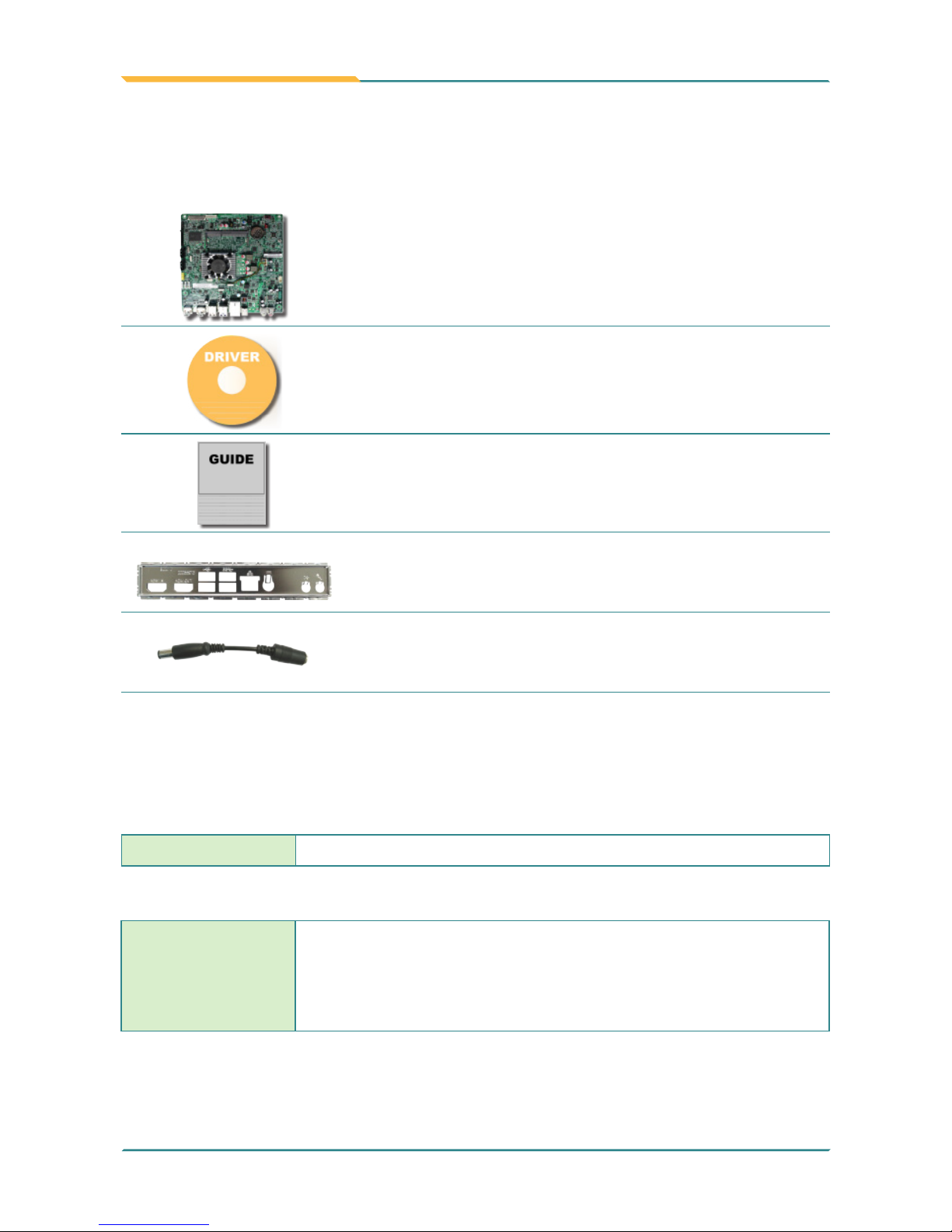

Packing List
Before you begin to install your single board, please make sure that the following
materials have been shipped:
1 x ITX-i230D Mini-ITX industrial motherboard
1 x Driver CD
1 x Quick Installation Guide
1 x I/O bracket
1 x DC 2.5 Jack to 7.4 Plug Cable
If any of the above items is damaged or missing, contact your vendor immediately.
Ordering Information
ITX-i230D Intel®Celeron® Processor J1900 Embedded Mini-ITX motherboard
Optional Accessories
CBK-07-230D-00
Cable Kit
1 x Two Ports USB cable
3 x One Port USB cables
1 x Two Ports SATA Power cable
2 x SATA cables
- 3 -
The Installation Paths of CD Driver
Windows 8 & 8.1
Driver Path
CHIPSET \Chipset\SetupChipset_10.0.13_PC
GRAPHIC \Graphics\WIN8_32\15.33.22.3621
\Graphics\WIN8_64\15.33.22.64.3621
ETHERNET \Ethernet\Realtek\Win8_8.1\Install_Win8_8.1_8031_05222014
AUDIO \Audio\32bit_Win7_Win8_Win81_R275
\Audio\64bit_Win7_Win8_Win81_R275
TXE \TXE\Installers
SERIAL IO \Serial IO\SerialIO_Installer_Win8.1_64bit_WW23
Windows 7
Driver Path
CHIPSET \Chipset\SetupChipset_10.0.13_PC
GRAPHIC \Graphics\WIN7_32\Intel_EMGD.WIN7_PC_Version_36_15_0_1073
\Graphics\WIN7_64\Intel_EMGD.WIN7_PC_Version_37_15_0_1073
ETHERNET \Ethernet\Realtek\Win7\Install_Win7_7085_05222014
AUDIO \Audio\32bit_Win7_Win8_Win81_R275
\Audio\64bit_Win7_Win8_Win81_R275
TXE \TXE\Installers
(For 64-bit Windows only)
USB3.0 \USB3.0\Intel(R) USB 3.0 eXtensible Host Controller_
Win7_32bit_64bit_R3.0.0.33
SERIAL IO \Serial IO\Intel Processor IO Drivers_Win7_32bit_64bit_Gold_v2.0
- 4 -
Specications
Form Factor Mini-ITX industrial motherboard
CPU Soldered onboard Intel® Celeron J1900 quad-core Processor
System Memory 1 x 204-pin DDR3 SO-DIMM socket supporting 1333/1066
MHz SDRAM up to 8GB
Graphic Chipset Integrated Intel®Gen 7 Graphics
Graphic Interface
1 x HDMI_OUT port
1 x HDMI_IN port
LCD: Dual-Channels 24-bit LVDS
Serial Port 1 x RS-232 port (Optional)
Expansion Bus 1 x Mini-card socket
Ethernet 1 x Realtek RTL8111G Gigabit Ethernet controllers
BIOS AMI 64Mb SPI Flash BIOS
Audio Realtek ALC662 + ALC113, Mic-in/Line-out
Serial ATA 2 x Serial ATA ports with 300MB/s HDD transfer rate
USB 7 x USB 2.0 ports
2 x USB 3.0/2.0 ports
Power Requirement 19V DC Jack
Operation Temp. 0 ~ 60°C (32 ~ 140°F) w/ cooling fan
Operating Humidity 10 ~ 60% @ 60°C (non-condensing)
Dimension (L xW) 170 x 170 mm (6.7” x 6.7”)
- 5 -
(0,0)
6,17
0
0
14,7
6,17
10,16
26,48
58,47
74,19
92,96
110,31
130,04
152,16
163,83
157,48
22,86
154,94
157,48
0
154,94
159,84
159,84
14,71
26,49
58,47
74,19
92,97
110,49
130,05
152,16
11,67
C1
8
1
1
A
BJ
53
Board Dimensions
Unit:mm
- 6 -
Jumpers/Connectors Quick Reference
Jumpers
Label Function
❶ CLR_CMOS Clear CMOS Setting
❷ TXE_UNLOCK TXE Unlock
❸ LCD_SEL LCD Resolution Selection
Connectors
Label Function
①SYS_FAN Fan Power Connector
②COM Onboard serial port header
(optional)
③MINI_PCIE Mini PCI Express x1 slot
(supports half-card)
④CPU_FAN CPU Fan Power Connector
⑤SPEAKER
Speaker Connector
⑥DMIC Digital Microphone header
⑦F_AUDIO Front panel audio header
⑧MIC Microphone Connector
⑨LINE_OUT Line out Connector
⑩DC_IN DC IN Power Connectors
⑪LAN Ethernet Connectors
⑫USB3_0 USB 3.0 Connector
⑬USB2_0 USB 2.0 Connector
⑭HDMI_OUT HDMI Output Connector
⑮HDMI_IN HDMI Input Connector
⑯⑰⑱
TC/
CM/CR
5-pin USB 2.0 header
supports one USB 2.0
Device
⑲
F_USB Front panel USB 2.0
header
Label Function
20 21
SATA1/2 Serial ATA 3.0 Gb/s
connectors
22
SATA_PWR SATA power connector
23
F_PANEL Front panel switch/LED
header
24
LVDS LVDS connector
25
LVDS_BRT Display brightness header
26
DIMM1 204-pin DDR3 SDRAM
SO-DIMM
27
CIR Consumer Infrared header
(optional)
- 7 -

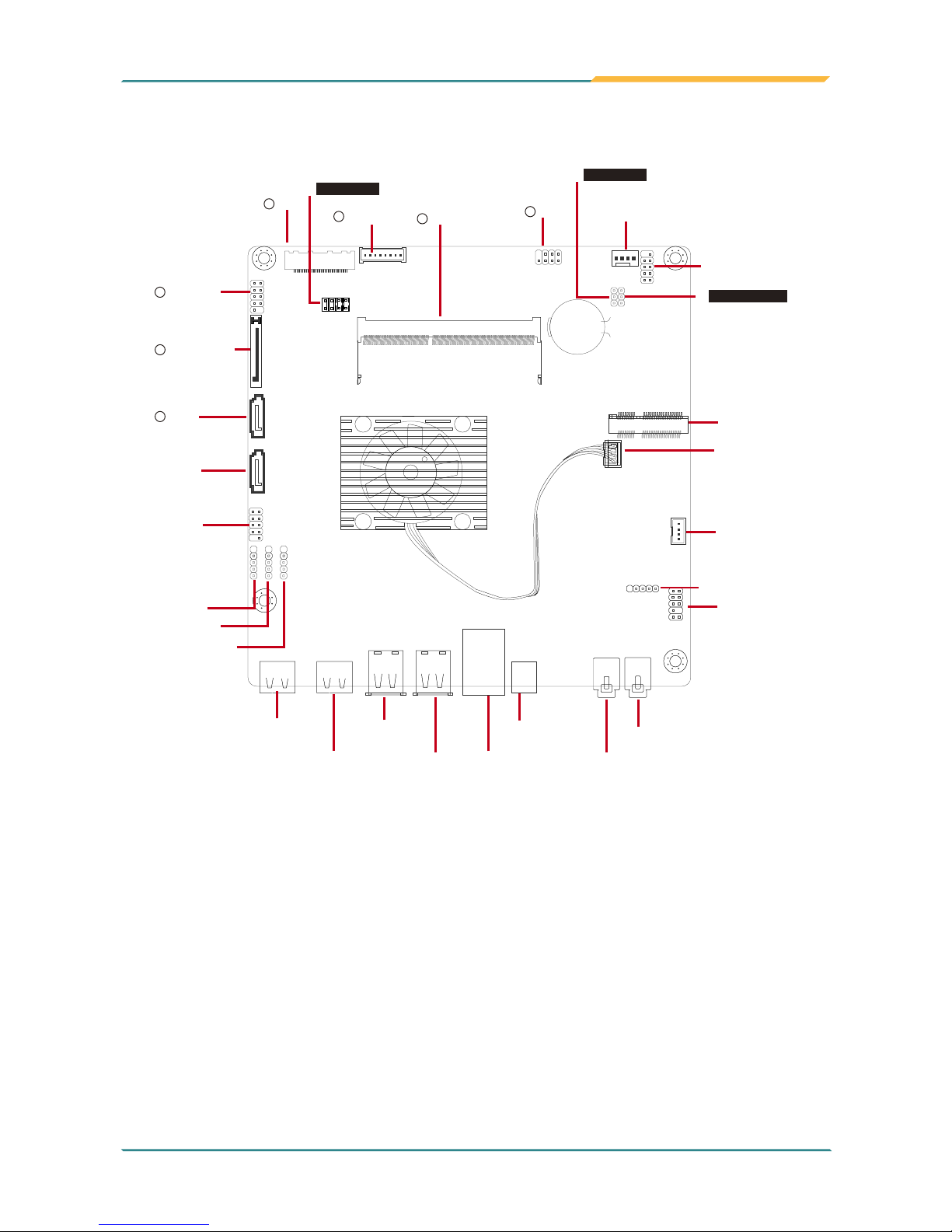

Jumpers & Connectors Locations
CLR_CMOS
➊
LCD_SEL
➌
TXE_UNLOCK
➋
①SYS_FAN
LVDS
LVDS_BRT CIR
⑧MIC
⑨LINE_OUT
⑩DC_IN
⑪LAN⑫USB3_0
⑬USB2_0
⑭HDMI_OUT
⑮HDMI_IN
③MINI_PCIE
⑤SPEAKER
⑦F_AUDIO
⑥DMIC
⑯TC
⑰CM
⑱CR
⑲F_USB
⑳SATA1
SATA2
F_PANEL
②COM
④CPU-FAN
22
23
24
25 DIMM1
26
27
21
SATA_PWR
- 8 -
Jumpers
Jumper Settings
The jumper is “short” (closed) when the jumper cap is
placed on pins. If not, that means the jumper is “open.”
Pin open Pin short
(closed)
Pin 2-3 short
(closed)
Pin 1-2 short
(closed)
❶
CLR_CMOS: Clear CMOS Setting
Connector type: 2.54mm pitch 1x3-pin headers.
Pin Mode
1-2 Keep CMOS (Default)
23 1
2-3 Clear CMOS
23 1
❷TXE_UNLOCK
: TXE Unlock (Optional)
Connector type: 2.54mm pitch 1x3-pin headers.
Pin Mode
1-2 Normal (Default)
2 31
2-3 Override
2 31
❸
LCD_SEL: LCD Resolution Selection
When your panel connects to LVDS, please check
LCD Select header setting rst.
Connector type: 2.54mm pitch 2x4-pin headers.
Pin Voltage
1-2
5-6 1600 x 900
1 2
7 8
1-2
3-4 1920 x 1080 (Default)
1 2
7 8
Connectors
①SYS_FAN
: Fan Power Connector
Connector Type:
2.54mm pitch 1x4-pin headers.
Pin Description
1
4
1GND
2+12V
3FAN_Detect
4 Control
②COM
: Onboard serial port header
(Optional)
Connect a serial port extension bracket to this header to
add a serial port to your system.
Connector Type:
2.54mm pitch 2x5-pin headers.
Pin Desc. Pin Desc.
1
9
2
10
1DCD 2SIN
3SOUT 4DTR
5GND 6DSR
7RTS 8CTS
9RI 10 N/C
③MINI_PCIE
: Mini PCI Express x1 slot
Connector type: Onboard 0.8mm-pitch 52-pin edge
card connector
The pin assignments conform to the industry standard.
12
17
15
18
16
51 52
- 9 -
④CPU_FAN: CPU Cooling FAN Connector
Connector Type:
2.54mm pitch 1x4-pin headers.
Pin Description
1
4
1GND
2+12V
3FAN_Detect
4 Control
⑤SPEAKER: Internal Speaker Header
Connector Type:
2.00mm pitch 1x4-pin headers.
Pin Description
1
4
1L_Channel-
2L_Channel+
3R_Channel+
4R_Channel-
⑥
DMIC: Digital MIC Header
Connector Type:
2.54mm pitch 1x5-pin headers.
Pin Description
1
5
1+3.3V
2DMIC DATA
3GND
4DMIC Clock
5N/C
⑦F_AUDIO
: Front Panel Audio Header
The front panel audio header allows the user to
install auxiliary front-oriented microphone and line-out
ports for easier access. This header supports HD
audio by default.
Connector Type:
2.54mm pitch 2x5-pin headers.
Pin Desc. Pin Desc.
1
9
2
10
1FP_MIC_in 2Analog_GND
3MIC_Power 4 Presence#
5 FP_Right 6 Sense1_Return
7 Sense_Send 8 N/C
9 FP_Left 10 Sense2_Return
⑧⑨MIC&LINE_OUT: Microphone&Line-out
The pin assignments
conform to the industry
standard.
LINEOUT MIC
⑩
DC_IN: DC jack
Connector type: DC Φ7.4 Male connector
Inner Shell :19V DC
Outer Shell :GND
⑪
LAN: Ethernet Connectors
The pin assignments
conform to the industry
standard.
1 8
⑬
USB3_0: USB 3.0 Connector
The pin assignments
conform to the industry
standard.
⑬
USB2_0: USB 2.0 Connector
The pin assignments
conform to the industry
standard.
- 10 -

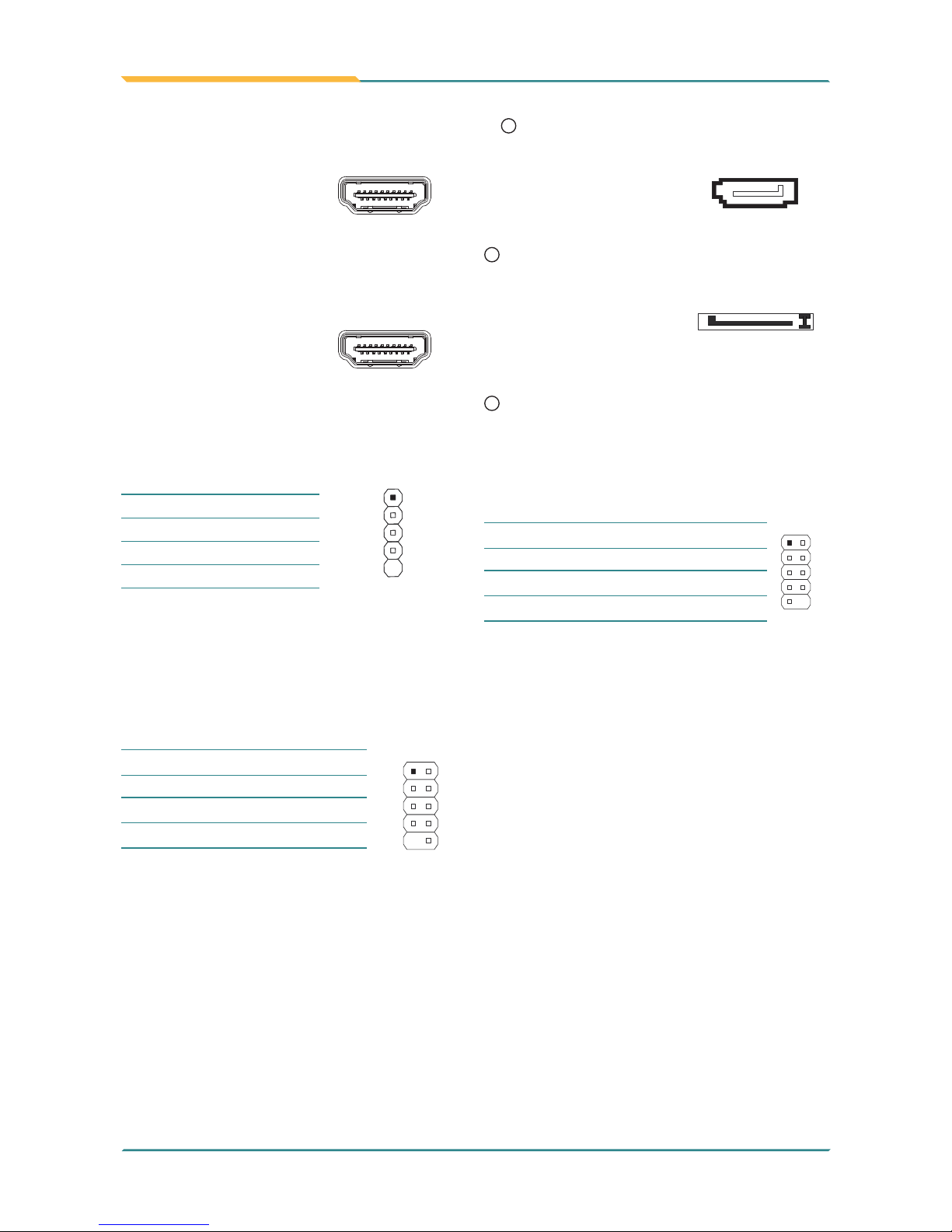

⑭
HDMI_OUT: HDMI Output Connector
Connect the display device to the HDMI_OUT port
The pin assignments
conform to the industry
standard.
18
1
2
19
⑮
HDMI_IN: HDMI Input Connector
Connect other HDMI source to the HDMI_IN port
The pin assignments
conform to the industry
standard.
18
1
2
19
⑯⑰⑱
TC/CM/CR: 5-pin USB 2.0 header
Connector Type:
2.54mm pitch 1x5-pin headers.
Pin Description
1
5
1+5V
2USB-
3USB+
4GND
5N/C
⑲F_USB
:
10-pin USB 2.0 header supports card reader and cam-
era or other USB 2.0 devices
Connector Type:
2.54mm pitch 2x5-pin headers.
Pin Description Pin Description
1+5V 2+5V
3USB Port A (-) 4USB Port B (-)
5USB Port A (+) 6USB Port B (+)
7GND 8GND
9N/C 10 N/C
1
9
2
10
⑳
21
SATA1&2: Serial ATA Connectors
The pin assignments
conform to the industry
standard.
22
SATA_PWR: Serial ATA Power Connector
The pin assignments
conform to the industry
standard.
23
F_PANEL
:Front panel switch/LED
header
A standard set of switch and LED headers for ATX or
Micro ATX cases
Connector Type:
2.54mm pitch 2x5-pin headers.
Pin Description PinDescription
1
9
2
10
1HD LED(+) 2MSG LED (+)
3HD LED(-) 4MSG LED (-)
5Reset Switch (-) 6Power Switch (+)
7Reset Switch (+) 8Power Switch (-)
9Reserved 10 N/C
Indice
Altri manuali Arbor Technology Scheda madre
Arbor Technology
Arbor Technology EmETXe-i91M0 Manuale utente
Arbor Technology
Arbor Technology EmCORE-i77M3 Manuale utente
Arbor Technology
Arbor Technology HiCORE-i6320 Manuale utente
Arbor Technology
Arbor Technology EmCORE-i2702 Manuale utente
Arbor Technology
Arbor Technology EmCORE-i9651 Manuale utente
Arbor Technology
Arbor Technology MB-i67Q0 Manuale utente
Arbor Technology
Arbor Technology EmCORE-i2305 Manuale utente
Arbor Technology
Arbor Technology ITX-i87H0 Manuale utente
Arbor Technology
Arbor Technology MB-i89Q0 Manuale utente
Arbor Technology
Arbor Technology MB-i67Q0 Manuale utente
Arbor Technology
Arbor Technology EmCORE-i2702 Manuale utente
Arbor Technology
Arbor Technology ITX-i89H0 Manuale utente
Arbor Technology
Arbor Technology ITX-i87H0 Manuale utente
Arbor Technology
Arbor Technology EmCORE-i2501 Manuale utente
Arbor Technology
Arbor Technology MB-i77Q0 Manuale utente
Arbor Technology
Arbor Technology EmCORE-i965H Manuale utente
Arbor Technology
Arbor Technology ITX-i67M0 Manuale utente
Arbor Technology
Arbor Technology PBE-1000 Manuale utente
Arbor Technology
Arbor Technology Em104P-i6023 Manuale utente
Arbor Technology
Arbor Technology MB-i965Q Manuale utente
Manuali Scheda madre popolari di altre marche
Telit Wireless Solutions
Telit Wireless Solutions SL869-3DR Manuale utente
Gigabyte
Gigabyte GA-9IVDT Manuale utente
Texas Instruments
Texas Instruments ADS8372EVM Manuale utente
Commell
Commell MS-C73 Manuale utente
IBT Technologies
IBT Technologies MB860 Manuale utente
Nvidia
Nvidia TEGRA DG-04927-001_V01 Manuale utente
