Quick Installation Guide

Version 1.0

If you have any technical difculties, please consult the user’s manual rst at:

ftp://ftp.arbor.com.tw/pub/manual

Please do not hesitate to call or e-mail our customer service when you still can not

nd out the answer.

http://www.arbor.com.tw

E-mail: info@arbor.com.tw

♦ Technical Support

EmCORE-i2501

3.5" Compact Board

I/O

CFast or NANDrive/

SATA/ USB/ Mini-card/

COM

Video

Single Channel 18/24-bit

LVDS/ DVI

-I

LAN

2 x Intel

82583V PCIe

Gigabit Ethernet

Audio

Realtek ALC662 HD Audio

CODEC, Line-in/ Line-out/

Mic-in

Form Factor

3.5"Compact Board

CPU

Intel®Atom™ N2600 or

D2550 Processor

Chipset

Intel®PCH NM10

FCC Class A

This device complies with Part 15 of the FCC Rules. Operation is subject to the

following two conditions : (1) this device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that

may cause undesired operation.

- 2 -

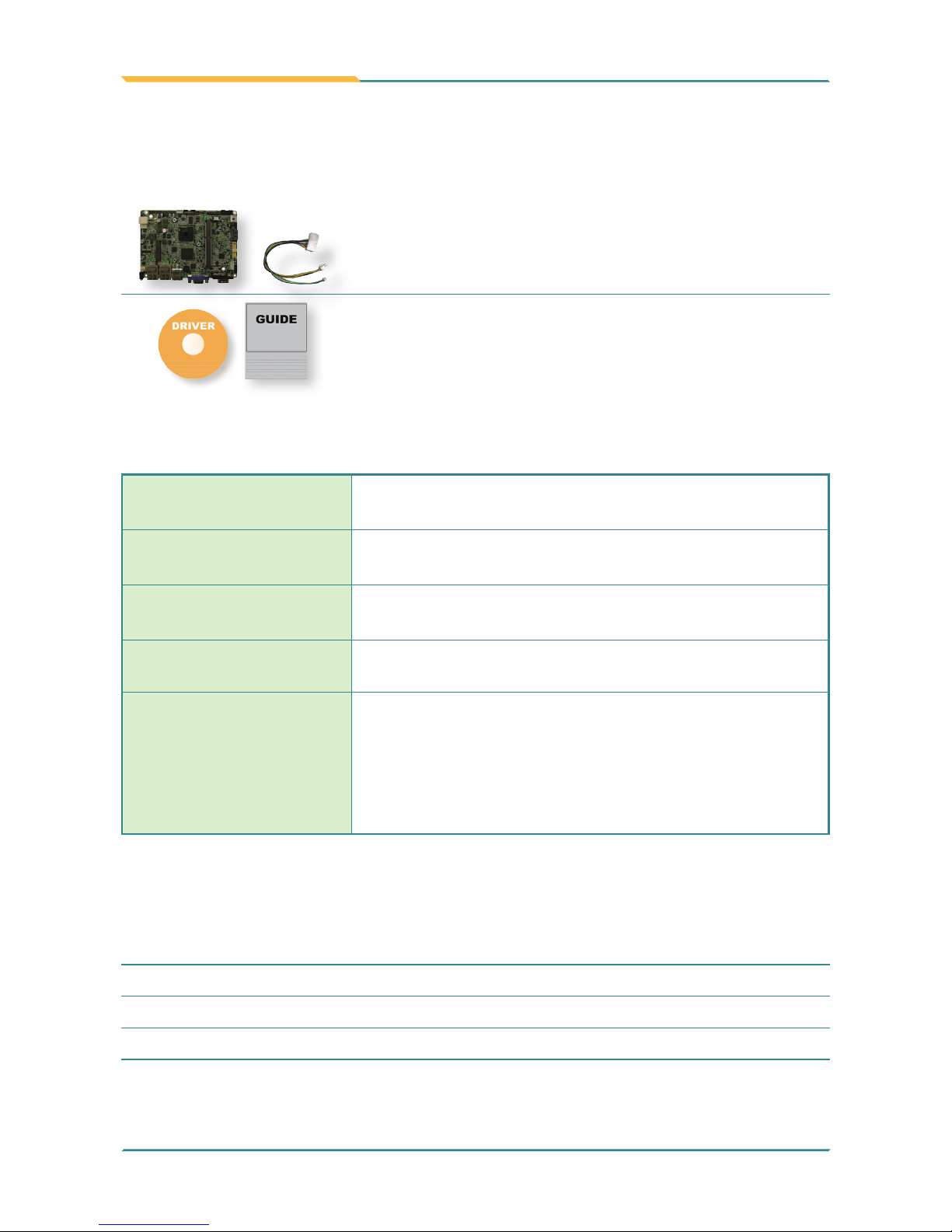

Ordering Information

Packing List

EmCORE-i2501-N26 Intel Atom™ N2600 3.5” Compact Board with CFast

socket

EmCORE-i2501D-N26

(BTO)

Intel Atom™ N2600 3.5” Compact Board with 8GB

NANDrive

EmCORE-i2501-D25 Intel Atom™ D2550 3.5” Compact Board with CFast

socket

EmCORE-i2501D-D25

(BTO)

Intel Atom™ D2550 3.5” Compact Board with 8GB

NANDrive

CBK-06-2501-00

Cable Kit

1 x COM port cables

1 x Audio cable

2 x USB cables

1 x SATA cable

1 x SATA power cable

Before you begin installing your Compact Board, please make sure that the following

materials have been shipped:

1 x EmCORE-i2501 3.5" Compact Board with heatsink

1 x Power cable

1 x Driver CD

1 x Quick Installation Guide

If any of the above items is damaged or missing, contact your vendor immediately.

The Installation Paths of CD Driver

Windows 7

Driver Path

CHIPSET \EmETXe-i250x\CHIPSET\WIN7

VGA \EmETXe-i250x\GRAPHICS

AUDIO \EmETXe-i250x\AUDIO

LAN \EmETXe-i250x\ETHERNET

- 3 -

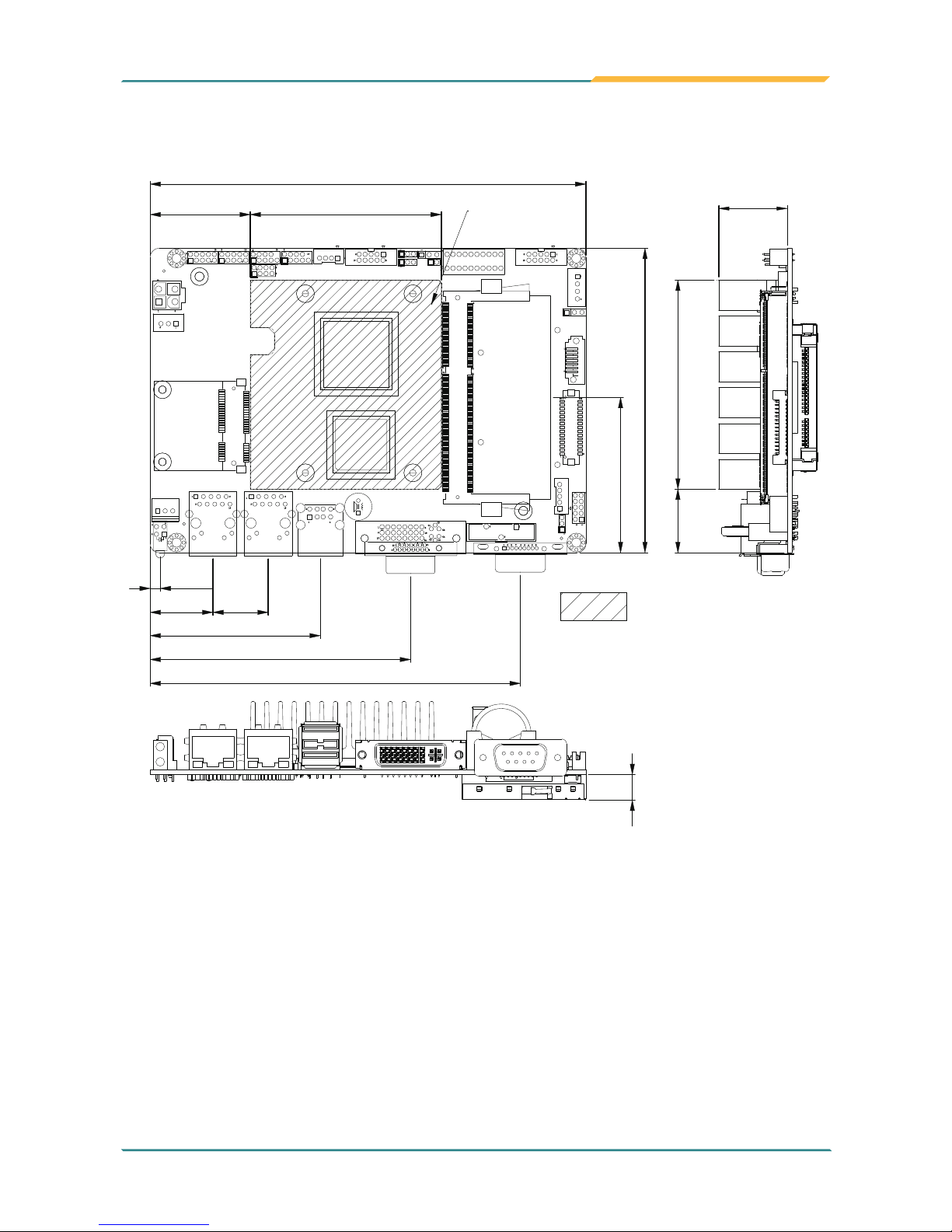

Board Dimensions

1 3

9876 54321

15 11

4 2

3029

7021.3

3.35

20.99 18.5

56.95

87.21

124

33.51 64.00

145.95

101.96

8.62

DVI Type

VGA Type

3.17

98.37

8.84

142.77

Heat sink area

Ø3.1

Ø6.4

(23)

Heat sink area

Unit: mm

- 4 -

Form Factor 3.5" Compact Board

CPU Soldered onboard Intel® Atom™ N2600 at 1.6GHz or

D2550 at 1.86GHz processor

Chipset Intel® PCH NM10

System Memory 1 x 204-pin DDR3 SO-DIMM socket supporting 1066MHz

SDRAM up to 4GB (D2550)/ 2GB (N2600)

Graphics Chipset Integrated Intel® Graphics Media Accelerator 3650/ 3600

Graphics Interface

DVI-I: Analog RBG support up to 1920 x 1200 @60Hz

DVI support up to 1920 x 1200 @60Hz

Single Channel 18/24-bit LVDS

Support dual independent display

Ethernet 2 x Intel 82583V PCIe Gigabit Ethernet Controllers

I/O Chips Fintek F81866D

BIOS AMI® UEFI BIOS

Audio Realtek ALC662 5.1 Channel HD Audio CODEC, Mic-in/ Line-in/

Line-out

Storage

1 x Serial ATA port with 300MB/s HDD transfer rate

1 x CFast socket or soldered onboard 8GB NANDriver

(Alternative)

Serial Port 2 x COM ports (1 x RS-232 port, 1 x RS-232/422/485 port

selectable)

Universal Serial Bus 6 x USB 2.0 ports

Digital IO 8-bit programmable Digital Input/ Output

Expansion Bus 1 x Mini-card socket (half size)

Power Requirement +12V DC single input, additional +5VSB also supported for

use of ATX power

Operation Temp. -20°C ~ 70°C (-4°F ~ 158°F)

Operating Humidity 0 ~ 90% (non-condensing)

Watchdog Timer 1~255 levels reset

Dimension (L x W) 146 x 102 mm (5.7” x 4.0”)

Specications

- 5 -

Jumpers & Connectors Quick Reference

Jumpers

Label Function

JAT1 AT/ATX Power Mode Selector

JBAT1 Clear CMOS Setting

JCV1 COM Port Power Selector

JRS1 COM2 RS-232/422/485 Selector

JVLCD1 LCD Panel Voltage Selector

JV1/2 Volgate/RI Selector for COM1/2

Connectors

Label Function

12VIN1 ATX+12V Connector

AUDIO1 Audio Connector

CFAST1 CFast Socket

COM1/2 Serial Port Connectors

DIO1 Digital I/O Connector

DVI1 DVI-I Connector

EATX1 ATX Feature Connector

FAN1 CPU Fan Power Connector

JFRT1 Switches and Indicators

INV1 LCD Inverter Connector

JCOM1 COM2 RS-422/485 Output Connector

LAN1/2 Gigabit Ethernet Connectors

LVDS1 LVDS LCD Connector

MC1 Mini-card Socket

PWROUT1 SATA Power Connector

SATA1 Serial ATA Connector

USB1/2 USB Connectors

USB3 Double Stacks USB type A Connector

- 6 -

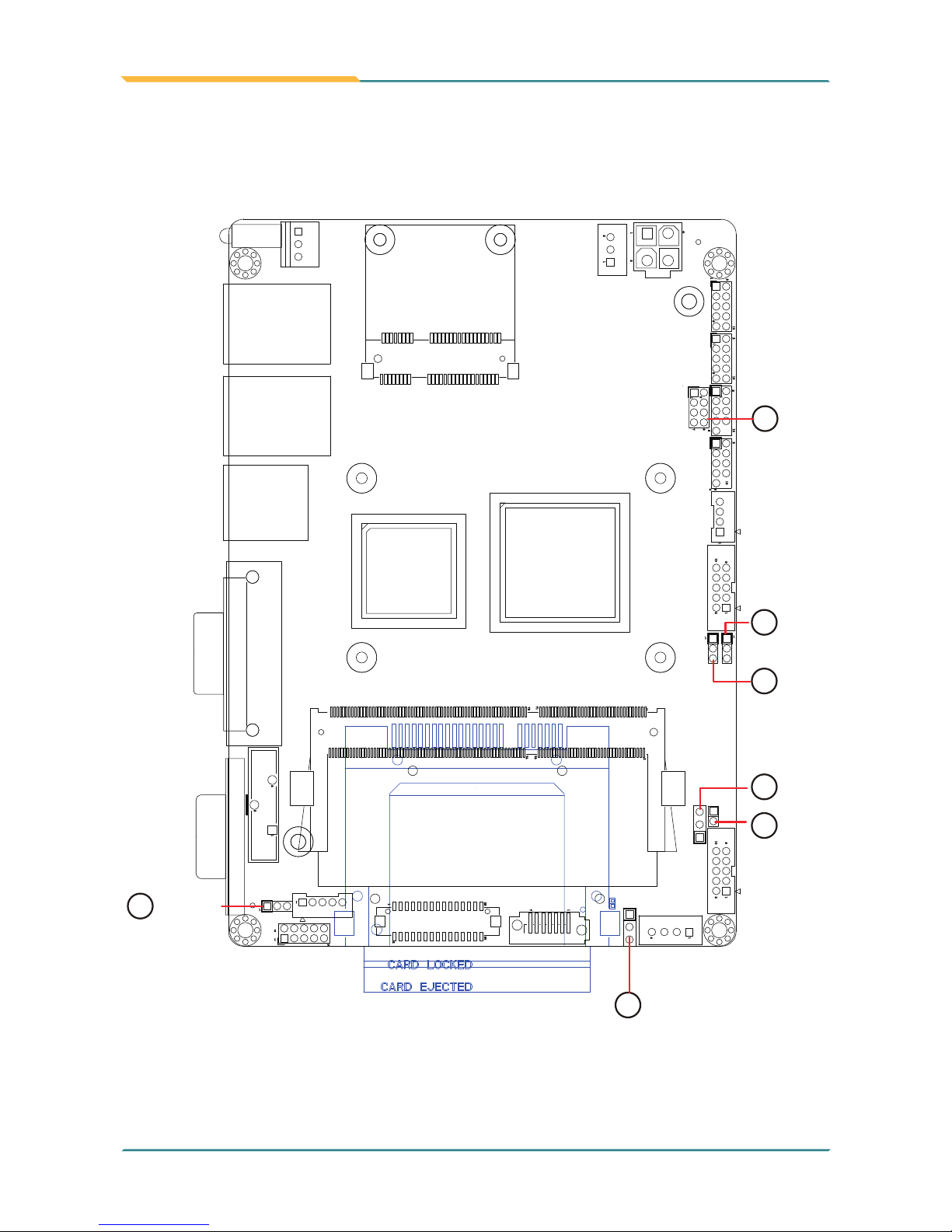

Jumpers Location

1 3

3029

JV2

LED3

JRS1

JVLCD1

JBAT1

2JAT1

3JCV1

4JV1

- 7 -

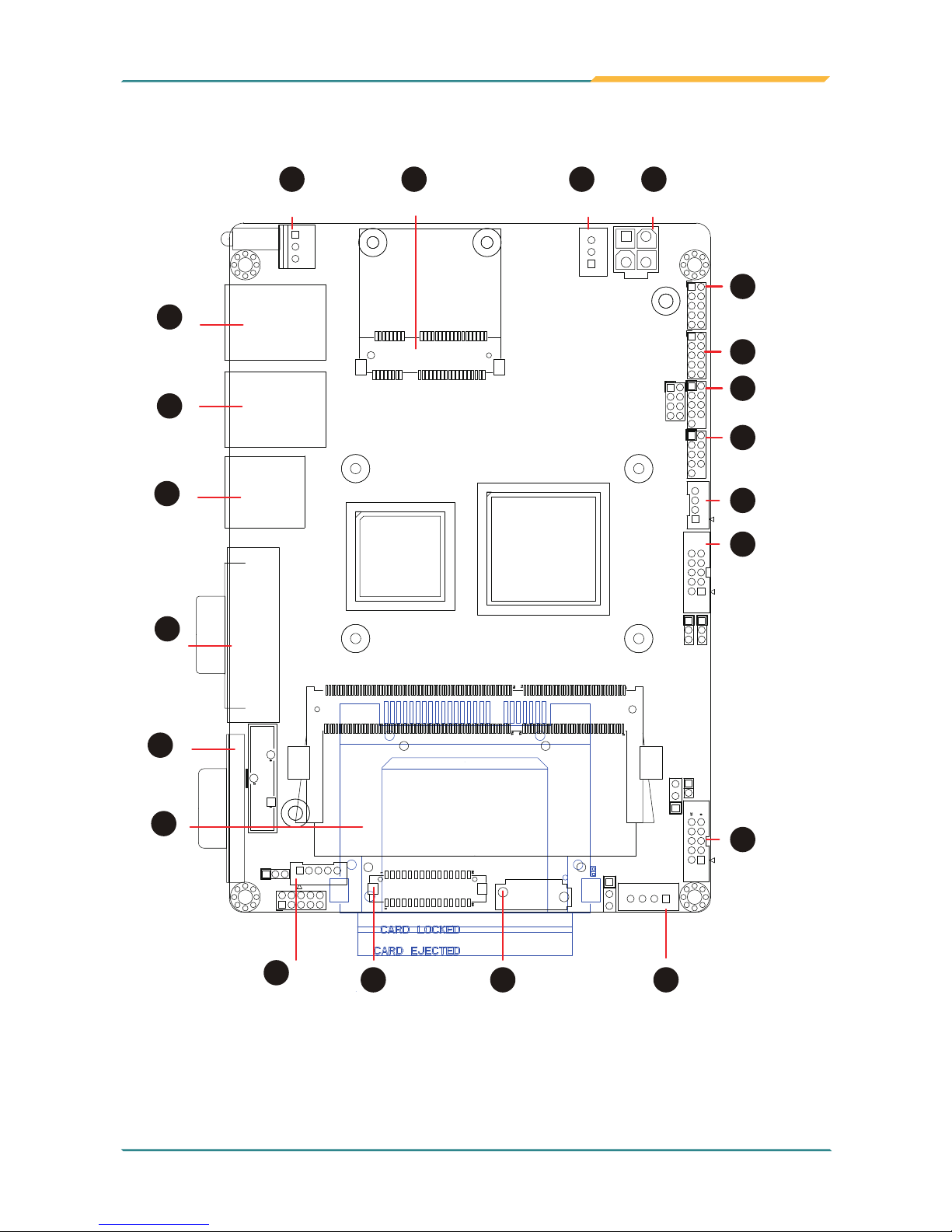

Connectors Location

CFAST1

(bottom

side)

3029

AUDIO1

PWROUT1

INV1 LVDS1

12VIN1

EATX1

FAN1 MC1

SATA1

USB2

JCOM1

COM2

USB1

DIO1

JFRT1

LED3

LAN1

LAN2

USB3

DVI1

COM1

7 8

- 8 -

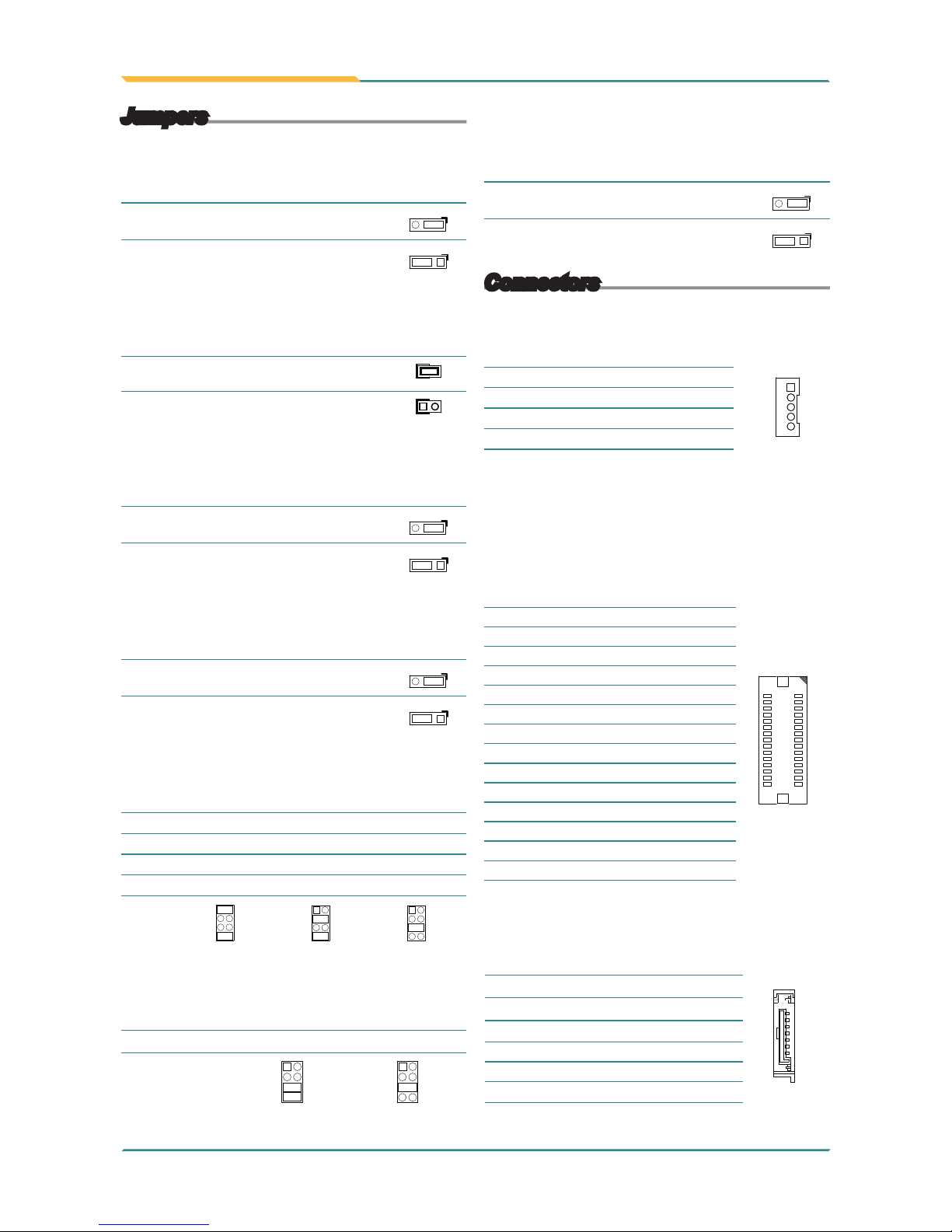

Jumpers

JBAT1: Clear CMOS Setting (1)

Connector type: 2.54mm pitch 1x3-pin header

Pin Mode

1-2 Keep CMOS (default)

23 1

2-3 Clear CMOS

23 1

JCV1: COM Port Power Selector (3)

Connector type: 2.54mm pitch 1x3-pin header

Pin Mode

1-2 +5V (default)

23 1

2-3 +12V

23 1

JV1/2: Voltage/RI Selector for COM1/2 (4, 5)

Connector type: 2.00mm pitch 1x3-pin header

Pin Mode

1-2 RI

23 1

2-3 +12V/ +5V (depend on JCV1)

23 1

JVLCD1: LCD Panel Voltage Selector (7)

Connector type: 2.00mm pitch 1x3-pin header

Pin Mode

1-2 5V

23 1

2-3 3.3V (default)

23 1

JAT1: AT/ATX Power Mode Selector (2)

Connector type: 2.00mm pitch 1x2-pin header

Pin Mode

Short AT Mode 1 2

Open ATX Mode (default) 1 2

JRS1: COM2 RS-232/422/485 Selector (6)

Connector type: 2.00mm pitch 2x4-pin header

Mode

RS-232 (default)

RS-422 RS-485

1-2 Short Open Open

3-4 Open Short Open

5-6 Open Open Short

7-8 Short Short Open

Connectors

INV1: LCD Inverter Connector (8)

Connector type: 2.00mm pitch 1x5-pin box wafer connector

Pin Description

1 +12V

2GND

3 on/off

4Brightness control

5GND

LVDS1: LVDS LCD Panel Connector (9)

The LVDS connector supports single channel 18-bit

or 24-bit LVDS.

VDD could be selected by JVLCD1 in +5V or +3.3V.

Connector type: DF-13-30DP-1.25V

Pin Description Pin Description

2930

2VDD 1VDD

4 NC 3 LVDS CLK+

6NC 5 LVDS CLK-

8 GND 7 GND

10 NC 9 LVDS TX0+

12 NC 11 LVDS TX0-

14 GND 13 GND

16 NC 15 LVDS TX1+

18 NC 17 LVDS TX1-

20 GND 19 GND

22 NC 21 LVDS TX2+

24 NC 23 LVDS TX2-

26 GND 25 GND

28 NC 27 LVDS TX3+

30 NC 29 LVDS TX3-

SATA1: Serial ATA Connector (10)

High speed transfer rates (300MB/s).

Pin Description

1GND

2TX+

3 TX-

4GND

5RX-

6 RX+

7 GND

JRS1: COM2 RS-485 Auto-Flow Selection (6)

Connector type: 2.00mm pitch 2x4-pin headers.

Mode Disable Enable

7-8 Short Open

- 9 -

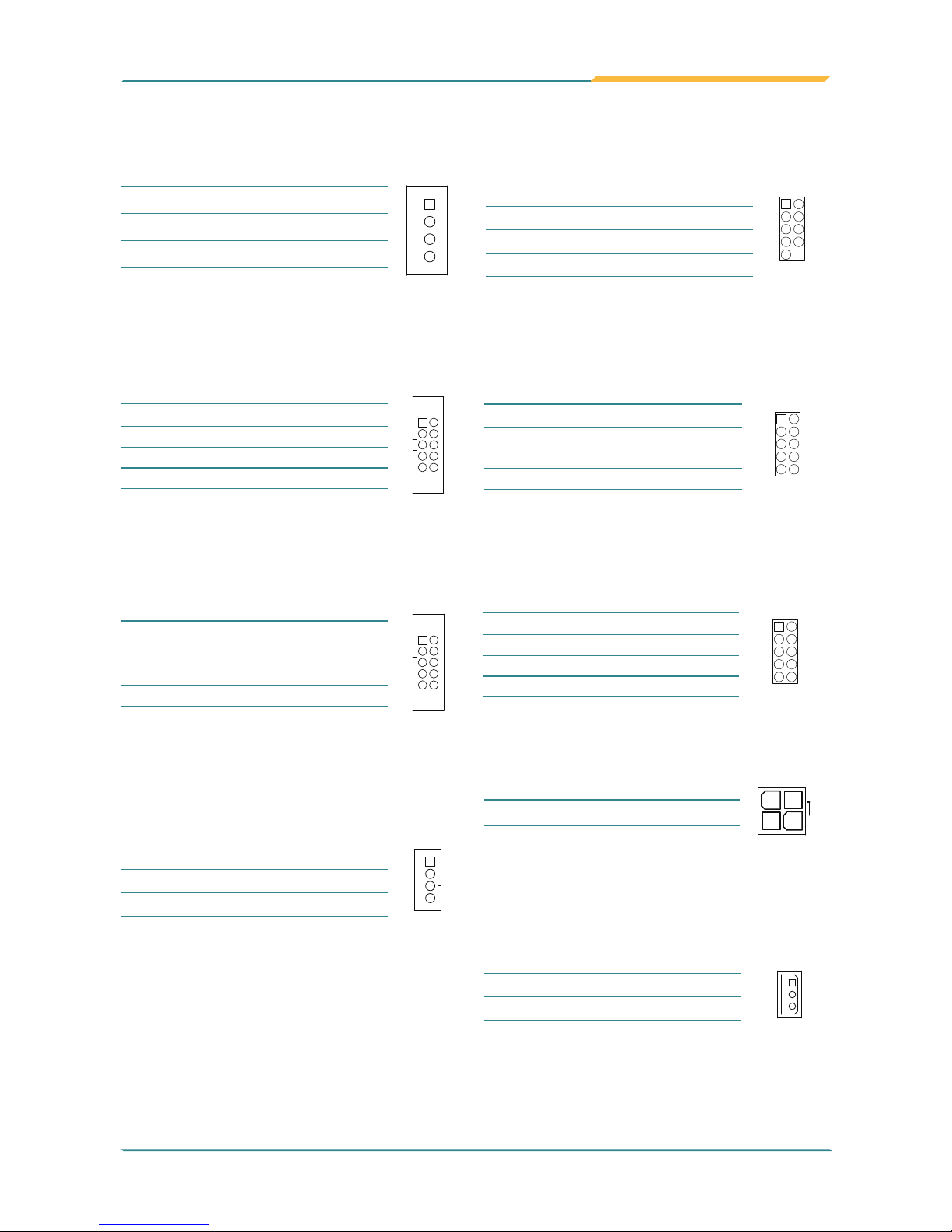

DIO1: Digital I/O Connector (17)

Connector type: 2.00mm pitch 2x5-pin header

Pin Description Pin Description

109

1 2

1DIO1 2DIO2

3 DIO3 4DIO4

5DIO5 6 DIO6

7 DIO7 8 DIO8

9+5V 10 GND

JFRT1: Switches and Indicators (18)

Connector type: 2.00mm pitch 2x5-pin header

Pin Description Pin Description

109

1 2

1RESET+ 2RESET-

3 POWER_LED+ 4POWER_LED-

5HDD_LED+ 6 HDD_LED-

7 SPEAKER+ 8 SPEAKER-

9 PWRBTN+ 10 PWRBTN-

COM2: Serial Port Connector (13)

Connector type: 2.00mm pitch 2x5-pin box header

Pin Description Pin Description

1 2

9 10

1DCD#2 2RXD2

3 TXD2 4DTR#2

5GND 6 DSR#2

7 RTS#2 8 CTS#2

9RI2 10 NC

AUDIO1: Audio Connector (12)

Connector type: 2.00mm pitch 2x5-pin box header

Pin Description Pin Description

1 2

9 10

1Lin_In_Left 2Line_In_Right

3 GND 4GND

5MICL 6 MICR

7 GND 8 GND

9Speaker Left 10 Speaker Right

JCOM1: COM2 RS-422/485 Output Connector

(14)

Connector type: 2.00mm pitch 1x4-pin box wafer connector

Pin RS-422 RS-485

1TX+ DATA+

2TX- DATA-

3 RX+ N/C

4RX- N/C

12VIN1: ATX+12V Connector (19)

Pin Description Pin Description

2GND 4 +12V

1GND 3 +12V

EATX1: ATX Feature Connector (20)

Connector type: 2.54mm pitch 1x3-pin box wafer connector

Pin Description

1PS-ON

2GND

3 5V_SB

USB1/2: USB Connectors (16, 15)

Connector type: 2.00mm pitch 2x5-pin header

Pin Description Pin Description

109

1 2

1 +5V 2 +5V

3 USBD- 4USBD-

5USBD+ 6 USBD+

7 GND 8 GND

9 GND 10 N/C(KEY)

PWROUT1: SATA Power Connector (11)

Connector type:

1x4-pin 2.54mm power connector

Pin Description

1 5V

2GND

3 GND

4 12V

- 10 -

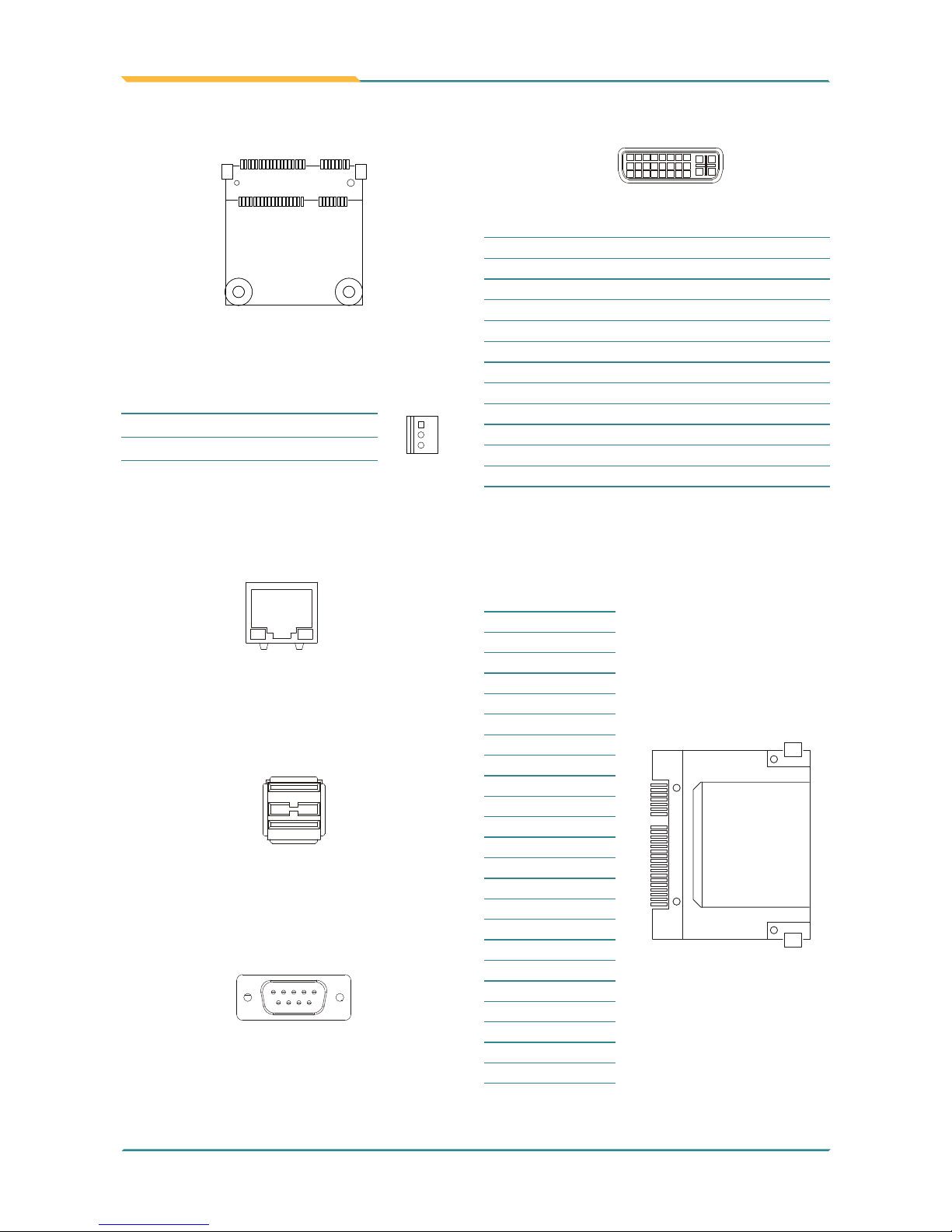

COM1: Serial Port

Connector (27)

Connector type: external 9-pin D-sub male connector

1 5

USB3: Double Stacks USB type A Connector

(25)

LAN1/2: Gigabit Ethernet Connectors (23, 24)

These connectors support Gigabit Ethernet.

CFast1: CFast Socket (28) (On Bottom Side)

Description

PC1

PC17

PC1

PC17

S1 SGND1

S2 TXP

S3 TXN

S4 SGND2

S5 RXN

S6 RXP

S7 SGND

PC1 CDI

PC2 GND

PC3 TBD

PC4 TBD

PC5 TBD

PC6 TBD

PC7 GND

PC8 LED1

PC9 LED2

PC10 IO1

PC11 IO2

PC12 IO3

PC13 3.3V

PC14 3.3V

PC15 GND

PC16 GND

PC17 CD0

DVI1: DVI-I Display Connector (26)

Pin Description Pin Description Pin Description

DATA2-

DATA1-

DATA0-

DATA2+

DATA1+

DATA0+

DATA 2/4 SHIELD

DATA 1/3 SHIELD

DATA 0/5 SHIELD

DATA 4- (LINK 1, NC)

ATA 3- (LINK 1, NC)

DATA 5- (LINK 1, NC)

DATA 4+ (LINK 1, NC)

DATA 3+ (LINK 1, NC)

DATA 5+ (LINK 1, NC)

DDC_CLK

+5V

Clock_SHIELD

DDC_DATA

GND (for +5V)

Clock+

VGA_V_Sync

Hot Plug Detect

Clock-

VGA Red

VGA Green

VGA Blue

VGA_H_Sync

VGA_R,G,B_Return

Note:

Deafult signals are setting to DVI-D.

1 8

9 16

FAN1: CPU Fan Power Connector (22)

Connector type: 2.54mm pitch 1x3-pin box wafer connector

Pin Description

1GND

2 +12V

3Fan Speed

MC1: Mini-card Socket (21)

Indice

Altri manuali Arbor Technology Scheda madre

Arbor Technology

Arbor Technology MB-i35Q1 Manuale utente

Arbor Technology

Arbor Technology ITX-i92QA Manuale utente

Arbor Technology

Arbor Technology EPIC-747E Manuale utente

Arbor Technology

Arbor Technology EasyBoard-650E Manuale utente

Arbor Technology

Arbor Technology ITX-i9453 Manuale utente

Arbor Technology

Arbor Technology ITX-i2203 Manuale utente

Arbor Technology

Arbor Technology ITX-i89H0 Manuale utente

Arbor Technology

Arbor Technology MB-i89Q0 Manuale utente

Arbor Technology

Arbor Technology EmCORE-i230G Manuale utente

Arbor Technology

Arbor Technology MB-i67Q0 Manuale utente

Arbor Technology

Arbor Technology MB-i77Q0 Manuale utente

Arbor Technology

Arbor Technology ITX-i87H0 Manuale utente

Arbor Technology

Arbor Technology HiCORE-i67Q1 Manuale utente

Arbor Technology

Arbor Technology ITX-a55E3 Manuale utente

Arbor Technology

Arbor Technology ITX-i2203 Manuale utente

Arbor Technology

Arbor Technology ITX-i230D Manuale utente

Arbor Technology

Arbor Technology EmETXe-i91M0 Manuale utente

Arbor Technology

Arbor Technology EmCore-a5360 Manuale utente

Arbor Technology

Arbor Technology ITX-i2705D Manuale utente

Arbor Technology

Arbor Technology EmCORE-i89M2 Manuale utente

Arbor Technology

Arbor Technology EmCORE-i965H Manuale utente

Arbor Technology

Arbor Technology MB-i89Q0 Manuale utente

Arbor Technology

Arbor Technology PBE-1000 Manuale utente

Arbor Technology

Arbor Technology Em104P-i6023 Manuale utente

Manuali Scheda madre popolari di altre marche

DFI

DFI SD170 Manuale utente

ASROCK

ASROCK ROMED8-2T Manuale utente

Asus

Asus P2L97A Manuale utente

Winmate

Winmate IC70 Manuale utente

Asus

Asus MES-B Manuale utente

Grantech

Grantech SYS8F377VGGA-3OMN Manuale utente

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuale utente

Gigabyte

Gigabyte GA-9IVDT Manuale utente

Texas Instruments

Texas Instruments ADS8372EVM Manuale utente

Commell

Commell MS-C73 Manuale utente

IBT Technologies

IBT Technologies MB860 Manuale utente

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuale utente

Biostar

Biostar M7VIT Bravo Istruzioni per l'uso e l'installazione

Intel

Intel D33217CK Manuale utente

Asus

Asus F1A55-M LX PLUS R2.0 Manuale utente

EPC

EPC EPC9147C Manuale utente

Asus

Asus EX-B760M-V5 D4 Manuale utente

EPOX

EPOX MU-8KHA0010 Manuale utente
