Arbor Technology PBE-1702 Manuale utente

- 1 -

4041170200120P

Quick Installation Guide

Version 1.2

PBE-1702

COM Express Type 6 Evaluation Board

Form Factor

COM Express

Evaluation Board

I/O

PCI Express x16/x1/x4,

SATA, USB, COM, LPT,

Mini-card

Video

Dual Channels LVDS,

Analog RGB

, DVI,

Display Port

Ethernet

RJ-45 LAN Connector

If you have any technical difculties, please consult the user’s manual rst at:

ftp://ftp.arbor.com.tw/pub/manual

Please do not hesitate to call or e-mail our customer service when you still can not

nd out the answer.

http://www.arbor.com.tw

E-mail: info@arbor.com.tw

♦ Technical Support

FCC Class A

This device complies with Part 15 of the FCC Rules. Operation is subject to the

following two conditions : (1) this device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that

may cause undesired operation.

Audio

ALC888 CODEC,

Line-in/ out, Mic-in,

7.1 + 2 Channel

- 2 -

Packing List

Before you begin installing your single board, please make sure that the following

materials have been shipped:

1 x PBE-1702

COM Express

evaluation board

1 x Quick Installation Guide

COM Express Module Type Summary Features

COM Express supports seven pin-out Type apply to Basic and Extended form factors:

Module Type 1 and 10 supports single connector with two rows of pins (220 pins)

Module Type 2, 3, 4, 5 and 6 support two connectors with four rows of pins (440 pins)

Connector placement and most mounting holes have transparency between Form

Factors.

The differences amount the Module Types are summarized in table below:

Module Type 1 10 2 345 6

Connectors 1 1 2 2 2 2 2

Connector Rows A, B A, B A, B,

C, D

A, B,

C, D

A, B,

C, D

A, B,

C, D

A, B,

C, D

PCIe Lanes (max) 6 4 22 22 32 32 24

PCI Bus No No Yes Yes No No No

PATA - IDE No No Yes No Yes No No

LAN (Max) 1113131

Serial Ports No 0 / 2 No No No No 0 / 2

Muxed SDVO No No 0 / 2 0 / 2 0 / 2 0 / 2 No

Digital Display I/F No No No No No No 0 / 3

USB 3.0 Ports No No No No No No 0 / 4

- 3 -

Ordering Information

PBE-1702 COM Express evaluation board in ATX form factor

Cable Kit CBK-04-1702-00

Specications

Form Factor COM Express evaluation board in ATX form factor

I/O Chips Fintek F71869ED

Audio ALC888 CODEC, Line-in/out, Mic-in, 7.1 + 2 Channel

Serial ATA 4 x Serial ATA connectors

(depending on CPU module)

Serial Port 2 x COM ports

2 x Ultra COM ports (depending on CPU module)

Parallel Port 1 x SPP/EPP/ECP mode

KBMS Standard PS/2 keyboard and mouse

Universal Serial Bus 2 x USB 2.0 ports

4 x USB 3.0 ports (depending on CPU module)

LCD 1 x LVDS Dual Channel connector

VGA / Display Port Analog RGB connector / DisplayPort connector / DVI

connector

DIO 8-bit Digital Input/Output

Expansion Interface

1 x PCI Express x16 slot

2 x PCI Express x1 slots

1 x PCI Express x4 slot

2 x Mini-card sockets

All these expansion interfaces’ functions are depen-

dent upon CPU module.

Hardware Monitor Chip Integrated in F71869ED

Operation Temp. -20ºC~70ºC (-4ºF~158ºF)

Power Connector ATX connector

Dimension (L x W) 305 x 243 mm (12” x 9.6”)

- 4 -

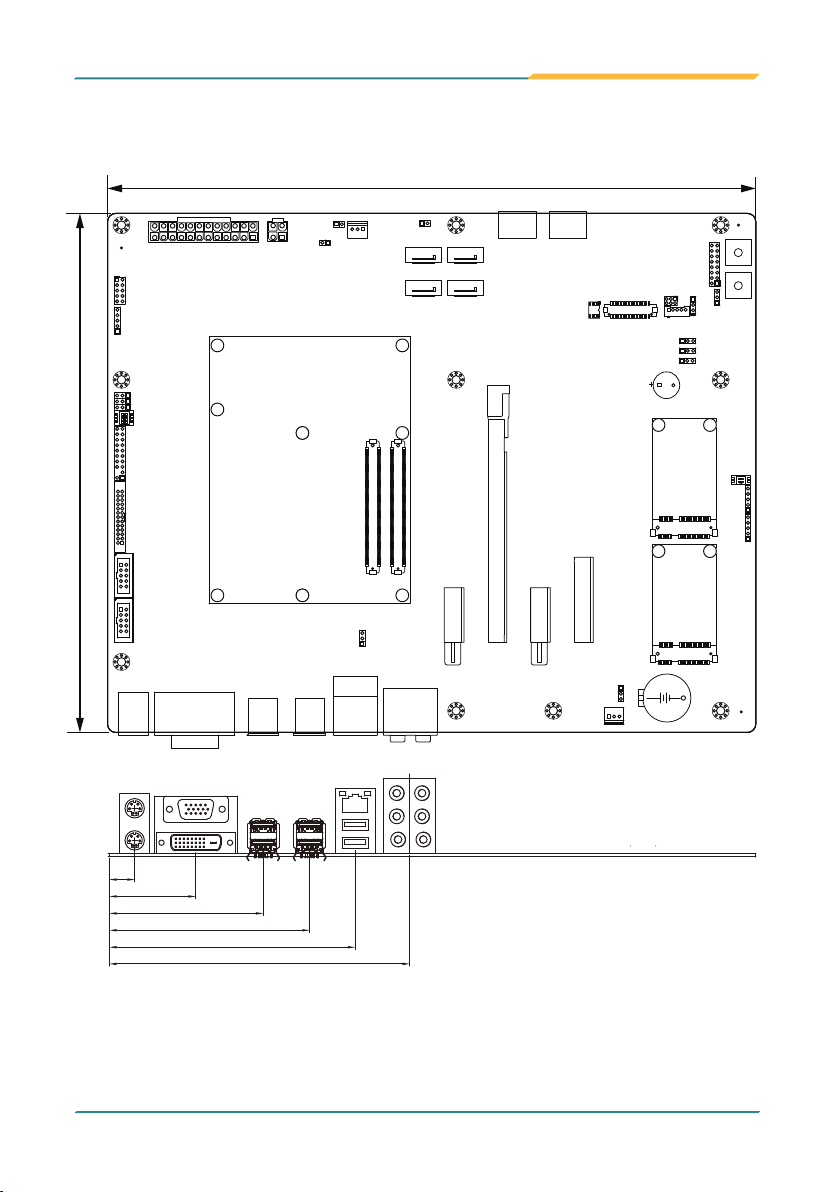

Board dimensions

116.6

142.47

B110

A110

D110

C110

1 2 34

15 17

16 18

15 17

302

1 4

305

Unit: mm

243

- 5 -

Jumpers/ Connectors Quick Reference

Jumpers

Label Description

JPWOK1 Carrier Board Power OK Selection

J5VSB1 CPU Midule 5VSB Power Selection

JPSON1 Force ATX Power Supply Power On

JTPM1

Select TPM Module Special Command

JBL2 LVDS1 Brightness Control Level and Mode Selection

JBL1 LVDS1 Brightness Control Source Selection

JWDT1 Watch Dog Source Selection

JINV1 LVDS1 Inverter Power Selection

JVLCD1 LVDS Panel Voltage Selection

JBLON1 LCD Backlight On Control Mode

SW1 BIOS boot selection

JBAT1 Clear CMOS

JAUDIO1 Audio Codec I/O Power Selection

- 6 -

Connectors

Label Function

COM1~2 RS-232 Serial Ports

LPT1 Parallel Port Connector

TPM1 Trusted Platform Module Connector

DIO1 Digital I/O Connector

ATX1 ATX Power Connector

ATX12V1 ATX +12V Connector

CPUF1 CPU Fan Power Connector

SATA1~4 Serial ATA Connectors

DP1~2 Display Port Connector

INV1 LCD Inverter Connectors

LVDS1 LVDS LCD Panel Connectors

JFRT1 Switches and Indicators Connector

RES1 Reset Button / Connector

PSON1 Power On Button / Connector

CON1~2 CPU Module Ultra Serial Ports (Only RX and TX)

MC1~2 PCI Express Mini-card Sockets

SYSF1 System Fan Power Connector

PCIE1~2 PCIE ×1 Slots

PCIE3 PCIE ×4 Slot

PCEG1 PCIE Graphic ×16 Slot

AUDIO1 HD AUDIO Connector

LAN1 RJ-45 & Double Stack USB Connector

USB1~2 Double Stack USB Type A Connectors (support USB 3.0, depending

on CPU module)

VGA1 Analog RGB & DVI-D Display Connector

KBM1 PS/2 Keyboard & Mouse Connector

- 7 -

Jumpers

B110

A110

D110

C110

1 2 34

15 17

16 18

15 17

302

1 4

JPWOK1

JPSON1

J5VSB1

JTPM1

JBL1

JBL2

JINV1

SW1

JBAT1 12

JAUDIO113

JWDT1

JVLCD1

JBLON1

- 8 -

Connectors

B110

A110

D110

C110

1 2 34

15 17

16 18

15 17

302

1 4

COM1

14 COM2

15 LPT1

16 TPM1

17 DIO1

ATX1

ATX12V1

CPUF1

SATA1

SATA4

SATA3

SATA2

DP1

DP2

LVDS1

INV1

RES1

POSN1

CON2

CON1

MC2

MC1

SYSF137

PCIE3 38

PCIE2 39

PCEG140

PCIE141

AUDIO142

LAN143

USB2 44

JFRT1

USB1 45

VGA146

KBM147

- 9 -

JPWOK1: Carrier Board Power OK

Selection (1)

Connector type: 2.54mm pitch 1×3 pin header.

Pin Power Button

1-2 from carrier board power

ok out (default)

23 1

2-3 always high

23 1

JBL2: LVDS1 Brightness Control

Level and Mode Selection (5)

Connector type: 2.00mm pitch 2×3 pin header.

Pin Brightness Control Source

1-3 5V PWM mode control

(default)

3-5 3.3V PWM mode control

2-4 5V DC level control

4-6 0V DC level control

JINV1: LCD Inverter Voltage

Selection (8)

The voltage of inverter could be selected by

JINV1 in +5V or +12V.

Connector type: 2.54mm pitch 1×3 pin header.

Pin Voltage

1-2 +5V

23 1

2-3 +12V (default)

23 1

Jumpers

J5VSB1: CPU Module 5VSB Power

Selection (2)

Connector type: 2.54mm pitch 1×2-pin header.

Pin CPU Module 5VSB Power

1-2 Short 5VSB (default) 1 2

Open No Standby power 1 2

JPSON1: Force ATX Power Supply

Power On (3)

Connector type: 2.54mm pitch 1×2-pin header.

Pin AT/ATX Mode Select

Short AT mode 1 2

Open ATX Mode (default) 1 2

JTPM1: Select TPM Module Special

Command (optional)(4)

Connector type: 2.54mm pitch 1×2-pin header.

Pin TPM Physical Presence

Short Presence 1 2

Open Not Presence 1 2

JBL1: LVDS1 Brightness Control

Source Selection (6)

Connector type: 2.54mm pitch 1×3 pin header.

Pin Brightness Control Source

1-2 CPU module (default)

23 1

2-3 carrier Super I/O

23 1

JWDT1: Watch Dog Source Selection

(7)

Connector type: 2.54mm pitch 1×3 pin header.

Pin Source

1-2 carrier Super I/O (default)

23 1

2-3 CPU module

23 1

- 10 -

JBLON1: LCD Backlight On Control

Mode (10)

Connector type: 2.54mm pitch 1×3 pin header.

Pin Mode

1-2 0V low ON

23 1

2-3 5V high ON (default)

23 1

SW1: BIOS Boot Selection (11)

Function 1 2

Boot from CPU module SPI Flash

Boot from Carrier Board SPI Flash

Boot from CPU Module SPI Flash

JBAT1: CMOS Setup (12)

Connector type: 2.54mm pitch 1×3 pin header.

Pin Mode

1-2 keep CMOS (default)

23 1

2-3 clear CMOS

23 1

JAUDIO1: AUDIO Voltage Selection

(13)

The voltage of AUDIO could be selected by

JAUDIO1 in +1.5V or +3.3V.

Connector type: 2.54mm pitch 1×3 pin header.

Pin Voltage

1-2 +3.3V (default)

23 1

2-3 +1.5V

23 1

JVLCD1: LVDS Panel Voltage

Selection (9)

The voltage of LVDS panel could be selected

by JVLCD1 in +5V or +3.3V.

Connector type: 2.54mm pitch 1×3 pin header.

Pin Voltage

1-2 +5V

23 1

2-3 +3.3V (default)

23 1
