ASPIRIT ENTERPRISE C7889O Manuale utente

C7889O Cars, Pick-ups, & SUVs

User Manual

A. Product Overall:

zComponents: 4 External valve sensors, 1 LCD Display & 2-pc Tool Set

(PowerAdaptor optional accessory)

zFrequency: HF 433.92MHz

zFeatures:

1. Detection of each tire pressure range: (10~70PSI)

2. Accuracy of the tire pressure ±2 PSI

3. Accuracy of the Tire Temperature ± 3℃

4. Tire Temperature Detecting Range: -30 ~ + 85℃

5. High or Low-Pressure Alarm setting boundary.

6. High Temperature of Tire Alarm.

7. Temperature unit settings: ℃& ℉

8. Real-time LCD Digital indication on remote screen.

9. Tire Pressure Calibration units: PSI, BAR, & KPA

10. Reserved 40M Tire Recognition codes.

zAlarm Types shown on Display:

1. Indication of High-PressureAlarm: LCD flashing on specific wheel with High-Pressure Value

shown and “Beep” sound provided.

2. Indication of Low-PressureAlarm: LCD flashing on specific wheel with Low-Pressure Value

shown and “Beep” sound provided.

3. Indication of High TemperatureAlarm: LCD flashing showing temperature value and “Beep”

sound provided

4. Indication of Sensor Low-Battery Warning: Shown on LCD display

5. Indication of Display Low-Battery Warning: LCD flashing indication on the Power light &

“Beep” sound.

6. Indication of Sensor MalfunctionAlarm: Shown on LCD display (Display self-examine).

zSpecification:

*Specification is subject to change for product performance without any notice

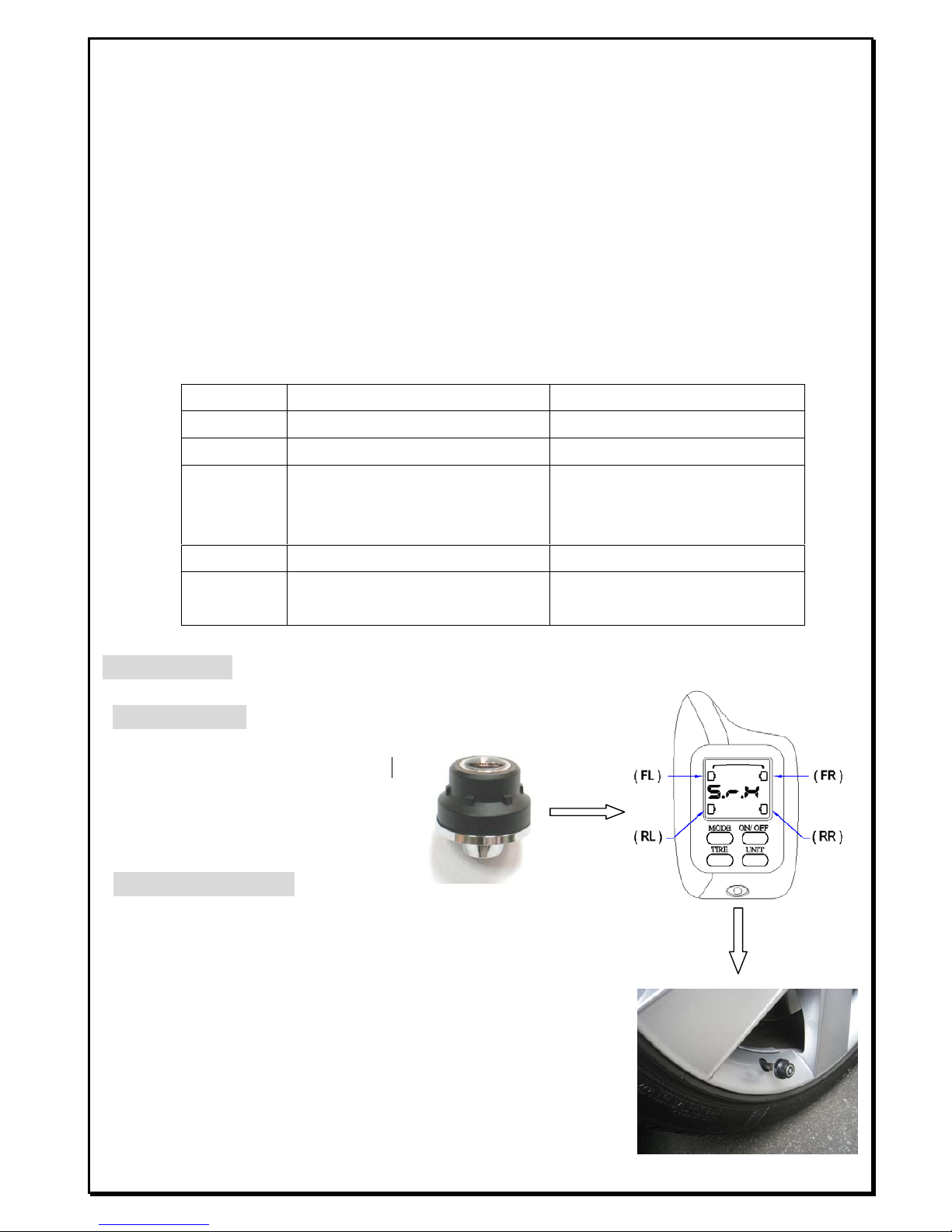

B. Installation:(Always have the display power on before installation of sensors)

Label on Sensor

1. Labeled with FL: Front Left Wheel.

2. Labeled with FR.: Front Right Wheel.

3. Labeled with RL.: Rear Left Wheel.

4. Labeled with RR.: Rear Right Wheel.

Installation of Sensor:

SUGGESTION: With the display power on, the

communication of sensor & display will run well prior to the installation of sensor。

1. Make sure the top part and bottom house of the sensor are tightened

(Applied with enclosed wrench)

2. Remove original valve cap from stem

3. Screw-on the enclosed Hex nut on the valve; then, mount the valve

sensor onto the valve stem. Make sure the Hex nut is being tighten in reverse

clockwise direction to affix with the bottom part of the Valve Sensors。

NOTICE: To Check the valve if it is leaking after installation

,it can be confirmed from the display to see if the

pressure has dropped down.

Sensors LCD Display

Dimension ψ26.0* H: 25.0 (mm) 76mm (L) x 42.5mm (W) x 19.5mm (H)

Weight 14.0g ± 0.5g ( w/Battery contained) 36.5g ± 0.5g (Battery Excluded)

Power Supply CR2032 3V Lithium

(1~2 year Lifetime or above 2 years when

under normal condition)

2 x 3A’BatteryAlkaline type or

(Power Supplied line 12V)

Frequency 433.92MHz 433.92MHz

Operating

Temperature -30℃~ + 85℃-20℃~+80℃

Installation of Display:

1. Place the LCD display at a best view place, then, have the

display power ON (or applying Motorbike DC12V power wire)

C. About the Display Panel：

ON/OFF: Power on/off.

MODE: To check the internal setting value. Press 1 time

To run a cycle-check (High & Low Pressure value

& High temperature)

TIRE: To check actual tire pressure & temperature value.

To run a cycle-check press 1 time

UNIT: To switch the calibration unit for pressure & temperature.

D: Explanation of Circumstances：

◎Power on. System is checking。◎Display receiving data from 4 different wheel,

pressure is normal (within High/Low setting)

1. 2. 3. 4. 5. 6.

7. 8. 9. 10.

◎When pressure is normal, press TIRE-Key to check Actual Pressure & Temperature value。

(Cycle order: starting with FL. Wheel--FR. Wheel Pressure & Temperature. Then, RL. Wheel--RR. Wheel

Pressure & Temperature)

1. 2. 3. 4. 5. 6.

◎When power is on, press MODE-Key to check internal High, Low Pressure & Temperature setting value。

(Cycle order: Starting first FL. FR. wheels & RL, RR wheels--High pressure, then, FL. FR. wheels & RL.

RR. wheels--Low pressure, & FL. FR. wheels & RL. RR. wheels--High temperature and return to original)

1. 2. 3. 4. 5. 6.

◎When power is on, press UNIT-Key to switch the calibration unit of pressure or temperature

(This setting is done separately)

Press UNIT-Key for 2-second until the calibration unit is shown. Then, press UNIT-Key to make

selection. Press TIRE-Key to confirm the unit , the system will return to “Power-On” screen。

1. 2. 3. 4. 5. 6.

◎When making any adjustments on the settings (pressure & temperature setting done separately), first, press

UNIT-Key and press TIRE-Key in the same time. The display would show as diagram 1. (Hi.P.) setting.

Press “MODE-KEY” to make a selection from diagram 1~6, make sure to press TIRE-KEY after a specific

selection. (To quit the above diagram 1~6 selection mode, simply press UNIT-Key)

Illustration of above diagrams:

1. To adjust the H-PressureAlarm value (Internal Setting: : 40PSI/ 2.79bar/ 279kPa )

2. To adjust the L-PressureAlarm value (Internal Setting: 30PSI/ 2.10bar/ 210kPa )

3. To adjust H-Temperature Alarm value (Internal Setting: 80℃/ 176℉)

4. Tire Rotation (This feature only works for Internal Type Valve Sensors)

5. Options of LED backlight on/off (ON or OFF )

6. Number of wheels shown on display。(3 types: 2, 4, or 5 wheels)

◎FL wheel H. pressure ◎FR wheel H. pressure ◎RLwheel L. pressure ◎RR wheel L. pressure

◎RLwheel H. temperature ◎FR wheel sensor malfunction ◎FR wheel sensor L. battery ◎Display L. battery

(The sign is flashing)

(Sign on FR wheel& LO-BATT)(LO-BATT sign flashing)

COWEAHTH PRECISION TECH. CO., LTD.

ASPIRIT ENTERPRISE, INC.

Email:tire.monitor@msa.hinet.net

M7889O Motorbike

User Manual

A. Product Overall:

zComponents: 2 External valve sensors, 1 LCD Display & 2-pc Tool Set

(Power Supplied Line optional accessory)

zFrequency: HF 433.92MHz

zFeatures:

1. Detection of each tire pressure range: (10~70PSI)

2. Accuracy of the tire pressure ±2 PSI

3. Accuracy of the Tire Temperature ± 3℃

4. Tire Temperature Detecting Range: -30 ~ + 85℃

5. High or Low-Pressure Alarm setting boundary.

6. High Temperature of Tire Alarm.

7. Temperature unit settings: ℃& ℉

8. Real-time LCD Digital indication on remote screen.

9. Tire Pressure Calibration units: PSI, BAR, & KPA

10. Reserved 40M Tire Recognition codes.

zAlarm Types shown on Display:

1. Indication of High-PressureAlarm: LCD flashing on specific wheel with High-Pressure Value

shown and “Beep” sound provided.

2. Indication of Low-PressureAlarm: LCD flashing on specific wheel with Low-Pressure Value

shown and “Beep” sound provided.

3. Indication of High TemperatureAlarm: LCD flashing showing temperature value and “Beep”

sound provided

4. Indication of Sensor Low-Battery Warning: Shown on LCD display

5. Indication of Display Low-Battery Warning: LCD flashing indication on the Power light &

“Beep” sound.

6. Indication of Sensor MalfunctionAlarm: Shown on LCD display (Display self-examine).

zSpecification:

*Specification is subject to change for product performance without any notice

B. Installation:(Always have the display power on before installation of sensors)

Label on Sensor

1. Labeled with F.: Front Wheel.

2. Labeled with R.: Rear Wheel.

Installation of Sensor:

SUGGESTION: Make sure the display power is on so the

communication of sensor & display is normal prior to the installation of sensor。

1. Make sure the top and bottom are tighten on the sensors

(Applied with enclosed wrench)

2. Remove original valve cap from stem

3. Screw-on the enclosed Hex nut on the valve; then, mount the valve

sensor onto the valve stem. Make sure the Hex nut is being tighten in reverse

clockwise direction to affix with the bottom part of the Valve Sensors。

NOTICE: To Check the valve if it is leaking after installation

,it can be confirmed from the display to see if the

pressure has dropped down.

Sensors LCD Display

Dimension ψ26.0* H: 25.0 (mm) 76mm (L) x 42.5mm (W) x 19.5mm (H)

Weight 14.0g ± 0.5g ( w/Battery contained) 36.5g ± 0.5g (Battery Excluded)

Power Supply CR2032 3V Lithium

(1~2 year Lifetime or above 2 years when

under normal condition)

2 x 3A’BatteryAlkaline type or

(Power Supplied line 12V)

Frequency 433.92MHz 433.92MHz

Operating

Temperature -30℃~ + 85℃-20℃~+80℃

Installation of Display:

1. Place the LCD display at best view place, then, have the

display power ON (or applying Motorbike DC12V power wire)

C. About the Display Panel：

ON/OFF: Power on/off.

MODE: To check the internal setting value. Press 1 time

To run a cycle-check (High & Low Pressure value

& High temperature)

TIRE: To check actual tire pressure & temperature value.

To run a cycle-check press 1 time

UNIT: To switch the calibration unit for pressure & temperature.

D: Explanation of Circumstances：

◎Power on. System is checking。◎Display receiving data Front & Rear wheel

pressure is normal (within High/Low setting)

1. 2. 3. 4. 5. 6.

◎When pressure is normal, press TIRE-Key to check Actual Pressure & Temperature value。

(Cycle order: starting with F wheel-Pressure & Temperature. Then, R wheel-Pressure & Temperature)

1. 2. 3. 4. 5. 6.

◎When power is on, press MODE-Key to check internal High, Low Pressure & Temperature setting value。

(Cycle order: Starting F. & R. wheel-High pressure, F. & R. wheel-Low pressure, F. & R. wheel—High

temperature and back to previous status)

1. 2. 3. 4. 5. 6.

◎When power is on, press UNIT-Key to switch the calibration unit of pressure or temperature

(This setting is done separately)

Press UNIT-Key for 2-second until the calibration unit is shown. Then, press UNIT-Key to make

selection. Press TIRE-Key to confirm the unit , the system will return to “Power-on” mode。

1. 2. 3. 4. 5. 6.

◎When making any adjustments on the settings, first, press UNIT-Key and press TIRE-Key in the same

time. The display would show as diagram 1. (Hi.P.) setting.

Press “MODE-KEY” to make a selection from diagram 1~6, make sure to press TIRE-KEY after a specific

selection. (To quit the above diagram 1~6 selection mode, simply press UNIT-KEY)

Illustration of above diagrams:

1. To adjust the H-PressureAlarm value (Internal Setting: F. -40PSI/ 279kPa；R.-45 PSI/ 314kPa )

2. To adjust the L-PressureAlarm value (Internal Setting: F. -25PSI/ 175kPa；R.-30 PSI/ 210kPa )

3. To adjust H-Temperature Alarm value (Internal Setting: 80℃/ 176℉)

4. Tire Rotation (This feature only works for Internal Type Valve Sensors)

5. Options of LED backlight on/off ( ON or OFF )

6. Number of wheels shown on display。(3 types: 2, 4, or 5 wheels)

◎F. wheel H. pressure ◎R. wheel H. pressure ◎F. wheel L. pressure ◎R. wheel L. pressure

◎F. wheel H. temperature ◎R. wheel sensor malfunction ◎F. wheel sensor L. battery ◎Display L. battery

(The sign is flashing)

(Sign on F wheel& LO-BATT) (Lo-BATT sign flashing)

COWEAHTH PRECISION TECH. CO., LTD.

ASPIRIT ENTERPRISE, INC.

Email:tire.monitor@msa.hinet.net

Notice : The changes or modifications not expressly approved by the party responsible

for compliance could void the user’s authority to operate the equipment.

IMPORTANT NOTE: To comply with the FCC RF exposure compliance requirements, no

change to the antenna or the device is permitted. Any change to the antenna or the device

could result in the device exceeding the RF exposure requirements and void user’s

authority to operate the device.
