ASRock A770CrossFire Motherboard

EnglishEnglish

English

No part of this installation guide may be reproduced, transcribed, transmitted, or trans-

lated in any language, in any form or by any means, except duplication of documen-

tation by the purchaser for backup purpose, without written consent of ASRock Inc.

Products and corporate names appearing in this guide may or may not be registered

trademarks or copyrights of their respective companies, and are used only for identifica-

tion or explanation and to the owners’ benefit, without intent to infringe.

Disclaimer:Disclaimer:

Disclaimer:

Specifications and information contained in this guide are furnished for informational

use only and subject to change without notice, and should not be constructed as a

commitment by ASRock. ASRock assumes no responsibility for any errors or omissions

that may appear in this guide.

With respect to the contents of this guide, ASRock does not provide warranty of any kind,

either expressed or implied, including but not limited to the implied warranties or

conditions of merchantability or fitness for a particular purpose. In no event shall

ASRock, its directors, officers, employees, or agents be liable for any indirect, special,

incidental, or consequential damages (including damages for loss of profits, loss of

business, loss of data, interruption of business and the like), even if ASRock has been

advised of the possibility of such damages arising from any defect or error in the guide

or product.

This device complies with Part 15 of the FCC Rules. Operation is subject to the

following two conditions:

(1) this device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that

may cause undesired operation.

Published June 2008

CALIFORNIA, USA ONLY

The Lithium battery adopted on this motherboard contains Perchlorate, a toxic

substance controlled in Perchlorate Best Management Practices (BMP) regulations

passed by the California Legislature. When you discard the Lithium battery in

California, USA, please follow the related regulations in advance.

“Perchlorate Material-special handling may apply, see

www.dtsc.ca.gov/hazardouswaste/perchlorate”

ASRock Website: http://www.asrock.com

2ASRock A770CrossFire Motherboard

EnglishEnglish

English

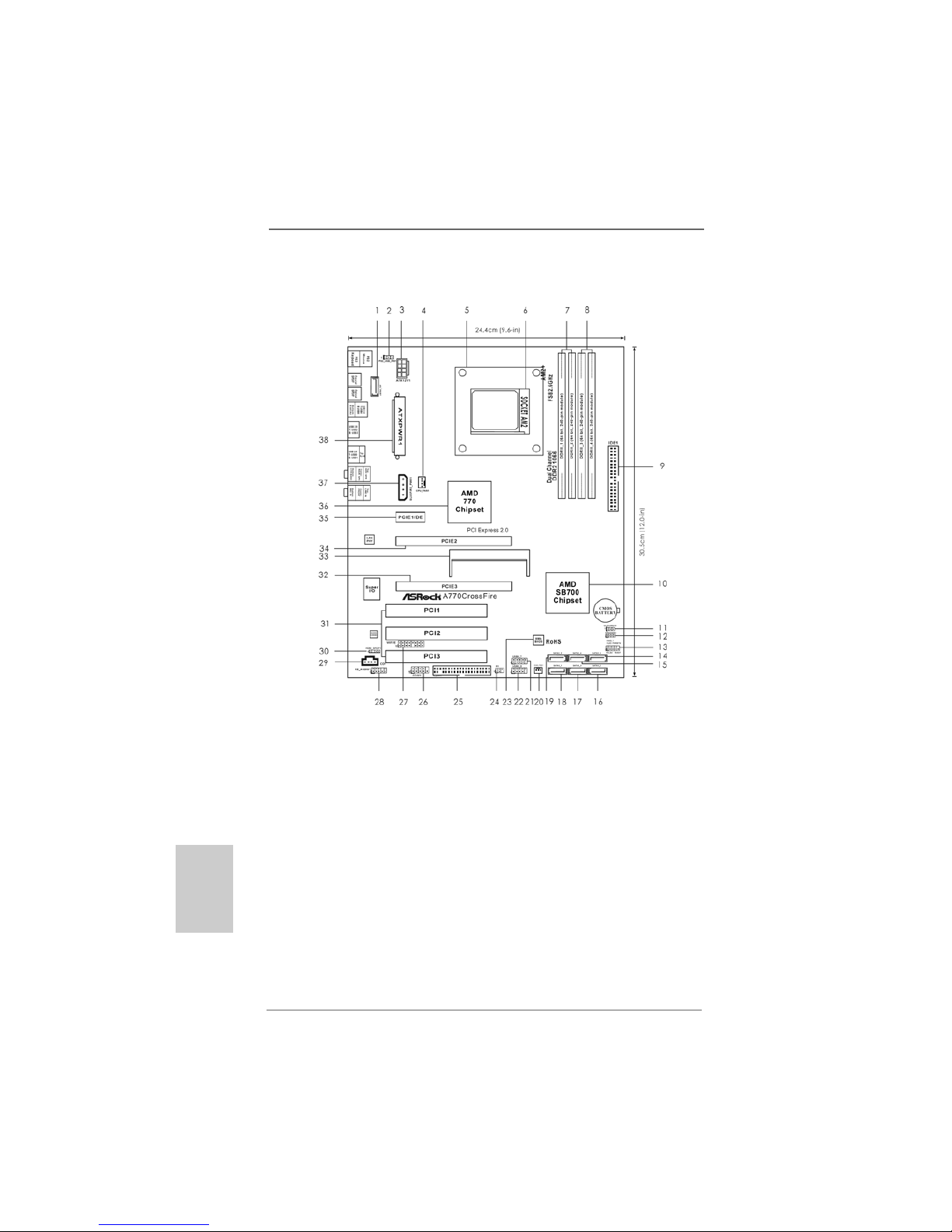

Motherboard LMotherboard L

Motherboard Layoutayout

ayoutayout

ayout

1 eSATAII Connector (eSATAII_TOP) 20 Chassis Fan Connector (CHA_FAN1)

2 PS2_USB_PW1 Jumper 21 USB 2.0 Header (USB6_7, Blue)

3 ATX 12V Power Connector (ATX12V1) 22 USB 2.0 Header (USB8_9, Blue)

4 CPU Fan Connector (CPU_FAN1) 23 SPI Flash Memory (8Mb)

5 CPU Heatsink Retention Module 24 DeskExpress Hot Plug Detection Header

6 AM2 940-Pin CPU Socket (IR1)

7 2 x 240-pin DDR2 DIMM Slots 25 Floppy Connector (FLOPPY1)

(Dual Channel A: DDRII_1, DDRII_2; Yellow) 26 Serial Port Connector (COM1)

8 2 x 240-pin DDR2 DIMM Slots 27 WiFi/E Header (WIFI/E)

(Dual Channel B: DDRII_3, DDRII_4; Orange) 28 Front Panel Audio Header (HD_AUDIO1)

9 Primary IDE Connector (IDE1, Blue) 29 Internal Audio Connector: CD1 (Black)

10 Southbridge Controller 30 HDMI_SPDIF Header (HDMI_SPDIF1)

11 Clear CMOS Jumper (CLRCMOS1) 31 PCI Slots (PCI1- 3)

12 Chassis Speaker Header (SPEAKER 1) 32 PCI Express 2.0 x16 Slot (PCIE3; Blue)

13 System Panel Header (PANEL1) 33 SLI/XFire Switch Card Retention Slot

14 Sixth SATAII Connector (SATAII_6) 34 PCI Express 2.0 x16 Slot (PCIE2; Green)

15 Fourth SATAII Connector (SATAII_4) 35 PCI Express 2.0 x1 Slot (PCIE1/DE;Green)

16 Fifth SATAII Connector (SATAII_5) 36 Northbridge Controller

17 Third SATAII Connector (SATAII_3) 37 SLI / XFIRE Power Connector

18 Primary SATAII Connector (SATAII_1) 38 ATX Power Connector (ATXPWR1)

19 Secondary SATAII Connector (SATAII_2)

ASRock A770CrossFire Motherboard

EnglishEnglish

English

ASRock SPDIF I/OASRock SPDIF I/O

ASRock SPDIF I/O

To enable Multi-Streaming function, you need to connect a front panel audio cable to the front

panel audio header. After restarting your computer, you will find “Mixer” tool on your system.

Please select “Mixer ToolBox” , click “Enable playback multi-streaming”, and click

“ok”. Choose “2CH”, “4CH”, “6CH”, or “8CH” and then you are allowed to select “Realtek HDA

Primary output” to use Rear Speaker, Central/Bass, and Front Speaker, or select “Realtek

HDA Audio 2nd output” to use front panel audio.

** If you use 2-channel speaker, please connect the speaker’s plug into “Front Speaker Jack”.

See the table below for connection details in accordance with the type of speaker you use.

TABLE for Audio Output Connection

Audio Output Channels Front Speaker Rear Speaker Central / Bass Side Speaker

(No. 7) (No. 4) (No. 5) (No. 3)

2 V -- -- --

4VV----

6 VVV--

8 VVVV

LAN Port

ACT/LINK

LED

SPEED

LED

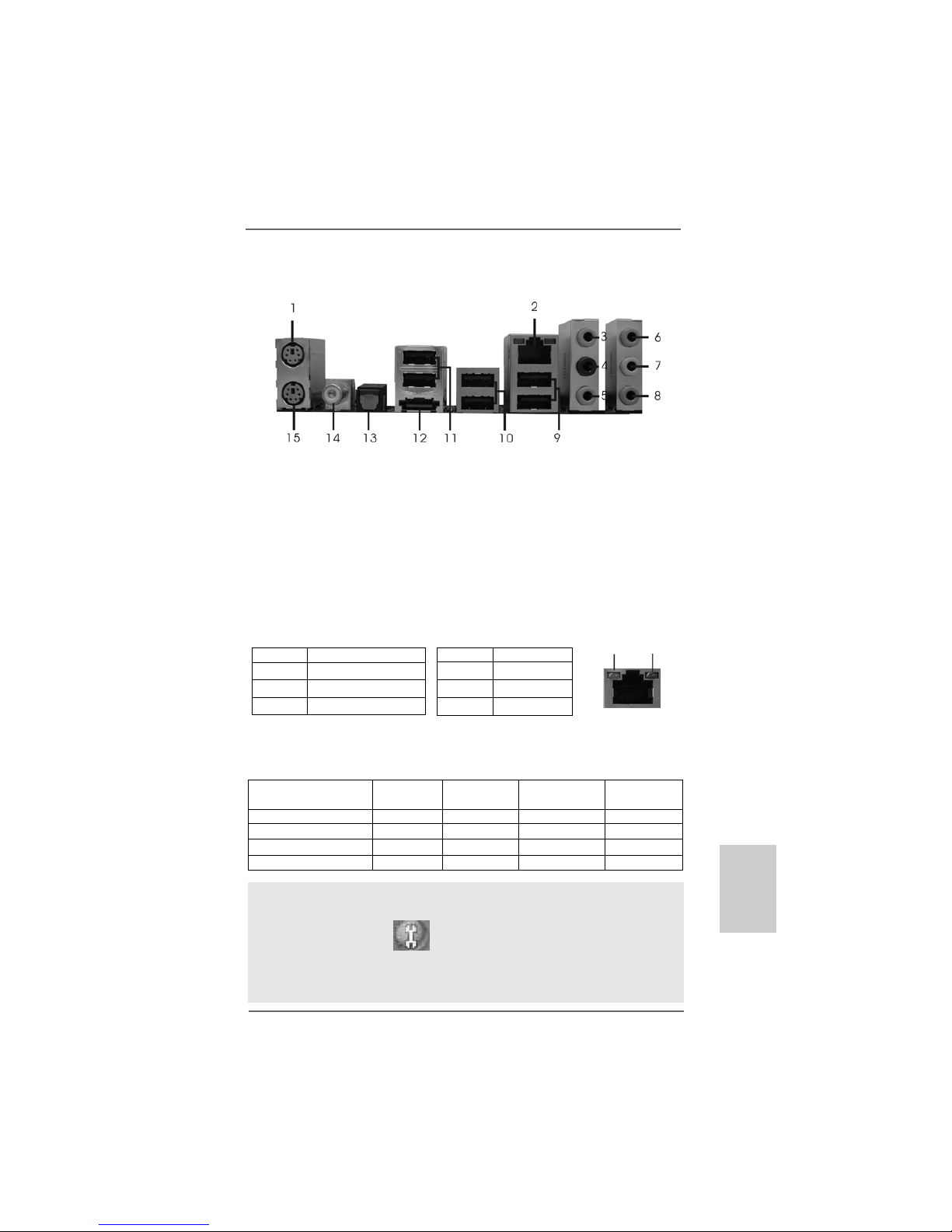

1 PS/2 Mouse Port (Green) 9 USB 2.0 Ports (USB01)

* 2 LAN RJ-45 Port 10 USB 2.0 Ports (USB23)

3 Side Speaker (Gray) 11 USB 2.0 Ports (USB89)

4 Rear Speaker (Black) 12 eSATAII Port

5 Central / Bass (Orange) 13 Optical SPDIF Out Port

6 Line In (Light Blue) 14 Coaxial SPDIF Out Port

** 7 Front Speaker (Lime) 15 PS/2 Keyboard Port (Purple)

8 Microphone (Pink)

* There are two LED next to the LAN port. Please refer to the table below for the LAN port LED

indications.

LAN Port LED Indications

SPEED LED Activity/Link LED

Status Description Status Description

Off 10Mbps connection Off No link

Orange 100Mbps connection Orange Linked

Green 1Gbps connection Blinking Data Activity

4ASRock A770CrossFire Motherboard

EnglishEnglish

English

1.1.

1. IntroductionIntroduction

IntroductionIntroduction

Introduction

Thank you for purchasing ASRock A770CrossFire motherboard, a reliable

motherboard produced underASRock’s consistently stringent quality control. It delivers

excellent performance with robust design conforming toASRock’s commitment to qual-

ity and endurance.

In this manual, chapter 1 and 2 contain introduction of the motherboard and step-by-step

guide to the hardware installation. Chapter 3 and 4 contain the configuration guide to

BIOS setup and information of the Support CD.

Because the motherboard specifications and the BIOS software might

be updated, the content of this manual will be subject to change without

notice. In case any modifications of this manual occur, the updated

version will be available on ASRock website without further notice. You

may find the latest VGA cards and CPU support lists on ASRock website

as well. ASRock website http://www.asrock.com

If you require technical support related to this motherboard, please visit

our website for specific information about the model you are using.

www.asrock.com/support/index.asp

1.11.1

1.1 Package ContentsPackage Contents

Package ContentsPackage Contents

Package Contents

1 x ASRock A770CrossFire Motherboard

(ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm)

1 x ASRock A770CrossFire Quick Installation Guide

2 x ASRock A770CrossFire Support CD

1 x Ultra ATA 66/100/133 IDE Ribbon Cable (80-conductor)

1 x 3.5-in Floppy Drive Ribbon Cable

2 x SerialATA (SATA) Data Cables (Optional)

1 x Serial ATA (SATA) HDD Power Cable (Optional)

1 x HDMI_SPDIF Cable (Optional)

1 xASRock SPDIF I/O Shield

1 x ASRock SLI/XFire Switch Card

ASRock A770CrossFire Motherboard

EnglishEnglish

English

1.21.2

1.2 SpecificationsSpecifications

SpecificationsSpecifications

Specifications

Platform - ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm

- All Solid Capacitor design (100% Japan-made high-quality

Conductive Polymer Capacitors)

CPU - Support for Socket AM2+ / AM2 processors: AMD PhenomTM

FX / Phenom /Athlon 64 FX / Athlon 64 X2Dual-Core /Athlon

X2 Dual-Core / Athlon 64 / Sempronprocessor

- Supports CPU up to 140W

-AMDLIVE!TM Ready

- Supports AMD’s Cool ‘n’ QuietTM Technology

- FSB 2600 MHz (5.2 GT/s)

- Supports Untied Overclocking Technology (see CAUTION 1)

- Supports Hyper-Transport 3.0 (HT 3.0) Technology

Chipset - Northbridge:AMD 770

- Southbridge:AMDSB700

Memory - Dual Channel DDR2 Memory Technology (see CAUTION 2)

- 4 xDDR2DIMM slots

- Support DDR2 1066/800/667/533 non-ECC, un-buffered

memory (see CAUTION 3)

- Max. capacity of system memory: 8GB (see CAUTION 4)

Expansion Slot - 2 x PCI Express 2.0 x16 slots

(green @ x16 mode, blue @ x8 mode)

- 1 x PCI Express 2.0 x1 slot

- 3 x PCI slots

- Supports ATITM CrossFireXTM (see CAUTION 5)

Audio - 7.1 CH Windows® VistaTM Premium Level HDAudio

(ALC888 Audio Codec)

LAN - PCIE x1Gigabit LAN10/100/1000 Mb/s

- Realtek RTL8111C

- Supports Wake-On-LAN

Rear Panel I/O ASRockSPDIF I/O

- 1 x PS/2 Mouse Port

- 1 x PS/2 Keyboard Port

- 1 x Coaxial SPDIF Out Port

- 1 x Optical SPDIF Out Port

- 6 x Ready-to-Use USB 2.0 Ports

- 1 x eSATAII Port

-1 xRJ-45 LANPort withLED (ACT/LINKLEDandSPEEDLED)

- HDAudio Jack: Side Speaker/Rear Speaker/Central/Bass/

Line in/Front Speaker/Microphone (see CAUTION 6)

6ASRock A770CrossFire Motherboard

EnglishEnglish

English

Connector - 6 x Serial ATAII 3.0Gb/s connectors, support RAID (RAID 0,

RAID 1, RAID0+1, RAID 10 and JBOD), NCQ,AHCI and “Hot

Plug” functions (see CAUTION 7)

- 1 x eSATAII 3.0Gb/s connector (shared with 1 SATAII

connector) (see CAUTION 8)

- 1 x ATA133 IDE connector (supports 2 x IDE devices)

- 1 x Floppy connector

- 1 x DeskExpress Hot Plug Detection header

- 1 x COM port header

- 1 x HDMI_SPDIF header

- CPU/Chassis FANconnector

- 24 pin ATX power connector

- 8 pin 12V power connector

- SLI/XFIRE power connector

- CD in header

- Front panel audio connector

- 2 x USB 2.0 headers (support 4 USB 2.0 ports)

(see CAUTION 9)

- 1 x WiFi/E header (see CAUTION 10)

BIOS Feature - 8MbAMI BIOS

-AMI Legal BIOS

- Supports “Plug and Play”

-ACPI 1.1 Compliance Wake Up Events

- Supports jumperfree

- SMBIOS 2.3.1 Support

- CPU,DRAM,NB Voltage Multi-adjustment

Support CD - Drivers, Utilities, AntiVirus Software (Trial Version)

Unique Feature - ASRock OC Tuner (see CAUTION 11)

- Intelligent Energy Saver (see CAUTION 12)

- Hybrid Booster:

- CPU Frequency Stepless Control (see CAUTION 13)

- ASRock U-COP (see CAUTION 14)

- Boot Failure Guard (B.F.G.)

-ASRock AM2 Boost:ASRock Patented Technology to boost

memory performance up to 12.5% (see CAUTION 15)

Hardware - CPU Temperature Sensing

Monitor - Chassis Temperature Sensing

- CPU Fan Tachometer

- Chassis Fan Tachometer

- CPU Quiet Fan

- Voltage Monitoring: +12V, +5V, +3.3V, Vcore

ASRock A770CrossFire Motherboard

WARNING

Please realize that there is a certain risk involved with overclocking, including

adjusting the setting in the BIOS, applying Untied Overclocking Technology, or using

the third-party overclocking tools. Overclocking may affect your system stability, or

even cause damage to the components and devices of your system. It should be

done at your own risk and expense. We are not responsible for possible damage

caused by overclocking.

EnglishEnglish

English

OS - Microsoft® Windows® XP / XP Media Center / XP 64-bit /

VistaTM / VistaTM 64-bit compliant

Certifications - FCC, CE, Microsoft®WHQL Certificated

* For detailed product information, please visit our website: http://www.asrock.com

CAUTION!

1. This motherboard supports Untied Overclocking Technology. Please read “Un-

tied Overclocking Technology” on page 32 for details.

2. This motherboard supportsDual Channel Memory Technology. Before you

implement Dual Channel Memory Technology, make sure to read the

installation guide of memory modules on page 12 for proper installation.

3. Whether 1066MHz memory speed is supported depends on the AM2+ CPU

you adopt. If you want to adopt DDR2 1066 memory module on this

motherboard, please refer to the memory support list on our website for

the compatible memory modules.

ASRock website http://www.asrock.com

4. Due to the operating system limitation, the actual memory size may be

less than 4GB for the reservation for system usage under Windows®XP

and Windows®VistaTM. For Windows®XP 64-bit and Windows®VistaTM 64-

bit with 64-bit CPU, there is no such limitation.

5. This motherboard supports ATITM CrossFireTM technology. If you want to use

CrossFireTM function, please follow the instructions on page 17 to reverse the

direction of ASRock SLI/XFire Switch Card in advance.

6. For microphone input, this motherboard supports both stereo and mono modes.

For audio output, this motherboard supports 2-channel, 4-channel, 6-channel,

and 8-channel modes. Please check the table on page 3 for proper connection.

7. Before installing SATAII hard disk to SATAII connector, please read the “SATAII

Hard Disk Setup Guide” on page 35 of “User Manual” in the support CD to

adjust your SATAII hard disk drive to SATAII mode. You can also connect SATA

hard disk to SATAII connector directly.

8. This motherboard supports eSATAII interface, the external SATAII

specification. Please read “eSATAII Interface Introduction” on page 27 for

details about eSATAII and eSATAII installation procedures.

9. Power Management for USB 2.0 works fine under Microsoft®Windows®

VistaTM 64-bit / VistaTM / XP 64-bit / XP SP1 or SP2.

8ASRock A770CrossFire Motherboard

EnglishEnglish

English

10. WiFi/E header supports WiFi+AP function withASRock WiFi-802.11g or

WiFi-802.11n module, an easy-to-use wireless local area network (WLAN)

adapter. It allows you to create a wireless environment and enjoy the

convenience of wireless network connectivity. Please visit our website for

the availability of ASRock WiFi-802.11g or WiFi-802.11n

module. ASRock website http://www.asrock.com

11. It is a user-friendly ASRock overclocking tool which allows you to surveil

your system by hardware monitor function and overclock your hardware

devices to get the best system performance under Windows® environment.

Please visit our website for the operation procedures of ASRock OC

Tuner. ASRock website: http://www.asrock.com

12. Featuring an advanced proprietary hardware and software design,

Intelligent Energy Saver is a revolutionary technology that delivers

unparalleled power savings. The voltage regulator can reduce the

number of output phases to improve efficiency when the CPU cores are

idle. In other words, it is able to provide exceptional power saving and

improve power efficiency without sacrificing computing performance. To

use Intelligent Energy Saver function, please enable Cool ‘n’ Quiet option

in the BIOS setup in advance. Please visit our website for the operation

procedures of Intelligent Energy Saver.

ASRock website: http://www.asrock.com

13. Although this motherboard offers stepless control, it is not recommended

to perform over-clocking. Frequencies other than the recommended CPU

bus frequencies may cause the instability of the system or damage the

CPU.

14. While CPU overheat is detected, the system will automatically shutdown.

Before you resume the system, please check if the CPU fan on the

motherboard functions properly and unplug the power cord, then plug it

back again. To improve heat dissipation, remember to spray thermal

grease between the CPU and the heatsink when you install the PC system.

15. This motherboard supports ASRock AM2 Boost overclocking technology. If

you enable this function in the BIOS setup, the memory performance will

improve up to 12.5%, but the effect still depends on the AM2 CPU you adopt.

Enabling this function will overclock the chipset/CPU reference clock. However,

we can not guarantee the system stability for all CPU/DRAM configurations.

If your system is unstable after AM2 Boost function is enabled, it may not be

applicative to your system. You may choose to disable this function for

keeping the stability of your system.

ASRock A770CrossFire Motherboard

EnglishEnglish

English

1.31.3

1.3 Minimum Hardware RMinimum Hardware R

Minimum Hardware RMinimum Hardware R

Minimum Hardware Requirement Tequirement T

equirement Tequirement T

equirement Table for Wable for W

able for Wable for W

able for Windowsindows

indowsindows

indows®®

®®

VistaVista

VistaTMTM

TMTM

TM Premium 2008 and Basic LogoPremium 2008 and Basic Logo

Premium 2008 and Basic LogoPremium 2008 and Basic Logo

Premium 2008 and Basic Logo

For system integrators and users who purchase this motherboard and

plan to submit Windows®VistaTM Premium 2008 and Basic logo, please follow

below table for minimum hardware requirement.

CPU Sempron 2800+

Memory 1GB system memory (Premium)

512MB system memory (Basic)

VGA DX10 with WDDM Driver

with 128bit VGA memory (Premium)

with 64bit VGA memory (Basic)

* After June 1, 2008, all Windows®VistaTM systems are required to meet above

minimum hardware requirements in order to qualify for Windows®VistaTM Premium

2008 logo.

1010

10 ASRock A770CrossFire Motherboard

EnglishEnglish

English

2.2.

2. InstallationInstallation

InstallationInstallation

Installation

This is an ATX form factor (12.0-in x 9.6-in, 30.5 cm x 24.4 cm) motherboard.

Before you install the motherboard, study the configuration of your chassis to en-

sure that the motherboard fits into it.

Pre-installation PrecautionsPre-installation Precautions

Pre-installation Precautions

Take note of the following precautions before you install motherboard

components or change any motherboard settings.

Before you install or remove any component, ensure that the

power is switched off or the power cord is detached from the

power supply. Failure to do so may cause severe damage to the

motherboard, peripherals, and/or components.

1. Unplug the power cord from the wall socket before touching any

component.

2. To avoid damaging the motherboard components due to static

electricity, NEVER place your motherboard directly on the carpet or

the like. Also remember to use a grounded wrist strap or touch a

safety grounded object before you handle components.

3. Hold components by the edges and do not touch the ICs.

4. Whenever you uninstall any component, place it on a grounded anti-

static pad or in the bag that comes with the component.

5. When placing screws into the screw holes to secure the motherboard

to the chassis, please do not over-tighten the screws! Doing so may

damage the motherboard.

Altri manuali per A770CROSSFIRE

Indice

Lingue:

Altri manuali ASROCK Scheda madre

ASROCK

ASROCK B85 Pro4 Manuale utente

ASROCK

ASROCK A88M-ITX/ac Manuale utente

ASROCK

ASROCK FM2A88M Extreme4+ Manuale utente

ASROCK

ASROCK Fatal1ty X470 Gaming K4 Series Manuale utente

ASROCK

ASROCK Z590 EXTREME Manuale utente

ASROCK

ASROCK 880GMH-LE USB3 - NOTICE 2 Manuale utente

ASROCK

ASROCK CONROE1333-D667 - INSTALLATION 11-2007 Manuale utente

ASROCK

ASROCK B75M R2.0 Manuale utente

ASROCK

ASROCK B75 Pro3-M Manuale utente

ASROCK

ASROCK IMB-A180-H Manuale utente

ASROCK

ASROCK N68PV-GS Manuale utente

ASROCK

ASROCK 2CORE1066-2.13G - V1.0 Manuale utente

ASROCK

ASROCK Fatal1ty Z87 Professional Manuale utente

ASROCK

ASROCK Z77 Extreme11 Manuale utente

ASROCK

ASROCK Z690 Phantom Gaming 4/D5 Manuale utente

ASROCK

ASROCK IMB-171-D Manuale utente

ASROCK

ASROCK M3A790GMH/128M Manuale utente

ASROCK

ASROCK 970DE3/U3S3 Manuale utente

ASROCK

ASROCK H55M-GE Manuale utente

ASROCK

ASROCK G41C-GS R2.0 Manuale utente

ASROCK

ASROCK IMB-380-D Manuale utente

ASROCK

ASROCK 4CORE1600-GLAN/M Manuale utente

ASROCK

ASROCK P4I45D Manuale utente

ASROCK

ASROCK 939S56-M Manuale utente

Manuali Scheda madre popolari di altre marche

DFI

DFI SD170 Manuale utente

Asus

Asus P2L97A Manuale utente

Winmate

Winmate IC70 Manuale utente

Asus

Asus MES-B Manuale utente

Grantech

Grantech SYS8F377VGGA-3OMN Manuale utente

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuale utente

Gigabyte

Gigabyte GA-9IVDT Manuale utente

Texas Instruments

Texas Instruments ADS8372EVM Manuale utente

Commell

Commell MS-C73 Manuale utente

IBT Technologies

IBT Technologies MB860 Manuale utente

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuale utente

Biostar

Biostar M7VIT Bravo Istruzioni per l'uso e l'installazione

Intel

Intel D33217CK Manuale utente

Asus

Asus F1A55-M LX PLUS R2.0 Manuale utente

EPC

EPC EPC9147C Manuale utente

Asus

Asus EX-B760M-V5 D4 Manuale utente

EPOX

EPOX MU-8KHA0010 Manuale utente

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manuale utente
