ASROCK B360M-ITX Manuale utente

Version 1.0

Published July 2020

No part of this documentation may be reproduced, transcribed, transmitted, or

translated in any language, in any form or by any means, except duplication of

documentation by the purchaser for backup purpose, without written consent of

ASRock Inc.

Products and corporate names appearing in this documentation may or may not

be registered trademarks or copyrights of their respective companies, and are used

only for identication or explanation and to the owners’ benet, without intent to

infringe.

Disclaimer:

Specications and information contained in this documentation are furnished for

informational use only and subject to change without notice, and should not be

constructed as a commitment by ASRock. ASRock assumes no responsibility for

any errors or omissions that may appear in this documentation.

With respect to the contents of this documentation, ASRock does not provide

warranty of any kind, either expressed or implied, including but not limited to

the implied warranties or conditions of merchantability or tness for a particular

purpose.

In no event shall ASRock, its directors, ocers, employees, or agents be liable for

any indirect, special, incidental, or consequential damages (including damages for

loss of prots, loss of business, loss of data, interruption of business and the like),

even if ASRock has been advised of the possibility of such damages arising from any

defect or error in the documentation or product.

is device complies with Part 15 of the FCC Rules. Operation is subject to the following

two conditions:

(1) this device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that

may cause undesired operation.

CALIFORNIA, USA ONLY

e Lithium battery adopted on this motherboard contains Perchlorate, a toxic substance

controlled in Perchlorate Best Management Practices (BMP) regulations passed by the

California Legislature. When you discard the Lithium battery in California, USA, please

follow the related regulations in advance.

“Perchlorate Material-special handling may apply, see www.dtsc.ca.gov/hazardouswaste/

perchlorate”

ASRock Website: http://www.asrock.com

AUSTRALIA ONLY

Our goods come with guarantees that cannot be excluded under the Australian Consumer

Law. You are entitled to a replacement or refund for a major failure and compensation for

any other reasonably foreseeable loss or damage caused by our goods. You are also entitled

to have the goods repaired or replaced if the goods fail to be of acceptable quality and the

failure does not amount to a major failure. If you require assistance please call ASRock Tel

: +886-2-28965588 ext.123 (Standard International call charges apply)

PB 1

English

B360M-ITX

PCIE1

DDR4_A1 (64 bit, 288-pin module)

DDR4_B1 (64 bit, 288-pin module)

CPU_FAN1

CHA_FAN1/WP

RoHS

B360M-ITX

PS2

Keyboard

/Mouse

16 15 14

AUDIO

CODEC

HD_AUDIO1

SPEAKER1

Intel

B360

ATXPWR1

USB3_3_4

PANEL1

HDLED RESET

PLED PWRBTN

Top:

LINE IN

Center:

FRONT

Bottom:

MIC IN

SATA3_3

SATA3_2

CLRMOS1

SATA3_1

SATA3_0

USB_3_4

M2_1

C 1

Top:

RJ-45

USB 3.2 Gen2

T: USB1

B: USB2

USB 3.2 Gen1

T: USB1

B: USB2

BIOS

ROM

DISPLAY1

Ultra M.2

PCIe Gen3 x4

DVI1

CI1

1BAT1

CHA_FAN2

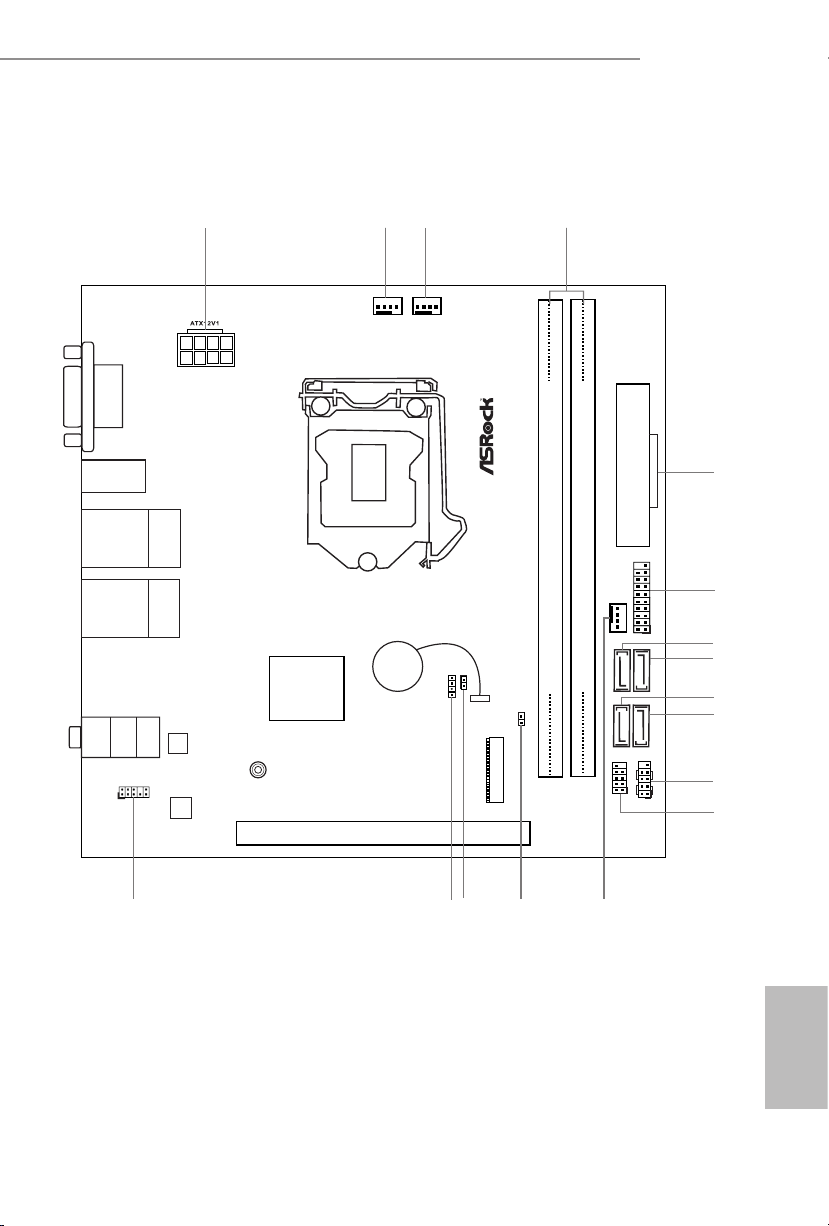

Motherboard Layout

2 3

English

No. Description

1 ATX 12V Power Connector (ATX12V1)

2 Chassis Fan / Waterpump Fan Connector (CHA_FAN1/WP)

3 CPU Fan Connector (CPU_FAN1)

4 2 x 288-pin DDR4 DIMM Slots (DDR4_A1, DDR4_B1)

5 ATX Power Connector (ATXPWR1)

6 USB 3.2 Gen1 Header (USB3_3_4)

7 SATA3 Connector (SATA3_1)

8 SATA3 Connector (SATA3_0)

9 SATA3 Connector (SATA3_3)

10 SATA3 Connector (SATA3_2)

11 System Panel Header (PANEL1)

12 USB 2.0 Header (USB_3_4)

13 Chassis Fan Connector (CHA_FAN2)

14 Clear CMOS Jumper (CLRMOS1)

15 Chassis Intrusion Header (CI1)

16 Chassis Speaker Header (SPEAKER1)

17 Front Panel Audio Header (HD_AUDIO1)

2 3

English

B360M-ITX

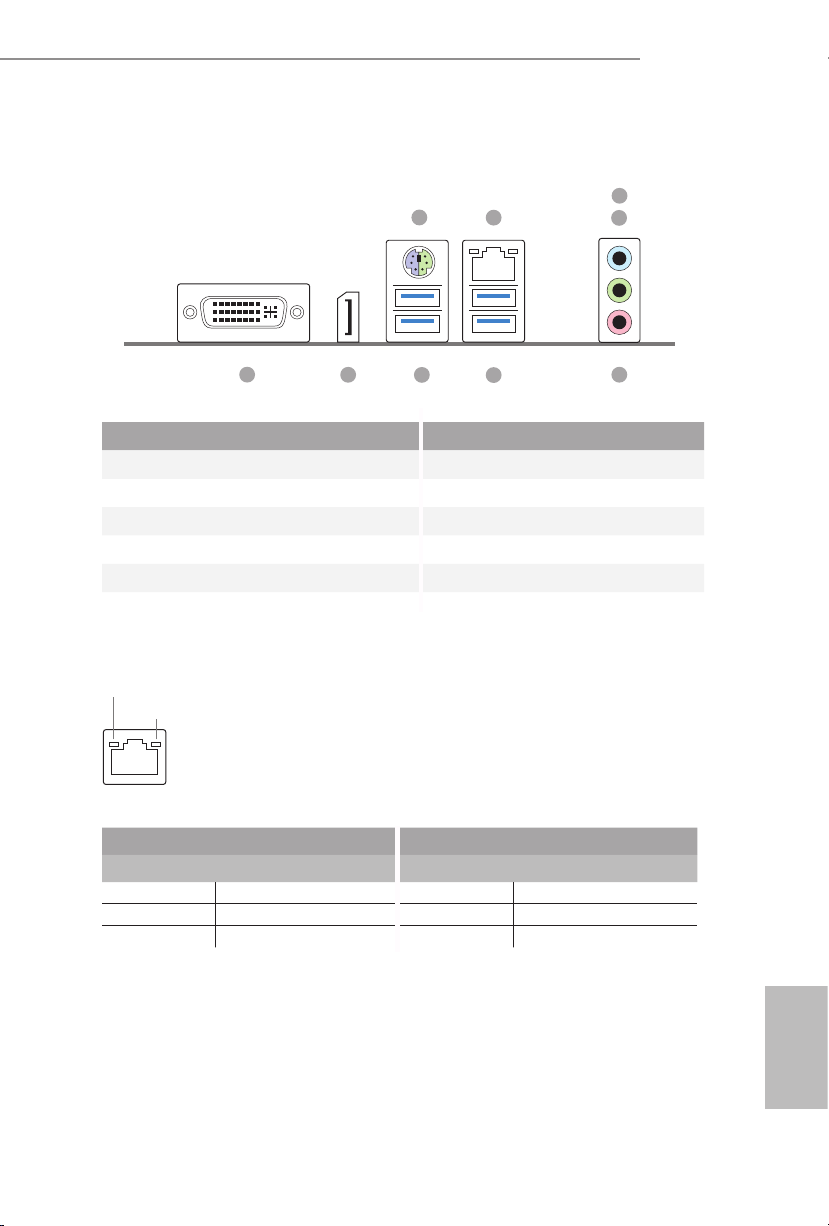

I/O Panel

No. Description No. Description

1DVI-I Port (DVI1) 6 LAN RJ-45 Port*

2DisplayPort 1.2 (DISPLAY1) 7Microphone (Pink)

3 USB 3.2 Gen1 Ports (USB_1_2) 8 Front Speaker (Lime)

4 PS/2 Mouse/Keyboard Port 9 Line In (Light Blue)

5 USB 3.2 Gen2 Type-A Ports (USB3_1_2)

* ere are two LEDs on each LAN port. Please refer to the table below for the LAN port LED indications.

Activity / Link LED Speed LED

Status Description Status Description

O No Link O 10Mbps connection

Blinking Data Activity Orange 100Mbps connection

On Link Green 1Gbps connection

ACT/LINK LED

SPEED LED

LAN Port

4 5

English

Chapter 1 Introduction

ank you for purchasing ASRock B360M-ITX motherboard, a reliable

motherboard produced under ASRock’s consistently stringent quality control.

It delivers excellent performance with robust design conforming to ASRock’s

commitment to quality and endurance.

1.1 Package Contents

• ASRock B360M-ITX Motherboard (Mini-ITX Form Factor)

• ASRock B360M-ITX Quick Installation Guide

• ASRock B360M-ITX Support CD

• 2 x Serial ATA (SATA) Data Cables (Optional)

• 1 x I/O Panel Shield

Because the motherboard specications and the BIOS soware might be updated, the

content of this documentation will be subject to change without notice. In case any modi-

cations of this documentation occur, the updated version will be available on ASRock’s

website without further notice. If you require technical support related to this mother-

board, please visit our website for specic information about the model you are using. You

may nd the latest VGA cards and CPU support list on ASRock’s website as well. ASRock

website http://www.asrock.com.

4 5

English

B360M-ITX

1.2 Specications

Platform • Mini-ITX Form Factor

• Solid Capacitor design

CPU • Supports 9th and 8th Gen Intel® CoreTM Processors (Socket

1151)

• Supports CPU up to 95W

• Digi Power design

• 5 Power Phase design

• Supports Intel® Turbo Boost 2.0 Technology

Chipset • Intel® B360

Memory • Dual Channel DDR4 Memory Technology

• 2 x DDR4 DIMM Slots

• Supports DDR4 2666/2400/2133 non-ECC, un-buered

memory

• Supports ECC UDIMM memory modules (operate in non-

ECC mode)

• Max. capacity of system memory: 64GB

• Supports Intel® Extreme Memory Prole (XMP) 2.0

• 15μ Gold Contact in DIMM Slots

Expansion

Slot

• 1 x PCI Express 3.0 x16 Slot (PCIE1: x16 mode)

* Supports NVMe SSD as boot disks

Graphics * Intel® UHD Graphics Built-in Visuals and the VGA outputs

can be supported only with processors which are GPU

integrated.

• Supports Intel® UHD Graphics Built-in Visuals : Intel®

Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full

HW Encode1, Intel® InTruTM 3D, Intel® Clear Video HD

Technology, Intel® InsiderTM, Intel® UHD Graphics

• DirectX 12

6 7

English

• HWAEncode/Decode: AVC/H.264, HEVC/H.265 8-bit,

HEVC/H.265 10-bit, VP8, VP9 8-bit, VP9 10-bit (Decode

only), MPEG2, MJPEG, VC-1

• Dual graphics output: Support DVI-I and DisplayPort 1.2 by

independent display controllers

• Supports DisplayPort 1.2 with max. resolution up to 4K x 2K

(4096x2304) @ 60Hz

• Supports DVI-I with max. resolution up to 1920x1200 @

60Hz

• Supports HDCP 2.2 with DVI-I and DisplayPort 1.2 Ports

• Supports 4K Ultra HD (UHD) playback with DisplayPort 1.2

Port

Audio • 7.1 CH HD Audio (Realtek ALC887 Audio Codec)

• Supports Surge Protection

• ELNA Audio Caps

LAN • Gigabit LAN 10/100/1000 Mb/s

• Giga PHY Intel® I219V

• Supports Wake-On-LAN

• Supports Lightning/ESD Protection

• Supports Energy Ecient Ethernet 802.3az

• Supports PXE

Rear Panel

I/O

• 1 x PS/2 Mouse/Keyboard Port

• 1 x DVI-I Port

• 1 x DisplayPort 1.2

• 2 x USB 3.2 Gen2 Type-A Ports (10 Gb/s)

• 2 x USB 3.2 Gen1 Ports (Supports ESD Protection)

• 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED

LED)

• HD Audio Jacks: Line in / Front Speaker / Microphone

6 7

English

B360M-ITX

Storage • 4 x SATA3 6.0 Gb/s Connectors, support NCQ, AHCI and

Hot Plug*

* If M2_1 is occupied by a SATA-type M.2 device, SATA3_0 will

be disabled.

• 1 x Ultra M.2 Socket, supports M Key type 2280 M.2 SATA3

6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4

(32 Gb/s)**

** Supports Intel® OptaneTM Technolog y

** Supports NVMe SSD as boot disks

** Supports ASRock U.2 Kit

Connector • 1 x Chassis Intrusion Headers

• 1 x CPU Fan Connector (4-pin)

* e CPU Fan Connector supports the CPU fan of maximum

1A (12W) fan power.

• 1 x Chassis Fan Connector (4-pin)

* e Chassis Fan Connector supports the chassis fan of maxi-

mum 1A (12W) fan power.

• 1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan

Speed Control)

* e Chassis/Water Pump Fan supports the water cooler fan of

maximum 2A (24W) fan power.

* CHA_FAN1/WP can auto detect if 3-pin or 4-pin fan is in use.

• 1 x 24 pin ATX Power Connector

• 1 x 8 pin 12V Power Connector

• 1 x Front Panel Audio Connector

• 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports

ESD Protection)

• 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)

(Supports ESD Protection)

8 9

English

BIOS

Feature

• AMI UEFI Legal BIOS with multilingual GUI support

• ACPI 6.0 Compliant wake up events

• SMBIOS 2.7 Support

• CPU, DRAM, PCH 1.0V, VCCST Voltage Multi-adjustment

Hardware

Monitor

• Temperature Sensing: CPU, Chassis, Chassis/Water Pump

Fans

• Fan Tachometer: CPU, Chassis, Chassis/Water Pump Fans

• Quiet Fan (Auto adjust chassis fan speed by CPU tempera-

ture): CPU, Chassis, Chassis/Water Pump Fans

• Fan Multi-Speed Control: CPU, Chassis, Chassis/Water

Pump Fans

• CASE OPEN detection

• Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore

OS Microso® Windows® 10 64-bit

Certica-

tions

• FCC, CE

• ErP/EuP ready (ErP/EuP ready power supply is required)

Please realize that there is a certain risk involved with overclocking, including adjusting

the setting in the BIOS, applying Untied Overclocking Technology, or using third-party

overclocking tools. Overclocking may aect your system’s stability, or even cause damage to

the components and devices of your system. It should be done at your own risk and expense.

We are not responsible for possible damage caused by overclocking.

* For detailed product information, please visit our website: http://www.asrock.com

Indice

Altri manuali ASROCK Scheda madre

ASROCK

ASROCK P43C-ME Manuale utente

ASROCK

ASROCK H61M-HG4 Manuale utente

ASROCK

ASROCK Z690 PRO RS Manuale utente

ASROCK

ASROCK M3A780GXH 128M - V1.0 Manuale utente

ASROCK

ASROCK B150 Pro4/3.1 Manuale utente

ASROCK

ASROCK 790GX Pro Manuale utente

ASROCK

ASROCK 880GMH-USB3 - 04-2010 Manuale utente

ASROCK

ASROCK E3C222D4U Manuale utente

ASROCK

ASROCK B85M DASH/OL R2.0 Manuale utente

ASROCK

ASROCK FM2A88X-ITX Manuale utente

ASROCK

ASROCK J4105B-ITX Manuale utente

ASROCK

ASROCK Z97 Extreme4 Manuale utente

ASROCK

ASROCK B560M-HDV Manuale utente

ASROCK

ASROCK 880GMH-LE USB3 - NOTICE 2 Manuale utente

ASROCK

ASROCK P43 PRO USB3 Manuale utente

ASROCK

ASROCK 990FX Extreme4 Manuale utente

ASROCK

ASROCK Z68 Extreme4 Gen3 Manuale utente

ASROCK

ASROCK Z77 Extreme11 Manuale utente

ASROCK

ASROCK AD2550-ITX Manuale utente

ASROCK

ASROCK FM2A58M-DG3+ Manuale utente

ASROCK

ASROCK Z590 Steel Legend Manuale utente

ASROCK

ASROCK H110M-ITX/ac Manuale utente

ASROCK

ASROCK H55ICAFE Manuale utente

ASROCK

ASROCK Fatal1ty X99X Killer Series Manuale utente

Manuali Scheda madre popolari di altre marche

DFI

DFI SD170 Manuale utente

Asus

Asus P2L97A Manuale utente

Winmate

Winmate IC70 Manuale utente

Asus

Asus MES-B Manuale utente

Grantech

Grantech SYS8F377VGGA-3OMN Manuale utente

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuale utente

Gigabyte

Gigabyte GA-9IVDT Manuale utente

Texas Instruments

Texas Instruments ADS8372EVM Manuale utente

Commell

Commell MS-C73 Manuale utente

IBT Technologies

IBT Technologies MB860 Manuale utente

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuale utente

Biostar

Biostar M7VIT Bravo Istruzioni per l'uso e l'installazione

Intel

Intel D33217CK Manuale utente

Asus

Asus F1A55-M LX PLUS R2.0 Manuale utente

EPC

EPC EPC9147C Manuale utente

Asus

Asus EX-B760M-V5 D4 Manuale utente

EPOX

EPOX MU-8KHA0010 Manuale utente

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manuale utente
