ASROCK B760M PG RIPTIDE Manuale utente

Contact Information

If you need to contact ASRock or want to know more about ASRock, you’re

welcome to visit ASRock’s website at http://www.asrock.com; or you may contact

your dealer for further information. For technical questions, please submit a

support request form at https://event.asrock.com/tsd.asp

ASRock Incorporation

e-mail: info@asrock.com.tw

ASRock EUROPE B.V.

e-mail: sales@asrock.nl

ASRock America, Inc.

e-mail: sales@asrockamerica.com

Scan the QR code to view more manuals and documents.

Contents

Chapter 1 Introduction 1

1.1 Package Contents 1

1.2 Specications 2

1.3 Motherboard Layout 6

1.4 I/O Panel 8

1.5 Block Diagram 9

Chapter 2 Installation 10

2.1 Installing the CPU 11

2.2 Installing the CPU Fan and Heatsink 13

2.3 Installing Memory Modules (DIMM) 14

2.4 Connecting the Front Panel Header 16

2.5 Installing the Motherboard 17

2.6 Installing SATA Drives 18

2.7 Installing a Graphics Card 20

2.8 Connecting Peripheral Devices 22

2.9 Connecting the Power Connectors 23

2.10 Power On 24

2.11 Jumpers Setup 25

2.12 Onboard Headers and Connectors 26

2.13 Post Status Checker 37

2.14 M.2 WiFi/BT PCIe WiFi Module and Intel® CNVi (Integrated WiFi/

BT) Installation Guide 38

2.15 M.2 SSD Module Installation Guide (M2_1) 40

2.16 M.2 SSD Module Installation Guide (M2_2) 44

English

B760M PG Riptide

Chapter 1 Introduction

ank you for purchasing ASRock B760M PG Riptide motherboard, a reliable

motherboard produced under ASRock’s consistently stringent quality control.

It delivers excellent performance with robust design conforming to ASRock’s

commitment to quality and endurance.

1.1 Package Contents

• ASRock B760M PG Riptide Motherboard (Micro ATX Form Factor)

• ASRock B760M PG Riptide User Manual

• 2 x Serial ATA (SATA) Data Cables (Optional)

• 2 x Screws for M.2 Sockets (Optional)

Because the motherboard specications and the BIOS soware might be updated, the

content of this documentation will be subject to change without notice. In case any

modications of this documentation occur, the updated version will be available on

ASRock’s website without further notice. If you require technical support related to

this motherboard, please visit our website for specic information about the model

you are using. You may nd the latest VGA cards and CPU support list on ASRock’s

website as well. ASRock website http://www.asrock.com.

English

1.2 Specications

Platform • Micro ATX Form Factor

CPU • Supports 13th Gen & 12th Gen Intel® CoreTM Processors

(LGA1700)

• Supports Intel® Hybrid Technology

• Supports Intel® Turbo Boost Max 3.0 Technology

• Supports Intel® ermal Velocity Boost (TVB)

• Supports Intel® Adaptive Boost Technology (ABT)

• Supports ASRock Hyper BCLK Engine

Chipset • Intel® B760

Memory • Dual Channel DDR5 Memory Technology

• 4 x DDR5 DIMM Slots

• Supports DDR5 non-ECC, un-buered memory up to

7200+(OC)*

• Max. capacity of system memory: 128GB

• Supports Intel® Extreme Memory Prole (XMP) 3.0

* Please refer to Memory Support List on ASRock's website for

more information. (http://www.asrock.com/)

Expansion

Slot

CPU:

• 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode*

Chipset:

• 1 x PCIe 4.0 x1 Slot (PCIE2)*

• 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe

WiFi module and Intel® CNVio/CNVio2 (Integrated WiFi/

BT)

* Supports NVMe SSD as boot disks

Graphics • Intel® UHD Graphics Built-in Visuals and the VGA outputs

can be supported only with processors which are GPU

integrated.

• Intel® XeGraphics Architecture (Gen 12)

• 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and

max. resolution up to 4K 60Hz

English

B760M PG Riptide

• 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP

2.3 and max. resolution up to 8K 60Hz / 5K 120Hz

Audio • 7.1 CH HD Audio (Realtek ALC897 Audio Codec)

• Nahimic Audio

LAN • 2.5 Gigabit LAN 10/100/1000/2500 Mb/s

• Dragon RTL8125BG

• Supports Phantom Gaming LAN Soware

- Smart Auto Adjust Bandwidth Control

- Visual User Friendly UI

- Visual Network Usage Statistics

- Optimized Default Setting for Game, Browser, and

Streaming Modes

- User Customized Priority Control

USB • 2 x USB 3.2 Gen1 Type-C (1 Rear, 1 Front)

• 5 x USB 3.2 Gen1 Type-A (3 Rear, 2 Front)

• 6 x USB 2.0 (4 Rear, 2 Front)

* All USB ports support ESD Protection

Rear Panel

I/O

• 2 x Antenna Mounting Points

• 1 x PS/2 Mouse/Keyboard Port

• 1 x HDMI Port

• 1 x DisplayPort 1.4

• 1 x USB 3.2 Gen1 Type-C Port

• 3 x USB 3.2 Gen1 Type-A Ports

• 4 x USB 2.0 Ports

• 1 x RJ-45 LAN Port

• HD Audio Jacks: Line in / Front Speaker / Microphone

Storage CPU:

• 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2280

PCIe Gen4x4 (64 Gb/s) mode*

Chipset:

• 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280

PCIe Gen4x4 (64 Gb/s) mode*

• 4 x SATA3 6.0 Gb/s Connectors

English

* Supports Intel® Volume Management Device (VMD)

* Supports NVMe SSD as boot disks

RAID • Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA

storage devices

Connector • 1 x SPI TPM Header

• 1 x Chassis Intrusion and Speaker Header

• 1 x RGB LED Header*

• 3 x Addressable LED Headers**

• 1 x CPU Fan Connector (4-pin)***

• 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan

Speed Control)****

• 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan

Speed Control)*****

• 1 x 24 pin ATX Power Connector

• 1 x 8 pin 12V Power Connector (Hi-Density Power Connec-

tor)

• 1 x 4 pin 12V Power Connector (Hi-Density Power Connec-

tor)

• 1 x Front Panel Audio Connector

• 1 x USB 2.0 Header (Supports 2 USB 2.0 ports)

• 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)

• 1 x Front Panel Type C USB 3.2 Gen1 Header

* Supports in total up to 12V/3A, 36W LED Strip

** Support in total up to 5V/3A, 15W LED Strip

*** CPU_FAN1 supports the fan power up to 1A (12W).

**** CPU_FAN2/WP supports the fan power up to 2A (24W).

***** CHA_FAN1~3/WP support the fan power up to 2A (24W).

***** CPU_FAN2/WP and CHA_FAN1~3/WP can auto detect

if 3-pin or 4-pin fan is in use.

BIOS

Feature

• AMI UEFI Legal BIOS with GUI support

OS • Microso® Windows® 10 64-bit / 11 64-bit

Certica-

tions

• FCC, CE

• ErP/EuP ready (ErP/EuP ready power supply is required)

English

B760M PG Riptide

Please realize that there is a certain risk involved with overclocking, including

adjusting the setting in the BIOS, applying Untied Overclocking Technology, or using

third-party overclocking tools. Overclocking may aect your system’s stability, or

even cause damage to the components and devices of your system. It should be done

at your own risk and expense. We are not responsible for possible damage caused by

overclocking.

* For detailed product information, please visit our website: http://www.asrock.com

English

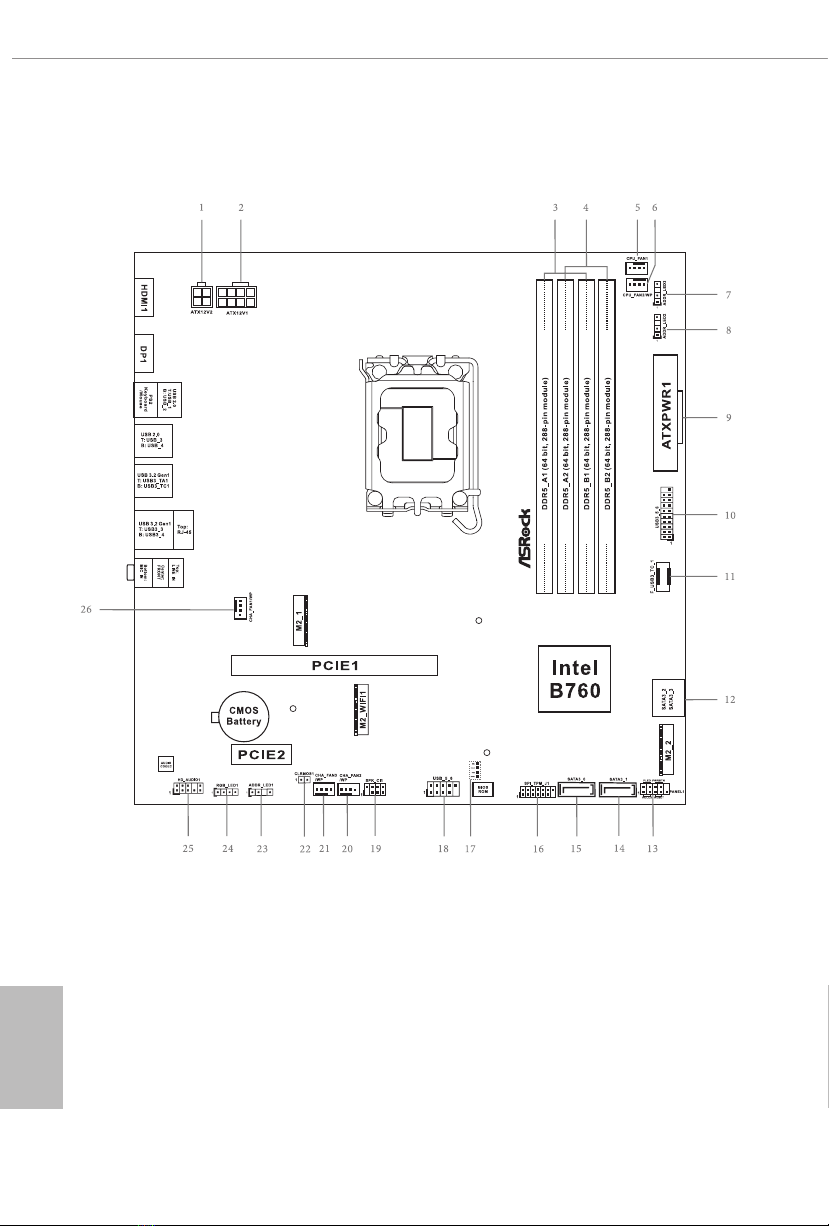

1.3 Motherboard Layout
