B85M Pro4

English

Motherboard Layout

Intel

B85

DDR3_A2 (64 bit, 240-pin module)

DDR3_A1 (64 bit, 240-pin module)

DDR3_B2 (64 bit, 240-pin module)

DDR3_B1 (64 bit, 240-pin module)

ATX12V 1

CMOS

Battery

Super

I/O

USB 2.0

T: USB0

B: USB1

PS2

Keyboar d

ATXPWR1

USB10_11

LAN

Top:

RJ-45

USB 2.0

T: USB4

B: USB5

Top:

Cent ra l/ Bass

Cent er :

REAR S PK

Top:

LINE I N

Cent er :

FRON T

Bott om :

Opti ca l

SPDI F

Bott om :

MIC IN

CLRCMOS 1

SPE AKER 1

IR1

HDL ED RES ET

PLE D PWRB TN

PANEL 1

USB6_7

USB8 _9

COM1

HD_AUDIO1

B85M Pro4

SATA_ 0_ 1 SATA_ 2_ 3 SATA_ 4_ 5

CHA_FAN1

CHA_FAN2

PCI1

RoHS

CPU_FA N1

CPU _FA N2

64Mb

BIOS

HDMI1

VGA1

DVI1

PCI2

USB 3.0

T: USB2

B: USB3

Aud io

COD EC

SPD IF1 _OUT 1

PCIE1

XFast USB

XFast RAM

XFast LAN

PCI Express 3.0

Front USB 3.0

PCIE2

PWR _FA N1

TPM S1

LPT1

CI1

English

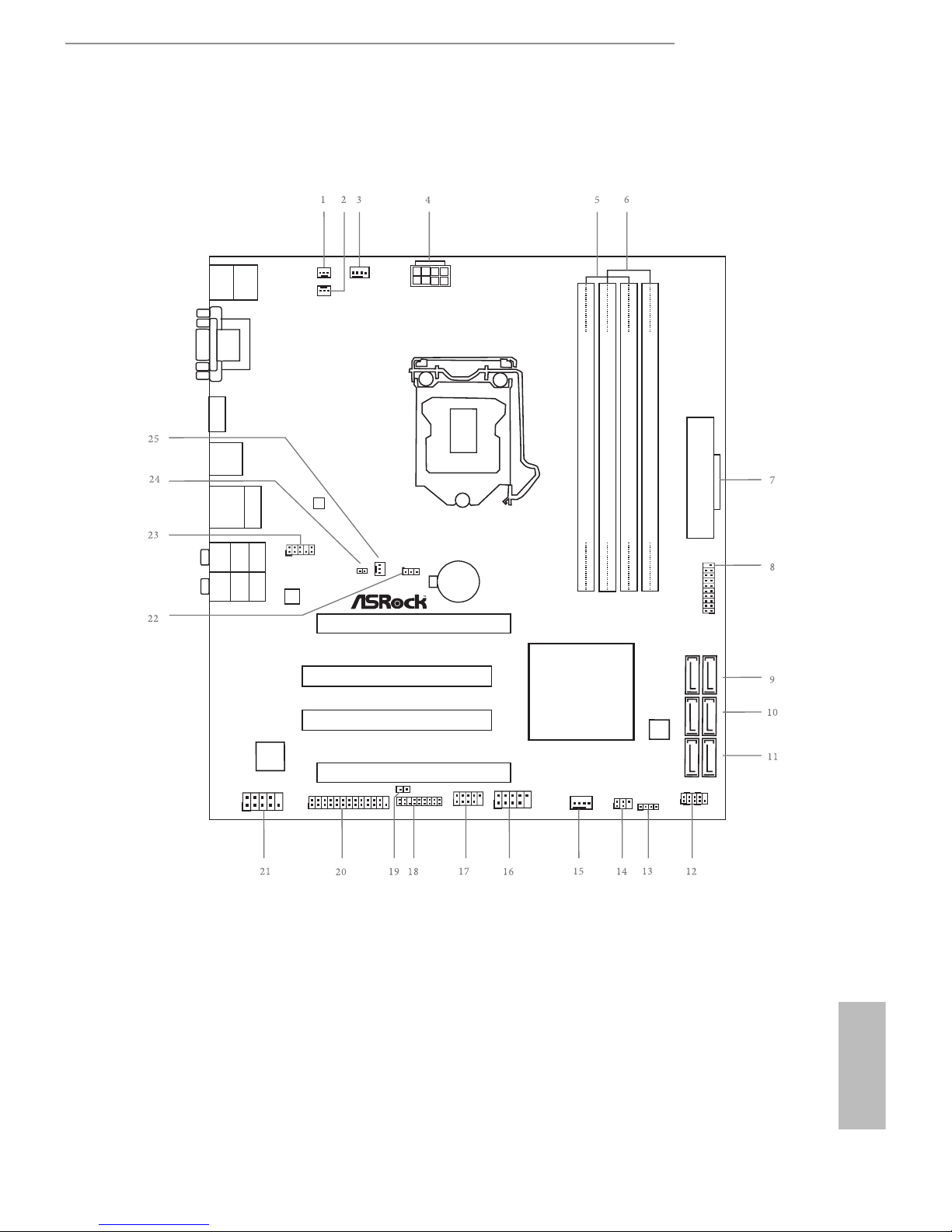

No. Description

1 Power Fan Connector (PWR_FAN1)

2 CPU Fan Connector (CPU_FAN2)

3 CPU Fan Connector (CPU_FAN1)

4 ATX 12V Power Connector (ATX12V1)

5 2 x 240-pin DDR3 DIMM Slots (DDR3_A1, DDR3_B1)

6 2 x 240-pin DDR3 DIMM Slots (DDR3_A2, DDR3_B2)

7 ATX Power Connector (ATXPWR1)

8 USB 3.0 Header (USB10_11)

9 SATA2 Connectors (SATA_4_5)

10 SATA3 Connectors (SATA_2_3)

11 SATA3 Connectors (SATA_0_1)

12 System Panel Header (PANEL1)

13 Chassis Speaker Header (SPEAKER1)

14 Infrared Module Header (IR1)

15 Chassis Fan Connector (CHA_FAN1)

16 USB 2.0 Header (USB8_9)

17 USB 2.0 Header (USB6_7)

18 TPM Header (TPMS1)

19 Chassis Intrusion Header (CI1)

20 Print Port Header (LPT1)

21 COM Port Header (COM1)

22 Clear CMOS Jumper (CLRCMOS1)

23 Front Panel Audio Header (HD_AUDIO1)

24 SPDIF Out Connector (SPDIF_OUT)

25 Chassis Fan Connector (CHA_FAN2)

B85M Pro4

English

I/O Panel

No. Description No. Description

1 USB 2.0 Ports (USB01) 8 Microphone (Pink)

2 D-Sub Port 9 Optical SPDIF Out Port

3 LAN RJ-45 Port* 10 USB 2.0 Ports (USB_45)

4 Central / Bass (Orange) 11 USB 3.0 Ports (USB_23)

5 Rear Speaker (Black) 12 HDMI Port

6 Line In (Light Blue) 13 DVI-D Port

7 Front Speaker (Lime)** 14 PS/2 Keyboard Port

1 2 3 5

891011121314

English

* ere are two LEDs on each LAN port. Please refer to the table below for the LAN port LED indications.

Activity / Link LED Speed LED

Status Description Status Description

O No Link O 10Mbps connection

Blinking Data Activity Orange 100Mbps connection

On Link Green 1Gbps connection

** If you use a 2-channel speaker, please connect the speaker’s plug into “Front Speaker Jack”. See the table below

for connection details in accordance with the type of speaker you use.

Audio Output

Channels

Front Speaker

(No. 7)

Rear Speaker

(No. 5)

Central / Bass

(No. 4)

Line In

(No. 6)

2V -- -- --

4V V -- --

6V V V --

8VVVV

To enable Multi-Streaming, you need to connect a front panel audio cable to the front

panel audio header. Aer restarting your computer, you will nd the “Mixer” tool

on your system. Please select “Mixer ToolBox” , click “Enable playback multi-

streaming”, and click “ok”. Choose “2CH”, “4CH”, “6CH”, or “8CH” and then you are

allowed to select “Realtek HDA Primary output” to use the Rear Speaker, Central/

Bass, and Front Speaker, or select “Realtek HDA Audio 2nd output” to use the front

panel audio.

ACT/LINK LED

SPEED LED

LAN Port

B85M Pro4

English

Chapter 1 Introduction

ank you for purchasing ASRock B85M Pro4 motherboard, a reliable motherboard

produced under ASRock’s consistently stringent quality control. It delivers excellent

performance with robust design conforming to ASRock’s commitment to quality

and endurance.

1.1 Package Contents

• ASRock B85M Pro4 Motherboard (Micro ATX Form Factor)

• ASRock B85M Pro4 Quick Installation Guide

• ASRock B85M Pro4 Support CD

• 2 x Serial ATA (SATA) Data Cables (Optional)

• 1 x I/O Panel Shield

Because the motherboard specications and the BIOS soware might be updated, the

content of this documentation will be subject to change without notice. In case any

modications of this documentation occur, the updated version will be available on

ASRock’s website without further notice. If you require technical support related to

this motherboard, please visit our website for specic information about the model

you are using. You may nd the latest VGA cards and CPU support list on ASRock’s

website as well. ASRock website http://www.asrock.com.

English

1.2 Specications

Platform • Micro ATX Form Factor

• All Solid Capacitor design

CPU • Supports 4th Generation Intel® CoreTM i7 / i5 / i3 / Xeon® /

Pentium® / Celeron® in LGA1150 Package

• Digi Power Design

• 4 Power Phase Design

• Supports Intel® Turbo Boost 2.0 Technology

Chipset • Intel® B85

• Supports Intel® Small Business Advantage 2.0

Memory • Dual Channel DDR3 Memory Technology

• 4 x DDR3 DIMM slots

• Supports DDR3 1600/1333/1066 non-ECC, un-buered

memory

• Max. capacity of system memory: 32GB

(see CAUTION)

• Supports Intel® Extreme Memory Prole (XMP)1.3/1.2

Expansion

Slot

• 1 x PCI Express 3.0 x16 slot (PCIE1: x16 mode)

• 1 x PCI Express 2.0 x16 slot (PCIE2: x4 mode)

• 2 x PCI slots

• Supports AMD Quad CrossFireXTM and CrossFireXTM

Graphics • Intel® HD Graphics Built-in Visuals and the VGA outputs can

be supported only with processors which are GPU integrated.

• Supports Intel® HD Graphics Built-in Visuals : Intel® Quick

Sync Video with AVC, MVC (S3D) and MPEG-2 Full

HW Encode1, Intel® InTruTM 3D, Intel® Clear Video HD

Technology, Intel® InsiderTM, Intel® HD Graphics 4600

• Pixel Shader 5.0, DirectX 11.1

• Max. shared memory 1792MB

• ree VGA Output options: D-Sub, DVI-D and HDMI

B85M Pro4

English

• Supports Triple Monitors

• Supports HDMI Technology with max. resolution up to

1920x1200 @ 60Hz

• Supports DVI-D with max. resolution up to 1920x1200 @

60Hz

• Supports D-Sub with max. resolution up to 1920x1200 @

60Hz

• Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and

HBR (High Bit Rate Audio) with HDMI (Compliant HDMI

monitor is required)

• Supports HDCP function with DVI-D and HDMI ports

• Supports Full HD 1080p Blu-ray (BD) playback with DVI-D

and HDMI ports

Audio • 7.1 CH HD Audio with Content Protection (Realtek ALC892

Audio Codec)

• Premium Blu-ray audio support

LAN • Gigabit LAN 10/100/1000 Mb/s

• Giga PHY Intel® I217V

• Supports Intel® Remote Wake Technology

• Supports Wake-On-LAN

• Supports Energy Ecient Ethernet 802.3az

• Supports PXE

Rear Panel

I/O

• 1 x PS/2 Keyboard Port

• 1 x D-Sub Port

• 1 x DVI-D Port

• 1 x HDMI Port

• 1 x Optical SPDIF Out Port

• 4 x USB 2.0 Ports

• 2 x USB 3.0 Ports

• 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED

LED)

• HD Audio Jack: Rear Speaker / Central / Bass / Line in / Front

Speaker / Microphone

English

Storage • 4 x SATA3 6.0 Gb/s connectors, support NCQ, AHCI and “Hot

Plug” functions

• 2 x SATA2 3.0 Gb/s connectors, support NCQ, AHCI and “Hot

Plug” functions

Connector • 1 x IR header

• 1 x Print Port header

• 1 x COM port header

• 1 x Chassis Intrusion header

• 1 x TPM header

• 2 x CPU Fan connectors (1 x 4-pin, 1 x 3-pin)

• 2 x Chassis Fan connectors (1 x 4-pin, 1 x 3-pin)

• 1 x Power Fan connector (3-pin)

• 1 x 24 pin ATX power connector

• 1 x 8 pin 12V power connector

• 1 x Front panel audio connector

• 1 x SPDIF Out connector

• 2 x USB 2.0 headers (support 4 USB 2.0 ports)

• 1 x USB 3.0 header (supports 2 USB 3.0 ports)

BIOS

Feature

• 64Mb AMI UEFI Legal BIOS with Multilingual GUI support

• ACPI 1.1 Compliance Wake Up Events

• SMBIOS 2.3.1 Support

• CPU, DRAM, PCH 1.05V, PCH 1.5V Voltage Multi-adjust-

ment

Support

• Drivers, Utilities, AntiVirus Soware (Trial Version), Cy-

berLink MediaEspresso 6.5 Trial, Google Chrome Browser

and Toolbar, Start8, MeshCentral, Splashtop Streamer, Intel®

Extreme Tuning Utility (IXTU)

Hardware

Monitor

• CPU/Chassis Temperature Sensing

• CPU/Chassis/Power Fan Tachometer

• CPU/Chassis Quiet Fan (Allow Chassis Fan Speed Auto-

Adjust by CPU Temperature)

• CPU/Chassis Fan Multi-Speed Control

• CASE OPEN detection

Altri manuali per B85M Pro4

Indice

Lingue:

Altri manuali ASROCK Scheda madre

ASROCK

ASROCK Z790 Series Manuale utente

ASROCK

ASROCK 4Core1333-FullHD Manuale utente

ASROCK

ASROCK Z590 Extreme WiFi 6E Manuale utente

ASROCK

ASROCK Z490 Taichi Manuale utente

ASROCK

ASROCK 775i915P-SATA2 Manuale utente

ASROCK

ASROCK Z390 Extreme4 Manuale utente

ASROCK

ASROCK X300TM-ITX Manuale utente

ASROCK

ASROCK A780GM-LE - V1.1 Manuale utente

ASROCK

ASROCK 4CORE1600-D800 - V1.0 Manuale utente

ASROCK

ASROCK P55 EXTREME4 - Manuale utente

ASROCK

ASROCK N68-GS UCC - Manuale utente

ASROCK

ASROCK K8NF6G-VSTA - V1.2 Manuale utente

ASROCK

ASROCK 970 Pro3 R2.0 Manuale utente

ASROCK

ASROCK IMB-185 Manuale di servizio

ASROCK

ASROCK H81M-DGS Manuale utente

ASROCK

ASROCK Fatal1ty H87 Performance Series Manuale dell'operatore

ASROCK

ASROCK Z370 Pro4 Manuale utente

ASROCK

ASROCK N68-GE3 UCC - Manuale utente

ASROCK

ASROCK FM2A78M-HD+ Manuale utente

ASROCK

ASROCK 4COREDUAL-SATA2 - V1.1 Manuale utente

ASROCK

ASROCK Fatal1ty Z97 Manuale utente

ASROCK

ASROCK A520M/ac Manuale utente

ASROCK

ASROCK Q87M vPro Manuale utente

ASROCK

ASROCK 970 Extreme4 Manuale utente

Manuali Scheda madre popolari di altre marche

DFI

DFI SD170 Manuale utente

Asus

Asus P2L97A Manuale utente

Winmate

Winmate IC70 Manuale utente

Asus

Asus MES-B Manuale utente

Grantech

Grantech SYS8F377VGGA-3OMN Manuale utente

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuale utente

Gigabyte

Gigabyte GA-9IVDT Manuale utente

Texas Instruments

Texas Instruments ADS8372EVM Manuale utente

Commell

Commell MS-C73 Manuale utente

IBT Technologies

IBT Technologies MB860 Manuale utente

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuale utente

Biostar

Biostar M7VIT Bravo Istruzioni per l'uso e l'installazione

Intel

Intel D33217CK Manuale utente

Asus

Asus F1A55-M LX PLUS R2.0 Manuale utente

EPC

EPC EPC9147C Manuale utente

Asus

Asus EX-B760M-V5 D4 Manuale utente

EPOX

EPOX MU-8KHA0010 Manuale utente

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manuale utente
