English

CML-HDV/M.2 TPM

Chapter 1 Introduction

ank you for purchasing ASRock CML-HDV/M.2 TPM motherboard, a reliable

motherboard produced under ASRock’s consistently stringent quality control.

It delivers excellent performance with robust design conforming to ASRock’s

commitment to quality and endurance.

1.1 Package Contents

• ASRock CML-HDV/M.2 TPM Motherboard (Micro ATX Form Factor)

• ASRock CML-HDV/M.2 TPM User Manual

• ASRock CML-HDV/M.2 TPM Support CD

• 1 x I/O Panel Shield

• 2 x Serial ATA (SATA) Data Cables (Optional)

• 1 x Screw for M.2 Socket (Optional)

Because the motherboard specications and the BIOS soware might be updated, the

content of this documentation will be subject to change without notice. In case any

modications of this documentation occur, the updated version will be available on

ASRock’s website without further notice. If you require technical support related to

this motherboard, please visit our website for specic information about the model

you are using. You may nd the latest VGA cards and CPU support list on ASRock’s

website as well. ASRock website http://www.asrock.com.

English

1.2 Specications

Platform • Micro ATX Form Factor

• Solid Capacitor design

CPU • Supports 10th Gen Intel® CoreTM Processors (Socket 1200)

• Digi Power design

• 7 Power Phase design

• Supports Intel® Turbo Boost Max 3.0 Technology

Chipset • Intel® H310

Memory • Dual Channel DDR4 Memory Technology

• 2 x DDR4 DIMM Slots

• Supports DDR4 2933/2800/2666/2400/2133 non-ECC, un-

buered memory

* Please refer to Memory Support List on ASRock's website for

more information. (http://www.asrock.com/)

* CoreTM (i9/i7) support DDR4 up to 2933; CoreTM (i5/i3),

Pentium® and Celeron® support DDR4 up to 2666.

• Supports ECC UDIMM memory modules (operate in non-

ECC mode)

• Max. capacity of system memory: 64GB

• Supports Intel® Extreme Memory Prole (XMP) 2.0

• 15μ Gold Contact in DIMM Slots

Expansion

Slot

• 1 x PCI Express 3.0 x16 Slot

* Supports NVMe SSD as boot disks

• 1 x PCI Express 2.0 x1 Slot

Graphics • Intel® UHD Graphics Built-in Visuals and the VGA outputs

can be supported only with processors which are GPU

integrated.

• Supports Intel® UHD Graphics Built-in Visuals : Intel®

Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full

HW Encode1, Intel® InTruTM 3D, Intel® Clear Video HD

Technology, Intel® InsiderTM, Intel® UHD Graphics

• DirectX 12

English

CML-HDV/M.2 TPM

• HWAEncode/Decode: AVC/H.264, HEVC/H.265 8-bit,

HEVC/H.265 10-bit, VP8, VP9 8-bit, VP9 10-bit (Decode

only), MPEG2, MJPEG, VC-1

• ree graphics output options: D-Sub, DVI-D and HDMI

* Supports up to 2 displays simultaneously

• Supports HDMI 1.4 with max. resolution up to 4K x 2K

(4096x2160) @ 30Hz

• Supports DVI-D with max. resolution up to 1920x1200 @

60Hz

• Supports D-Sub with max. resolution up to 1920x1200 @

60Hz

• Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and

HBR (High Bit Rate Audio) with HDMI 1.4 Port (Compliant

HDMI monitor is required)

• Supports 4K Ultra HD (UHD) playback with HDMI 1.4 Port

Audio • 7.1 CH HD Audio (Realtek ALC887 Audio Codec)

• Supports Surge Protection

LAN • Gigabit LAN 10/100/1000 Mb/s

• Giga PHY Intel® I219V

• Supports Wake-On-LAN

• Supports Lightning/ESD Protection

• Supports Energy Ecient Ethernet 802.3az

• Supports PXE

Rear Panel

I/O

• 1 x PS/2 Mouse/Keyboard Port

• 1 x D-Sub Port

• 1 x DVI-D Port

• 1 x HDMI Port

• 4 x USB 2.0 Ports (Supports ESD Protection)

• 2 x USB 3.2 Gen1 Ports (Supports ESD Protection)

• 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED

LED)

• HD Audio Jacks: Line in / Front Speaker / Microphone

English

Storage • 4 x SATA3 6.0 Gb/s Connectors, support NCQ, AHCI and

Hot Plug*

* If M2_1 is occupied by a SATA-type M.2 device, SATA3_0

will be disabled.

• 1 x M.2 Socket (M2_1), supports M Key type 2260/2280 M.2

SATA3 6.0 Gb/s module and M.2 PCI Express module up to

Gen2 x4 (16 Gb/s)**

** Supports NVMe SSD as boot disks

** Supports ASRock U.2 Kit

Connector • 1 x Print Port Header

• 1 x COM Port Header

• 1 x SPI TPM Header with TPM-SPI module

• 1 x Chassis Intrusion and Speaker Header

• 1 x CPU Fan Connector (4-pin)

* e CPU Fan Connector supports the CPU fan of maximum

1A (12W) fan power.

• 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan

Speed Control)

* e CPU/Water Pump Fan supports the water cooler fan of

maximum 2A (24W) fan power.

• 2 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan

Speed Control)

* e Chassis/Water Pump Fan supports the water cooler fan of

maximum 2A (24W) fan power.

* CPU_FAN2/WP, CHA_FAN1/WP and CHA_FAN2/WP can

auto detect if 3-pin or 4-pin fan is in use.

• 1 x 24 pin ATX Power Connector

• 1 x 8 pin 12V Power Connector

• 1 x Front Panel Audio Connector

• 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports

ESD Protection)

• 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)

(Supports ESD Protection)

BIOS

Feature

• AMI UEFI Legal BIOS with multilingual GUI support

• ACPI 6.0 Compliant wake up events

• SMBIOS 2.7 Support

• CPU Core/Cache, GT, DRAM, VPPM, PCH 1.05V, VCCST,

VCCSA Voltage Multi-adjustment

English

CML-HDV/M.2 TPM

Hardware

Monitor

• Temperature Sensing: CPU, CPU/Water Pump, Chassis/Wa-

ter Pump Fans

• Fan Tachometer: CPU, CPU/Water Pump, Chassis/Water

Pump Fans

• Quiet Fan (Auto adjust chassis fan speed by CPU tempera-

ture): CPU, CPU/Water Pump, Chassis/Water Pump Fans

• Fan Multi-Speed Control: CPU, CPU/Water Pump, Chassis/

Water Pump Fans

• CASE OPEN detection

• Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, DRAM,

VPPM, PCH, VCCSA, VCCST

OS • Microso® Windows® 10 64-bit / 11 64-bit

Certica-

tions

• FCC, CE

• ErP/EuP ready (ErP/EuP ready power supply is required)

Please realize that there is a certain risk involved with overclocking, including

adjusting the setting in the BIOS, applying Untied Overclocking Technology, or using

third-party overclocking tools. Overclocking may aect your system’s stability, or

even cause damage to the components and devices of your system. It should be done

at your own risk and expense. We are not responsible for possible damage caused by

overclocking.

* For detailed product information, please visit our website: http://www.asrock.com

English

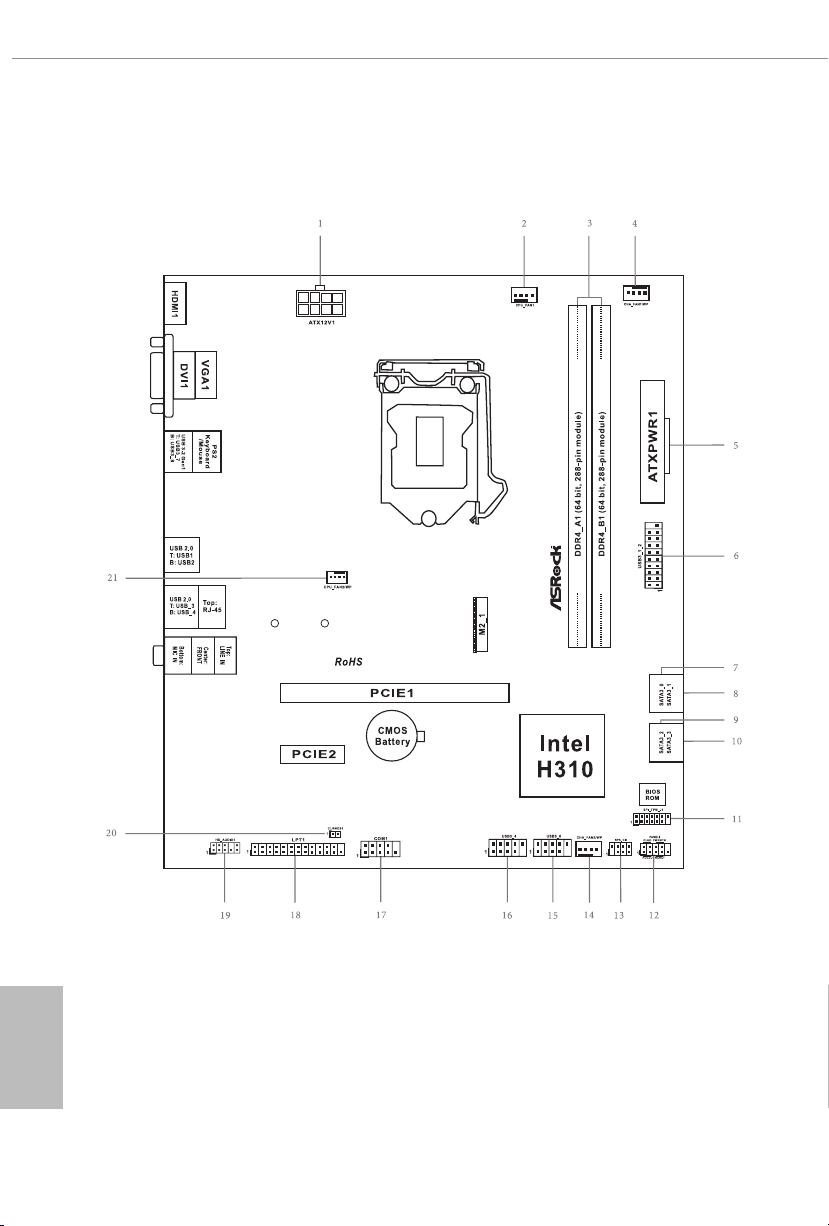

1.3 Motherboard Layout

English

CML-HDV/M.2 TPM

No. Description

1 ATX 12V Power Connector (ATX12V1)

2 CPU Fan Connector (CPU_FAN1)

3 2 x 288-pin DDR4 DIMM Slots (DDR4_A1, DDR4_B1)

4 Chassis/Water Pump Fan Connector (CHA_FAN1/WP)

5 ATX Power Connector (ATXPWR1)

6 USB 3.2 Gen1 Header (USB3_1_2)

7 SATA3 Connector (SATA3_0) (Upper)

8 SATA3 Connector (SATA3_1) (Lower)

9 SATA3 Connector (SATA3_2) (Upper)

10 SATA3 Connector (SATA3_3) (Lower)

11 SPI TPM Header (SPI_TPM_J1)

12 System Panel Header (PANEL1)

13 Chassis Intrusion and Speaker Header (SPK_CI1)

14 Chassis/Water Pump Fan Connector (CHA_FAN2/WP)

15 USB 2.0 Header (USB5_6)

16 USB 2.0 Header (USB3_4)

17 COM Port Header (COM1)

18 Print Port Header (LPT1)

19 Front Panel Audio Header (HD_AUDIO1)

20 Clear CMOS Jumper (CLRMOS1)

21 CPU/Water Pump Fan Connector (CPU_FAN2/WP)

English

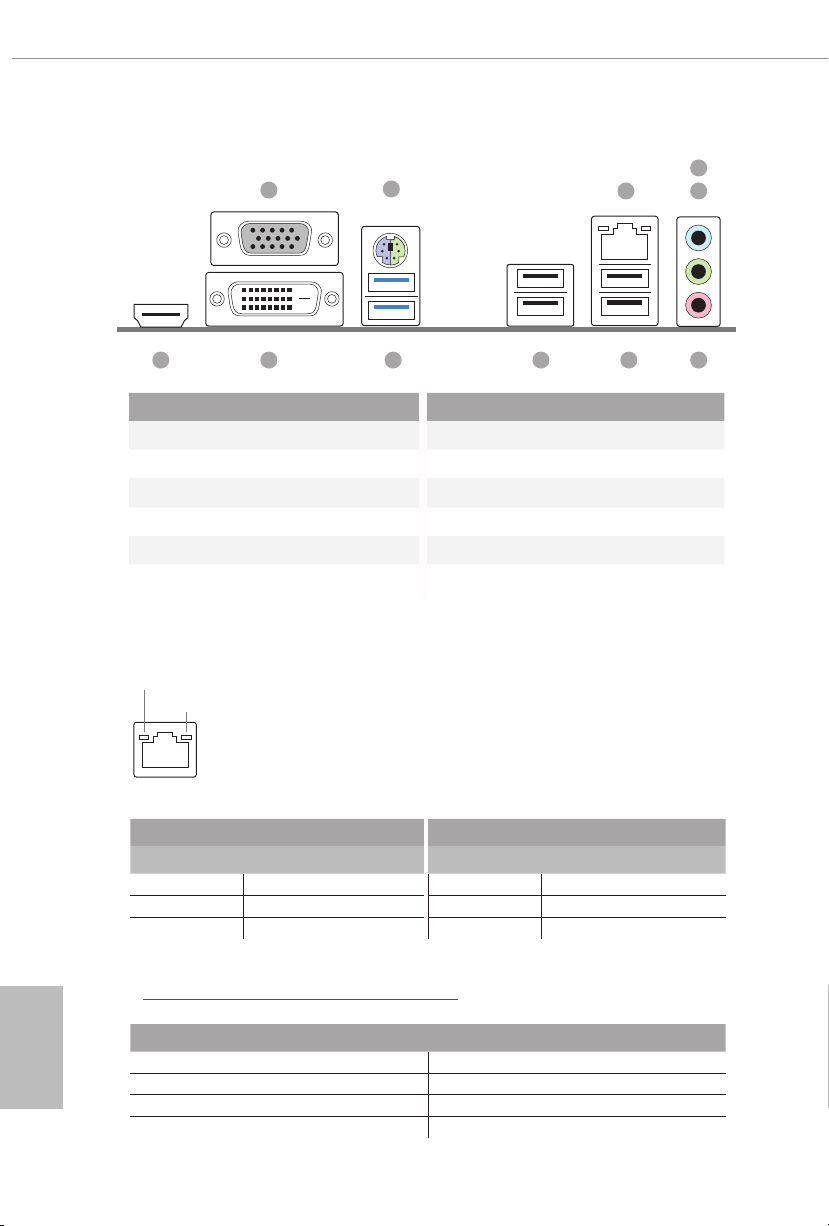

1.4 I/O Panel

No. Description No. Description

1 D-Sub Port 7 USB 2.0 Ports (USB_3_4)

2 PS/2 Mouse/Keyboard Port 8 USB 2.0 Ports (USB1_2)

3 LAN RJ-45 Port* 9 USB 3.2 Gen1 Ports (USB3_7_8)

4 Line In (Light Blue)** 10 DVI-D Port

5 Front Speaker (Lime)** 11 HDMI Port

6 Microphone (Pink)**

* ere are two LEDs on each LAN port. Please refer to the table below for the LAN port LED indications.

Activity / Link LED Speed LED

Status Description Status Description

O No Link O 10Mbps connection

Blinking Data Activity Orange 100Mbps connection

On Link Green 1Gbps connection

ACT/LINK LED

SPEED LED

LAN Port

** Function of the Audio Ports in 7.1-channel Conguration:

Port Function

Light Blue (Rear panel) Rear Speaker Out

Lime (Rear panel) Front Speaker Out

Pink (Rear panel) Central /Subwoofer Speaker Out

Lime (Front panel) Side Speaker Out

11 679

English

CML-HDV/M.2 TPM

1.5 TPM-SPI Specications

Features • Compliant to TPM Main Specication, Family "2.0", Level 00,

Revision 01.16

- SPI interface

- TPM 2.0

- 13 pin connector

- Meeting Intel TXT, Microso Windows and Google Chromebook

certication criteria for successful platform qualication

- Random Number Generator (RNG) according to NIST SP800-90A

- Full personalization with Endorsement Key (EK) and EK

certicate

- Standard (-20..+85°C) and Enhanced temperature range

(-40..+85°C)

- PG-VQFN-32-13 or PG-UQFN-32-1 package

- Pin compatible to OPTIGA™ TPM SLB 9670 TPM1.2 version

- Optimized for battery operated devices: low standby power

consumption (typ. 110µA)

- 24 PCRs (SHA-1 or SHA-256)

- 7206 Byte free NV memory

- Up to 3 loaded sessions (TPM_PT_HR_LOADED_MIN)

- Up to 64 active sessions (TPM_PT_ACTIVE_SESSIONS_MAX)

- Up to 3 loaded transient Objects (TPM_PT_HR_TRANSIENT_

MIN)

- Up to 7 loaded persistent Objects (TPM_PT_HR_PERSISTENT_

MIN)

- Up to 8 NV counters

- Up to 1 kByte for command parameters and response parameters

- 1280 Byte I/O buer

System

Require-

ments

• Windows® 10, UEFI OS

Dimen-

sions

• 16.51mm x 10.16mm

Pin Di-

mension

• 14-1pin

* For detailed product information, please visit our website: http://www.asrock.com

Altri manuali per CML-HDV/M.2 TPM

Indice

Lingue:

Altri manuali ASROCK Scheda madre

ASROCK

ASROCK K10N780SLIX3-WIFI Manuale utente

ASROCK

ASROCK EPYC3451D4I2-2T Manuale utente

ASROCK

ASROCK FM2A58M+ BTC Manuale utente

ASROCK

ASROCK H87M Manuale utente

ASROCK

ASROCK H61DEL Manuale utente

ASROCK

ASROCK ZH77 Pro3 Manuale utente

ASROCK

ASROCK SBC-240L Manuale di servizio

ASROCK

ASROCK N68-GE3 UCC - Manuale utente

ASROCK

ASROCK AM1B-ITX Manuale utente

ASROCK

ASROCK Z590 Phantom Gaming 4/ac Manuale utente

ASROCK

ASROCK J3160TM-ITX Manuale utente

ASROCK

ASROCK N68-GS Manuale utente

ASROCK

ASROCK AD2550B-ITX Manuale utente

ASROCK

ASROCK H61M-DG4 Manuale utente

ASROCK

ASROCK Z97 Pro3 Manuale utente

ASROCK

ASROCK IMB-198 Manuale utente

ASROCK

ASROCK CONROE1333-D667 - INSTALLATION 11-2007 Manuale utente

ASROCK

ASROCK AM2NF4G-SATA2 Manuale utente

ASROCK

ASROCK H61M-S1 PLUS Manuale utente

ASROCK

ASROCK B760 Pro RS/D4 Manuale utente

ASROCK

ASROCK Fatal1ty X99 Professional Series Manuale utente

ASROCK

ASROCK IMB-150 Manuale di servizio

ASROCK

ASROCK A780GXH 128M - V1.1 Manuale utente

ASROCK

ASROCK QC5000-ITXQC5000-ITX/PH Manuale utente

Manuali Scheda madre popolari di altre marche

DFI

DFI SD170 Manuale utente

Asus

Asus P2L97A Manuale utente

Winmate

Winmate IC70 Manuale utente

Asus

Asus MES-B Manuale utente

Grantech

Grantech SYS8F377VGGA-3OMN Manuale utente

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuale utente

Gigabyte

Gigabyte GA-9IVDT Manuale utente

Texas Instruments

Texas Instruments ADS8372EVM Manuale utente

Commell

Commell MS-C73 Manuale utente

IBT Technologies

IBT Technologies MB860 Manuale utente

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuale utente

Biostar

Biostar M7VIT Bravo Istruzioni per l'uso e l'installazione

Intel

Intel D33217CK Manuale utente

Asus

Asus F1A55-M LX PLUS R2.0 Manuale utente

EPC

EPC EPC9147C Manuale utente

Asus

Asus EX-B760M-V5 D4 Manuale utente

EPOX

EPOX MU-8KHA0010 Manuale utente

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manuale utente
