Motherboard LMotherboard L

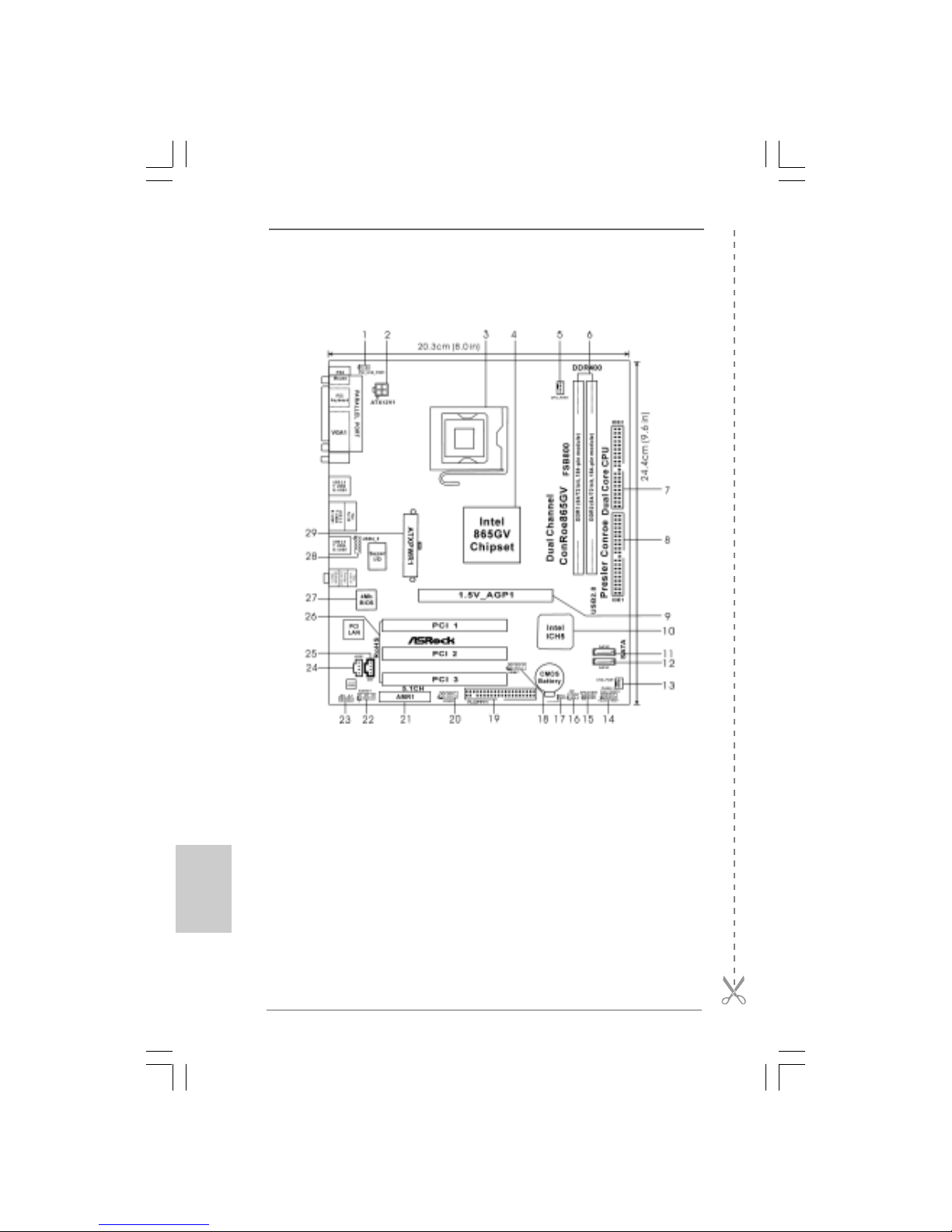

Motherboard Layoutayout

ayoutayout

ayout

1 PS2_USB_PWR1 Jumper 16 Infrared Module Header (IR1)

2 ATX 12V Connector (ATX12V1) 17 Clear CMOS Jumper (CLRCMOS0)

3 775-Pin CPU Socket 18 USB 2.0 Header (USB67, Blue)

4 North Bridge Controller 19 Floppy Connector (FLOPPY1)

5 CPU Fan Connector (CPU_FAN1) 20 COM Port Header (COM1)

6 184-pin DDR DIMM Slots (DDR1- 2, Dual Channel) 21 AMR Slot (AMR1)

7 Secondary IDE Connector (IDE2, Black) 22 Front Panel Audio Header (AUDIO1)

8 Primary IDE Connector (IDE1, Blue) 23 JR1 Jumper / JL1 Jumper

9 ASRock Graphics Interface Slot (1.5V_AGP1) 24 Internal Audio Connector: AUX1 (White)

10 South Bridge Controller 25 Internal Audio Connector: CD1 (Black)

11 Secondary Serial ATA Connector (SATA2) 26 PCI Slots (PCI1- 3)

12 Primary Serial ATA Connector (SATA1) 27 BIOS FWH Chip

13 Chassis Fan Connector (CHA_FAN1) 28 Shared USB 2.0 Header (USB4_5, Blue)

14 System Panel Header (PANEL1) 29 ATX 12V Connector (ATX12V1)

15 Chassis Speaker Header (SPEAKER 1)

ASRock ConRoe865GV Motherboard

EnglishEnglish

English

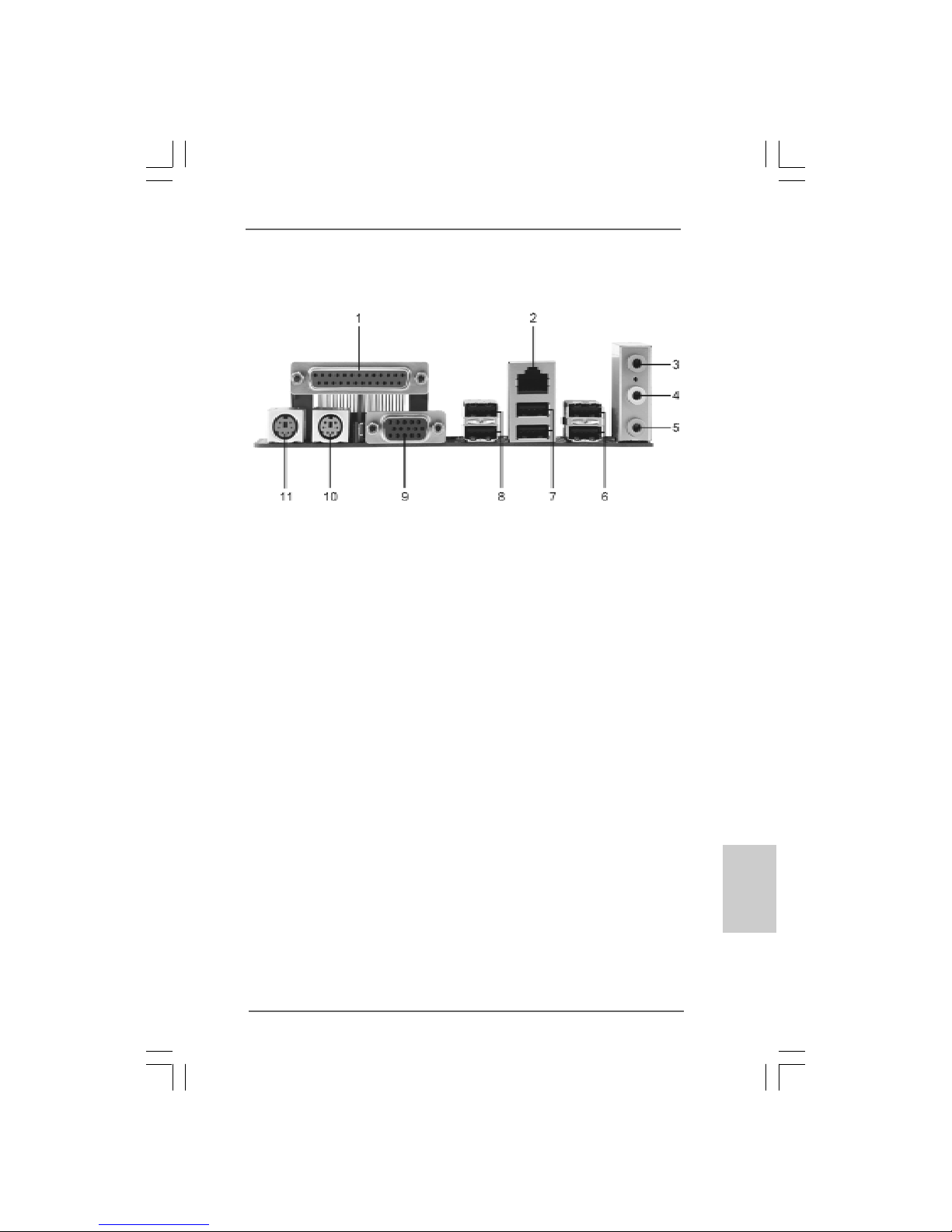

ASRock I/O PlusASRock I/O Plus

ASRock I/O PlusTMTM

TMTM

1 Parallel Port 7 USB 2.0 Ports (USB01)

2 RJ-45 Port 8 USB 2.0 Ports (USB23)

3 Line In (Light Blue) 9 VGA Port

4 Line Out (Lime) 10 PS/2 Keyboard Port (Purple)

5 Microphone (Pink) 11 PS/2 Mouse Port (Green)

6 Shared USB 2.0 Ports (USB45)

4ASRock ConRoe865GV Motherboard

EnglishEnglish

English

1. Introduction1. Introduction

1. Introduction

Thank you for purchasing ASRock ConRoe865GV motherboard, a reliable

motherboard produced under ASRock’s consistently stringent quality control. It de-

livers excellent performance with robust design conforming to ASRock’s commit-

ment to quality and endurance.

This Quick Installation Guide contains introduction of the motherboard and step-by-

step installation guide. More detailed information of the motherboard can be found in

the user manual presented in the Support CD.

Because the motherboard specifications and the BIOS software might be

updated, the content of this manual will be subject to change without

notice. In case any modifications of this manual occur, the updated

version will be available on ASRock website without further notice. You

may find the latest VGA cards and CPU support lists on ASRock website

as well. ASRock website http://www.asrock.com

1.1 Package Contents1.1 Package Contents

1.1 Package Contents

ASRock ConRoe865GV Motherboard

(Micro ATX Form Factor: 9.6-in x 8.0-in, 24.4 cm x 20.3 cm)

ASRock ConRoe865GV Quick Installation Guide

ASRock ConRoe865GV Support CD

(including LGA 775 CPU Installation Live Demo)

One 80-conductor Ultra ATA 66/100 IDE Ribbon Cable

One Ribbon Cable for a 3.5-in Floppy Drive

One SerialATA (SATA) Data Cable (Optional)

One SerialATA (SATA) HDD Power Cable (Optional)

OneASRock I/O PlusTM Shield

One COM Port Bracket

OneASRock MR Card (Optional)

ASRock ConRoe865GV Motherboard

EnglishEnglish

English

1.21.2

1.2 SpecificationsSpecifications

SpecificationsSpecifications

Specifications

Platform - Micro ATX Form Factor: 9.6-in x 8.0-in, 24.4 cm x 20.3 cm

CPU - LGA775 for Intel®CoreTM 2 Duo / Pentium®XE / Pentium®D /

Pentium®4 / Celeron® D, supporting Conroe processors

(in 775-land LGA package) (see CAUTION 1)

- FSB 800/533 MHz

- Supports Hyper-Threading Technology (see CAUTION 2)

- Supports Untied Overclocking Technology (see CAUTION 3)

- Supports EM64T CPU

Chipset - Northbridge: Intel®865GV

- Southbridge: Intel®ICH5

Memory - Dual Channel DDR memory technology (see CAUTION 4)

- 2 xDDRDIMM slots

- Support DDR400/333/266 (see CAUTION 5)

- Max. capacity: 2GB

Hybrid Booster - CPU Frequency Stepless Control (see CAUTION 6)

- ASRock U-COP (see CAUTION 7)

- Boot Failure Guard (B.F.G.)

Expansion Slot - 3 x PCI slots

- 1 x AGI slot (see CAUTION 8)

- 1 x AMR slot (see CAUTION 9)

Graphics - Integrated Intel®Extreme Graphics 2

- DirectX 8.0

- Max. shared memory 96MB

Audio - C-Media 9761A 5.1 channel audio CODEC

LAN - Realtek PCI LAN 8101L

- Speed: 10/100 Ethernet

- Supports Wake-On-LAN

Rear Panel I/O ASRock I/O PlusTM

- 1 x PS/2 Mouse Port

- 1 x PS/2 Keyboard Port

- 1 x VGA Port

- 1 x Parallel Port (ECP/EPP Support)

- 6 x Ready-to-Use USB 2.0 Ports

- 1 x RJ-45 LAN Port

- Audio Jack: Line in/Front Speaker/Microphone

6ASRock ConRoe865GV Motherboard

EnglishEnglish

English

Connector - 2 x Serial ATA 1.5 Gb/s connectors

(No Support for RAID and “Hot Plug” functions)

- 2 x ATA100 IDE connectors (support 4 x IDE devices)

- 1 x Floppy connector

- 1 x COM port header

- 1 x IR header

- CPU/Chassis FANconnector

- 20 pin ATX power connector

- 4 pin 12V power connector

- CD in header

- AUX in header

- Front panel audio connector

- 2 x USB 2.0 headers (support 4 USB 2.0 ports; 2 of them are

shared with USB45 ports on the I/O panel)

(see CAUTION 10)

BIOS Feature - 4MbAMI BIOS

-AMI Legal BIOS

- Supports “Plug and Play”

-ACPI 1.1 Compliance Wake Up Events

- Supports jumperfree

-AMBIOS 2.3.1 Support

Support CD - Drivers, Utilities, AntiVirus Software (Trial Version)

Hardware - CPU Temperature Sensing

Monitor - Chassis Temperature Sensing

- CPU Fan Tachometer

- Chassis Fan Tachometer

- CPU Quiet Fan

- Voltage Monitoring: +12V, +5V, +3.3V, Vcore

OS - Microsoft® Windows® 98SE / ME / 2000 / XP compliant

Certifications - FCC, CE, WHQL

ASRock ConRoe865GV Motherboard

EnglishEnglish

English

CAUTION!

1. This motherboard supports FSB800-CPU. If you plan to adopt CoreTM 2

Duo CPU on this motherboard, you can only adopt Conroe 800 E4XXX

processors.

2. About the setting of “Hyper Threading Technology”, please check page 28

of “User Manual” in the support CD.

3. This motherboard supports Untied Overclocking Technology. Please read “Un-

tied Overclocking Technology” on page 19 for details.

4. This motherboard supports Dual Channel Memory Technology. Before you

implement Dual Channel Memory Technology, make sure to read the

installation guide of memory modules on page 13 for proper installation.

5. Please check the table below for the memory support frequency and its

corresponding CPU FSB frequency.

CPU FSB Frequency Memory Support Frequency

800 DDR266, DDR333*, DDR400

533 DDR266, DDR333

*When you use an FSB800-CPU on this motherboard, it will run at

DDR320 if you adopt a DDR333 memory module.

6. Although this motherboard offers stepless control, it is not recommended

to perform over-clocking. Frequencies other than the recommended CPU

bus frequencies may cause the instability of the system or damage the

CPU.

7. While CPU overheat is detected, the system will automatically shutdown.

Before you resume the system, please check if the CPU fan on the

motherboard functions properly and unplug the power cord, then plug it

back again. To improve heat dissipation, remember to spray thermal

grease between the CPU and the heatsink when you install the PC system.

8. The AGI [ASRock Graphics Interface] slot is a special design that only

supports compatibleAGP VGAcards. For the information of the compatible

AGP VGA cards, please refer to the “Supported AGP VGA Cards List” on

page 8 and page 9. For the proper installation of AGP VGA card, please

refer to the installation guide on page 14.

9. Because the installed AMR card will occupy the same external connecting

position with the PCI card that are installed in “PCI3” slot, you will not be

able to install any PCI card in “PCI3” slot if anAMR card has already been

installed in the AMR slot.

10. Power Management for USB 2.0 works fine under Microsoft®Windows®

XP SP1 or SP2 / 2000 SP4. It may not work properly under Microsoft®

Windows®98 / ME.

8ASRock ConRoe865GV Motherboard

EnglishEnglish

English

1.31.3

1.3 Supported AGP VGA Cards ListSupported AGP VGA Cards List

Supported AGP VGA Cards ListSupported AGP VGA Cards List

Supported AGP VGA Cards List

(for Windows®2000/Windows®XP)

I. AGP 4X

Graphics Chip Model Name Chipset Name

Vendor

NVIDIA ASUS V8170 GeForceMX440SE

Ennyah G2 MX400 GeForce 2 MX400

II. AGP 8X

Graphics Chip Model Name Chipset Name

Vendor

NVIDIA ASUS N6200 NVIDIAGeForce 6200A

ASUSN6200GE/TD/128M NVIDIAGeForce 6200

ASUSN6600LE/TD/256M NVIDIAGeForce 6600 LE

ASUS V9180 Magic GF4 MX 440 64M

ASUS V9400MAGIC GeForce 4 MX4000

ASUSV9520-X/128M GeForce FX 5200

ASUS V9560/TD GeForce FX5600

ASUS V9570/TD/256M GeForce FX5700

ASUSV9950ULTRA GeForce FX 5900 Ultra

ASUS V9999 Ultra/2DT 6800 Ultra 256M

AlbatronAGP6600GT 6600GT

Albatron FX5600P Turbo GeForce FX 5600

AlbatronMX-480E GeForce4MX440-8X

Aopen Aeolus Fx5200-DV 128 FX 5200 128M

CHAINTECH SA5900X NVIDIAGeForce 5900XT

ELSA GLADIC FX733 NVIDIAGeForce 5500

Ennyah GeForce FX5200 ULTRA GeForce FX 5200 Ultra

Gigabyte GV-N57L256D GeForce FX 5700 LE

Gigabyte GV-N66128DP GeForce 6600

Inno3D GeForce FX 5600 128MB NVIDIAGeForce FX 5600

Leadtek WinFast A340PRO/TD GeForce FX 5500

Leadtek WinFast A340TDH GeForce FX 5200

Leadtek WinFast A360TD GeForce FX 5600

Leadtek WinFast A400TDH GeForce 6800

Leadtek WinFast A6600 GT TDH GeForce 6600GT

MSIFX5700-TD128 GeForce FX 5700

MSIFX5700-VTD128 NVIDIAGeForce 5700

ProlinkFX5900/128M FX5900

Prolink PV-N36AX FX 5700 LE 128MB

XFX7800GS NVIDIAGeForce 7800GS

ASRock ConRoe865GV Motherboard

EnglishEnglish

English

ATI ASUSA9800XT ATI Radeon 9800 XT

ELSA FALCOX 920FX Radeon 9200

GECUBE Radeon 9250/128M Radeon 9250

MSI RX 9200 SE-T128 Radeon 9200 SE

PowerColor Radeon 9200SE Radeon 9200SE

PowerColor RADEON 9250/128M Radeon 9250

* ATI 9600/9550 series and all Matrox series VGA cards are NOT supported with AGI.

For the latest updates of the supported AGP VGA cards list, please visit

ASRock website for details.

ASRock website: http://www.asrock.com/support/index.htm

1010

10 ASRock ConRoe865GV Motherboard

EnglishEnglish

English

2.2.

2.InstallationInstallation

InstallationInstallation

Installation

Pre-installation PrecautionsPre-installation Precautions

Pre-installation Precautions

Take note of the following precautions before you install mother-

board components or change any motherboard settings.

1. Unplug the power cord from the wall socket before touching any

component. Failure to do so may cause severe damage to the

motherboard, peripherals, and/or components.

2. To avoid damaging the motherboard components due to static

electricity, NEVER place your motherboard directly on the carpet

or the like. Also remember to use a grounded wrist strap or touch

a safety grounded object before you handle components.

3. Hold components by the edges and do not touch the ICs.

4. Whenever you uninstall any component, place it on a grounded

antstatic pad or in the bag that comes with the component.

5. When placing screws into the screw holes to secure the

motherboard to the chassis, please do not over-tighten the

screws! Doing so may damage the motherboard.

2.12.1

2.1 CPU InstallationCPU Installation

CPU InstallationCPU Installation

CPU Installation

For the installation of Intel 775-Pin CPU,

please follow the steps below.

Before you insert the 775-Pin CPU into the socket, please check if the

CPU surface is unclean or if there is any bent pin on the socket. Do

not force to insert the CPU into the socket if above situation is found.

Otherwise, the CPU will be seriously damaged.

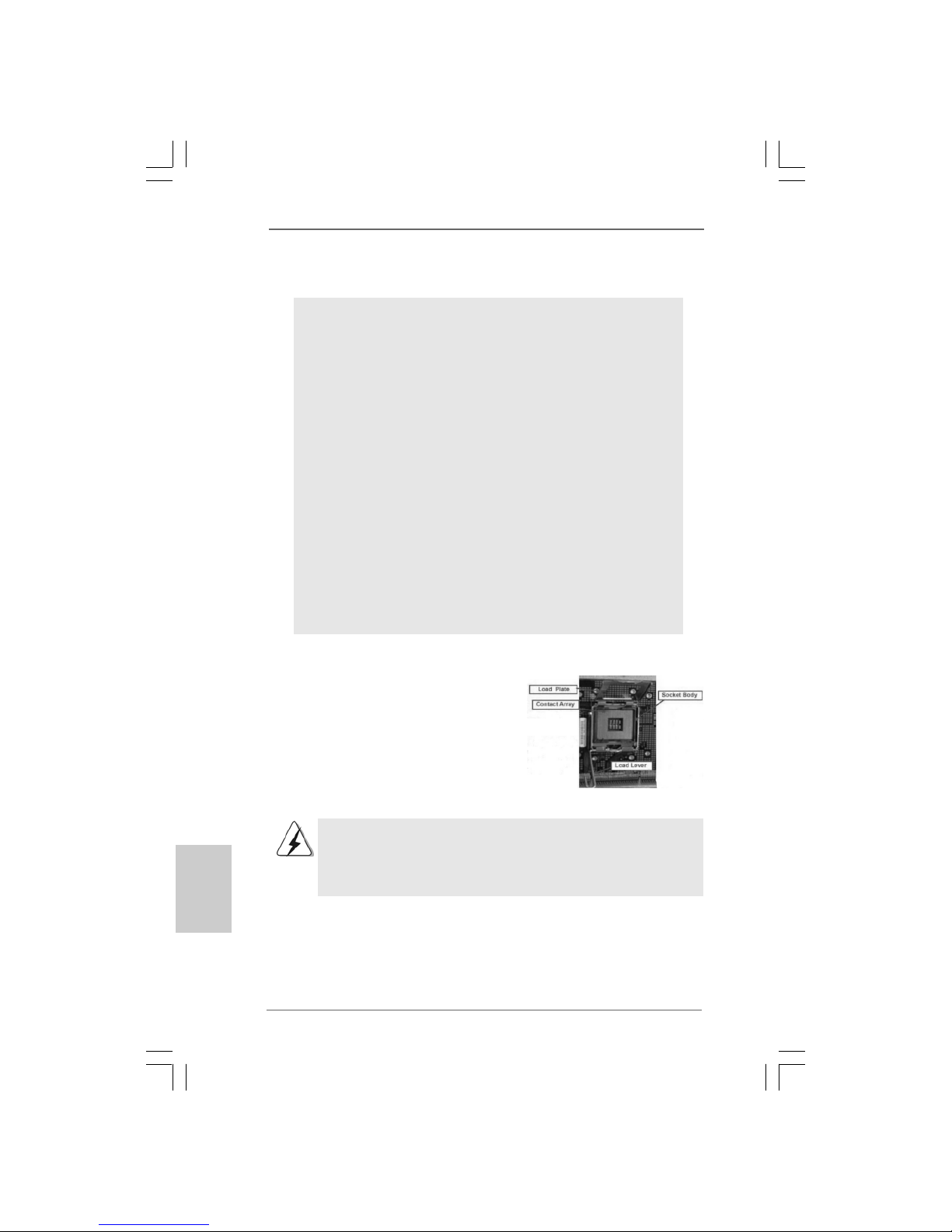

775-Pin Socket Overview

Altri manuali per CONROE865GV

Indice

Lingue:

Altri manuali ASROCK Scheda madre

ASROCK

ASROCK ALIVENF7G-HD720P Manuale utente

ASROCK

ASROCK K7VT6-C Manuale utente

ASROCK

ASROCK P4I65GV Manuale utente

ASROCK

ASROCK RIPTIDE Z790 PG Manuale utente

ASROCK

ASROCK B550M-ITX/AC Manuale utente

ASROCK

ASROCK NUC-1260P Manuale utente

ASROCK

ASROCK AM5D4ID-2I/BCM Manuale utente

ASROCK

ASROCK PRO4 B550 Manuale utente

ASROCK

ASROCK Fatal1ty X370 Gaming-ITX/ac Manuale utente

ASROCK

ASROCK FM2A58M-VG3+ R2.0 Manuale utente

ASROCK

ASROCK N68-GS UCC - Manuale utente

ASROCK

ASROCK H470M-STX Manuale utente

ASROCK

ASROCK X79 Extreme4-M Manuale utente

ASROCK

ASROCK X300TM-ITX Manuale utente

ASROCK

ASROCK P4VM900-SATA2 - V1.0 Manuale utente

ASROCK

ASROCK P43C-ME Manuale utente

ASROCK

ASROCK H270M-ITX/ac Manuale utente

ASROCK

ASROCK ATW-HC2260 Manuale utente

ASROCK

ASROCK PV530 Manuale utente

ASROCK

ASROCK Z68 EXTREME4 - ANNEXE 541 Manuale utente

ASROCK

ASROCK K7VT2 Manuale utente

ASROCK

ASROCK FM2A75M-DGS R2.0 Manuale utente

ASROCK

ASROCK Z170 OC FORMULA Manuale utente

ASROCK

ASROCK K10N78D Manuale utente

Manuali Scheda madre popolari di altre marche

DFI

DFI SD170 Manuale utente

Asus

Asus P2L97A Manuale utente

Winmate

Winmate IC70 Manuale utente

Asus

Asus MES-B Manuale utente

Grantech

Grantech SYS8F377VGGA-3OMN Manuale utente

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuale utente

Gigabyte

Gigabyte GA-9IVDT Manuale utente

Texas Instruments

Texas Instruments ADS8372EVM Manuale utente

Commell

Commell MS-C73 Manuale utente

IBT Technologies

IBT Technologies MB860 Manuale utente

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuale utente

Biostar

Biostar M7VIT Bravo Istruzioni per l'uso e l'installazione

Intel

Intel D33217CK Manuale utente

Asus

Asus F1A55-M LX PLUS R2.0 Manuale utente

EPC

EPC EPC9147C Manuale utente

Asus

Asus EX-B760M-V5 D4 Manuale utente

EPOX

EPOX MU-8KHA0010 Manuale utente

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manuale utente
