ASROCK FM2A55 Pro+ Manuale utente

Version 1.1

Published December 2013

No part of this documentation may be reproduced, transcribed, transmitted, or

translated in any language, in any form or by any means, except duplication of

documentation by the purchaser for backup purpose, without written consent of

ASRock Inc.

Products and corporate names appearing in this documentation may or may not

be registered trademarks or copyrights of their respective companies, and are used

only for identication or explanation and to the owners’ benet, without intent to

infringe.

Disclaimer:

Specications and information contained in this documentation are furnished for

informational use only and subject to change without notice, and should not be

constructed as a commitment by ASRock. ASRock assumes no responsibility for

any errors or omissions that may appear in this documentation.

With respect to the contents of this documentation, ASRock does not provide

warranty of any kind, either expressed or implied, including but not limited to

the implied warranties or conditions of merchantability or tness for a particular

purpose.

In no event shall ASRock, its directors, ocers, employees, or agents be liable for

any indirect, special, incidental, or consequential damages (including damages for

loss of prots, loss of business, loss of data, interruption of business and the like),

even if ASRock has been advised of the possibility of such damages arising from any

defect or error in the documentation or product.

e terms HDMI™ and HDMI High-Denition Multimedia Interface, and the HDMI

logo are trademarks or registered trademarks of HDMI Licensing LLC in the United

States and other countries.

is device complies with Part 15 of the FCC Rules. Operation is subject to the following

two conditions:

(1) this device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that

may cause undesired operation.

CALIFORNIA, USA ONLY

e Lithium battery adopted on this motherboard contains Perchlorate, a toxic substance

controlled in Perchlorate Best Management Practices (BMP) regulations passed by the

California Legislature. When you discard the Lithium battery in California, USA, please

follow the related regulations in advance.

“Perchlorate Material-special handling may apply, see www.dtsc.ca.gov/hazardouswaste/

perchlorate”

ASRock Website: http://www.asrock.com

English

FM2A55 Pro+

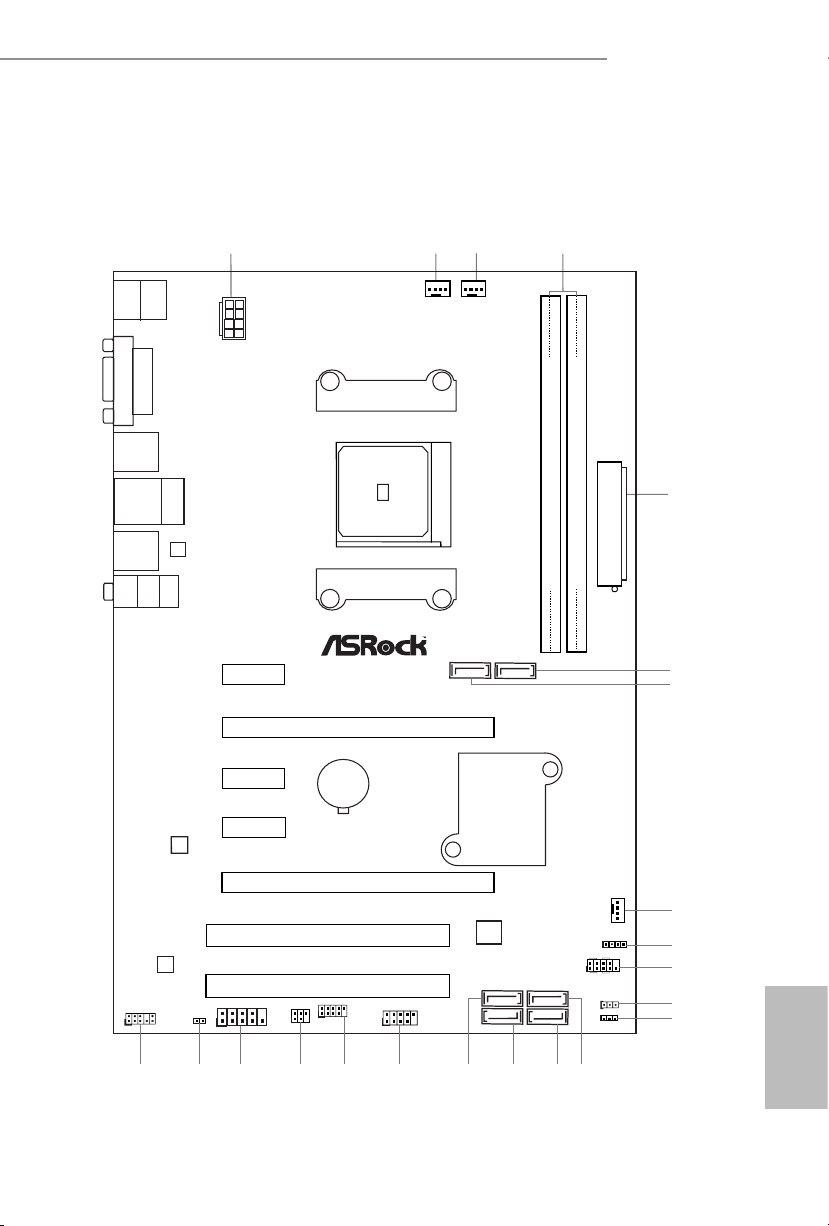

Motherboard Layout

SOCKET FM2b

AMD

A55

(Hudson-D2)

Chipset

234

131416171819202122

Sup er

I/O

CMOS

BATTERY

ATXPWR1

PCIE1

LAN

AUDIO

CODEC

CPU_FAN1

64Mb

BIOS

PCIE2

FM2A55 Pro+

ATX1 2V1

PCIE5

DDR3_A1 (64 bit, 240-pin module)

DDR3_B1 (64 bit, 240-pin module)

PCIE3

PCI1

PCI2

CLRCMOS1

HDLED RESET

PLED PWRBTN

PANEL1

SATA_1

IR1

CHA_FAN1

SPEAKER1

PLED1

HD_AUDIO1

HDMI_SPDIF1

COM1

USB6_7

USB8_9

Top:

LINE IN

Center :

FRONT

Bottom :

MIC IN

Fast USB

Fast RAM

Fast LAN

RoHS

PS2

Mouse

PS2

Keyboard

VGA1

DVI1

USB 2.0

T: USB0

B: USB1

RJ-45 LAN

USB 2.0

T: USB2

B: USB3

CHA_FAN2

SATA_2

PCIE4

SATA_3 SATA_4

SATA_5 SATA_6

PCI Express 3.0

USB 2.0

T: USB4

B: USB5

English

No. Description

1 ATX 12V Power Connector (ATX12V1)

2 CPU Fan Connector (CPU_FAN1)

3 Chassis Fan Connector (CHA_FAN2)

4 2 x 240-pin DDR3 DIMM Slots (DDR3_A1, DDR3_B1)

5 ATX Power Connector (ATXPWR1)

6SATA2 Connector (SATA_ 2)

7SATA2 Connector (SATA_1)

8 Chassis Fan Connector (CHA_FAN1)

9Chassis Speaker Header (SPEAKER1)

10 System Panel Header (PANEL1)

11 Clear CMOS Jumper (CLRCMOS1)

12 Power LED Header (PLED1)

13 SATA2 Connector (SATA_4)

14 SATA2 Connector (SATA_6)

15 SATA2 Connector (SATA_5)

16 SATA2 Connector (SATA_3)

17 USB 2.0 Header (USB8_9)

18 USB 2.0 Header (USB6_7)

19 Infrared Module Header (IR1)

20 COM Port Header (COM1)

21 SPDIF Out Connector (HDMI_SPDIF1)

22 Front Panel Audio Header (HD_AUDIO1)

English

FM2A55 Pro+

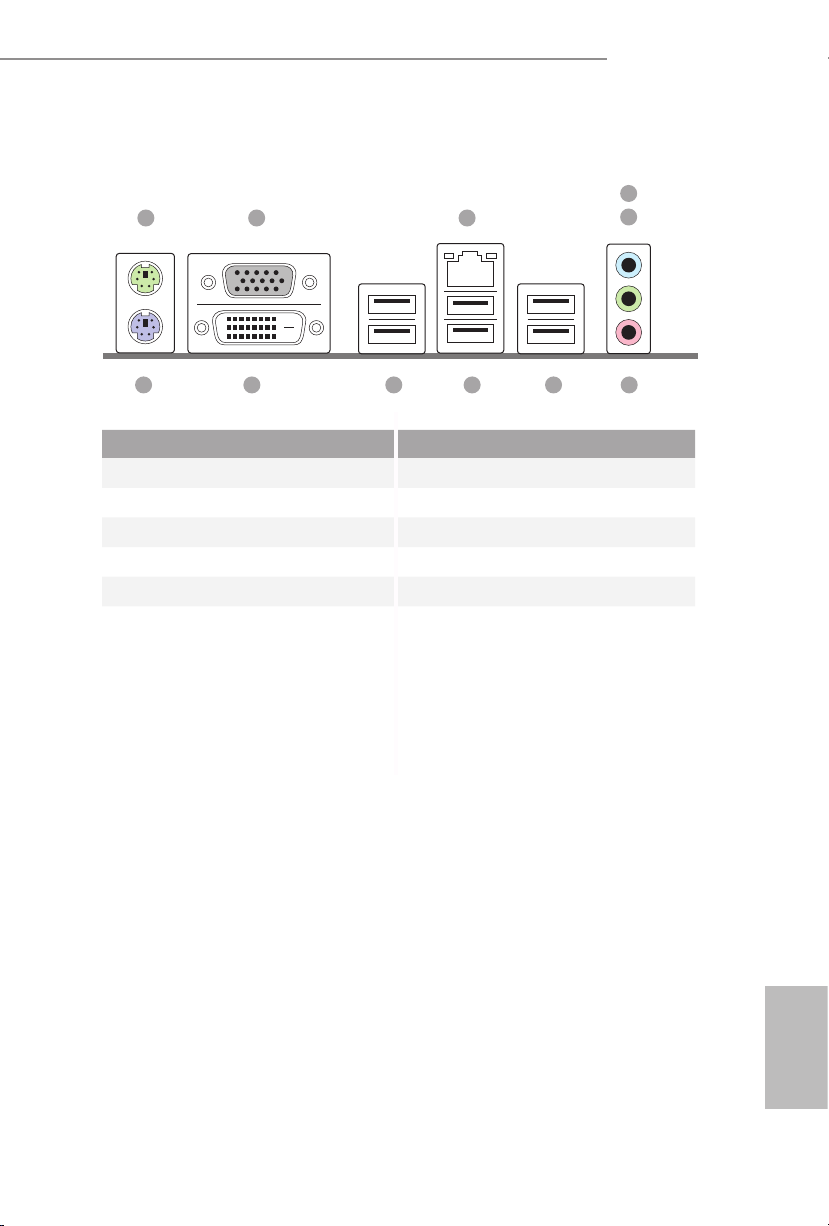

I/O Panel

No. Description No. Description

1 PS/2 Mouse Port (Green) 7 USB 2.0 Ports (USB45)

2 D-Sub Port (VGA1) 8 USB 2.0 Ports (USB23)

3 LAN RJ-45 Port* 9 USB 2.0 Ports (USB01)

4 Line In (Light Blue) 10 DVI-D Port (DVI1)

5Front Speaker (Lime) 11 PS/2 Keyboard Port (Purple)

6Microphone (Pink)

1 2 3 5

67891011

English

* There are two LEDs on the LAN port. Please refer to the table below for the LAN port LED indica-

tions.

Activity / Link LED Speed LED

Status Description Status Description

Off No Link Off 10Mbps connection

Blinking Data Activity Orange 100Mbps connection

On Link Green 1Gbps connection

ACT/LINK LED

SPEED LED

LAN Port

English

FM2A55 Pro+

1. Introduction

Thank you for purchasing ASRock FM2A55 Pro+ motherboard, a reliable mother-

board produced under ASRock’s consistently stringent quality control. It delivers

excellent performance with robust design conforming to ASRock’s commitment to

quality and endurance.

This Quick Installation Guide contains introduction of the motherboard and step-by-

step installation guide. More detailed information of the motherboard can be found

in the user manual presented in the Support CD.

    

be updated, the content of this manual will be subject to change without

-

sion will be available on ASRock website without further notice. You may



well. ASRock website http://www.asrock.com

If you require technical support related to this motherboard, please visit



www.asrock.com/support/index.asp

1.1 Package Contents

ASRock FM2A55 Pro+ Motherboard (ATX Form Factor)

ASRock FM2A55 Pro+ Quick Installation Guide

ASRock FM2A55 Pro+ Support CD

2 x Serial ATA (SATA) Data Cables (Optional)

1 x I/O Panel Shield

English



Platform  ATX Form Factor

 All Solid Capacitor design

CPU  Supports Socket FM2+ 95W / FM2 100W processors

Chipset  AMD A55 FCH (Hudson-D2)

Memory  Dual Channel DDR3 Memory Technology

 2 x DDR3 DIMM Slots

 Supports DDR3 1866/1600/1333/1066 non-ECC, un-

buffered memory (see CAUTION 1)

 Max. capacity of system memory: 32GB

 Supports Intel®

 

Expan-

sion

Slot

 1 x PCI Express 3.0 x16 Slot (PCIE2 @ x16 mode)

* PCIE 3.0 is only supported with FM2+ CPU. With FM2

CPU, it only supports PCIE 2.0.

 1 x PCI Express 2.0 x16 Slot (PCIE5 @ x4 mode)

 3 x PCI Express 2.0 x1 Slots

 2 x PCI Slots

 Supports AMD Quad CrossFireXTM, CrossFireXTM and

Dual Graphics

Graphics  Integrated AMD Radeon HD 8000/7000 series graphics

in A-series APU

 DirectX 11.1, Pixel Shader 5.0 with FM2+ CPU. DirectX

11, Pixel Shader 5.0 with FM2 CPU.

 Max. shared memory 2GB

 Dual VGA output: support DVI-D and D-Sub ports by

independent display controllers

 Supports Dual-link DVI-D with max. resolution up to

2560x1600 @ 60Hz

English

FM2A55 Pro+

Graphics  Supports D-Sub with max. resolution up to 1920x1200 @

60Hz

 Supports AMD Steady VideoTM 2.0: New video post

processing capability for automatic jitter reduction on

home/online video

 Supports HDCP with DVI-D Port

 Supports Full HD 1080p Blu-ray (BD) playback with

DVI-D Port

Audio  5.1 CH HD Audio (Realtek ALC662 Audio Codec)

 TI®

600 ohm headsets)

LAN  PCIE x1 Gigabit LAN 10/100/1000 Mb/s

 Realtek RTL8111G

 Supports Wake-On-LAN

 Supports LAN Cable Detection

 

 Supports PXE

Rear

Panel I/O

 1 x PS/2 Mouse Port

 1 x PS/2 Keyboard Port

 1 x D-Sub Port

 1 x DVI-D Port

 6 x USB 2.0 Ports

 1 x RJ-45 LAN Port with LED (ACT/LINK LED and

SPEED LED)

 HD Audio Jacks: Line in / Front Speaker / Microphone

Storage  6 x SATA2 3.0 Gb/s Connectors, support RAID (RAID 0,

RAID 1 and RAID 10), NCQ, AHCI and Hot Plug

English

Connec-

tor

 1 x IR Header

 1 x COM Port Header

 1 x SPDIF Out Connector

 1 x Power LED Header

 1 x CPU Fan Connector (4-pin)

 2 x Chassis Fan Connectors (2 x 4-pin)

 1 x 24 pin ATX Power Connector

 1 x 8 pin 12V Power Connector

 1 x Front Panel Audio Connector

 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)

BIOS

Feature

 64Mb AMI UEFI Legal BIOS with GUI support

 Supports “Plug and Play”

 ACPI 1.1 Compliant wake up events

 Supports jumperfree

 SMBIOS 2.3.1 support

 DRAM, CPU Voltage multi-adjustment

Support

 Drivers, Utilities, AntiVirus Software (Trial Version),

CyberLink MediaEspresso 6.5 Trial, Google Chrome

Browser and Toolbar, Start8 (30 days trial)

Hardware

Monitor

 CPU temperature sensing

 Chassis temperature sensing

 CPU Fan Tachometer

 Chassis Fan Tachometer

 CPU/Chassis Quiet Fan

 CPU/Chassis Fan multi-speed control

 Voltage monitoring: +12V, +5V, +3.3V, Vcore

OS  Microsoft®Windows®8.1 32-bit / 8.1 64-bit / 8 32-bit / 8

64-bit / 7 32-bit / 7 64-bit

-

tions

 FCC, CE, WHQL

 ErP/EuP Ready (ErP/EuP ready power supply is re-

quired)
