ASROCK FM2A75 Pro4 Manuale utente

ASRock FM2A75 Pro4 Motherboard

English

No part of this installation guide may be reproduced, transcribed, transmitted, or trans-

lated in any language, in any form or by any means, except duplication of documentation

by the purchaser for backup purpose, without written consent of ASRock Inc.

Products and corporate names appearing in this guide may or may not be registered

trademarks or copyrights of their respective companies, and are used only for identica-

tion or explanation and to the owners’ benet, without intent to infringe.

Disclaimer:

Specications and information contained in this guide are furnished for informational use

only and subject to change without notice, and should not be constructed as a commit-

ment by ASRock. ASRock assumes no responsibility for any errors or omissions that may

appear in this guide.

With respect to the contents of this guide, ASRock does not provide warranty of any kind,

either expressed or implied, including but not limited to the implied warranties or condi-

tions of merchantability or tness for a particular purpose. In no event shall ASRock, its

directors, ofcers, employees, or agents be liable for any indirect, special, incidental, or

consequential damages (including damages for loss of prots, loss of business, loss of

data, interruption of business and the like), even if ASRock has been advised of the pos-

sibility of such damages arising from any defect or error in the guide or product.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following

two conditions:

(1) this device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that

may cause undesired operation.

CALIFORNIA, USA ONLY

The Lithium battery adopted on this motherboard contains Perchlorate, a toxic substance

controlled in Perchlorate Best Management Practices (BMP) regulations passed by the

California Legislature. When you discard the Lithium battery in California, USA, please

follow the related regulations in advance.

“Perchlorate Material-special handling may apply, see

www.dtsc.ca.gov/hazardouswaste/perchlorate”

ASRock Website: http://www.asrock.com

Published July 2013

ASRock FM2A75 Pro4 Motherboard

English

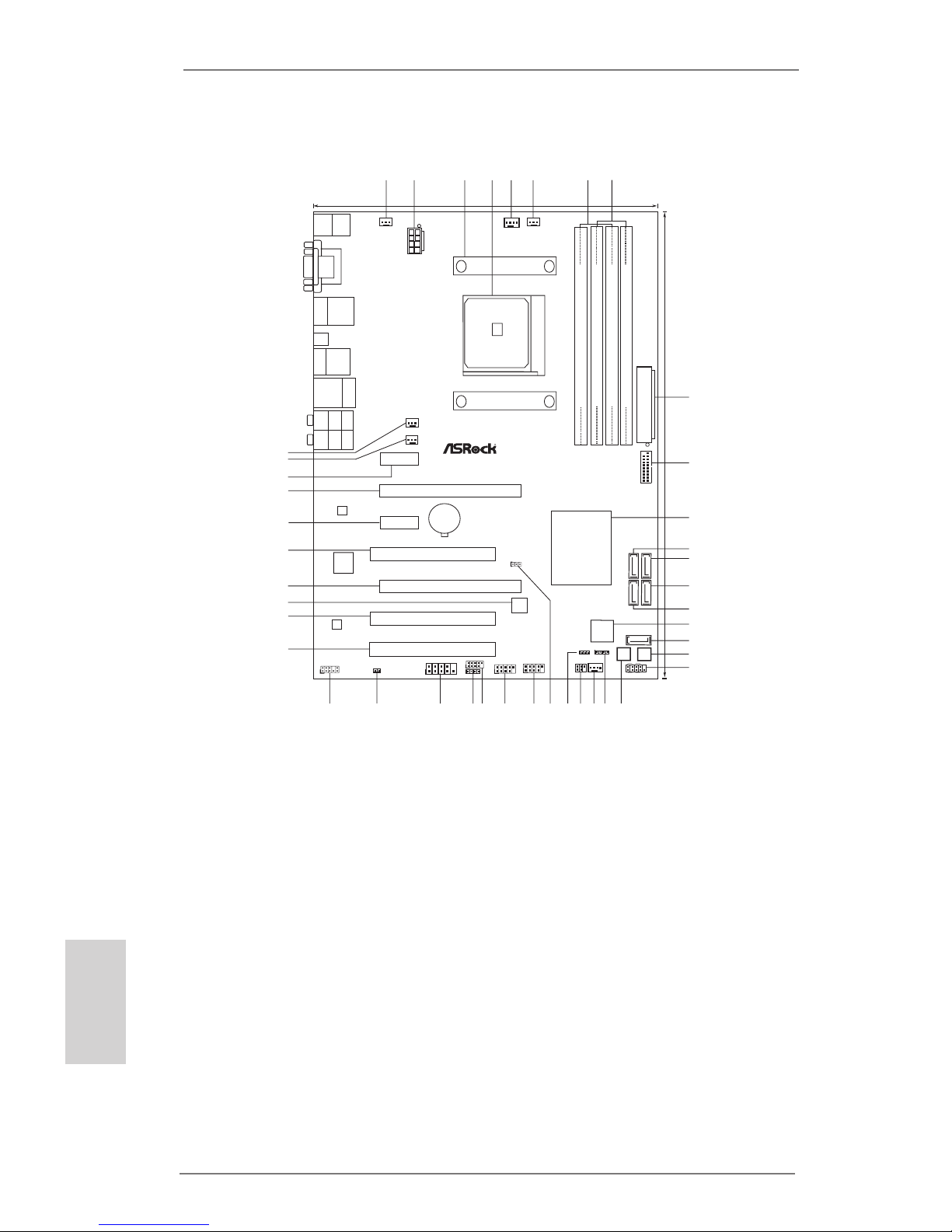

Motherboard Layout

1 Power Fan Connector (PWR_FAN1) 21 Chassis Speaker Header (SPEAKER1)

2 ATX 12V Power Connector (ATX12V1) 22 Chassis Fan Connector (CHA_FAN1)

3 CPU Heatsink Retention Module 23 Infrared Module Header (IR1)

4 CPU Socket 24 Power LED Header (PLED1)

5 CPU Fan Connector (CPU_FAN1) 25 Clear CMOS Jumper (CLRCMOS1)

6 CPU Fan Connector (CPU_FAN2) 26 USB 2.0 Header (USB7_8)

7 2 x 240-pin DDR3 DIMM Slots 27 USB 2.0 Header (USB5_6)

(Dual Channel A: DDR3_A1, DDR3_B1) 28 USB 2.0 Header (USB3_4)

8 2 x 240-pin DDR3 DIMM Slots 29 Consumer Infrared Module Header (CIR1)

(Dual Channel B: DDR3_A2, DDR3_B2) 30 COM Port Header (COM1)

9 ATX Power Connector (ATXPWR1) 31 HDMI_SPDIF Header (HDMI_SPDIF1)

10 USB 3.0 Header (USB3_7_8) 32 Front Panel Audio Header (HD_AUDIO1)

11 Southbridge Controller 33 PCI Slot (PCI3)

12 SATA3 Connector (SATA3_2) 34 PCI Slot (PCI2)

13 SATA3 Connector (SATA3_1) 35 SPI Flash Memory (64Mb)

14 SATA3 Connector (SATA3_3) 36 PCI Express 2.0 x16 Slot (PCIE4)

15 SATA3 Connector (SATA3_4) 37 PCI Slot (PCI1)

16 Dr. Debug (LED) 38 PCI Express 2.0 x1 Slot (PCIE3)

17 SATA3 Connector (SATA3_5) 39 PCI Express 2.0 x16 Slot (PCIE2)

18 Reset Switch (RSTBTN) 40 PCI Express 2.0 x1 Slot (PCIE1)

19 System Panel Header (PANEL1) 41 Chassis Fan Connector (CHA_FAN2)

20 Power Switch (PWRBTN) 42 Chassis Fan Connector (CHA_FAN3)

Super

I/O

CMOS

BATTERY

ATXPWR1

AMD

A75 FCH

(Hudson-D3)

Chipset

PCIE1

PCI1

LAN

AUDIO

CODEC

CPU_FAN1

30.5cm (12.0-in)

22.4cm (8.8-in)

64Mb

BIOS

PCIE2

CPU_FAN2

FM2A75 Pro4

DDR3 2600+

ATX1 2V1

SOCKET FM2

PCIE4

Dr.

Debug

DDR3_A1 (64 bit, 24 0-pin module)

DDR3_A2 (64 bit, 240-pin module)

DDR3_B1 (64 bit, 24 0-pin module)

DDR3_B2 (64 bit, 240-pin module)

PWR_FAN1

CHA_FAN3

CHA_FAN2

PCIE3

PCI2

PCI3

Dual Graphics

CLRCMOS1

PWRBTN RSTBTN

HDLED RESET

PLED PWRBTN

PANEL 1

SATA3 _5

SATA3 _4 SATA3_ 2

SATA3 _3 SATA3_1

IR1

CHA_FAN1

SPEAKER1

PLED1

HD_AUDIO1

HDMI_SPDIF1

COM1

USB3_4

CIR1

USB5_6

USB7_8

Top:

CTR BASS

Center:

REAR SPK

Bottom:

Optical

SPDIF

Top:

LIN E IN

Center:

FRONT

Bottom:

MIC I N

Top:

RJ-45

USB 3 .0

T: USB1

B: USB2

Ps2

Keyboard/

Mouse

VGA1

DVI1

USB 3.0

T: USB3

B: USB4

HDMI1

Clr

CMOS

USB 2.0

T: USB1

B: USB2

eSATA1

USB 3.0

T: USB5

B: USB6

USB3_7_8

XFast USB

Fast RAM

XFast LAN

RoHS

ErP/EuP Ready

DX11

Front USB 3.0

124

358

2526

2829

ASRock FM2A75 Pro4 Motherboard

English

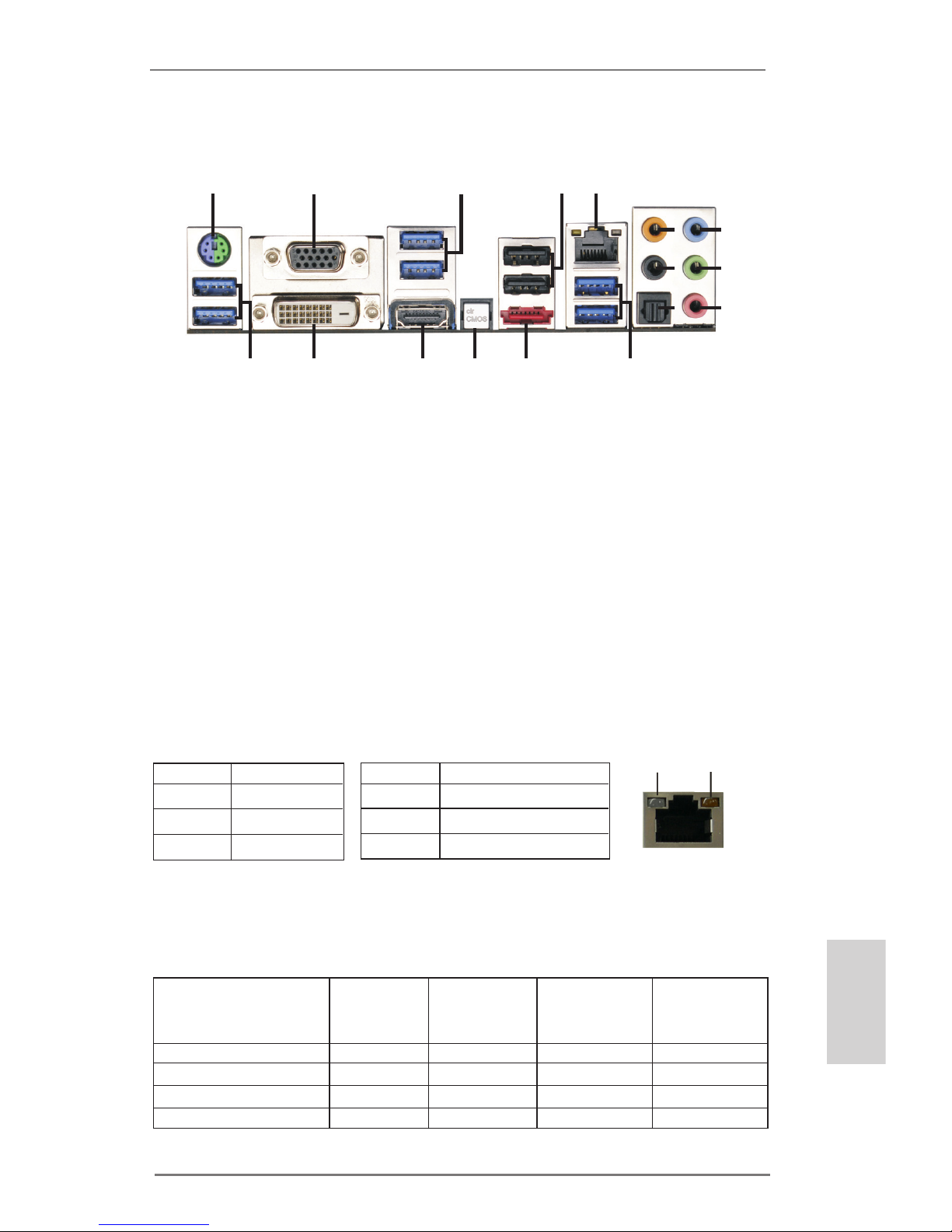

I/O Panel

** There are two LED next to the LAN port. Please refer to the table below for the LAN port LED

indications.

LAN Port LED Indications

Activity/Link LED SPEED LED

Status Description Status Description

Off No Link Off 10Mbps connection

Blinking Data Activity Orange 100Mbps connection

On Link Green 1Gbps connection

1 PS/2 Mouse/Keyboard Port (Green/Purple) *** 10 Front Speaker (Lime)

2 D-Sub Port (VGA1) 11 Microphone (Pink)

3 Etron USB 3.0 Ports (USB34) 12 Etron USB 3.0 Ports (USB56)

* 4 USB 2.0 Ports (USB01) **** 13 eSATA3 Connector (eSATA1)

** 5 LAN RJ-45 Port 14 Clear CMOS Switch (CLRCBTN)

6 Central / Bass (Orange) 15 HDMI Port (HDMI1)

7 Rear Speaker (Black) 16 DVI-D Port (DVI1)

8 Optical SPDIF Out Port 17 AMD USB 3.0 Ports (USB12)

9 Line In (Light Blue)

LAN Port

ACT/LINK

LED

SPEED

LED

*** If you use 2-channel speaker, please connect the speaker’s plug into “Front Speaker Jack”.

See the table below for connection details in accordance with the type of speaker you use.

TABLE for Audio Output Connection

Audio Output Channels Front Speaker Rear Speaker Central / Bass Line In or

(No. 10) (No. 7) (No. 6) Side Speaker

(No. 9)

2 V -- -- --

4 V V -- --

6 V V V --

8 V V V V

* It is recommended to install the USB Keyboard/Mouse cable to USB 2.0 ports (USB01)

instead of USB 3.0 ports.

124

ASRock FM2A75 Pro4 Motherboard

English

To enable Multi-Streaming function, you need to connect a front panel audio cable to the front

panel audio header. After restarting your computer, you will nd “Mixer” tool on your system.

Please select “Mixer ToolBox” , click “Enable playback multi-streaming”, and click “ok”.

Choose “2CH”, “4CH”, “6CH”, or “8CH” and then you are allowed to select “Realtek HDA Pri-

mary output” to use Rear Speaker, Central/Bass, and Front Speaker, or select “Realtek HDA

Audio 2nd output” to use front panel audio.

**** eSATA3 connector supports SATA Gen3 in cable 1M.

ASRock FM2A75 Pro4 Motherboard

English

1. Introduction

Thank you for purchasing ASRock FM2A75 Pro4 motherboard, a reliable mother-

board produced under ASRock’s consistently stringent quality control. It delivers

excellent performance with robust design conforming to ASRock’s commitment to

quality and endurance.

This Quick Installation Guide contains introduction of the motherboard and step-by-

step installation guide. More detailed information of the motherboard can be found

in the user manual presented in the Support CD.

Because the motherboard specications and the BIOS software might be

updated, the content of this manual will be subject to change without no-

tice. In case any modications of this manual occur, the updated version

will be available on ASRock website without further notice. You may nd

the latest VGA cards and CPU support lists on ASRock website as well.

ASRock website http://www.asrock.com

If you require technical support related to this motherboard, please visit

our website for specic information about the model you are using.

www.asrock.com/support/index.asp

1.1 Package Contents

ASRock FM2A75 Pro4 Motherboard

(ATX Form Factor: 12.0-in x 8.8-in, 30.5 cm x 22.4 cm)

ASRock FM2A75 Pro4 Quick Installation Guide

ASRock FM2A75 Pro4 Support CD

4 x Serial ATA (SATA) Data Cables (Optional)

1 x I/O Panel Shield

ASRock Reminds You...

To get better performance in Windows® 7 / 7 64-bit / VistaTM / VistaTM 64-

bit, it is recommended to set the BIOS option in Storage Conguration to

AHCI mode. For the BIOS setup, please refer to the “User Manual” in our

support CD for details.

ASRock FM2A75 Pro4 Motherboard

English

1.2 Specications

Platform - ATX Form Factor: 12.0-in x 8.8-in, 30.5 cm x 22.4 cm

- All Solid Capacitor design

CPU - Support for Socket FM2 100W processors

- 4 + 2 Power Phase Design

- Supports AMD’s Cool ‘n’ QuietTM Technology

- UMI-Link GEN2

Chipset - AMD A75 FCH (Hudson-D3)

Memory - Dual Channel DDR3 Memory Technology

- 4 x DDR3 DIMM slots

- Support DDR3 2600+(OC)/2400(OC)/2133(OC)/1866/1600/

1333/1066/800 non-ECC, un-buffered memory

(see CAUTION 1)

* 2600+ is only supported with two DIMMs

- Max. capacity of system memory: 64GB (see CAUTION 2)

- Supports Intel® Extreme Memory Prole (XMP) 1.3 / 1.2

- Supports AMD Memory Prole (AMP)

Expansion Slot - 2 x PCI Express 2.0 x16 slots

(PCIE2 @ x16 mode; PCIE4 @ x4 mode)

- 2 x PCI Express 2.0 x1 slots

- 3 x PCI slots

- Supports AMD Quad CrossFireXTM, CrossFireXTM and Dual

Graphics

Graphics - AMD Radeon HD 7000 graphics

- DirectX 11, Pixel Shader 5.0

- Max. shared memory 2GB

- Three VGA Output options: D-Sub, DVI-D and HDMI

- Supports HDMI 1.4a Technology with max. resolution up to

1920x1200 @ 60Hz

- Supports Dual-link DVI with max. resolution up to

2560x1600 @ 75Hz

- Supports D-Sub with max. resolution up to 1920x1600 @

60Hz

- Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and

HBR (High Bit Rate Audio) with HDMI (Compliant HDMI

monitor is required) (see CAUTION 3)

- Supports Blu-ray Stereoscopic 3D with HDMI 1.4a

- Supports AMD Steady VideoTM: New video post processing

capability for automatic jutter reduction on home/online

video

ASRock FM2A75 Pro4 Motherboard

English

- Supports HDCP function with DVI and HDMI ports

- Supports Full HD 1080p Blu-ray (BD) / HD-DVD playback

with DVI and HDMI ports

Audio - 7.1 CH HD Audio with Content Protection

(Realtek ALC892 Audio Codec)

- Premium Blu-ray audio support

LAN - PCIE x1 Gigabit LAN 10/100/1000 Mb/s

- Realtek RTL8111E

- Supports Wake-On-LAN

- Supports LAN Cable Detection

- Supports Energy Efcient Ethernet 802.3az

- Supports PXE

Rear Panel I/O I/O Panel

- 1 x PS/2 Mouse/Keyboard Port

- 1 x D-Sub Port

- 1 x DVI-D Port

- 1 x HDMI Port

- 1 x Optical SPDIF Out Port

- 2 x Ready-to-Use USB 2.0 Ports

- 1 x eSATA3 Connector

- 6 x Ready-to-Use USB 3.0 Ports

- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED

LED)

- 1 x Clear CMOS Switch with LED

- HD Audio Jack: Rear Speaker/Central/Bass/Line in/Front

Speaker/Microphone

SATA3 - 5 x SATA3 6.0 Gb/s connectors, support RAID (RAID 0,

RAID 1 and RAID 10), NCQ, AHCI and “Hot Plug” functions

USB 3.0 - 2 x Rear USB 3.0 ports by AMD A75 FCH (Hudson-D3),

support USB 1.1/2.0/3.0 up to 5Gb/s

- 4 x Rear USB 3.0 ports by Etron EJ188, support

USB 1.1/2.0/3.0 up to 5Gb/s

- 1 x Front USB 3.0 header (supports 2 USB 3.0 ports) by

AMD A75 FCH (Hudson-D3), supports USB 1.1/2.0/3.0 up

to 5Gb/s

Connector - 5 x SATA3 6.0Gb/s connectors

- 1 x IR header

- 1 x CIR header

- 1 x COM port header

- 1 x HDMI_SPDIF header

- 1 x Power LED header

ASRock FM2A75 Pro4 Motherboard

English

- 2 x CPU Fan connectors (1 x 4-pin, 1 x 3-pin)

- 3 x Chassis Fan connectors (1 x 4-pin, 2 x 3-pin)

- 1 x Power Fan connector (3-pin)

- 24 pin ATX power connector

- 8 pin 12V power connector

- Front panel audio connector

- 3 x USB 2.0 headers (support 6 USB 2.0 ports)

- 1 x USB 3.0 header (supports 2 USB 3.0 ports)

- 1 x Dr. Debug (7-Segment Debug LED)

- 1 x Power Switch with LED

- 1 x Reset Switch with LED

- 1 x Clear CMOS Switch with LED

BIOS Feature - 64Mb AMI UEFI Legal BIOS with GUI support

- Supports “Plug and Play”

- ACPI 1.1 Compliance Wake Up Events

- Supports jumperfree

- SMBIOS 2.3.1 Support

- DRAM, VDDP, VDDR, SB Voltage Multi-adjustment

Support CD - Drivers, Utilities, AntiVirus Software (Trial Version),

CyberLink MediaEspresso 6.5 Trial

Hardware - CPU Temperature Sensing

Monitor - Chassis Temperature Sensing

- CPU/Chassis/Power Fan Tachometer

- CPU Quiet Fan

- CPU/Chassis Fan Multi-Speed Control

- Voltage Monitoring: +12V, +5V, +3.3V, Vcore

OS - Microsoft® Windows® 7 / 7 64-bit / VistaTM / VistaTM 64-bit

compliant

Certications - FCC, CE, WHQL

- ErP/EuP Ready (ErP/EuP ready power supply is required)

* For detailed product information, please visit our website: http://www.asrock.com

ASRock FM2A75 Pro4 Motherboard

English

WARNING

Please realize that there is a certain risk involved with overclocking,

including adjusting the setting in the BIOS, applying Untied Overclocking

Technology, or using third-party overclocking tools. Overclocking may

affect your system’s stability, or even cause damage to the components

and devices of your system. It should be done at your own risk and

expense. We are not responsible for possible damage caused by

overclocking.

CAUTION!

1. Whether 2600/2400/2133/1866/1600MHz memory speed is

supported depends on the CPU you adopt. If you want to adopt

DDR3 2600/2400/2133/1866/1600 memory module on this

motherboard, please refer to the memory support list on our

website for the compatible memory modules.

ASRock website http://www.asrock.com

2. Due to the operating system limitation, the actual memory size

may be less than 4GB for the reservation for system usage

under Windows®7 / VistaTM. For Windows®64-bit OS with 64-

bit CPU, there is no such limitation. You can use ASRock XFast

RAM to utilize the memory that Windows®cannot use.

3. xvYCC and Deep Color are only supported under Windows®7

64-bit / 7. Deep Color mode will be enabled only if the display

supports 12bpc in EDID. HBR is supported under Windows®7

64-bit / 7 / VistaTM 64-bit / VistaTM.

ASRock FM2A75 Pro4 Motherboard

English

1.3 Unique Features

ASRock Extreme Tuning Utility (AXTU)

ASRock Extreme Tuning Utility (AXTU) is an all-in-one tool to

ne-tune different system functions in a user-friendly interface,

which includes Hardware Monitor, Fan Control, Overclocking,

OC DNA, IES and XFast RAM. In Hardware Monitor, it shows

the major readings of your system. In Fan Control, it shows the

fan speed and temperature for you to adjust. In Overclocking,

you are allowed to overclock CPU frequency for optimal system

performance. In OC DNA, you can save your OC settings as

a prole and share it with your friends. Your friends then can

load the OC prole to their own system to get the same OC set-

tings. In IES (Intelligent Energy Saver), the voltage regulator

can reduce the number of output phases to improve efciency

when the CPU cores are idle without sacricing computing per-

formance. In XFast RAM, it fully utilizes the memory space that

cannot be used under Windows®OS 32-bit CPU.

ASRock Instant Boot

ASRock Instant Boot allows you to turn on your PC in just a few

seconds, provides a much more efcient way to save energy,

time, money, and improves system running speed for your sys-

tem. It leverages the S3 and S4 ACPI features which normally

enable the Sleep/Standby and Hibernation modes in Windows®

to shorten boot up time. By calling S3 and S4 at specic timing

during the shutdown and startup process, Instant Boot allows

you to enter your Windows®desktop in a few seconds.

ASRock Instant Flash

ASRock Instant Flash is a BIOS ash utility embedded in Flash

ROM. This convenient BIOS update tool allows you to update

system BIOS without entering operating systems rst like MS-

DOS or Windows®. With this utility, you can press the <F6> key

during the POST or the <F2> key to enter into the BIOS setup

menu to access ASRock Instant Flash. Just launch this tool and

save the new BIOS le to your USB ash drive, oppy disk or

hard drive, then you can update your BIOS only in a few clicks

without preparing an additional oppy diskette or other compli-

cated ash utility. Please be noted that the USB ash drive or

hard drive must use FAT32/16/12 le system.

Altri manuali per FM2A75 Pro4

Indice

Altri manuali ASROCK Scheda madre

ASROCK

ASROCK X570 Steel Legend Manuale utente

ASROCK

ASROCK H77M Manuale utente

ASROCK

ASROCK PV530-ITX - V1.0 Manuale utente

ASROCK

ASROCK WOLFDALE1333-DVI Manuale utente

ASROCK

ASROCK N68-VS3 UCC - Manuale utente

ASROCK

ASROCK H61M-DPS Manuale utente

ASROCK

ASROCK Velocita Z490 PG Manuale utente

ASROCK

ASROCK P4VM890 Manuale utente

ASROCK

ASROCK ALIVENF5-VSTA Manuale utente

ASROCK

ASROCK C70M1 R2.0 Manuale utente

ASROCK

ASROCK H81M-VG4 R2.0 Manuale utente

ASROCK

ASROCK B560M-HDV/M.2 Manuale utente

ASROCK

ASROCK W480 Creator Manuale utente

ASROCK

ASROCK 775Twins-PT890 Manuale utente

ASROCK

ASROCK CONROE1333-D667 - V3.0 Manuale utente

ASROCK

ASROCK P55DE PRO - V1.0 Manuale utente

ASROCK

ASROCK N68-S3 FX Manuale utente

ASROCK

ASROCK H55 PRO - V1.0 Manuale utente

ASROCK

ASROCK IMB-171-D Manuale utente

ASROCK

ASROCK K10N780SLIX3-WIFI Manuale utente

ASROCK

ASROCK 970 Extreme4 Manuale utente

ASROCK

ASROCK 4COREDUAL-SATA2 - 11-2007 Manuale utente

ASROCK

ASROCK B150M Pro4V Manuale utente

ASROCK

ASROCK 775Twins-HDTV Manuale utente

Manuali Scheda madre popolari di altre marche

DFI

DFI SD170 Manuale utente

Asus

Asus P2L97A Manuale utente

Winmate

Winmate IC70 Manuale utente

Asus

Asus MES-B Manuale utente

Grantech

Grantech SYS8F377VGGA-3OMN Manuale utente

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuale utente

Gigabyte

Gigabyte GA-9IVDT Manuale utente

Texas Instruments

Texas Instruments ADS8372EVM Manuale utente

Commell

Commell MS-C73 Manuale utente

IBT Technologies

IBT Technologies MB860 Manuale utente

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuale utente

Biostar

Biostar M7VIT Bravo Istruzioni per l'uso e l'installazione

Intel

Intel D33217CK Manuale utente

Asus

Asus F1A55-M LX PLUS R2.0 Manuale utente

EPC

EPC EPC9147C Manuale utente

Asus

Asus EX-B760M-V5 D4 Manuale utente

EPOX

EPOX MU-8KHA0010 Manuale utente

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manuale utente
