English

H610TM-ITX

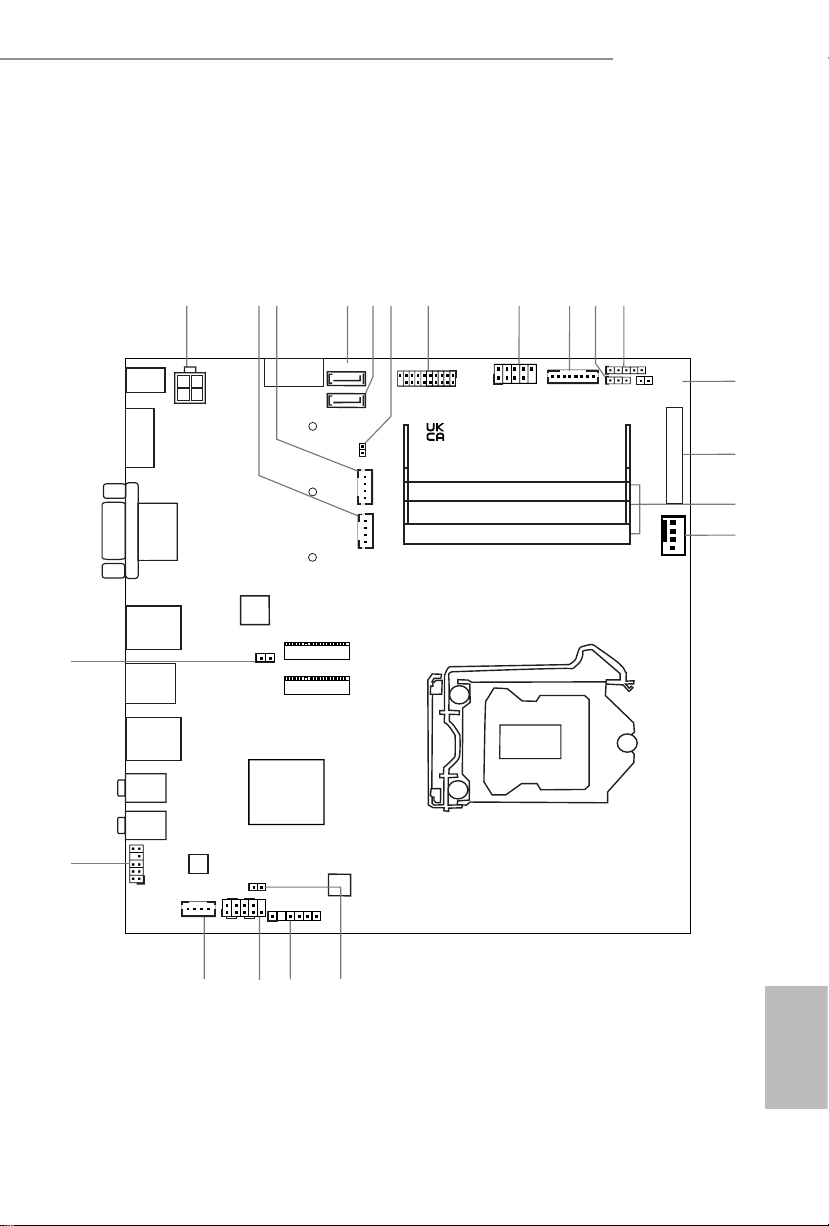

Motherboard Layout

Audio

CODEC

HDLED RESET

PLED PWRBTN

PANEL1

VGA1

DC Jack

HDMI1

HDMI2

Super

I/O

BIOS

ROM

CPU_FAN1

H610TM-ITX

RoHS

19 18

DDR4_B1

DDR4_A1

SATA_1

USB2_1_2

LVDS1

BKT_PWR1

BLT_VOL1

SPK_OUT1

USB 3.2 Gen2

T: USB3_3

B: USB_TC_1

USB 2.0

T: USB_3

B: USB_4

RJ-45

Line out

Mic In

ATX_PWR1

HD_AUDIO1

SATA_2

CLR_MOS1

TH1

PNL_PWR1

Intel

H610

SATAPWR1

M.2 WiFi

M.2 SSD

M2_1_CT2

M2_1_CT1

NUT1

CI1

PANEL_SW1

DMIC1

SATAPWR2

USB3_1_2

Top Side View

English

M.2 SSD

Back Side View

English

H610TM-ITX

No. Description

1 4 pin 19V Power Connector (ATX_PWR1)

2 SATA Power Connector (SATAPWR2)

3 SATA Power Connector (SATAPWR1)

4 SATA3 Connector (SATA_1)

5 SATA3 Connector (SATA_2)

6 Clear CMOS Jumper (CLR_MOS1)

7 USB 3.2 Gen1 Header (USB3_1_2)

8 USB 2.0 Header (USB2_1_2)

9 FPD Brightness Header (BLT_VOL1)

10 Backlight Inverter Voltage Selection Header (BKT_PWR1)

11 Panel Voltage Selection Header (PNL_PWR1)

12 Panel O Header (PANEL_SW1)

13 LVDS Connector (LVDS1)

14 2 x 260-pin DDR4 SO-DIMM Slots (DDR4_A1, DDR4_B1)

15 CPU Fan Connector (CPU_FAN1)

16 Chassis Intrusion Header (CI1)

17 Digital MIC Header (DMIC1)

18 System Panel Header (PANEL1)

19 Internal Speaker Header (SPK_OUT1)

20 Front Panel Audio Header (HD_AUDIO1)

21 ermal Sensor Header (TH1)

English

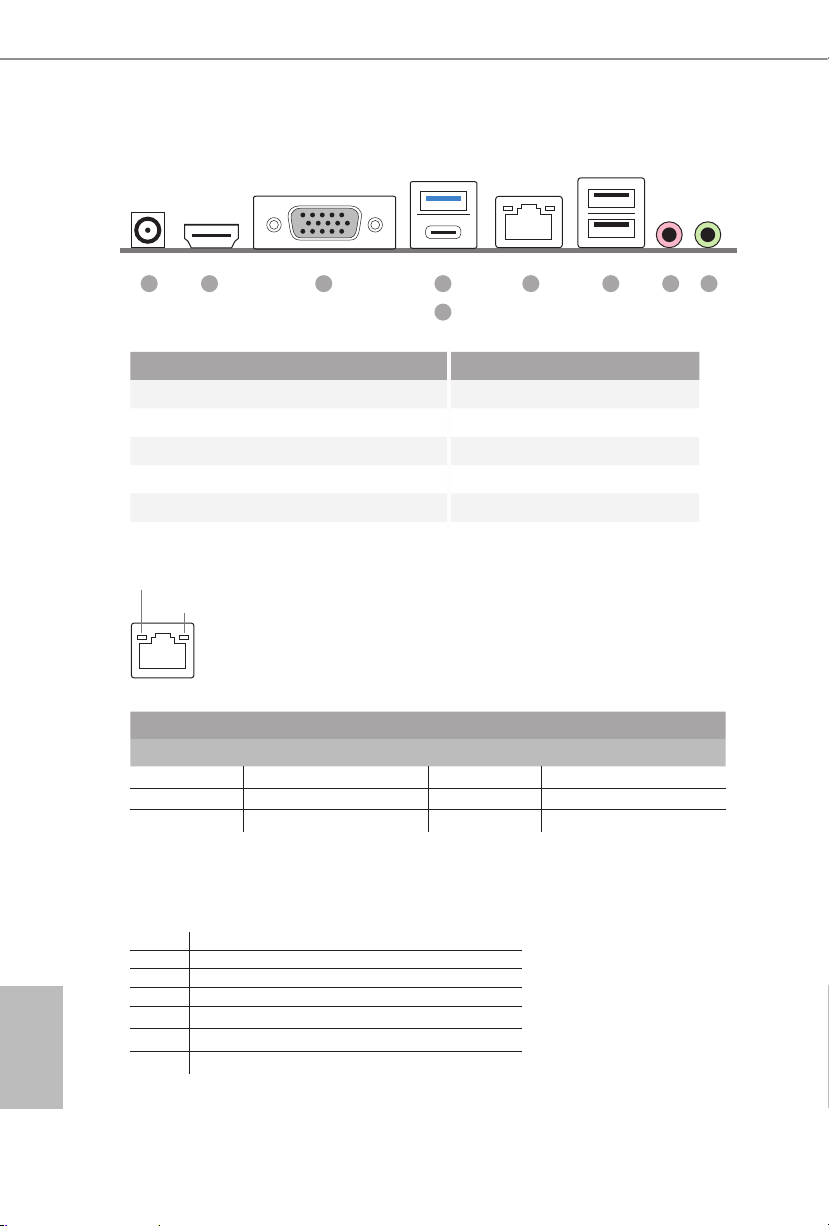

I/O Panel

No. Description No. Description

1 DC Jack** 6 LAN RJ-45 Port*

2HDMI Port (HDMI1) 7 USB 2.0 Ports (USB_3_4)

3D-Sub Port 8Microphone (Pink)

4 USB 3.2 Gen2 Type-A Port (USB3_3) 9 Line out (Lime)

5 USB 3.2 Gen2 Type-C Port (USB_TC_1)

*ere are two LEDs on each LAN port. Please refer to the table below for the LAN port LED indications.

Activity / Link LED Speed LED

Status Description Status Description

O No Link O 10Mbps connection

Blinking Data Activity Green 100Mbps connection

On Link Green 1Gbps connection

** Please use a 19V power adapter for the DC jack. is jack accepts dual barrel plugs with an inner diameter of 2.5

mm and an outer diameter of 5.5 mm, where the inner contact is +19 (±10%) DC and the shell is (centre positive).

DELTA DELTA-ADP-150TB-150W/19V

HP HP-TBC-BA52-150W/19V

FSP FSP-FSP150-ABAN1-150W/19V

DELL FA130PE1-00-130W/19.5V

DELL LA90PE0-01-90W/19.5V

DELTA DELTA-ADP-180TB-180W/19V

FSP FSP-FSP180-ABBN3-180W/19V

is motherboard is available with support for either 4-pin ATX 19V power or DC-in power supplies. Please do

not use two kinds of power supplies at the same time! Doing so may damage the motherboard components and

devices. When you use the DC-in power adapter, please use the onboard SATA power connector to get the power

for HDDs.

ACT/LINK LED

SPEED LED

LAN Port

982 64

31 7

Chapter 1 Introduction

ank you for purchasing H610TM-ITX motherboard. In this documentation,

Chapter 1 and 2 contains the introduction of the motherboard and step-by-step

installation guides.

1.1 Package Contents

• H610TM-ITX Motherboard (in Mini-ITX Form Factor)

• 1 x in-Mini ITX I/O Shield (Optional)

• 1 x Mini ITX I/O Shield (Optional)

• 1 x Serial ATA (SATA) Data Cable (Optional)

• 1 x SATA Power Cable (Optional)

• 3 x Screws for M.2 Sockets (M2*2) (Optional)

• 1 x Stando for M.2 Socket (Optional)

English

H610TM-ITX

Chapter 1 Introduction

ank you for purchasing H610TM-ITX motherboard. In this documentation,

Chapter 1 and 2 contains the introduction of the motherboard and step-by-step

installation guides.

1.1 Package Contents

• H610TM-ITX Motherboard (in Mini-ITX Form Factor)

• 1 x in-Mini ITX I/O Shield (Optional)

• 1 x Mini ITX I/O Shield (Optional)

• 1 x Serial ATA (SATA) Data Cable (Optional)

• 1 x SATA Power Cable (Optional)

• 3 x Screws for M.2 Sockets (M2*2) (Optional)

• 1 x Stando for M.2 Socket (Optional)

Because the motherboard specications and the BIOS soware might be updated, the

content of this documentation will be subject to change without notice.

English

1.2 Specications

Platform • in Mini-ITX Form Factor (Compatible with Mini-ITX)

• Solid Capacitor design

CPU • Supports 13th Gen & 12th Gen Intel® CoreTM Processors

(LGA1700)

• 4 Power Phase design

• Supports Intel® Hybrid Technology

• Supports Intel® Turbo Boost Max 3.0 Technology

Chipset • Intel® H610

Memory • Dual Channel DDR4 Memory Technology

• 2 x DDR4 SO-DIMM Slots

• Supports DDR4 non-ECC, un-buered memory up to 3200*

* Please refer to Memory Support List on ASRock’s website for

more information. (http://www.asrock.com/)

• Max. capacity of system memory: 64GB

• Supports Intel® Extreme Memory Prole (XMP) 2.0

Expansion

Slot • 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT module

Graphics • Intel® UHD Graphics Built-in Visuals and the VGA outputs

can be supported only with processors which are GPU

integrated.

• Intel® XeGraphics Architecture (Gen 12)

• Four graphics output options: 2 x HDMI, 1 x LVDS, 1 x D-Sub

ports

• Supports 2 x HDMI 2.1 TMDS Compatible with max.

resolution up to 4K x 2K (4096x2160) @ 60Hz

HDMI x 1 port (Rear)

HDMI x 1 port (Internal)

* (Optional) DisplayPort 1.4 with DSC (compressed) max.

resolution up to 8K (7680x4320) @ 60Hz / 5K (5120x3200) @

120Hz

English

H610TM-ITX

• Supports D-Sub with max. resolution up to 1920x1200 @

60Hz

• Supports LVDS with max. resolution up to 1920x1080 @ 60Hz

• Supports HDCP 2.3 with HDMI 2.1 TMDS Compatible and

DisplayPort 1.4 Ports

Audio • Realtek ALC269 Audio Codec

• 1 x MIC IN

• 1 x Line out

LAN • PCIE x1 Gigabit LAN 10/100/1000 Mb/s

• Realtek RTL8111H

• Supports Wake-On-LAN

• Supports Lightning/ESD Protection

• Supports Energy Ecient Ethernet 802.3az

• Supports PXE

I/O • 1 x DC Jack (Compatible with the 19V power adapter)

• 1 x D-Sub Port

* (Optional) 1 x COM Port

• 2 x HDMI Ports: HDMI1 (Rear), HDMI2 (Internal)

* (Optional) 1 x DisplayPort 1.4

• 1 x USB 3.2 Gen2 Type-A Port (Supports ESD Protection)

• 1 x USB 3.2 Gen2 Type-C Port (Supports ESD Protection)

* (Optional) 2 x USB 3.2 Gen2 Type-A Ports (Supports ESD

Protection)

• 2 x USB 2.0 Ports (Support ESD Protection)

• 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED

LED)

• HD Audio Jacks: Line out / Microphone

Storage • 2 x SATA3 6.0 Gb/s Connectors, support NCQ, AHCI and Hot

Plug

• 1 x Blazing M.2 Socket (M2_1), supports M Key type

2260/2280 M.2 PCI Express module up to Gen5 x4

* Supports NVMe SSD as boot disks

• 1 x M.2 Socket (M2_3), supports M Key type 2280 M.2 SATA3

6.0 Gb/s module

English

Connector • 1 x Chassis Intrusion Header

• 1 x Panel Voltage Selection Header

• 1 x Backlight Inverter Voltage Selection Header

• 1 x FPD Brightness Header

• 1 x Panel O Header

• 1 x LVDS Connector

• 1 x CPU Fan Connector (4-pin)

* e CPU Fan Connector supports the CPU fan of maximum 1A

(12W) fan power.

• 1 x 4 pin 19V Power Connector (2-Pin)

• 1 x ermal Sensor Header

• 1 x Front Panel Audio Connector

• 1 x Internal Speaker Header (4-Pin)

• 1 x Digital MIC Header

• 2 x SATA Power Connectors

• 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD

Protection)

• 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)

(Supports ESD Protection)

BIOS

Feature

• AMI UEFI Legal BIOS with GUI support

• ACPI 6.0 Compliant wake up events

• SMBIOS 2.7 Support

Hardware

Monitor

• CPU Temperature Sensing

• CPU Fan Tachometer

• CPU Quiet Fan (Auto adjust chassis fan speed by CPU

temperature)

• CPU Fan Multi-Speed Control

• CASE OPEN detection

• Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore

OS • Microso® Windows® 10 64-bit / 11 64-bit

Power • 1 x DC Jack (Supports 19V DC Power Adapters)
