ASROCK H81M-ITX Manuale utente

Version 1.0

Published August 2013

No part of this documentation may be reproduced, transcribed, transmitted, or

translated in any language, in any form or by any means, except duplication of

documentation by the purchaser for backup purpose, without written consent of

ASRock Inc.

Products and corporate names appearing in this documentation may or may not

be registered trademarks or copyrights of their respective companies, and are used

only for identication or explanation and to the owners’ benet, without intent to

infringe.

Disclaimer:

Specications and information contained in this documentation are furnished for

informational use only and subject to change without notice, and should not be

constructed as a commitment by ASRock. ASRock assumes no responsibility for

any errors or omissions that may appear in this documentation.

With respect to the contents of this documentation, ASRock does not provide

warranty of any kind, either expressed or implied, including but not limited to

the implied warranties or conditions of merchantability or tness for a particular

purpose.

In no event shall ASRock, its directors, ocers, employees, or agents be liable for

any indirect, special, incidental, or consequential damages (including damages for

loss of prots, loss of business, loss of data, interruption of business and the like),

even if ASRock has been advised of the possibility of such damages arising from any

defect or error in the documentation or product.

e terms HDMI™ and HDMI High-Denition Multimedia Interface, and the HDMI

logo are trademarks or registered trademarks of HDMI Licensing LLC in the United

States and other countries.

is device complies with Part 15 of the FCC Rules. Operation is subject to the following

two conditions:

(1) this device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that

may cause undesired operation.

CALIFORNIA, USA ONLY

e Lithium battery adopted on this motherboard contains Perchlorate, a toxic substance

controlled in Perchlorate Best Management Practices (BMP) regulations passed by the

California Legislature. When you discard the Lithium battery in California, USA, please

follow the related regulations in advance.

“Perchlorate Material-special handling may apply, see www.dtsc.ca.gov/hazardouswaste/

perchlorate”

ASRock Website: http://www.asrock.com

H81M-ITX

English

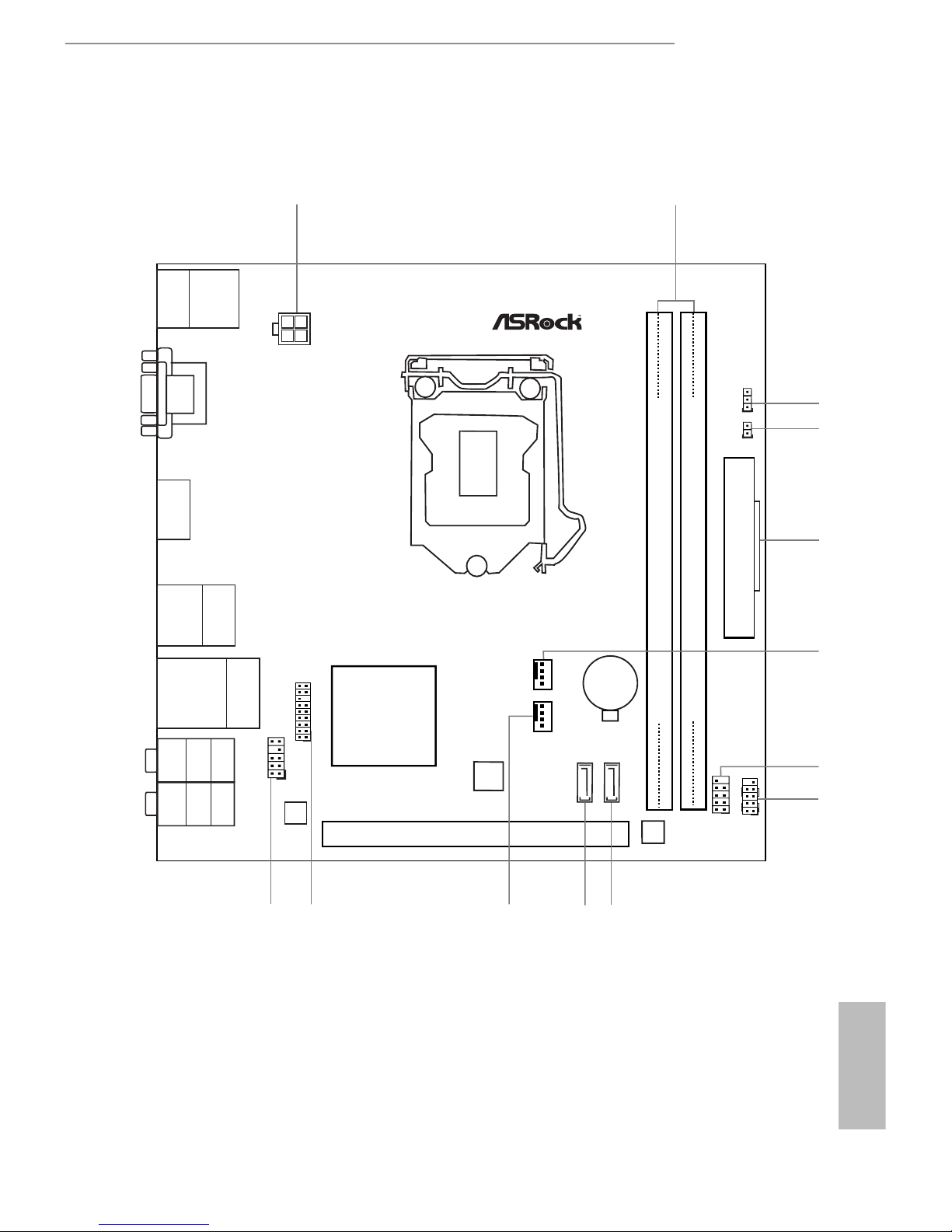

Motherboard Layout

Intel

H81

PCIE1

DDR3_A1 (64 bit, 240-pin module)

DDR3_B1 (64 bit, 240-pin module)

32Mb

BIOS

HDL ED R ESE T

PLE D PW RBT N

PANEL1

HD_A UDIO1

USB 2.0

T: USB2

B: USB3

PS2

Keyboard

/Mouse

HDMI1

USB 3.0

T: USB1

B: USB2

eSATA1

Top:

RJ-45

USB 2.0

T: USB0

B: USB1

Top:

CTR BASS

Center:

REAR SPK

Bottom:

Optical

SPDIF

Top:

LINE IN

Center:

FRONT

Bottom:

MIC IN

ATXPWR1

RoHS

USB 3.0

H81M-ITX

AUDIO

CODEC

TPMS1

1112

Supe r

I/O

ATX12V1

CPU_FAN1 CHA_FAN1

SATA_ 3_ 1

SATA_ 3_

CMOS

Battery

Fast RAM

CLRC MO S1

CI1

USB_10_11

VGA1

DVI

English

No. Description

1 ATX 12V Power Connector (ATX12V1)

2 2 x 240-pin DDR3 DIMM Slots (DDR3_A1, DDR3_B1)

3 Clear CMOS Jumper (CLRCMOS1)

4 Chassis Intrusion Header (CI1)

5 ATX Power Connector (ATXPWR1)

6 CPU Fan Connector (CPU_FAN1)

7 USB 2.0 Header (USB10_11)

8 System Panel Header (PANEL1)

9 SATA3 Connector (SATA3_0)

10 SATA3 Connector (SATA3_1)

11 Chassis Fan Connector (CHA_FAN1)

12 TPM Header (TPMS1)

13 Front Panel Audio Header (HD_AUDIO1)

H81M-ITX

English

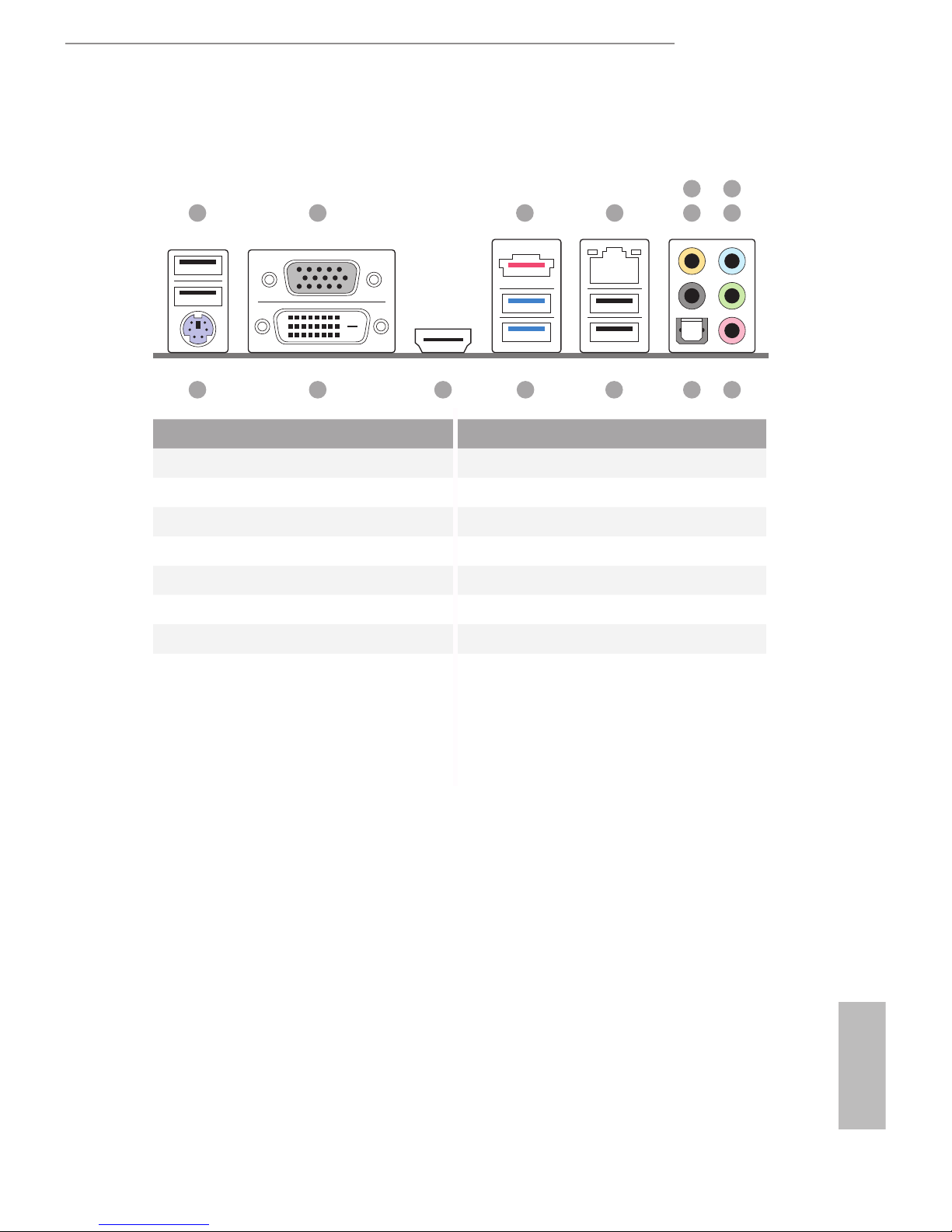

I/O Panel

No. Description No. Description

1 USB 2.0 Ports (USB_23) 9 Microphone (Pink)

2 VGA Port 10 Optical SPDIF Out Port

3eSATA Connector*** 11 USB 2.0 Ports (USB_01)

4 LAN RJ-45 Port* 12 USB 3.0 Ports (USB3_12)

5 Central / Bass (Orange) 13 HDMI Port

6 Rear Speaker (Black) 14 DVI-D Port

7 Line In (Light Blue) 15 PS/2 Mouse/Keyboard Port

8 Front Speaker (Lime)**

5 7

1 2 3 4 6

9101112131415

English

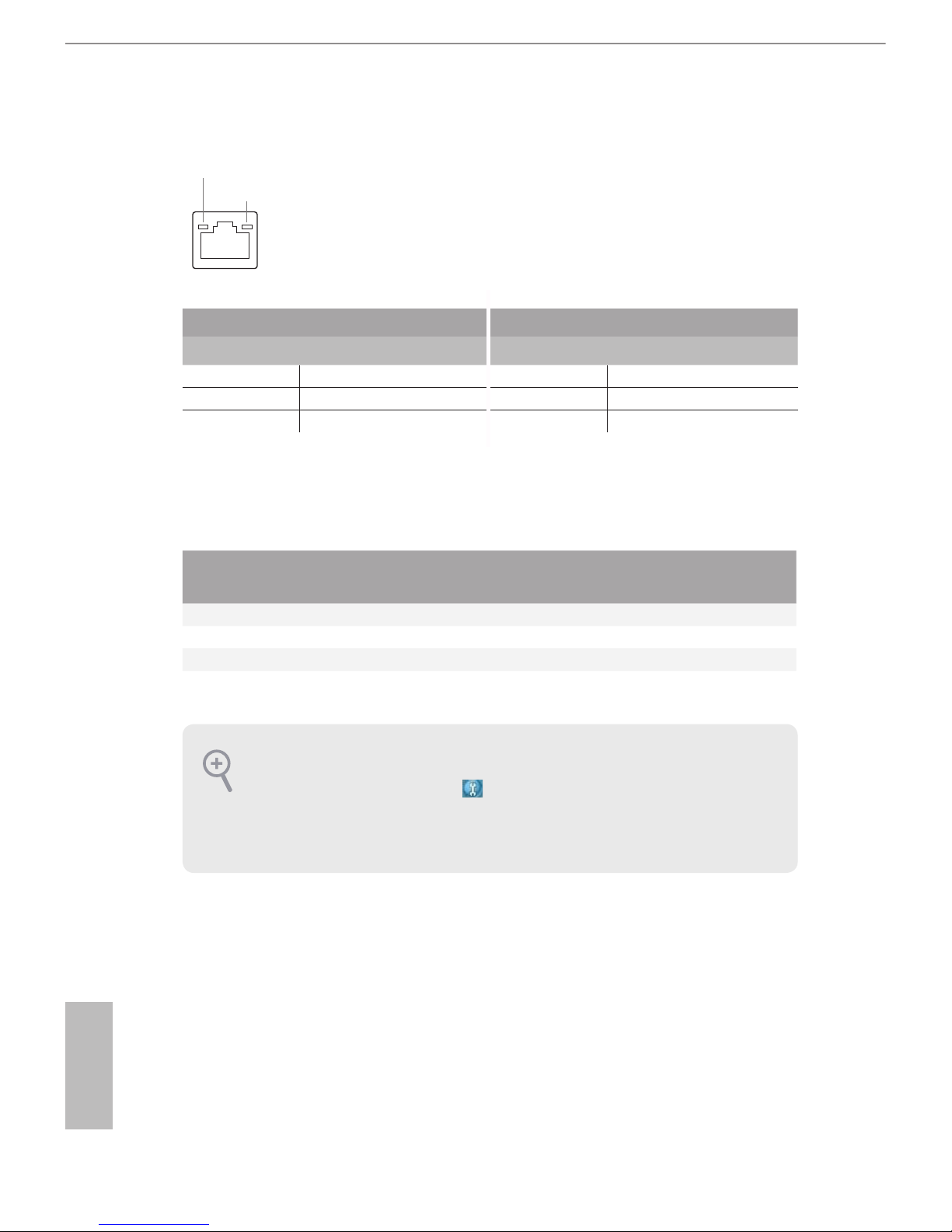

•••••* ere are two LEDs on each LAN port. Please refer to the table below for the LAN port LED indications.

Activity / Link LED Speed LED

Status Description Status Description

O No Link O 10Mbps connection

Blinking Data Activity Orange 100Mbps connection

On Link Green 1Gbps connection

** If you use a 2-channel speaker, please connect the speaker’s plug into “Front Speaker Jack”. See the table below

for connection details in accordance with the type of speaker you use.

Audio Output

Channels

Front Speaker

(No. 8)

Rear Speaker

(No. 6)

Central / Bass

(No. 5)

Line In

(No. 7)

2V -- -- --

4V V -- --

6V V V --

8VVVV

*** e eSATA connector supports SATA with cables within 1 meters.

To enable Multi-Streaming, you need to connect a front panel audio cable to the front

panel audio header. Aer restarting your computer, you will nd the “Mixer” tool on your

system. Please select “Mixer ToolBox” , click “Enable playback multi-streaming”, and

click “ok”. Choose “2CH”, “4CH”, “6CH”, or “8CH” and then you are allowed to select

“Realtek HDA Primary output” to use the Rear Speaker, Central/Bass, and Front Speaker,

or select “Realtek HDA Audio 2nd output” to use the front panel audio.

ACT/LINK LED

SPEED LED

LAN Port

H81M-ITX

English

Chapter 1 Introduction

ank you for purchasing ASRock H81M-ITX motherboard, a reliable motherboard

produced under ASRock’s consistently stringent quality control. It delivers excellent

performance with robust design conforming to ASRock’s commitment to quality

and endurance.

1.1 Package Contents

•ASRock H81M-ITX Motherboard (Mini-ITX Form Factor)

•ASRock H81M-ITX Quick Installation Guide

•ASRock H81M-ITX Support CD

•2 x Serial ATA (SATA) Data Cables (Optional)

•1 x I/O Panel Shield

Because the motherboard specications and the BIOS soware might be updated, the

content of this documentation will be subject to change without notice. In case any modi-

cations of this documentation occur, the updated version will be available on ASRock’s

website without further notice. If you require technical support related to this mother-

board, please visit our website for specic information about the model you are using. You

may nd the latest VGA cards and CPU support list on ASRock’s website as well. ASRock

website http://www.asrock.com.

English

1.2 Specications

Platform •Mini-ITX Form Factor

•All Solid Capacitor design

A-Style •Home Cloud

CPU •Supports 4th Generation Intel® CoreTM i7 / i5 / i3 / Xeon® /

Pentium® / Celeron® in LGA1150 Package

•4 Power Phase Design

•Supports Intel®Turbo Boost 2.0 Technology

Chipset •Intel®H81

Memory •Dual Channel DDR3 Memory Technology

•2 x DDR3 DIMM slots

•Supports DDR3 1600/1333/1066 non-ECC, un-buered

memory

•Max. capacity of system memory: 16GB

(see CAUTION)

•Supports Intel®Extreme Memory Prole (XMP)1.3/1.2

Expansion

Slot

•1 x PCI Express 2.0 x16 slot

Graphics •Intel® HD Graphics Built-in Visuals and the VGA outputs can

be supported only with processors which are GPU integrated.

•Supports Intel® HD Graphics Built-in Visuals : Intel® Quick

Sync Video with AVC, MVC (S3D) and MPEG-2 Full

HW Encode1, Intel® InTruTM 3D, Intel® Clear Video HD

Technology, Intel® InsiderTM, Intel® HD Graphics 4400/4600

•Pixel Shader 5.0, DirectX 11.1

•Max. shared memory 1792MB

•ree VGA output options: D-Sub, DVI-D and HDMI Ports

•Supports HDMI Technology with max. resolution up to

1920x1200 @ 60Hz

•Supports DVI-D with max. resolution up to 1920x1200 @

60Hz

H81M-ITX

English

•Supports D-Sub with max. resolution up to 1920x1200 @

60Hz

•Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and

HBR (High Bit Rate Audio) with HDMI (Compliant HDMI

monitor is required)

•Supports HDCP function with DVI-D and HDMI ports

•Supports Full HD 1080p Blu-ray (BD) playback with DVI-D

and HDMI ports

Audio •7.1 CH HD Audio with Content Protection (Realtek ALC892

Audio Codec)

•Premium Blu-ray audio support

LAN •PCIE x1 Gigabit LAN 10/100/1000 Mb/s

•Qualcomm® Atheros® AR8171

•Supports Qualcomm® Atheros® Security Wake On Internet

Technology

•Supports Wake-On-LAN

•Supports Energy Ecient Ethernet 802.3az

•Supports PXE

Rear Panel

I/O

•1 x PS/2 Mouse/Keyboard Port

•1 x D-Sub Port

•1 x DVI-D Port

•1 x HDMI Port

•1 x Optical SPDIF Out Port

•1 x eSATA Connector

•4 x USB 2.0 Ports

•2 x USB 3.0 Ports

•1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED

LED)

•HD Audio Jack: Rear Speaker / Central / Bass / Line in / Front

Speaker / Microphone

English

Storage •2 x SATA3 6.0 Gb/s connectors, support NCQ, AHCI and Hot

Plug

•1 x eSATA connector, supports NCQ, AHCI and Hot Plug

Connector •1 x Chassis Intrusion header

•1 x TPM header

•1 x CPU Fan connector (4-pin)

•1 x Chassis Fan connector (4-pin)

•1 x 24 pin ATX power connector

•1 x 4 pin 12V power connector

•1 x Front panel audio connector

•1 x USB 2.0 header (supports 2 USB 2.0 ports)

BIOS

Feature

•32Mb AMI UEFI Legal BIOS with Multilingual GUI support

•ACPI 1.1 Compliance Wake Up Events

•SMBIOS 2.3.1 Support

•CPU, DRAM, PCH 1.05V, PCH 1.5V Voltage Multi-adjust-

ment

Support

•Drivers, Utilities, AntiVirus Soware (Trial Version),

CyberLink MediaEspresso 6.5 Trial, Google Chrome Browser

and Toolbar, Start8 (30 days trial)

Hardware

Monitor

•CPU/Chassis Temperature Sensing

•CPU/Chassis Tachometer

•CPU/Chassis Quiet Fan (Allow Chassis Fan Speed Auto-

Adjust by CPU Temperature)

•CPU/Chassis Fan Multi-Speed Control

•CASE OPEN detection

•Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore

OS •Microso® Windows® 8 / 8 64-bit / 7 / 7 64-bit compliant

Certica-

tions

•FCC, CE, WHQL

•ErP/EuP Ready (ErP/EuP ready power supply is required)
