ASROCK IMB-148 Manuale utente

IMB-148

User Manual

Version 1.0

Published January 2014

Version 1.0

Published January 2014

No part of this documentation may be reproduced, transcribed, transmitted, or

translated in any language, in any form or by any means, except duplication of

documentation by the purchaser for backup purpose, without written consent of

ASRock Inc.

Products and corporate names appearing in this documentation may or may not

be registered trademarks or copyrights of their respective companies, and are used

only for identication or explanation and to the owners’ benet, without intent to

infringe.

Disclaimer:

Specications and information contained in this documentation are furnished for

informational use only and subject to change without notice, and should not be

constructed as a commitment by ASRock. ASRock assumes no responsibility for

any errors or omissions that may appear in this documentation.

With respect to the contents of this documentation, ASRock does not provide

warranty of any kind, either expressed or implied, including but not limited to

the implied warranties or conditions of merchantability or tness for a particular

purpose.

In no event shall ASRock, its directors, ocers, employees, or agents be liable for

any indirect, special, incidental, or consequential damages (including damages for

loss of prots, loss of business, loss of data, interruption of business and the like),

even if ASRock has been advised of the possibility of such damages arising from any

defect or error in the documentation or product.

e terms HDMITM and HDMI High-Denition Multimedia Interface, and the HDMI

logo are trademarks or registered trademarks of HDMI Licensing LLC in the United

States and other countries.

is device complies with Part 15 of the FCC Rules. Operation is subject to the following

two conditions:

(1) this device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that

may cause undesired operation.

CALIFORNIA, USA ONLY

e Lithium battery adopted on this motherboard contains Perchlorate, a toxic substance

controlled in Perchlorate Best Management Practices (BMP) regulations passed by the

California Legislature. When you discard the Lithium battery in California, USA, please

follow the related regulations in advance.

“Perchlorate Material-special handling may apply, see www.dtsc.ca.gov/hazardouswaste/

perchlorate”

ASRock Website: http://www.asrock.com

Contents

1 Introduction ....................................................... 5

1.1 Package Contents ......................................................... 5

1.2 Specications................................................................. 6

1.3 Motherboard Layout....................................................... 8

1.4 I/O Panel........................................................................ 10

2 Installation ......................................................... 11

2.1 Screw Holes................................................................... 11

2.2 Pre-installation Precautions ........................................... 11

2.3 Installation of Memory Modules (DIMM) ........................ 12

2.4 Expansion Slots ............................................................ 13

2.5 Jumpers Setup............................................................... 14

2.6 Onboard Headers and Connectors................................ 16

2.7 Driver Installation Guide ............................................ 21

3 UEFI SETUP UTILITY......................................... 22

3.1 Introduction .................................................................... 22

3.1.1 UEFI Menu Bar .................................................... 22

3.1.2 Navigation Keys ................................................... 23

3.2 Main Screen................................................................... 23

3.3 Advanced Screen........................................................... 24

3.3.1 CPU Conguration ............................................... 25

3.3.2 Chipset Conguration........................................... 26

3.3.3 Storage Conguration .......................................... 27

3.3.4 Super IO Conguration ........................................ 28

3.3.5 ACPI Conguration............................................... 29

3.3.6 USB Conguration ............................................... 30

3.3.7 Voltage Conguration........................................... 31

3.4 Hardware Health Event Monitoring Screen ................... 32

3.5 Boot Screen ................................................................... 33

3.6 Security Screen ............................................................. 34

3.7 Exit Screen .................................................................... 35

4 Software Support .............................................. 36

4.1 Install Operating System................................................ 36

4.2 Support CD Information ................................................. 36

4.2.1 Running Support CD............................................ 36

4.2.2 Drivers Menu........................................................ 36

4.2.3 Utilities Menu........................................................ 36

4.2.4 Contact Information.............................................. 36

Chapter 1: Introduction

Thank you for purchasing ASRock IMB-148 motherboard, a reliable motherboard

produced under ASRock’s consistently stringent quality control. It delivers excellent

performance with robust design conforming to ASRock’s commitment to quality and

endurance.

In this manual, chapter 1 and 2 contain introduction of the motherboard and step-

by-step guide to the hardware installation. Chapter 3 and 4 contain the conguration

guide to BIOS setup and information of the Support CD.

Because the motherboard specications and the BIOS software might be

updated, the content of this manual will be subject to change without no-

tice. In case any modications of this manual occur, the updated version

will be available on ASRock website without further notice. You may nd

the latest VGA cards and CPU support lists on ASRock website as well.

ASRock website http://www.asrock.com

If you require technical support related to this motherboard, please visit

our website for specic information about the model you are using.

www.asrock.com/support/index.asp

1.1 Package Contents

ASRock IMB-148 Motherboard

(Mini-ITX Form Factor: 6.7-in x 6.7-in, 17.0 cm x 17.0 cm)

ASRock IMB-148 Driver CD

ASRock IMB-148 Jumper Setting Instruction

1 x I/O Panel Shield

1.2 Specications

Form

Factor Dimensions Mini-ITX (6.7-in x 6.7-in)

Processor

System

CPU Intel®AtomTM CedarView Processor D2550

Supports Hyper-Threading Technology

Core

Number 2

Max Speed D2550: 1.86 GHz

Cache 1MB

Chipset NM10

BIOS UEFI

Expansion

Slot

PCI 0

Mini-PCIe 1 (half size) PCIe only

mSATA 0

PCIe 1 (x1)

CFast Card

Socket 0

Memory

Technology Single Channel DDR3 800/1066 MHz SDRAM

Max. 4GB

Socket 2 x SODIMM

Graphics

Controller Intel®PowerVR SGX545, Support DirectX9

compliant Pixel Shader v3.0 and OGL 3.0

VRAM Shared Memory

VGA Supports max. resolution 1920 x 1200

LVDS Single channel 24-bit, max resolution 1440x900

@ 60Hz

HDMI 1

DVI No

DisplayPort No

MultiDisplay Yes (Dual Display)

Ethernet

Ethernet 10/100/1000 Mbps

Controller GbE LAN Realtek

Connector 1 x RJ-45

SATA

Max Data

Transfer

Rate

SATA2 (3.0Gb/s)

Rear I/O

VGA 1

DVI 0

HDMI 1

DisplayPort 0

Ethernet 1

USB 4 x USB 2.0

Audio 2 (Mic-In, Line-Out)

Serial 0

PS/2 0

Internal

Connector

USB 4 x USB 2.0

LVDS/

Inverter 1/1

VGA 1 (shared with rear I/O VGA)

Serial 4 (RS-232)

SATA 2 x SATA2 (3.0Gb/s)

mPCIe 1

Parallel 1

mSATA 0

IrDA 0

GPIO 8-bit 4 in / 4 out

SATA PWR

Output Con 1

Speaker

Header 1

Watchdog

Timer

Output From Super I/O to drag RESETCON#

Interval 256 Segments, 0,1,2…255 Sec/Min

Power

Requirements

Input PWR 9~19V DC-In (DC-Jack or 2-pin PWR Con)

Power On

AT/ATX Supported

-AT : Directly PWR on as power input ready

-ATX : Press button to PWR on after power

input ready

Environment Temperature 0ºC – 60ºC

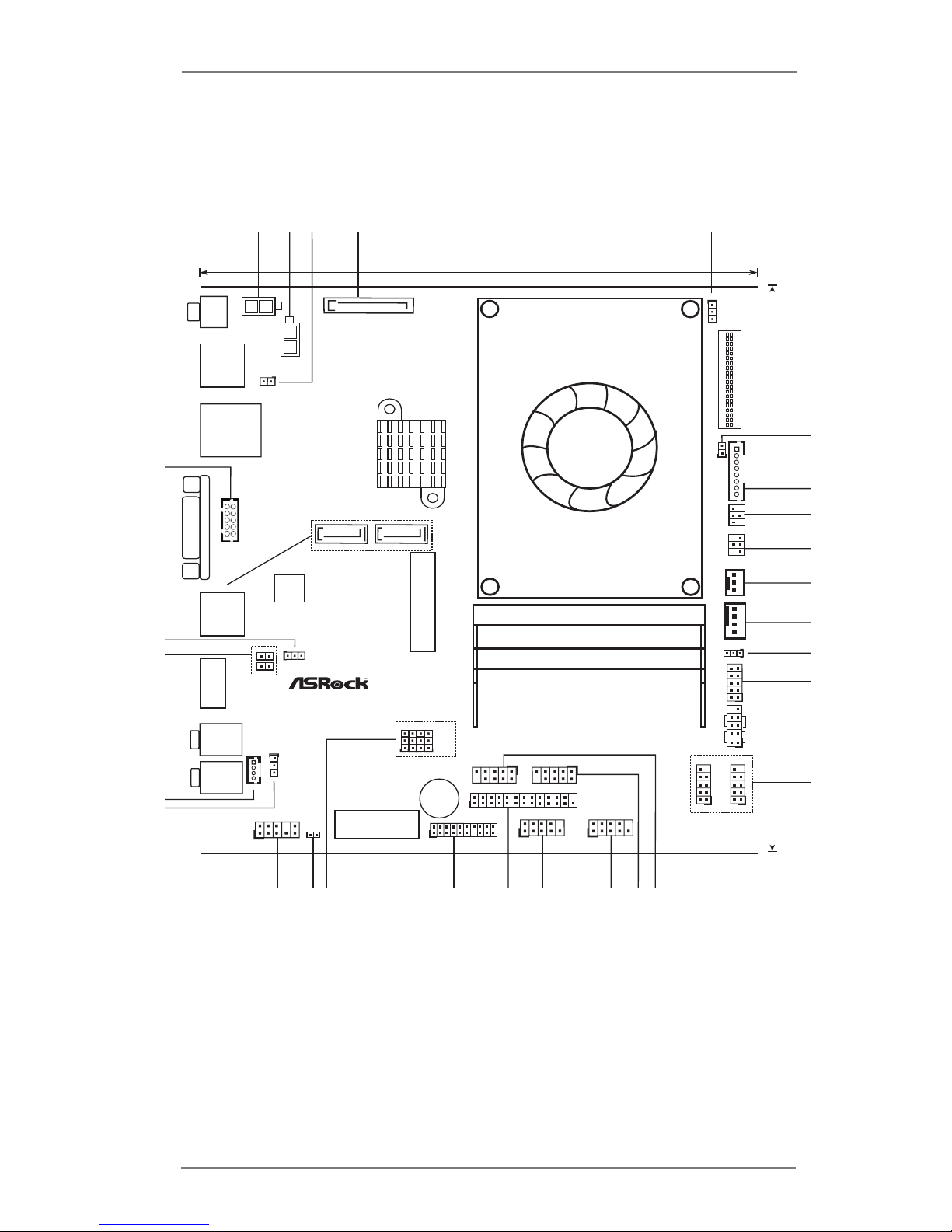

1.3 Motherboard Layout

PCIE1

PANE L 1

HDLED RESET

PLED PWRBTN

BIOS

Chip

CLRCMOS1

CPU_FAN1

IMB-148

PWR_JP1

LVDS1

17.0cm (6.7 in)

1 2 456

20 19 18 17

PWR_COM1

PWR_COM6

PWR_COM3

PWR_COM4

SPEAKER1

DC_CTL1

DC_JACK1

USB 2.0

T: USB1

B: USB0

LAN1

VGA1

USB 2.0

T: USB3

B: USB2

HDMI1

Line Out

Mic In

UPS_IN1

INT_DC1

SATA_PWR1

VGA2

CI1

CI2

mini-PCIe

HD_AUDIO1

BUZZ1

TPM1

COM3

COM4

COM1

COM6

LPT1

USB6_7

USB4_5

JGPIO1

BLT_CTL1

BLT_PWM2

BLT_PWM1

BKT_PWR1

PNL_PWR1

JGPIO_PW1

SPDIF1

CPU_FAN2

SATA2_1 SATA2_2

1 : 2-pin ATX Power Input/Output Connector

2 : 2-pin UPS Module Power Input Connector

3 : Input Power Setting (DC_CTL1)

4 : SATA Power Output Connector

5 : Backlight Control Level (VBIOS) (BLT_PWM1)

6 : LVDS Panel Connector

7 : Backlight Control (PWM) (BLT_PWM2)

8 : Panel Brightness Control (BLT_CTL1)

9 : Backlight Power Selection (BKT_PWR1)

10 : Panel Power Selection (PNL_PWR1)

11 :

3-Pin CPU FAN Connector (+12V)

4-Pin CPU FAN Connector (+12V)

13 : Digital Input / Output Power Selection

14 : Digital Input / Output Pin Header

15 :

System Panel Header

16 :

USB2.0 Headers

(USB4_5, USB6_7)

17 :

RS-232 Port 4 Pin Header (COM1)

18 :

RS-232 Port 4 Pin Header (COM6)

19 : RS-232 Port 4 Pin Header (COM4)

20 : RS-232 Port 4 Pin Header (COM3)

21 :

Printer Port Header

22 : TPM Header

23 : COM Port Power Control (PWR_COM1, PWR_COM6, PWR_COM3,

PWR_COM4)

24 : SPDIF Header

25 :

Front Panel Audio Header

26 : ATX/AT Mode Selection

27 : 3W Audio AMP Output Wafer

28 : Chassis Intrusion Headers

(CI1, CI2)

29 : Clear CMOS Header

30 : SATA2 Connectors (SATA2_1, SATA2_2)

31 : VGA Connector

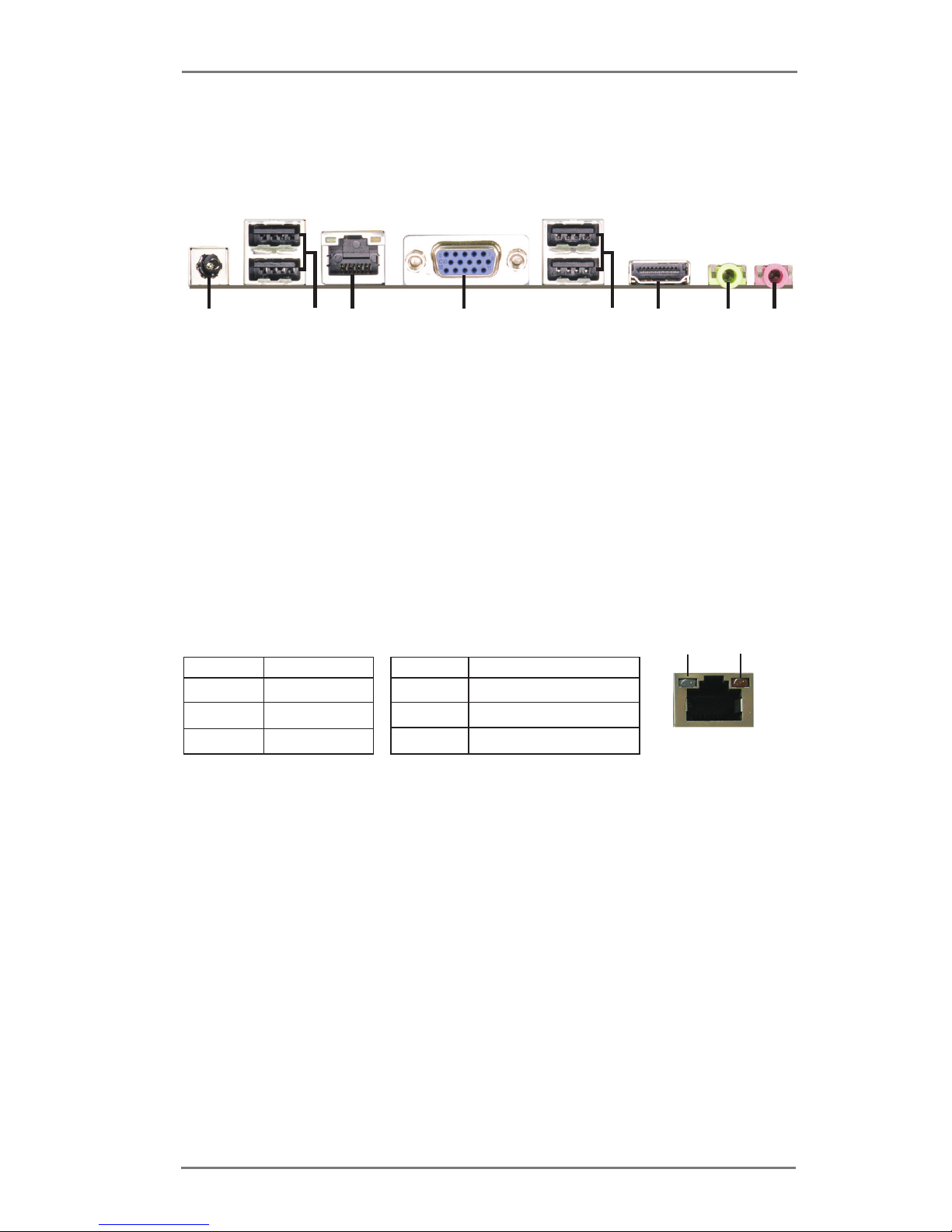

1.4 I/O Panel

* There are two LED next to the LAN port. Please refer to the table below for the LAN port LED

indications.

LAN Port LED Indications

Activity/Link LED SPEED LED

Status Description Status Description

Off No Link Off 10Mbps connection

Blinking Data Activity Off 100Mbps connection

On Link Orange 1Gbps connection

1 DC Jack (DC_JACK1)

2 USB 2.0 Ports (USB0_1)

* 3 LAN RJ-45 Port (LAN1)

4 VGA Port (VGA1)

5 USB 2.0 Ports (USB2_3)

6 HDMI Port (HDMI1)

7 Line out (Lime)

8 Microphone (Pink)

ACT/LINK

LED

SPEED

LED

LAN Port

124

35678

Indice

Altri manuali ASROCK Scheda madre

ASROCK

ASROCK H310M-HDV/M.2 Manuale utente

ASROCK

ASROCK P45X3 DELUXE - Manuale utente

ASROCK

ASROCK B550 PG Velocita Manuale utente

ASROCK

ASROCK K7VM2 R3.0 Manuale utente

ASROCK

ASROCK IMB-150D-PCI Manuale utente

ASROCK

ASROCK P4VM900-SATA2 - V1.0 Manuale utente

ASROCK

ASROCK IMB-140 Manuale utente

ASROCK

ASROCK IMB-1213 Manuale utente

ASROCK

ASROCK Z790 Taichi Carrara Manuale utente

ASROCK

ASROCK B250M PRO4 Manuale utente

ASROCK

ASROCK P55DE PRO - Manuale utente

ASROCK

ASROCK B460 Pro4 Manuale utente

ASROCK

ASROCK GE PRO-HT Manuale utente

ASROCK

ASROCK Z690 PG Riptide Manuale utente

ASROCK

ASROCK Z87M Pro4 Manuale utente

ASROCK

ASROCK Fatal1ty Z170 Gaming K4 Series Manuale utente

ASROCK

ASROCK ALIVENF5-ESATA2 R3.0 Manuale utente

ASROCK

ASROCK P45DE3 Manuale utente

ASROCK

ASROCK 880GMH/USB3 R2.0 Manuale utente

ASROCK

ASROCK H310M-HDVP Manuale utente

ASROCK

ASROCK H61M-VGS Manuale utente

ASROCK

ASROCK 970 Pro2 Manuale utente

ASROCK

ASROCK X99M Extreme4 Manuale utente

ASROCK

ASROCK FM2A78M-HD+ R2.0 Manuale utente

Manuali Scheda madre popolari di altre marche

DFI

DFI SD170 Manuale utente

Asus

Asus P2L97A Manuale utente

Winmate

Winmate IC70 Manuale utente

Asus

Asus MES-B Manuale utente

Grantech

Grantech SYS8F377VGGA-3OMN Manuale utente

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuale utente

Gigabyte

Gigabyte GA-9IVDT Manuale utente

Texas Instruments

Texas Instruments ADS8372EVM Manuale utente

Commell

Commell MS-C73 Manuale utente

IBT Technologies

IBT Technologies MB860 Manuale utente

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuale utente

Biostar

Biostar M7VIT Bravo Istruzioni per l'uso e l'installazione

Intel

Intel D33217CK Manuale utente

Asus

Asus F1A55-M LX PLUS R2.0 Manuale utente

EPC

EPC EPC9147C Manuale utente

Asus

Asus EX-B760M-V5 D4 Manuale utente

EPOX

EPOX MU-8KHA0010 Manuale utente

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manuale utente
