ASROCK IMB-151 Manuale utente

IMB-151

User Manual

Version 1.1

Published September 2014

Version 1.1

Published September 2014

No part of this documentation may be reproduced, transcribed, transmitted, or

translated in any language, in any form or by any means, except duplication of

documentation by the purchaser for backup purpose, without written consent of

ASRock Inc.

Products and corporate names appearing in this documentation may or may not

be registered trademarks or copyrights of their respective companies, and are used

only for identication or explanation and to the owners’ benet, without intent to

infringe.

Disclaimer:

Specications and information contained in this documentation are furnished for

informational use only and subject to change without notice, and should not be

constructed as a commitment by ASRock. ASRock assumes no responsibility for

any errors or omissions that may appear in this documentation.

With respect to the contents of this documentation, ASRock does not provide

warranty of any kind, either expressed or implied, including but not limited to

the implied warranties or conditions of merchantability or tness for a particular

purpose.

In no event shall ASRock, its directors, ocers, employees, or agents be liable for

any indirect, special, incidental, or consequential damages (including damages for

loss of prots, loss of business, loss of data, interruption of business and the like),

even if ASRock has been advised of the possibility of such damages arising from any

defect or error in the documentation or product.

e terms HDMITM and HDMI High-Denition Multimedia Interface, and the HDMI

logo are trademarks or registered trademarks of HDMI Licensing LLC in the United

States and other countries.

is device complies with Part 15 of the FCC Rules. Operation is subject to the following

two conditions:

(1) this device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that

may cause undesired operation.

CALIFORNIA, USA ONLY

e Lithium battery adopted on this motherboard contains Perchlorate, a toxic substance

controlled in Perchlorate Best Management Practices (BMP) regulations passed by the

California Legislature. When you discard the Lithium battery in California, USA, please

follow the related regulations in advance.

“Perchlorate Material-special handling may apply, see www.dtsc.ca.gov/hazardouswaste/

perchlorate”

ASRock Website: http://www.asrock.com

Contents

1 Introduction ....................................................... 5

1.1 Package Contents ......................................................... 5

................................................................. 6

1.3 Motherboard Layout....................................................... 8

1.4 I/O Panel........................................................................ 10

2 Installation ......................................................... 11

2.1 Screw Holes................................................................... 11

2.2 Pre-installation Precautions ........................................... 11

2.3 Installation of Memory Modules (SO-DIMM).................. 12

2.4 Expansion Slot............................................................... 13

2.5 Jumpers Setup............................................................... 14

2.6 Onboard Headers and Connectors................................ 16

3 UEFI SETUP UTILITY......................................... 22

3.1 Introduction .................................................................... 22

3.1.1 UEFI Menu Bar .................................................... 22

3.1.2 Navigation Keys ................................................... 23

3.2 Main Screen................................................................... 23

3.3 Advanced Screen........................................................... 24

 ............................................... 25

........................................... 26

 .......................................... 28

3.3.4 Intel(R) Smart Connect Technology ..................... 29

 ........................................ 30

............................................... 31

 ............................................... 32

3.4 Hardware Health Event Monitoring Screen ................... 33

3.5 Security Screen ............................................................. 34

3.6 Boot Screen ................................................................... 35

3.7 Exit Screen .................................................................... 37

4 Software Support .............................................. 38

4.1 Install Operating System................................................ 38

4.2 Support CD Information ................................................. 38

4.2.1 Running Support CD............................................ 38

4.2.2 Drivers Menu........................................................ 38

4.2.3 Utilities Menu........................................................ 38

4.2.4 Contact Information.............................................. 38

Chapter 1: Introduction

Thank you for purchasing ASRock IMB-151 motherboard, a reliable motherboard

produced under ASRock’s consistently stringent quality control. It delivers excellent

performance with robust design conforming to ASRock’s commitment to quality and

endurance.

In this manual, chapter 1 and 2 contain introduction of the motherboard and step-



guide to BIOS setup and information of the Support CD.



updated, the content of this manual will be subject to change without no-





the latest VGA cards and CPU support lists on ASRock website as well.

ASRock website http://www.asrock.com

If you require technical support related to this motherboard, please visit



www.asrock.com/support/index.asp

1.1 Package Contents

ASRock IMB-151 Motherboard

(Mini-ITX Form Factor: 6.7-in x 6.7-in, 17.0 cm x 17.0 cm)

ASRock IMB-151 Driver CD

ASRock IMB-151 Jumper Setting Instruction

1 x I/O Panel Shield



Form

Factor Dimensions Mini-ITX (6.7-in x 6.7-in)

Processor

System

CPU Intel®AtomTM Baytrail-M/D Processor

Supports Hyper-Threading Technology

Core

Number 4

Max Speed (By CPU)

Cache 2MB

Chipset N/A

BIOS UEFI

Expansion

Slot

PCI 0

Mini-PCIe 1 (half size) + 1 (full size) shared with mSATA

mSATA 1 (shared with SATA2_2)

PCIe 1

CFast Card

Socket 0

Memory

Technology Dual Channel DDR3L-1333 MHz SDRAM

Max. 8GB

Socket 2 x SO-DIMM

Graphics

Controller Intel®Gen7 Intel®Graphics DX 11, OGL3.2

VRAM Shared Memory

VGA Supports max. resolution 1920x1200

LVDS Dual Channel 24-bit, max resolution

1920x1200@60Hz

HDMI Supports HDMI 1.4a, max resolution 1920x1200

DVI No

DisplayPort No

Multi Display Yes (Dual Display)

Ethernet

Ethernet 10/100/1000 Mbps

Controller GbE LAN Realtek

Connector 1 x RJ-45

SATA

Max Data

Transfer

Rate

SATA2 (3.0Gb/s)

Rear I/O

VGA 1

DVI 0

HDMI 1

DisplayPort 0

Ethernet 1

USB 4 (2 x USB 3.0, 2 x USB 2.0)

Audio 2 (Mic-in, Line-out)

Serial 0

PS/2 0

Internal

Connector

USB 6 (2 x USB 3.0, 4 x USB 2.0)

LVDS/

Inverter 1/1

VGA 1 (shared with rear I/O VGA COM)

Serial 5 (1 x RS-232/422/485, 4 x RS-232)

SATA 2 x SATA2 (3.0Gb/s)

mPCIe 1

Parallel 1

mSATA 1 (shared)

IrDA 0

GPIO 8-bit 4 x GPI + 4 x GPO

SATA PWR

Output Con 1

Speaker

Header 1

Watchdog

Timer

Output Output from super I/O to drag RESETCON#

Interval 256 Segments, 0,1,2…255 Sec/Min

Power

Requirements

Input PWR 9-19V DC-In (4-pin ATX PWR Con)

Power On

AT/ATX Supported

-AT : Directly PWR on as power input ready

-ATX : Press button to PWR on after power

input ready

Environment Temperature 0ºC – 60ºC

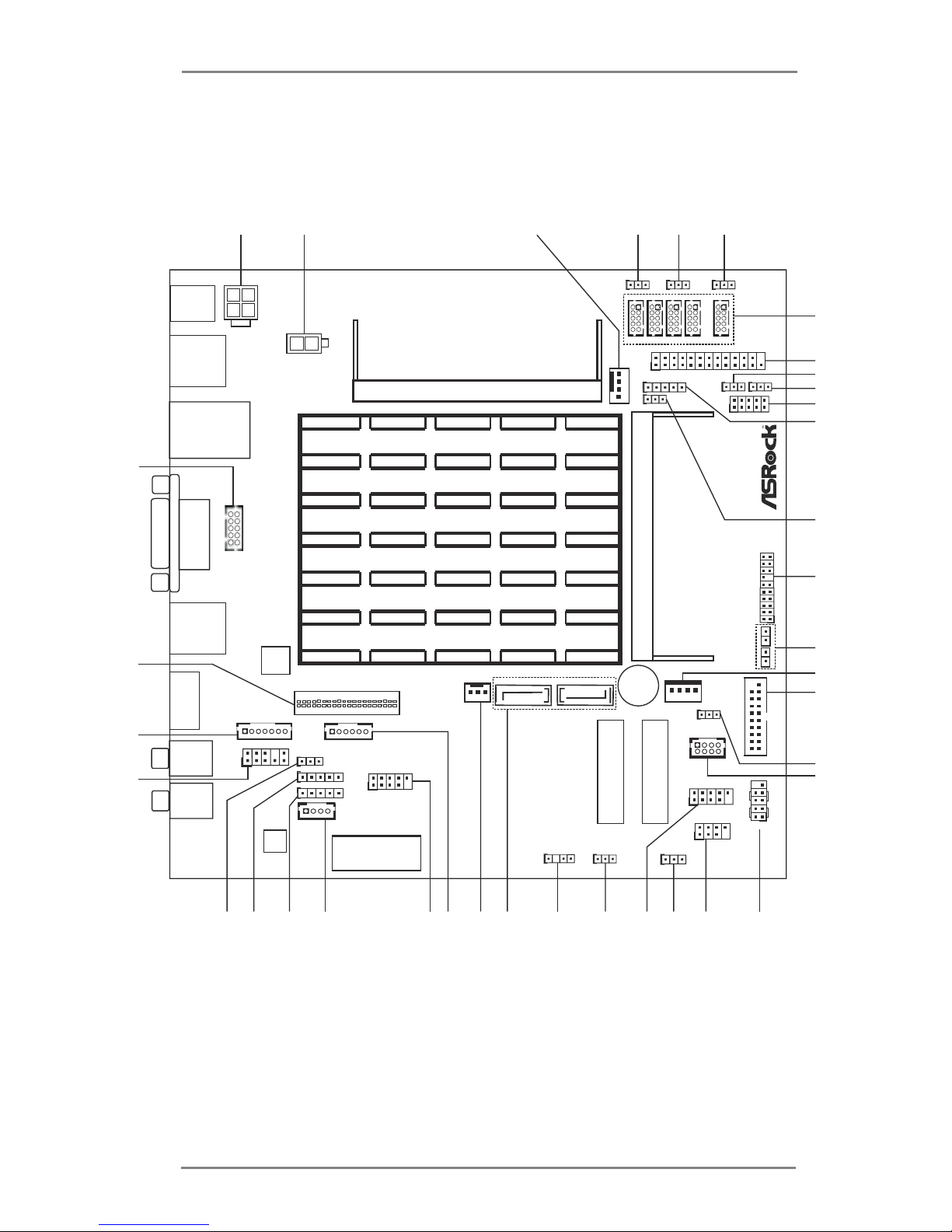

1.3 Motherboard Layout

Mic In

AUDIO

CODE C

BUZZ1

BIOS

Chip

USB2_ 56

HD_AUDIO1

IMB-151

2326

32 27

2528

33 31 30

1234 5 6

PWR _COM 1

SATA2 _2

SATA2 _1

CPU_FA N1

PCIE1

JGPIO 1

DC_JACK1

mini-PCIe

TPM1

PS2_K B_MS1

VGA2

CLRCM OS1

CHA _FAN 1

SPEAK ER 1

LAN1

VGA1

Line Out

INT_DC1

HDMI1

ATX12V1

BLT_ VOL1

BLT_ PWM 1

HDLED R ESE T

PLED PW RBT N

PANE L1

CI1

mini-PCIe / mini-SATA

LPT1

CI2

SATA_ PWR1

USB3 _3 4

MSATA _SE L1

USB2_ 34

LVDS 1

BLT_ PW R1

PNL _PW R1

BKT _PW R1

Indu stria l

CIR1

ATX_ AT1

JGPIO _PWR1

PWR_C OM2

USB 2.0

USB 3.0

DDR3_A1

COM6

COM4

COM3

COM2

COM1

PWR _COM 6

PWR _COM 4

PWR _COM 3

DDR3_B1

SPDIF 1

JGP IO_S ET1

1 : ATX Power Connector (Input 9V-19V)

2 : 2-pin UPS Module Power Input Connector

3 :

4-Pin CPU FAN Connector (+12V)

4 : PWR_COM6 Jumper

5 : PWR_COM4 Jumper

6 : PWR_COM3 Jumper

7 : Internal COM Port Headers

COM1 (RS232/422/485)

COM2, 3, 4, 6 (RS232)

8 : Printer Port Header

9 : PWR_COM1 Jumper

10 : JGPIO_SET1 Jumper

11 : Digital Input / Output Pin Header

12 : PWR_COM2 Jumper

13 : Digital Input / Output Power Select

14 : TPM Header

15 : Chassis Intrusion Headers (CI1, Cl2)

6 : SATA Power Output Connector

17 :

USB3.0 Connector

18 :

mSATA Selection Jumper

19 :

PS2_KB_MS1

20 :

System Panel Header

21 :

CIR Header

22 : Clear CMOS Header

23 : USB2.0 Connector (USB2_56)

24 : ATX/AT Mode Jumper

25 : SPDIF Header

26 : SATA2 Connectors (SATA2_1, SATA2_2)

27 :

3-Pin Chassis FAN Connector (+12V)

28 :

Backlight Power Connector

29 : USB2.0 Connector (USB2_34)

30 : 3W Audio AMP Output Wafer

31 : Backlight Power Selection (BKT_PWR1)

32 : Panel Power Selection (PNL_PWR1)

33 :

Backlight Control Level (

BLT_PWM1)

34 :

Front Panel Audio Header

35 : Backlight Volume Control (BLT_VOL1)

36 : LVDS Panel Connector

37 : VGA2

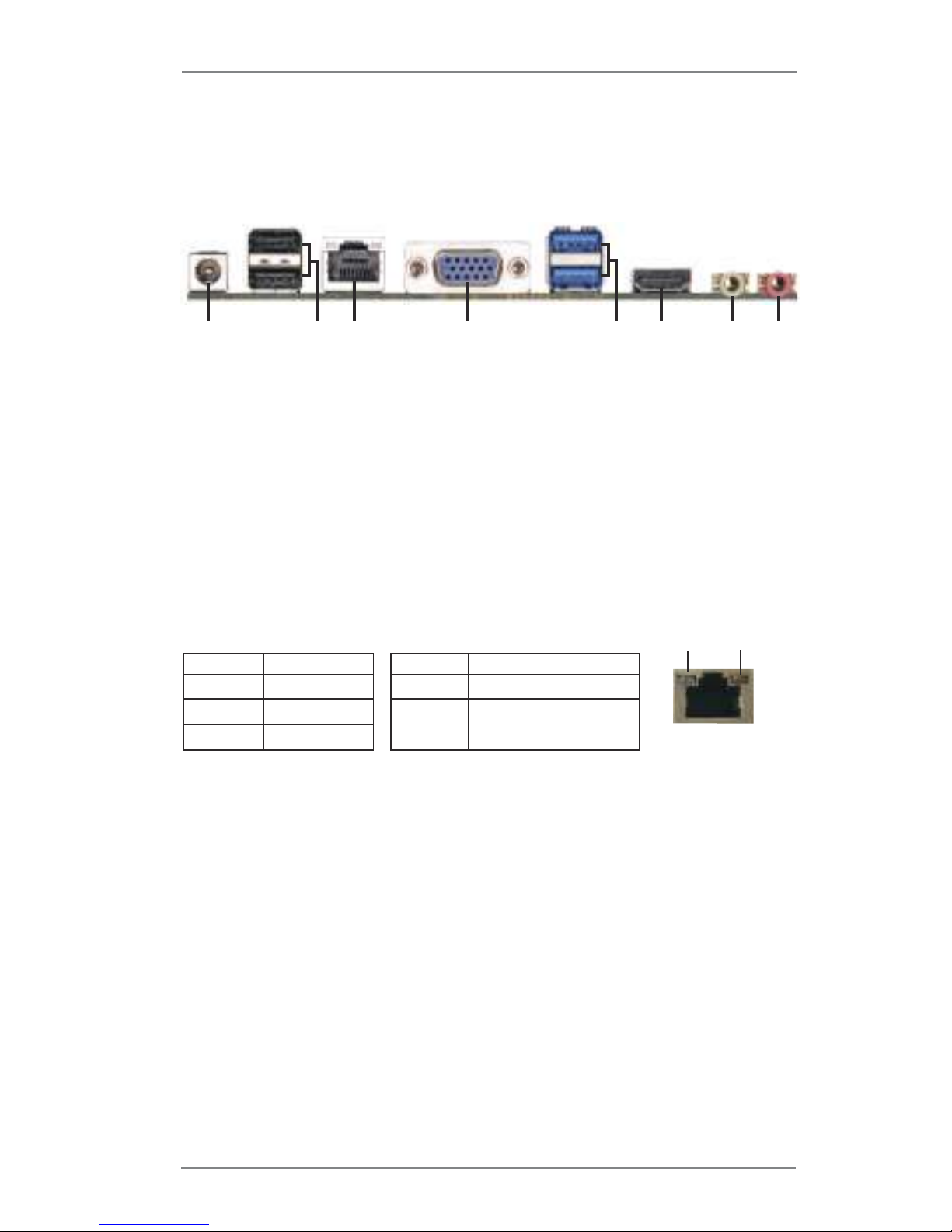

1.4 I/O Panel

** There are two LED next to the LAN port. Please refer to the table below for the LAN port LED

indications.

LAN Port LED Indications

Activity/Link LED SPEED LED

Status Description Status Description

Off No Link Off 10Mbps connection

Blinking Data Activity Off 100Mbps connection

On Link Green 1Gbps connection

1 DC Jack

2 USB 2.0 Ports (USB2_12)

3 LAN RJ-45 Port*

4 VGA Port (VGA1)

5 USB 3.0 Ports (USB3_12)

6 HDMI Port (HDMI1)

7 Line out (Green)

8 Microphone (Pink)

ACT/LINK

LED

SPEED

LED

LAN Port

12 4

358

Altri manuali per IMB-151

Indice

Altri manuali ASROCK Scheda madre

ASROCK

ASROCK 775Twins-PT890 Manuale utente

ASROCK

ASROCK IMB-156 Istruzioni utente

ASROCK

ASROCK H67M-GE/HT Manuale utente

ASROCK

ASROCK N73PV-S - INSTALLATION - 12-2006 Manuale utente

ASROCK

ASROCK CONROEXFIRE-ESATA2 Manuale utente

ASROCK

ASROCK CREATOR X299 Manuale utente

ASROCK

ASROCK FM2A55M-VG3 Manuale utente

ASROCK

ASROCK X299 GAMING i9 Manuale utente

ASROCK

ASROCK IMB-391 Manuale di servizio

ASROCK

ASROCK X58 EXTREME - Manuale utente

ASROCK

ASROCK P43 PROUSB3 - Manuale utente

ASROCK

ASROCK Z590 Pro4 D4 Manuale utente

ASROCK

ASROCK Z690 AQUA OC Manuale utente

ASROCK

ASROCK H410TM-ITX Manuale utente

ASROCK

ASROCK H610M-ITX/ac Manuale utente

ASROCK

ASROCK STX-1000 Manuale utente

ASROCK

ASROCK B85M-HDS Manuale utente

ASROCK

ASROCK M3A790GXH/128M Manuale utente

ASROCK

ASROCK N68C-GS4 FX Manuale utente

ASROCK

ASROCK Z490M-ITX/ac Manuale utente

ASROCK

ASROCK B150M-ITX/D3 Manuale utente

ASROCK

ASROCK 890GMH/USB3 Manuale utente

ASROCK

ASROCK H110M-DS/Hyper Manuale utente

ASROCK

ASROCK Fatal1ty Z97M Killer Series Manuale utente

Manuali Scheda madre popolari di altre marche

DFI

DFI SD170 Manuale utente

Asus

Asus P2L97A Manuale utente

Winmate

Winmate IC70 Manuale utente

Asus

Asus MES-B Manuale utente

Grantech

Grantech SYS8F377VGGA-3OMN Manuale utente

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuale utente

Gigabyte

Gigabyte GA-9IVDT Manuale utente

Texas Instruments

Texas Instruments ADS8372EVM Manuale utente

Commell

Commell MS-C73 Manuale utente

IBT Technologies

IBT Technologies MB860 Manuale utente

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuale utente

Biostar

Biostar M7VIT Bravo Istruzioni per l'uso e l'installazione

Intel

Intel D33217CK Manuale utente

Asus

Asus F1A55-M LX PLUS R2.0 Manuale utente

EPC

EPC EPC9147C Manuale utente

Asus

Asus EX-B760M-V5 D4 Manuale utente

EPOX

EPOX MU-8KHA0010 Manuale utente

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manuale utente
