IMB-A1000
User Manual
Version 1.0
Published September 2019
Copyright©2019 ASRockInd INC. All rights reserved.
2
Version 1.0
Published September 2019
Copyright©2019 ASRockInd INC. All rights reserved.
Copyright Notice:
No part of this documentation may be reproduced, transcribed, transmitted, or
translated in any language, in any form or by any means, except duplication of
documentation by the purchaser for backup purpose, without written consent of
ASRockInd Inc.
Products and corporate names appearing in this documentation may or may not
be registered trademarks or copyrights of their respective companies, and are used
only for identication or explanation and to the owners’ benet, without intent to
infringe.
Disclaimer:
Specications and information contained in this documentation are furnished for
informational use only and subject to change without notice, and should not be
constructed as a commitment by ASRockInd. ASRockInd assumes no responsibility
for any errors or omissions that may appear in this documentation.
With respect to the contents of this documentation, ASRockInd does not provide
warranty of any kind, either expressed or implied, including but not limited to
the implied warranties or conditions of merchantability or tness for a particular
purpose.
In no event shall ASRockInd, its directors, ocers, employees, or agents be liable
for any indirect, special, incidental, or consequential damages (including damages
for loss of prots, loss of business, loss of data, interruption of business and the
like), even if ASRockInd has been advised of the possibility of such damages arising
from any defect or error in the documentation or product.
is device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
CALIFORNIA, USA ONLY
e Lithium battery adopted on this motherboard contains Perchlorate, a toxic substance
controlled in Perchlorate Best Management Practices (BMP) regulations passed by the
California Legislature. When you discard the Lithium battery in California, USA, please
follow the related regulations in advance.
“Perchlorate Material-special handling may apply, see www.dtsc.ca.gov/hazardouswaste/
perchlorate”
ASRockInd Website: http://www.asrockind.com
3
Contents
1. Introduction ................................................................ 5
1.1 Package Contents.......................................................... 5
1.2 Specications ................................................................. 6
1.3 Motherboard Layout ..................................................... 7
1.4 I/O Panel ...................................................................... 9
2. Installation .................................................................. 10
2.1 Installing Memory Modules (DIMM) ............................... 11
2.2 Expansion Slot ............................................................... 12
2.3 Jumpers Setup ............................................................... 14
2.4 Onboard Headers and Connectors ................................ 16
3. UEFI SETUP UTILITY.................................................. 20
3.1 Introduction .................................................................... 20
3.1.1 UEFI Menu Bar ..................................................... 20
3.1.2 Navigation Keys .................................................... 21
3.2 Main Screen ................................................................... 22
3.3 Advanced Screen........................................................... 23
3.3.1CPUConguration ............................................... 24
3.3.2ChipsetConguration........................................... 25
3.3.3StorageConguration .......................................... 27
3.3.4SuperIOConguration ........................................ 28
3.3.5ACPIConguration............................................... 29
3.3.6USBConguration ............................................... 30
3.3.7 Trusted Computing............................................... 31
3.4 Hardware Health Event Monitoring Screen.................... 32
3.5 Security Screen.............................................................. 33
3.6 Boot Screen ................................................................... 34
3.7 Exit Screen..................................................................... 36
4. Software Support ....................................................... 37
4.1 Install Operating System ................................................ 37
4.2 Support CD Information ................................................. 37
4.2.1 Running The Support CD..................................... 37
4.2.2 Drivers Menu........................................................ 37
4.2.3 Utilities Menu........................................................ 37
4.2.4 Contact Information.............................................. 37
4.3 AMDEyenityMultidisplayTechnologySetting.............. 38
4
1. Introduction
Thank you for purchasing ASRockInd IMB-A1000 motherboard, a reliable
motherboard produced under ASRockInd’s consistently stringent quality
control. It delivers excellent performance with robust design conforming to
ASRockInd’s commitment to quality and endurance.
In this manual, chapter 1 and 2 contains the introduction of the mother-
board and step-by-step hardware installation guide. Chapter 3 and 4 con-
tainsthecongurationguideofUEFIsetupandinformationoftheSupport
CD.
BecausethemotherboardspecicationsandtheBIOSsoftware
might be updated, the content of this manual will be subject to
changewithoutnotice.Incaseanymodicationsofthismanual
occur, the updated version will be available on ASRockInd web-
sitewithoutfurthernotice.YoumayndthelatestCPUsupport
lists on ASRockInd website as well.
ASRockInd website https://www.asrockind.com/
If you require technical support related to this motherboard,
pleasevisitourwebsiteforspecicinformationaboutthemodel
you are using.
https://www.asrockind.com/support/index.asp
1.1 Package Contents
ASRockInd IMB-A1000 Motherboard
(Mini-ITX Form Factor: 6.7-in x 6.7-in, 17.0 cm x 17.0 cm)
ASRockInd IMB-A1000 Quick Installation Guide
ASRockInd IMB-A1000 Support CD
1 x I/O Panel Shield
5
1.2 Specications
Form
Factor Dimensions Mini-ITX (6.7-in x 6.7-in)
Processor
System
CPU
AMD Ryzen Series-Raven Ridge (2200G, QC,
3.5GHz, 65W) (2400G, QC, 3.6GHz, 65W)
AMD Ryzen 3000-Matisse CPU, sku TBD, up to
TDP 95W
Chipset AMD Promontory B450
Expansion
Slot
PCIe 1 x PCIe x16 (PCIe GEN III x8 for Raven Ridge
CPU) (PCIe GEN IV x16 for Matisse CPU)
M.2
1 x Key M (2242/2260/2280) with PCIe x4 and
SATA3 for SSD
1 x Key M (2242/2280) with PCIe x1 for SSD
1 x Key B (3042) with PCIe x1, USB 2.0 and
SIM Socket for 4G
1 x Key E (2230) with PCIe x1 and USB2.0 for
Wireless
Memory
Technology Raven Ridge: Dual Channel DDR4 2933 MHz
Matisse: Dual Channel DDR4 3200 MHz
Max. 32 GB
Socket 2 x SO-DIMM
ECC
Support N/A
Graphics
Controller AMD Radeon™ Vega Series Graphics in Ryzen
Series APU (For Raven Ridge CPU)
VGA N/A
DVI N/A
LVDS N/A
HDMI N/A
DisplayPort DisplayPort 1.2 with max resolution up to
4096x2160@60Hz
MultiDisplay Triple Display
eDP eDP 1.4 (share with DisplayPort) with max
resolution up to 4096x2160@60Hz
Ethernet Ethernet 10/100/1000 Mbps
Controller 2 x Intel®I210-AT
6
* For detailed product information, please visit our website: http://www.asrockind.com
Rear I/O
VGA N/A
DVI N/A
HDMI N/A
DisplayPort 3
Ethernet 2
USB 6 x USB 3.1
Audio 1 (Mic-in, Line-out)
Serial N/A
PS2 N/A
Internal
Connector
USB 2 x USB3.0, 4 x USB2.0
LVDS/
inverter N/A
eDP 1 (share with DisplayPort)
VGA N/A
Serial 2 x COM(RS-232/422/485)
SATA 3 x SATA3
Parallel N/A
GPIO N/A
SATA PWR
Output 1
Speaker
Header 1
TPM 1 x Onboard TPM 2.0 IC
Watchdog
Timer
Output From Super I/O to drag RESETCON#
Interval 256 Segments, 0, 1, 2, ...255sec
Power
Requirements
Input PWR ATX PWR 24+8-pin
Power On
AT/ATX Supported
AT: Directly PWR on as Power input ready
Environment ATX: Press Button to PWR on
after Power input ready
Environment
Temperature 0ºC – 60ºC
Operating
Temp -40ºC – 85ºC
7

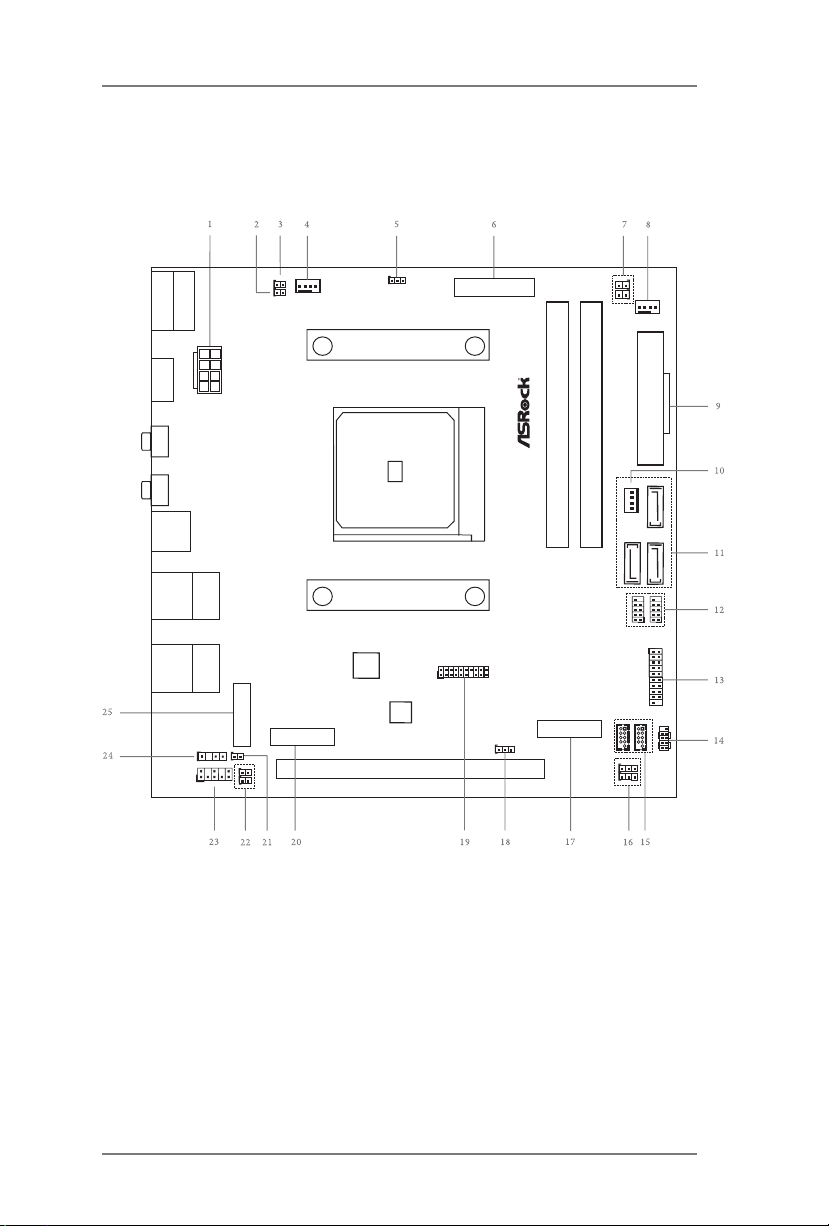

1.3 Motherboard Layout
ATXPWR1
1
HD_AUDIO1
HDLED RESET
PLED PW RBTN
PANEL1
1
Top:
LAN1
USB 3.0
T: USB0
B: USB1
Line Out
ATX1 2V 2
LPC1
1
Industrial
BIOS
ROM
USB3_16_17
1
CLRCMOS1
1
USB 3. 0
T: USB14
B: USB15
DP0
SATA3_1
M2_KEYM1
SPDIF1
1
SOCKET AM4
PCIE1
DP1
USB2_4_5
1
USB2_6_7
1
SATA_PWR1
CPU_FAN1
DDR4_A1
DDR4_B1
DP2
Mic In
Top:
LAN2
USB 3.0
T: USB2
B: USB3
M2_KEYE1
BUZZ2
1
CI2
1
CI1
1
BUZZ1
PWR_JP1
1
M2_KEYB1
PWR_COM3
1
PWR_COM4
1
COM3
1
COM4
1
SATA3_2
SATA3_3
CHA_FAN1
BL1
1
BL2
1
EDP1
CLRCMOS2
1
PWR_BAT2
1
IMB-A1000
8
1 : ATX 12V Power Connector
2 : PWR_BAT2
3 : Clear CMOS Header (CLRMOS2)
4 :
CPU FAN Connector (+12V)
5 : Clear CMOS Header (CLRMOS1)
6 : eDP Connector
7 : BL1, BL2
8 :
Chassis FAN Connector (+12V)
9 :
24-pin ATX Power Input Connector
10 : SATA Power Output Connector
11 : SATA3 Connectors (SATA3_1~3)
12 : USB 2.0 Headers (
USB2_4_5, USB2_6_7
)
13 : USB 3.0 Header (
USB3_16_17
)
14
:
System Panel Header
15 : COM Port Headers (COM3, 4) (RS232)
16 : COM Port PWR Setting Jumpers
PWR_COM3 (For COM Port3)
PWR_COM4 (For COM Port4)
17 : M.2 Key-B Socket
(M2_KEYB1)
18 : ATX/AT Mode Select (PWR_JP1)
19 : LPC Header
20 : M.2 Key-E Socket (M2_KEYE1)
21 : Buzzer (BUZZ2)
22 : Chassis Intrusion Headers (CI1, CI2)
23 :
Front Panel Audio Header
24 : SPDIF Header
25 : M.2 Key-M Socket (M2_KEYM1)
Back Side :
M.2 Key-M Socket (M2_KEYM2)
SIM Card Socket (SIM1)
9

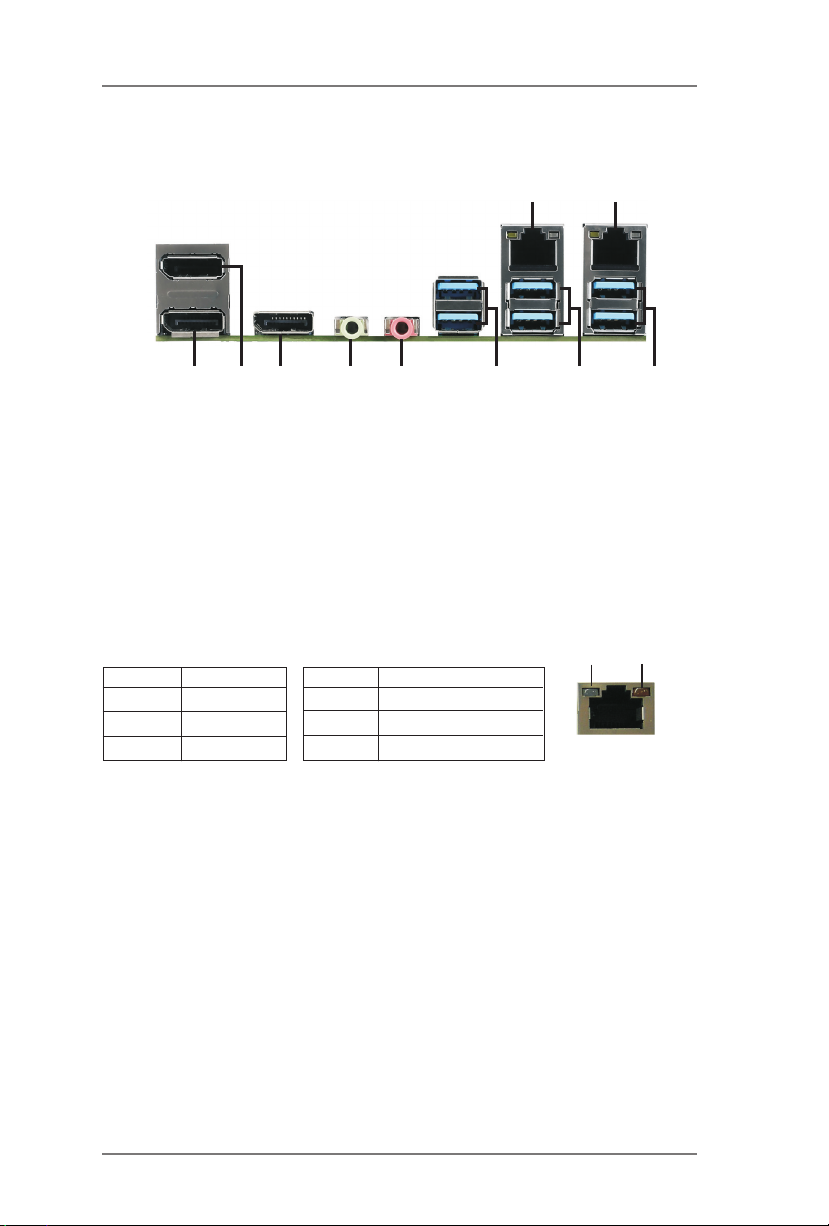

1.4 I/O Panel
1 LAN RJ-45 Port (LAN1)*
2 LAN RJ-45 Port (LAN2)*
3 USB 3.0 Ports (USB3_2_3)
4 USB 3.0 Ports (USB3_0_1)
5 USB 3.0 Ports (USB3_14_15)
6 Microphone (Pink)
7 Front Speaker (Lime)
8 DisplayPort (DP2)
9 DisplayPort (DP0)
10 DisplayPort (DP1)
* There are two LED next to the LAN port. Please refer to the table below for the LAN port LED
indications.
LAN Port LED Indications
Activity/Link LED SPEED LED
Status Description Status Description
Off No Link Off 10Mbps connection
Blinking Data Activity Orange 100Mbps connection
On Link Green 1Gbps connection
ACT/LINK
LED
SPEED
LED
LAN Port
6
12
43
5
7
98
10
10
Chapter 2: Installation
This is a Mini-ITX form factor motherboard. Before you install the mother-
board,studythe conguration of yourchassistoensurethat the mother-
boardtsintoit.
Pre-installation Precautions
Take note of the following precautions before you install motherboard com-
ponents or change any motherboard settings.
1. Make sure to unplug the power cord before installing or
removing the motherboard. Failure to do so may cause
physical injuries to you and damages to motherboard com-
ponents.
2. In order to avoid damage from static electricity to the moth-
erboard’s components, NEVER place your motherboard
directly on a carpet. Also remember to use a grounded wrist
strap or touch a safety grounded object before you handle
the components.
3. Hold components by the edges and do not touch the ICs.
4. Whenever you uninstall any components, place them on a
grounded anti-static pad or in the bag that comes with the
components.
5. When placing screws to secure the motherboard to the
chassis, please do not over-tighten the screws! Doing so
may damage the motherboard.
Altri manuali per IMB-A1000
1
Indice
Altri manuali ASROCK Scheda madre
ASROCK
ASROCK N68-GS UCC - Manuale utente
ASROCK
ASROCK H61M-S Manuale utente
ASROCK
ASROCK FM2A85X Extreme4-M Manuale utente
ASROCK
ASROCK Z690 Taichi Manuale utente
ASROCK
ASROCK SuperAlloy Z170 Pro4S Manuale utente
ASROCK
ASROCK Z97 Extreme6 Manuale utente
ASROCK
ASROCK 4CORE1333-VIIV - V1.0 Manuale utente
ASROCK
ASROCK X99 Extreme6/3.1 Manuale utente
ASROCK
ASROCK Fatal1ty Z270 Professional Gaming i7 Series Manuale utente
ASROCK
ASROCK B75M-ITX Manuale utente
ASROCK
ASROCK Z97 Extreme9 Manuale utente
ASROCK
ASROCK A75M-HVS Manuale utente
ASROCK
ASROCK G PRO Manuale utente
ASROCK
ASROCK 770iCafe Manuale utente
ASROCK
ASROCK Z390 Phantom Gaming 9 Manuale utente
ASROCK
ASROCK Z87M Pro4 Manuale utente
ASROCK
ASROCK C70M1 Manuale utente
ASROCK
ASROCK A780FULLDISPLAYPORT - V1.2 Manuale utente
ASROCK
ASROCK 980DE3/U3S3 Manuale utente
ASROCK
ASROCK J3455 PRO BTC+ Manuale utente
Manuali Scheda madre popolari di altre marche
Gigabyte
Gigabyte GA-9IVDT Manuale utente
Texas Instruments
Texas Instruments ADS8372EVM Manuale utente
Commell
Commell MS-C73 Manuale utente
IBT Technologies
IBT Technologies MB860 Manuale utente
Nvidia
Nvidia TEGRA DG-04927-001_V01 Manuale utente
Biostar
Biostar M7VIT Bravo Istruzioni per l'uso e l'installazione
