IMB-V2000

User Manual

Version 1.0

Published April 2021

Version 1.0

Published April 2021

No part of this documentation may be reproduced, transcribed, transmitted, or

translated in any language, in any form or by any means, except duplication of

documentation by the purchaser for backup purpose, without written consent of

ASRockInd Inc.

Products and corporate names appearing in this documentation may or may not

be registered trademarks or copyrights of their respective companies, and are used

only for identication or explanation and to the owners’ benet, without intent to

infringe.

Disclaimer:

Specications and information contained in this documentation are furnished for

informational use only and subject to change without notice, and should not be

constructed as a commitment by ASRockInd. ASRockInd assumes no responsibility

for any errors or omissions that may appear in this documentation.

With respect to the contents of this documentation, ASRockInd does not provide

warranty of any kind, either expressed or implied, including but not limited to

the implied warranties or conditions of merchantability or tness for a particular

purpose.

In no event shall ASRockInd, its directors, ocers, employees, or agents be liable

for any indirect, special, incidental, or consequential damages (including damages

for loss of prots, loss of business, loss of data, interruption of business and the

like), even if ASRockInd has been advised of the possibility of such damages arising

from any defect or error in the documentation or product.

is device complies with Part 15 of the FCC Rules. Operation is subject to the following

two conditions:

(1) this device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that

may cause undesired operation.

CALIFORNIA, USA ONLY

e Lithium battery adopted on this motherboard contains Perchlorate, a toxic substance

controlled in Perchlorate Best Management Practices (BMP) regulations passed by the

California Legislature. When you discard the Lithium battery in California, USA, please

follow the related regulations in advance.

“Perchlorate Material-special handling may apply, see www.dtsc.ca.gov/hazardouswaste/

perchlorate”

ASRockInd Website: http://www.asrockind.com

Contents

1. Introduction ................................................................ 5

1.1 Package Contents.......................................................... 5

 1.2 Specications ................................................................. 6

1.3 Motherboard Layout ..................................................... 7

1.4 I/O Panel ...................................................................... 9

2. Installation .................................................................. 11

2.1 Installing Memory Modules (DIMM) ............................... 12

2.2 Expansion Slot ............................................................... 13

2.3 Jumpers Setup ............................................................... 15

2.4 Onboard Headers and Connectors ................................ 18

3. UEFI SETUP UTILITY.................................................. 23

3.1 Introduction .................................................................... 23

3.1.1 UEFI Menu Bar ..................................................... 23

3.1.2 Navigation Keys .................................................... 24

3.2 Main Screen ................................................................... 25

3.3 Advanced Screen........................................................... 26

  3.3.1CPUConguration ............................................... 27

  3.3.2ChipsetConguration........................................... 28

  3.3.3StorageConguration .......................................... 30

  3.3.4SuperIOConguration ........................................ 31

  3.3.5ACPIConguration............................................... 32

  3.3.6USBConguration ............................................... 33

3.3.7 Trusted Computing............................................... 34

3.4 Hardware Health Event Monitoring Screen.................... 35

3.5 Security Screen.............................................................. 36

3.6 Boot Screen ................................................................... 37

3.7 Exit Screen..................................................................... 38

4. Software Support ....................................................... 39

4.1 Install Operating System ................................................ 39

4.2 Support CD Information ................................................. 39

4.2.1 Running The Support CD..................................... 39

4.2.2 Drivers Menu........................................................ 39

4.2.3 Utilities Menu........................................................ 39

4.2.4 Contact Information.............................................. 39

 4.3 AMDEyenityMultidisplayTechnologySetting.............. 40

1. Introduction

Thank you for purchasing ASRockInd IMB-V2000 motherboard, a reliable

motherboard produced under ASRockInd’s consistently stringent quality

control. It delivers excellent performance with robust design conforming to

ASRockInd’s commitment to quality and endurance.

In this manual, chapter 1 and 2 contains the introduction of the mother-

board and step-by-step hardware installation guide. Chapter 3 and 4 con-

tainsthecongurationguideofUEFIsetupandinformationoftheSupport

CD.

BecausethemotherboardspecicationsandtheBIOSsoftware

might be updated, the content of this manual will be subject to

changewithoutnotice.Incaseanymodicationsofthismanual

occur, the updated version will be available on ASRockInd web-

sitewithoutfurthernotice.YoumayndthelatestCPUsupport

lists on ASRockInd website as well.

ASRockInd website https://www.asrockind.com/

If you require technical support related to this motherboard,

pleasevisitourwebsiteforspecicinformationaboutthemodel

you are using.

https://www.asrockind.com/support/index.asp

1.1 Package Contents

ASRockInd IMB-V2000 Motherboard

(Mini-ITX Form Factor: 6.7-in x 6.7-in, 17.0 cm x 17.0 cm)

ASRockInd IMB-V2000 Quick Installation Guide

ASRockInd IMB-V2000 Support CD

1 x I/O Panel Shield

1.2 Specications

Form

Factor Dimensions Mini-ITX (6.7-in x 6.7-in)

Processor

System

CPU

AMD Ryzen™ Embedded V2000 SoC

processors, up to 54W

- IMB-V2000P (V2748, 2.9GHz, 35-54W)

- IMB-V2000S (V2546, 3.0GHz, 35-54W)

- IMB-V2000M (V2718, 1.7GHz, 10-25W)

- IMB-V2000V (V2516, 2.1GHz, 10-25W)

Chipset SoC

BIOS AMI SPI 256 Mbit

Expansion

Slot

PCIe 1 x PCIe x8 (Gen3)

SIM Socket 1 x SIM socket connected to M.2 key B

M.2

1 x M.2 (Key E, 2230) with PCIe x1, USB 2.0 for

Wireless

1 x M.2 (Key B, 3042/3052) with PCIe x2/USB

3.2 and SIM for 4G/5G

Memory

Technology Dual Channel ECC/non-ECC DDR4 3200 MHz

Max. 64GB (32GB per DIMM)

Socket 2 x 260-pin SO-DIMM

Graphics

Controller AMD Radeon™ Graphics

DisplayPort

3 x DP 1.2a, Max resolution up to 3840x2160

@60Hz

1 x DP 1.4, Max resolution up to 5120x2880

@120Hz

LVDS LVDS shared with DP_1

Dual channel 24 bit up to 1920 x 1200@60Hz

eDP eDP shared with DP_0

Max resolution up to 3840x2160 @60Hz

MultiDisplay Quad Display

Audio Interface RealtekALC897HD,HighDenitionAudio.Mic-

In / Line-Out

Ethernet

Controller/

Speed

LAN1: Realtek RTL8125BG with

10/100/1000/2500 Mbps

LAN2: Realtek R8111EPV with 10/100/1000

Mbps

Support DASH, Teaming function

Connector 2 x RJ45

* For detailed product information, please visit our website: http://www.asrockind.com

Rear I/O

DisplayPort 3 x DP 1.2a, 1 x DP 1.4

Ethernet 1 x 1 Gigabit LAN, 1 x 2.5 Gigabit LAN

USB 2 x USB 3.2 (Gen1), 2 x USB 2.0

Audio 2 (Mic-in, Line-out)

COM 1 x COM (RS-232)

1 x COM (RS-232/422/485)

DC Jack 1 (Screw Type)

Internal

Connector

USB

2 x USB 3.2 Gen1 (1 x USB 3.2 Gen1

header)

2 x USB 2.0 (1 x 2.54 pitch header)

COM 3 x COM (RS-232)

GPIO 8 x GPI, 8 x GPO

TPM TPM 2.0 header

LVDS 1

eDP 1

SATA PWR

Output 1

Speaker

Header 1

Storage M.2 1 x M.2 (Key M, 2242/2260/2280) with

SATA3 and PCIe x4 for SSD

SATA 2 x SATA3 (6Gb/s)

Watchdog

Timer

Output From Super I/O to drag RESETCON#

Interval 256 Segments, 0, 1, 2, ...255sec

Power

Requirements

Input PWR 12~28V DC-In with 4-pin wafer PWR cable

or DC Jack (Screw Type)

Power On

AT/ATX Supported

AT: Directly PWR on as Power input ready

ATX: Press Button to PWR on after Power

input ready

Environment

Operating

Temp 0ºC ~ 60ºC

Storage

Temp -40°C ~ 85°C

Operating

Humidity 5% ~ 90%

Storage

Humidity 5% ~ 90%

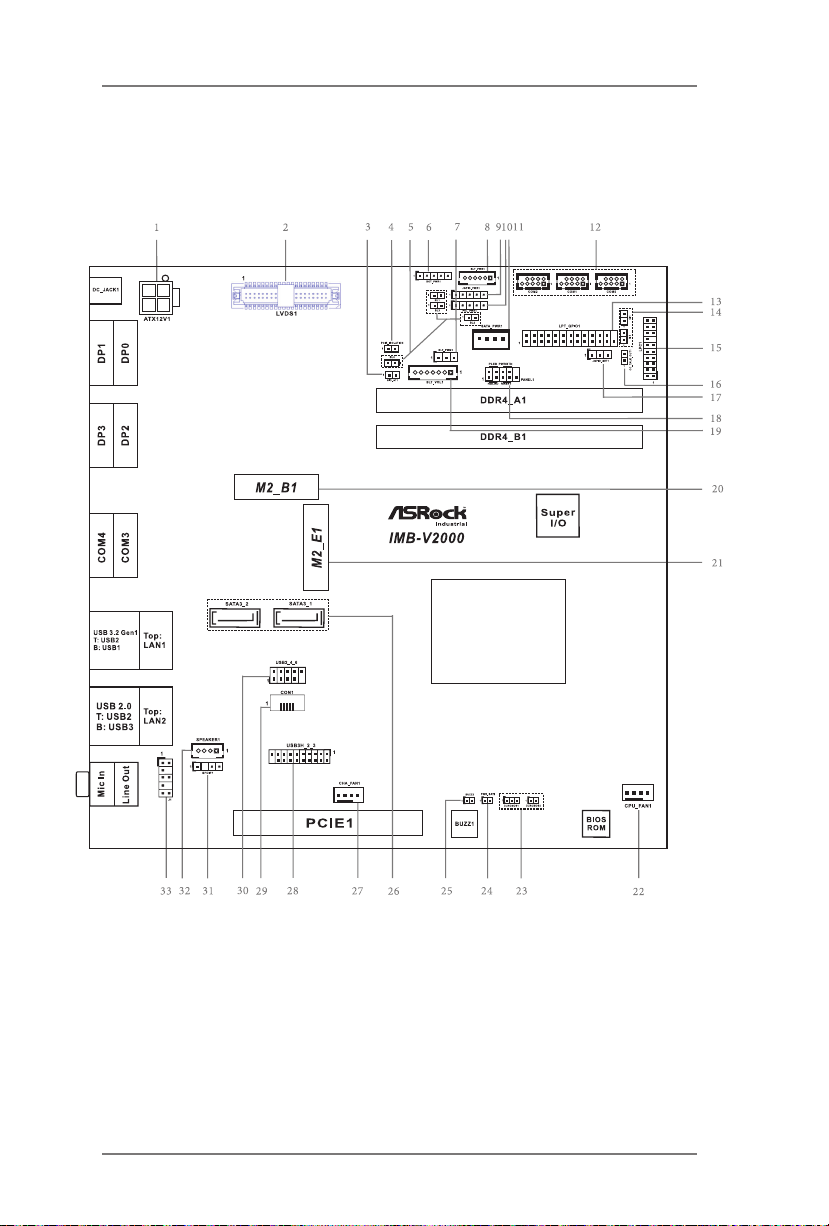

1.3 Motherboard Layout

1 : ATX Power Connector

2 : LVDS Panel Connector

* eDP Connector (on the Backside of PCB)

3 : ATX/AT Mode Jumper (SIO_AT1)

4 : PCIe Isolation

Jumper

(PCIE_ISOLATION)

5 : BL1, BL2, BL3, BL4

6 : Backlight Power Select (LCD_BLT_VCC) (BKT_PWR1)

7 : Backlight Control Level (CON_LBKLT_CTL) (BLT_PWM1)

8 : Inverter Power Control Wafer (BLT_PWR1)

9 : Digital Input / Output Power Select (JGPIOPWR) (JGPIO_PWR1)

10 : Panel Power Select (R_LVDD) (PNL_PWR1)

11 : SATA Power Output Connector

12 : COM Port Headers (COM1, 2, 5) (RS232)

13 : Printer Port / GPIO Header (LPT_GPIO1)

14 : Chassis Intrusion Headers

(CI1, CI2)

15 : LPC Header

16 : CC_TALK_OUT1

17 :

Digital Input / Output Power Select (JGPIO_SET1)

18 :

System Panel Header

19 : Backlight & Amp Volume Control (BLT_VOL1)

20 :

Key-B

M.2 Socket

(M2_B1)

21 :

Key-E

M.2 Socket

(M2_E1)

22 :

CPU FAN Connector (+12V)

23 : Clear CMOS Headers (CLRCMOS1, CLRCMOS2)

24 : PWR_BAT1

25 : Buzzer (BUZZ2)

26 : SATA3 Connectors (SATA3_1, SATA3_2)

27 :

Chassis FAN Connector (+12V)

28 :

USB 3.2 Gen1 Header (

USB3H_2_3)

29 : CON1

30 :

USB 2.0 Header (

USB2_4_6

)

31 : SPDIF Header

32 : 3W Audio AMP Output Wafer

33 :

Back Side :

Key-M

M.2 Socket (M2_M1)

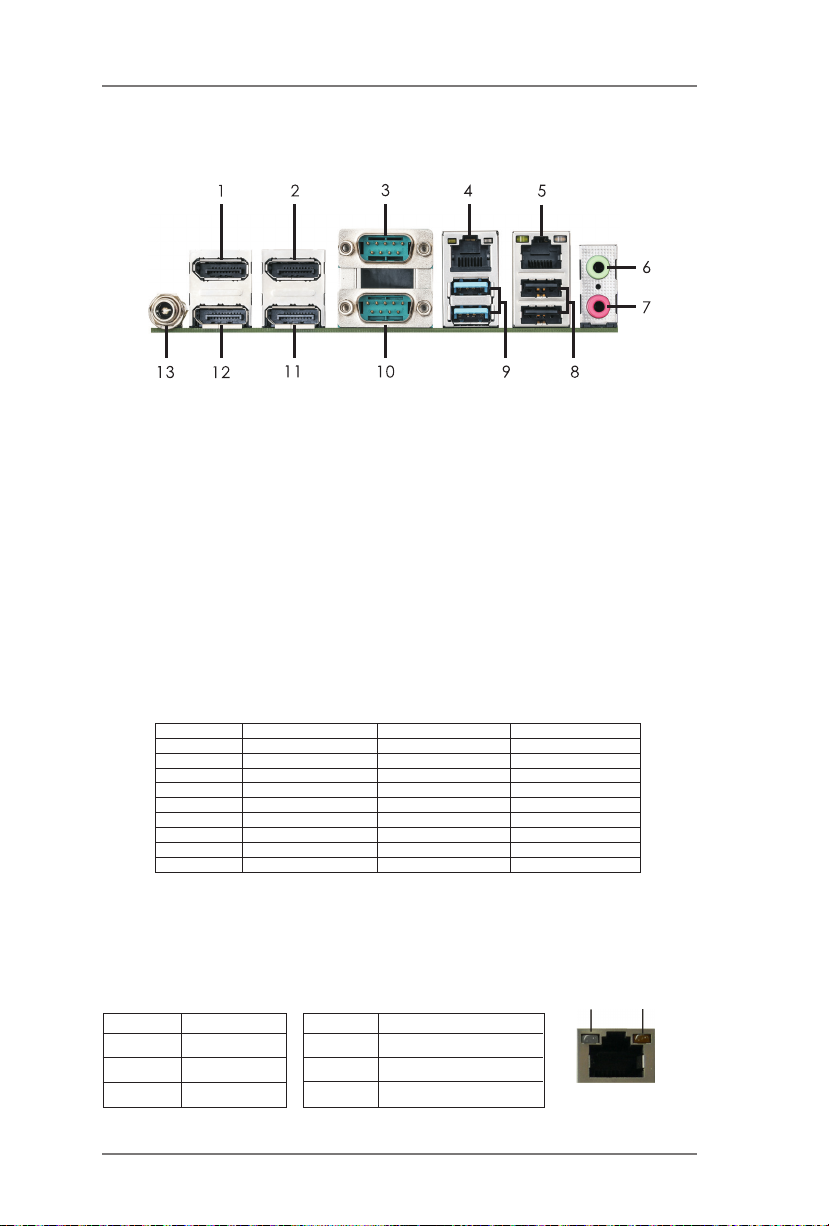

1.4 I/O Panel

1 DisplayPort (DP0)

2 DisplayPort (DP2)

3 Serial Port (COM3)*

4 LAN RJ-45 Port (LAN1)**

5 LAN RJ-45 Port (LAN2)**

6 Front Speaker (Lime)

7 Microphone (Pink)

8 USB 2.0 Ports (USB2H_2_3)

9 USB 3.2 Gen1 Ports (USB3_1_2)

10 Serial Port (COM4)*

11 DisplayPort (DP3)

12 DisplayPort (DP1)

13 DC Jack (DC_JACK1)***

** There are two LED next to the LAN port. Please refer to the table below for the LAN port LED

indications.

LAN Port LED Indications

Activity/Link LED SPEED LED

Status Description Status Description

O󰀨NoLinkO󰀨10Mbpsconnection

Blinking Data Activity Yellow 100Mbps connection

On Link Green 1Gbps connection

ACT/LINK

LED

SPEED

LED

LAN Port

* This motherboard supports RS232/422/485 on COM3 port. Please refer to below table for

thepindenition.Inaddition,COM3port(RS232/422/485)canbeadjustedinBIOSsetup

utility>AdvancedScreen>SuperIOConguration.Youmayrefertopage31fordetails.

COM3 Port Pin Denition

PIN RS232 RS422 RS485

1 DCD, Data Carrier Detect TX- RTX-

2 RXD, Receive Data RX+ N/A

3 TXD, Transmit Data TX+ RTX+

4 DTR, Data Terminal Ready RX- N/A

5 GND GND GND

6 DSR, Data Set Ready N/A N/A

7 RTS, Request To Send N/A N/A

8 CTS, Clear To Send N/A N/A

9 N/A N/A N/A

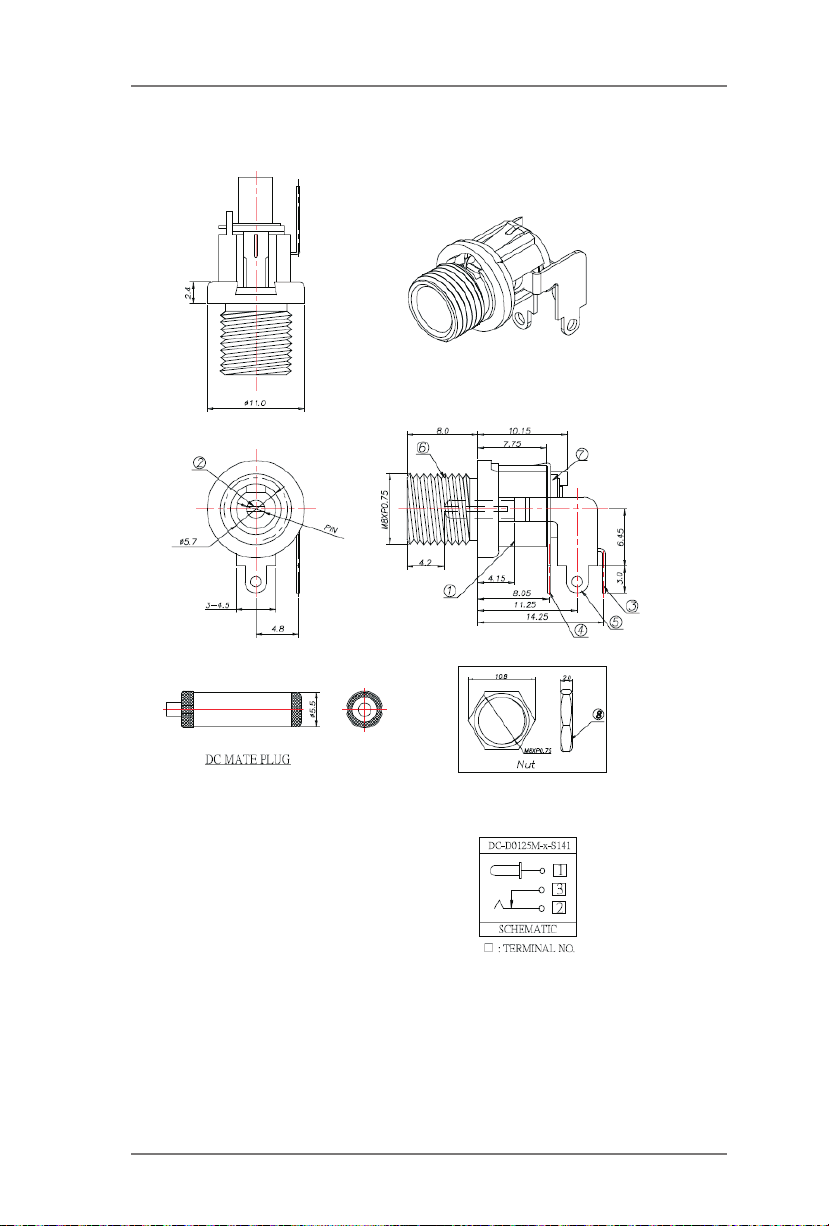

***PleaserefertobelowpicturesforDCjackspecications.

Indice

Altri manuali ASROCK Scheda madre

ASROCK

ASROCK P55 DELUXE - V1.1 Manuale utente

ASROCK

ASROCK H670 Steel Legend Manuale utente

ASROCK

ASROCK ALIVENF5-VSTA Manuale utente

ASROCK

ASROCK Z97 Pro4 Manuale utente

ASROCK

ASROCK IMB-181-D Manuale utente

ASROCK

ASROCK A68M-ITX Manuale utente

ASROCK

ASROCK K7VM2 R3.0 Manuale utente

ASROCK

ASROCK SBC-230D Manuale utente

ASROCK

ASROCK X399D8A-2T Manuale utente

ASROCK

ASROCK Z97 Extreme3 Manuale utente

ASROCK

ASROCK N68-GS3 UCC - Manuale utente

ASROCK

ASROCK SH55 Manuale utente

ASROCK

ASROCK A75 Pro4-M Manuale utente

ASROCK

ASROCK E3V5 WS Manuale utente

ASROCK

ASROCK FM2A75M-ITX Manuale utente

ASROCK

ASROCK AM2V890-VSTA Manuale utente

ASROCK

ASROCK P67 Extreme4 Gen3 Manuale utente

ASROCK

ASROCK Z590M-ITX/ax Manuale utente

ASROCK

ASROCK 970DE3/U3S3 Manuale utente

ASROCK

ASROCK P5B-DE Manuale utente

ASROCK

ASROCK X58 SUPERCOMPUTER - V1.2 Manuale utente

ASROCK

ASROCK 770iCafe Manuale utente

ASROCK

ASROCK Z590 EXTREME Manuale utente

ASROCK

ASROCK K8UPGRADE-PCIE Manuale utente

Manuali Scheda madre popolari di altre marche

DFI

DFI SD170 Manuale utente

Asus

Asus P2L97A Manuale utente

Winmate

Winmate IC70 Manuale utente

Asus

Asus MES-B Manuale utente

Grantech

Grantech SYS8F377VGGA-3OMN Manuale utente

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuale utente

Gigabyte

Gigabyte GA-9IVDT Manuale utente

Texas Instruments

Texas Instruments ADS8372EVM Manuale utente

Commell

Commell MS-C73 Manuale utente

IBT Technologies

IBT Technologies MB860 Manuale utente

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuale utente

Biostar

Biostar M7VIT Bravo Istruzioni per l'uso e l'installazione

Intel

Intel D33217CK Manuale utente

Asus

Asus F1A55-M LX PLUS R2.0 Manuale utente

EPC

EPC EPC9147C Manuale utente

Asus

Asus EX-B760M-V5 D4 Manuale utente

EPOX

EPOX MU-8KHA0010 Manuale utente

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manuale utente
