ASROCK K7S41 Manuale utente

K7S41

K7S41GX

User Manual

Version 1.0

Published December 2003

No part of this manual may be reproduced, transcribed, transmitted, or translated in

any language, in any form or by any means, except duplication of documentation by

the purchaser for backup purpose, without written consent of ASRock Inc.

Products and corporate names appearing in this manual may or may not be regis-

tered trademarks or copyrights of their respective companies, and are used only for

identification or explanation and to the owners’ benefit, without intent to infringe.

Disclaimer:

Specifications and information contained in this manual are furnished for informa-

tional use only and subject to change without notice, and should not be constructed

as a commitment by ASRock. ASRock assumes no responsibility for any errors or

omissions that may appear in this manual.

With respect to the contents of this manual, ASRock does not provide warranty of

any kind, either expressed or implied, including but not limited to the implied warran-

ties or conditions of merchantability or fitness for a particular purpose.

In no event shall ASRock, its directors, officers, employees, or agents be liable for

any indirect, special, incidental, or consequential damages (including damages for

loss of profits, loss of business, loss of data, interruption of business and the like),

even if ASRock has been advised of the possibility of such damages arising from any

defect or error in the manual or product.

ASRock Website: http://www.asrock.com

Contents

1 Introduction.................................................... 4

1.1 Package Contents ........................................................... 4

1.2 Specifications ................................................................. 5

1.3 Motherboard Layout (K7S41)......................................... 7

1.4 Motherboard Layout (K7S41GX) ................................... 8

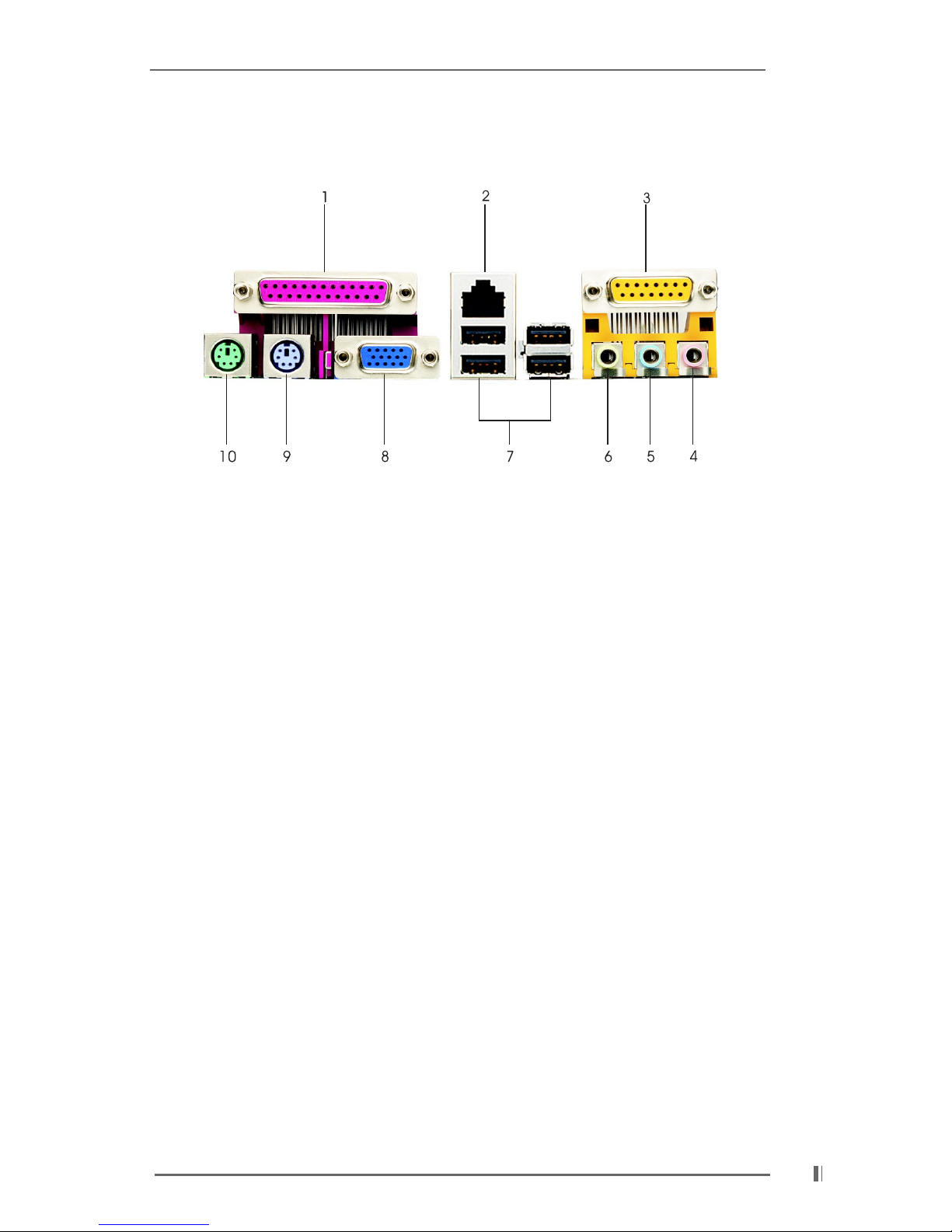

1.5 ASRock I/OTM (K7S41 / K7S41GX) ................................. 9

2 Installation ...................................................... 10

Pre-installation Precautions .................................................. 10

2.1 CPU Installation ............................................................... 11

2.2 Installation of CPU Fan and Heatsink .............................. 11

2.3 Installation of Memory Modules (DIMM) .......................... 12

2.4 Expansion Slots (PCI, AMR, and AGP Slots) .................. 13

2.5 Jumpers Setup ................................................................ 14

2.6 Connectors ..................................................................... 16

3 BIOS Setup ...................................................... 19

3.1 BIOS Setup Utility ............................................................ 19

3.1.1 BIOS Menu Bar ..................................................... 19

3.1.2 Legend Bar ........................................................... 19

3.2 Main Menu ....................................................................... 20

3.3 Advanced, Security, Power, Boot, and Exit Menus ...... 22

4 Software Support ........................................... 23

4.1 Installing Operating System ............................................ 23

4.2 Support CD Information ................................................... 23

4.2.1 Running Support CD ............................................. 23

4.2.2 Drivers Menu ........................................................ 23

4.2.3 Utilities Menu ......................................................... 23

4.2.4 ASRock “PC-DIY Live Demo” Program ................. 23

4.2.5 Contact Information ............................................... 23

Appendix ........................................................... 24

1. Advanced BIOS Setup Menu.......................................... 24

2. Security Setup Menu ...................................................... 28

3. Power Setup Menu ......................................................... 29

4. Boot Setup Menu ............................................................ 30

5. Exit Menu ......................................................................... 31

Chapter 1 Introduction

Thank you for purchasing ASRock K7S41 / K7S41GX motherboard, a reliable moth-

erboard produced under ASRock’s consistently stringent quality control. It delivers

excellent performance with robust design conforming to ASRock’s commitment to

quality and endurance.

Chapter 1 and 2 of this manual contain introduction of the motherboard and step-by-

step installation guide. Chapter 3 and 4 contain basic BIOS setup and support CD

information. More information of advanced BIOS setup is offered on page 24 for

advanced users’ reference.

Because the motherboard specifications and the BIOS software

might be updated, the content of this manual will be subject to

change without notice. In case any modifications of this manual

occur, the updated version will be available on ASRock website

without further notice. You may find the latest memory and CPU

support lists on ASRock website as well.

ASRock website http://www.asrock.com

1.1 Package Contents

ASRock K7S41 or K7S41GX Motherboard

(Micro ATX Form Factor: 9.6-in x 7.8-in, 24.4 cm x 19.8 cm)

ASRock K7S41 / K7S41GX Quick Installation Guide

ASRock K7S41 / K7S41GX Support CD

One 80-conductor Ultra ATA 66/100/133 IDE Ribbon Cable

One Ribbon Cable for a 3.5-in Floppy Drive

One ASRock I/OTM Shield

One COM Port Bracket

One ASRock MR Card (Optional)

1.2 Specifications

Platform: Micro ATX Form Factor: 9.6-in x 7.8-in, 24.4 cm x 19.8 cm

CPU: Supports Socket A (462 pins) for

AMDAthlonTM XP / DuronTM processor

Chipsets: North Bridge (K7S41):

SiS 741, FSB@400 MHz, AGP 8X/4X

North Bridge (K7S41GX):

SiS 741GX, FSB@333 MHz, AGP 8X/4X

South Bridge:

SiS 963L, supports USB 2.0, ATA 133

Memory: 2 DDR DIMM Slots: DDR1 and DDR2

K7S41:

PC3200 (DDR400) / PC2700 (DDR333) / PC2100 (DDR266),

Max. 2GB;

K7S41GX:

PC2700 (DDR333) / PC2100 (DDR266), Max. 2GB

IDE: IDE1: ATA 133 / Ultra DMA Mode 6,

IDE2: ATA 133 / Ultra DMA Mode 6,

Supports up to 4 IDE devices

Floppy Port: Supports up to 2 floppy disk drives

Audio: 5.1 channels AC’97 Audio

LAN: Speed: 802.3u (10/100 Ethernet), supports Wake-On-LAN

Hardware Monitor: CPU temperature sensing,

Chassis temperature sensing,

CPU overheat shutdown to protect CPU life

(ASRock U-COP)(see CAUTION 1),

CPU fan tachometer, Chassis fan tachometer,

Voltage monitoring: +12V, +5V, +3V, Vcore

PCI slots: 2 slots with PCI Specification 2.2

AGP slot: 1 AGP slot, supports 1.5V, 8X/4X AGP card (see CAUTION 2)

AMR slot: 1 slot, supports ASRock MR card (Optional)

USB 2.0: 6 USB 2.0 ports:

includes 4 default USB 2.0 ports on the rear panel,

plus one connector to support 2 additional USB 2.0 ports

(see CAUTION 3)

ASRock I/OTM:1 PS/2 mouse port, 1 PS/2 keyboard port,

1 VGA port, 1 parallel port: ECP/EPP support,

1 RJ 45 port, 4 default USB 2.0 ports,

1 Game port,

Audio Jack: Line Out / Line In / Microphone

BIOS: AMI legal BIOS, “Plug and Play” support,

ACPI 1.1 compliance wake up events,

SMBIOS 2.3.1 support,

CPU frequency stepless control

(only for advanced users’ reference, see CAUTION 4)

OS: Microsoft® Windows® 98 SE / ME / 2000 / XP compliant

CAUTION!

1. While CPU overheat is detected, the system will automatically shutdown.

Please check if the CPU fan on the motherboard functions properly before

you resume the system. To improve heat dissipation, remember to spray

thermal grease between the CPU and the heatsink when you install the PC

system.

2. Do NOT use a 3.3V AGP card on the AGP slot of this motherboard!

It may cause permanent damage!

3. Power Management for USB 2.0 works fine under Microsoft®Windows®

XP SP1/2000 SP4. It may not work properly under Microsoft®Windows®

98/ME. Please refer to Microsoft®official document at

http://www.microsoft.com/whdc/hwdev/bus/USB/USB2support.mspx

4. Although this motherboard offers stepless control, it is not recommended

to perform over clocking. Frequencies other than the recommended CPU

bus frequencies may cause the instability of the system or damage the

CPU. The CPU host frequency of this motherboard is determined by the

jumper-setting. You must set the FSB jumper according to your AMD CPU

before you use the “Manual” option as the FSB setting in BIOS setup to

perform over clocking. Please check page 24 for details.

K7S41

USB 2.0

5.1CH

AMR1

ATXPWR1

IDE2 IDE1

HDLED RST

PLED PWRBTN

PAN EL 1

SPEAKER1

CHA_FAN1

CMOS

Battery

USB45

CLRCMOS1

CLRCMOS2

FLOPPY1

IR1

PCI 2

PCI 1

1.5V_AGP1

Super

I/O

2MB

BIOS

AUDIO1

JR1 JL1

COM1

AUDIO

CODEC

PS2_USB_PWR1

CPU_FAN1

LAN

PHY

DDR1 (64/72 bit, 184-pin module)

DDR2 (64/72 bit, 184-pin module)

SiS

963L

SiS

741

Chipset

AGP 8X

ATA133

USB 2.0

T: USB2

B: USB3

USB 2.0

T: USB0

B: USB1

Top:

RJ-45

PARALLEL PORT

VGA1

FSB_SEL1

FSB_SEL0

1FSB_SEL2

FID1

FID2

FID3

FID4

FID0

PS2

Mouse

PS2

Keyboard

GAME PORT

Line

Out

Line

Mic

PWR_LED1

19.8cm (7.8-in)

24.4cm (9.6-in)

1245

151617

1920

FSB400

DDR400

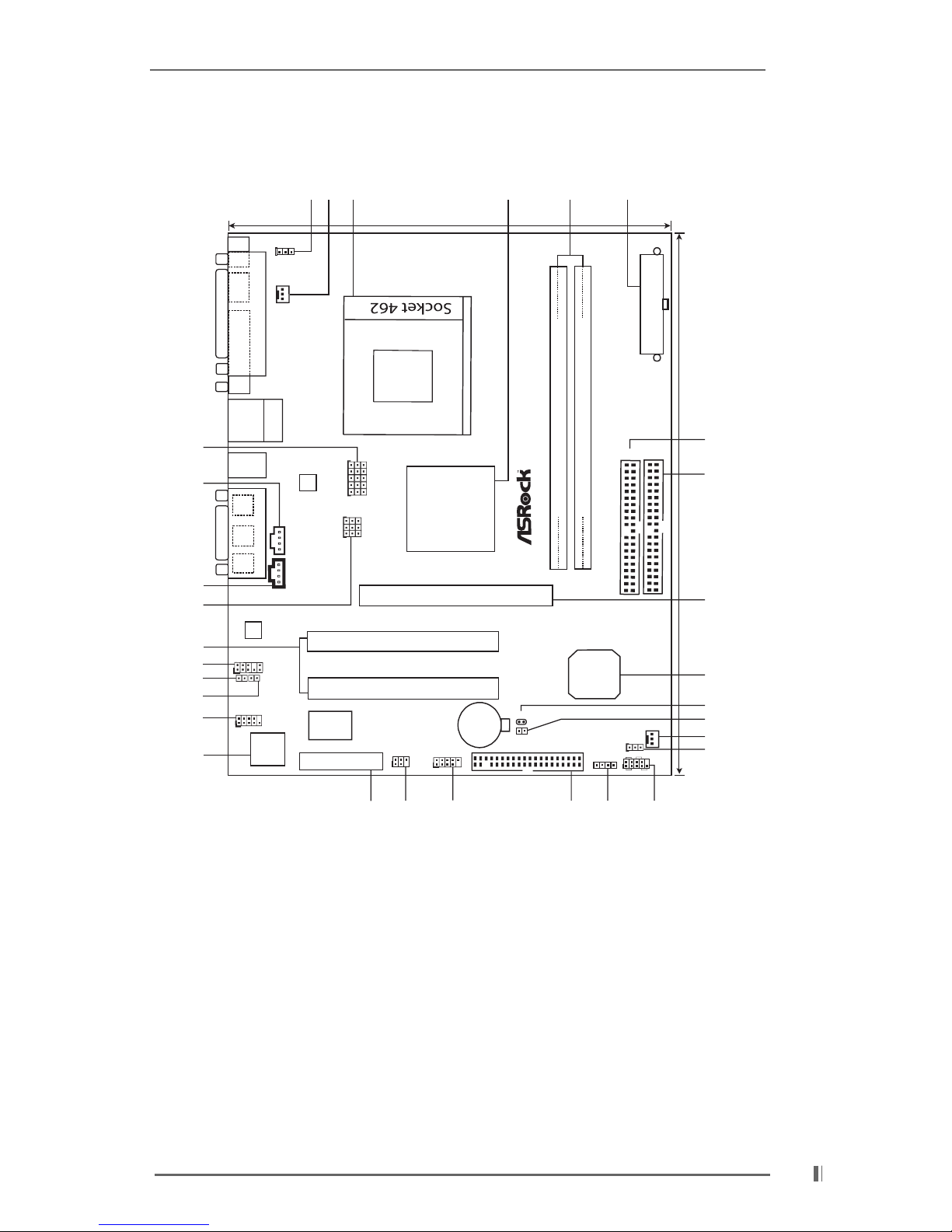

1.3 Motherboard Layout (K7S41)

1 PS2_USB_PWR1 Jumper 16 Chassis Speaker Connector (SPEAKER 1)

2 CPU Fan Connector (CPU_FAN1) 17 Floppy Connector (FLOPPY1)

3 CPU Socket 18 USB 2.0 Connector (USB45, Blue)

4 North Bridge Controller 19 Infrared Module Connector (IR1)

5 184-pin DDR DIMM Slots (DDR 1- 2) 20 AMR Slot (AMR1)

6 ATX Power Connector (ATXPWR1) 21 Flash Memory

7 Secondary IDE Connector (IDE2, Black) 22 Serial Port Connector (COM1)

8 Primary IDE Connector (IDE1, Blue) 23 JL1 Jumper

9 AGP Slot (1.5V_AGP1) 24 JR1 Jumper

10 South Bridge Controller 25 Front Panel Audio Connector (AUDIO1)

11 Clear CMOS (CLRCMOS1, solder points) 26 PCI Slots (PCI 1- 2)

12 Clear CMOS (CLRCMOS2, 2-pin jumper) 27 FSB Select Jumpers (FSB_SEL0/FSB_SEL1/FSB_SEL2)

13 Chassis Fan Connector (CHA_FAN1) 28 Internal Audio Connector: CD1 (Black)

14 Power LED Connector (PWR_LED1) 29 Internal Audio Connector: AUX1 (White)

15 System Panel Connector (PANEL1) 30 FID Jumpers (FID0, FID1, FID2, FID3, FID4)

K7S41GX

USB 2.0

5.1CH

AMR1

ATXPWR1

IDE2 IDE1

HDLED RST

PLED PWRBTN

PANEL 1

SPEAKER1

CHA_FAN1

CMOS

Battery

USB45

CLRCMOS1

CLRCMOS2

FLOPPY1

IR1

PCI 2

PCI 1

1.5V_AGP1

Super

I/O

2MB

BIOS

AUDIO1

JR1 JL1

COM1

AUDIO

CODEC

PS2_USB_PWR1

CPU_FAN1

LAN

PHY

DDR1 (64/72 bit, 184-pin module)

DDR2 (64/72 bit, 184-pin module)

SiS

963L

SiS

741GX

Chipset

AGP 8X

ATA133

USB 2.0

T: US B 2

B: USB3

USB 2.0

T: US B 0

B: USB1

Top:

RJ-45

PARALLEL PORT

VGA1

FSB_SEL1

FSB_SEL0

FID1

FID2

FID3

FID4

FID0

PS2

Mouse

PS2

Keyboard

GAME PORT

Line

Out

Line

Mic

PWR_LED1

19.8cm (7.8-in)

24.4cm (9.6-in)

1245

151617

1920

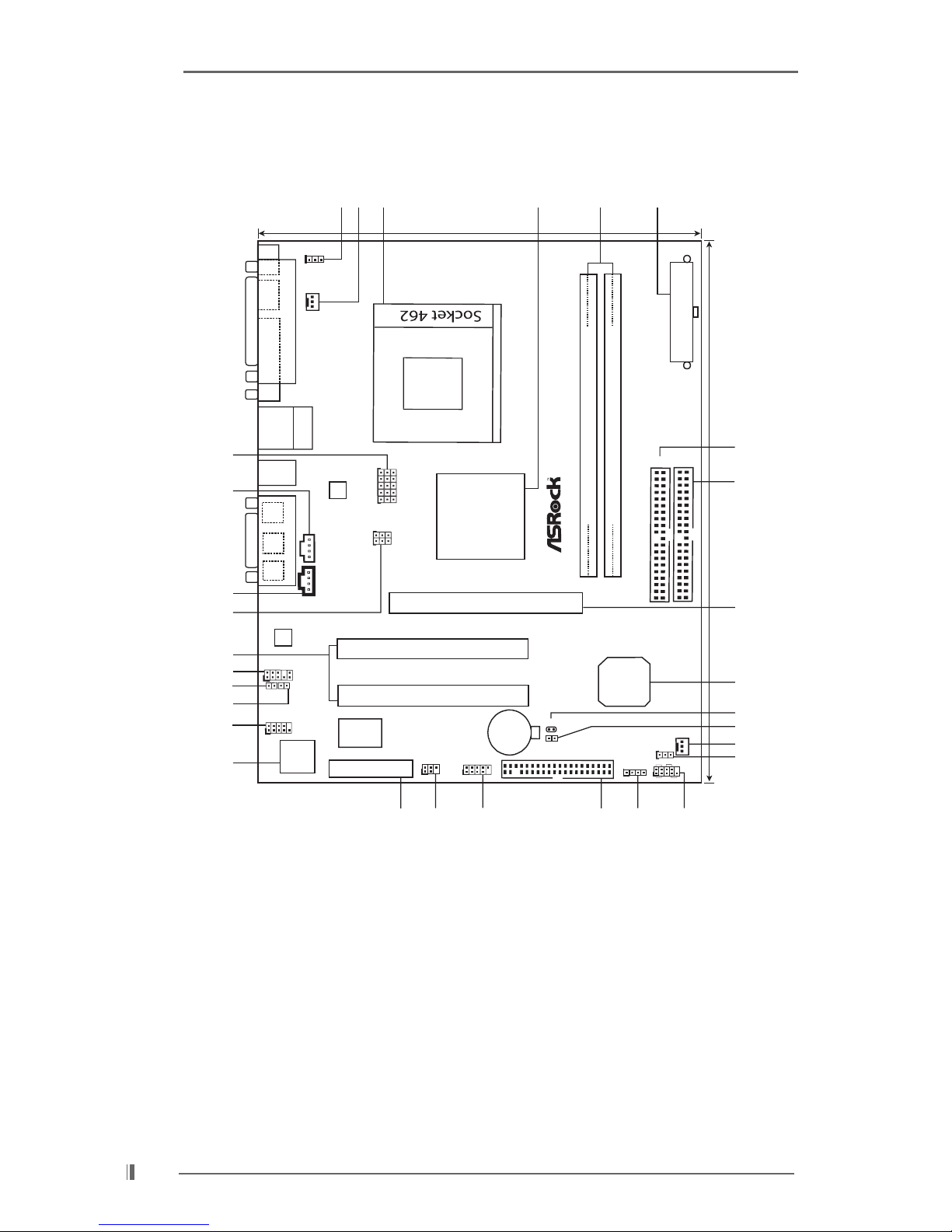

1.4 Motherboard Layout (K7S41GX)

1 PS2_USB_PWR1 Jumper 16 Chassis Speaker Connector (SPEAKER 1)

2 CPU Fan Connector (CPU_FAN1) 17 Floppy Connector (FLOPPY1)

3 CPU Socket 18 USB 2.0 Connector (USB45, Blue)

4 North Bridge Controller 19 Infrared Module Connector (IR1)

5 184-pin DDR DIMM Slots (DDR 1- 2) 20 AMR Slot (AMR1)

6 ATX Power Connector (ATXPWR1) 21 Flash Memory

7 Secondary IDE Connector (IDE2, Black) 22 Serial Port Connector (COM1)

8 Primary IDE Connector (IDE1, Blue) 23 JL1 Jumper

9 AGP Slot (1.5V_AGP1) 24 JR1 Jumper

10 South Bridge Controller 25 Front Panel Audio Connector (AUDIO1)

11 Clear CMOS (CLRCMOS1, solder points) 26 PCI Slots (PCI 1- 2)

12 Clear CMOS (CLRCMOS2, 2-pin jumper) 27 FSB Select Jumpers (FSB_SEL0/FSB_SEL1)

13 Chassis Fan Connector (CHA_FAN1) 28 Internal Audio Connector: CD1 (Black)

14 Power LED Connector (PWR_LED1) 29 Internal Audio Connector: AUX1 (White)

15 System Panel Connector (PANEL1) 30 FID Jumpers (FID0, FID1, FID2, FID3, FID4)

1.5 ASRock I/OTM (K7S41 / K7S41GX)

1 Parallel Port 6 Line Out (Lime)

2 RJ-45 Port 7 USB 2.0 Ports

3 Game Port 8 VGA Port

4 Microphone (Pink) 9 PS/2 Keyboard Port (Purple)

5 Line In (Light Blue) 10 PS/2 Mouse Port (Green)

Chapter 2 Installation

K7S41 / K7S41GX is a Micro ATX form factor (9.6-in x 7.8-in, 24.4 cm x 19.8 cm)

motherboard. Before you install the motherboard, please study the configura-

tion of your chassis to ensure that the motherboard fits into it.

Pre-installation Precautions

Take note of the following precautions before you install motherboard compo-

nents or change any motherboard settings.

1. Unplug the power cord from the wall socket before touching any component.

2. To avoid damaging the motherboard components due to static electricity,

NEVER place your motherboard directly on the carpet or the like. Also re-

member to use a grounded wrist strap or touch a safety grounded object

before you handle components.

3. Hold components by the edges and do not touch the ICs.

4. Whenever you uninstall any component, place it on a grounded antistatic

pad or in the bag that comes with the component.

Before you install or remove any component, ensure that the

power is switched off or the power cord is detached from the

power supply. Failure to do so may cause severe damage to

the motherboard, peripherals, and/or components.

Altri manuali per K7S41

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali ASROCK Scheda madre

ASROCK

ASROCK M266A Manuale utente

ASROCK

ASROCK Z390 Taichi Ultimate Manuale utente

ASROCK

ASROCK A88M-G/3.1 Manuale utente

ASROCK

ASROCK 2CORE1066-2.13G - V1.0 Manuale utente

ASROCK

ASROCK Z170M OC Formula Manuale utente

ASROCK

ASROCK A320M-HDVP Manuale utente

ASROCK

ASROCK P43R1600TWINS - V1.0 Manuale utente

ASROCK

ASROCK CML-HDV/M.2 TPM Manuale utente

ASROCK

ASROCK H61M-VGS Manuale utente

ASROCK

ASROCK FM2A75M-HD Manuale utente

ASROCK

ASROCK H110M-DVS/D3 Manuale utente

ASROCK

ASROCK H61M-HGS Manuale utente

ASROCK

ASROCK N68-S3 UCC - Manuale utente

ASROCK

ASROCK H270M Pro4 Manuale utente

ASROCK

ASROCK Z77 Extreme6 Manuale utente

ASROCK

ASROCK G41M-VGS3 Manuale utente

ASROCK

ASROCK H97 Pro4 Manuale utente

ASROCK

ASROCK H67M-ITX Manuale utente

ASROCK

ASROCK P4VM8 Manuale utente

ASROCK

ASROCK B75M-DGS Manuale utente

ASROCK

ASROCK FM2A75 PRO04+ Manuale utente

ASROCK

ASROCK K8UPGRADE-1689 Manuale utente

ASROCK

ASROCK H81M-HG4 Manuale utente

ASROCK

ASROCK B75M-ITX Manuale utente

Manuali Scheda madre popolari di altre marche

DFI

DFI SD170 Manuale utente

Asus

Asus P2L97A Manuale utente

Winmate

Winmate IC70 Manuale utente

Asus

Asus MES-B Manuale utente

Grantech

Grantech SYS8F377VGGA-3OMN Manuale utente

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuale utente

Gigabyte

Gigabyte GA-9IVDT Manuale utente

Texas Instruments

Texas Instruments ADS8372EVM Manuale utente

Commell

Commell MS-C73 Manuale utente

IBT Technologies

IBT Technologies MB860 Manuale utente

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuale utente

Biostar

Biostar M7VIT Bravo Istruzioni per l'uso e l'installazione

Intel

Intel D33217CK Manuale utente

Asus

Asus F1A55-M LX PLUS R2.0 Manuale utente

EPC

EPC EPC9147C Manuale utente

Asus

Asus EX-B760M-V5 D4 Manuale utente

EPOX

EPOX MU-8KHA0010 Manuale utente

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manuale utente
