ASRock P43DE3 Motherboard

EnglishEnglish

English

No part of this installation guide may be reproduced, transcribed, transmitted, or trans-

lated in any language, in any form or by any means, except duplication of documen-

tation by the purchaser for backup purpose, without written consent of ASRock Inc.

Products and corporate names appearing in this guide may or may not be registered

trademarks or copyrights of their respective companies, and are used only for identifica-

tion or explanation and to the owners’ benefit, without intent to infringe.

Disclaimer:Disclaimer:

Disclaimer:

Specifications and information contained in this guide are furnished for informational

use only and subject to change without notice, and should not be constructed as a

commitment by ASRock. ASRock assumes no responsibility for any errors or omissions

that may appear in this guide.

With respect to the contents of this guide, ASRock does not provide warranty of any kind,

either expressed or implied, including but not limited to the implied warranties or

conditions of merchantability or fitness for a particular purpose. In no event shall

ASRock, its directors, officers, employees, or agents be liable for any indirect, special,

incidental, or consequential damages (including damages for loss of profits, loss of

business, loss of data, interruption of business and the like), even if ASRock has been

advised of the possibility of such damages arising from any defect or error in the guide

or product.

This device complies with Part 15 of the FCC Rules. Operation is subject to the

following two conditions:

(1) this device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that

may cause undesired operation.

CALIFORNIA, USA ONLY

The Lithium battery adopted on this motherboard contains Perchlorate, a toxic

substance controlled in Perchlorate Best Management Practices (BMP) regulations

passed by the California Legislature. When you discard the Lithium battery in

California, USA, please follow the related regulations in advance.

“Perchlorate Material-special handling may apply, see

www.dtsc.ca.gov/hazardouswaste/perchlorate”

ASRock Website: http://www.asrock.com

Published July 2009

2ASRock P43DE3 Motherboard

EnglishEnglish

English

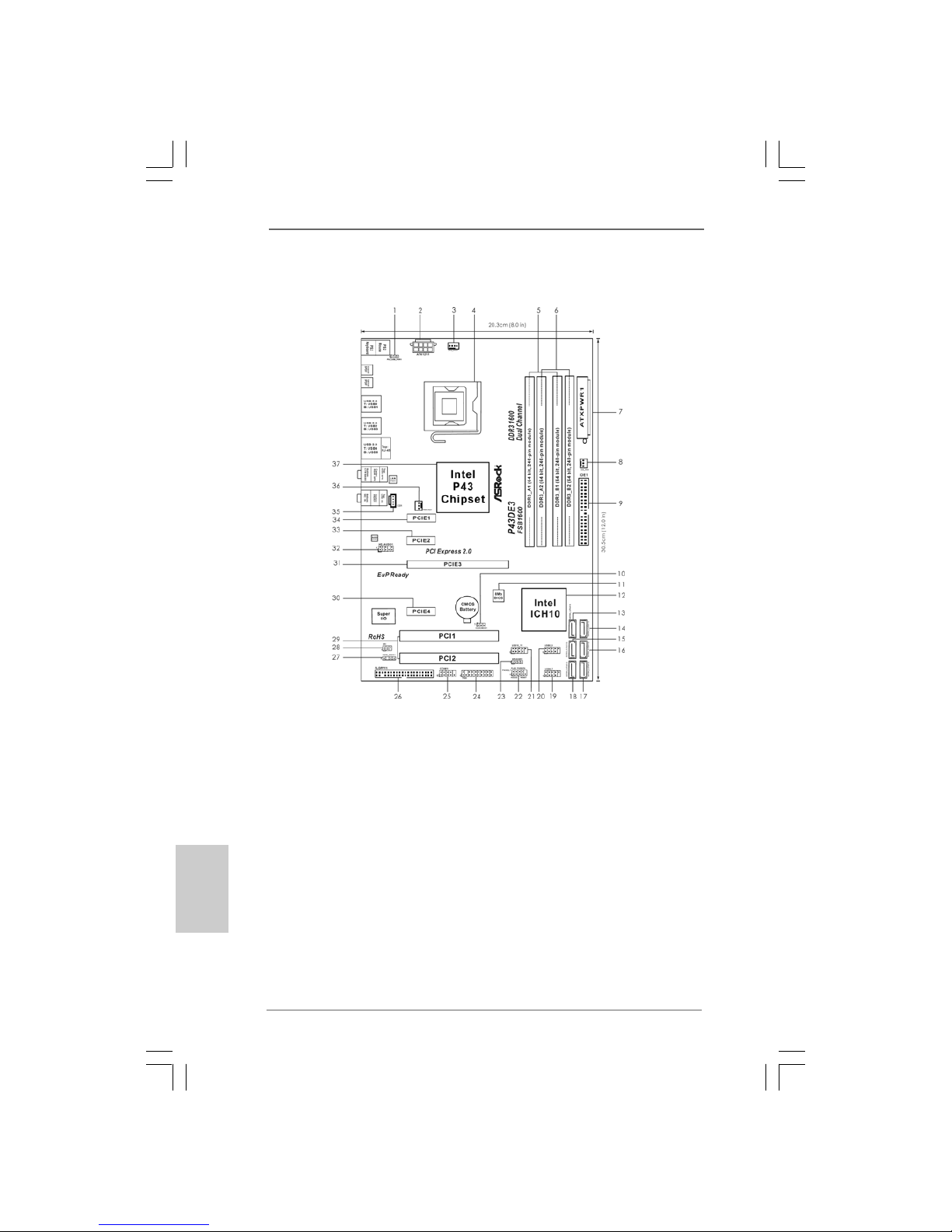

Motherboard LayoutMotherboard Layout

Motherboard Layout

1 PS2_USB_PWR1 Jumper 20 USB 2.0 Header (USB8_9, Blue)

2 ATX 12V Connector (ATX12V1) 21 USB 2.0 Header (USB10_11, Blue)

3 CPU Fan Connector (CPU_FAN1) 22 System Panel Header (PANEL1, Orange)

4 775-Pin CPU Socket 23 Chassis Speaker Header

5 2 x 240-pin DDR3 DIMM Slots (SPEAKER 1, Purple)

(Dual Channel: DDR3_A1, DDR3_B1; Blue) 24 TPM Header (TPM1)

6 2 x 240-pin DDR3 DIMM Slots 25 COM Port Header (COM1)

(Dual Channel: DDR3_A2, DDR3_B2; White) 26 Floppy Connector (FLOPPY1)

7 ATX Power Connector (ATXPWR1) 27 HDMI_SPDIF Header

8 Chassis Fan Connector (CHA_FAN1) (HDMI_SPDIF1,Yellow)

9 IDE1 Connector (IDE1, Blue) 28 Infrared Module Header (IR1)

10 Clear CMOS Jumper (CLRCMOS1) 29 PCI Slots (PCI1 - 2)

11 SPI BIOS Chip 30 PCI Express x1 Slot (PCIE4)

12 South Bridge Controller 31 PCI Express 2.0 x16 Slot (PCIE3, Blue)

13 Primary SATAII Connector (SATAII_1 (Port 0), Red) 32 Front Panel Audio Header

14 Secondary SATAII Connector (SATAII_2 (Port 1), Red) (HD_AUDIO1, Lime)

15 Third SATAII Connector (SATAII_3 (Port 2), Red) )33 PCI Express x1 Slot (PCIE2)

16 Fourth SATAII Connector (SATAII_4 (Port 3), Red) 34 PCI Express x1 Slot (PCIE1)

17 Sixth SATAII Connector (SATAII_6 (Port 5), Red) 35 Internal Audio Connector: CD1 (Black)

18 Fifth SATAII Connector (SATAII_5 (Port 4), Red) 36 Power Fan Connector (PWR_FAN1)

19 USB 2.0 Header (USB6_7, Blue) 37 North Bridge Controller

ASRock P43DE3 Motherboard

EnglishEnglish

English

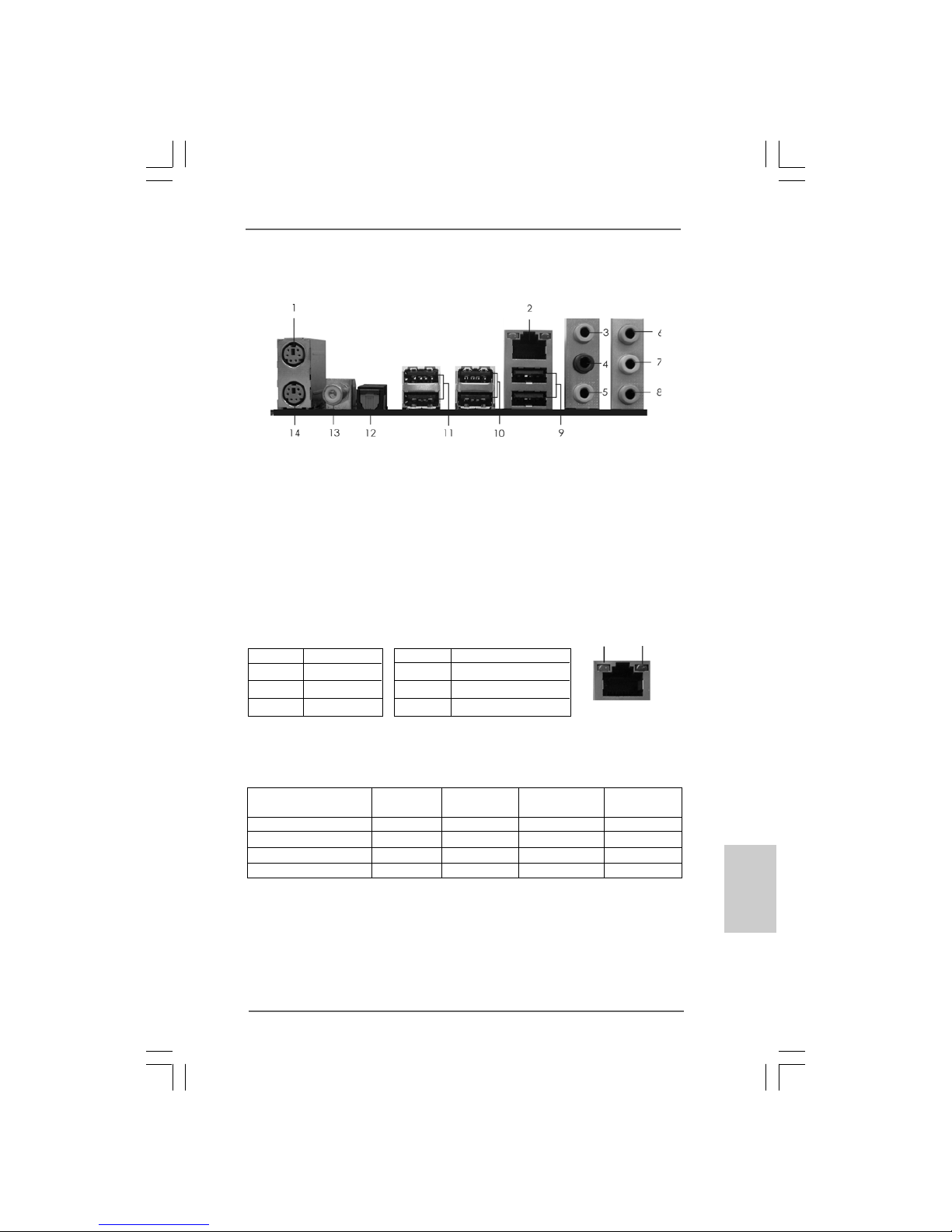

I/O PI/O P

I/O Panelanel

anelanel

anel

** If you use 2-channel speaker, please connect the speaker’s plug into “Front Speaker Jack”.

See the table below for connection details in accordance with the type of speaker you use.

TABLE for Audio Output Connection

Audio Output Channels Front Speaker Rear Speaker Central / Bass Side Speaker

(No. 7) (No. 4) (No. 5) (No. 3)

2 V -- -- --

4VV----

6 VVV--

8 VVVV

LAN Port

ACT/LINK

LED SPEED

LED

1 PS/2 Mouse Port (Green) 8 Microphone (Pink)

* 2 LAN RJ-45 Port (LAN1) 9 USB 2.0 Ports (USB45)

3 Side Speaker (Gray) 10 USB 2.0 Ports (USB23)

4 Rear Speaker (Black) 11 USB 2.0 Ports (USB01)

5 Central / Bass (Orange) 12 Optical SPDIF Out Port

6 Line In (Light Blue) 13 Coaxial SPDIF Out Port

** 7 Front Speaker (Lime) 14 PS/2 Keyboard Port (Purple)

* There are two LED next to the LAN port. Please refer to the table below for the LAN port LED

indications.

LAN Port LED Indications

Activity/Link LED SPEED LED

Status Description Status Description

Off No Link Off 10Mbps connection

Blinking Data Activity Orange 100Mbps connection

On Link Green 1Gbps connection

4ASRock P43DE3 Motherboard

EnglishEnglish

English

To enable Multi-Streaming function, you need to connect a front panel audio cable to the front

panel audio header. After restarting your computer, you will find “VIA HD Audio Deck” tool on

your system. Please follow below instructions according to the OS you install.

For Windows®2000 / XP / XP 64-bit OS:

Please click “VIAHDAudio Deck” icon , and click “Speaker”. Then you are allowed to

select “2 Channel”, “4 Channel”, “6 Channel” or “8 Channel”. Click “Power” to save your

change.

For Windows®VistaTM / VistaTM 64-bit OS:

Please click “VIA HDAudio Deck” icon , and click “Advanced Options” on the left side

on the bottom. In “Advanced Options” screen, select “Independent Headphone”, and click

“OK” to save your change.

If you enable Multi-Streaming function, Side Speaker function will be disabled. You can only

choose to enable either Multi-Streaming function or Side Speaker function.

ASRock P43DE3 Motherboard

1. Introduction1. Introduction

1. Introduction

Thank you for purchasing ASRock P43DE3 motherboard, a reliable motherboard

produced under ASRock’s consistently stringent quality control. It delivers excellent

performance with robust design conforming to ASRock’s commitment to quality and

endurance.

This Quick InstallationGuide contains introduction of the motherboard and step-by-step

installation guide. More detailed information of the motherboard can be found in the user

manual presented in the Support CD.

Because the motherboard specifications and the BIOS software might be

updated, the content of this manual will be subject to change without

notice. In case any modifications of this manual occur, the updated

version will be available on ASRock website without further notice. You

may find the latest VGA cards and CPU support lists on ASRock website

as well. ASRock website http://www.asrock.com

If you require technical support related to this motherboard, please visit

our website for specific information about the model you are using.

www.asrock.com/support/index.asp

1.1 Package Contents1.1 Package Contents

1.1 Package Contents

ASRock P43DE3 Motherboard

(ATX Form Factor: 12.0-in x 8.0-in, 30.5 cm x 20.3 cm)

ASRock P43DE3 Quick Installation Guide

ASRock P43DE3 Support CD

One 80-conductor Ultra ATA 66/100/133 IDE Ribbon Cable

Two Serial ATA (SATA) Data Cables (Optional)

One I/O Panel Shield

EnglishEnglish

English

6ASRock P43DE3 Motherboard

EnglishEnglish

English

1.21.2

1.2 SpecificationsSpecifications

SpecificationsSpecifications

Specifications

Platform - ATX Form Factor: 12.0-in x 8.0-in, 30.5 cm x 20.3 cm

CPU - LGA 775 for Intel®CoreTM 2 Extreme / CoreTM 2 Quad / CoreTM

2 Duo / Pentium®Dual Core / Celeron®Dual Core / Celeron®,

supporting Penryn Quad Core Yorkfield and Dual Core

Wolfdale processors

- Compatible with all FSB1600/1333/1066/800MHz CPUs

(see CAUTION 1)

- Supports Hyper-Threading Technology (see CAUTION 2)

- Supports Untied Overclocking Technology (see CAUTION 3)

- Supports EM64T CPU

Chipset - Northbridge: Intel®P43

- Southbridge: Intel®ICH10

Memory - Dual Channel DDR3 Memory Technology (see CAUTION 4)

- 4 xDDR3DIMM slots

- Support DDR3 1600/1333/1066/800 non-ECC, un-buffered

memory (see CAUTION 5)

- Max. capacity of system memory: 16GB (see CAUTION 6)

- Supports Intel®Extreme Memory Profile (XMP)

Expansion Slot - 1 x PCI Express 2.0 x16 slot (blue @ x16 mode)

- 3 x PCI Express x1 slots

- 2 x PCI slots

Audio - 7.1 CH Windows® VistaTM Premium Level HDAudio

(VIA®VT1708S Audio Codec)

LAN - PCIE x1Gigabit LAN10/100/1000 Mb/s

- Realtek RTL8111DL

- Supports Wake-On-LAN

Rear Panel I/O I/OPanel

- 1 x PS/2 Mouse Port

- 1 x PS/2 Keyboard Port

- 1 x Coaxial SPDIF Out Port

- 1 x Optical SPDIF Out Port

- 6 x Ready-to-Use USB 2.0 Ports

-1 xRJ-45 LANPort withLED (ACT/LINKLED and SPEEDLED)

- HDAudio Jack: Side Speaker/Rear Speaker/Central/Bass/

Line in/Front Speaker/Microphone (see CAUTION 7)

Connector - 6 x SATAII 3.0Gb/s connectors, support NCQ,AHCI and

“Hot Plug” functions (see CAUTION 8)

- 1 x ATA133 IDE connector (supports 2 x IDE devices)

- 1 x Floppy connector

ASRock P43DE3 Motherboard

EnglishEnglish

English

- 1 x IR header

- 1 x COM port header

- 1 x HDMI_SPDIF header

- 1 x TPM header

- CPU/Chassis/Power FAN connector

- 24 pin ATX power connector

- 8 pin 12V power connector

- CD in header

- Front panel audio connector

- 3 x USB 2.0 headers (support 6 USB 2.0 ports)

(see CAUTION 9)

BIOS Feature - 8MbAMI BIOS

-AMI Legal BIOS

- Supports “Plug and Play”

-ACPI 1.1 Compliance Wake Up Events

- Supports jumperfree

- SMBIOS 2.3.1 Support

- CPU,DRAM,GTLREF,NB, NB GTLREF, SB Core, SB 1.1V,

VTT, PLL Voltage Multi-adjustment

- Supports I. O. T. (Intelligent Overclocking Technology)

- Supports Smart BIOS

Support CD - Drivers, Utilities, AntiVirus Software (Trial Version)

Unique Feature - ASRock OC Tuner (see CAUTION 10)

- Intelligent Energy Saver (see CAUTION 11)

- Instant Boot

- ASRock Instant Flash (see CAUTION 12)

- Hybrid Booster:

- CPU Frequency Stepless Control (see CAUTION 13)

- ASRock U-COP (see CAUTION 14)

- Boot Failure Guard (B.F.G.)

Hardware - CPU Temperature Sensing

Monitor - Chassis Temperature Sensing

- CPU/Chassis/Power Fan Tachometer

- CPU Quiet Fan

- Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore

OS - Microsoft® Windows® 2000 / XP / XP 64-bit / VistaTM /

VistaTM 64-bit / Win7 compliant (see CAUTION 15)

Certifications - FCC, CE, WHQL

- EuP Ready (EuP ready power supply is required)

(see CAUTION 16)

* For detailed product information, please visit our website: http://www.asrock.com

8ASRock P43DE3 Motherboard

EnglishEnglish

English

WARNING

Please realize that there is a certain risk involved with overclocking, including adjusting

the setting in the BIOS, applying Untied Overclocking Technology, or using the third-

party overclocking tools. Overclocking may affect your system stability, or even

cause damage to the components and devices of your system. It should be done at

your own risk and expense. We are not responsible for possible damage caused by

overclocking.

CAUTION!

1. FSB1600-CPU will operate in overclocking mode.

2. About the setting of “Hyper Threading Technology”, please check page 47

of “User Manual” in the support CD.

3. This motherboard supports Untied Overclocking Technology. Please read

“Untied Overclocking Technology” on page 23 for details.

4. This motherboard supports Dual Channel Memory Technology. Before you

implement Dual Channel Memory Technology, make sure to read the

installation guide of memory modules on page 13 for proper installation.

5. Please check the table below for the CPU FSB frequency and its

corresponding memory support frequency.

CPU FSB Frequency Memory Support Frequency

1600 DDR3 800, DDR3 1066, DDR3 1333,

DDR3 1600

1333 DDR3 800, DDR3 1066, DDR3 1333

1066 DDR3 800, DDR3 1066

800 DDR3 800

6. Due to the operating system limitation, the actual memory size may be

less than 4GB for the reservation for system usage under Windows®XP

and Windows®VistaTM. For Windows®XP 64-bit and Windows®VistaTM 64-

bit with 64-bit CPU, there is no such limitation.

7. For microphone input, this motherboard supports both stereo and mono

modes. For audio output, this motherboard supports 2-channel, 4-channel,

6-channel, and 8-channel modes. Please check the table on page 3 for

proper connection.

8. Before installing SATAII hard disk to SATAII connector, please read the

“SATAII Hard Disk Setup Guide” on page 27 of “User Manual” in the support

CD to adjust your SATAII hard disk drive to SATAII mode. You can also

connect SATA hard disk to SATAII connector directly.

9. Power Management for USB 2.0 works fine under Microsoft®Windows®

VistaTM 64-bit / VistaTM / XP 64-bit / XP SP1 or SP2 / 2000 SP4.

10. It is a user-friendly ASRock overclocking tool which allows you to surveil

your system by hardware monitor function and overclock your hardware

devices to get the best system performance under Windows® environment.

Please visit our website for the operation procedures of ASRock OC

Tuner. ASRock website: http://www.asrock.com

ASRock P43DE3 Motherboard

EnglishEnglish

English

11. Featuring an advanced proprietary hardware and software design,

Intelligent Energy Saver is a revolutionary technology that delivers

unparalleled power savings. In other words, it is able to provide exceptional

power saving and improve power efficiency without sacrificing computing

performance. Please visit our website for the operation procedures of

Intelligent Energy Saver.

ASRock website: http://www.asrock.com

12. ASRock Instant Flash is a BIOS flash utility embedded in Flash ROM.

This convenient BIOS update tool allows you to update system BIOS

without entering operating systems first like MS-DOS or Windows®. With

this utility, you can press <F6> key during the POST or press <F2> key to

BIOS setup menu to access ASRock Instant Flash. Just launch this tool

and save the new BIOS file to your USB flash drive, floppy disk or hard

drive, then you can update your BIOS only in a few clicks without prepar-

ing an additional floppy diskette or other complicated flash utility. Please

be noted that the USB flash drive or hard drive must use FAT32/16/12 file

system.

13. Although this motherboard offers stepless control, it is not recommended

to perform over-clocking. Frequencies other than the recommended CPU

bus frequencies may cause the instability of the system or damage the

CPU.

14. While CPU overheat is detected, the system will automatically shutdown.

Before you resume the system, please check if the CPU fan on the

motherboard functions properly and unplug the power cord, then plug it

back again. To improve heat dissipation, remember to spray thermal

grease between the CPU and the heatsink when you install the PC system.

15. AHCI function is not supported under Windows® 2000 OS. It is

recommended to use IDE mode under Windows® 2000. Please refer to

page 51 of “User Manual” in the support CD for detailed setup.

16. EuP, stands for Energy Using Product, was a provision regulated by

European Union to define the power consumption for the completed system.

According to EuP, the total AC power of the completed system shall be

under 1.00W in off mode condition. To meet EuP standard, an EuP ready

motherboard and an EuP ready power supply are required. According to

Intel’s suggestion, the EuP ready power supply must meet the standard of

5v standby power efficiency is higher than 50% under 100 mA current

consumption. For EuP ready power supply selection, we recommend you

checking with the power supply manufacturer for more details.

1010

10 ASRock P43DE3 Motherboard

EnglishEnglish

English

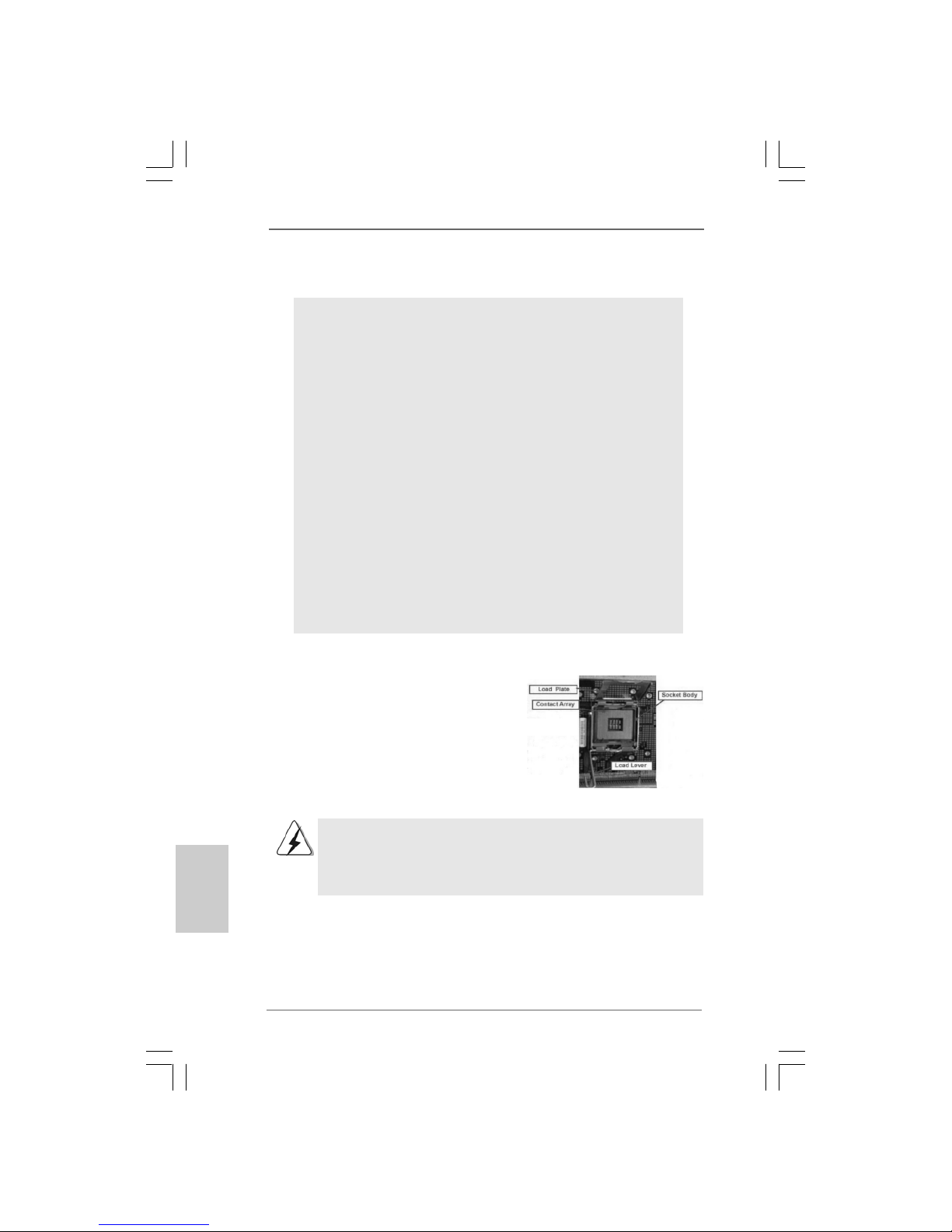

2.2.

2.InstallationInstallation

InstallationInstallation

Installation

Pre-installation PrecautionsPre-installation Precautions

Pre-installation Precautions

Take note of the following precautions before you install mother-

board components or change any motherboard settings.

1. Unplug the power cord from the wall socket before touching any

component. Failure to do so may cause severe damage to the

motherboard, peripherals, and/or components.

2. To avoid damaging the motherboard components due to static

electricity, NEVER place your motherboard directly on the carpet

or the like. Also remember to use a grounded wrist strap or touch

a safety grounded object before you handle components.

3. Hold components by the edges and do not touch the ICs.

4. Whenever you uninstall any component, place it on a grounded

antstatic pad or in the bag that comes with the component.

5. When placing screws into the screw holes to secure the

motherboard to the chassis, please do not over-tighten the

screws! Doing so may damage the motherboard.

2.12.1

2.1 CPU InstallationCPU Installation

CPU InstallationCPU Installation

CPU Installation

For the installation of Intel 775-LAND CPU,

please follow the steps below.

Before you insert the 775-LAND CPU into the socket, please check if

the CPU surface is unclean or if there is any bent pin on the socket.

Do not force to insert the CPU into the socket if above situation is

found. Otherwise, the CPU will be seriously damaged.

775-Pin Socket Overview

Altri manuali per P43DE3

Indice

Altri manuali ASROCK Scheda madre

ASROCK

ASROCK SP2C741D16HM3 Manuale utente

ASROCK

ASROCK K10N78M PRO Manuale utente

ASROCK

ASROCK M3A-GLAN - V1.0 Manuale utente

ASROCK

ASROCK 870 EXTREME3 Manuale utente

ASROCK

ASROCK IMB-157J Manuale utente

ASROCK

ASROCK AD425PV Manuale utente

ASROCK

ASROCK H510M-HDV Manuale utente

ASROCK

ASROCK FM2A75M-DGS Manuale utente

ASROCK

ASROCK GENOAD24QM3-2L2T/BCM Manuale utente

ASROCK

ASROCK FM2A85M-DG3 Manuale utente

ASROCK

ASROCK FM2A88X Extreme6 Manuale utente

ASROCK

ASROCK B550 Phantom Gaming 4/ac Manuale utente

ASROCK

ASROCK X470 Taichi Manuale utente

ASROCK

ASROCK N7AD-SLI - V1.0 Manuale utente

ASROCK

ASROCK 4CORE1600-D800 - V1.0 Manuale utente

ASROCK

ASROCK B560M-C Manuale utente

ASROCK

ASROCK Z77 Extreme4 Manuale utente

ASROCK

ASROCK N3150B-ITX Manuale utente

ASROCK

ASROCK X299 GAMING i9 Manuale utente

ASROCK

ASROCK Z87M OC Formula Manuale utente

ASROCK

ASROCK ALIVENF7G-GLAN - V1.0 Manuale utente

ASROCK

ASROCK J3455 PRO BTC+ Manuale utente

ASROCK

ASROCK Z87M Pro4 Manuale utente

ASROCK

ASROCK H77M Manuale utente

Manuali Scheda madre popolari di altre marche

DFI

DFI SD170 Manuale utente

Asus

Asus P2L97A Manuale utente

Winmate

Winmate IC70 Manuale utente

Asus

Asus MES-B Manuale utente

Grantech

Grantech SYS8F377VGGA-3OMN Manuale utente

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuale utente

Gigabyte

Gigabyte GA-9IVDT Manuale utente

Texas Instruments

Texas Instruments ADS8372EVM Manuale utente

Commell

Commell MS-C73 Manuale utente

IBT Technologies

IBT Technologies MB860 Manuale utente

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuale utente

Biostar

Biostar M7VIT Bravo Istruzioni per l'uso e l'installazione

Intel

Intel D33217CK Manuale utente

Asus

Asus F1A55-M LX PLUS R2.0 Manuale utente

EPC

EPC EPC9147C Manuale utente

Asus

Asus EX-B760M-V5 D4 Manuale utente

EPOX

EPOX MU-8KHA0010 Manuale utente

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manuale utente
