ASRock P43ME Motherboard

EnglishEnglish

English

No part of this installation guide may be reproduced, transcribed, transmitted, or trans-

lated in any language, in any form or by any means, except duplication of documen-

tation by the purchaser for backup purpose, without written consent of ASRock Inc.

Products and corporate names appearing in this guide may or may not be registered

trademarks or copyrights of their respective companies, and are used only for identifica-

tion or explanation and to the owners’ benefit, without intent to infringe.

Disclaimer:Disclaimer:

Disclaimer:

Specifications and information contained in this guide are furnished for informational

use only and subject to change without notice, and should not be constructed as a

commitment by ASRock. ASRock assumes no responsibility for any errors or omissions

that may appear in this guide.

With respect to the contents of this guide, ASRock does not provide warranty of any kind,

either expressed or implied, including but not limited to the implied warranties or

conditions of merchantability or fitness for a particular purpose. In no event shall

ASRock, its directors, officers, employees, or agents be liable for any indirect, special,

incidental, or consequential damages (including damages for loss of profits, loss of

business, loss of data, interruption of business and the like), even if ASRock has been

advised of the possibility of such damages arising from any defect or error in the guide

or product.

This device complies with Part 15 of the FCC Rules. Operation is subject to the

following two conditions:

(1) this device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that

may cause undesired operation.

CALIFORNIA, USA ONLY

The Lithium battery adopted on this motherboard contains Perchlorate, a toxic

substance controlled in Perchlorate Best Management Practices (BMP) regulations

passed by the California Legislature. When you discard the Lithium battery in

California, USA, please follow the related regulations in advance.

“Perchlorate Material-special handling may apply, see

www.dtsc.ca.gov/hazardouswaste/perchlorate”

ASRock Website: http://www.asrock.com

Published May 2009

2ASRock P43ME Motherboard

EnglishEnglish

English

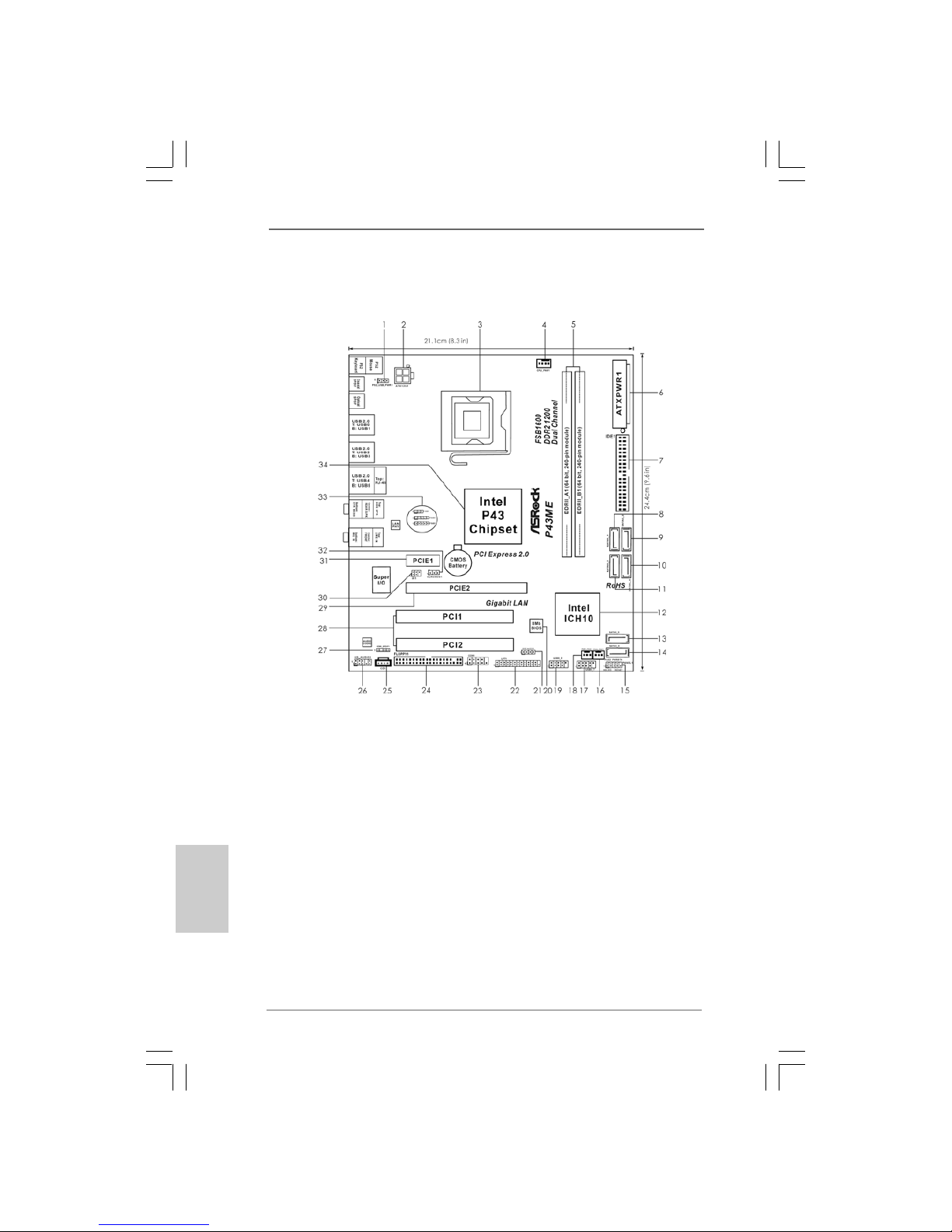

Motherboard LayoutMotherboard Layout

Motherboard Layout

1 PS2_USB_PWR1 Jumper 19 USB 2.0 Header (USB8_9, Blue)

2 ATX 12V Connector (ATX12V1) 20 SPI BIOS Chip

3 775-Pin CPU Socket 21 Chassis Speaker Header

4 CPU Fan Connector (CPU_FAN1) (SPEAKER 1, Purple)

5 2 x 240-pin DDR2 DIMM Slots 22 Print Port Header (LPT1, Purple)

(Dual Channel: DDRII_A1, DDRII_B1; Yellow) 23 COM Port Header (COM1)

6 ATX Power Connector (ATXPWR1) 24 Floppy Connector (FLOPPY1)

7 IDE1 Connector (IDE1, Blue) 25 Internal Audio Connector: CD1 (Black)

8 Primary SATAII Connector (SATAII_1, Red) 26 Front Panel Audio Header

9 Secondary SATAII Connector (SATAII_2, Red) (HD_AUDIO1, Lime)

10 Fourth SATAII Connector (SATAII_4, Red) 27 HDMI_SPDIF Header

11 Third SATAII Connector (SATAII_3, Red) (HDMI_SPDIF1, Yellow)

12 South Bridge Controller 28 PCI Slots (PCI1 - 2)

13 Fifth SATAII Connector (SATAII_5, Red) 29 PCI Express 2.0 x16 Slot (PCIE2, Green)

14 Sixth SATAII Connector (SATAII_6, Red) 30 Infrared Module Header (IR1)

15 System Panel Header (PANEL1, Orange) 31 PCI Express x1 Slot (PCIE1)

16 Chassis Fan Connector (CHA_FAN1) 32 Clear CMOS Jumper (CLRCMOS1)

17 USB 2.0 Header (USB6_7, Blue) 33 FSB1/FSB2/FSB3 Jumpers

18 Power Fan Connector (PWR_FAN1) 34 North Bridge Controller

ASRock P43ME Motherboard

EnglishEnglish

English

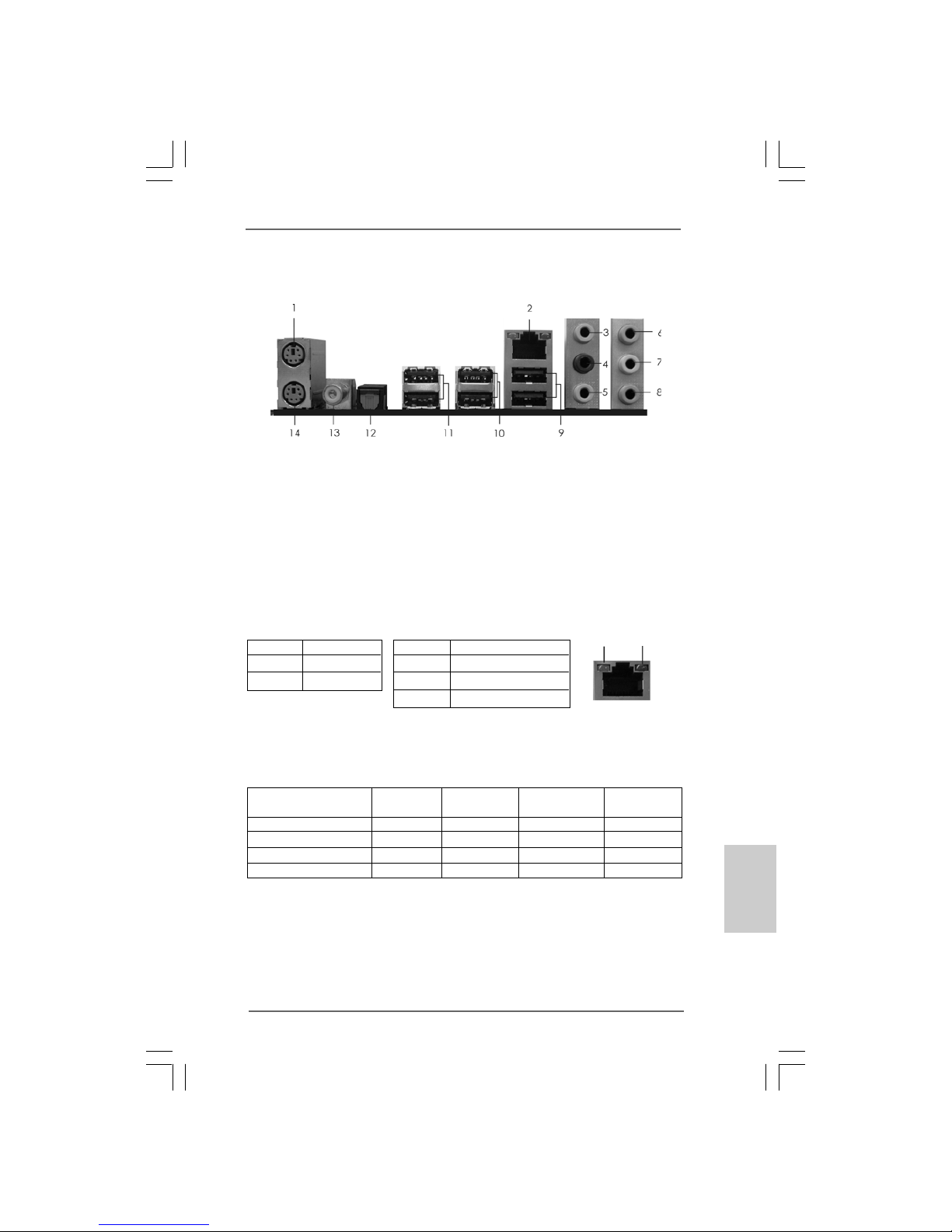

I/O PI/O P

I/O Panelanel

anelanel

anel

** If you use 2-channel speaker, please connect the speaker’s plug into “Front Speaker Jack”.

See the table below for connection details in accordance with the type of speaker you use.

TABLE for Audio Output Connection

Audio Output Channels Front Speaker Rear Speaker Central / Bass Side Speaker

(No. 7) (No. 4) (No. 5) (No. 3)

2 V -- -- --

4VV----

6 VVV--

8 VVVV

LAN Port

ACT/LINK

LED SPEED

LED

* There are two LED next to the LAN port. Please refer to the table below for the LAN port LED

indications.

LAN Port LED Indications

Activity/Link LED SPEED LED

Status Description Status Description

Off No Activity Off 10Mbps connection

Blinking Data Activity Orange 100Mbps connection

Green 1Gbps connection

1 PS/2 Mouse Port (Green) 8 Microphone (Pink)

* 2 LAN RJ-45 Port (LAN1) 9 USB 2.0 Ports (USB45)

3 Side Speaker (Gray) 10 USB 2.0 Ports (USB23)

4 Rear Speaker (Black) 11 USB 2.0 Ports (USB01)

5 Central / Bass (Orange) 12 Optical SPDIF Out Port

6 Line In (Light Blue) 13 Coaxial SPDIF Out Port

** 7 Front Speaker (Lime) 14 PS/2 Keyboard Port (Purple)

4ASRock P43ME Motherboard

EnglishEnglish

English

To enable Multi-Streaming function, you need to connect a front panel audio cable to the front

panel audio header. After restarting your computer, you will find “VIA HD Audio Deck” tool on

your system. Please follow below instructions according to the OS you install.

For Windows®2000 / XP / XP 64-bit OS:

Please click “VIA HDAudio Deck” icon , and click “Speaker”. Then you are allowed to

select “2 Channel”, “4 Channel”, “6 Channel” or “8 Channel”. Click “Power” to save your

change.

For Windows®VistaTM / VistaTM 64-bit OS:

Please click “VIA HDAudio Deck” icon , and click “Advanced Options” on the left side

on the bottom. In “Advanced Options” screen, select “Independent Headphone”, and click

“OK” to save your change.

If you enable Multi-Streaming function, Side Speaker function will be disabled. You can only

choose to enable either Multi-Streaming function or Side Speaker function.

ASRock P43ME Motherboard

1. Introduction1. Introduction

1. Introduction

Thank you for purchasing ASRock P43ME motherboard, a reliable motherboard

produced under ASRock’s consistently stringent quality control. It delivers excellent

performance with robust design conforming to ASRock’s commitment to quality and

endurance.

This Quick InstallationGuide contains introduction of the motherboard and step-by-step

installation guide. More detailed information of the motherboard can be found in the user

manual presented in the Support CD.

Because the motherboard specifications and the BIOS software might be

updated, the content of this manual will be subject to change without

notice. In case any modifications of this manual occur, the updated

version will be available on ASRock website without further notice. You

may find the latest VGAcards and CPU support lists on ASRock website

as well. ASRock website http://www.asrock.com

If you require technical support related to this motherboard, please visit

our website for specific information about the model you are using.

www.asrock.com/support/index.asp

1.1 Package Contents1.1 Package Contents

1.1 Package Contents

ASRock P43ME Motherboard

(Micro ATX Form Factor: 9.6-in x 8.3-in, 24.4 cm x 21.1 cm)

ASRock P43ME Quick Installation Guide

ASRock P43ME Support CD

One 80-conductor Ultra ATA 66/100/133 IDE Ribbon Cable

Two Serial ATA (SATA) Data Cables (Optional)

One SerialATA (SATA) HDD Power Cable (Optional)

One I/O Panel Shield

EnglishEnglish

English

6ASRock P43ME Motherboard

EnglishEnglish

English

1.21.2

1.2 SpecificationsSpecifications

SpecificationsSpecifications

Specifications

Platform - Micro ATX Form Factor: 9.6-in x 8.3-in, 24.4 cm x 21.1 cm

CPU - LGA 775 for Intel®CoreTM 2 Extreme / CoreTM 2 Quad / CoreTM

2 Duo / Pentium®Dual Core / Celeron®Dual Core / Celeron®,

supporting Penryn Quad Core Yorkfield and Dual Core

Wolfdale processors

- Supports FSB1600/1333/1066/800 MHz (see CAUTION 1)

- Supports Hyper-Threading Technology (see CAUTION 2)

- Supports Untied Overclocking Technology (see CAUTION 3)

- Supports EM64T CPU

Chipset -Northbridge: Intel®P43

- Southbridge: Intel®ICH10

Memory - Dual Channel DDR2 Memory Technology (see CAUTION 4)

- 2 xDDR2DIMM slots

- Support DDR2 1200/1066/800/667 non-ECC, un-buffered

memory (see CAUTION 5)

- Max. capacity of system memory: 8GB (see CAUTION 6)

Expansion Slot - 1 x PCI Express 2.0 x16 slot (green @ x16 mode)

- 1 x PCI Express x1 slot

- 2 x PCI slots

Audio - 7.1 CH Windows® VistaTM Premium Level HDAudio

(VIA®VT1708S Audio Codec)

LAN - PCIE x1Gigabit LAN10/100/1000 Mb/s

- Realtek RTL8111DL

- Supports Wake-On-LAN

Rear Panel I/O I/OPanel

- 1 x PS/2 Mouse Port

- 1 x PS/2 Keyboard Port

- 1 x Coaxial SPDIF Out Port

- 1 x Optical SPDIF Out Port

- 6 x Ready-to-Use USB 2.0 Ports

-1 xRJ-45 LANPort with LED(ACT/LINK LEDand SPEEDLED)

- HDAudio Jack: Side Speaker/Rear Speaker/Central/Bass/

Line in/Front Speaker/Microphone (see CAUTION 7)

Connector - 6 x SATAII 3.0Gb/s connectors, support NCQ, AHCI and

“Hot Plug” functions (see CAUTION 8)

- 1 x ATA133 IDE connector (supports 2 x IDE devices)

- 1 x Floppy connector

- 1 x IR header

- 1 x Print port header

ASRock P43ME Motherboard

EnglishEnglish

English

- 1 x COM port header

- 1 x HDMI_SPDIF header

- CPU/Chassis/Power FAN connector

- 24 pin ATX power connector

- 4 pin 12V power connector

- CD in header

- Front panel audio connector

- 2 x USB 2.0 headers (support 4 USB 2.0 ports)

(see CAUTION 9)

BIOS Feature - 8MbAMI BIOS

-AMI Legal BIOS

- Supports “Plug and Play”

-ACPI 1.1 Compliance Wake Up Events

-AMBIOS 2.3.1 Support

- CPU, VCCM,NB, VTTVoltage Multi-adjustment

- Supports Smart BIOS

Support CD - Drivers, Utilities, AntiVirus Software (Trial Version)

Unique Feature - ASRock OC Tuner (see CAUTION 10)

- Intelligent Energy Saver (see CAUTION 11)

- Instant Boot

- ASRock Instant Flash (see CAUTION 12)

- Hybrid Booster:

- CPU Frequency Stepless Control (see CAUTION 13)

- ASRock U-COP (see CAUTION 14)

- Boot Failure Guard (B.F.G.)

Hardware - CPU Temperature Sensing

Monitor - Chassis Temperature Sensing

- CPU/Chassis/Power Fan Tachometer

- CPU Quiet Fan

- Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore

OS - Microsoft® Windows® 2000 / XP / XP 64-bit / VistaTM /

VistaTM 64-bit compliant (see CAUTION 15)

Certifications - FCC, CE, WHQL

* For detailed product information, please visit our website: http://www.asrock.com

8ASRock P43ME Motherboard

EnglishEnglish

English

CAUTION!

1. This motherboard supports native FSB1600/1333/1066/800 MHz. For nor-

mal operation, you do no need to adjust the jumper settings. For special

overclocking mode, please refer to page 16 for proper jumper settings.

2. About the setting of “Hyper ThreadingTechnology”, please check page 38

of “User Manual” in the support CD.

3. This motherboard supports Untied Overclocking Technology. Please read

“Untied Overclocking Technology” on page 22 for details.

4. This motherboard supports Dual Channel Memory Technology. Before you

implement Dual Channel Memory Technology, make sure to read the

installation guide of memory modules on page 13 for proper installation.

5. Please check the table below for the CPU FSB frequency and its

corresponding memory support frequency.

CPU FSB Frequency Memory Support Frequency

1600 DDR2 800, DDR2 1066, DDR2 1200 *

1333 DDR2 667, DDR2 800, DDR2 1066,

DDR2 1200 *

1066 DDR2 667, DDR2 800, DDR2 1066

800 DDR2 667, DDR2 800

* DDR2 1200 memory modules will operate in overclocking mode. In

this situation, you need to adjust the BIOS option “DRAM Frequency”

to [600MHz (DDR2 1200)] and adjust the jumpers. Please refer to

page 15 for proper jumper settings.

6. Due to the operating system limitation, the actual memory size may be

less than 4GB for the reservation for system usage under Windows®XP

and Windows®VistaTM. For Windows®XP 64-bit and Windows®VistaTM 64-

bit with 64-bit CPU, there is no such limitation.

7. For microphone input, this motherboard supports both stereo and mono

modes. For audio output, this motherboard supports 2-channel, 4-channel,

6-channel, and 8-channel modes. Please check the table on page 3 for

proper connection.

8. Before installing SATAII hard disk to SATAII connector, please read the

“SATAII Hard Disk Setup Guide” on page 26 of “User Manual” in the support

CD to adjust your SATAII hard disk drive to SATAII mode. You can also

connect SATA hard disk to SATAII connector directly.

9. Power Management for USB 2.0 works fine under Microsoft®Windows®

VistaTM 64-bit / VistaTM / XP 64-bit / XP SP1 or SP2 / 2000 SP4.

WARNING

Please realize that there is a certain risk involved with overclocking, including adjusting

the setting in the BIOS, applying Untied Overclocking Technology, or using the third-

party overclocking tools. Overclocking may affect your system stability, or even

cause damage to the components and devices of your system. It should be done at

your own risk and expense. We are not responsible for possible damage caused by

overclocking.

ASRock P43ME Motherboard

EnglishEnglish

English

10. It is a user-friendly ASRock overclocking tool which allows you to surveil

your system by hardware monitor function and overclock your hardware

devices to get the best system performance under Windows® environment.

Please visit our website for the operation procedures of ASRock OC

Tuner. ASRock website: http://www.asrock.com

11. Featuring an advanced proprietary hardware and software design,

Intelligent Energy Saver is a revolutionary technology that delivers

unparalleled power savings. In other words, it is able to provide exceptional

power saving and improve power efficiency without sacrificing computing

performance. Please visit our website for the operation procedures of

Intelligent Energy Saver.

ASRock website: http://www.asrock.com

12. ASRock Instant Flash is a BIOS flash utility embedded in Flash ROM.

This convenient BIOS update tool allows you to update system BIOS

without entering operating systems first like MS-DOS or Windows®. With

this utility, you can press <F6> key during the POST or press <F2> key to

BIOS setup menu to access ASRock Instant Flash. Just launch this tool

and save the new BIOS file to your USB flash drive, floppy disk or hard

drive, then you can update your BIOS only in a few clicks without prepar-

ing an additional floppy diskette or other complicated flash utility. Please

be noted that the USB flash drive or hard drive must use FAT32/16/12 file

system.

13. Although this motherboard offers stepless control, it is not recommended

to perform over-clocking. Frequencies other than the recommended CPU

bus frequencies may cause the instability of the system or damage the

CPU.

14. While CPU overheat is detected, the system will automatically shutdown.

Before you resume the system, please check if the CPU fan on the

motherboard functions properly and unplug the power cord, then plug it

back again. To improve heat dissipation, remember to spray thermal

grease between the CPU and the heatsink when you install the PC system.

15. AHCI function is not supported under Windows® 2000 OS. It is recom-

mended to use IDE mode under Windows® 2000. Please refer to page 47 of

“User Manual” in the support CD for detailed setup.

1010

10 ASRock P43ME Motherboard

EnglishEnglish

English

2.2.

2.InstallationInstallation

InstallationInstallation

Installation

Pre-installation PrecautionsPre-installation Precautions

Pre-installation Precautions

Take note of the following precautions before you install mother-

board components or change any motherboard settings.

1. Unplug the power cord from the wall socket before touching any

component. Failure to do so may cause severe damage to the

motherboard, peripherals, and/or components.

2. To avoid damaging the motherboard components due to static

electricity, NEVER place your motherboard directly on the carpet

or the like. Also remember to use a grounded wrist strap or touch

a safety grounded object before you handle components.

3. Hold components by the edges and do not touch the ICs.

4. Whenever you uninstall any component, place it on a grounded

antstatic pad or in the bag that comes with the component.

5. When placing screws into the screw holes to secure the

motherboard to the chassis, please do not over-tighten the

screws! Doing so may damage the motherboard.

2.12.1

2.1 CPU InstallationCPU Installation

CPU InstallationCPU Installation

CPU Installation

For the installation of Intel 775-LAND CPU,

please follow the steps below.

Before you insert the 775-LAND CPU into the socket, please check if

the CPU surface is unclean or if there is any bent pin on the socket.

Do not force to insert the CPU into the socket if above situation is

found. Otherwise, the CPU will be seriously damaged.

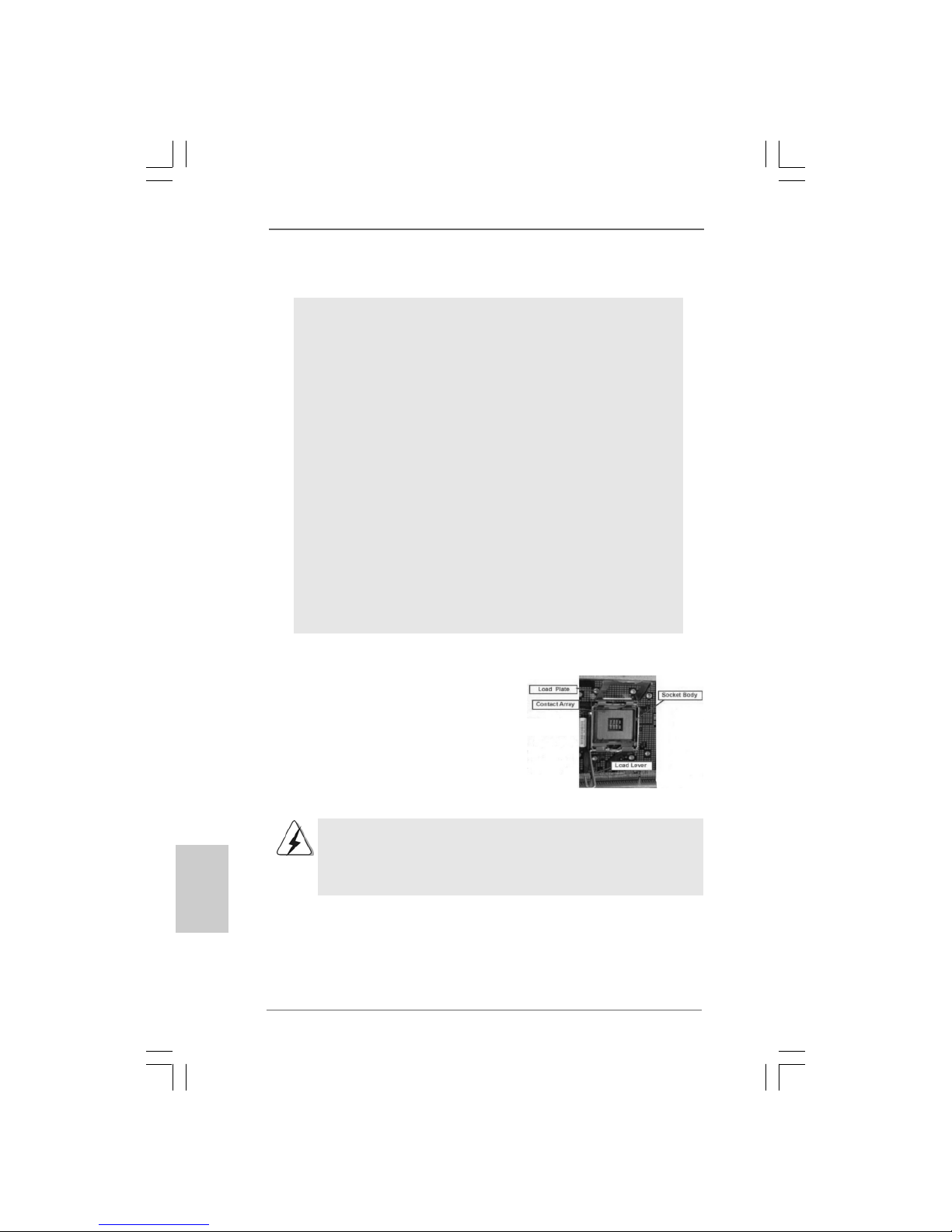

775-Pin Socket Overview

Altri manuali per P43ME

Indice

Lingue:

Altri manuali ASROCK Scheda madre

ASROCK

ASROCK 775i945GZ Manuale utente

ASROCK

ASROCK H61DE-S3 Manuale utente

ASROCK

ASROCK X370M Pro4 R2.0 Manuale utente

ASROCK

ASROCK K10N7SLI Manuale utente

ASROCK

ASROCK A785GM Manuale utente

ASROCK

ASROCK Z390 Steel Legend Manuale utente

ASROCK

ASROCK QC5000-ITX/WiFi Manuale utente

ASROCK

ASROCK FM2A88X Extreme6 Manuale utente

ASROCK

ASROCK 960GC-GS FX Manuale utente

ASROCK

ASROCK Z690M Phantom Gaming 4 Manuale utente

ASROCK

ASROCK FM2A75 Pro4 Manuale utente

ASROCK

ASROCK M3A790GXH-USB3 - V1.0 Manuale utente

ASROCK

ASROCK H81M-HDS Manuale utente

ASROCK

ASROCK 2Core1066-2.13G Manuale utente

ASROCK

ASROCK A75M Manuale utente

ASROCK

ASROCK Fatal1ty B150 Gaming K4 Manuale utente

ASROCK

ASROCK K10N78HSLI-GLAN - V1.0 Manuale utente

ASROCK

ASROCK Fatal1ty Z370 Gaming K6 Series Manuale utente

ASROCK

ASROCK WRX80D8-2T Manuale utente

ASROCK

ASROCK P67 Pro Manuale utente

ASROCK

ASROCK Z590 EXTREME Manuale utente

ASROCK

ASROCK X58 EXTREME3 - V1.0 Manuale utente

ASROCK

ASROCK ALIVENF4G-DVI Manuale utente

ASROCK

ASROCK H81M-VG4 R3.0 Manuale utente

Manuali Scheda madre popolari di altre marche

DFI

DFI SD170 Manuale utente

Asus

Asus P2L97A Manuale utente

Winmate

Winmate IC70 Manuale utente

Asus

Asus MES-B Manuale utente

Grantech

Grantech SYS8F377VGGA-3OMN Manuale utente

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuale utente

Gigabyte

Gigabyte GA-9IVDT Manuale utente

Texas Instruments

Texas Instruments ADS8372EVM Manuale utente

Commell

Commell MS-C73 Manuale utente

IBT Technologies

IBT Technologies MB860 Manuale utente

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuale utente

Biostar

Biostar M7VIT Bravo Istruzioni per l'uso e l'installazione

Intel

Intel D33217CK Manuale utente

Asus

Asus F1A55-M LX PLUS R2.0 Manuale utente

EPC

EPC EPC9147C Manuale utente

Asus

Asus EX-B760M-V5 D4 Manuale utente

EPOX

EPOX MU-8KHA0010 Manuale utente

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manuale utente
