ASROCK P4S55FX2 Manuale utente

P4S55FX2

User Manual

Version 3.0

Published February 2004

No part of this manual may be reproduced, transcribed, transmitted, or translated in

any language, in any form or by any means, except duplication of documentation by

the purchaser for backup purpose, without written consent of ASRock Inc.

Products and corporate names appearing in this manual may or may not be regis-

tered trademarks or copyrights of their respective companies, and are used only for

identification or explanation and to the owners’ benefit, without intent to infringe.

Disclaimer:

Specifications and information contained in this manual are furnished for informa-

tional use only and subject to change without notice, and should not be constructed

as a commitment by ASRock. ASRock assumes no responsibility for any errors or

omissions that may appear in this manual.

With respect to the contents of this manual, ASRock does not provide warranty of

any kind, either expressed or implied, including but not limited to the implied warran-

ties or conditions of merchantability or fitness for a particular purpose.

In no event shall ASRock, its directors, officers, employees, or agents be liable for

any indirect, special, incidental, or consequential damages (including damages for

loss of profits, loss of business, loss of data, interruption of business and the like),

even if ASRock has been advised of the possibility of such damages arising from any

defect or error in the manual or product.

This device complies with Part 15 of the FCC Rules. Operation is subject to the

following two conditions:

(1) this device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that

may cause undesired operation.

ASRock Website: http://www.asrock.com

Contents

1 Introduction ................................................... 4

1.1 Package Contents .......................................................... 4

1.2 Specifications ................................................................ 5

1.3 Motherboard Layout ...................................................... 7

1.4 ASRock I/O PlusTM .......................................................... 8

2 Installation...................................................... 9

Pre-installation Precautions ................................................... 9

2.1 CPU Installation .............................................................. 10

2.2 Installation of CPU Fan and Heatsink ............................ 10

2.3 Installation of Memory Modules (DIMM)......................... 11

2.4 Expansion Slots (PCI and AGP Slots) ........................... 12

2.5 Jumpers Setup .............................................................. 13

2.6 Onboard Headers and Connectors .............................. 14

3 BIOS Setup ...................................................... 17

3.1 BIOS Setup Utility ........................................................... 17

3.1.1 BIOS Menu Bar ....................................................... 17

3.1.2 Legend Bar ............................................................. 17

3.2 Main Menu ...................................................................... 18

3.3 Advanced, Security, Power, Boot, and Exit Menus ..... 20

4 Software Support ........................................... 21

4.1 Install Operating System ............................................... 21

4.2 Support CD Information ................................................. 21

4.2.1 Running Support CD ............................................... 21

4.2.2 Drivers Menu .......................................................... 21

4.2.3 Utilities Menu ........................................................... 21

4.2.4 ASRock “PC-DIY Live Demo” Program ................... 21

4.2.5 Contact Information ................................................ 21

Appendix ............................................................ 22

1. Advanced BIOS Setup Menu ........................................... 22

2. Security Setup Menu ....................................................... 27

3. Power Setup Menu .......................................................... 28

4. Boot Setup Menu ............................................................. 29

5. Exit Menu ......................................................................... 30

Chapter 1 Introduction

Thank you for purchasing ASRock P4S55FX2 motherboard, a reliable motherboard

produced under ASRock’s consistently stringent quality control. It delivers excellent

performance with robust design conforming to ASRock’s commitment to quality and

endurance.

In this manual, chapter 1 and 2 contain introduction of the motherboard and step-by-

step guide to the hardware installation. Chapter 3 and 4 contain the configuration

guide to BIOS setup and information of the Support CD. More information of ad-

vanced BIOS setup is offered on page 22 for advanced users’ reference.

Because the motherboard specifications and the BIOS software might be

updated, the content of this manual will be subject to change without

notice. In case any modifications of this manual occur, the updated

version will be available on ASRock website without further notice. You

may find the latest memory and CPU support lists on ASRock website as

well. ASRock website http://www.asrock.com

1.1 Package Contents

ASRock P4S55FX2 Motherboard

(ATX Form Factor: 12.0-in x 7.2 -in, 30.5 cm x 18.3 cm)

ASRock P4S55FX2 Quick Installation Guide

ASRock P4S55FX2 Support CD

One 80-conductor Ultra ATA 66/100/133 IDE Ribbon Cable

One Ribbon Cable for a 3.5-in Floppy Drive

One ASRock I/O PlusTM Shield

1.2 Specifications

Platform: ATX Form Factor: 12.0-in x 7.2-in, 30.5 cm x 18.3 cm

CPU: Socket 478, supports Intel®Pentium® 4(Prescott, Northwood,

Willimate) / Celeron®processor

Chipsets: North Bridge:

SiS 655FX, FSB @ 800/533/400 MHz,

with Intel®Hyper-Threading Technology ready

South Bridge:

SiS 964L, supports USB 2.0, ATA 133

Memory: 2DDRDIMM Slots:DDR1,DDR2

Supports PC3200 (DDR400) / PC2700 (DDR333) /

PC2100 (DDR266) , Max. 2 GB

Dual Channel Memory Technology support (see CAUTION 1)

IDE: IDE1: ATA 133 / Ultra DMA Mode 6

IDE2: ATA 133 / Ultra DMA Mode 6

Supports up to 4 IDE devices

Floppy Port: Supports up to 2 floppy disk drives

Audio: 5.1 channels AC’97 Audio

LAN: Speed: 802.3u (10/100 Ethernet), supports Wake-On-LAN

Hardware Monitor: CPU temperature sensing

Chassis temperature sensing

CPU overheat shutdown to protect CPU life

(ASRock U-COP)(see CAUTION 2)

CPU fan tachometer

Chassis fan tachometer

Voltage monitoring: +12V, +5V, +3V, Vcore

PCI slots: 5 slots with PCI Specification 2.2

AGP slot: 1 AGP slot, supports 1.5V, 8X/4X AGP card (see CAUTION 3)

USB 2.0: 8 USB 2.0 ports:

includes 6 default USB 2.0 ports on the rear panel,

plus one header to support 2 additional USB 2.0 ports

(see CAUTION 4)

ASRock I/O PlusTM:1 PS/2 mouse port, 1 PS/2 keyboard port,

1 serial port: COM1,

1 parallel port: ECP/EPP support,

6 default USB 2.0 ports,

1 RJ 45 port,

Audio Jack: Line In / Line Out / Microphone

BIOS: AMI BIOS

Supports “Plug and Play”

ACPI 1.1 compliance wake up events

Supports jumperfree

SMBIOS 2.3.1 support

CPU frequency stepless control

(only for advanced users’ reference, see CAUTION 5)

OS: Microsoft®Windows®98SE / ME / 2000 / XP compliant

CAUTION!

1. This motherboard supports Dual Channel Memory Technology. Before you

implement Dual Channel Memory Technology, make sure to read the

installation guide of memory modules on page 11 for proper installation.

2. If the CPU is overheated, please check if the CPU fan on the motherboard

functions properly before you resume the system. To improve heat

dissipation, remember to spray thermal grease between the CPU and the

heatsink when you install the PC system.

3. Do NOT use a 3.3V AGP card on the AGP slot of this motherboard!

It may cause permanent damage!

4. Power Management for USB 2.0 works fine under Microsoft®Windows® XP

SP1 / 2000 SP4. It may not work properly under Microsoft®Windows® 98 /

ME. Please refer to Microsoft®official document at

http://www.microsoft.com/whdc/hwdev/bus/USB/USB2support.mspx

5. Although this motherboard offers stepless control, it is not recommended

to perform over-clocking. Frequencies other than the recommended CPU

bus frequencies may cause the instability of the system or damage the

CPU.

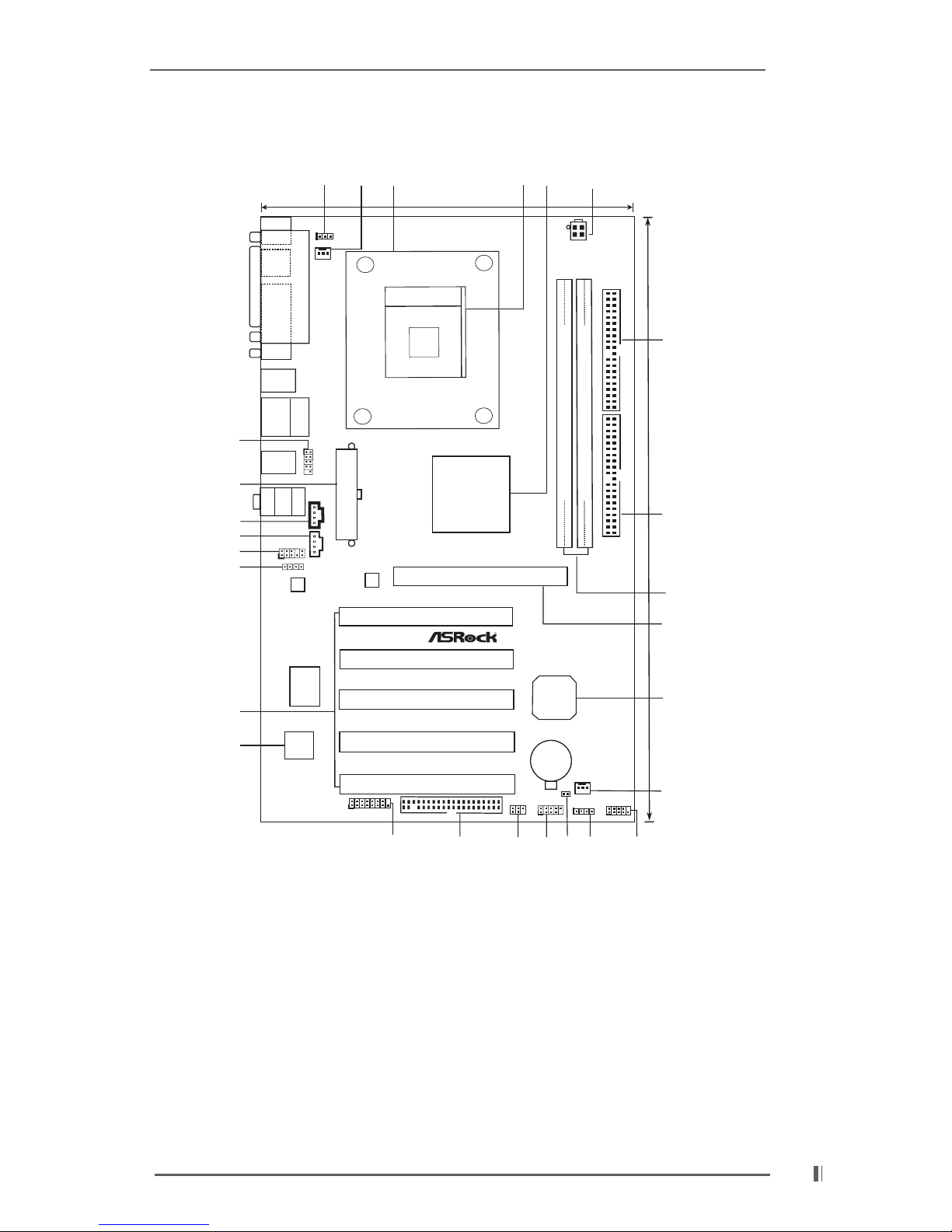

1.3 Motherboard Layout

DDR1 (64/72 bit, 184-pin module)

DDR2 (64/72 bit, 184-pin module)

1.5V_AGP1

ATX12V1

CLRCMOS1

AUX1

CD1

PARALLEL PORT

COM1

PS2

Mouse

PS2

Keyboard

USB 2.0

T: US B 2

B: USB3

USB 2.0

T: US B 0

B: USB1

Top:

RJ-45

Top:

Line In

Center:

Line Out

Bottom:

Mic In

USB 2.0

T: US B 4

B: USB5

PCI 2

PCI 3

PCI 4

PCI 5

PCI 1

2MB

BIOS

Super

I/O

USB67

IR1

PAN EL 1

HDLED RESET

PLED PWRBTN

PS2_USB_PWR1

P4S55FX2

SiS

964L

SPEAKER1

FLOPPY1

CHA_FAN1

CMOS

Battery

AGP 8X

ATA133

DDR400

5.1 CH

SiS

655FX

PGA478

IDE1

IDE2

AUDIO1

Audio

CODEC

CPU_FAN1

ATXPWR1

GAME1

JR1 JL1

LAN

PHY

USB2.0

FSB800

18.3cm (7.2 in)

30.5cm (12.0 in)

126

19 18 17

USB4_5

1 PS2_USB_PWR1 Jumper 15 Clear CMOS Solder Points (CLRCMOS1)

2 CPU Fan Connector (CPU_FAN1) 16 USB 2.0 Header (USB67, Blue)

3 CPU Heatsink Retention Module 17 Infrared Module Header (IR1)

4 CPU Socket 18 Floppy Connector (FLOPPY1)

5 North Bridge Controller 19 Game Connector (GAME1)

6 ATX 12V Connector (ATX12V1) 20 Flash Memory

7 Secondary IDE Connector (IDE2, Black) 21 PCI Slots (PCI1- 5)

8 Primary IDE Connector (IDE1, Blue) 22 JR1 Jumper / JL1 Jumper

9 184-pin DDR DIMM Slots 23 Front Panel Audio Header (AUDIO1)

10 AGP Slot (1.5V_AGP1) 24 Internal Audio Connector: AUX1 (White)

11 South Bridge Controller 25 Internal Audio Connector: CD1 (Black)

12 Chassis Fan Connector (CHA_FAN1) 26 ATX Power Connector (ATXPWR1)

13 System Panel Header (PANEL1) 27 USB 2.0 Header (USB4_5, Blue)

14 Chassis Speaker Header (SPEAKER 1)

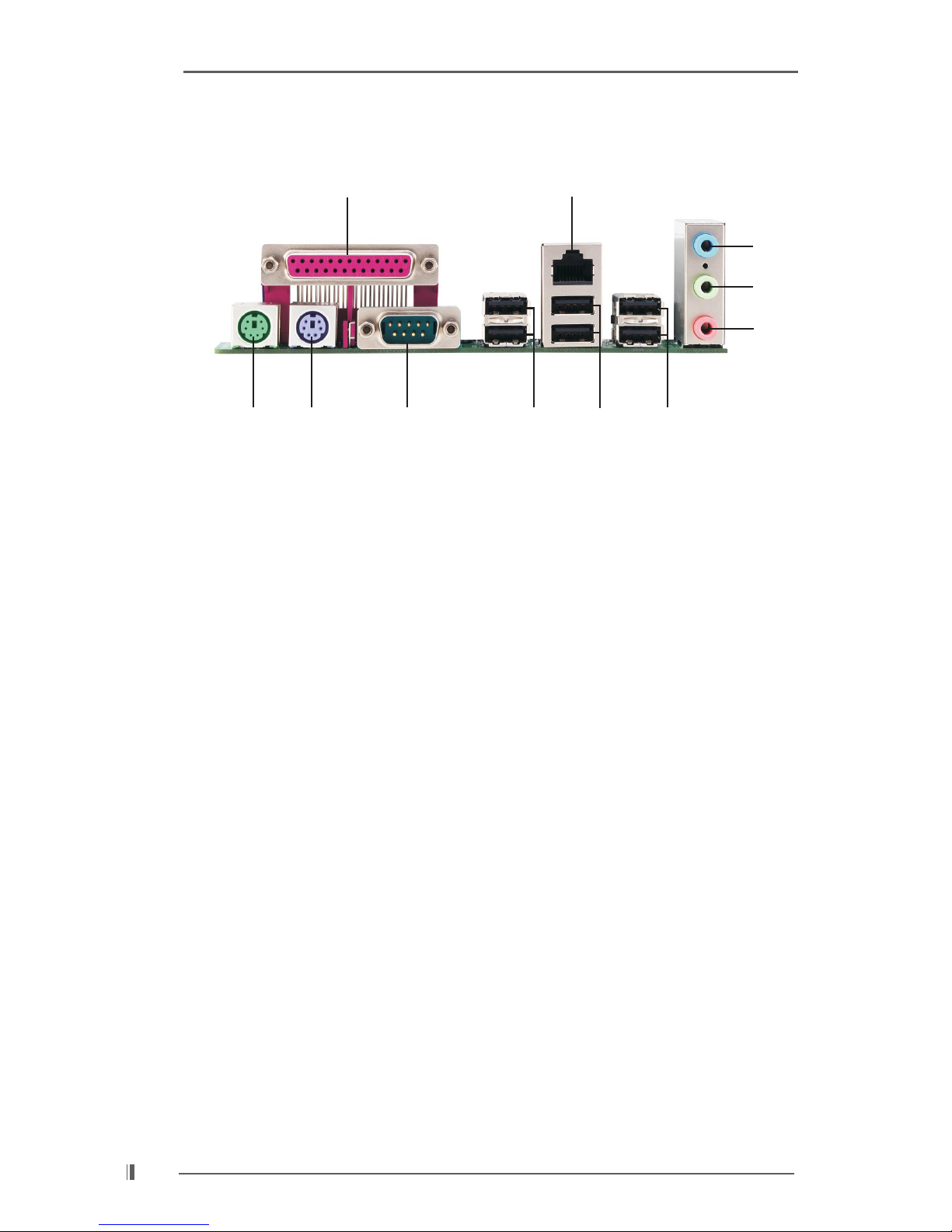

1.4 ASRock I/O PlusTM

1 Parallel Port 7 USB 2.0 Ports (USB0, USB1)

2 RJ-45 Port 8 USB 2.0 Ports (USB2, USB3)

3 Line In (Light Blue) 9 Serial Port: COM1

4 Line Out (Lime) 10 PS/2 Keyboard Port (Purple)

5 Microphone (Pink) 11 PS/2 Mouse Port (Green)

6 USB 2.0 Ports (USB4, USB5)

8910

Chapter 2 Installation

P4S55FX2 is an ATX form factor (12.0-in x 7.2-in, 30.5 cm x 18.3 cm) motherboard.

Before you install the motherboard, study the configuration of your chassis to en-

sure that the motherboard fits into it.

Pre-installation Precautions

Take note of the following precautions before you install motherboard components

or change any motherboard settings.

1. Unplug the power cord from the wall socket before touching any component.

2. To avoid damaging the motherboard components due to static electricity, NEVER

place your motherboard directly on the carpet or the like. Also remember to use

a grounded wrist strap or touch a safety grounded object before you handle

components.

3. Hold components by the edges and do not touch the ICs.

4. Whenever you uninstall any component, place it on a grounded antistatic pad or

in the bag that comes with the component.

Before you install or remove any component, ensure

that the power is switched off or the power cord is

detached from the power supply. Failure to do so may

cause severe damage to the motherboard, peripherals,

and/or components.

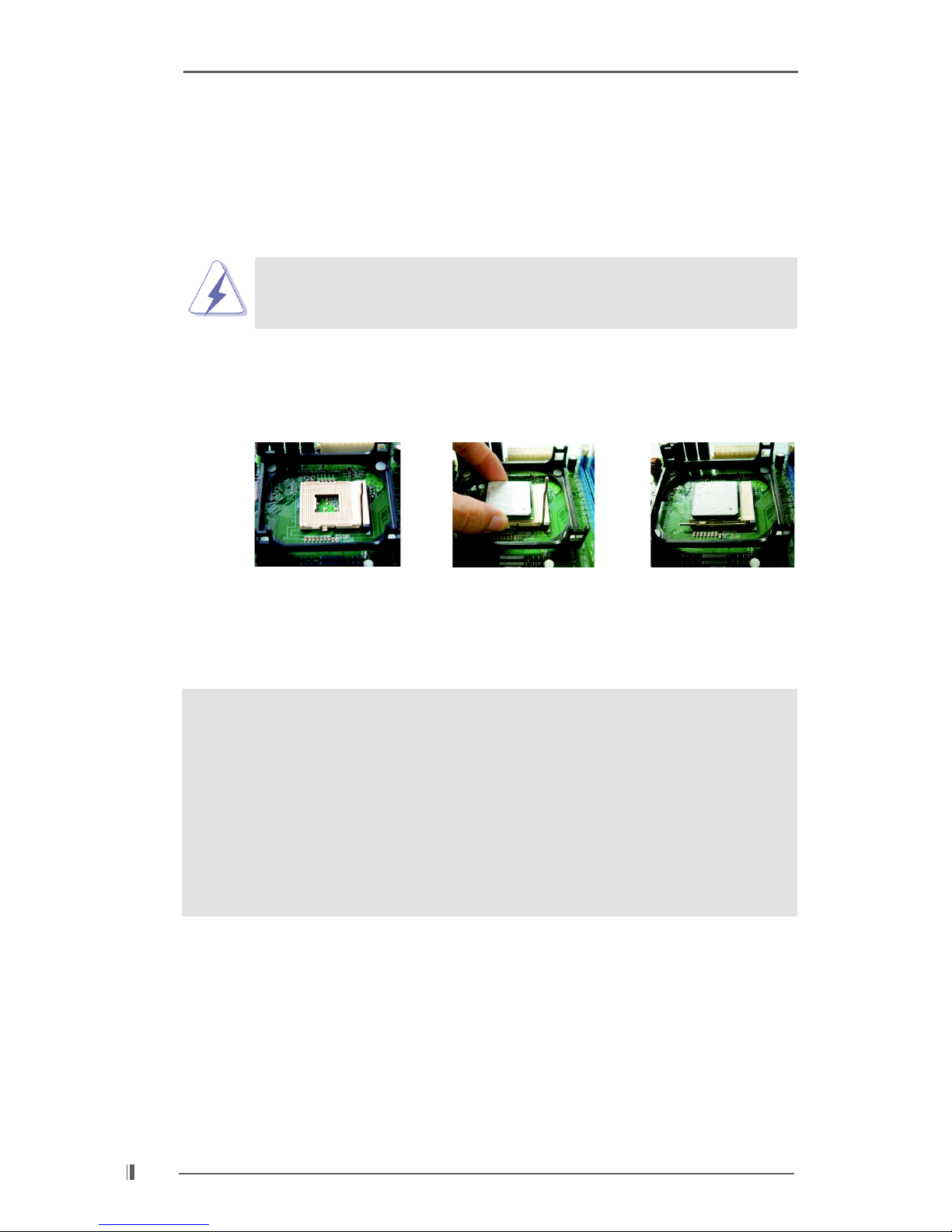

2.1 CPU Installation

Step 1. Unlock the socket by lifting the lever up to a 90oangle.

Step 2. Position the CPU directly above the socket such that its marked corner

matches the base of the socket lever.

Step 3. Carefully insert the CPU into the socket until it fits in place.

The CPU fits only in one correct orientation. DO NOT force the

CPU into the socket to avoid bending of the pins.

Step 4. When the CPU is in place, press it firmly on the socket while you push

down the socket lever to secure the CPU. The lever clicks on the side tab

to indicate that it is locked.

2.2 Installation of CPU Fan and Heatsink

This motherboard adopts 478-pin CPU socket to support Intel®Pentium® 4/

Celeron®CPU. It requires larger heatsink and cooling fan to dissipate heat.

You also need to spray thermal grease between the CPU and the heatsink to

improve heat dissipation. Make sure that the CPU and the heatsink are se-

curely fastened and in good contact with each other. Then connect the CPU

fan to the CPU_FAN connector (CPU_FAN1, see p.7 No. 2 ). For proper

installation, please kindly refer to the instruction manuals of the CPU fan and

the heatsink.

Step 1 Step 2, 3 Step 4

Indice

Altri manuali ASROCK Scheda madre

ASROCK

ASROCK 970DE3/U3S3 Manuale utente

ASROCK

ASROCK FM2A78 Pro4+ Manuale utente

ASROCK

ASROCK ALIVEXFIRE-ESATA2 R3.0 - Manuale utente

ASROCK

ASROCK FM2A55M-HD Manuale utente

ASROCK

ASROCK Z87 Extreme4 Manuale utente

ASROCK

ASROCK Fatality X370 Manuale utente

ASROCK

ASROCK P43ME - V1.1 Manuale utente

ASROCK

ASROCK N7AD-SLI - V1.0 Manuale utente

ASROCK

ASROCK SBC-211 Manuale utente

ASROCK

ASROCK J3455-NUC IPC Manuale utente

ASROCK

ASROCK IMB-194-D Istruzioni utente

ASROCK

ASROCK J3160DC-ITX Manuale utente

ASROCK

ASROCK H110M-DVS R2.0 Manuale utente

ASROCK

ASROCK N68-GS4/USB3 FX R2.0 Manuale utente

ASROCK

ASROCK 775/65G Manuale utente

ASROCK

ASROCK X79 Extreme11 Manuale utente

ASROCK

ASROCK N68-S3 UCC - Manuale utente

ASROCK

ASROCK Z370 Killer SLI Manuale utente

ASROCK

ASROCK IMB-380-L Manuale di servizio

ASROCK

ASROCK SBC-240L Manuale di servizio

ASROCK

ASROCK 775XFire-RAID Manuale utente

ASROCK

ASROCK EN2C602-4L/D12 Manuale utente

ASROCK

ASROCK B150M-PIO2 Manuale utente

ASROCK

ASROCK N68C-S Manuale utente

Manuali Scheda madre popolari di altre marche

DFI

DFI SD170 Manuale utente

Asus

Asus P2L97A Manuale utente

Winmate

Winmate IC70 Manuale utente

Asus

Asus MES-B Manuale utente

Grantech

Grantech SYS8F377VGGA-3OMN Manuale utente

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuale utente

Gigabyte

Gigabyte GA-9IVDT Manuale utente

Texas Instruments

Texas Instruments ADS8372EVM Manuale utente

Commell

Commell MS-C73 Manuale utente

IBT Technologies

IBT Technologies MB860 Manuale utente

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuale utente

Biostar

Biostar M7VIT Bravo Istruzioni per l'uso e l'installazione

Intel

Intel D33217CK Manuale utente

Asus

Asus F1A55-M LX PLUS R2.0 Manuale utente

EPC

EPC EPC9147C Manuale utente

Asus

Asus EX-B760M-V5 D4 Manuale utente

EPOX

EPOX MU-8KHA0010 Manuale utente

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manuale utente
