ASROCK X570S PG Riptide Manuale utente

Version 1.0

Published May 2021

No part of this documentation may be reproduced, transcribed, transmitted, or

translated in any language, in any form or by any means, except duplication of

documentation by the purchaser for backup purpose, without written consent of

ASRock Inc.

Products and corporate names appearing in this documentation may or may not

be registered trademarks or copyrights of their respective companies, and are used

only for identication or explanation and to the owners’ benet, without intent to

infringe.

Disclaimer:

Specications and information contained in this documentation are furnished for

informational use only and subject to change without notice, and should not be

constructed as a commitment by ASRock. ASRock assumes no responsibility for

any errors or omissions that may appear in this documentation.

With respect to the contents of this documentation, ASRock does not provide

warranty of any kind, either expressed or implied, including but not limited to

the implied warranties or conditions of merchantability or tness for a particular

purpose.

In no event shall ASRock, its directors, ocers, employees, or agents be liable for

any indirect, special, incidental, or consequential damages (including damages for

loss of prots, loss of business, loss of data, interruption of business and the like),

even if ASRock has been advised of the possibility of such damages arising from any

defect or error in the documentation or product.

is device complies with Part 15 of the FCC Rules. Operation is subject to the following

two conditions:

(1) this device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that

may cause undesired operation.

CALIFORNIA, USA ONLY

e Lithium battery adopted on this motherboard contains Perchlorate, a toxic substance

controlled in Perchlorate Best Management Practices (BMP) regulations passed by the

California Legislature. When you discard the Lithium battery in California, USA, please

follow the related regulations in advance.

“Perchlorate Material-special handling may apply, see www.dtsc.ca.gov/hazardouswaste/

perchlorate”

ASRock Website: http://www.asrock.com

AUSTRALIA ONLY

Our goods come with guarantees that cannot be excluded under the Australian

Consumer Law. You are entitled to a replacement or refund for a major failure and

compensation for any other reasonably foreseeable loss or damage caused by our

goods. You are also entitled to have the goods repaired or replaced if the goods fail

to be of acceptable quality and the failure does not amount to a major failure. If

you require assistance please call ASRock Tel : +886-2-28965588 ext.123 (Standard

International call charges apply)

e terms HDMI® and HDMI High-Denition Multimedia Interface, and the

HDMI logo are trademarks or registered trademarks of HDMI Licensing LLC in the

United States and other countries.

English

X570S PG Riptide

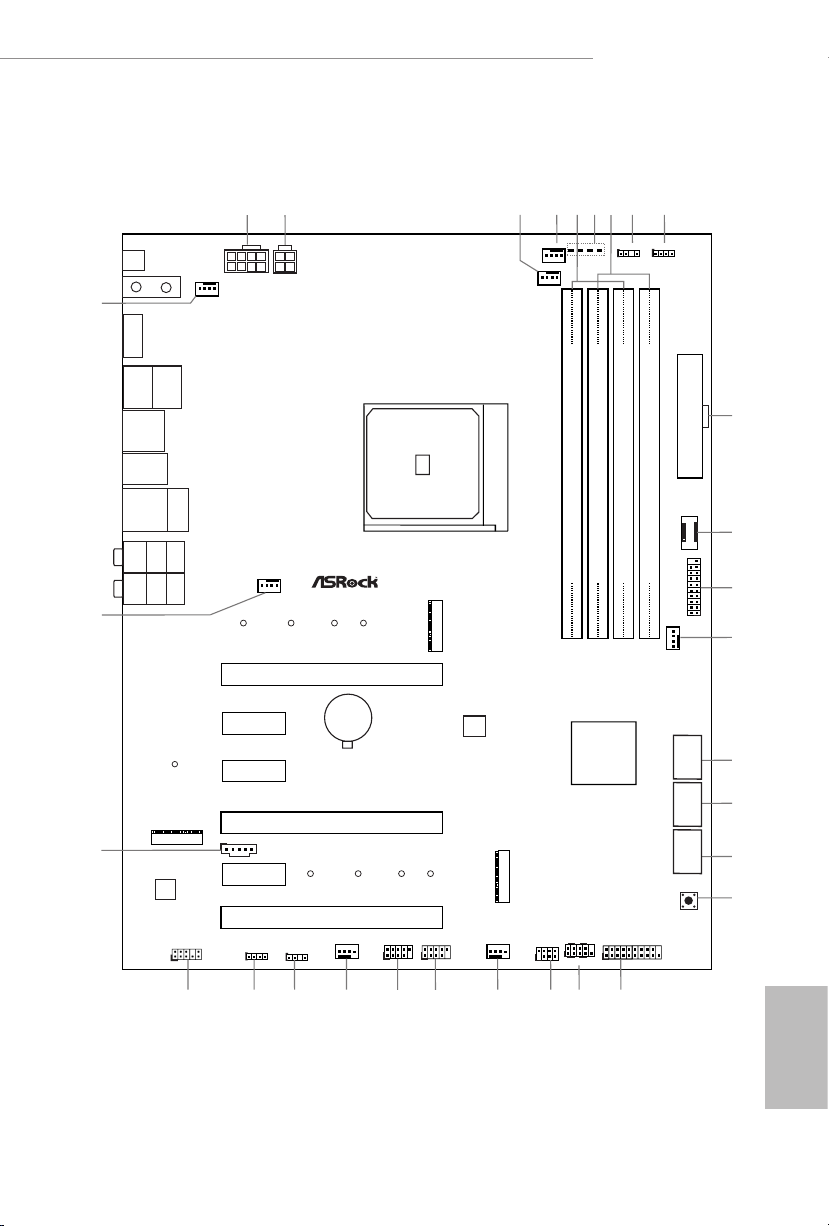

Motherboard Layout

DDR4_A2 (64 bit, 288-pin module)

DDR4_A1 (64 bit, 288-pin module)

DDR4_B2 (64 bit, 288-pin module)

DDR4_B1 (64 bit, 288-pin module)

ATXPWR1

PCIE1

USB 3.2 Gen1

T: USB3_3

B: USB3_4

HDLED RESET

PLED PWRBTN

PANEL1

SPK_PLED1

HD_AUDIO1

USB_3_4

CLRCBTN1

CPU_FAN1

M2_1

CHA_FAN1/WP

CPU_FAN2/WP

RoHS

Top:

RJ-45

AMD

Premium

X570

SOCKETAM4

CHA_FAN2/WP

HDMI1

TB1

ATX12V1

CMOS

Battery

CHA_FAN4/WP

USB3_5_6

SATA3 _2

SATA3_1

SATA3 _4

SATA3_3

SATA3_6

SATA3 _5

PCIE4

PCIE3

M2_2

ATX12V2

RGB_LED2

ADDR_LED2

RGB_LED1

ADDR_LED1

USB_5_6

F_USB31_TC_1

USB3_7_8

Top:

Central/Bass

Center:

REAR S PK

Top:

LINE I N

Center:

FRONT

Bottom:

Optical

SPDIF

Bottom:

MIC IN

USB 3.2 Gen2

T: USB31_TA_1

B: USB31_TC_1

BIOS

_FB1

20 19

27 25

CPU

DRAM

VGABOOT

CHA_FAN3/WP

PCIE5

BIOS

ROM

M2_WIFI

AUDIO

CODEC

USB 2. 0

T: USB1

B: USB 2

PS2

Keyboard

/Mouse

USB 3.2 Gen1

T: USB3_1

B: USB3_2

CHA_FAN5/WP

PCIE6

X570S PG

RIPTIDE

PCIE2

English

No. Description

1 8 pin 12V Power Connector (ATX12V1)

2 4 pin 12V Power Connector (ATX12V2)

3 CPU Fan Connector (CPU_FAN1)

4 CPU / Waterpump Fan Connector (CPU_FAN2/WP)

5 2 x 288-pin DDR4 DIMM Slots (DDR4_A1, DDR4_B1)

6 Post Status Checker (PSC)

7 2 x 288-pin DDR4 DIMM Slots (DDR4_A2, DDR4_B2)

8 Addressable LED Header (ADDR_LED2)

9 RGB LED Header (RGB_LED2)

10 ATX Power Connector (ATXPWR1)

11 Front Panel Type C USB 3.2 Gen2 Header (F_USB31_TC_1)

12 USB 3.2 Gen1 Header (USB3_7_8)

13 Chassis / Waterpump Fan Connector (CHA_FAN4/WP)

14 SATA3 Connector (SATA3_2) (Upper), SATA3 Connector (SATA3_1) (Lower)

15 SATA3 Connector (SATA3_4) (Upper), SATA3 Connector (SATA3_3) (Lower)

16 SATA3 Connector (SATA3_6) (Upper), SATA3 Connector (SATA3_5) (Lower)

17 Clear CMOS Button (CLRCBTN1)

18 USB 3.2 Gen1 Header (USB3_5_6)

19 System Panel Header (PANEL1)

20 Power LED and Speaker Header (SPK_PLED1)

21 Chassis / Waterpump Fan Connector (CHA_FAN3/WP)

22 USB 2.0 Header (USB_5_6)

23 USB 2.0 Header (USB_3_4)

24 Chassis / Waterpump Fan Connector (CHA_FAN2/WP)

25 Addressable LED Header (ADDR_LED1)

26 RGB LED Header (RGB_LED1)

27 Front Panel Audio Header (HD_AUDIO1)

28 underbolt AIC Header (TB1)

29 Chassis / Waterpump Fan Connector (CHA_FAN1/WP)

30 Chassis / Waterpump Fan Connector (CHA_FAN5/WP)

English

X570S PG Riptide

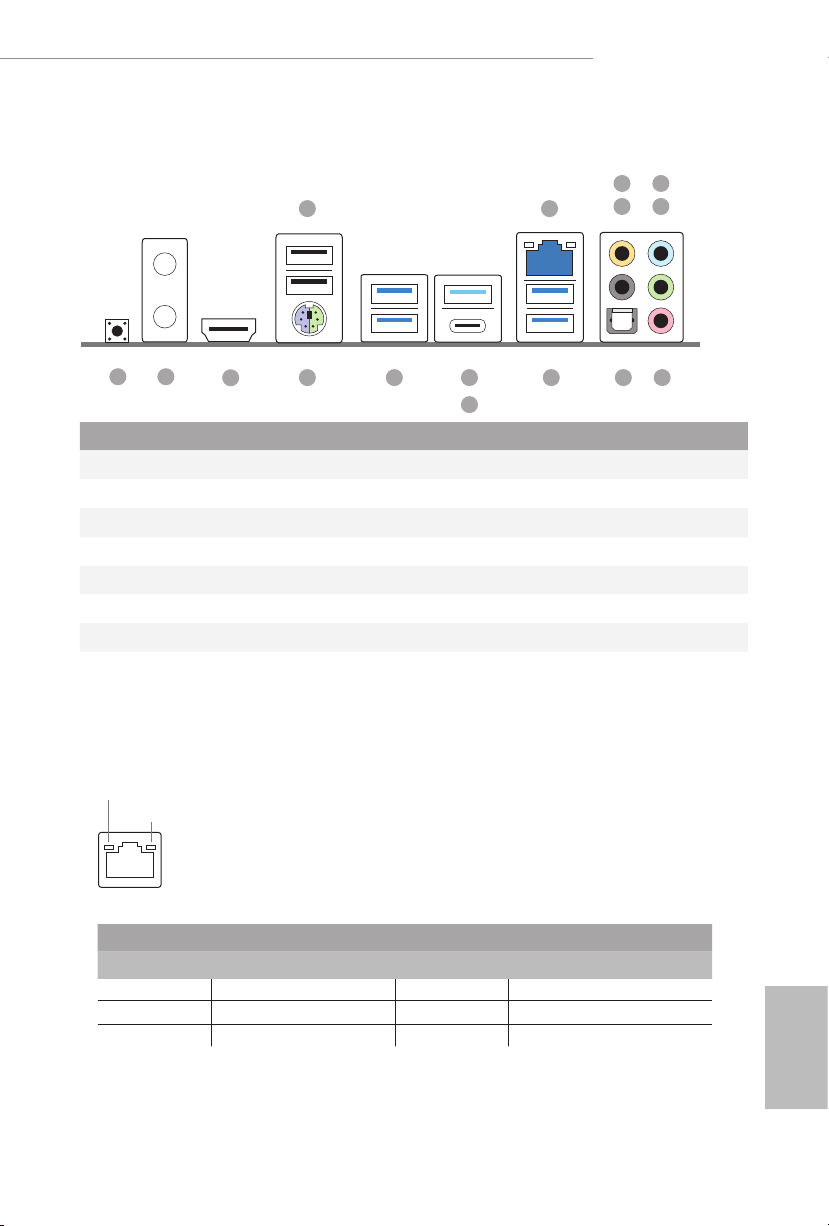

I/O Panel

No. Description No. Description

1 USB 2.0 Ports (USB12) 9 USB 3.2 Gen1 Ports (USB3_34)

2 2.5G LAN RJ-45 Port* 10 USB 3.2 Gen2 Type-A Port (USB31_TA_1)***

3 Central / Bass (Orange) 11 USB 3.2 Gen2 Type-C Port (USB31_TC_1)

4 Rear Speaker (Black) 12 USB 3.2 Gen1 Ports (USB3_12)***

5 Line In (Light Blue) 13 PS/2 Mouse/Keyboard Port (PS2_KB1)

6 Front Speaker (Lime)** 14 HDMI Port

7Microphone (Pink) 15 Antenna Bracket

8 Optical SPDIF Out Port 16 BIOS Flashback Button

ACT/LINK LED

SPEED LED

LAN Port

* ere are two LEDs on each LAN port. Please refer to the table below for the LAN port LED indications.

Activity / Link LED Speed LED

Status Description Status Description

O No Link O 10Mbps connection

Blinking Data Activity Orange 100Mbps/1Gbps connection

On Link Green 2.5Gbps connection

7810

912

16 13

English

** If you use a 2-channel speaker, please connect the speaker’s plug into “Front Speaker Jack”. See the table below

for connection details in accordance with the type of speaker you use.

Audio Output

Channels

Front Speaker

(No. 6)

Rear Speaker

(No. 4)

Central / Bass

(No. 3)

Line In

(No. 5)

2V -- -- --

4V V -- --

6V V V --

8V V V V

*** USB3_2 and USB31_TA_1 are the Lightning Gaming Ports.

English

X570S PG Riptide

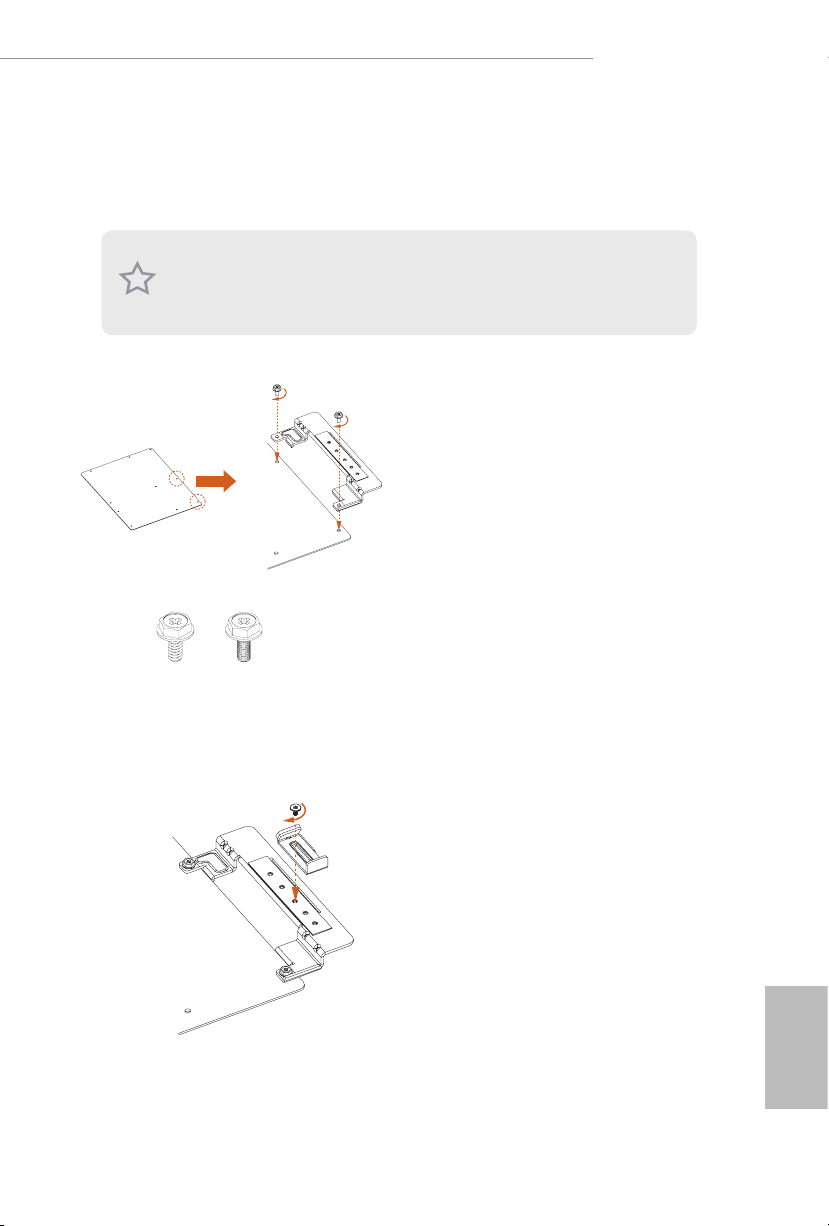

Graphics Card Holder

Installing the Graphics Card Holder

Step 1

Secure the Graphics Card Holder to the chassis

with 2 screws.

*ere are two types of screws in the package.

Please use the appropriate type based on the

standos on the motherboard tray of your PC

case.

Step 2

Aer installing your graphics card, place the

bracket in the proper position to make sure that

it holds your graphics card in place.

en secure the bracket to the Graphics Card

Holder with 1 screw.

Before installing the Graphics Card Holder , please make sure that your motherboard is

properly installed into a PC case.

Type A Type B

English

Chapter 1 Introduction

ank you for purchasing ASRock X570S PG Riptide motherboard, a reliable

motherboard produced under ASRock’s consistently stringent quality control.

It delivers excellent performance with robust design conforming to ASRock’s

commitment to quality and endurance.

1.1 Package Contents

• ASRock X570S PG Riptide Motherboard (ATX Form Factor)

• ASRock X570S PG Riptide Quick Installation Guide

• ASRock X570S PG Riptide Support CD

• 1 x I/O Panel Shield

• 2 x Serial ATA (SATA) Data Cables (Optional)

• 1 x Graphics Card Holder (Optional)

• 3 x Screws for M.2 Socket (Optional)

• 1 x Stando for M.2 Socket (Optional)

Because the motherboard specications and the BIOS soware might be updated, the

content of this documentation will be subject to change without notice. In case any modi-

cations of this documentation occur, the updated version will be available on ASRock’s

website without further notice. If you require technical support related to this mother-

board, please visit our website for specic information about the model you are using. You

may nd the latest VGA cards and CPU support list on ASRock’s website as well. ASRock

website http://www.asrock.com.

English

X570S PG Riptide

1.2 Specications

Platform • ATX Form Factor

• Solid Capacitor design

• 2oz Copper PCB

CPU • Supports AMD AM4 Socket RyzenTM 2000, 3000, 4000

G-Series and 5000 Series Desktop Processors

• Digi Power design

• 10 Power Phase design

Chipset • AMD X570

Memory • Dual Channel DDR4 Memory Technology

• 4 x DDR4 DIMM Slots

• AMD Ryzen series CPUs (Vermeer) support DDR4

5000+(OC)/4933(OC)/4866(OC)/4800(OC)/4733(OC)/4666

(OC)/4600(OC)/4533(OC)/4466(OC)/4400(OC)/4333(OC)/4

266(OC)/4200(OC)/4133(OC)/4000(OC)/3866(OC)/3800

(OC)/3733(OC)/3600(OC)/3466(OC)/3200/2933/2667/

2400/2133 ECC & non-ECC, un-buered memory*

• AMD Ryzen series CPUs (Matisse) support DDR4 5000+

(OC)/4933(OC)/4866(OC)/4800(OC)/4733(OC)/4666(OC)/

4600(OC)/4533(OC)/4466(OC)/4400(OC)/4333(OC)/4266

(OC)/4200(OC)/4133(OC)/4000(OC)/3866(OC)/3800(OC)/

3733(OC)/3600(OC)/3466(OC)/3200/2933/2667/2400/2133

ECC & non-ECC, un-buered memory*

• AMD Ryzen series APUs (Renoir) support DDR4 5000+

(OC)/4933(OC)/4866(OC)/4800(OC)/4733(OC)/4666(OC)/

4600(OC)/4533(OC)/4466(OC)/4400(OC)/4333(OC)/4266

(OC)/4200(OC)/4133(OC)/4000(OC)/3866(OC)/3800(OC)/

3733(OC)/3600(OC)/3466(OC)/3200/2933/2667/2400/2133

ECC & non-ECC, un-buered memory*

• AMD Ryzen series CPUs (Pinnacle Ridge) support DDR4

3600+(OC)/3466(OC)/3200(OC)/2933/2667/2400/2133 ECC

& non-ECC, un-buered memory*

English

• AMD Ryzen series APUs (Picasso) support DDR4 3466+

(OC)/3200(OC)/2933/2667/2400/2133 non-ECC, un-buered

memory*

* For Ryzen Series APUs (Picasso), ECC is only supported with

PRO CPUs.

* Please refer to Memory Support List on ASRock’s website for

more information. (http://www.asrock.com/)

* Please refer to page 24 for DDR4 UDIMM maximum

frequency support.

• Max. capacity of system memory: 128GB

• Supports Extreme Memory Prole (XMP) memory modules

• 15μ Gold Contact in DIMM Slots

Expansion

Slot

AMD Ryzen series CPUs (Vermeer, Matisse)

• 1 x PCI Express 4.0 x16 Slot (x16 (PCIE1))*

AMD Ryzen series CPUs (Renoir, Pinnacle Ridge)

• 1 x PCI Express 3.0 x16 Slot (x16 (PCIE1)*

AMD Ryzen series APUs (Picasso)

• 1 x PCI Express 3.0 x16 Slot (x8 (PCIE1))*

AMD X570 Chipset

• 2 x PCI Express 4.0 x16 Slots (x4 (PCIE4) / x2 (PCIE6))*

* Supports NVMe SSD as boot disks

• 3 x PCI Express 4.0 x1 Slots

• Supports AMD Quad CrossFireXTM and CrossFireXTM

• 15μ Gold Contact in VGA PCIe Slot (PCIE1)

• 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe

WiFi module

Graphics • Integrated AMD RadeonTM Vega Series Graphics in Ryzen

Series APU*

* Actual support may vary by CPU

• DirectX 12, Pixel Shader 5.0

• Shared memory default 2GB. Max Shared memory supports

up to 16GB.

* e Max shared memory 16GB requires 32GB system memory

installed.

• Supports HDMI 2.1 with max. resolution up to 4K x 2K

(4096x2160) @ 60Hz

Altri manuali per X570S PG Riptide

Indice

Lingue:

Altri manuali ASROCK Scheda madre

ASROCK

ASROCK W480 Creator Manuale utente

ASROCK

ASROCK A75iCafe Manuale utente

ASROCK

ASROCK A75M-ITX Manuale utente

ASROCK

ASROCK A75 Extreme6 Manuale utente

ASROCK

ASROCK N68C-GS FX Manuale utente

ASROCK

ASROCK 4Core1600Twins-P35 Manuale utente

ASROCK

ASROCK Z68 PRO3-M - Manuale utente

ASROCK

ASROCK 870iCafe Manuale utente

ASROCK

ASROCK Z790 Taichi Carrara Manuale utente

ASROCK

ASROCK A780FULLDISPLAYPORT Manuale utente

ASROCK

ASROCK Z490 Phantom Gaming 4/2.5G Manuale utente

ASROCK

ASROCK AD410PV - V1.0 Manuale utente

ASROCK

ASROCK FM2A75M-DGS R2.0 Manuale utente

ASROCK

ASROCK B450 Pro4 Manuale utente

ASROCK

ASROCK IMB-A180-H Manuale utente

ASROCK

ASROCK Phantom Gaming B650M PG LIGHTING Manuale utente

ASROCK

ASROCK Z87 Extreme6 Manuale utente

ASROCK

ASROCK K10N7SLI Manuale utente

ASROCK

ASROCK H370M-ITX/ac Manuale utente

ASROCK

ASROCK PRO BTC+ Series Manuale utente

ASROCK

ASROCK P85 Pro3 Manuale utente

ASROCK

ASROCK K7 JUMPER Manuale utente

ASROCK

ASROCK P41C-DE Manuale utente

ASROCK

ASROCK B75M Manuale utente

Manuali Scheda madre popolari di altre marche

DFI

DFI SD170 Manuale utente

Asus

Asus P2L97A Manuale utente

Winmate

Winmate IC70 Manuale utente

Asus

Asus MES-B Manuale utente

Grantech

Grantech SYS8F377VGGA-3OMN Manuale utente

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuale utente

Gigabyte

Gigabyte GA-9IVDT Manuale utente

Texas Instruments

Texas Instruments ADS8372EVM Manuale utente

Commell

Commell MS-C73 Manuale utente

IBT Technologies

IBT Technologies MB860 Manuale utente

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuale utente

Biostar

Biostar M7VIT Bravo Istruzioni per l'uso e l'installazione

Intel

Intel D33217CK Manuale utente

Asus

Asus F1A55-M LX PLUS R2.0 Manuale utente

EPC

EPC EPC9147C Manuale utente

Asus

Asus EX-B760M-V5 D4 Manuale utente

EPOX

EPOX MU-8KHA0010 Manuale utente

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manuale utente
