Motherboard Layout

1 SATA2 Connector (SATA_3, Black)

2 SATA3 Connector (SATA3_1, Gray)

3 SATA3 Connector (SATA3_0, Gray)

4 SATA2 Connector (SATA_2, Black)

5 USB 2.0 Header (USB2_3, Black)

6 USB 2.0 Header (USB4_5, Black)

7 Consumer Infrared Module Header

(CIR1, Gray)

8 USB 3.0 Header (USB3_3_4, Black)

9 SPI Flash Memory (64Mb)

10 CPU Fan Connector (CPU_FAN1)

11 Clear CMOS Jumper (CLRCMOS1)

12 2 x 240-pin DDR3 DIMM Slots

(DDR3_A1, DDR3_B1, Black)

13 Chassis Fan Connector (CHA_FAN1)

14 mini-PCI Express Slot (MINI_PCIE1)

15 WiFi-802.11n Module

16 ATX Power Connector (ATXPWR1)

17 System Panel Header (PANEL1, Black)

18 PCI Express 3.0 x16 Slot (PCIE1, Black)

19 Front Panel Audio Header

(HD_AUDIO1, Black)

20 1155-Pin CPU Socket

21 Intel Z77 Chipset

22 ATX 12V Power Connector (ATX12V1)

Intel

Z77

Fast RAM

Z77E-ITX

PCIE1

17.0cm (6.7 in)

DDR3_A1 (64 bit, 240-pin module)

DDR3_B1 (64 bit, 240-pin module)

ATXPWR1

DDR3 2800+

CMOS

Battery

USB3_3_4

64Mb

BIOS

AUDIO

CODEC

LAN

PHY

RoHS

Front USB 3.0

PCI Express 3.0

CLRCMOS1

SATA3_1

SATA3_0

SATA_3

SATA_2

USB2_3

CIR1

USB4_5

HDLED RESET

PLED PWRBTN

PANEL1

HD_AUDIO1

ATX12V1

CHA_FAN1

CPU_FAN1

MINI_PCIE1

USB 3.0

T: USBA1

B: USBA2

PS2

Keyboard/

Mouse

DVI1

HDMI1

DP1

Clr

CMOS

USB 2.0

T: USB0

B: USB1

ESATA1

Top:

RJ-45

USB 3.0

T: USB1

B: USB2

Top:

CTR BASS

Center:

REAR SPK

Bottom:

Optical

SPDIF

Top:

LINE IN

Center:

FRONT

Bottom:

MIC IN

WiFi-802.11n

Module

12345611

78912 13

ASRock Z77E-ITX Motherboard

English

23 mSATA Connector (Black)

17.0cm (6.7 in)

mSATA

4ASRock Z77E-ITX Motherboard

English

I/O Panel

* There are two LED next to the LAN port. Please refer to the table below for the LAN port LED

indications.

LAN Port LED Indications

Activity/Link LED SPEED LED

Status Description Status Description

Off No Link Off 10Mbps connection

Blinking Data Activity Orange 100Mbps connection

On Link Green 1Gbps connection

1 PS/2 Keyboard/Mouse Port (Purple/Green)

2 Antenna Ports

3 DisplayPort (DP1)

4 USB 2.0 Ports (USB01)

* 5 LAN RJ-45 Port

6 Central / Bass (Orange)

7 Rear Speaker (Black)

8 Optical SPDIF Out Port

9 Line In (Light Blue)

ACT/LINK

LED

SPEED

LED

LAN Port

** If you use 2-channel speaker, please connect the speaker’s plug into “Front Speaker Jack”.

See the table below for connection details in accordance with the type of speaker you use.

TABLE for Audio Output Connection

Audio Output Channels Front Speaker Rear Speaker Central / Bass Line in

(No. 10) (No. 7) (No. 6) (No. 9)

2 V -- -- --

4 V V -- --

6 V V V --

8 V V V V

** 10 Front Speaker (Lime)

11 Microphone (Pink)

12 USB 3.0 Ports (USB3_12)

13 eSATA2 Connector (ESATA1)

14 Clear CMOS Switch (CLRCBTN)

15 HDMI Port (HDMI1)

16 DVI-I Port (DVI1)

17 USB 3.0 Ports (USB3_A1A2)

141516

ASRock Z77E-ITX Motherboard

English

To enable Multi-Streaming function, you need to connect a front panel audio cable to the front

panel audio header. After restarting your computer, you will ﬁnd “Mixer” tool on your system.

Please select “Mixer ToolBox” , click “Enable playback multi-streaming”, and click

“ok”. Choose “2CH”, “4CH”, “6CH”, or “8CH” and then you are allowed to select “Realtek HDA

Primary output” to use Rear Speaker, Central/Bass, and Front Speaker, or select “Realtek

HDA Audio 2nd output” to use front panel audio.

6ASRock Z77E-ITX Motherboard

English

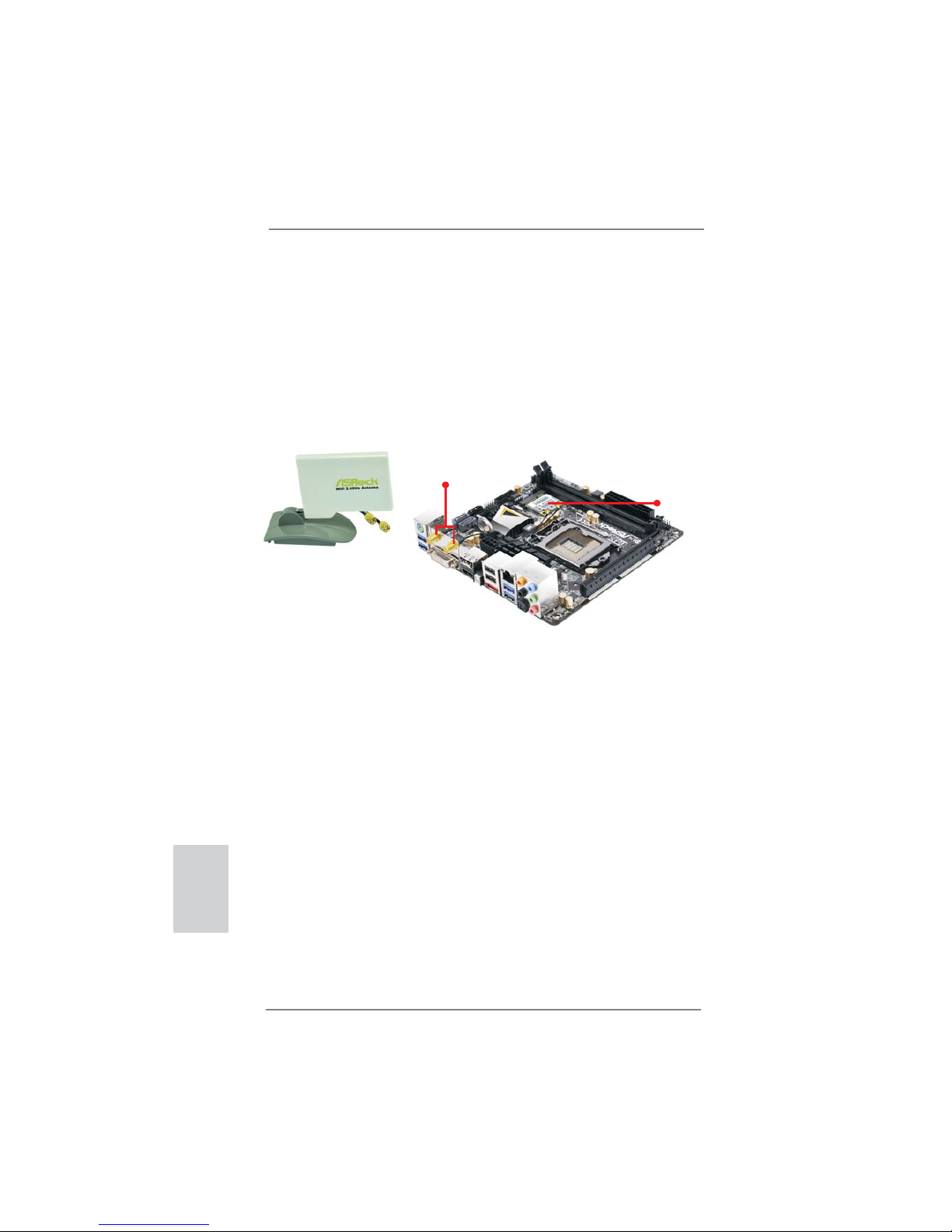

WiFi-802.11n Module and ASRock WiFi

2.4GHz Antenna

WiFi-802.11n module is an easy-to-use wireless local area network (WLAN) adapter

to support WiFi function. With WiFi-802.11n module, you can easily create a

wireless environment and enjoy the convenience of wireless network

connectivity. Therefore, from anywhere within the signal range, you will be able to

play LAN games, connect to the internet, access and share printers, and make

Internet phone calls easily.

WiFi-802.11n Module

Antenna Ports

ASRock WiFi 2.4GHz Antenna

WiFi-802.11n module supports Station mode. You can use the wireless function to

connect the access point (AP), or connect with other stations in the wireless range

instead. There are two choices provided in station mode: Infrastructure mode

and Ad-hoc mode. Please read below introduction for the differences of these two

modes.

Infrastructure Mode

If you have a present access point (AP) in your wireless network environment for

this station to join, you can set up WiFi-802.11n module in Infrastructure mode. In

this mode, WiFi-802.11n module acts as a wireless adapter. In other words, it is

centered on an AP that provides Internet access and LAN communication for the

wireless stations, such as PC, notebook and other devices.

Ad-hoc Mode

If you don’t have a present access point in your wireless network environment, you

can set up WiFi-802.11n module in Ad-hoc mode. The wireless network brings

together workstations, PC, notebook and other devices for wireless communication.

* The transmission speed may vary according to the environment.

ASRock Z77E-ITX Motherboard

1. Introduction

Thank you for purchasing ASRock Z77E-ITX motherboard, a reliable motherboard

produced under ASRock’s consistently stringent quality control. It delivers excellent

performance with robust design conforming to ASRock’s commitment to quality and

endurance.

This Quick Installation Guide contains introduction of the motherboard and step-by-

step installation guide. More detailed information of the motherboard can be found

in the user manual presented in the Support CD.

Because the motherboard speciﬁcations and the BIOS software might be

updated, the content of this manual will be subject to change without no-

tice. In case any modiﬁcations of this manual occur, the updated version

will be available on ASRock website without further notice. You may ﬁnd

the latest VGA cards and CPU support lists on ASRock website as well.

ASRock website http://www.asrock.com

If you require technical support related to this motherboard, please visit

our website for speciﬁc information about the model you are using.

www.asrock.com/support/index.asp

1.1 Package Contents

ASRock Z77E-ITX Motherboard

(Mini-ITX Form Factor: 6.7-in x 6.7-in, 17.0 cm x 17.0 cm)

ASRock Z77E-ITX Quick Installation Guide

ASRock Z77E-ITX Support CD

2 x Serial ATA (SATA) Data Cables (Optional)

1 x ASRock WiFi 2.4GHz Antenna (Optional)

1 x DVI-to-D-Sub Converter (Optional)

1 x I/O Panel Shield

English

ASRock Reminds You...

To get better performance in Windows® 7 / 7 64-bit / VistaTM / VistaTM 64-

bit, it is recommended to set the BIOS option in Storage Conﬁguration to

AHCI mode. For the BIOS setup, please refer to the “User Manual” in our

support CD for details.

8ASRock Z77E-ITX Motherboard

English

1.2 Specifications

Platform - Mini-ITX Form Factor: 6.7-in x 6.7-in, 17.0 cm x 17.0 cm

- Premium Gold Capacitor design (100% Japan-made

high-quality Conductive Polymer Capacitors)

CPU - Supports 3rd and 2nd Generation Intel®CoreTM i7 / i5 / i3 in

LGA1155 Package

- Digi Power Design

- 6 + 2 Power Phase Design

- Supports Intel®Turbo Boost 2.0 Technology

- Supports Intel®K-Series unlocked CPU

- Supports Hyper-Threading Technology (see CAUTION 1)

- Supports Intel®Rapid Start Technology and Smart Connect

Technology with Intel®Ivy Bridge CPU

Chipset - Intel®Z77

Memory - Dual Channel DDR3 Memory Technology (see CAUTION 2)

- 2 x DDR3 DIMM slots

- Supports DDR3 2800+(OC)/2400(OC)/2133(OC)/1866(OC)/

1600/1333/1066 non-ECC, un-buffered memory

- Max. capacity of system memory: 16GB (see CAUTION 3)

- Supports Intel®Extreme Memory Proﬁle (XMP)1.3/1.2

Expansion Slot - 1 x PCI Express 3.0 x16 slot (PCIE1: x16 mode)

(see CAUTION 4)

* PCIE 3.0 is only supported with Intel®Ivy Bridge CPU. With

Intel®Sandy Bridge CPU, it only supports PCIE 2.0.

- 1 x mini-PCI Express slot: For WiFi module

Graphics * Intel®HD Graphics Built-in Visuals and the VGA outputs can

be supported only with processors which are GPU

integrated.

- Supports Intel®HD Graphics Built-in Visuals: Intel®Quick

Sync Video 2.0, Intel®InTruTM 3D, Intel®Clear Video HD

Technology, Intel®InsiderTM, Intel®HD Graphics 2500/4000

- Pixel Shader 5.0, DirectX 11 with Intel®Ivy Bridge CPU.

Pixel Shader 4.1, DirectX 10.1 with Intel®Sandy Bridge

CPU.

- Max. shared memory 1760MB (see CAUTION 5)

- Multi VGA Output options: DVI, HDMI, DisplayPort and

D-Sub with the bundled DVI-to-D-Sub Converter

(see CAUTION 6)

- Supports HDMI 1.4a Technology with max. resolution up to

1920x1200 @ 60Hz

ASRock Z77E-ITX Motherboard

English

- Supports DVI with max. resolution up to 1920x1200 @ 60Hz

- Supports DisplayPort with max. resolution up to 2560x1600

@ 60Hz

- Supports D-Sub with max. resolution up to 2048x1536 @

75Hz

- Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and

HBR (High Bit Rate Audio) with HDMI (Compliant HDMI

monitor is required) (see CAUTION 7)

- Supports HDCP function with DVI, HDMI and DisplayPort

ports

- Supports Full HD 1080p Blu-ray (BD) / HD-DVD playback

with DVI, HDMI and DisplayPort ports

Audio - 7.1 CH HD Audio with Content Protection

(Realtek ALC898 Audio Codec)

- Premium Blu-ray audio support

- Supports THX TruStudioTM

LAN - PCIE x1 Gigabit LAN 10/100/1000 Mb/s

- Broadcom BCM57781

- Supports Wake-On-LAN

- Supports Energy Efﬁcient Ethernet 802.3az

- Supports PXE

Wireless LAN WiFi-802.11n module

- 300Mbps IEEE 802.11n / 54Mbps IEEE 802.11g /

11Mbps IEEE 802.11b

- Supports Station mode (Infrastructure mode and Ad-hoc

mode)

Rear Panel I/O I/O Panel

- 2 x Antenna Ports

- 1 x PS/2 Mouse/Keyboard Port

- 1 x DVI-I Port

- 1 x HDMI Port

- 1 x DisplayPort

- 1 x Optical SPDIF Out Port

- 2 x Ready-to-Use USB 2.0 Ports

- 1 x eSATA2 Connector

- 4 x Ready-to-Use USB 3.0 Ports

- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED

LED)

- 1 x Clear CMOS Switch with LED

- HD Audio Jack: Rear Speaker/Central/Bass/Line in/Front

Speaker/Microphone (see CAUTION 8)

10 ASRock Z77E-ITX Motherboard

English

SATA3 - 2 x SATA3 6.0 Gb/s connectors, support RAID (RAID 0,

RAID 1, RAID 5, RAID 10, Intel Rapid Storage and Intel

Smart Response Technology), NCQ, AHCI and Hot Plug

functions

USB3.0 - 2 x Rear USB 3.0 ports by Intel®Z77, support USB 1.0/2.0/3.0

up to 5Gb/s

- 2 x Rear USB 3.0 ports by ASMedia ASM1042, support USB

1.0/2.0/3.0 up to 5Gb/s

- 1 x Front USB 3.0 header (supports 2 USB 3.0 ports) by

Intel®Z77, supports USB 1.0/2.0/3.0 up to 5Gb/s

Connector - 2 x SATA2 3.0 Gb/s connectors, support RAID (RAID 0,

RAID 1, RAID 5, RAID 10, Intel Rapid Storage and Intel

Smart Response Technology), NCQ, AHCI and Hot Plug

functions

- 1 x mSATA 3.0 Gb/s connector (Solid-State Drive

connector), supports RAID (RAID 0, RAID 1, RAID 5, RAID

10, Intel Rapid Storage and Intel Smart Response

Technology), NCQ, AHCI functions and Full-size mini-PCI

Express modules

- 2 x SATA3 6.0Gb/s connectors

- 1 x CIR header

- CPU/Chassis FAN connector

- 24 pin ATX power connector

- 8 pin 12V power connector

- Front panel audio connector

- 2 x USB 2.0 headers (support 4 USB 2.0 ports)

- 1 x USB 3.0 header (supports 2 USB 3.0 ports)

BIOS Feature - 64Mb AMI UEFI Legal BIOS with GUI support

- Supports “Plug and Play”

- ACPI 1.1 Compliance Wake Up Events

- Supports jumperfree

- SMBIOS 2.3.1 Support

- CPU Core, IGPU, DRAM, VCCSA Voltage Multi-adjustment

Support CD - Drivers, Utilities, AntiVirus Software (Trial Version),

CyberLink MediaEspresso 6.5 Trial, ASRock MAGIX

Multimedia Suite - OEM

Unique Feature - ASRock Extreme Tuning Utility (AXTU) (see CAUTION 9)

- ASRock Instant Boot

- ASRock Instant Flash (see CAUTION 10)

- ASRock APP Charger (see CAUTION 11)

- ASRock SmartView (see CAUTION 12)

Altri manuali per Z77E-ITX

Indice

Altri manuali ASROCK Scheda madre

ASROCK

ASROCK K7UPGRADE - Manuale utente

ASROCK

ASROCK N3700-ITX Manuale utente

ASROCK

ASROCK ALIVENF6G-GLAN Manuale utente

ASROCK

ASROCK 770DE3L - AMD RAID Manuale utente

ASROCK

ASROCK H97M Pro4 Manuale utente

ASROCK

ASROCK FM2A75M-ITX Manuale utente

ASROCK

ASROCK H55M Manuale utente

ASROCK

ASROCK Q1900B-ITX Manuale utente

ASROCK

ASROCK 4CORE1333-VIIV - V1.0 Manuale utente

ASROCK

ASROCK IMB-1001 Manuale utente

ASROCK

ASROCK P55DE3 Manuale utente

ASROCK

ASROCK H81M-VG4 R3.0 Manuale utente

ASROCK

ASROCK 4CORE1333-FULLHD - V1.1 Manuale utente

ASROCK

ASROCK P81 Pro3 Manuale utente

ASROCK

ASROCK X470 Master SLI Manuale utente

ASROCK

ASROCK B85M Pro3 Manuale utente

ASROCK

ASROCK H110M-DVP Manuale utente

ASROCK

ASROCK IMB-1710 Manuale utente

ASROCK

ASROCK H77M-ITX Manuale utente

ASROCK

ASROCK Z77 Extreme11 Manuale utente

ASROCK

ASROCK J1900D2Y Manuale utente

ASROCK

ASROCK Q270 Pro BTC+ Manuale utente

ASROCK

ASROCK H410M-HDVP Manuale utente

ASROCK

ASROCK H310D4-P1 Manuale utente

Manuali Scheda madre popolari di altre marche

DFI

DFI SD170 Manuale utente

Asus

Asus P2L97A Manuale utente

Winmate

Winmate IC70 Manuale utente

Asus

Asus MES-B Manuale utente

Grantech

Grantech SYS8F377VGGA-3OMN Manuale utente

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuale utente

Gigabyte

Gigabyte GA-9IVDT Manuale utente

Texas Instruments

Texas Instruments ADS8372EVM Manuale utente

Commell

Commell MS-C73 Manuale utente

IBT Technologies

IBT Technologies MB860 Manuale utente

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuale utente

Biostar

Biostar M7VIT Bravo Istruzioni per l'uso e l'installazione

Intel

Intel D33217CK Manuale utente

Asus

Asus F1A55-M LX PLUS R2.0 Manuale utente

EPC

EPC EPC9147C Manuale utente

Asus

Asus EX-B760M-V5 D4 Manuale utente

EPOX

EPOX MU-8KHA0010 Manuale utente

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manuale utente
