Asus WL-138G V2 Manuale utente

QE2270 / Sep 2005

Quick Start Guide

Wireless Local Area Network Card

WL-138g V2 / WL-138gE

(For 802.11g & 802.11b Wireless Networks)

¤

2ASUS WLAN Card

Quick Install Guide

Quick Install

System Requirements

To begin using the ASUS WLAN Card, you must have the following

minimum requirements:

• Windows XP/2000/ME/98SE

• Standard 32-bit PCI Slot

• 32MB system memory or larger

• 300MHz processor or higher

The Product Package

When you receive the ASUS WLAN Card package, it should contain the

following items:

• ASUS WLAN PCI Card

• DipoleAntenna

• ASUS WLAN Card Quick Start Guide

• CD-ROM Disc (Drivers, Utilities, Documentation)

Note: If any of the above items are not included or damaged, con-

tact your local dealer for instructions.

Installation Procedures

Important: Install theASUS WLAN card utilities before inserting the

ASUS WLAN Card into your computer.

Follow these instructions to setup theASUS WLAN card.

1. Install theASUS WLAN card utilities and driver from the support CD.

2. Insert theASUS WLAN card into your computer.

ASUS WLAN Card 3

Quick Install Guide

Quick Install

6.WhenSetupis complete,click Finish toexit

the installation wizard.

7. When the program is launched for the first

time, you will be asked which function to

use. Select to use our WLAN utilities for

more functionality.

Installing the ASUS WLAN Card Utilities & Driver

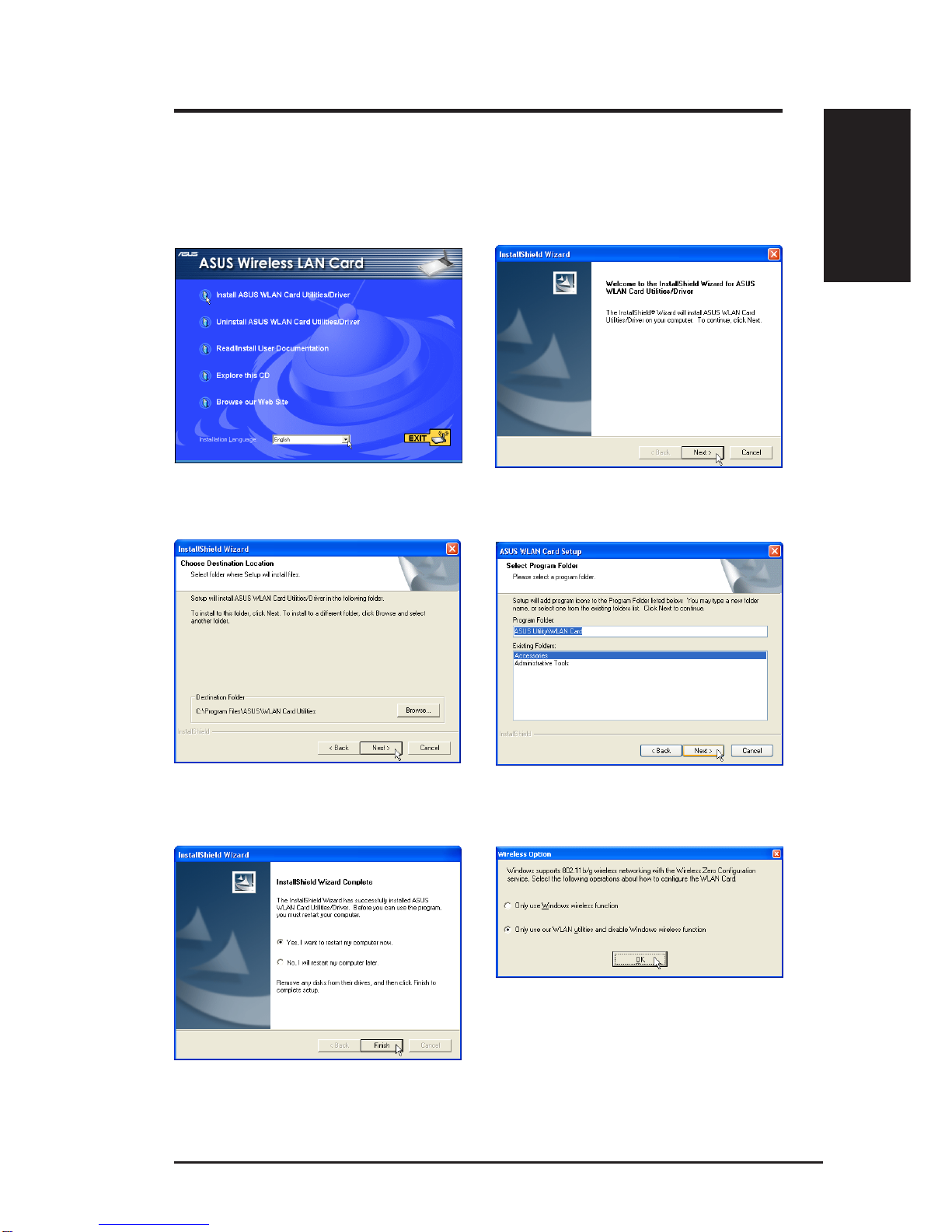

1. Insert theASUS WLAN Card support CD and an autorun menu will appear. If your autorun is

disabled, double click SETUP.EXE in the root directory of the support CD.

3. Click Next on the Welcome screen.

4. Click Next to use the default Destination

Folder or click Browse to select another

folder.

5. Click Next to place icons in the default

program folder or type another folder name.

2. From the autorun menu, select your

language and click Install ASUS WLAN

Card Utilities / Driver.

4ASUS WLAN Card

Quick Install Guide

Quick Install

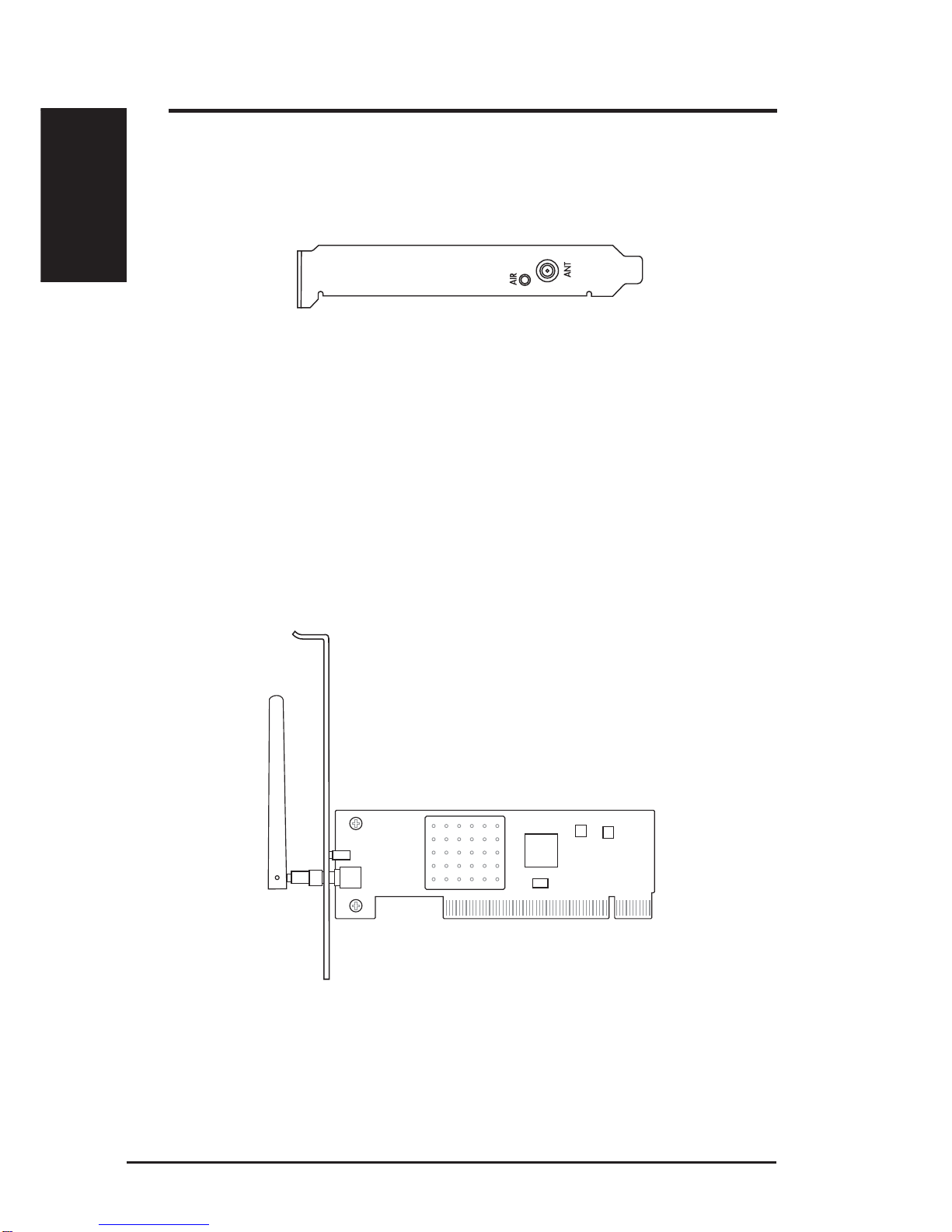

Reading the ASUS WLAN Status Indicators

TheASUS WLAN card consists of oneAIR indicator that shows the status of

theASUS WLAN Card.

OFF: No wireless activity.

Blinking: Transmitting or receiving wireless data.

Orientating the Antenna

TheASUS WLAN Card has one external antenna. It is recommended that you

adjust the external antenna straight up for maximum range and higher link

quality.

ASUS WLAN Card 5

Quick Install Guide

Quick Install

3. Encryption settings must also match those

set in the access point. Talk with your net-

work administrator if necessary.

4. You can also see the connection quality on

the “Connection” page. Click OK to exit the

utility.

5. ClickApplytosaveyoursettingsandcheck

the “Status” page to see the “Association

State”. It should show “Connected -

xx:xx:xx:xx:xx:xx”.

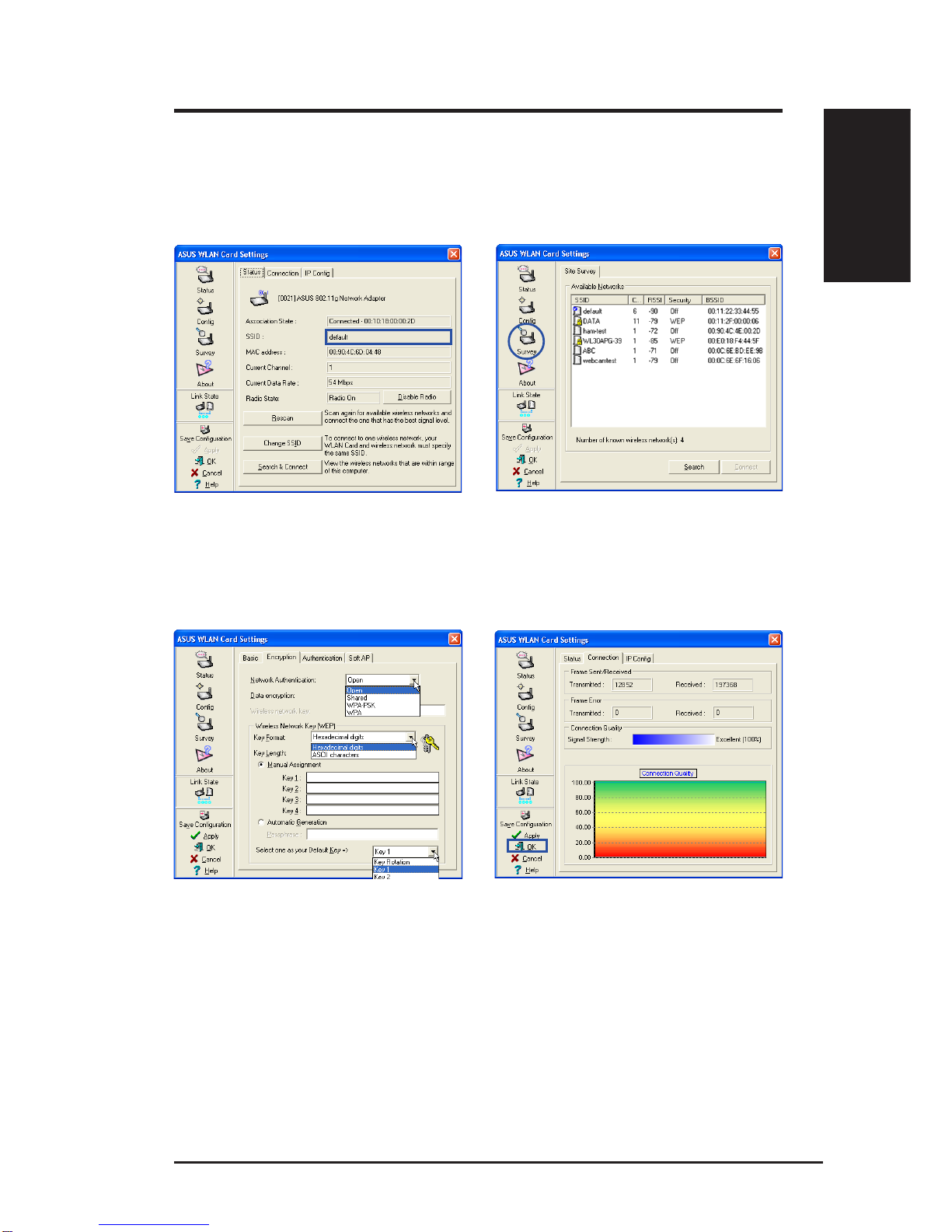

ASUS WLAN Utility Quick Start

After installing the ASUS WLAN driver and utility, you may need to make

some settings before being able to use your wireless connection.

1. Set the Network Name (SSID) to the same

nameastheSSID set inyouraccesspoint. 2. Use “Site Survey” if you don’t know the

name of your access point(s).
