Asus WL-100GE Manuale utente

User’s Manual

Wireless Local Area Network Card

WL-100gE

(For 802.11g & 802.11b Wireless Networks)

PWR

AIR

E2159 / Jul 2005

2ASUS WLAN Card

No part of this manual, including the products and software described in it,

may be reproduced, transmitted, transcribed, stored in a retrieval system, or

translatedintoanylanguageinanyformorbyanymeans,exceptdocumentation

kept by the purchaser for backup purposes, without the express written

permission ofASUSTeK COMPUTER INC. (“ASUS”).

ASUS PROVIDES THIS MANUAL “AS IS” WITHOUT WARRANTY OF

ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING BUT NOT

LIMITED TO THE IMPLIED WARRANTIES OR CONDITIONS OF

MERCHANTABILITYORFITNESS FORAPARTICULAR PURPOSE. IN

NO EVENT SHALLASUS, ITS DIRECTORS, OFFICERS, EMPLOYEES

ORAGENTSBELIABLEFORANYINDIRECT,SPECIAL,INCIDENTAL,

ORCONSEQUENTIALDAMAGES(INCLUDINGDAMAGESFORLOSS

OF PROFITS, LOSS OF BUSINESS, LOSS OF USE OR DATA,

INTERRUPTION OF BUSINESS AND THE LIKE), EVEN IF ASUS HAS

BEENADVISED OFTHE POSSIBILITYOFSUCH DAMAGESARISING

FROM ANY DEFECT OR ERROR IN THIS MANUAL OR PRODUCT.

Product warranty or service will not be extended if: (1) the product is repaired,

modified or altered, unless such repair, modification of alteration is authorized

in writing by ASUS; or (2) the serial number of the product is defaced or

missing.

Products and corporate names appearing in this manual may or may not be

registeredtrademarksor copyrightsoftheir respectivecompanies,and areused

only for identification or explanation and to the owners’ benefit, without intent

to infringe.

SPECIFICATIONSANDINFORMATIONCONTAINEDINTHISMANUAL

ARE FURNISHED FOR INFORMATIONAL USE ONLY, AND ARE

SUBJECTTOCHANGEATANYTIMEWITHOUTNOTICE,ANDSHOULD

NOTBE CONSTRUEDASACOMMITMENTBYASUS.ASUSASSUMES

NO RESPONSIBILITY OR LIABILITY FOR ANY ERRORS OR

INACCURACIES THAT MAYAPPEAR IN THIS MANUAL, INCLUDING

THE PRODUCTSAND SOFTWARE DESCRIBED IN IT.

ASUS WLAN Card 3

ASUSTeK COMPUTER INC.

Company address: 15 Li-Te Road, Beitou, Taipei 11259

General (tel): +886-2-2894-3447

Web site address: www.asus.com.tw

General (fax): +886-2-2894-7798

General email: [email protected]

Technical support

General support (tel):+886-2-2894-3447

Online support: http://support.asus.com

ASUS COMPUTER INTERNATIONAL (America)

Company address: 44370 Nobel Drive, Fremont, CA 94538, USA

General (fax): +1-510-608-4555

Web site address: usa.asus.com

Technical support

General support (tel):+1-502-995-0883

Online support: http://support.asus.com

Notebook (tel): +1-510-739-3777 x5110

Support (fax): +1-502-933-8713

ASUS COMPUTER GmbH (Germany & Austria)

Company address: Harkort Str. 25, D-40880 Ratingen, Germany

General (tel): +49-2102-95990

Web site address: www.asuscom.de

General (fax): +49-2102-959911

Online contact: www.asuscom.de/sales

Technical support

Component support: +49-2102-95990

Online support: http://support.asus.com

Notebook support: +49-2102-959910

Support (fax): +49-2102-959911

4ASUS WLAN Card

Table of Contents

1. Introduction ............................................................................. 7

Overview .............................................................................................. 7

2. Installation ............................................................................... 8

System Requirements .......................................................................... 8

Installation Procedures......................................................................... 9

Installing the WLAN utilities and driver ........................................... 9

Orientating the Antenna ................................................................ 10

Reading the WLAN Status Indicators ........................................... 11

One Touch Wizard (new wireless LAN) ........................................ 12

One Touch Wizard (existing LAN)................................................. 13

Configuring the WLAN utility......................................................... 14

Soft AP (Windows XP Only) ............................................................... 15

3. Software Reference .............................................................. 19

Chapter Overview............................................................................... 19

Windows XP Wireless Options ..................................................... 19

WLAN Control Center......................................................................... 20

Wireless Settings Utility...................................................................... 23

Status - Status Tab ....................................................................... 23

Status - Connection ...................................................................... 26

Status - IP Config.......................................................................... 27

Config - Basic ............................................................................... 28

Config - Encryption ....................................................................... 30

Status - Advanced......................................................................... 33

Survey - Site Survey ..................................................................... 34

Ping............................................................................................... 35

About - Version Info Tab ............................................................... 36

Link State...................................................................................... 37

Exit Wireless Settings ................................................................... 37

Ad Hoc................................................................................................ 38

Windows XP Wireless Properties ....................................................... 40

ASUS WLAN Card 5

Table of Contents

4. Troubleshooting.................................................................... 42

5. Glossary................................................................................. 44

6. Safety Information................................................................. 52

Federal Communications Commission............................................... 52

FCC Radio Frequency Interference Requirements ...................... 53

FCC RF Exposure Guidelines (Access Points) ............................ 53

FCC RF Exposure Guidelines (Wireless Cards)........................... 54

Canadian Department of Communications ........................................ 54

Operation Channel for Different Domains .......................................... 54

France Restricted Frequency Band.................................................... 55

6ASUS WLAN Card

ASUS WLAN Card 7

Chapter 1 - Introduction

Chapter 1

Introduction

1. Introduction

Overview

Thank you for purchasing theASUS WLAN Card.TheASUS WLAN Card is

aPCMCIAcompliant“wireless”networkinterfacecard(NIC)foranycomputer

equipped with a PC Card slot (available mainly in Notebook PCs).

TheASUS WLAN Card is designed to be fully compliant with both the IEEE

802.11gandIEE802.11bwirelesslocalareanetwork(WirelessLAN)standards.

As a result of the completion of the standard, the interoperability of Wireless

LAN products among multiple manufacturers will be guaranteed. The ASUS

WLAN Card product provides high-speed, standards-based Wireless LAN

solutions.

TheASUS WLAN Card is designed to be fully compliant with IEEE 802.11g

wireless local area networks (WLAN). 802.11g is an extension to 802.11b,

used in majority of wireless LANs today. 802.11g will broaden 802.11b's data

ratesto 54 Mbps withinthe 2.4 GHz band usingOFDM (orthogonal frequency

divisionmultiplexing)technology.802.11gallowsbackward compatibilitywith

802.11b devices but only at 11 Mbps or lower depending on the range and

presence of obstructions.

The ASUS WLAN Card supports data rates up to 11 Mbps, with automatic

fallbackto5.5,2, and1Mbpsin 802.11bnetworks.It operatesintheunlicensed

2.4 GHz frequencies called the Instrumentation, Science, and Medical (ISM)

band. Unlicensed means free of charge to users.

TheASUSWLAN Card configurationutility is a user-friendlyapplication that

helpsyouquickly setupmultiple roamingnodes usingtheASUSWLANCard.

You can even export the configuration settings to a file and import them to

other computers for fast multiple installations using ASUS Mobile Manager.

WirelessLANsarecomplementaryextensionstoexistingwiredLANs,offering

complete mobility while maintaining continuous network connectivity to both

corporate and home Intranets. They add a new level of convenience for LAN

users. PC users stay connected to the network anywhere throughout a building

without being bound by a LAN wires.This is accomplished through the use of

ASUSWLANAccessPointsorASUSWLANHomeGateways.ASUSWLAN

Home Gateways with built-in Internet gateway capability, allows your family

toshareabroadbandModemandoneISPaccountsimultaneouslyfromdifferent

rooms without wires! ASUS WLAN products can keep you connected

anywhere, any time.

8ASUS WLAN Card

Chapter 2 - Installation

Chapter 2

Quick Start

2. Installation

System Requirements

To begin using the WLAN Card, you must have the following minimum

requirements:

• Windows XP/2000/ME/98SE

• Standard PCMCIA Slot Type II

• 32MB system memory or larger

• 300MHz processor or higher

Installation Procedures

Important: Install the WLAN card utilities before inserting the WLAN

Card into your computer.

Follow these two easy steps before using the WLAN card.

1. Install the WLAN card utilities and driver from the support CD.

2. Insert the WLAN card into your computer.

ASUS WLAN Card 9

Chapter 2 - Installation

Chapter 2

Quick Start

2. Click Next on the Welcome screen.

3. Click Next after reading the Information. 4. Click Next to use the default Destination

FolderorclickBrowsetoselectanotherfolder.

1. Select your language and click Install

WLAN Card Utilities/Driver.

5. Click Next to place icons in the default pro-

gram folder or type another folder name. 6.When Setupiscomplete,clickFinishto exit

theinstallation wizardandrestart Windows.

Installing the WLAN utilities and driver

Follow these instructions to install the WLAN card utilities and driver. Insert

the support CD and an autorun menu will appear. If your autorun is disabled,

double click SETUP.EXE in the root directory of the support CD.

10 ASUS WLAN Card

Chapter 2 - Installation

Chapter 2

Quick Start

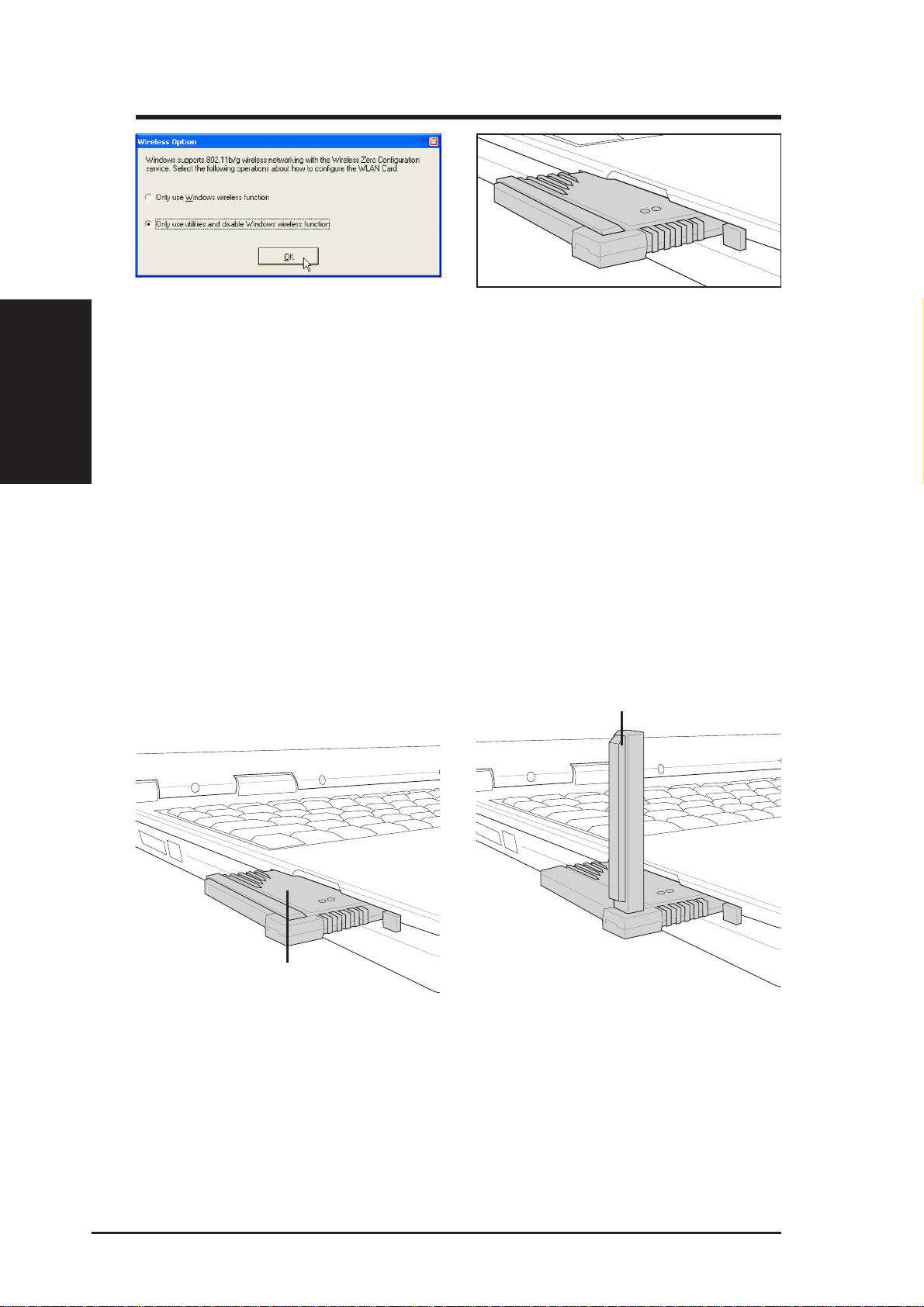

8. Carefully insert the WLAN card into your

computer’s PC card slot. Windows will au-

tomatically find and configure the WLAN

card using the drivers installed in the previ-

ous steps.

7. Windows XP users: When the program is

launched for the first time (during Windows

restart), you will be asked which function to

use. Select to use utilities for more func-

tions.

Orientating the Antenna

The ASUS WLAN Card has two integrated antennas, one external

omnidirectional antenna and the other is a built-in diversity antenna. It is

recommended that you adjust the external antenna straight up for maximum

range and higher link quality. Lower the external antenna when transporting

your Notebook PC.

Inserted with antenna down Inserted with antenna up

Internal diversity antenna

External omnidirectional antenna

Indice

Manuali Scheda di rete popolari di altre marche

FirstComm

FirstComm OBiWiFi5G Manuale utente

Sun Microsystems

Sun Microsystems Interface Adapter Manuale utente

TRENDnet

TRENDnet TU2-ETG Manuale utente

YASKAWA

YASKAWA SI-EN3 Manuale utente

Paradyne

Paradyne BitStorm 2600 IP DSLAM Manuale utente

Belkin

Belkin F5D7050 Manuale utente

3Com

3Com EtherLink 3C509B Manuale utente

TRENDnet

TRENDnet TEG-PCITX Manuale utente

Cisco

Cisco MC16E Manuale utente

Delta Electronics

Delta Electronics Braking Modules VFDB Series Manuale utente

TwinMOS

TwinMOS Booming Manuale utente

Dialogic

Dialogic Media Board DM/V1200BTEPEQ Manuale utente

Buffalo

Buffalo AirStation WLI-PCM-L11GP Manuale utente

National Instruments

National Instruments NI 9234 Manuale utente

Hama

Hama 49276 Manuale utente

Linksys

Linksys WCF54G - Wireless-G Compact Flash Card Manuale operativo

Compaq

Compaq Wireless LAN 100 Manuale utente

Bose

Bose PowerMatch Dante Manuale utente
