ATEN Master View CS-82A Manuale utente

2 Port KVM Switch

User Manual

CS-82A

Read this guide thoroughly and follow the installation and operation proce-

dures carefully in order to prevent any damage to the units and/or any de-

vices that connect to them.

This package contains:

M1 Master View CS-82A KVM Switch

M1 User Manual

If anything is damaged or missing, contact your dealer.

Manual Part No. PAPE - 1217-200

Printed in Taiwan 11/2003

All brand names and trademarks are the registered property of their respective owners.

2003-11-25

Note: This equipment has been tested and found to

comply with the limits for a Class B digital device,

pursuant to Part 15 of the FCC Rules. These limits are

designed to provide reasonable protection against

harmful interference in a residential installation. This

equipment generates, uses and can radiate radio

frequency energy, and if not installed and used in

accordance with the instruction manual, may cause

interference to radio communications. However, there is

no guarantee that interference will not occur in a

particular installation. If this equipment does cause

harmful interference to radio or television reception,

which can be determined by turning the equipment off

and on, the user is encouraged to try to correct the

interference by one or more of the following measures:

MReorient or relocate the receiving antenna;

MIncrease the separation between the equipment and

receiver;

MConnect the equipment into an outlet on a circuit different

from that which the receiver is connected;

MConsult the dealer or an experienced radio/television

technician for help.

2003-11-25

Overview

The Master View CS-82A KVM (Keyboard, Video, Mouse),

Switch is a control unit that allows access to two computers

from a single console (keyboard, monitor and mouse). Before

the development of the Master View, the only way to control

multiple computer configurations from a single console was

through a complex and costly network system. Now, with the

CS-82A, you can easily access two computers in a cost

effective manner.

Setup is fast and easy; plugging cables into their appropriate

ports is all that is entailed. There is no software to configure; no

installation routines; and no incompatibility problems. Since the

CS-82A intercepts keyboard input directly, it works on all

hardware platforms and operating systems*.

The Master View CS-82A provides two convenient methods to

access the computers connected to the system: 1) push button

Port Selection Switches located on the unit’s front panel; and 2)

Hotkey combinations entered from the keyboard.

There is no better way to save time and money than with a

Master View CS-82A installation. Since a single console

manages both of the computers, a CS-82A setup: 1) eliminates

the expense of having to purchase a separate keyboard,

monitor, and mouse for each computer; 2) saves the space

those extra components would take up; 3) saves on energy

costs; and 4) eliminates the inconvenience and wasted effort

involved in constantly moving around from one computer to

another.

*Mac and Sun systems may require additional equipment. See

p. 5 for details.

- 1 -

2003-11-25

Features

MOne console controls two computers

MEasy to install - no software required - connecting cables is

all it takes

MEasy to operate - computer selection via push button

switches or hotkeys

MAuto Scan function to monitor computer operation

MLED display for easy status monitoring

MCaps Lock, Num Lock, and Scroll Lock, states are saved

and restored when switching

MKeyboard and mouse emulation for error free booting

MSupports Microsoft Intellimouse and the scrolling wheel on

most mice

MSuperior video quality - up to 1920x1440; DDC; DDC2;

DDC2B

MCompatible with all operating platforms*

MCompact, sturdy, durable metal housing

MEfficient, ergonomic design - logical connector layout

MFollows PC 99 color specifications

MNon-powered operation

MSaves time, space, power, and equipment costs

*Mac and Sun systems may require additional equipment. See

p. 5 for details.

- 2 -

2003-11-25

Hardware Requirements

Console

MA VGA, SVGA, or Multisync monitor capable of the highest

resolution that you will be using on any computer in the

installation

MA PS/2 style keyboard

MA PS/2 style mouse

Computers

The following equipment must be installed on each computer

that is to be connected to the system:

MA VGA, SVGA or Multisync port.

MA PS/2 Style keyboard port.

MA PS/2 Style mouse port.

Cables

Only CS Custom cable sets specifically designed to work with

this switch may be used. KVM cable sets are available in 1.2,

1.8, 3, and 6 meter lengths (see table, below):

Length CS Part Number

1.2 m 2L-5201P

1.8 m 2L-5202P

3.0 m 2L-5203P

6.0 m 2L-5206P

If you need to purchase cables, contact your dealer.

- 3 -

2003-11-25

Front View

1. Port Selection Switches

Press a switch to access the computer attached to the

corresponding port.

2. Port LEDs:

The Port LEDs are built into the Port Selection Switches.

The upper ones are the On Line LEDs; the lower ones are

the Selected Port LEDs:

MThe On Line LEDs lights ORANGE to indicate that the

computer attached to the corresponding port is up and

running.

MThe Selected LED lights GREEN to indicate that the

computer attached to its corresponding port is the one

that has the KVM focus. Depending on the port’s status,

the LED may flash according to a specific pattern (see the

LED Display table in the Appendix for details).

3. Console Keyboard and Mouse Ports

The cables from your keyboard and mouse plug in here.

Each port is color coded and identified by an appropriate

icon.

- 4 -

1 & 2 3

2003-11-25

Rear View

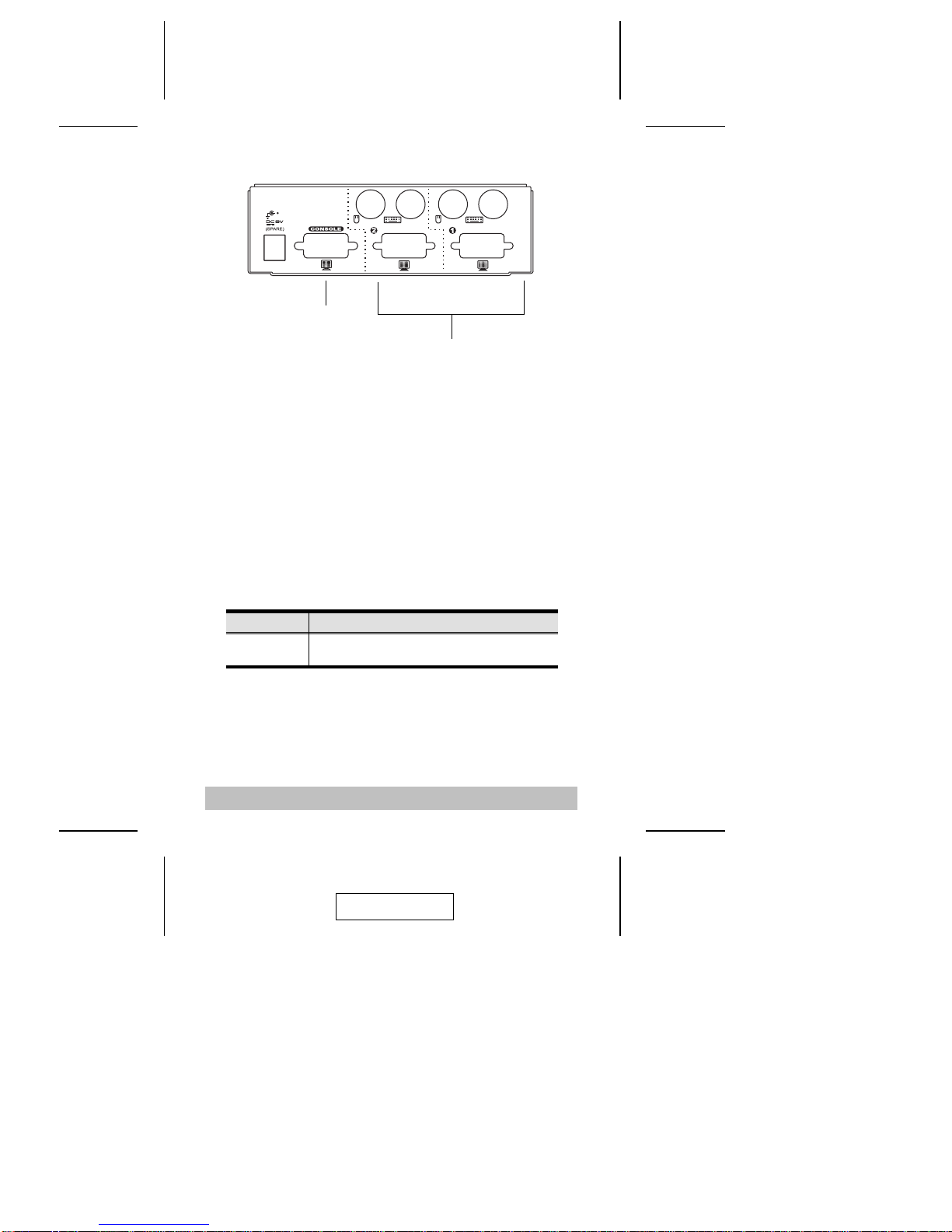

1. Console Video Connector

The cable from your monitor plugs in here.

2. CPU Port Connectors

The KVM cables that connect to the computer’s monitor,

keyboard and mouse ports plug in here. Each port is color

coded and identified by an appropriate icon.

Note: Since the KVM cables come with PS/2 style connectors,

certain hardware configurations (such as notebooks),

that don’t have two PS/2 ports may require the use of an

adapter, as shown below:

Adapter Purpose

UC-100KMATwo PS/2 ports to USB adapter for PCs,

Macs and Sun systems

- 5 -

2003-11-25

Installation

Refer to the diagram on the next page as you perform the

following steps:

1. Plug the monitor, keyboard, and mouse into the Console

port connectors of the Master View CS-82A unit.

2. Use KVM cables (see the Hardware Requirements section),

to connect the keyboard, monitor, and mouse ports from any

available CPU Port, to the keyboard, monitor, and mouse

ports of the computers you are connecting up).

3. If you choose to use external power (optional) plug the

power adapter into an external AC source; plug the power

adapter cable into the unit s power jack.

4. Turn on the power to the connected computers.

Note: The CS-82A’s Power On default is to link to the first

computer you turn on.

- 6 -

1. Before you begin, make sure that power to all the

devices you will be connecting up have been

turned off. You must unplug the power cords of

any computers that have the Keyboard Power On

function. Otherwise, the switch will receive power

from the computer.

2. To prevent damage to your installation due to ground

potential difference, make sure that all devices on

the installation are properly grounded. Consult your

dealer for technical details, if necessary.

2003-11-25

- 7 -

2003-11-25

Operation

Controlling all the computers in your CS-82A installation from a

single console could not be easier. Two port selection methods

that provide instant access to the computers are available:

MManual Port Selection

MHotkey Port Selection

Manual Port Selection

With Manual Port Selection you simply press the Port Selection

switch that corresponds to the port that the computer you want

to access is attached to. The Selected LED lights to indicate

which port is active.

Hotkey Port Selection

Hotkey Port Selection allows you to select the active computer

directly from the keyboard. The Master View CS-82A provides

the following Hotkey Port Selection features:

MSelecting the Active Port

MAuto Scan Mode

- 8 -

2003-11-25
