ATEN VS0801H Manuale utente

VS0801H

USER MANUAL

8-Port HDMI Switch

vs0801h.fm Page 1 Friday, March 25, 2011 2:54 PM

FCC Information

This equipment has been tested and found to comply with the limits

for a Class B digital device, pursuant to Part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against

harmful interference in a residential installation. This equipment

generates, uses and can radiate radio frequency energy, and if not

installed and used in accordance with the instruction manual, may

cause interference to radio communications. However, there is no

guarantee that interference will not occur in a particular installation. If

this equipment does cause harmful interference to radio or television

reception, which can be determined by turning the equipment off and

on, the user is encouraged to try to correct the interference by one or

more of the following measures:

Reorient or relocate the receiving antenna;

Increase the separation between the equipment and receiver;

Connect the equipment into an outlet on a circuit different from

that which the receiver is connected;

Consult the dealer or an experienced radio/television technician

for help.

RoHS

This product is RoHS compliant.

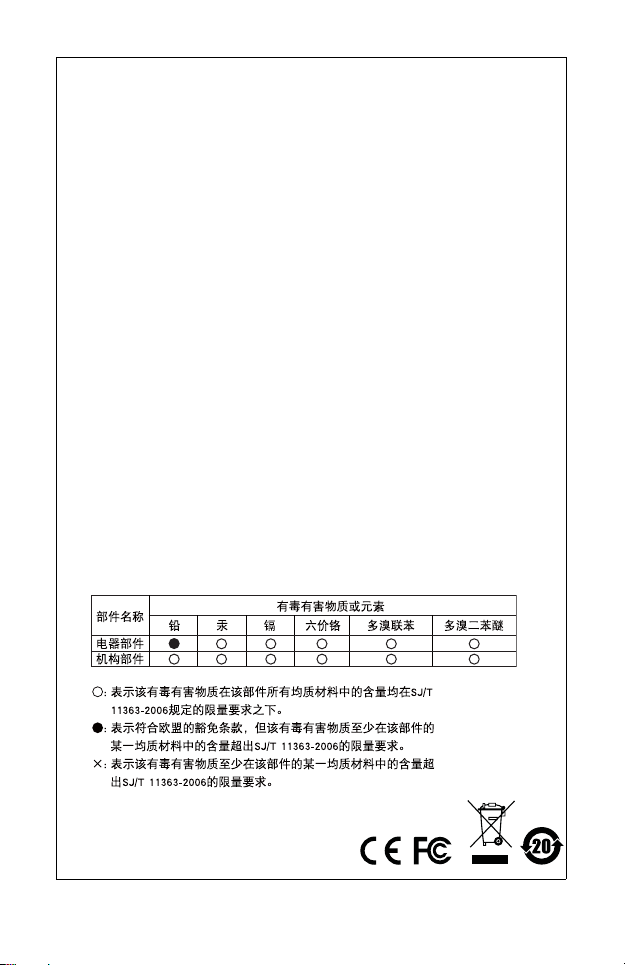

SJ/T 11364-2006

The following contains information that relates to China.

vs0801h.fm Page 2 Friday, March 25, 2011 2:54 PM

- 3 -

VS0801H User Manual

Online Registration

Telephone Support

Technical Support

For international online technical support – including

troubleshooting, documentation, and software updates:

http://support.aten.com

For North American technical support:

International http://support.aten.com

North America http://www.aten-usa.com/product_registration

International 886-2-8692-6959

China 86-10-5255-0110

Japan 81-3-5615-5811

Korea 82-2-467-6789

North America 1-888-999-ATEN ext 4988

United Kingdom 44-8448-158923

Email Support [email protected]

Online

Technical

Support

Troubleshooting

Documentation

Software Updates

http://www.aten-usa.com/support

Telephone Support 1-888-999-ATEN ext 4998

vs0801h.fm Page 3 Friday, March 25, 2011 2:54 PM

- 4 -

Package Contents

The VS0801H 8-port HDMI Switch package contains the

following items:

1 VS0801H 8-port HDMI Switch

1 IR Remote Control Unit

1 Power Adapter

1 Rack Mount Kit

1 User Manual*

1 Quick Start Guide

Check to make sure that all the components are present and that

nothing got damaged in shipping. If you encounter a problem,

contact your dealer.

Read this manual thoroughly and follow the installation and

operation procedures carefully to preventanydamage tothe unit,

and/or any of the devices connected to it.

*Features may have been added to the VS0801H since this

manual was printed. Please visit our website to download the

most up-to-date version of the manual.

Manual Part No. PAPE-1333-AT2G

Printing Date: 2011-03-24

ATEN and the ATEN logo are trademarks of ATEN International Co., Ltd. All rights

reserved. All other trademarks are the property of their respective owners.

vs0801h.fm Page 4 Friday, March 25, 2011 2:54 PM

- 5 -

Overview

With more and more HDMI devices entering the Home Theater

market, the need for simultaneous access to different HDMI A/V

sources is becoming increasingly important. Now, the VS0801H

8-port HDMI Switch offers an easy and affordable way to add

HDMIcapabilities toyour hometheater systemby allowing youto

switch easily between up to eight HDMI A/V sources that are

connected to your HDMI display.

With eight HDMI A/V input ports, the VS0801H 8-port HDMI

Switch allows you to connect eight HDMI devices (such as an HD

camcorder or satellite box, HD-DVD player, hi-def Blu-ray player,

home theater PC, stand-alone streaming media player, gaming

console, etc.) to your HDMI monitor, display, projector or TV at

the same time. The remote control and convenient front panel

pushbuttons allow you to quickly and easily toggle between

HDMI sources, while the front panel LEDs indicate the source

device at a glance. In addition, with Power On Detection, if one

HDMI source device is powered off, the VS0801H will

automatically switch to the next powered-on device.

Furthermore,for completesystem andinstallintegration, RS-232

control is standard through the VS0801H’s built-in bi-directional

RS-232 serial port that allows the switch to be controlled through

a high-end controller, PC, and/or home automation / home

theater software package.

vs0801h.fm Page 5 Friday, March 25, 2011 2:54 PM

- 6 -

Features

Allows up to eight HDMI sources to be connected to one

HDMI display

Quick and easy switching between HDMI sources via front

panel pushbuttons or IR remote control

Built-in bi-directional RS-232 serial port for high-end system

control

Supports Dolby True HD and DTS HD Master Audio

Up to 60 Hz refresh rate

Long-distance transmission – up to 20 m (24 AWG) and 15 m

(28 AWG)

Superior video quality – HDTV resolutions of 480p, 720p,

1080i, 1080p (1920x1080); VGA, SVGA, SXGA, UXGA, and

WUXGA (1920x1200)

Supports 12-bit Deep Color for HDMI formats

Plug-and-play – no software installation required

DDC compatible

HDMI 1.3b compliant

HDCP 1.1 compliant

HDMI CEC compliant

Signaling rates up to 2.25 Gbits in support of 1080p display.

All-metal casing

Power On Detection – if one of the HDMI source devices is

powered off, the VS0801H will automatically switch to the

next powered on device

Easy and affordable way to add eight HDMI inputs to your

home theater system

vs0801h.fm Page 6 Friday, March 25, 2011 2:54 PM

- 7 -

System Requirements

Source Devices(s)

HDMI Type A output connector(s)

Note: A DVI/HDMI adapter is required when connecting a DVI

source device.

Display Device

A display device or receiver with an HDMI Type A input

connector

Cables

1 HDMI cable for each source device you will be connecting

1 HDMI cable for your display device

Note: 1. No HDMI cables are included in this package. We

strongly recommend that you purchase high-quality

cables of appropriate length since this will affect the

quality of the audio and video display. Contact your

dealer to purchase the correct cable sets.

2. If you wish to utilize the VS0801H’s high-end serial

controller function, you will also need to purchase an

appropriate RS-232 cable. See Installing the RS-232

Controller, page 11.

vs0801h.fm Page 7 Friday, March 25, 2011 2:54 PM

- 8 -

Components

VS0801H Front View

No. Component Function

1 Port Selection

Pushbuttons Pressing a port selection pushbutton

routes the HDMI source from the

corresponding input port to the output port

for display.

2 Port LEDs There is one port selected LED next to

each port selection pushbutton. This lights

green to indicate that the corresponding

port has been selected.

3 IR Receiver This receives signals from the IR remote

control.

vs0801h.fm Page 8 Friday, March 25, 2011 2:54 PM

- 9 -

VS0801H Rear View

No. Component Function

1 HDMI In The cables from the HDMI source devices

plug into any of the eight available ports.

2 Power Jack The power adapter cable plugs in here.

3 HDMI Out The cable from the HDMI display device

plugs in here.

4 RS-232 Serial

Port This is the serial remote port for input

source selection and high-end system

control.

42 3

vs0801h.fm Page 9 Friday, March 25, 2011 2:54 PM

- 10 -

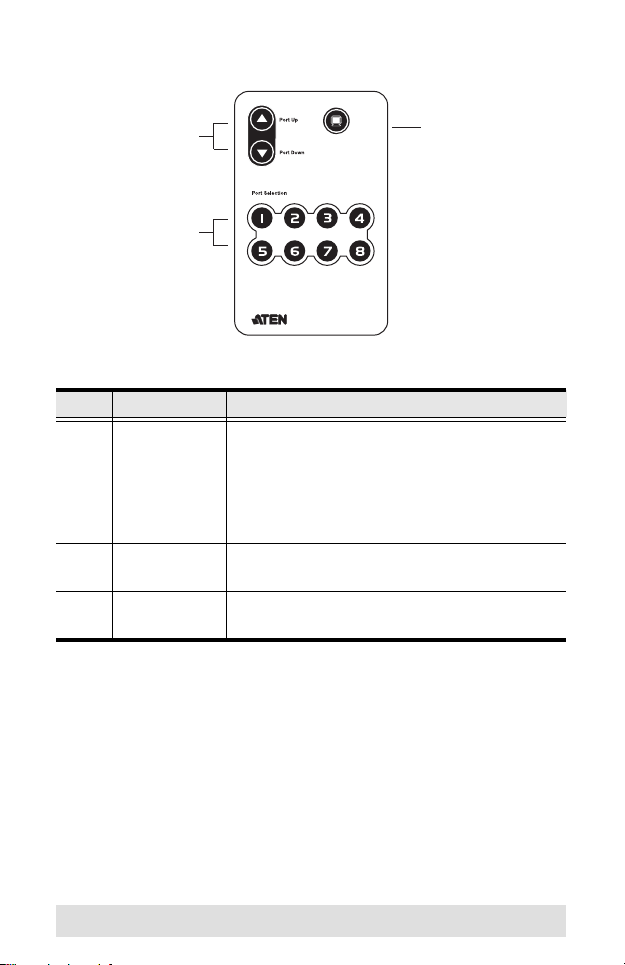

IR Remote Control

No. Component Function

1 Port Up / Port

Down Buttons Press the Port Up button to cycle forward

through the source devices (1 to 2; 2 to 3; ... 8

to 1).

Press the Port Down button to cycle backward

through the source devices. (8 to 7; 7 to 6; ... 1

to 8)

2 PortSelection

Buttons Press a button to bring the focus directly to the

source device attached to its associated port.

3On/Off

Button This button enables / disables the HDMI

output.

ON / OFF

vs0801h.fm Page 10 Friday, March 25, 2011 2:54 PM
