ATEN VS-881 Manuale utente

VS881

USER MANUAL

8-Port Video Switch

FCC Information

Federal Communication Commission Interference Statement

This equipment has been tested and found to comply with the limits for a

Class B digital service, pursuant to Part 15 of the FCC rules. These limits

are designed to provide reasonable protection against harmful

interference in a residential installation. Any changes or modifications

made to this equipment may void the user’s authority to operate this

equipment. This equipment generates, uses, and can radiate radio

frequency energy. If not installed and used in accordance with the

instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a

particular installation. If this equipment does cause harmful interference

to radio or television reception, which can be determined by turning the

equipment off and on, the user is encouraged to try to correct the

interference by one or more of the following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from

that to which the receiver is connected.

Consult the dealer or an experienced radio/TV technician for help.

FCC Caution:

Any changes or modifications not expressly approved by the party

responsible for compliance could void the user's authority to operate this

equipment.

RoHS

This product is RoHS compliant.

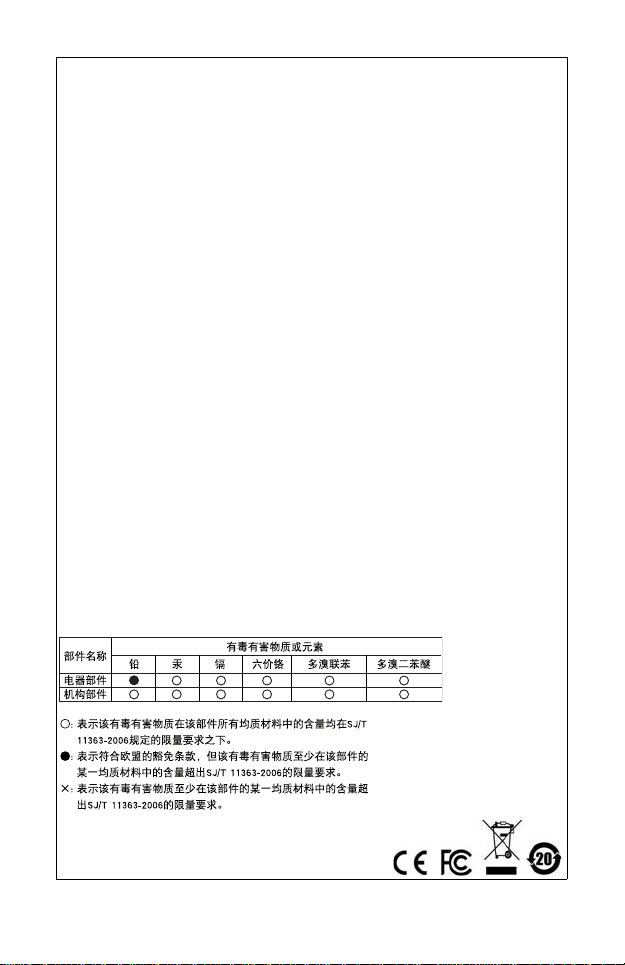

SJ/T 11364-2006

The following contains information that relates to China.

- 3 -

VS881

User Manual

Online Registration

Telephone Support

Technical Support

For international online technical support – including

troubleshooting, documentation, and software updates:

http://eservice.aten.com

For North American technical support:

International http://eservice.aten.com

International 886-2-8692-6959

China 86-10-5255-0110

Japan 81-3-5615-5811

Korea 82-2-467-6789

North America 1-888-999-ATEN ext 4988

United Kingdom 44-8448-158923

Email Support [email protected]

Online

Technical

Support

Troubleshooting

Documentation

Software Updates

http://www.aten-usa.com/support

Telephone Support 1-888-999-ATEN ext 4998

- 4 -

Package Contents

The VS881 package contains the following items:

1 VS881 8-Port Video Switch

1 Infrared Remote Control Handset

1 Infrared Receiver (with 1.8m attached cable)

1 Video Cable (1.2m)

1 Power Adapter

1 User Instructions*

Check to make sure that all the components are present and that

nothing got damaged in shipping. If you encounter a problem,

contact your dealer.

Read this manual thoroughly and follow the installation and

operation procedures carefully to preventanydamage tothe unit,

and/or any of the devices connected to it.

*Features may have been added to the VS881 since this

manual was published. Please visit our website to download

the most up-to-date version of the manual.

Manual Date: 2014-01-22

ATEN and the ATEN logo are trademarks of ATEN International Co., Ltd. All rights

reserved. All other trademarks are the property of their respective owners.

- 5 -

Overview

The VS881 Video Switch is a modern control unit that allows you

to conveniently display the video output of eight separate

computer systems on a single monitor, or via a multimedia

projector - thereby eliminating the

unnecessary expense of purchasing a separate monitor for each

computer. The VS881 is perfect for corporate presentations,

company briefings and institutional learning centers.

The VS881 improves on previous video switch models with

enhanced features that include a freely accessible concentric-

hub design; easy computer selection via push buttons; intelligent

infrared (IR) remote control; and electronic switching technology,

rather than mechanical switching, for reliability and durability.

The VS881 also saves on the space that additional monitors take

up, as well as the extra power costs, and eliminates the

inconvenience and wasted effort involved in constantly moving

around from one computer to another.

- 6 -

Features

Displays the video output of eight separate computers on a

single monitor or projector

Modern concentric design with logical connector layout for

quick and easy access

Fast and convenient computer selection via push buttons or

infrared (IR) remote control

External IR Receiver (1.8m) for maximum efficiency and

convenience

Extra-thin IR handset allows easy storage in the mother unit

Electronic switching for greater reliability and durability

Superior video quality - up to 2048x1536; DDC; DDC2;

DDC2B

Supports VGA, SVGA, XGA,UXGA, QXGA and multisync

monitors

Easy installation - no software required - no configuration

necessary

Automatic incoming signal selection (Auto)

- 7 -

Consoles

A VGA, SVGA, XGA, or Multisync compatible analog monitor,

with a 15-pin HDB type male connector

Computers

A VGA, SVGA, XGA,or Multisync analog video source with a

standard PC 15-pin HDB type female connector

Cables

Video cable with one male and one female HDB-15 connector

at each end for each computer you will be installing

Note: One (1) video cable is supplied with this unit.

- 8 -

Components

Top View

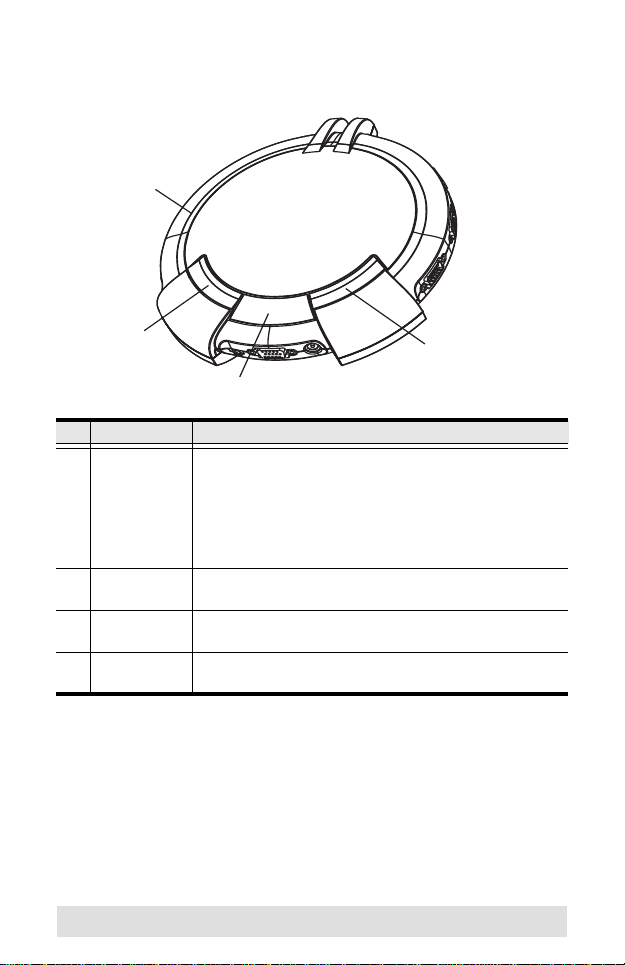

No. Component Description

1 Port LEDs A LED lights ORANGE to indicate the computer

connected to to its corresponding port is Online.

The LED changes to GREEN to indicate the computer

connected to to its corresponding port is the one that is

currently selected.

The LED goes out when the computer connected to to

its corresponding port is in Standby mode.

2 Port Down

Switch Press this button to switch the video focus to the

computer previous to the current one.

3 VGA Display

On/Off Powers the unit’s VGA display ON and OFF.

4PortUp

Switch Press this button to switch the video focus to the computer

subsequent to the current one.

- 9 -

Front View

Rear View

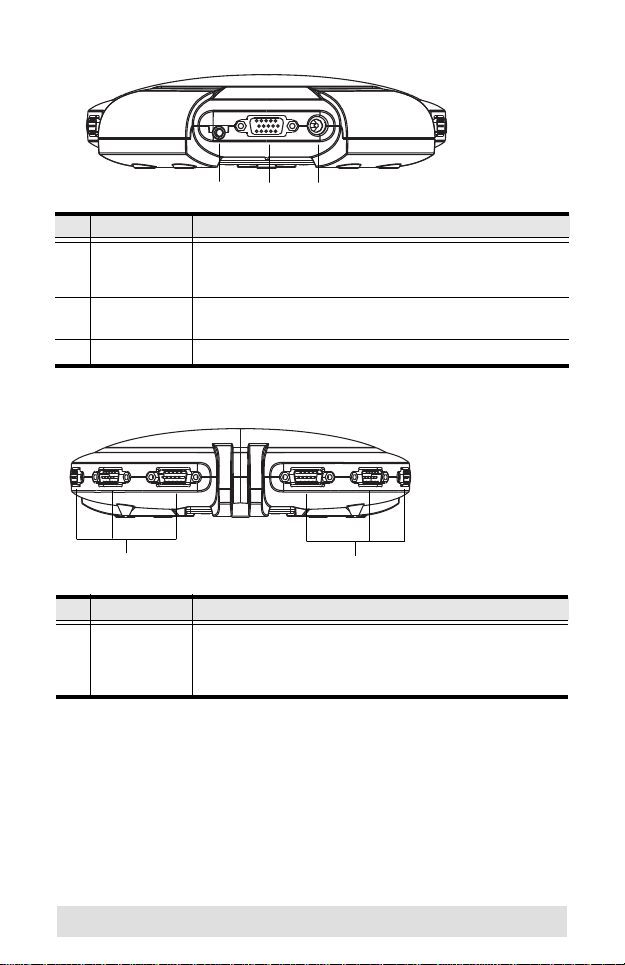

No. Component Description

1 IR Reciever

Portt The external IR Receiver has an attached cable that allows

it to be placed anywhere up to 1.8m from the switch, The

cable from the external IR Receiver plugs in here.

2 Monitor Port The cable from the monitor or digital projector plugs in

here.

3 Power Jack The AC Power Adapter cable plugs in here.

No. Component Description

1 Video Ports The cables that connect to the computer video ports plug in

here.

There are eight video ports distributed around the VS881’s

circumference.

12 3

- 10 -

IR Remote Control

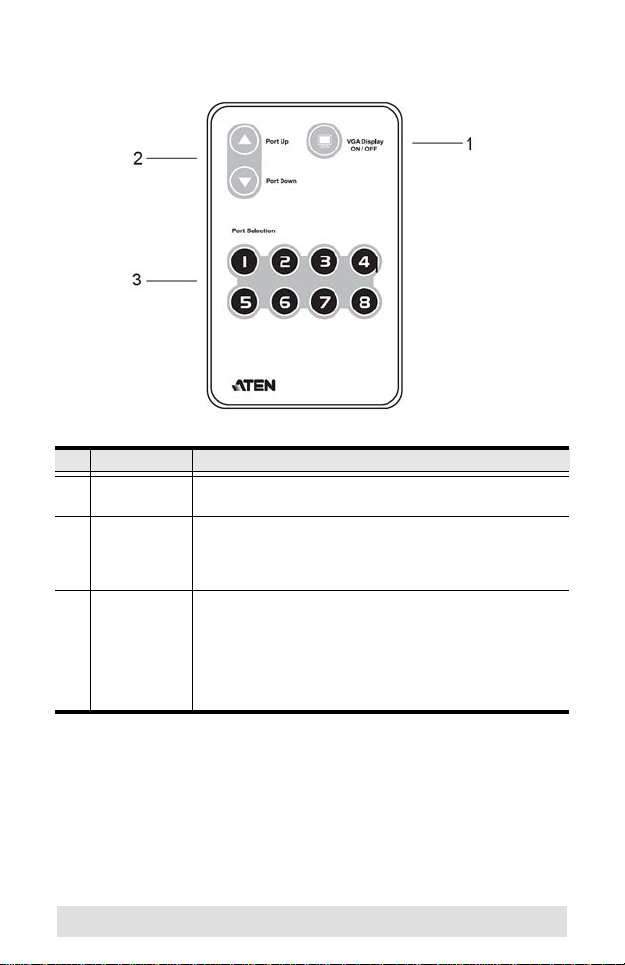

No. Component Description

1 VGA Display

ON / OFF Powers the unit’s VGA display ON and OFF.

2PortUp/Port

Down These buttons function in a similar manner to the Port

Up / Port Down buttons on the main unit. Press these

buttons to switch the video focus to the NEXT or

PREVIOUS computer on the installation.

3 Port Selection The numbers correspond to the video ports on the main

unit. Press a button (1 to 8) to switch the video focus to the

computer connected to to its corresponding port.

Note: The VS881’s remote control handset comes

packaged in protective plastic film. Please

remove this film before operating it with the

VS881 main unit.
