ATOMSTACK R30
Laser Module Installation Manual
English Deutsche Français
Catalogue
Cautions
Disclaimer
Packing List
Installation Guide
After-sales and Warranty Policy
01
02
03
04
13
This product is an integral pa of the laser engraving machine system, and must be installed on the laser
engraving machine for use. And the product belongs to the class 4 laser products, the laser system itself must
meet the requirements of the latest version of IEC 60825-1, otherwise the product will not be used.
Do not look directly at the laser beam to avoid skin exposure to type 4 beams, especially in close proximity.
Youth under the age of 18 must have parental supeision during use. Do not touch the laser when it is at work.
High-intensity laser beams produce extremely high temperatures and a lot of heat, and caing may burn
the substrate. Ceain materials may catch re during engraving, producing gas and smoke. Do not leave the
machine unattended while the laser is powered on.
When using a laser for engraving, the material produces smoke, steam, paicles, and toxic substances in plastic
and other combustible materials. These smoke or air pollutants can be harmful to your health.
Before using the laser for engraving, make sure that there are no ammable and explosive substances in the
caing area and always place available re extinguishers nearby to ensure safety.
Do not power on before the laser being installed to the engraving machine.
Please avoid machine vibration, machine vibration will cause the optical path to be inaccurate, resulting in
dangerous drift beam.
It is recommended to use at an ambient temperature of 20°C-30°C, lower or higher than the recommended
temperature will make the laser work unstable.
01.
02.
03.
04.
05.
06.
07.
08.
Cautions
01
05.
The product is a laser module, please scan the home page QR code for complete inst allat ion manual along
with the lat est instructions and warnings. Shenzhen At omst ack Technology Co., Ltd.(ATOM STACK) resees
the right to update this disclaimer and inst allat ion guide.
Be sure to read this document carefully before using the product to understand your legal rights, responsibilities,
and safety instructions; otherwise, it may cause propey losses, safety accidents, and personal safety hazards.
Once you use this product, you will be deemed to have understood and accepted all the terms and contents of
this document. Users promise to be responsible for their actions and all the consequences arising therefrom.
The user agrees to use the product only for lawful purposes and agrees to the full terms and contents of this
document and any relevant policies or guidelines that ATOMSTACK may have in place.
You understand and agree that ATOMSTACK may not be able to provide you with the cause of the damage or
accident and provide you with ATOMSTACK's after-sales seice unless you provide the original engraving le, the
conguration parameters of the engraving software used, operating system information, video of the engraving
process, and the operational steps before the problem or failure occurs.
ATOMSTACK is not responsible for any and all losses caused by their failure to use the products in accordance
with this manual.
ATOMSTACK has the ultimate right to interpret the document in compliance with the law. ATOMSTACK resees
the right to update, modify, or terminate the terms without notice.
01.
02.
03.
04.
Disclaimer
02
Packing List
Laser module Connect board Slider Circuit board Power adaptor Power cable
(M4*6)4PCS (M4*6)4PCS (M5*6)6PCS (M5*8)4PCS (M3*6)4PCS (M3*8)3PCS
(Handle) 2PCS Connect cable H3 wrench H2.5 wrench H2 wrench Installation Manual
Note: The picture is for reference only, the actual product shall prevail.
For more information, please scan the QR code.
ATOMSTACK R30
Laser Module Installation Manual
English Deutsche Français
03
Step 1: Install the connect board on the X-axis of the machine as
the following instructions
Installation Guide
Red screw hole / (M4*6)4PCS
X20 PRO / S20 PRO / A20 PRO / A20
A5 10W / A5 20W / A5 30W / A5 PRO
Blue screw hole / (M5*6)4PCS
* The remaining screw holes are applied to the other
laser engraving machines
A5 M30 / A5 M40 / A5 PRO + / X7
X7 PRO / A10 / A10 PRO / S10 PRO
Green screw hole / (M5*8)4PCS
04
X20 PRO / S20 PRO / A20 PRO / A20
Red screw hole / (M4*6)4PCS
05
A5 10W / A5 20W / A5 30W / A5 PRO
Blue screw hole / (M5*6)4PCS
06
A5 M30 / A5 M40 / A5 PRO + / X7
X7 PRO / A10 / A10 PRO / S10 PRO
Green screw hole / (M5*8)4PCS
07

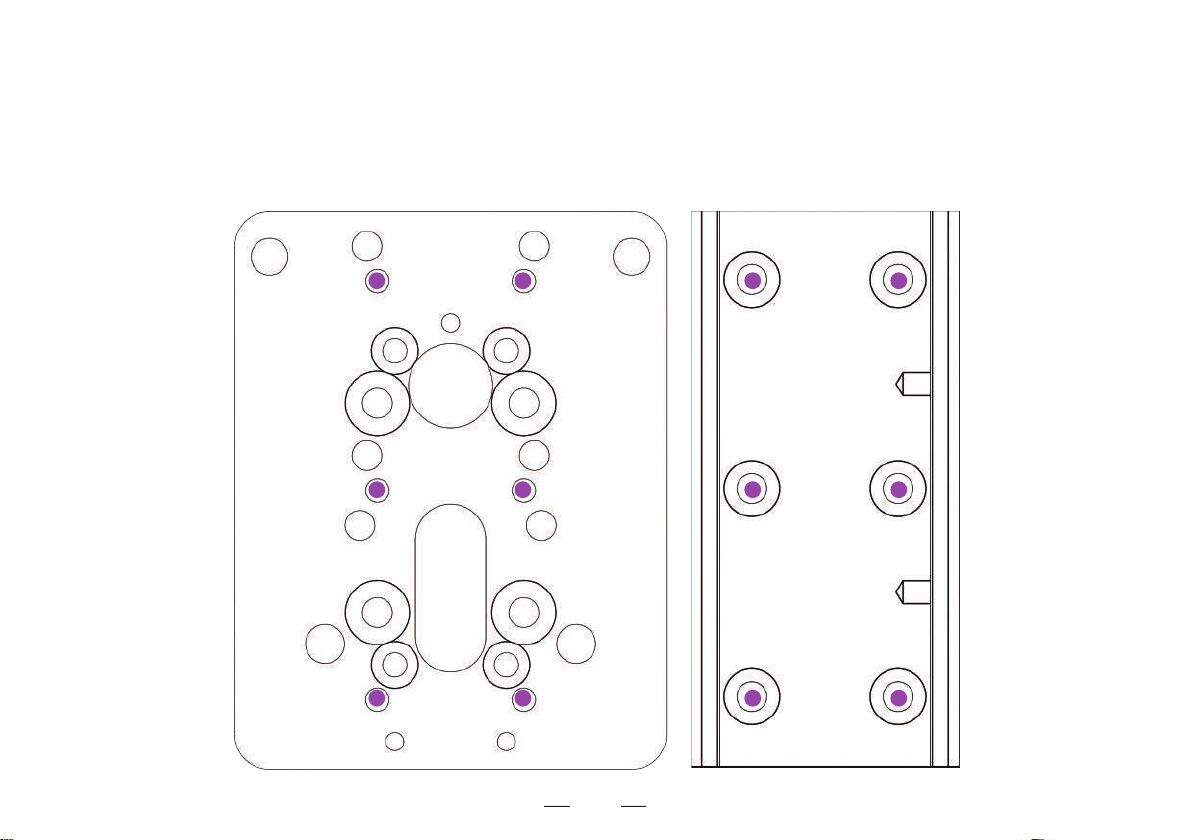

Step 2: Assemble the slider on the connect board (M4 * 6 Round) 4PCS
Installation Guide
08
