AUDAC MERO2 Guida

MERO2

User & Installation

Manual

www.audac.eu

Introduction

2” High-end in-wall speaker

The MERO speakers will blend beautifully into any interior, making only their extraordinary

sound draw your attention with their nearly invisible design. Their slim grill with very

thin border of only 1 mm and limited grill depth extrudes the surface by only 3.2 mm

when installed.

Their grilles are retained by neodymium magnets which enables assembly in seconds,

while powerful enough to keep it fixed, even when subject to vibrations or if touched. Their

applications range from residential Hi-Fi and home cinema installations to Multi-Zone

systems, unobtrusive installations in lounges, bars, boutiques and offices.

The selection of high-grade materials in combination with accurate acoustics

craftmanship makes the MERO speakers superior in their class. The Ultra-compact

size enables the MERO2 smoothly integrate into any interior like no other loudspeaker.

The outer dimensions only measure only 146 x 98 mm and the built-in depth which

doesn’t exceed 70 mm allows installation in any surface while being unobtrusive.

The 2” full range aluminum cone driver is protected against overload through an integrated

self-resetting protection circuit. All these details share their part to the quality of the

Mero 2, resulting in an highly reliable loudspeaker producing a pure sound with an RMS

power of 10 Watt.

An elegant look with minimal visual impact is created by the slim grill with a very thin

border, while great ease and installers convenience is guaranteed using the quick-fix

mechanism with Gold-CON connectors. The grill is held in place using neodymium

magnets, providing a quick and stable assembly. Installation can be done both vertically

and horizontally.

Precautions

READ FOLLOWING INSTRUCTIONS FOR YOUR OWN SAFETY

• ALWAYS KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE. NEVER

THROW THEM AWAY

• ALWAYS HANDLE THIS UNIT WITH CARE

• CLEAN ONLY WITH DRY CLOTH

• HEED ALL WARNINGS AND FOLLOW ALL INSTRUCTIONS

• NEVER EXPOSE THIS EQUIPMENT TO RAIN, MOISTURE, ANY DRIPPING OR

SPLASHING LIQUID. AND NEVER PLACE AN OBJECT FILLED WITH LIQUID ON

TOP OF THIS DEVICE

• DO NOT INSTALL THIS UNIT NEAR ANY HEAT SOURCES SUCH AS RADIATORS

OR OTHER APPARATUS THAT PRODUCE HEAT

• DO NOT PLACE THIS UNIT IN ENVIRONMENTS WITH A HIGH LEVEL OF DUST,

HEAT, MOISTURE OR VIBRATION

• THIS UNIT IS DEVELOPED FOR INDOOR USE ONLY. DO NOT USE IT OUTDOORS

• ONLY USE ATTACHMENTS & ACCESSORIES SPECIFIED BY THE

MANUFACTURER.

• ONLY INSTALL THE SPEAKER IN LOCATIONS THAT CAN STRUCTURALLY

SUPPORT THE WEIGHT OF THE SPEAKER. IGNORING THIS CAN BRING THE

SPEAKER DOWN.

• DO NOT USE ANY OTHER METHOD THAN SPECIFIED TO MOUNT THE

SPEAKER. IF EXTREME FORCE IS APPLIED TO THE SPEAKER, IT COULD FALL

DOWN

• CAREFULLY CHECK THE UNIT’S CONDITION AFTER UNPACKING.

IF THERE IS ANY DAMAGE TO THE CARTON BOX OR THE UNIT ITSELF,

INFORM YOUR VENDOR IMMEDIATELY.

CAUTION

• USE CABLES OF THE RIGHT GAUGE TO CONNECT THE LOUDSPEAKER

• USE CABLES WITH CLEAR COLOUR CODING INDICATING THE POLARITY AND

MAINTAIN THE SAME POLARITY THROUGHOUT THE WHOLE SYSTEM.

• ONLY USE THE CORRECT AMPLIFIER OUTPUT VOLTAGE AND IMPEDANCE.

EXCEEDING THESE LIMITS COULD CAUSE FIRE OR OTHER FAILURES.

AVOID EXPLOSIONS: DO NOT USE THE SPEAKER AROUND GASOLINE,

THINNER OR OTHER COMBUSTIBLES

• AVOID ELECTRIC SHOCKS: SWITCH OFF THE AMPLIFIER WHEN CONNECTING

THE LOUDSPEAKER

• DO NOT USE THE LOUDSPEAKER FOR AN EXTENDED PERIOD OF TIME AT

DISTORTED SOUND. THIS COULD CAUSE PERMANENT DAMAGE.

CAUTION - SERVICING

This product contains no user serviceable parts. Refer all servicing

to qualified service personnel. Do not perform any servicing

(unless you are qualified to do so.)

EC DECLARATION OF CONFORMITY

This product conforms to all the essential requirements and

further relevant specifications described in following directives:

2004/108/EC (EMC) and 2006/95/EC (LVD)

WASTE ELECTRICAL AND ELECTRONIC EQUIPMENT (WEEE)

The WEEE marking indicates that this product should not be

disposed with regular houshold waste at the end of its product

life. This regulation is created to protect both the environment

and human health.

This product is developed and manufactured with high quality

materials and components which can be recycled and/or reused.

Please dispose this product to your local collection point or

recycling centre for electrical and electronic waste. This will

make to sure that it will be recycled on an environmentally friendly

manner, and will help to protect the environment in which we all

live.

Installing the MERO

Introduction

The MERO speakers feature a quick-fixing mechanism, which allows quick and easy

installation of the loudspeakers in only a few minutes.

The installation of the MERO speakers requires a minimum amount of installation skills.

Before the loudspeaker is installed, the location whereto it will be mounted should be

carefully checked to make sure the surface can support the weight of the speaker and

no lines for water, gas, electricity or other supplies are crossing this point.

Installation procedure

To ensure a safe and secure mounting of the loudspeaker, the installation should be

done according to the procedure described below:

1) Firstly cut a hole into the surface whereto the loudspeaker should be installed with

dimensions 128 x 80 mm. The included cutout template can be used for an easy

marking of the installation hole.

80 mm

128 mm

2) Provide the loudspeaker connection cable through the mounting hole. Make sure

the used connection cable is sufficiently thick. The required cable thickness depends

on its length.

3) Take the loudspeaker, and remove the front grill which is held in place by

neodymium magnets. The front grill can be easily removed by gently pulling it.

4) Connect the loudspeaker connection cable to the gold plated spring clamp

connectors. Press the button of the corresponding terminal down and insert

the connection cable. After releasing the button, the cable is connected to the

loudspeaker. The Red terminal indicates positive (+) pole and the Black terminal

indicates the negative (-) pole.

Mind the polarity markings when wiring the loudspeaker cables.

Maintain the same polarity and wiring colour coding throughout the entire system to

avoid any mistakes causing malfunction or distortion.

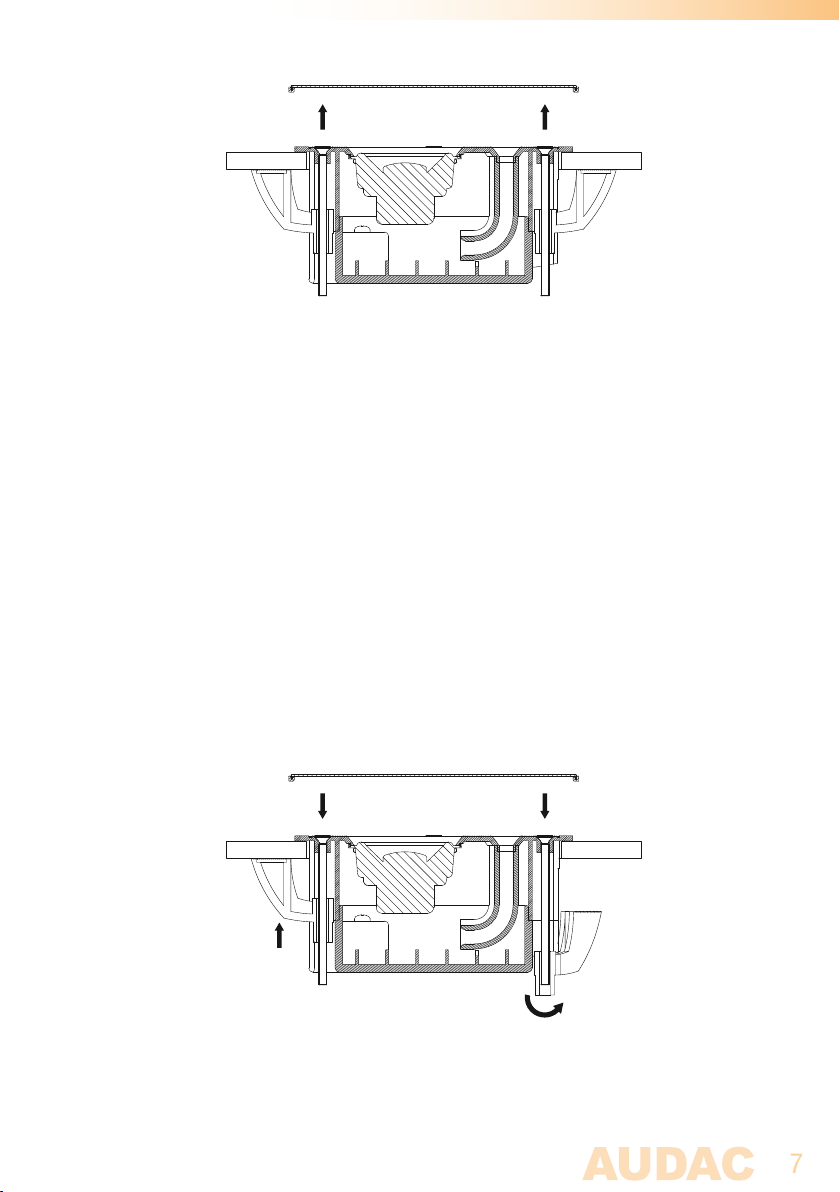

5) Once the connections are made, the loudspeaker can be installed in the provided

mounting hole. Make sure the mounting clips of the loudspeaker are rotated inwards,

making the speaker fit through the hole. Insert the speaker through the provided

mounting hole, and use a screwdriver for tightening the fixing screws.

Once the screws are tightened a quarter turn, the mounting clip will rotate outwards

and will be locked behind the surface. From then on, the loudspeaker is anchored in

the surface and thus can not fall.

6) After the screws are tightened and the speaker is level with the surface, the front

grill can be assembled to the loudspeaker.

Additional Information

Technical specifications

RMS Power 10 Watt

Max. Power 20 Watt

Nominal impedance 8 Ohm

Sensitivity (1W / 1m) 83 dB

Sound pressure (Max W / 1m) 93 dB

Frequency response (±3 dB) 120 Hz - 20 kHz

Drivers 2” Aluminium full range

Connectors Gold plated spring clamps

Mounting 2-Screw quick-fixing mechanism

Construction High-Quality ABS

Front finish White Thin edge grill (RAL9003)

(1 mm width x 3.2 mm height edge)

Dimensions 146 x 98 x 70 mm

Cut-out measurement 128 x 80 mm

Built-in depth 70 mm

Weight 0.355 Kg

Packaging Carton box

Shipping weight & Volume 0.5 Kg - 0,0026 Cbm

Accessories included Cut-out template

Instruction manual
