Avalon A10-TL Manuale utente
A few simple steps to ensure
perfect water, every time.
Use and Care Guide
MODELS: A10-TL
Registration
Please visit the website below to register your new water cooler within the first
30 days of purchase. Registration within the first 30 days will activate your one
year warranty.
www.avalonh2o.com/register-my-avalon-cooler
Please keep your model number, order number and purchase date
for future support. You can reach us at 1-800-256-0695.
Model Number
Order Number
Purchase Date
Conforms to NSF/ANSI 372
Contents
About Your Water Cooler
Meet Your Avalon Product
Part Names
Indicator Lights
Tech Specs
Getting Started
Unpacking
Operation Instructions
Cleaning
Rinsing, Cleaning and Draining
Cleaning
Troubleshooting
Safety
1
2-3
4
5
7
9-10
12-14
15-16
18-19
21-22
1
Meet Your Avalon Product
Energy Star ApprovedUL Listed Child Safety Feature
We design
& manufacture
with your safety
in mind
Saves the
environment
& your wallet
Ensures safe hot
water flow for the
entire family
About Your Water Cooler
Attractive Design
Attractive stainless
steel design with 3
water spouts
Custom Temperature
Piping hot,
room temperature
or crisp cold water
Top Loading
Suitable for 3 or
5 gallon bottles
2
Part Names
About Your Water Cooler

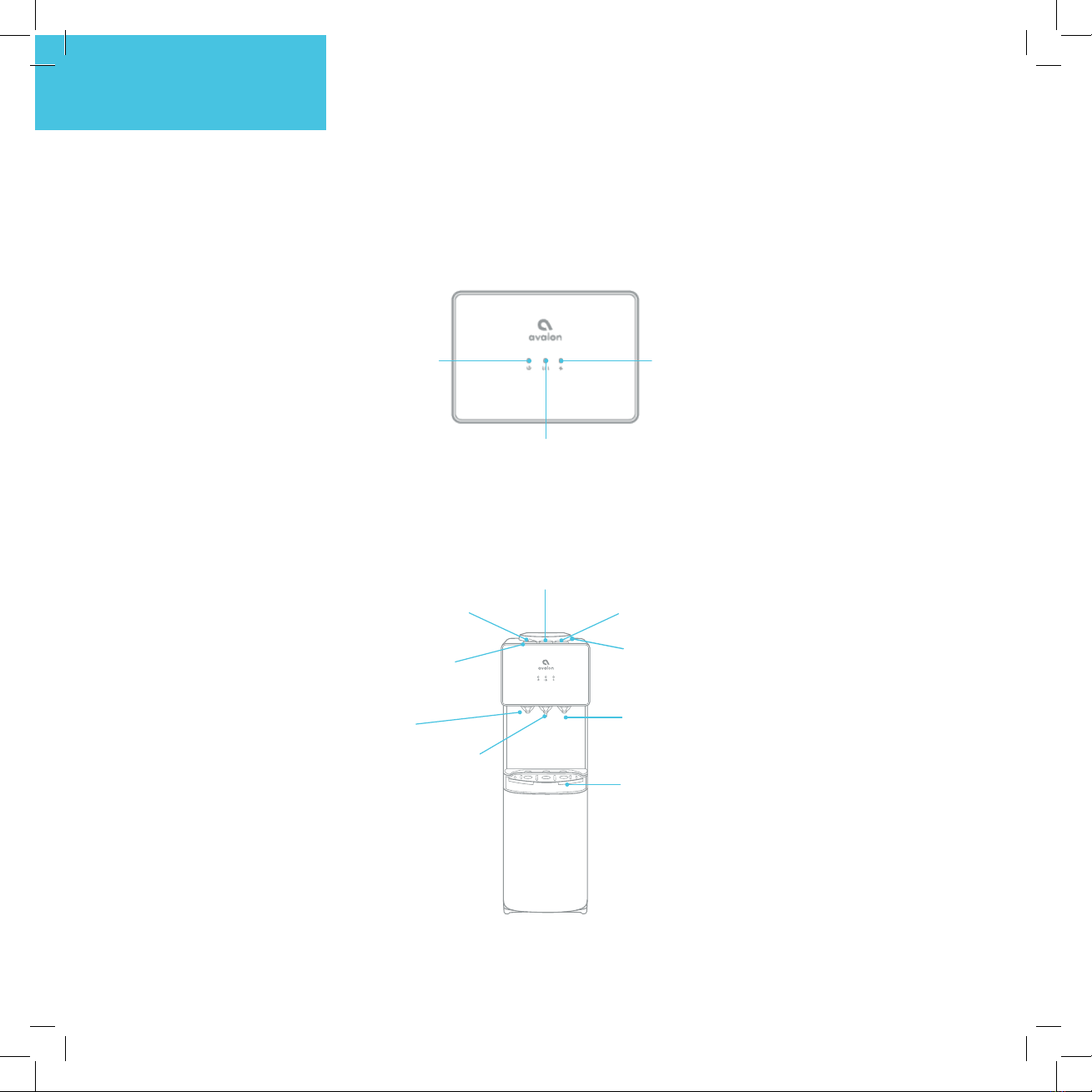

8. Bottle Supporter
7. Cold Water
Push Button
6. Room Temperature
Water Push Button
4. Hot Water
Push Button
5. Child Safety Lock
9. Hot Water Spout 11. Cold Water Spout
10. Room Temp Spout
12. Drip Tray
2. Heating Indicator Light
3. Cooling Indicator Light
1. Power Indicator Light
3
Part Names

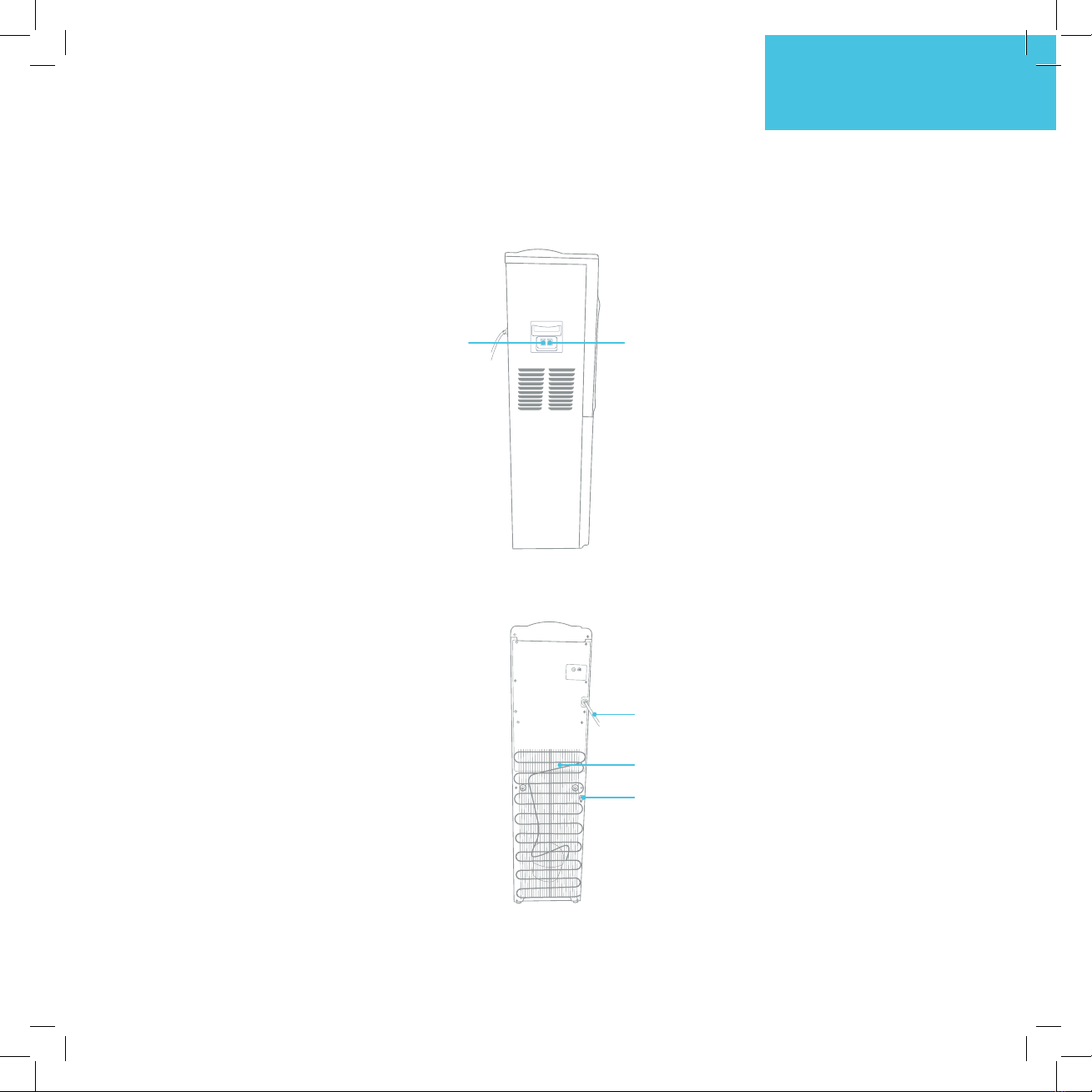

15. Power Cord
16. Condenser
About Your Water Cooler
17. Drain Outlet
13. Cooling Switch 14. Heating Switch
4
Power Indicator Light
This light will remain on as long as the water cooler is plugged in to indicate that
the cooler is on.
Heating Indicator Light
This light will indicate when the water is heating. The light will remain on while the
water is heating and will turn o when it has reached the correct temperature of
185°F. As the water is dispensed the hot tank will refill and the water will heat. As
the water reheats this indicator light will turn on.
Cooling Indicator Light
This light will indicate when the water is cooling. The light will remain on while the
water is cooling and will turn o when it has reach the correct temperature of 47°F.
As the water is dispensed the cold tank will refill and the water will cool. As the
water cools this indicator light will turn on.
Indicator Lights
About Your Water Cooler
5
Tech Specs
Model A10-TL
Hot/Cold/Room Temp Output
Hot Water Capacity
Hot Tank Volume
Cold Water Capacity
Cold Tank Volume
Product Size
Packing Size
Net Weight/Gross Weight
Voltage/Frequency
Cooling Method
Heating Method
Heating Watts / Cooling Watts
Power Consumption
1.2L/min / 1.2L/min /1.0L/min
4 L/H ( ≥ 185°F)
1.02 Liters
2 L/H ( ≤ 47°F)
3 Liters
13”(L)x12”(W)x40”(H)
16”(L)x15”(W)x42.5”(H)
34.17 lb /38.58 lb
115 V 60Hz
Compressor
Internal Element
420W / 100 W
520 W
About Your Water Cooler
6
Getting Started
