Avalue Technology EMX-PNVB Manuale utente

Part No. E2017PNVB00R

EMX-PNVB

Intel® Atom™D525 Processor with ICH8M Chipset

Mini ITX Motherboard

Quick Installation Guide

1st Ed –11 September 2013

EMX-PNVB Quick Installation Guide

2 EMX-PNVB Quick Installation Guide

FCC Statement

THIS DEVICE COMPLIES WITH PART 15 FCC RULES. OPERATION IS

SUBJECT TO THE FOLLOWING TWO CONDITIONS:

(1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE.

(2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED INCLUDING

INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.

THIS EQUIPMENT HAS BEEN TESTED AND FOUND TO COMPLY WITH THE LIMITS

FOR A CLASS "A" DIGITAL DEVICE, PURSUANT TO PART 15 OF THE FCC RULES.

THESE LIMITS ARE DESIGNED TO PROVIDE REASONABLE PROTECTION AGAINST

HARMFUL INTERFERENCE WHEN THE EQUIPMENT IS OPERATED IN A

COMMERCIAL ENVIRONMENT. THIS EQUIPMENT GENERATES, USES, AND CAN

RADIATE RADIO FREQUENCY ENERGY AND, IF NOT INSTATLLED AND USED IN

ACCORDANCE WITH THE INSTRUCTION MANUAL, MAY CAUSE HARMFUL

INTERFERENCE TO RADIO COMMUNICATIONS.

OPERATION OF THIS EQUIPMENT IN A RESIDENTIAL AREA IS LIKELY TO CAUSE

HARMFUL INTERFERENCE IN WHICH CASE THE USER WILL BE REQUIRED TO

CORRECT THE INTERFERENCE AT HIS OWN EXPENSE.

A Message to the Customer

Avalue Customer Services

Each and every Avalue’s product is built to the most exacting specifications to ensure

reliable performance in the harsh and demanding conditions typical of industrial

environments. Whether your new Avalue device is destined for the laboratory or the factory

floor, you can be assured that your product will provide the reliability and ease of operation

for which the name Avalue has come to be known.

Your satisfaction is our primary concern. Here is a guide to Avalue’s customer services. To

ensure you get the full benefit of our services, please follow the instructions below carefully.

Technical Support

We want you to get the maximum performance from your products. So if you run into

technical difficulties, we are here to help. For the most frequently asked questions, you can

easily find answers in your product documentation. These answers are normally a lot more

detailed than the ones we can give over the phone. So please consult the user’s manual

first.

To receive the latest version of the user’s manual; please visit our Web site at:

http://www.avalue.com.tw/

EMX-PNVB Quick Installation Guide

EMX-PNVB Quick Installation Guide 3

1. Getting Started

1.1 Safety Precautions

Warning!

Always completely disconnect the power cord from your

chassis whenever you work with the hardware. Do not

make connections while the power is on. Sensitive

electronic components can be damaged by sudden power

surges. Only experienced electronics personnel should

open the PC chassis.

Caution!

Always ground yourself to remove any static charge before

touching the CPU card. Modern electronic devices are very

sensitive to static electric charges. As a safety precaution,

use a grounding wrist strap at all times. Place all electronic

components in a static-dissipative surface or static-shielded

bag when they are not in the chassis.

Always note that improper disassembling action could cause damage to the

motherboard. We suggest not removing the heatsink without correct

instructions in any circumstance. If you really have to do this, please contact

us for further support.

1.2 Packing List

Before you begin installing your single board, please make sure that the

following materials have been shipped:

Quick Installation Guide X 1

Driver/Utility CD X 1

Serial ATA Signal Cable X 1

COM Port X 1

Screw X 2

Motherboard X 1

Front Audio cable X 1

IO Shield X 1

EMX-PNVB Quick Installation Guide

4 EMX-PNVB Quick Installation Guide

2.Hardware

Configuration

EMX-PNVB Quick Installation Guide

EMX-PNVB Quick Installation Guide 5

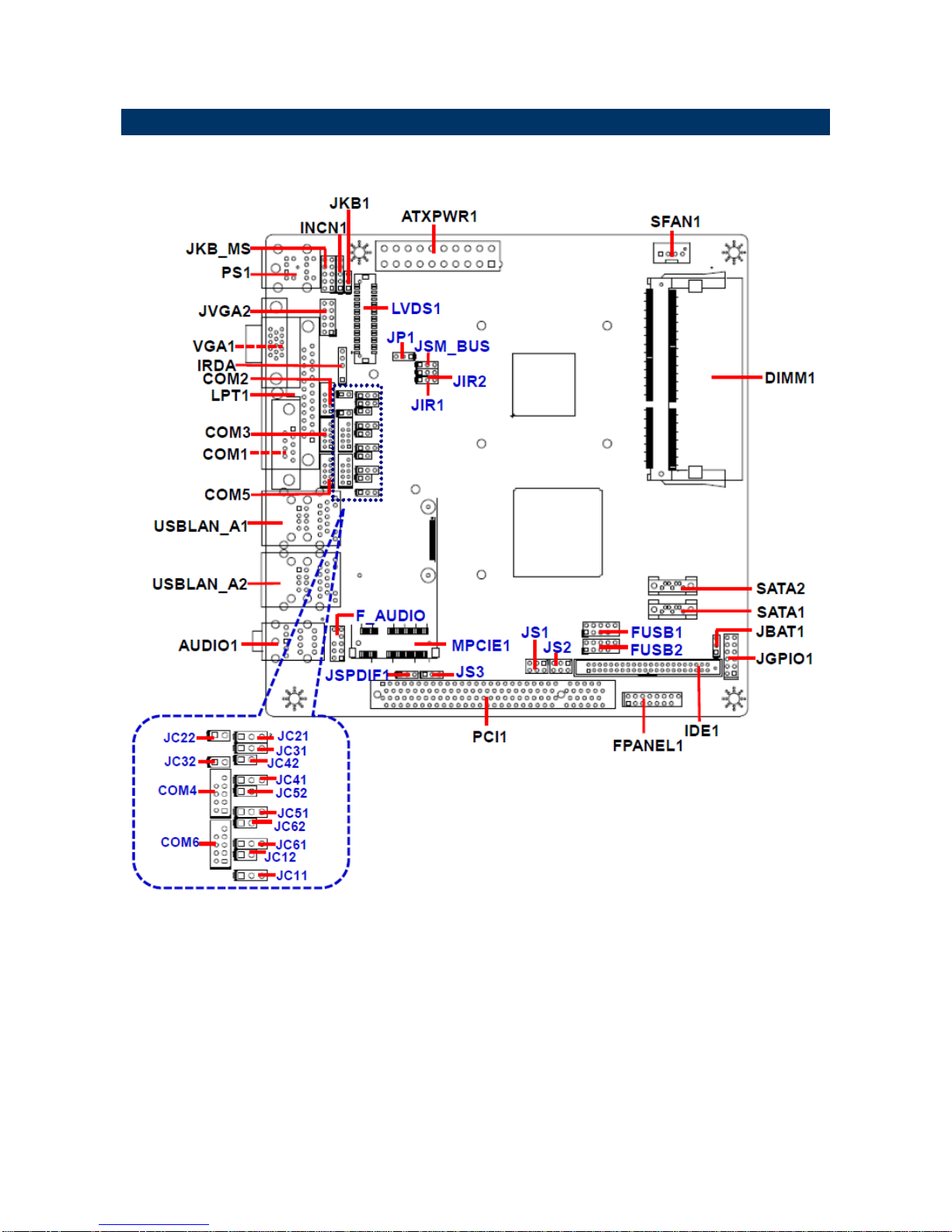

2.1 Product Overview

EMX-PNVB Quick Installation Guide

6 EMX-PNVB Quick Installation Guide

2.2 Jumper and Connector List

You can configure your board to match the needs of your application by setting jumpers. A

jumper is the simplest kind of electric switch.

It consists of two metal pins and a small metal clip (often protected by a plastic cover) that

slides over the pins to connect them. To “close” a jumper you connect the pins with the clip.

To “open” a jumper you remove the clip. Sometimes a jumper will have three pins, labeled 1,

2, and 3. In this case, you would connect either two pins.

The jumper settings are schematically depicted in this manual as follows:

A pair of needle-nose pliers may be helpful when working with jumpers.

Connectors on the board are linked to external devices such as hard disk drives, a

keyboard, or floppy drives. In addition, the board has a number of jumpers that allow you to

configure your system to suit your application.

If you have any doubts about the best hardware configuration for your application, contact

your local distributor or sales representative before you make any changes.

The following tables list the function of each of the board’s jumpers and connectors.

Jumpers

Label

Function

Note

JP1

Jumper for LVDS PWR selection

1 x 3 header, pitch 2.54 mm

JKB1

Keyboard power select jumper

1 x 3 header, pitch 2.54 mm

JIR1~2

Jumper for COM2 or IR selection.

The IR function can’t be used.

1 x 3 header, pitch 2.54 mm

JC12/22/32/42/52/62

Serial port 1~6 or RI, USE

JC11/21/31/41/51/61 PIN 9 selector

1 x 2 header, pitch 2.54 mm

JBAT1

Clear CMOS

1 x 3 header, pitch2.54 mm

JS1~2

Jumper for MPCIE & MSATA selection

2 x 3 header, pitch 2.54 mm

JS3

Jumper for MPCIE PWR selection

1 x 3 header, pitch 2.54 mm

EMX-PNVB Quick Installation Guide

EMX-PNVB Quick Installation Guide 7

Connectors

Label

Function

Note

FPANEL1

Front Panel Switches

2 x 8 header, pitch 2.54 mm

MPCIE1

PCIE signal selector

PCI1

PCI slot

COM1

Serial port 1 connector

COM2~6

Serial port 2~6 connector

2 x 5 header, pitch 2.00 mm

JGPIO1

General Purpose I/O

2 x 6 header, pitch 2.54 mm

LVDS1

LVDS connector

2 x 20 wafer, pitch 1.25 mm

SATA1~2

Serial ATA connector 1~2

USB LAN_A1~2

USB & LAN port 1~2

F_USB1~2

USB connector 1~2

2 x 5 header, pitch 2.54 mm

SFAN1

System Fan connector

1 x 4 wafer, pitch 2.54 mm

LPT1

Printer

DIMM1

DDR3 SODIMM socket

VGA1

VGA connector

JVGA2

VGA connector

2 x 5 header, pitch 2.54 mm

PS1

PS/2 Keyboard & Mouse connector

F_AUDIO

Front Panel Audio Connection Header

2 x 5 header, pitch 2.54 mm

JSPDIF1

Sony/Philips Digital Interface

1 x 3 header, pitch 2.54 mm

IRDA

IRDA connector (not supported)

1 x 5 header, pitch 2.54 mm

IDE1

IDE connector

2 x 22 header, pitch 2.00 mm

ATXPWR1

ATX Power connector

2 x 10 wafer, pitch 4.20 mm

INCN1

Inverter connector

1 x 5 header, pitch 2.54 mm

JSM_BUS

System Management Bus controller

1 x 3 header, pitch 2.54 mm

JC11/21/31/41/51/61

Jumper for Serial port 1~6 pin9 power

selection

1 x 3 header, pitch 2.54 mm

JKB_MS

Keyboard & Mouse connector

2 x 5 header, pitch 2.54 mm

AUDIO1

Line-Out & Mic-In connector

EMX-PNVB Quick Installation Guide

8 EMX-PNVB Quick Installation Guide

2.3 Setting Jumpers & Connectors

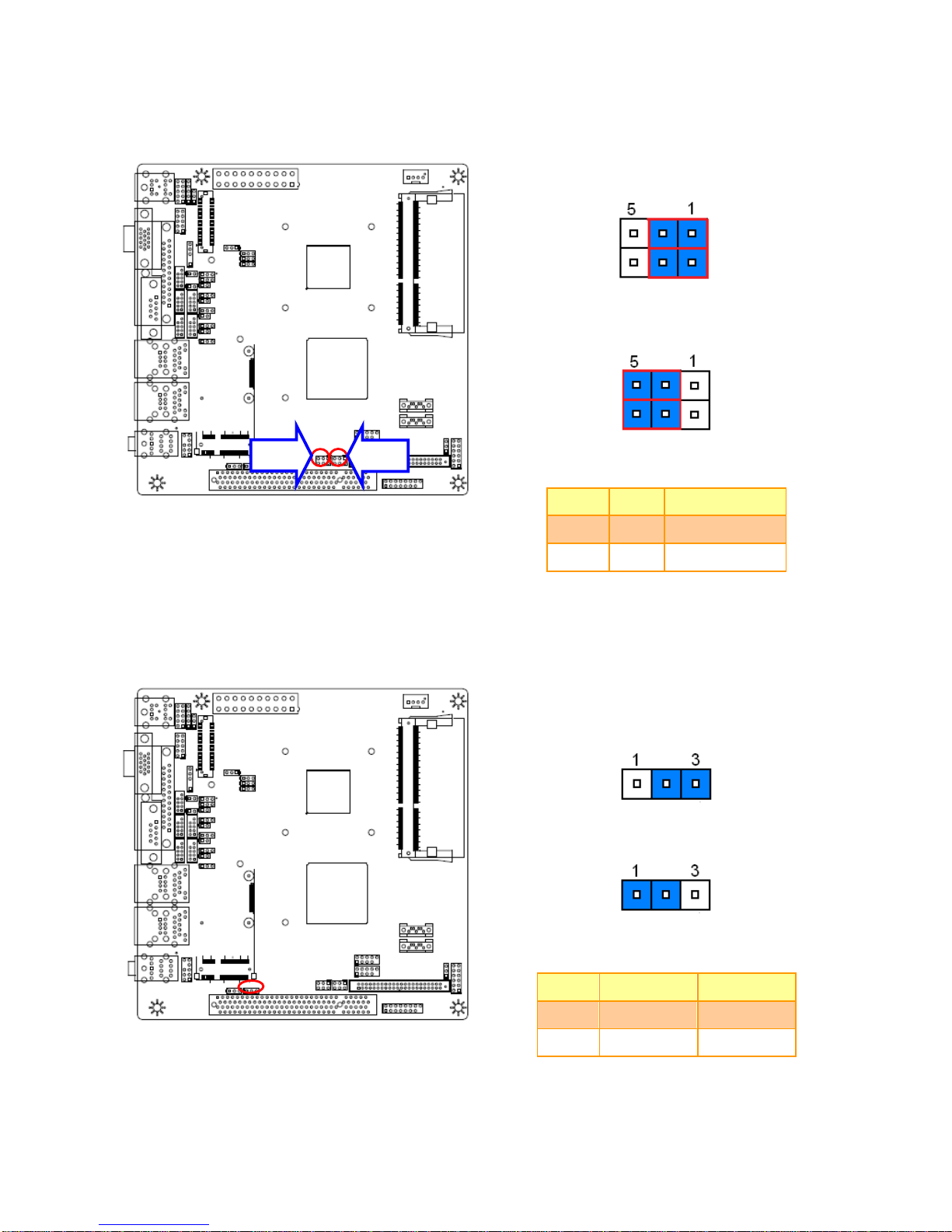

2.3.1 Clear CMOS (JBAT1)

* Default

Normal*

Clear CMOS

Define

1-2

Normal

2-3

Clear CMOS

2.3.2 Keyboard power select jumper (JKB1)

* Default

Disabled*

Enabled

Define

1-2

Disabled

2-3

Enabled

EMX-PNVB Quick Installation Guide

EMX-PNVB Quick Installation Guide 9

2.3.3 Jumper for COM2 or IR selection (JIR1~2)

* Default

COM2*

Define

1-2

COM2

2-3

Note: IR is not functional.

2.3.4 Jumper for LVDS PWR selection (JP1)

* Default

3.3V*

Define

Max current

1-2

3.3V

2-3

JIR2

JIR1

EMX-PNVB Quick Installation Guide

10 EMX-PNVB Quick Installation Guide

2.3.5 Jumper for MPCIE selection (JS1~2)

* Default

M-SATA*

MINIPCIE

Define

1-3

2-4

M-SATA

3-5

4-6

MINIPCIE

2.3.6 Jumper for MPCIE PWR selection (JS3)

* Default

3.3V*

GND

Define

Max current

2-3

GND

1-2

3.3V

JS2

JS1
