Avenview C-VGA-DVI Manuale utente

www.avenview.com

DVI to VGA Converter

Model #: C-VGA-DVI

The contents of this document are provided in connection with Avenview Inc. (“Avenview”) products. Avenview makes no representations or warranties with

respect to the accuracy or completeness of the contents of this publication and reserves the right to make changes to specifications and product descriptions at any

time without notice. No license, whether express, implied, or otherwise, to any intellectual property rights is granted by this publication. Except as set forth in

Avenview Standard Terms and Conditions of Sale, Avenview assumes no liability whatsoever, and disclaims any express or implied warranty, relating to its products

including, but not limited to, the implied warranty of merchantability, fitness for a particular purpose, or infringement of any intellectual property right.

Reproduction of this manual, or parts thereof, in any form, without the express written permission of Avenview Inc. is strictly prohibited.

www.avenview.com

Table of Contents

Section 1: Getting Started ...................................................................................................................... 3

1.1 Important Safeguards ............................................................................................................ 3

1.2 Safety Instructions ................................................................................................................. 3

1.3 Regulatory Notices Federal Communications Commission (FCC) ......................................... 4

1.4 Introduction ........................................................................................................................... 4

1.5 Package Contents................................................................................................................... 5

1.6 Before Installation.................................................................................................................. 5

1.7 Installation ............................................................................................................................. 6

Section 2: Specifications......................................................................................................................... 7

www.avenview.com

Section 1: Getting Started

1.1 Important Safeguards

Please read all of these instructions carefully before you use the device. Save this manual for future

reference.

What the warranty does not cover

Any product, on which the serial number has been defaced, modified or removed.

Damage, deterioration or malfunction resulting from:

Accident, misuse, neglect, fire, water, lightning, or other acts of nature, unauthorized

product modification, or failure to follow instructions supplied with the product.

Repair or attempted repair by anyone not authorized by us.

Any damage of the product due to shipment.

Removal or installation of the product.

Causes external to the product, such as electric power fluctuation or failure.

Use of supplies or parts not meeting our specifications.

Normal wear and tear.

Any other causes which does not relate to a product defect.

Removal, installation, and set-up service charges.

1.2 Safety Instructions

The Avenview C-VGA-DVI, VGA to DVI Converter has been tested for conformance to safety regulations and

requirements, and has been certified for international use. However, like all electronic equipment’s, the

C-VGA-DVI should be used with care. Read the following safety instructions to protect yourself from possible

injury and to minimize the risk of damage to the unit.

Do not dismantle the housing or modify the module.

Dismantling the housing or modifying the module may result in electrical shock or burn.

Refer all servicing to qualified service personnel.

Do not attempt to service this product yourself as opening or removing housing may expose you to

dangerous voltage or other hazards

Keep the module away from liquids.

Spillage into the housing may result in fire, electrical shock, or equipment damage. If an object or liquid

falls or spills on to the housing, unplug the module immediately.

Have the module checked by a qualified service engineer before using it again.

Do not use liquid or aerosol cleaners to clean this unit. Always unplug the power to the device before

cleaning.

www.avenview.com

1.3 Regulatory Notices Federal Communications Commission (FCC)

This equipment has been tested and found to comply with Part 15 of the FCC rules. These limits are designed

to provide reasonable protection against harmful interference in a residential installation.

Any changes or modifications made to this equipment may void the user’s authority to operate this

equipment.

1.4 Introduction

Avenview C-VGA-DVI converts analog VGA signal to digital graphics signal of your PC, so that the PC, notebook

without DVI output can be connected to digital display devices such as LCD monitor and projector with DVI

input.

-Output Connector: DVI 24 pin (female), 15 pin D-sub (female)

-Input Connector: 15 pin D-Sub

-Compatible with DVI Standard by DDWG

-Manual screen control key for corresponding to versatile resolution

-Supports up to 1920x1200 resolution

www.avenview.com

1.5 Package Contents

Before you start the installation of the converter, please check the package contents.

-C-VGA-DVI x 1

-Power Adapter x 1

-User’s Manual x 1

1.6 Before Installation

Put the product in an even and stable location. If the product falls down or drops, it may cause an

injury or malfunction.

Don’t place the product in too high temperature (over 50°C), too low temperature (under 0°C) or high

humidity.

Use the DC power adapter with correct specifications. If inappropriate power supply is used then it

may cause a fire.

Do not twist or pull by force ends of the optical cable. It can cause malfunction.

www.avenview.com

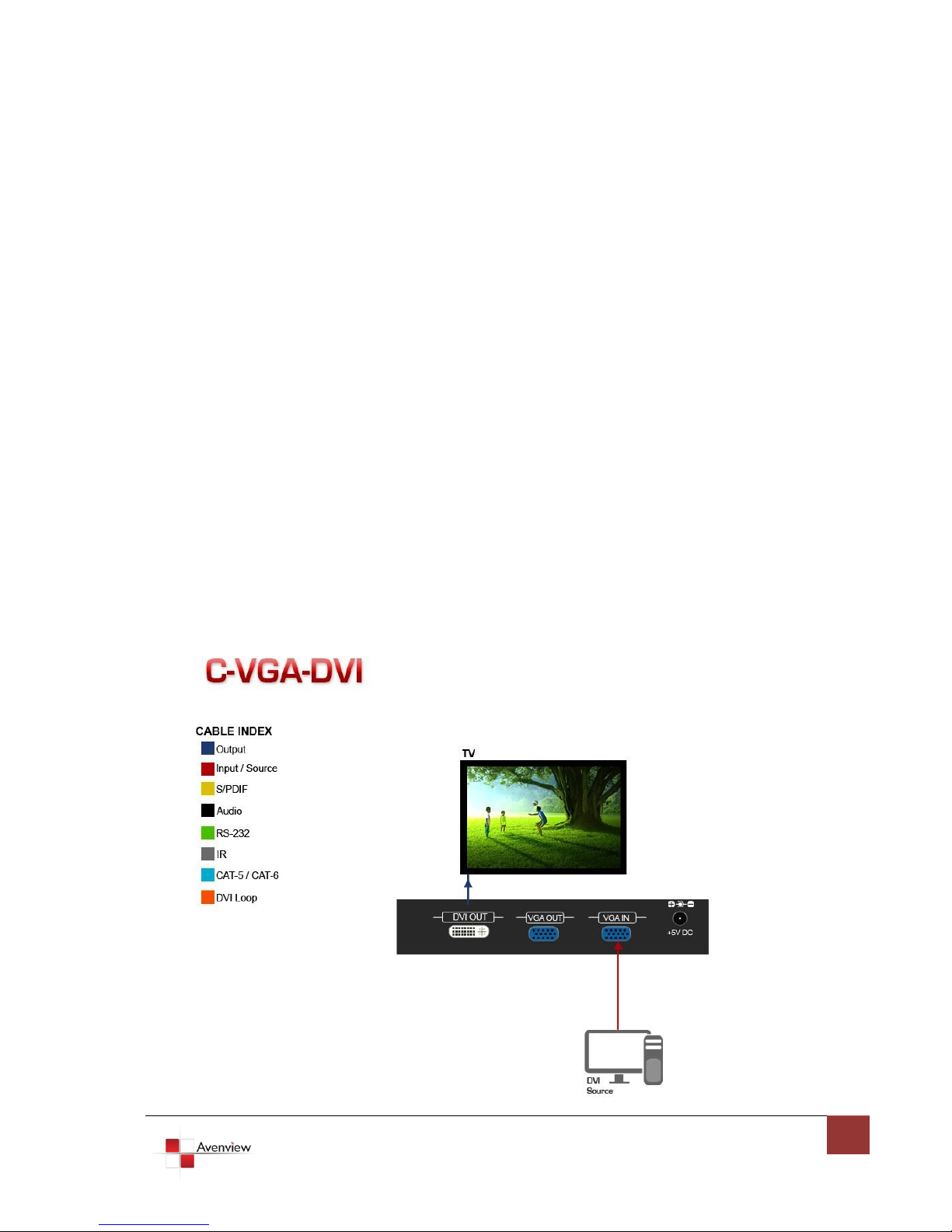

1.7 Installation

Follow these steps to connect Avenview C-DVI-VGA converter:

1. Connect the VGA connector C-VGA-DVI

2. Connect DVI display to C-VGA-DVI DVI Output

3. Plug the 5V DC power supply

Please ensure that the display resolution set in PC is supported by the Monitor/TV.

www.avenview.com

Section 2: Specifications

Item

Description

Unit

C-VGA-DVI

Unit Description

VGA to DVI Converter

Input

1 x Analog VGA (15 pin D-sub female)

Output

1 x DVI Digital Single Link (24 pin female)

1 x Analog VGA (15 pin D-sub female)

Video Bandwidth

1.65Gbps (Single Link)

Power Adapter

5V 2A DC (Optional)

Power Consumption

2.3 Watt (max)

Supported Resolution

and Distance

Up to WUXGA (1920x1200)

Dimension

6.3” x 4.3” x 1”

www.avenview.com

Disclaimer

While every precaution has been taken in the preparation of this document, Avenview Inc. assumes no liability with respect to the

operation or use of Avenview hardware, software or other products and documentation described herein, for any act or omission of

Avenview concerning such products or this documentation, for any interruption of service, loss or interruption of business, loss of

anticipatory profits, or for punitive, incidental or consequential damages in connection with the furnishing, performance, or use of the

Avenview hardware, software, or other products and documentation provided herein.

Avenview Inc. reserves the right to make changes without further notice to a product or system described herein to improve reliability,

function or design. With respect to Avenview products which this document relates, Avenview disclaims all express or implied warranties

regarding such products, including but not limited to, the implied warranties of merchantability, fitness for a particular purpose, and

non-infringement.
