Compact KVM Switches Designed for SMB Server Rooms

Designed speciﬁcally for SMB server rooms, the rack-mounted SwitchView 1000 switching

system provides PS/2 and/or USB connectivity for users and target devices. The single-user

switch, available in 4-, 8- and 16-port models, provides simple control via its on-screen display

(OSD) and it supports video resolutions up to 2048 x 1536, enabling it to handle the most

demanding server-room applications.

With its 1U-high design, the SwitchView 1000 switch ﬁts into standard racks and doesn’t

compete for valuable rack space in SMB server rooms. The cost-efﬁcient switch is ﬂash

upgradeable for fast and easy updates and its password protection feature gives you the beneﬁt of

added security access to your business-critical servers.

Beneﬁts

Single-user, rack-mounted

SwitchView 1000 4-, 8- and 16-port

switches are speciﬁcally designed

for SMB server rooms

SwitchView 1000 bundles ship with

the unit and KVM cables simplifying

your order process

Uses a three-in-one KVM cable

that supports USB or PS/2 target

devices

Ability to connect multiple units

together without a complicated

conﬁguration

The SwitchView 1000 can be

cascaded to support up to 256

target devices

Ability to customize scanning times

between attached systems with

programmable autoscan

SwitchView 1000 switches are

backed by Avocent’s 2-year warranty

and technical support

SwitchView 1000 KVM switches provide simple connectivity and

control for the SMB server room.

SwitchView®1000 Series Rack Mount KVM Switches

Avocent, the Avocent logo, and SwitchView are registered trademarks of Avocent

Corporation or its afﬁliates in the U.S. and other countries. All other marks are the

property of their respective owners.

www.avocent.com/contacts

1008-SV1000-DS-EN

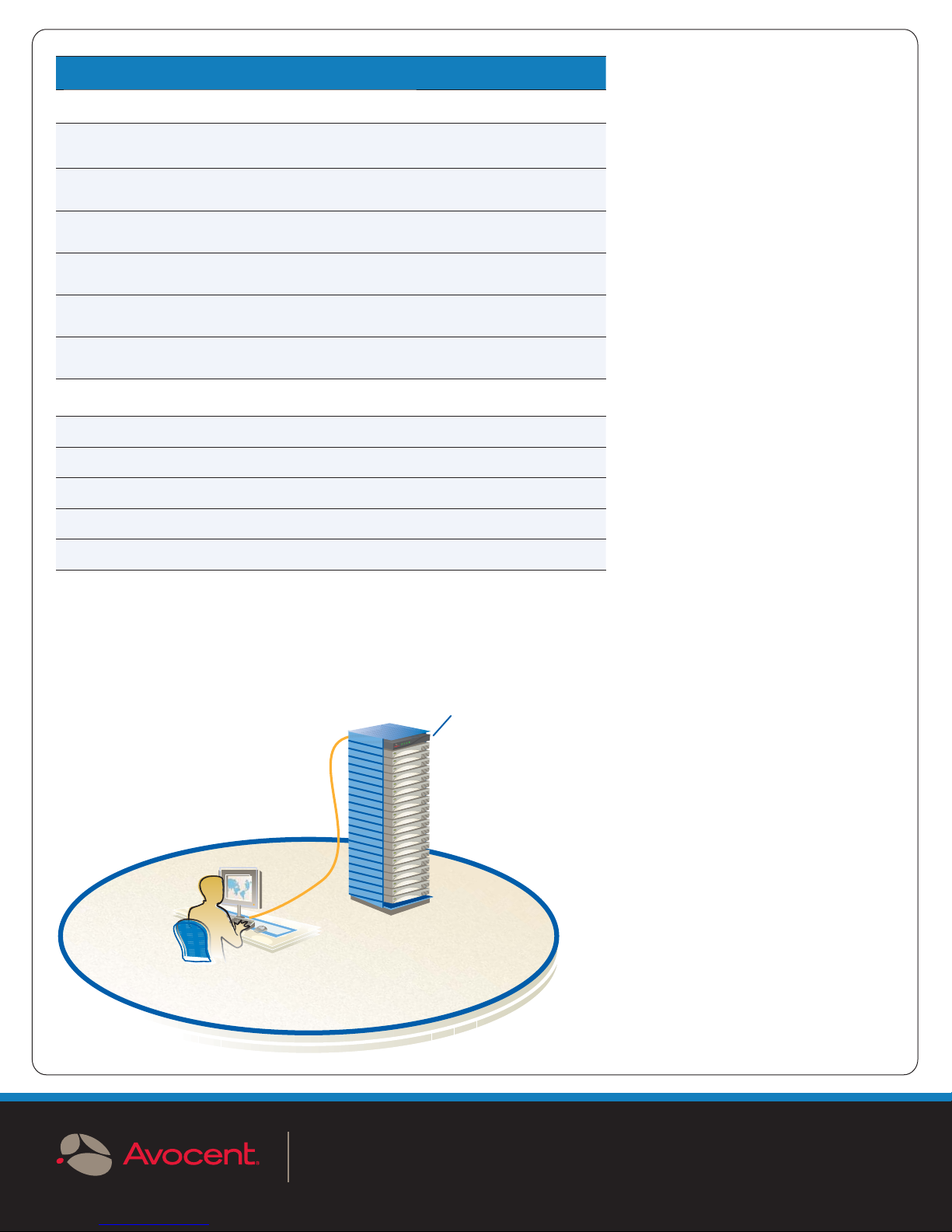

The SwitchView 1000 KVM switching system provides direct control over your PS/2

and USB target devices.

Speciﬁcations

Mechanical

Size: 1.75” (4.45 cm)H, 16.14”

(41 cm)W, 7.43” (18.9 cm)D

Weight: 4.85 lbs (2.2 Kg)

Environmental

Operating Temperature: 32 to 104 F (0

to 40 C)

Storage Temperature: -4 to 140 F (-20

to 60 C)

Power

Operating Voltage: 5V

Power In: DC 9V

Power Frequency: 60 Hz

Supported Hardware

Computers: PC, Mac, Sun {with USB or

PS/2 interface}

Monitors: 2048 x 1536 maximum

Peripherals: PS/2 keyboard, PS/2

mouse, USB keyboard, USB mouse, VGA

monitor

Standards

Approved Agency:

FCC, CE, C-Tick, UL, cUL

Warranty

Two Year

Part Number Description

Ordering Details

4SV1000BND1-XXX 1 local user, 4 systems switch w/OSD

USB & PS/2 support, includes 4 CBL0029 cables

8SV1000BND1-XXX 1 local user, 8 systems switch w/OSD USB & PS/2 support,

includes 4 CBL0029 and 4 CBL0030 cables

16SV1000BND1-XXX 1 local user, 16 systems switch w/OSD USB & PS/2 support,

includes 4 CBL0029 and 4 CBL0030 cables

4SV1000-XXX 1 local user, 4 systems switch w/OSD

USB & PS/2 support, switch only

8SV1000-XXX 1 local user, 8 systems switch w/OSD

USB & PS/2 support, switch only

16SV1000-XXX 1 local user, 16 systems switch w/OSD

USB & PS/2 support, switch only

Cables & Accessories

CBL0029 6 foot PS2/USB cable for use with the SwitchView 1000 switch

CBL0030 9 foot PS2/USB cable for use with the SwitchView 1000 switch

CBL0031 15 foot PS2/USB cable for use with the SwitchView 1000 switch

CBL0029-8 Package of 8 CBL0029 cables for use with the SwitchView 1000 switch

CBL0030-8 Package of 8 CBL0030 cables for use with the SwitchView 1000 switch

For country-speciﬁc availability, please contact an Avocent sales representative.

PS/2 and USB

target devices

SwitchView 1000

KVM Switch

Direct connection

to switch

(PS/2 or USB)
