Quick Installation Guide

AMX™

Switching System

The following instructions will help you

to connect your AMX switching system.

For more detailed information, please consult

your installer/user guide.

To install the AMX switch and the

AMX5130 user station

To Contact Avocent Technical Support CALL (888) 793-8763 VISIT www.avocent.com/support DOWNLOAD www.avocent.com

Avocent, the Avocent logo, AMX and The Power of Being There are trademarks or registered trademarks of Avocent Corporation. All other marks are the property of their respective owners. ©2005 Avocent Corporation. All rights reserved. 590-487-501A

The Power of Being There®

Initial setup

Place your AMX switch and AMX5130 user

station in the desired locations. Rack mounting

brackets for the AMX switch are included for

easy rack installation.

Connecting power

Power down your systems. Attach one end

of each appropriate power cord to your AMX

switch and to your AMX5130 user station. Plug

the other end of each cord into an appropriate

AC wall outlet.

Connecting to the LAN

Insert one end of a UTP cable attached to your

LAN into the network port on the back of the

AMX switch.

Connecting the AMX5130 user station

to the AMX switch

Insert one end of a UTP cable attached to the

user station into a numbered user port on the

AMX switch for each user in your system.

Connecting the AMX switch to a server

Insert one end of a UTP cable into one of the

numbered server ports on the switch, and fas-

ten the opposite end into the RJ-45 port on an

AMIQDM (dual port/multimedia) module. Plug the

AMIQDM module connectors into the appropriately

labeled ports on your server for each computer to be

connected to your AMX switch.

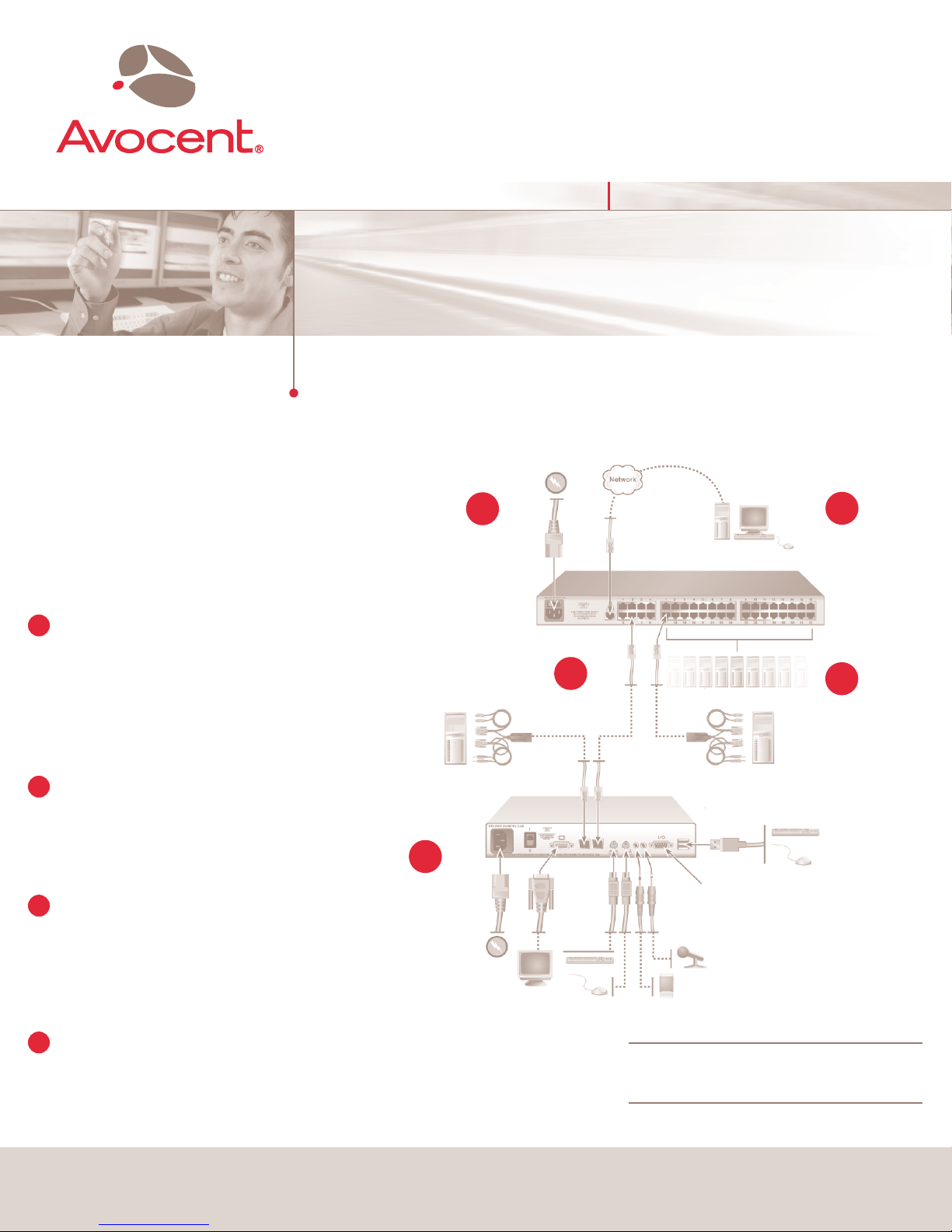

AMX Switch

AMX5130

User Station

Connecting power

to the switch

Connecting

to a LAN

Connecting the

user station

Connecting the

switch to servers

AMIQDM

Module

Serial

Port

Connecting power to

the user station

AMIQDM

Module

NOTE: AMIQDM-PS2, AMIQDM-USB and

AMIQDM-VSN modules are available.

To Contact Avocent Technical Support CALL (888) 793-8763 VISIT www.avocent.com/support DOWNLOAD www.avocent.com

Avocent, the Avocent logo, AMX and The Power of Being There are trademarks or registered trademarks of Avocent Corporatiion. All other marks are the property of their respective owners. ©2005 Avocent Corporation. All rights reserved. 590-487-501A

Connecting the user station to a

local CPU

Insert one end of a UTP cable into one of the

RJ-45 ports on the back of the AMX5130

user station. Fasten the opposite end into the

RJ-45 port on an AMIQDM module.

Connecting the keyboard, monitor

and mouse

Connect the monitor to the VGA con-

nector on the back of the AMX5130 user

station. Plug your keyboard, monitor and

mouse cables into the appropriately labeled

PS/2 or USB connectors on the back of the

AMX5130 user station.

Connecting the stereo speakers

and microphone

Plug your stereo speakers/headphones in the

appropriately labeled connectors on the back

of the AMX5130 user station.

NOTE: The AMX5130 user station supports

the connection of local serial devices.

Powering up

Power up your AMX switching system.

For additional information

For further information on AMX hardware connection,

software setup and security conﬁguration, please

Quick Installation Guide

AMX™

Switching System

To install the AMX switch and the

AMX5130 user station (continued)

The Power of Being There®

The following instructions will help you

to connect your AMX switching system.

For more detailed information, please consult

your installer/user guide.

AMX Switch

AMX5130

User Station

Connecting to a

local CPU

Connecting the PS/2

keyboard and mouse

Connecting the

stereo speakers

and microphone

Connecting the

USB keyboard

and mouse

AMIQDM

Module

Connecting the

monitor

Serial

Port

AMIQDM

Module

refer to the installer/user guide included with the

appliance. Visit http://www.avocent.com for the

latest AMX switch updates.
