These instructions describe how to replace the IR Optical Bench in the AGM300 Ammonia Gas Monitor.
It is assumed that the user is familiar with the operation of the AGM300 / ADM800 Ammonia Gas
Monitoring System. If necessary, refer to Instruction 3015-4275 for detailed operation and maintenance
information.
Items Required:
•Replacement IR Optical Bench Kit 3015-4521:
oIR Bench Assembly 3015-4204
oWire Ties (Qty. 2) 3015-2835
oInstruction Sheet 3015-4723
•Medium Phillips Head Screwdriver
•Small Flat Blade Screwdriver
•Wire Cutter (for removing wire ties)
Removing the IR Optical Bench
1. Find the AGM300 Ammonia Gas Monitor and switch OFF its AC
circuit breaker. Observe that the monitor’s green MONITOR ON
indicator light on the front panel should be OFF.
2. Use a Phillips screwdriver to loosen the monitor’s two door latches,
and then open the door.
3. Take a few minutes to familiarize yourself with the internal
components of the AGM300 shown in Figure 2.
A
GM300 Optical Bench
Replacement Kit 3015-4521
Instruction 3015-4723
Rev. 0 – February 2006

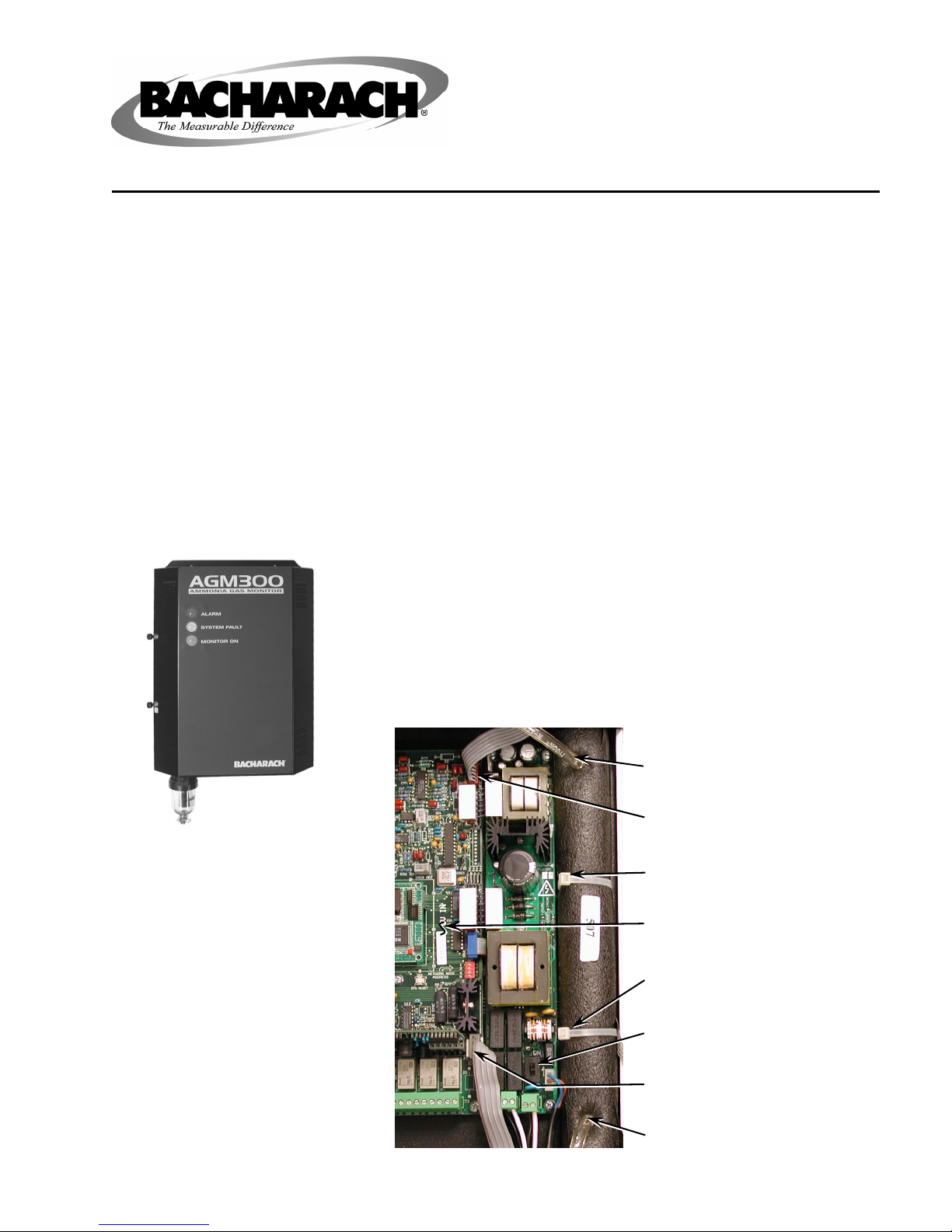

Figure 1. AGM300
Ammonia Gas Monitor
Upper Gas Sample Tube
Upper Electrical Connector (Red)
Upper Wire Tie
Main Board
Lower Wire Tie
AC Power Switch
Lower Electrical Connector
Lower Gas Sample Tube
Figure 2. AGM300 Components
Instruction 3015-4723
2
4. IMPORTANT! For added safety, turn OFF the AGM300 by pushing
the internal AC Power Switch to its DOWN position! This step is in
addition to setting the monitor’s AC circuit breaker to OFF.
Recheck the front panel MONITOR ON indicator light to ensure
that it is OFF. With AC power removed, it is now safe to work
inside the enclosure.
5. Refer to Figure 2 and perform the following:
a. Pull the upper and lower electrical connectors from their sockets
on the Main board. Please note that the upper ribbon cable is the
shorter of the two cables and has a red connector.
b. Pull the upper and lower gas sample tubes from their fittings on
the IR Optical Bench.
c. Using wire cutters, cut the upper and lower wire ties that hold
the IR Optical Bench in place, and then remove the bench.
d. Please provide the serial number of the AGM300 and return the
old IR Optical Bench to:
Bacharach Inc.
621 Hunt Valley Circle
New Kensington, PA 15068
Attn: Repair Department
Installing the New IR Optical Bench
6. Perform the following:
a. Position the new IR Optical Bench inside the AGM300 enclosure
so that the end with the shorter ribbon cable and red connector
is located at the top, and the gas fittings are facing forward.
b. Using the wire ties supplied in the kit, secure the bench to the
tie-down fixtures on the back panel of the enclosure.
c. Plug the ribbon cables from the new bench into their associated
sockets on the Main board. Note location of red connector
d. Connect the gas sample tubes to their associated fittings on the
new bench.
7. Check to ensure that the new IR Optical Bench is properly secured,
and that all tubing and electrical connectors are tight.
8. Turn ON the AGM300’s AC circuit breaker, and push the monitor’s
internal AC Power Switch to its UP (or ON) position.
WARNING! Shock hazard. The monitor is now powered ON.
9. Before proceeding, allow the AGM300 to warm-up until its green
MONITOR ON indicator light stops flashing.

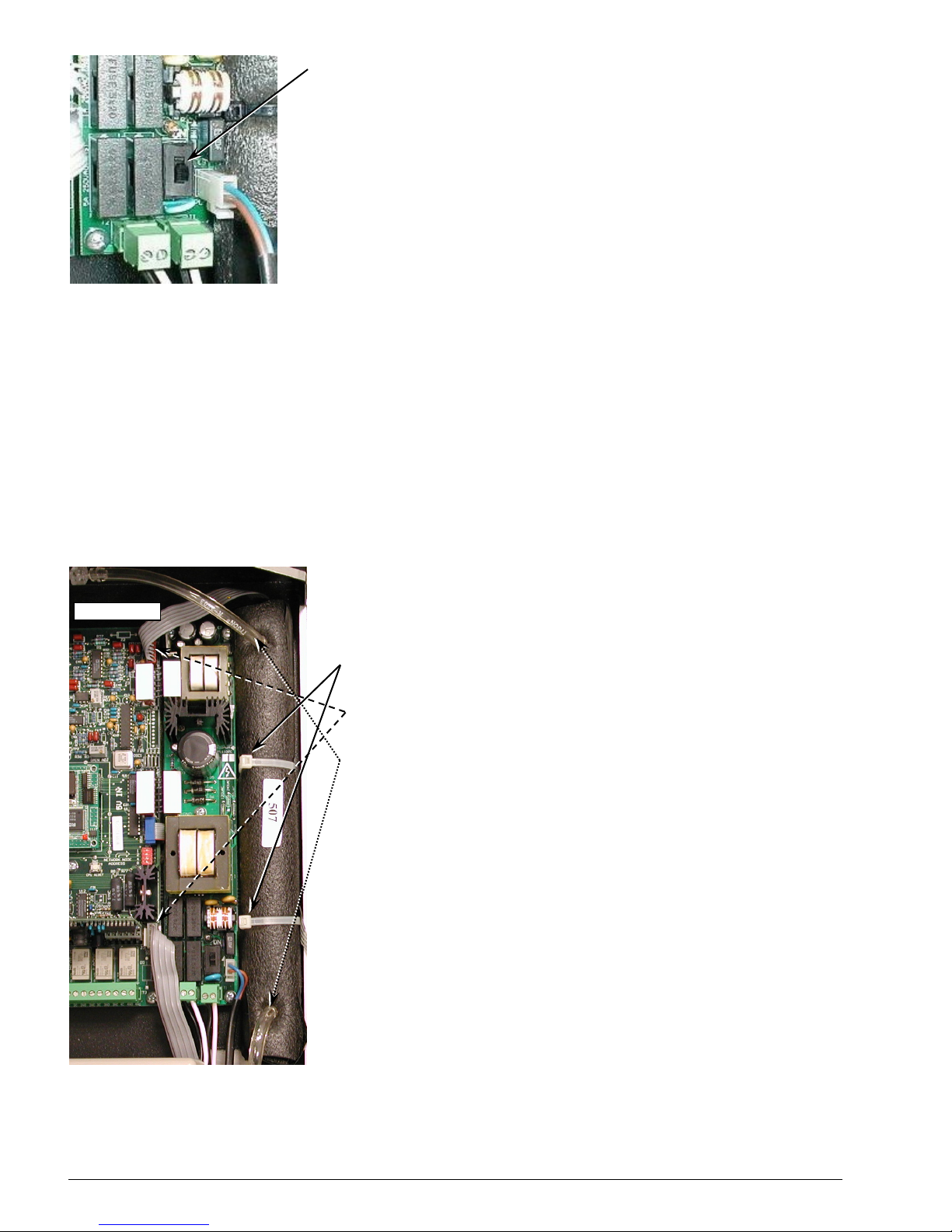

Figure 3. AC Power
ON/OFF Switch
Figure 4. IR Optical
Bench Installation
RED Connector
Instruction 3015-4723 3
Adjusting the IR Optical Bench Detector Voltage
10. Check, and possibly adjust, the IR Optical Bench detector voltage
by first going to the ADM800 and pushing the button on the System
Screen that corresponds to the AGM300 monitor being serviced.
This action will display that monitor’s SETUP Screen.
11. From the SETUP Screen, press the DIAG button to display the
DIAGNOSTIC Screen of the monitor being serviced.
12. Look at the second line labeled DET. This is the IR Optical Bench
detector voltage. The voltage should be between 4.2 and 4.3 VDC.
If the voltage is out of range, then go to Step 13.
If the voltage is within range, then skip to Step 14.

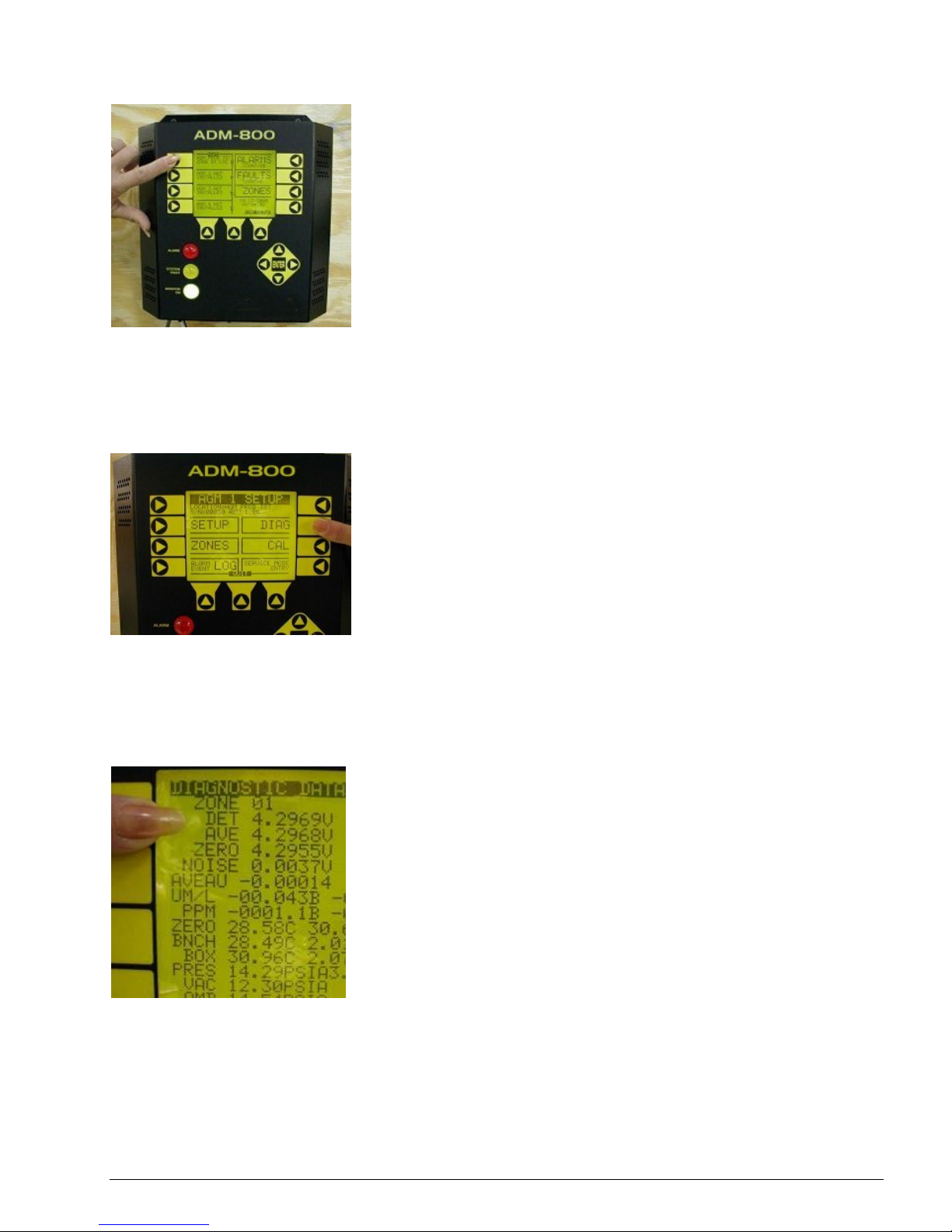

Figure 5. Push button of
monitor being serviced to
display its SETUP Screen
Figure 6. Push DIAG button
to display DIAGNOSTIC Screen
Figure 7. Detector voltage
should be between
4.2 and 4.3 VDC
Instruction 3015-4723
4
13. Go back to the AGM300 and find GAIN ADJ potentiometer R34 on
the Main board. Using a small flat-blade screwdriver, turn R34
clockwise to increase, or counterclockwise to decrease, the detector
voltage to between 4.2 and 4.3 VDC. MAKE VERY SMALL
ADJUSTMENTS!
14. Secure the AGM300’s enclosure door and place the monitor back
into service.
Headquarters:
621 Hunt Valley Circle, New Kensington, PA 15068
Ph: 724-334-5000 • Fax: 724-334-5001 • Toll Free: 1-800-736-4666
Printed in U.S.A. ® Re
g
istered Trademark of Bacharach Inc.

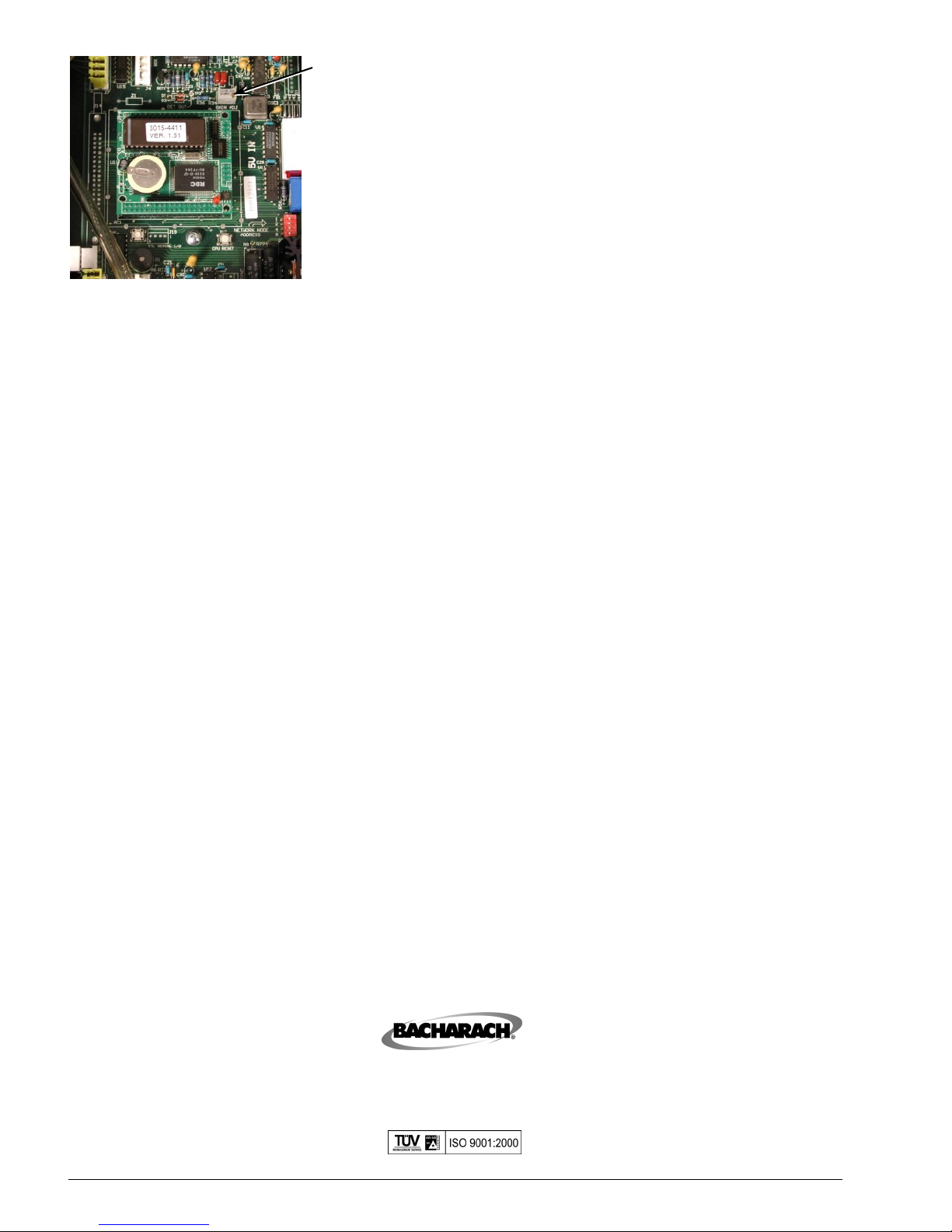

Figure 8. Detector GAIN
ADJ Potentiometer R34
