General Information 1
CL 5 1-3
General Information Supplying Power to the CL 5
The CL 5 is an ultrasonic precision thickness
measurement device. It’s available with optional
live A-Scan display, acoustic velocity measurement
capability, and a data recorder in which as many
10,000 thickness measurements per file can be stored.
This chapter of your manual introduces the key fea-
tures of the CL 5 and the contents of this operating
manual. The next chapter explains the keypad func-
tions and display-menu contents. Closely reviewing
the material in these two chapters will help you make
better use of the more detailed information found
throughout the rest of this manual.
In this chapter, you’ll learn
• How to install batteries or connect the AC power
adapter to the instrument (Section 1.1)
• How to Power on and off the instrument
(Section 1.2)
• The features of the instrument and base instrument
package contents (Section 1.3)
• The general content of each chapter in this manual
(Section 1.4)
1.1 Supplying Power to the
CL 5
• The instrument is powered by a Lithium (Li) battery
pack.
• It will also accept three “AA” size Alkaline, NiCAD, or
NiMH (nickel metal hydride) battery types.
• The Lithium battery, which is recommended, will
provide up to approximately 25 hours of service life.
This pack (and only this pack) may be recharged
in the instrument using the charger provided with
your instrument.
• When other types of rechargeable batteries are
used, they must be removed from the instrument
for charging.
To install batteries, remove the battery-compartment
cover as shown in Figure 1-1. After inserting the Li
pack or three “AA” batteries according to the polarity
indicated in the battery compartment, replace the
compartment cover. Instructions on specifying
battery type are found in Section 3.2.
1-4 Issue 04, 08/07 CL 5
Supplying Power to the CL 5

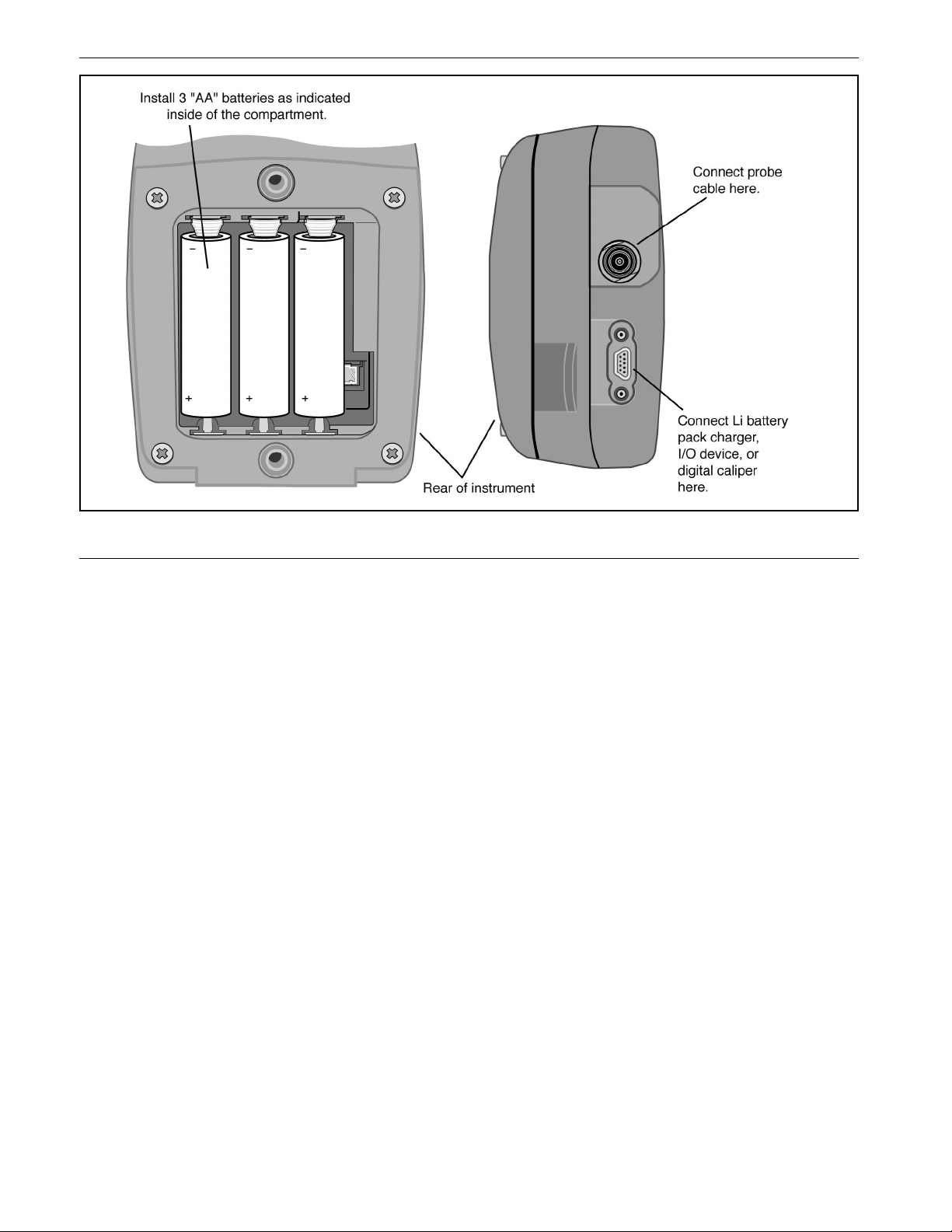

FIGURE 1-1—Insert batteries as shown here. Notice the location of the External Power Connector to which the
instrument’s Li battery pack’s charger be connected.
General Information
CL 5 1-5
Note:
When the battery indicator is in the last quarter
as indicated by the display-screen symbol ,
replace the batteries as soon as possible. The CL 5
automatically shuts off when batteries are too weak
for reliable operation. However, settings are saved
and restored when the instrument is turned on again.
When testing in remote locations, always carry spare
batteries.
Note:
The instrument can be operated while the Li battery
pack‘s charger is connected. This charger is connec-
ted to the instrument though the connector shown in
Figure 1-1. When the charger is powering the instrume
t, appears on the display screen. The charger may
only be connected when the Waygate Technologies
Li battery pack is installed in the instrument.
1.2 Powering On and Off the
Instrument
After a power source has been provided, power on
the instrument by pressing and holding until the
instrument turns on. Press and hold when the
instrument is on to turn if off.
1.3 Key Features of the CL 5
• Large Hollow/filled thickness digits
• Standard and Custom parameter setups
• Supports delay and contact probes
• Alphanumeric naming of data files
• Lockout feature with password access
• Lightweight – .75 lbs (.34 Kg)
• Large LCD Display with Backlight and Adjustable
Contrast
• Approximately 25 hours life – with the Li battery
pack or 3 “AA” alkaline batteries
• Easy-to-use, single-level menu system
• Multiple display-screen languages
General Information Powering On and Off the Instrument
1-6 Issue 04, 08/07 CL 5
• User-selectable measurement resolution to 0.0001
inch (0.001 mm)
• Normal (thickness), Min-Scan, Max-Scan, and
Differential/Rate of Reduction Measurement Modes
are Standard
• Optional Quality View Mode with Data Recorder
Option and Custom Linear Files for storing thick-
ness measurements from multiple locations, with
different thicknesses and tolerances, for each item
to be measured.
• Optional A-Scan provides A-Scan plus Thickness
• Optional Data Recorder stores up to 10,000 thick-
ness measurements with A-Scan images attached
in as many as 120 data recorder files
• Optional Velocity Measurement Mode includes an
electronically connected digital caliper for exact
measurement and automatic input of nominal
thickness
• Field upgrades available via the Waygate Techno-
logies web site
• Compatible with UltraMATE©and UltraMATE LITE©
software programs
CL 5 Precision Thickness Measurement
Base Instrument
Contents of the CL 5 Base Instrument
• CL 5 Instrument
• Lithium Battery Pack
• Lithium Battery Pack Recharger
• Plastic Carrying Case
• Wire Stand
• AC power supply
• Couplant Sample
• Firmware Upgrade USB Stick
(requires Serial PC cable)
• Operating Manual
• Operating Instruction Card
• Certificate of Conformity
Key Features of the CL 5 General Information
CL 5 1-7
Instrument Options
• A-Scan Upgrade Option
• Data Recorder Upgrade Option
• Velocity Measurement Option
1.4 What’s in this Manual
The CL 5 Operating Manual is divided into ten
chapters. All chapters except 4 and 5 apply to all
instruments. The last two sections of Chapter 4 apply
only to instruments equipped with the A-Scan or
Velocity measurement options. Chapter 5 applies
only to instruments equipped with the Data Recorder
option. Note that any CL 5 can be retrofitted to
incorporate these options. Following is a summary of
Chapters 1 through 10:
Chapter 1—General Introduction
• Supplying Power to the instrument
• Powering on and off the instrument
• Overview of instrument features
• Explanation of the operating manual contents
Chapter 2—Understanding the Keypad, Menu
System, and Displays
• Operations performed by each key
• Navigating the display screens
• Overview of menu functions
• Explanation of display features (base model, data
recorder, and A-Scan equipped instruments)
• Definition of icons
Chapter 3—Setting Up the CL 5
• Install a probe and configure the instrument by
loading a setup file
• Set up the instrument display appearance (for
base model and A-Scan equipped instruments)
and make other configuration settings
General Information What’s in this Manual
1-8 Issue 04, 08/07 CL 5
What’s in this Manual General Information
• Adjust the instrument gain setting
• Specify the nominal material thickness
• Calibrate and zero the instrument/probe combina-
tion
• Set maximum and minimum alarm values
• Create and erase custom setup files
• Lock and unlock instrument controls
Chapter 4—Measuring Thickness
• Specify and use the Normal measurement mode
(No A-Scan)
• Operate in Min-Scan and Max-Scan Measurement
mode
• Operate in Differential/Rate of Reduction measure-
ment mode
• Select and interpret the A-Scan plus Thickness
measurement mode (Optional)
• Magnify the displayed A-Scan using the Zoom
control
• Freeze the thickness reading and A-Scan
• Connect the digital caliper and measure acoustic
velocity (Optional)
• Measure, evaluate and record thickness values
from multiple locations on one item and store it in
one file with Quality View Mode and Data Recorder
(Optional)
Chapter 5—Using the Optional Data Recorder
• Create, recall, and delete data recorder files
• Store A-Scan and thickness readings in data re-
corder files
• Navigate data recorder file locations
• Attach notes to the data recorder file
• Print reports
Chapter 6—I/O Technical Details
• Configure the instrument to communicate with PCs
and printers
• Thickness value format
• Remote control codes
CL 5 1-9
Chapter 7—Specifications
Chapter 8—Maintenance
Chapter 9—Appendix
• Reset the operating software
• Upgrade the operating software
• EMC documentation
• How to obtain service
Chapter 10—Index
General Information What‘s in this Manual
CL 5 2-10
