BENEDICTION ENTERPRISE CO., LTD, TAIWAN
---------------------------------------------------------------------------------------------------------------------------------------------------------------
---------------------------------------------------------------------------------------------------------------------------------------------------------------

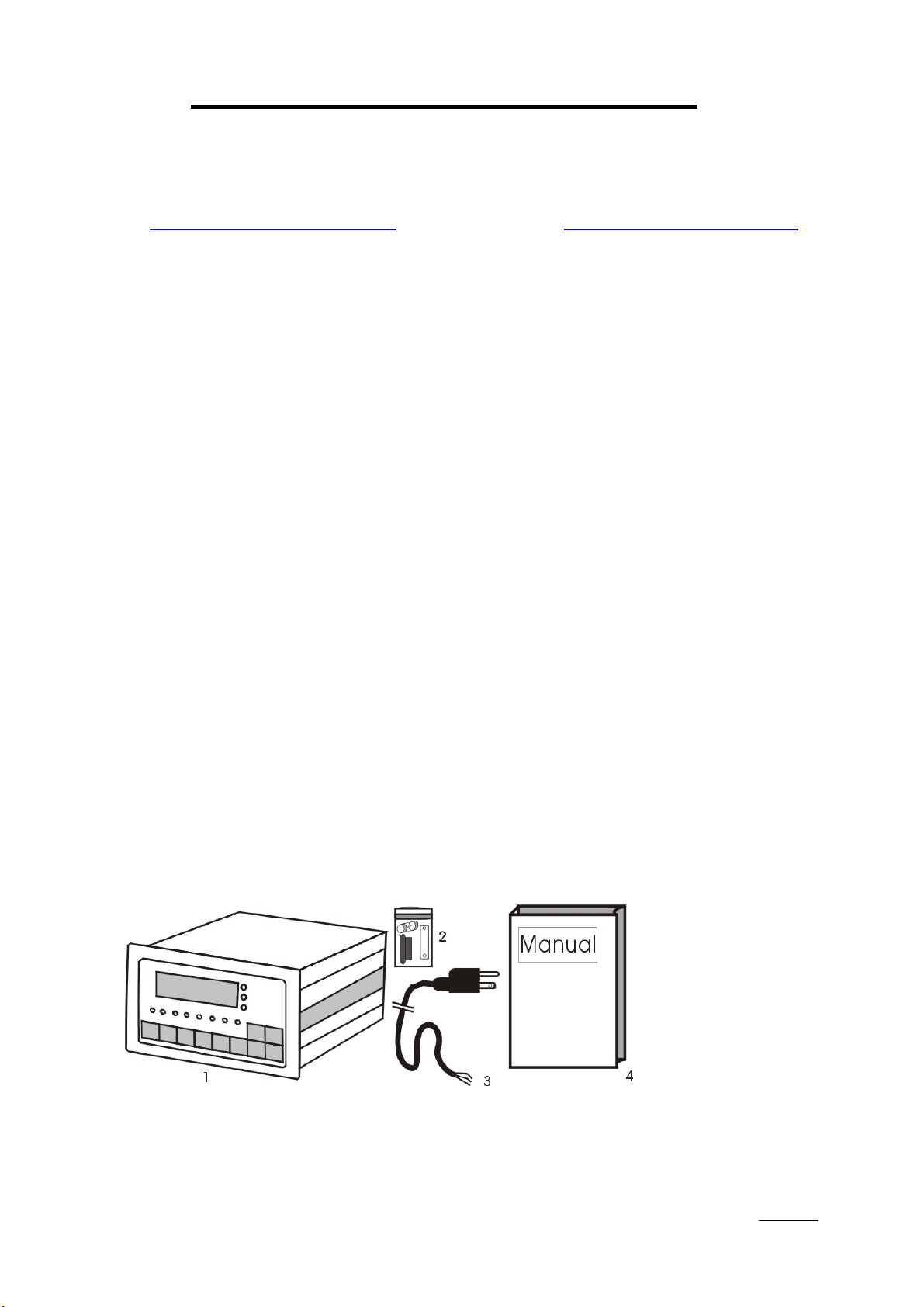

BDI-2006
§
3-4 Quick Function Table
◎WEIGHT FUNCTION TABLE
F 000 Decimal Point
Adjustment No Decimal, 1 Decimal, 2 Decimal, 3 Decimal , 4
Decimal
F 001 Weighing Unit Selection None, Kilogram, Pound, gram, ton, Oz
F 002 Display Update rate 10 times/Sec, 20 times/Sec, 40 times/Sec
F 003 Digital Filter 0 〜7 step digital filter
F 004 Set Zero Range ±5% , ±10% , ±20% , or ±30% of Max. Capacity
F 005 Motion Detection 0.5 SEC 1 DIV〜1 SEC 18 DIV 16 Steps (00 Stable)
F 006 Automatic ZERO
Tracking Compensation 1 SEC 0.5 DIV〜2 SEC 4.0 DIV 16 Steps (00 OFF)
F 007 ZERO & TARE keys
Availability ZERO & TARE keys always work or, only work when
display is STABLE
F 008 TARE Key Availability TARE key always work / If the GROSS is Negative
(-), TARE key does not work
F 009 Accumulation Availability OFF, Stable, Manual , or Control Input Command then
Accumulated.
◎20 mA Current Loop STANDARD
F C00 Data type Same as display / Gross Weight / NET Weight / TARE Weight /
Gross Weight, NET Weight, TARE Weight
F C01 Output Mode Stream / Stable and auto print / Manual print mode
/ Accumulate and print
F C02 Output Format Sending without set point Code / Sending with set point Code
◎Batch & Loss-in weight Weighing
F 100 Zero Band 6 digit Zero band value (Initial ”000.000”)
F 101 Batching Mode
Customer Programmed Control Mode :
Normal Batching, Loss-in-Weight Batching
Built-in Automatic Program Mode :
Normal Batching , Built-in Automatic Program
Mode :Loss-in-Weight Batching
F 102 Timer-Comparator Inhibitor Set between 0.0 to 2.0 Sec (Initial 0.0 Sec)
F 103 Timer-Finish Signal Set between 0.0 to 9.9 Sec (Initial 0.0 Sec)
F 104 Pulse Width of Finish Signal Set between 0.0 to 2.0 Sec (Initial 0.5 Sec)
F 105 COM 8 Unstable, Error
F 106 Input Mode By Panel key, BCD Input, or Serial Input
F 107 Free Fall compensation Please enter 6 digit free fall compensation value
within effective range (Initial “000.000”---Free Fall
OFF)
F108 Memory of Automatic Free
Fall Compensation value Not memory / memory
◎SERIAL ﹝RS-232﹞OP-02
F 200 Baud Rate 1200 BPS / 2400 BPS / 4800 BPS,/ 9600 BPS / 19200BPS
F 201 Parity Non-parity / Even Parity / Odd Parity
F 202 Output Data Same as display / Gross Weight / NET Weight / TARE Weight /
Gross Weight, NET Weight, TARE Weight
F 203 Output Mode Stream / Stable and auto print / Manual Print Mode /
Accumulate and Print / Command Mode
F 204 Output Format Sending without Set point Code / Sending with set point Code
