Installation MTS2600/2700/2800

Release 02 06

/2023

Technical support

https://hirschmann-it-support.belden.com

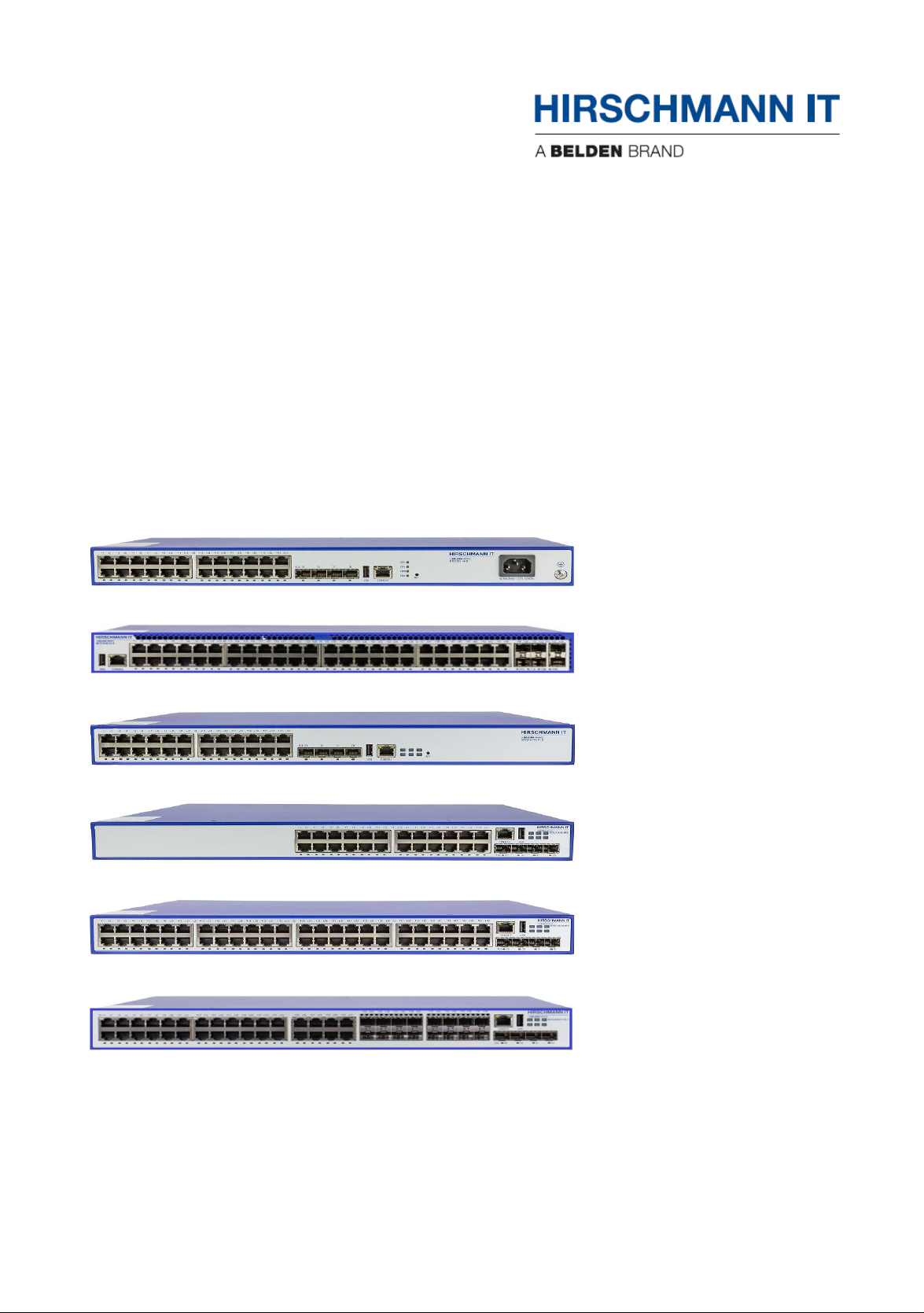

User Manual

Installation

MAMMUTHUS Access Layer & Distribution Layer Switch

MTS2600/2700/2800 Family

MAMMUTHUS Power Module – MTM2800-PSU120

MTM2700-PSU500/PSU120/PSU880

MAMMUTHUS Media Module – MTM2700-2X/MTM2800-2X

MTS2624-4X-B

MTS2648-6X-B

MTS2724-4X-FP-S

MTS2724-6X-MP-E

MTS2748-6X-MP-E

MTS2848TF-4X-E

Installation MTS2600/2700/2800

Release 02

06/2023

Even if not specifically stated, the copyrighted trademark names in this manual shall not be

deemed free of charge in the sense of the trademark and trade name protection act and

thus freely available to anyone.

of this manual shall be prohibited from being reproduced, copied, translated or converted

into any electronic media or machine-scannable form, except in the case that you make a

copy of the software for your own use.

The performance characteristics described herein shall be binding only upon the express

consent of the parties at the time of signing the contract. This paper is produced by Belden

within its capacity. Belden reserves the right to change the contents of this manual without

prior notice. Belden does not guarantee the correctness or accuracy of the information in

this manual.

Belden shall not be liable for damages caused by the use of network components or related

operating software. And the conditions of use specified in the license contract are referred

to in this manual.

You may access the latest version of this manual at the product website of Hirschmann IT:

https://catalog.belden.com

Installation MTS2600/2700/2800

Release 02

06/2023

Contents

Important Information 6

Safety instructions 8

About this manual 14

Key 15

Description 16

1.1 General device description 16

1.2 Device name and product code 22

1.2.1 Basic device 22

1.2.2 Power module 23

1.2.3 Media module 23

1.3 Device views 24

1.3.1 MTS2624-4X-B 24

1.3.2 MTS2648-6X-B 25

1.3.3 MTS2724-4X-FP-S 26

1.3.4 MTS2724-6X-MP-E 27

1.3.5 MTS2748-6X-MP-E 28

1.3.6 MTS2824-4X-S 29

1.3.7 MTS2824-6X-E 30

1.3.8 MTS2824F-4X-S 31

1.3.9 MTS2832TF-4X-E 32

1.3.10 MTS2848-6X-E 33

1.3.11 MTS2848-6X-S 34

1.3.12 MTS2848TF-4X-E 35

1.3.13 Power module 36

1.3.14 Media module 37

1.4 Power supply 38

1.5 Ethernet ports 39

1.5.1 1000 Mbit/s F/O port 39

1.5.2 10 Gbit/s F/O port 39

1.5.3 10/100/1000 Mbit/s twisted pair port 39

1.5.4 PoE(+) support 40

1.5.5 Out-of-band management port 40

1.6 Display elements 41

1.6.1 Device status 41

4 Installation MTS2600/2700/2800

Release 02

06/2023

1.6.2 Port status 42

1.7 Management interfaces 43

1.7.1 DC0 interface (external management) 43

1.7.2 USB interface 43

1Installation 44

2.1 Checking the package contents 44

2.2 Installing the power module (optional) 44

2.3 Installing and grounding the device 45

2.3.1 Installing the device in a switch cabinet 45

2.3.2 Installing the device on a vertical flat surface 48

2.3.3 Grounding the device 49

2.4 Installing the SFP transceiver (optional) 50

2.5 Operating the device 51

2.6 Connecting data cables 51

2.7 Filling out the inscription Label 52

2Making basic settings 53

3Monitoring the ambient air temperature 54

4Maintenance and service 55

5Disassembly 56

6.1 Removing the power module (optional) 56

6.2 Removing the media module 56

6.3 Removing the SFP transceiver (optional) 57

6.4 Removing the device 58

6.4.1 Removing the device from a vertical flat surface 58

6.4.2 Removing the device from the switch cabinet 58

6Technical data 59

7.1 General technical data 59

7.2 Dimension drawings 61

7.3 Electromagnetic compatibility (EMC) 79

7.4 Immunity 81

7.5 Network range 82

Installation MTS2600/2700/2800

Release 02

06/2023

7.6 Power consumption/power output 83

7Scope of delivery, order number, and accessories 84

8Underlying technical standards 86

AFurther support 87

6 Installation MTS2600/2700/2800

Release 02

06/2023

DANGER draws attention to an immediately dangerous situation, which

will inevitably result in a serious or fatal accident if not observed.

DANGER

WARNING indicates a potentially hazardous situation which, if not avoided,

could result in death or serious injury.

CAUTION indicates a possible danger which, if not avoided, may result in

minor injuries.

Important Information

Note: Read these instructions carefully, and familiarize yourself with the

device before trying to install, operate, or maintain it. The following notes

may appear throughout this documentation or on the device. These notes

warn of potential hazards or call attention to information that clarifies or

simplifies a procedure.



Symbol explanation

This is a general warning symbol. This symbol alerts you to

potential personal injury hazards. Observe all safety notes that

follow this symbol to avoid possible injury or death.

If this symbol is displayed in addition to a safety instruction of

the type “Danger” or “Warning”, it means that there is a danger

of electric shock and failure to observe the instructions will

inevitably result in injury.

This symbol indicates the danger of hot surfaces on the

device. In connection with safety instructions, non-observance

of the instructions will inevitably result in injuries.

WARNING

CAUTION

Installation MTS2600/2700/2800

Release 02

06/2023

NOTICE provides information about procedures that do not involve the risk

of injury.

NOTICE

8 Installation MTS2600/2700/2800

Release 02

06/2023

UNCONTROLLED MACHINE ACTIONS

To avoid uncontrolled machine actions caused by data loss, configure all

the data transmission devices individually.

Before you start any machine which is controlled via data transmission, be

sure to complete the configuration of all data transmission devices.

Failure to follow this instruction can result in death, serious injury, or

device damage.

Safety instructions



General safety instructions

You operate this device with electricity. Improper usage of the device

entails the risk of physical injury or significant property damage. The

proper and safe operation of this device depends on proper handling

during transportation, proper storage and installation, and careful

operation and maintenance procedures.



Before connecting any cable, read this document, and the safety

instructions and warnings.



Operate the device with undamaged components exclusively.



The device is free of any service components. In case of a damaged

or malfunctioning device, turn off the supply voltage and return the

device to Hirschmann IT for inspection.



Qualification requirements for personnel



Only allow qualified personnel to work on the device.

Qualified personnel have the following characteristics:



Qualified personnel are properly trained. Training as well as

practical knowledge and experience make up their qualifications.

This is the prerequisite for grounding and labeling circuits,

devices, and systems in accordance with current standards in

safety technology.



Qualified personnel are aware of the dangers that exist in their

work.



Qualified personnel are familiar with appropriate measures

against these hazards in order to reduce the risk for themselves

and others.



Qualified personnel receive training on a regular basis.

WARNING

Installation MTS2600/2700/2800

Release 02

06/2023

The following requirements apply without restrictions:

Certified usage

Only use the device for those purposes specified in the catalog and in

the technical description. Only operate the device with external devices

and components that are recommended and permitted by the

manufacturer. The proper and safe operation of this product depends

on proper handling during transport, proper storage, assembly and

installation, and conscientious operation and maintenance procedures.



National and international safety regulations

Verify that the electrical installation meets local or nationally applicable

safety regulations.



Ensure the integrity and consistency

Check the bond on the packaging to assure it is sealed and not

tampered by unauthorized party.

Verify serial number of delivered products to make sure it is unified

with a hardcopy serial number list provided by manufacturer. If it is

necessary, please contact Belden representative to obtain a

softcopy serial number list from manufacturer for double check.



Requirements for connecting electrical wires

Before connecting the electrical wires, always verify that the

requirements listed are complied with.



The electrical wires are voltage-free.



The cables used are permitted for the temperature range of the application case.



Connect the ground screw on the back of the device to the protective conductor before

setting up other connections. When to remove connections, the protective conductor is

the last to be removed.



Exclusively switch on the device when it is installed.



Relevant for North America:

Use 60 °C / 75 °C (140 °F / 167 °F) or 75 °C (167 °F) copper (Cu) wires only.

Table 1: Requirements for connecting electrical wires

10 Installation MTS2600/2700/2800

Release 02

06/2023

The following requirements apply without restrictions:



Requirements for connecting the supply voltage

All variants All of the following requirements are complied with:



The supply voltage corresponds to the voltage specified on the type

of plate of the device.



The power supply conforms to overvoltage category I or II.



The power supply has an easily accessible disconnecting device (for

example a switch or a plug). This disconnecting device is clearly

identified. So in the case of an emergency, it is clear which

disconnecting device belongs to which power supply cable.



When to connect a power supply voltage with a protective conductor:

first connect the protective conductor, and then the power supply

voltage. If the device contains such a second power supply voltage

connection module: first connect the protective conductor, and then

the power supply voltage.



Supply with DC voltage: The wire diameter of the power supply cable

is at least 1 mm² (North America: AWG16) on the supply voltage

input.



Supply with AC voltage: The wire diameter of the power supply cable

is at least 0.75 mm² (North America: AWG18) on the supply voltage

input.



The cross-section of the ground conductor is the same size as or

bigger than the cross-section of the power supply cables.



The power supply cable is suitable for the voltage, the current and

the physical load.

Table 2: Requirements for connecting the supply voltage



Shielding ground

The shielding ground of the connectable twisted pair cable is

connected to the ground connection as a conductor.

Beware of possible short circuits when connecting a cable section

with conductive shielding braiding.



Safe grounding

Make sure you ground the devices assembled in the switch cabinet

safely. In particular, check the supply voltage connections if they are

not connected directly to the supply cable (for example, when using

power strips).



ESD guide

These modules are equipped with electrostatic sensitive

components.

If the connection is touched, these sensitive components may be

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Belden Interruttore

Belden

Belden Grass Valley K-Frame Come usare

Belden

Belden grass valley GV FABRIC Manuale utente

Belden

Belden grass valley KULA AV Manuale utente

Belden

Belden Hirschmann MACH104 Series Guida utente

Belden

Belden Thinklogical TLX48 Manuale utente

Belden

Belden Hirschmann SPIDER-SL-20-01T1S29999SZ9HHHH Manuale utente

Belden

Belden Hirschmann HiOS-2S Manuale utente

Belden

Belden HIRSCHMANN IT MAMMUTHUS MTM8000 Series Manuale utente

Belden

Belden Hirschmann RS20 Series Manuale utente

Belden

Belden Hirschmann MACH1000 Series Manuale utente

Belden

Belden HIRSCHMANN EESX Series Guida rapida alla configurazione

Belden

Belden Hirschmann MICE MS20 Manuale utente

Belden

Belden grass valley MASTERPIECE 12G-SDI Manuale utente

Belden

Belden Telecast Fiber Systems THOR-SLG Manuale utente

Belden

Belden HIRSCHMANN MACH 4000 Series Manuale utente

Belden

Belden Hirschmann MACH1040 Series Manuale utente

Belden

Belden HIRSCHMANN MACH 100 Series Manuale utente

Belden

Belden Hirschmann SPIDER-SL-20-08T1999999SY9HHHH Manuale utente

Belden

Belden HIRSCHMANN Dragon PTN CSM310-A Manuale utente

Belden

Belden Hirschmann SPIDER 8TX EEC Manuale

Belden

Belden Hirschmann GREYHOUND GRS1042 Manuale utente

Belden

Belden Hirschmann MICE MS20 Manuale utente

Belden

Belden ThinkLogical TLX12 Manuale utente

Belden

Belden HIRSCHMANN SPIDER II Manuale utente

Manuali Interruttore popolari di altre marche

URC

URC Total Control MFS-8 Manuale utente

Azbil

Azbil HPQ-D11 Manuale utente

Sony

Sony DFS-900M Manuale utente

SICK

SICK i17S Manuale utente

F&F

F&F SZR-277 Manuale utente

Shure

Shure UAMS/BK Manuale utente

Dräger

Dräger X-zone Switch Off Manuale utente

Asco

Asco Joucomatic 349 Series Manuale utente

BT Mini Hub Manuale utente

D-Link

D-Link DES-1226G Manuale utente

Johnson Controls

Johnson Controls FS80-C Manuale utente

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Manuale utente

MicroNet

MicroNet SP1200A Manuale utente

Ruijie

Ruijie RG-PF2920 Series Manuale di installazione e funzionamento

Altinex

Altinex DA1914SX Manuale utente

MiLAN

MiLAN MIL-SM2401M Manuale utente

RJM

RJM MASTERMIND PBC/6X Manuale utente

Atlas

Atlas MMK-KVM8 Manuale utente
