1. Home
Q-tag Quad: As simple as life should be

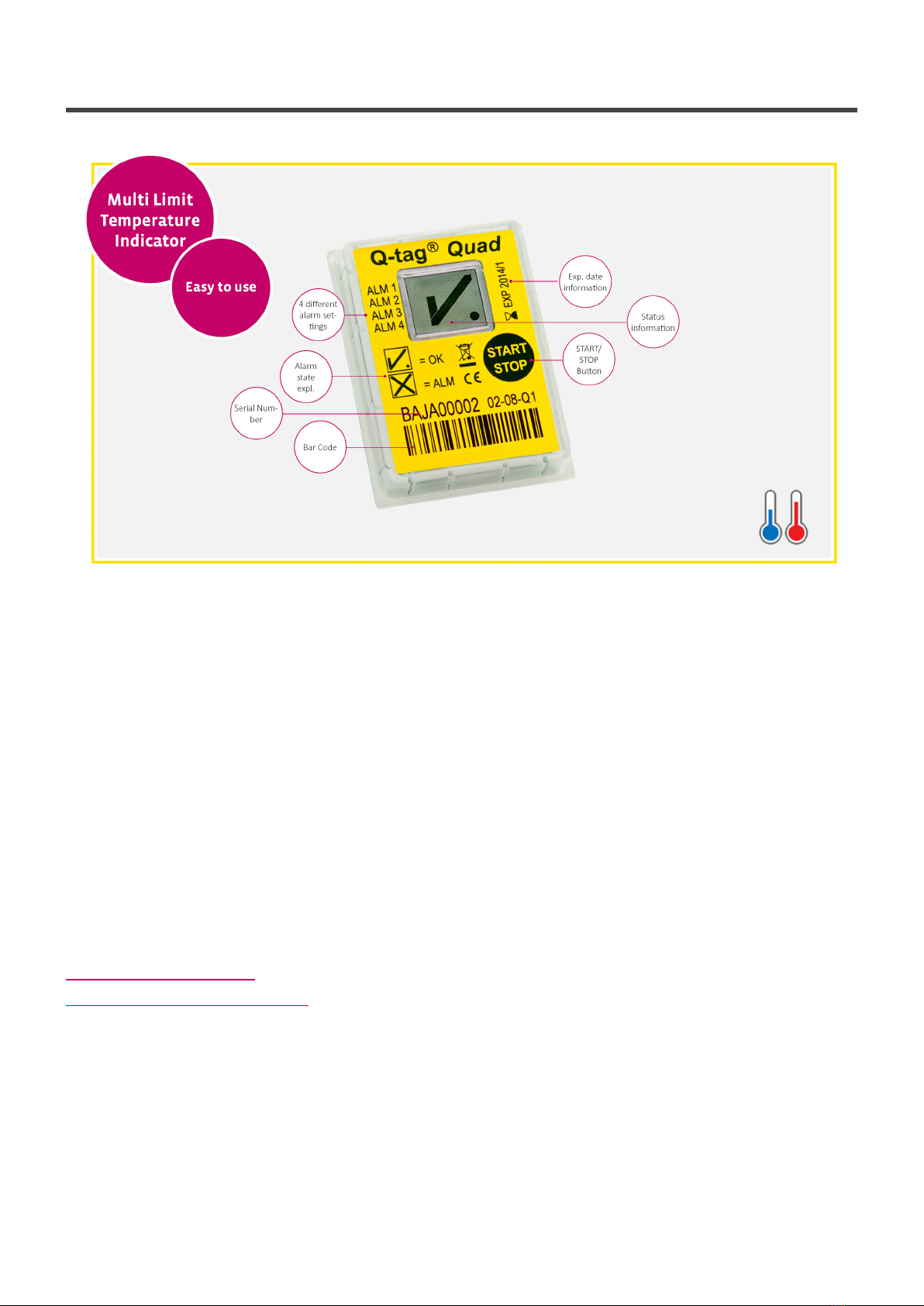

Internationally recognized symbols like the ok and the alarm symbol show the alarm state clearly. The Q-
tag Quad is a highly accurate electronic temperature monitor. It is 100% calibrated and has a measuring
accuracy of ± 0.5°C. The temperature measurements are made every minute over the entire monitoring
time. Swiss quality in a compact format!
Up to 4 different alarm settings can be programmed for temperatures between –25°C to +50 °C. Alarms
are individually set to meet customer requirements. Take control!
• User friendly, reliable and as accurate as a Swiss watch
• Individual alarms programmed to customer specifications
• Immediate and easy decision-making at a glance, thanks to a simple OK/alarm display
Technical Specification
Product Information Overview
Berlinger & Co. AG User Manual Q-tag Quad - 1
Page 1 of 14
2. Standard Version and Version Start

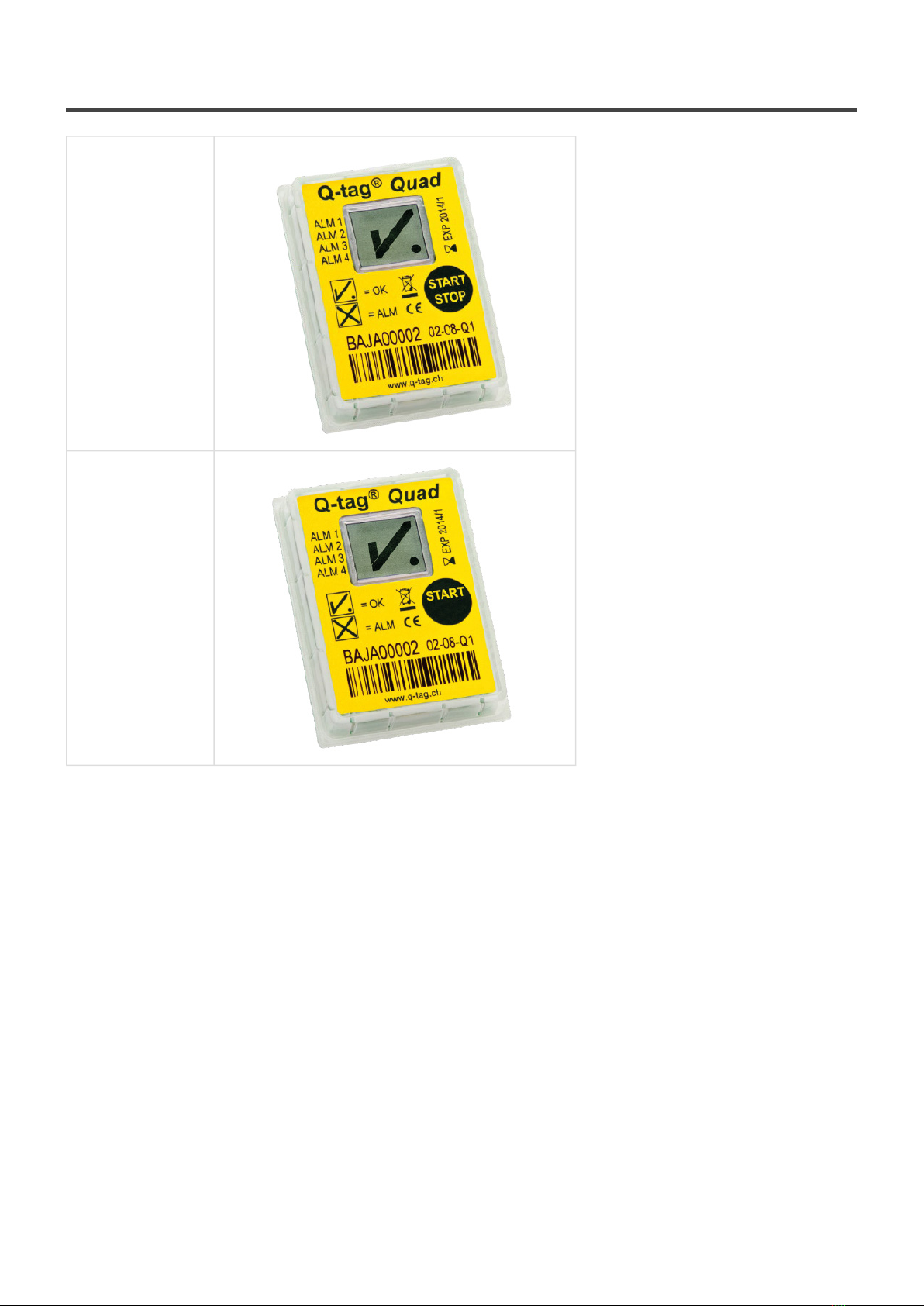

Standard Version
(Start and Stop)
Version Start
Berlinger & Co. AG User Manual Q-tag Quad - 1
Page 2 of 14
3. Alarm explanation
ALM 1 Single-event alarm “high”
ALM 2 Cumulative alarm “high”
ALM 3 Cumulative alarm “low” or “high”
ALM 4 Single-event alarm “low”
Berlinger & Co. AG User Manual Q-tag Quad - 1
Page 3 of 14
4.1. State of delivery / Sleep Mode
Q-tag Quad is shipped in its so-called “Sleep Mode”. This
will be observed by the constantly flashing dot (running
indicator) on the display.
Note: In sleep mode, no data will be recorded.
Berlinger & Co. AG User Manual Q-tag Quad - 1
Page 5 of 14
4.2. Activation of the Q-tag Quad
Please always verify the expiry date prior to using any device (see Expiry Code Explanation).
The device is activated by pressing the START- button
for at least 2 seconds.
The active recording is shown by the (OK symbol) and
the flashing dot on the display.
Note (only for standard Version):
Prior to start make sure that the device is not yet activated, otherwise it will stop. To avoid accidental
deactivation of the device, the stop function is locked for about 1 minute after the activation.
Berlinger & Co. AG User Manual Q-tag Quad - 1
Page 6 of 14
4.3. Start delay time (optional)
If a start delay time has been programmed, it will be activated the moment you press the START-button
for at least 2 seconds. The start delay time is not visible. Temperature recording will only start after
completion of the start delay time.
Note: To avoid accidental deactivation of the device, the stop function is locked during the start delay
time.
Berlinger & Co. AG User Manual Q-tag Quad - 1
Page 7 of 14
