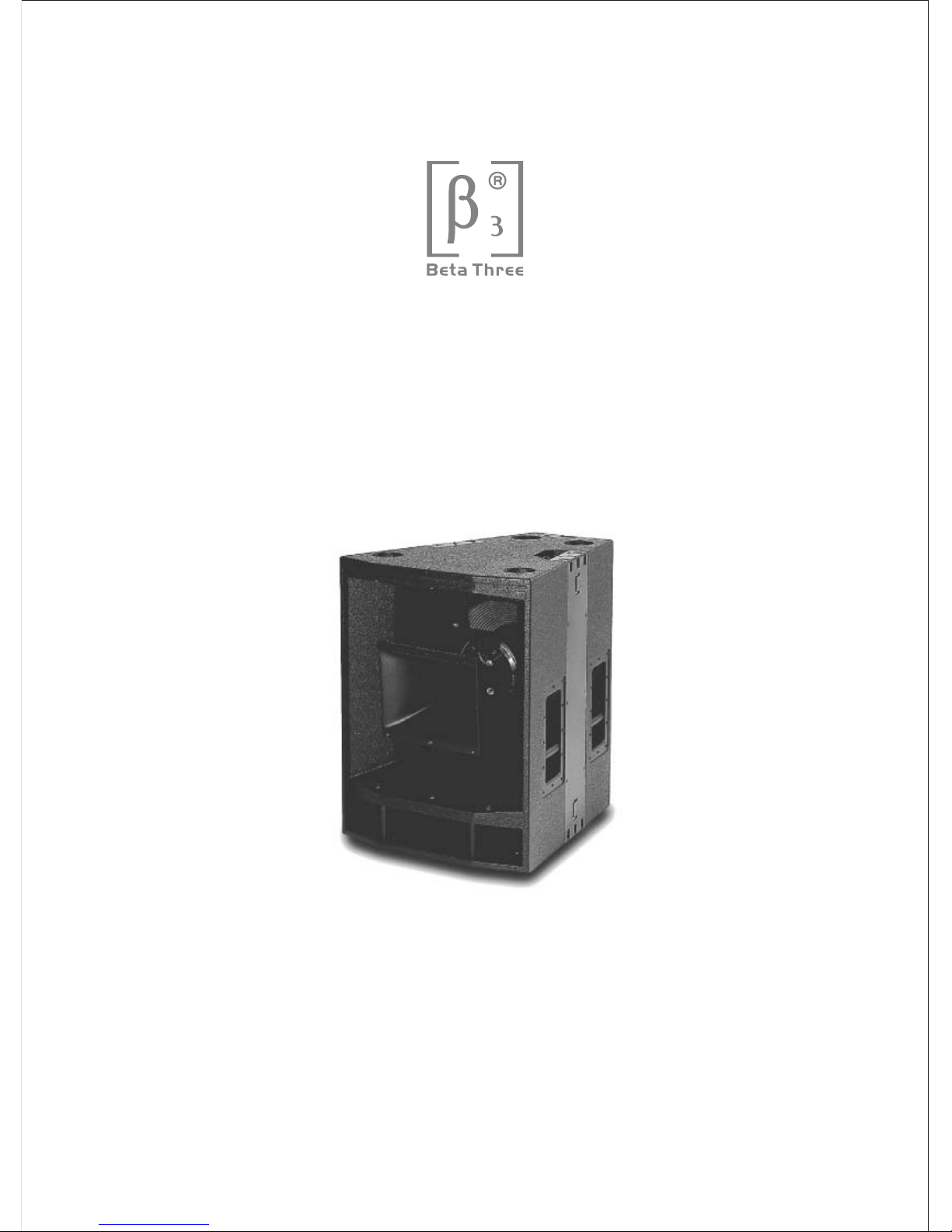

Beta Three T15F Manuale utente

T15F

ED-B3-MA-071015-001

USER MANUAL

SMS-YXKQ-T15F-ED 3-EN

CONTENTS

PRODUCT FEATURES

ACOUSTIC CHARTS

INSTALLATION

SPECIFICATION

DIMENSIONS

LIMITED WARRANTY

CONNECTING WAY

SMS-YXKQ-T15F-ED 3-EN

T15F

Transducers LF:15" 1 MF/HF: Coaxial Transducer

Frequency Response(-3dB) LF:150Hz-650Hz MF:650Hz-5.2kHz HF: 5.2kHz-20kHz

Sensitivity(1W/1m) LF:103dB MF/HF:123dB

THD

Input Connectors

Net Weight

Gross Weight

Dimensions( )WDH

Packing DimensionsW D H)

Power(RMS) LF:500W HF:75W

Rated Impedance

DC Impedance LF:5.6 MF:6.2 HF:6.2

NL4 2 1+ 1-

84.6kg

90.6kg

580 660 720mm

770 690 840mm

Power(Program)

Power(Peak)

SPL(1m)

MAX.SPL(1m)

LF:1000W HF:150W

LF:2000W HF:300W

130dB

136dB

LF:8 MF:8 HF:8

Dispersion(H V

Crossover Point LF/MF:550Hz MF/HF:5.2kHz

60 40

PRODUCT FEATURES

SPECIFICATIONS

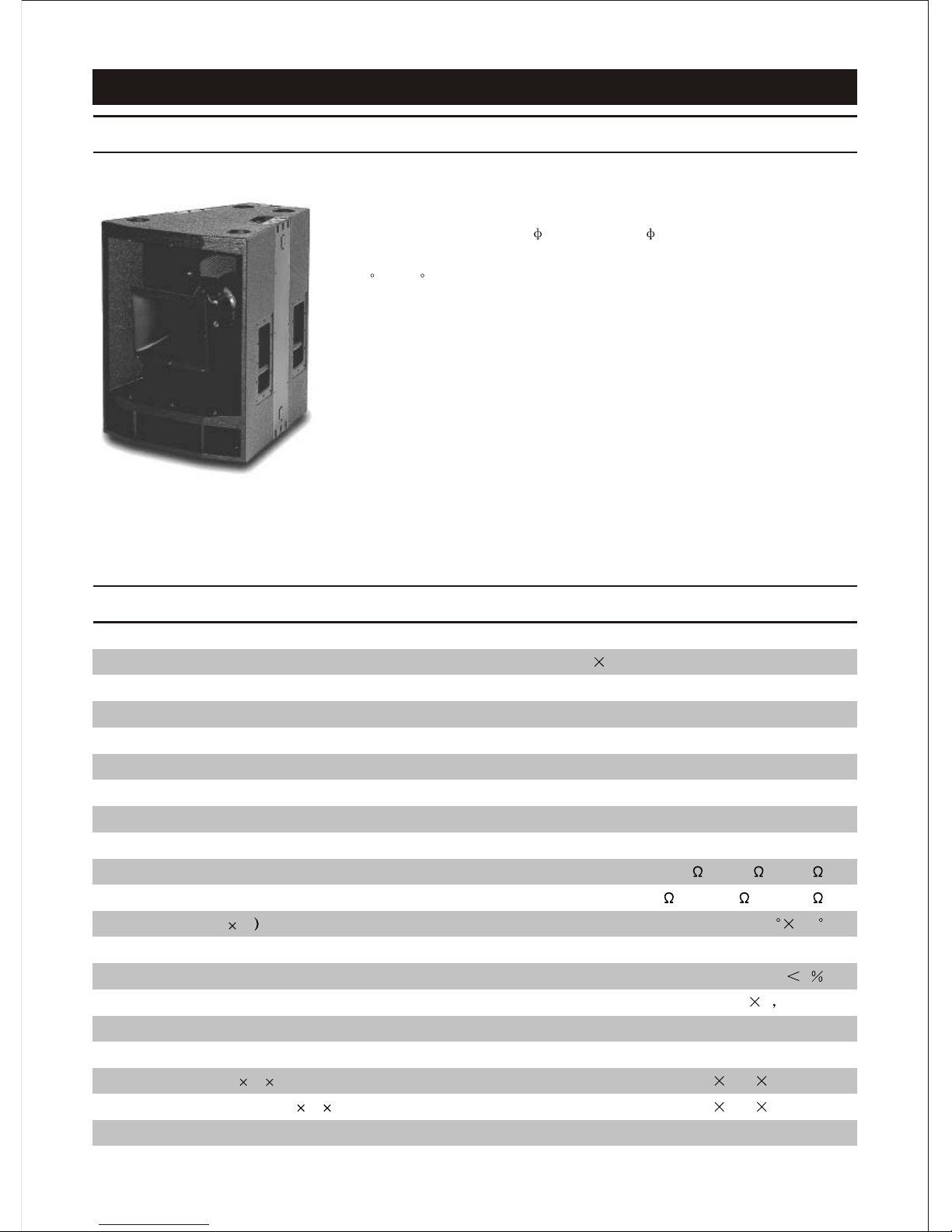

T15F is a high SPL performance speaker, with big power woofer and

coaxial transducer(MF: 100mm, HF: 44mm combination), the

coaxial transducer is mounted in the front middle of woofer. The

60 x 40 dispersion flare horn makes the sound delivery satisfying.

The cabinet's special design and AeroLock patented integrated flying

hardware lead to a convenient combination. Two speakers can be

locked together by easy handful operation for the cabinet's shackles

and 4x4 speakers can be flied fast and safely together with two rigging

points. The flying hardware is also convenient for speaker's ground

stacking. The firm flying hardware provides enough guarantees

without using any ropes. The echelon design speaker and ring array

combination in whole lead to a firm and strong system inside.

SMS-YXKQ-T15F-ED 3-EN

T15F

50 100 200 500 1k 2k 5k 10k 20k20 Hz

120

110

dBSPL

100

180

Deg

108

-36

-108

-180

50 100 200 500 1k 2k 5k 10k 20k20 Hz

120

110

dBSPL

100

180

Deg

108

-36

-108

-180

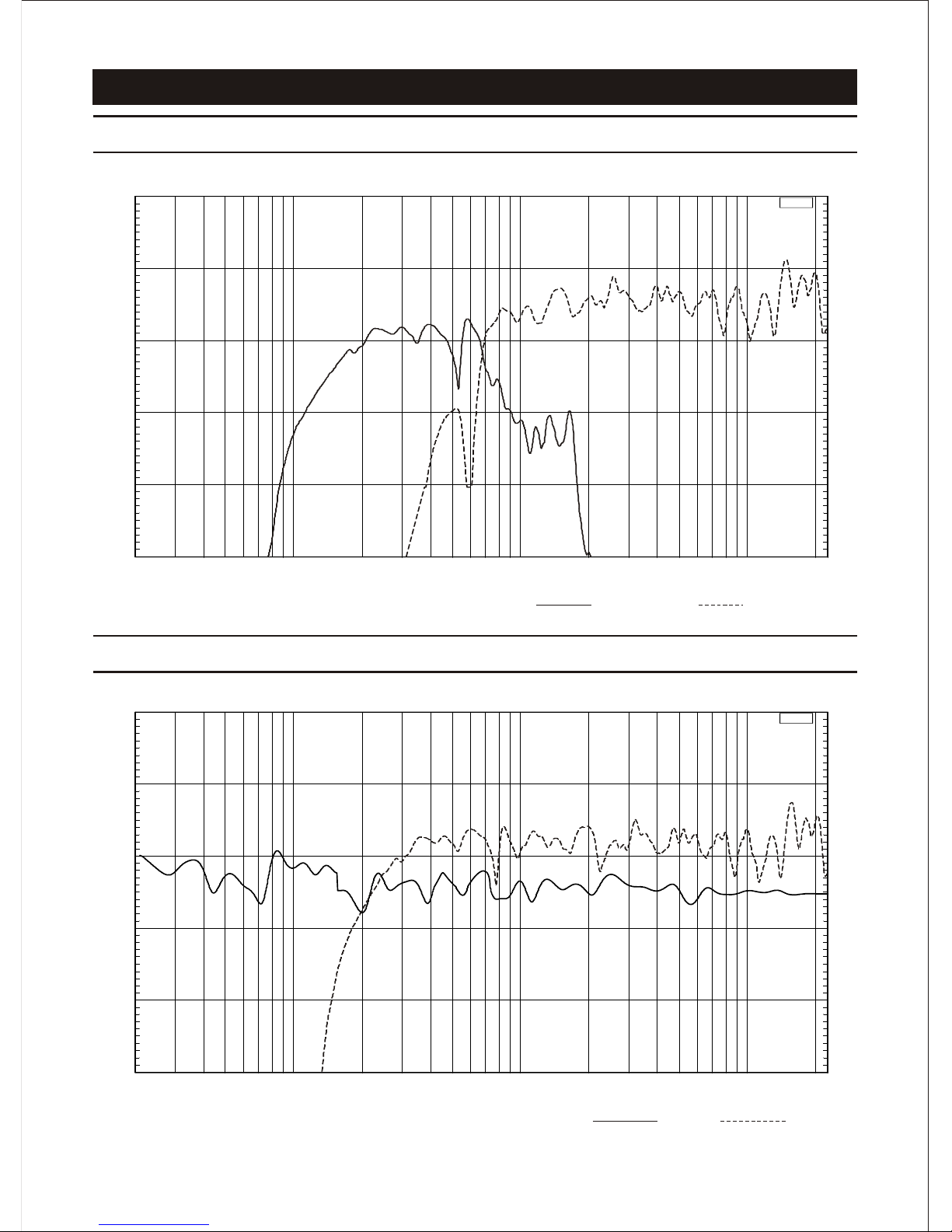

FREQUENCY RESPONSE

LF-Frequency MF/HF-Frequency

PHASE RESPONSE

Phase Frequency

SMS-YXKQ-T15F-ED 3-EN

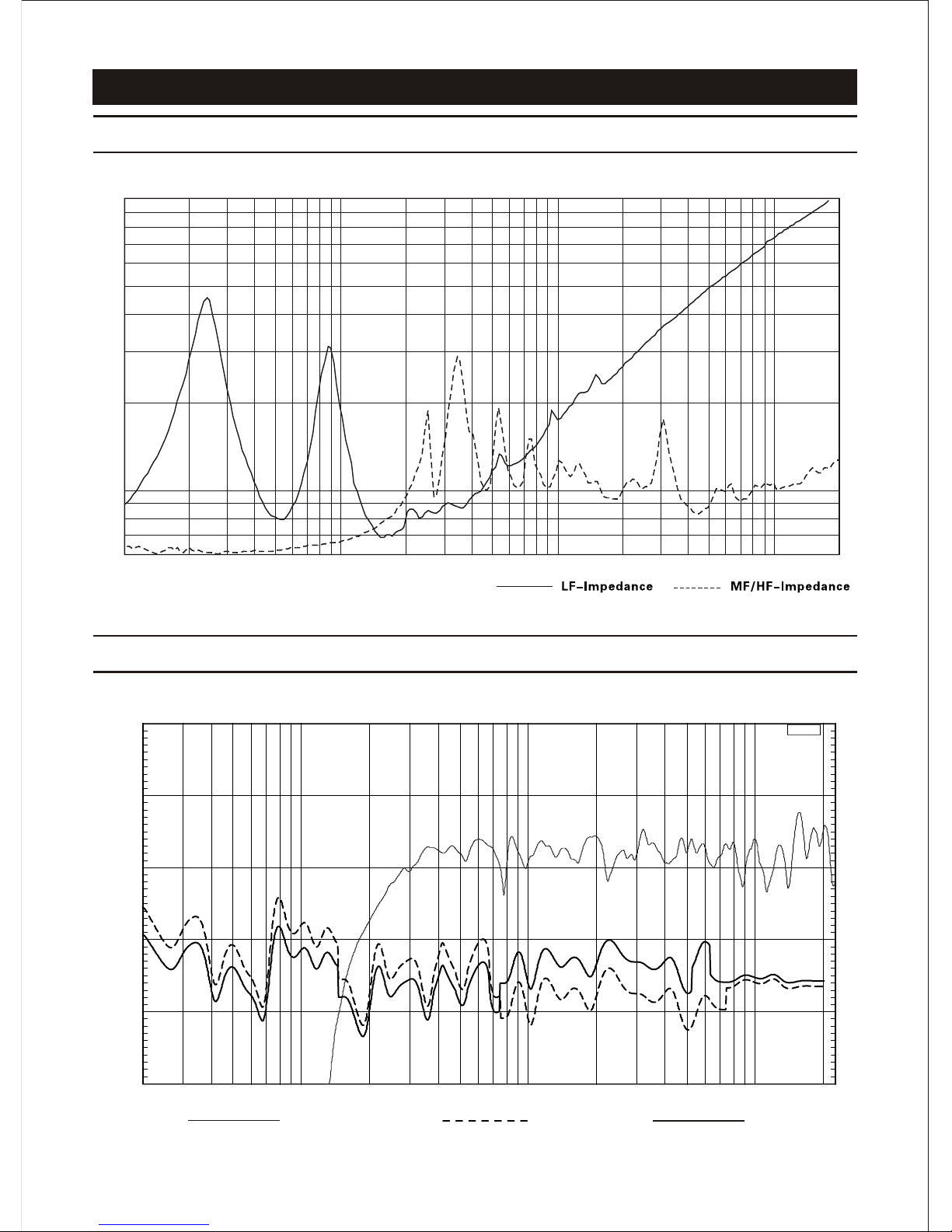

IMPEDANCE RESPONSE

T15F

THD

10 Hz 20 50 100 200 500 1K 2K 5K 10K 20K

Ohm

100

50 100 200 500 1k 2k 5k 10k 20k20 Hz

120

110

dBSPL

100

180

Deg

108

-36

-108

-180

Frequency Response 2nd Distortion 3rd Distortion

SMS-YXKQ-T15F-ED 3-EN

T15F

- 10

- 20

- 30

- 40

- 50

0 .0

2 .7

5 .4

8 . 1 ms

1 00 1k 1 0k 2 0k20 Hz

- 10

- 20

- 30

- 40

- 50

0 .0

1 .5

3 .0

4 . 5 ms

1k 1 0k 2 0k2 00 Hz

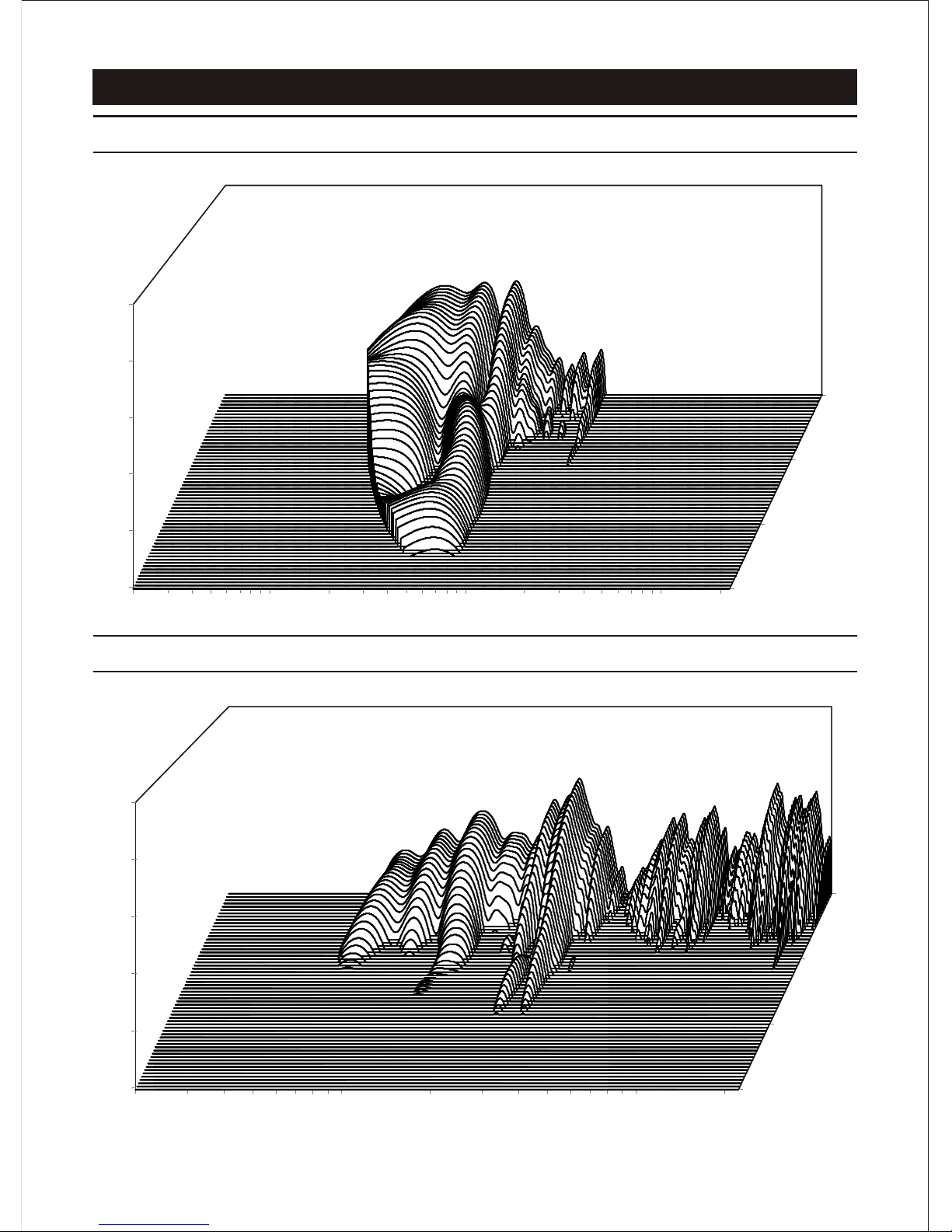

WATERFALL-LF

WATERFALL-MF/HF

SMS-YXKQ-T15F-ED 3-EN

T15F

The connecting way of Speakon NL4 for T15F speaker.

Operate the knob to lock in the two speakers wall to wall.

T15Fpatented Aero Lock flying system

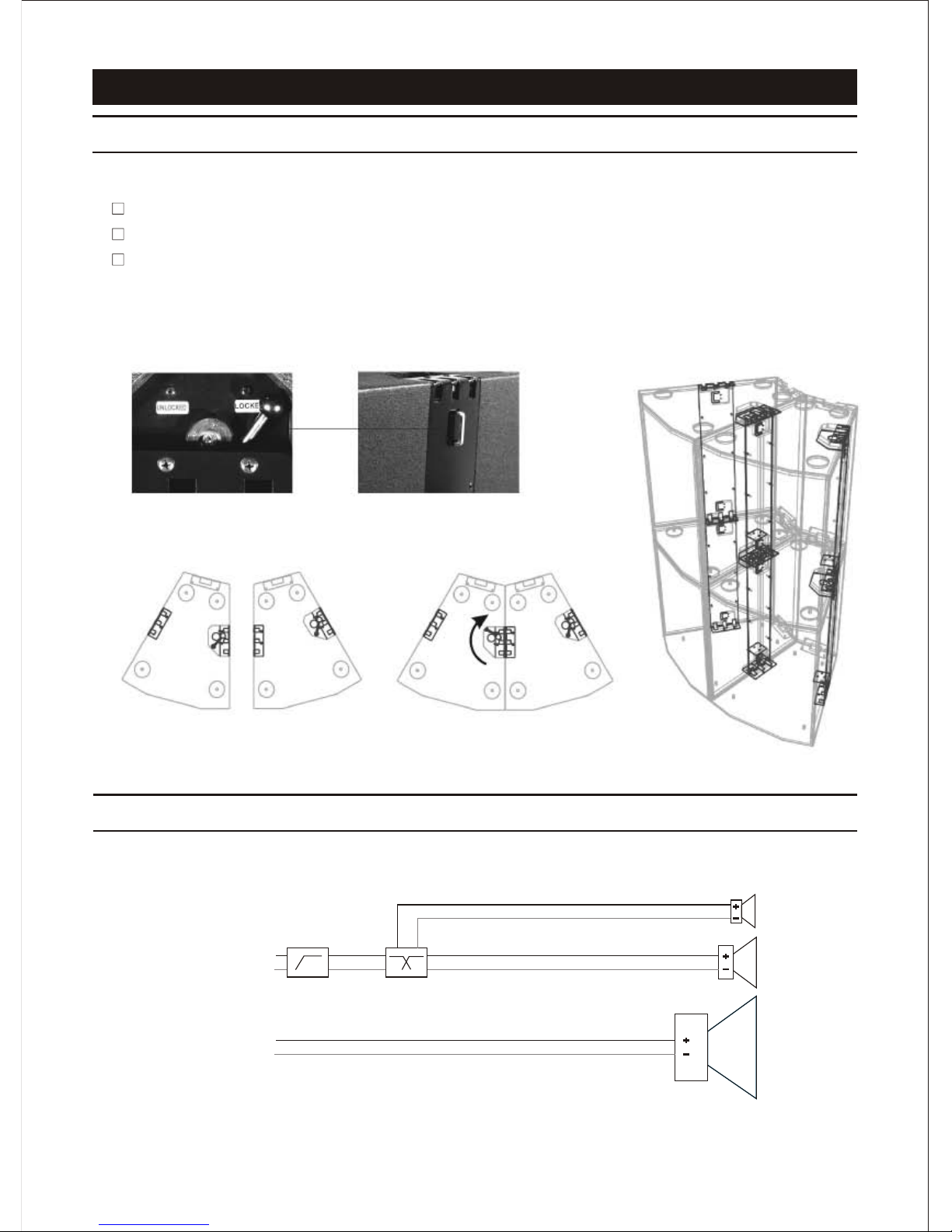

INSTALLATION

It is easy to lock in together for two T15Fand more can be connected (see as the picture).

The stacking trough on the speaker's top makes thestacking firm and strong.

There are three rigging points on the two sidesof the speaker's top and the back side of the

speaker is convenient for angle's adjustment when flying.

CONNECTING WAY

SMS-YXKQ-T15F-ED 3-EN

T15F

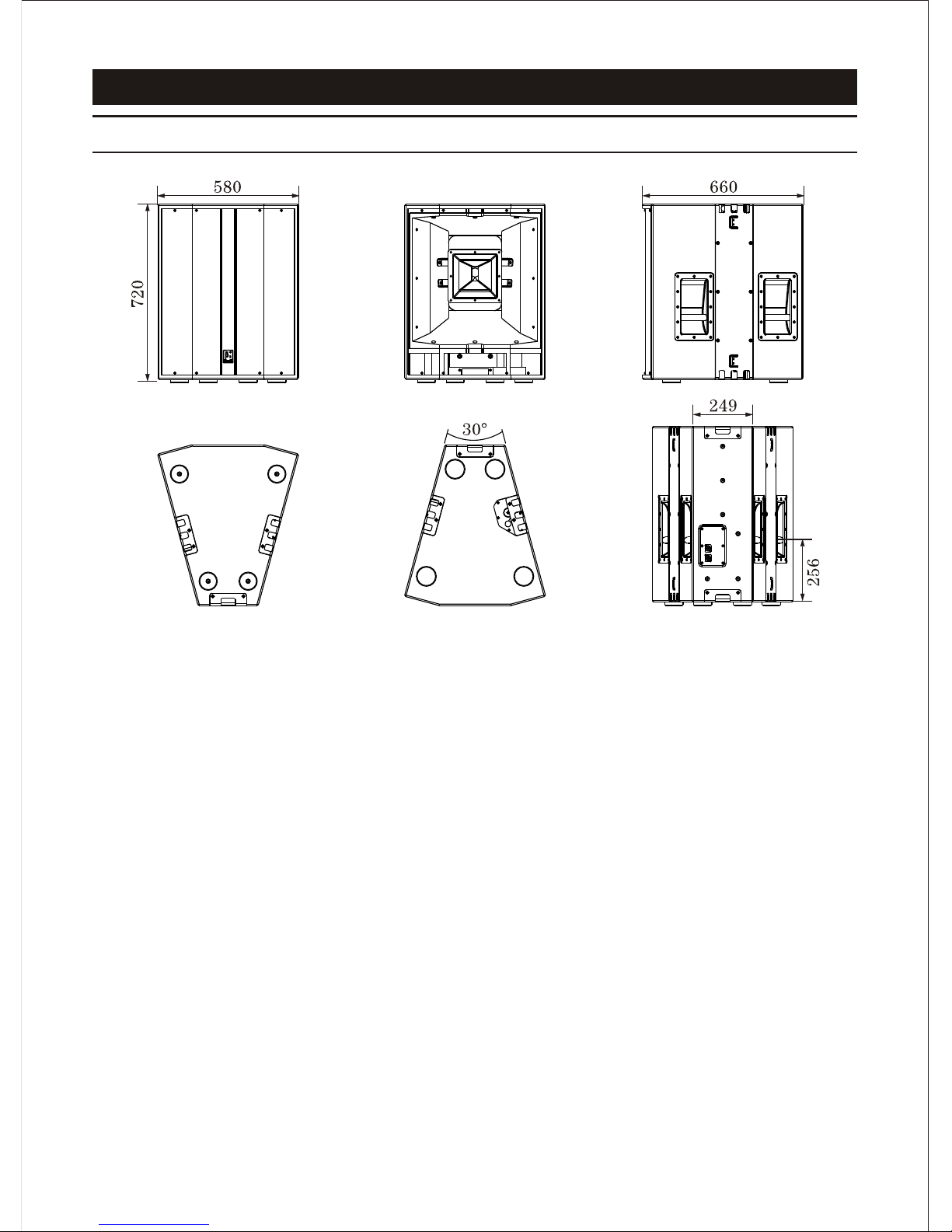

DIMENSIONS

SMS-YXKQ-T15F-ED 3-EN

T15F

If malfunction occurs during the specified warranty period from the date of original purchase,

the product will be repaired or replaced without charge by Elder Audio.

The Limited Warranty does not apply to:

(a)exterior finish or appearance;

(b)certain specific items described in the individual product data sheet or owner's manual;

(c)malfunction resulting from use or operation of the product other than as specified in the

individual product data sheet or owner's manual;

(d)malfunction resulting from misuse or abuse of the product;

(e)malfunction occurring at any time after repairs have been made to the product by anyone

other than Elder Audio Service or any of its authorized service representatives.

To obtain warranty service, customer must deliver proof of purchase of the product in the form

of a bill of sale or receipt invoice.

T18W Speakers and Speaker Systems are guaranteed against malfunction due to defects in

materials or workmanship for a period of three (3) years from the date of original purchase. The

Limited Warranty does not apply to burned voice coils or malfunctions such as cone and/or coil

damage resulting from improperly designed enclosures. Additional details are included in the

Limited Warranty statement.

T18W Accessories are guaranteed against malfunction due to defects in materials or workman

ship for a periodof one(1) yearfrom the date of original purchase. Additional details areincluded

in the Limited Warranty statement. .

T18W Flying Hardware (including enclosure-mounted hardware and rigging accessories) is

guaranteed against malfunction due to defects in materials or workmanship for a period of one

(1) year from the date of original purchase. Additional details are included in the Limited Warranty

statement.

LIMITED WARRANTY

Specifications are subject to change without notice.

SMS-YXKQ-T15F-ED 3-EN
