Billion BiPAC 2070 Manuale utente

BiPAC 2070(P)

HomePlug AV 200 Ethernet

Bridge

Quick Start Guide

Billion BiPAC 2070(P) Homeplug AV 200 Ethernet Bridge

Package Contents

BiPAC 2070P HomePlug Power Line Adapter with switching power supplier

Ethernet (CAT-5 LAN) cable

AC- AC power cord : plug into the outlet

DC- DC power cord : connect to device (for BiPAC 2070P)

CD containing the on-line manual & Utility

This Quick Start Guide

Attention

Warning

zDo not use the adapter in high humidity or high temperatures.

zDo not open or repair the case yourself.

zAvoid using this product and all accessories outdoors.

zPlace the adapter on a stable surface.

zOnly “Homeplug AV” compliant Power Line Communication (PLC)

adapter for remote access is necessary.

Quick Start Guide

Hardware Overview

The LEDs

The Connectors

Connect DC power

cord to your DC

port on device

(for BiPAC 2070P)

Connect the AC power

cable to the outlet

Connect your device to

a LAN port, using the

included Ethernet cable

Lit when powe

is ON

Lit when connected to

an Ethernet device

Lit when the power line

sync is established

Power line sync

Reset button , get

back to factory

default setting.

Billion BiPAC 2070(P) Homeplug AV 200 Ethernet Bridge

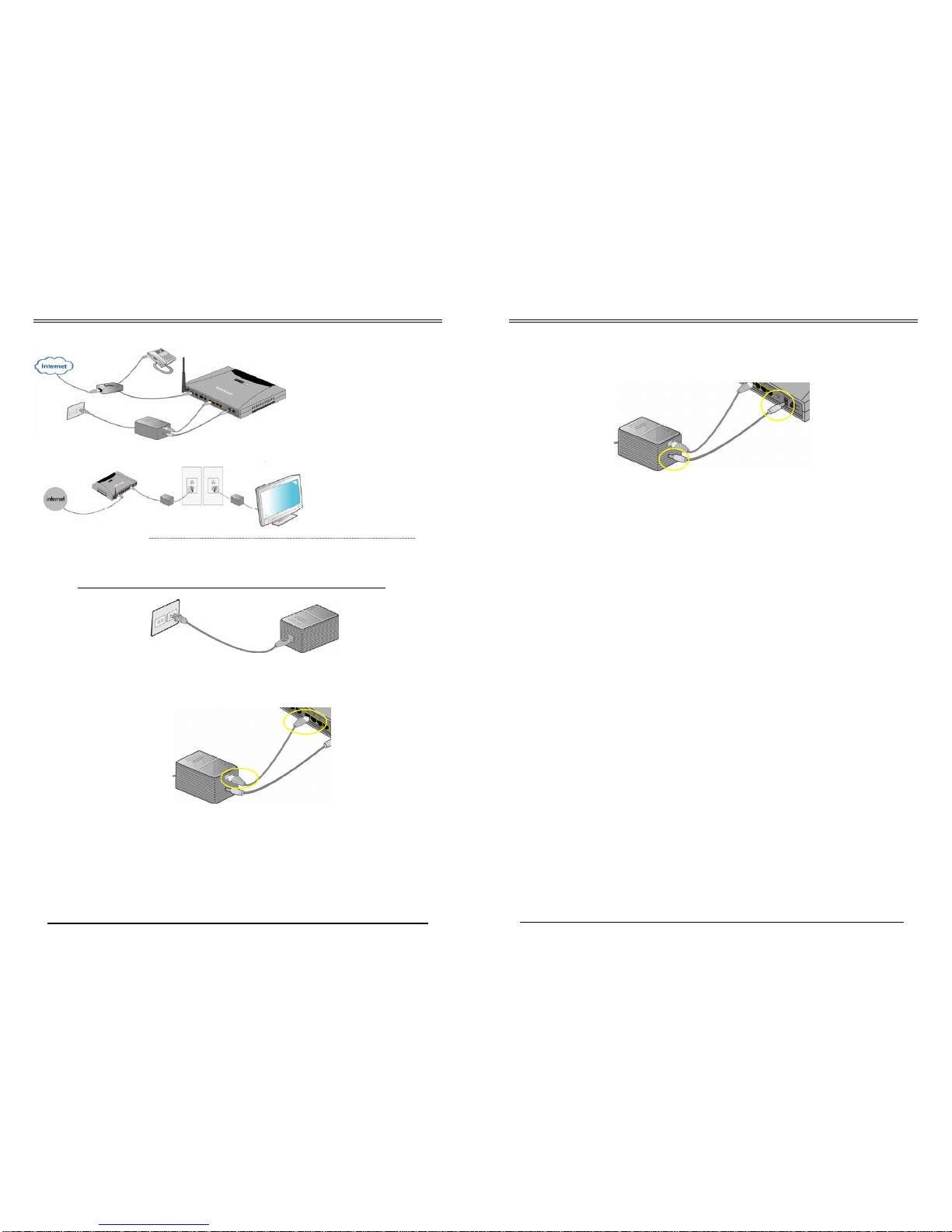

Product Application

BiPAC 2070P

BiPAC 2070

Hardware Installation

1. Power Connection

Plug the supplied AC power cable to the wall jack and the other side to the device.

Please note that the plug type may differ according to different countries.

2. LAN Connection

Connect the supplied RJ-45 Ethernet cable to the Ethernet port on 2070P and the

other side to the device’s Ethernet interface.

Quick Start Guide

3. Power Connection

Connect the supplied DC-DC power cable to the 2070P’s power port and the other

side to the DC jack on the device. (for BiPAC 2070P only)

Setup Utility

After you complete the hardware installation, insert the CD-ROM to the CD-ROM drive to

perform Setup Utility for network configuration. The Setup Utility will auto-run. Follow the

step-by-step configuration wizard, the utility will guide you complete the basic network

configuration.

Product Support and Contact Information

Most problems can be solved by referring to the Troubleshooting section in the User’s Manual.

If you cannot resolve the problem with the Troubleshooting chapter, please contact the dealer

where you purchased this product.

Contact Billion

WORLDWIDE

http://www.billion.com
