myGuard 7500GL

802.11g Security ADSL Router

Quick Start Guide

myGuard 802.11g Security ADSL Router

Introduction

In light of emerging threats of Viruses and growing demands for URL filtering from home users,

Billion designs myGuardTM 802.11g Security ADSL Router, with central control and central

guarding, to help identify vulnerabilities and protect PCs and networks while constant connected

to the Internet. Billion’s myGuardintegrates Security Service powered by Trend Micro includes

Anti-Virus, Anti-Spam, Security Scan and Dynamic Parental Control Service (60-day trial free),

in addition to security features of VPN, Firewall and Wi-Fi Protected Access. Simply connect

computer(s) to Billion’s myGuard Security ADSL Router and launch broadband access, Billion’s

myGuard Security ADSL Router will guard users’ home network and their PC. Security Services

also address parents’ concerns of children going to inappropriate websites. In the meantime,

users still enjoy the freedom of using Wireless WLAN technology.

Package Contents

myGuard 802.11g Security ADSL Router

CD with the user’s manual in PDF format, router’s application, and Trend Micro Internet

Security software. (For downloading Trend Micro Internet Security software, please

read details on page 11)*

RJ-11 ADSL/telephone Cable

Ethernet (CAT-5 LAN) Cable

Console (PS2-RS232) Cable

AC-DC power adapter (12V DC, 1A)

External Antenna

This Quick Start Guide

Warning

 Do not use this router in high humidity or high temperature.

 Do not use the same power source for this router as othe

equipment.

 Do not open or repair the case yourself. If this router is too hot, turn

off the power immediately and have it repaired at a qualified service

center.

 Avoid using this product and all accessories outdoors.

 Place this router on a stable surface.

 Only use the power adapter that comes with the package. Using

a different voltage rating power adaptor may damage the router.

ttention

Quick Start Guide

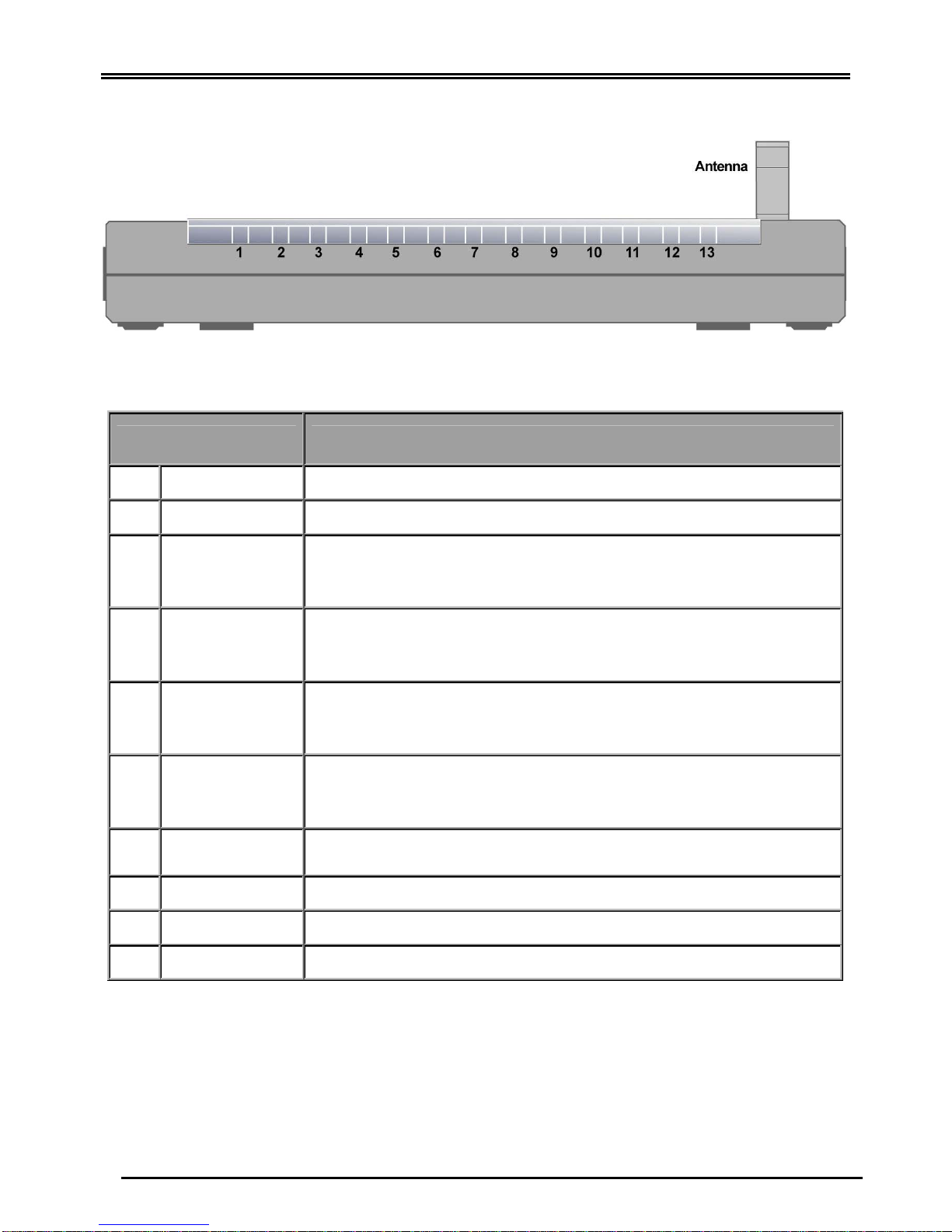

The Front LEDs

LED Meaning

1 PWR Lit when power is ON.

2 SYS Lit when the system is ready.

3 LAN port 1 Lit when connected to an Ethernet device.

Green for 100Mbps; Orange for 10Mbps

Blinking when data is transmitted/received.

4 LAN port 2 Lit when connected to an Ethernet device.

Green for 100Mbps; Orange for 10Mbps

Blinking when data is transmitted/received.

5 LAN port 3 Lit when connected to an Ethernet device.

Green for 100Mbps; Orange for 10Mbps

Blinking when data is transmitted/received.

6 LAN port 4 Lit when connected to an Ethernet device.

Green for 100Mbps; Orange for 10Mbps

Blinking when data is transmitted/received.

7 WLAN Lit green when the wireless connection is established. Flashes

when sending/receiving data.

10 MAIL Flash when there is Email in your configured Email account.

11 PPP Lit when there is a PPPoA / PPPoE connection.

13 ADSL Lit when successfully connected to an ADSL DSLAM (“linesync”).

myGuard 802.11g Security ADSL Router

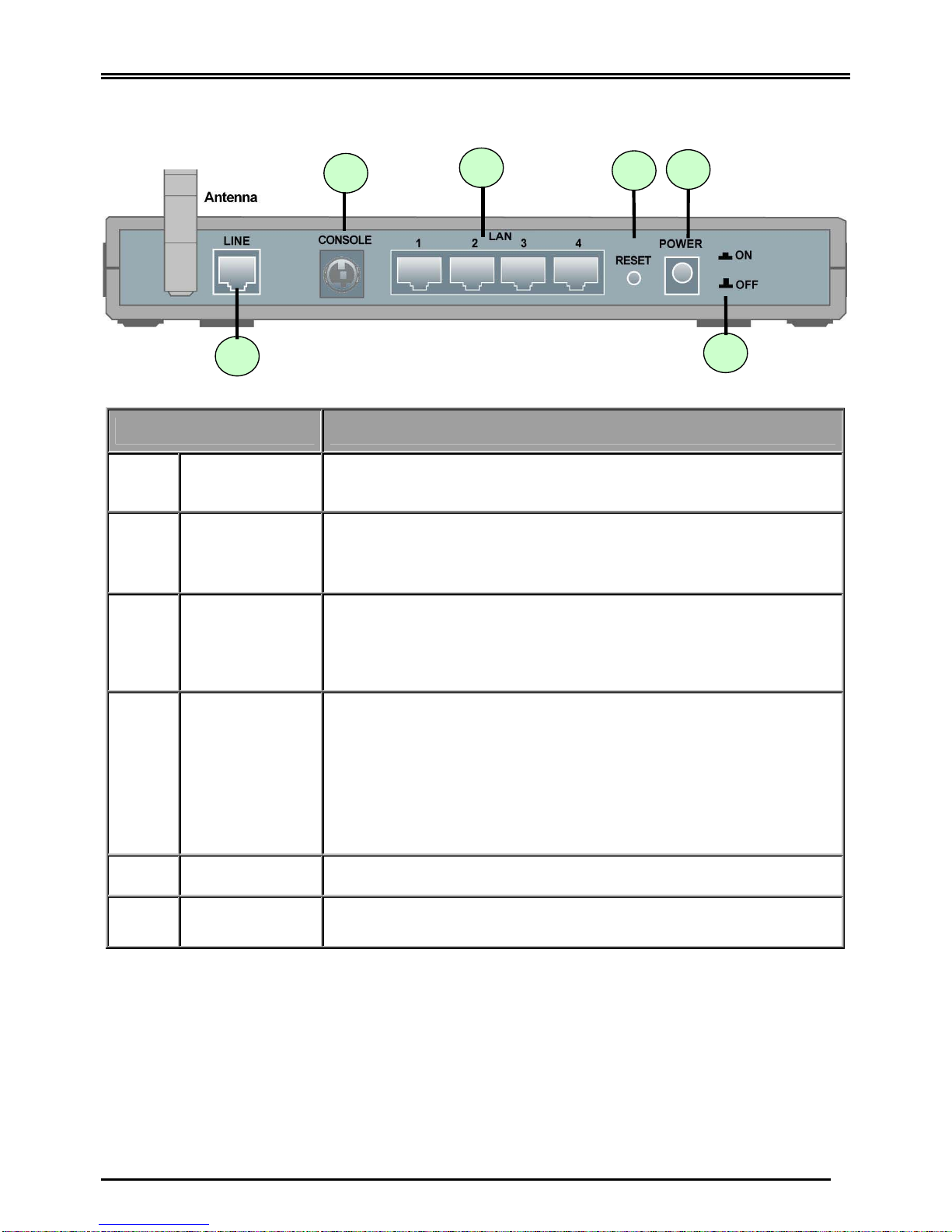

The Rear Ports

Port Meaning

1 LINE Connect the supplied RJ-11 (“telephone”) cable to this port when

connecting to the ADSL/telephone network.

2 CONSOLE Connect a PS2/RS-232 cable to this port when connecting to a

PC’s RS-232 port (9-pin serial port).

3 LAN

1X — 4X

(RJ-45 connector)

Connect a UTP Ethernet cable (Cat-5 or Cat-5e) to one of the

four LAN ports when connecting to a PC or an office/home

network of 10Mbps or 100Mbps.

RESET

After the device is powered on, press it to reset the device or

restore to factory default settings.

0-3 seconds: reset the device

6 seconds above: restore to factory default settings (this is used

when you cannot login to the router. E.g. forgot the password)

5 PWR Connect the supplied power adapter to this jack.

6 Power Switch Power ON/OFF switch

Quick Start Guide

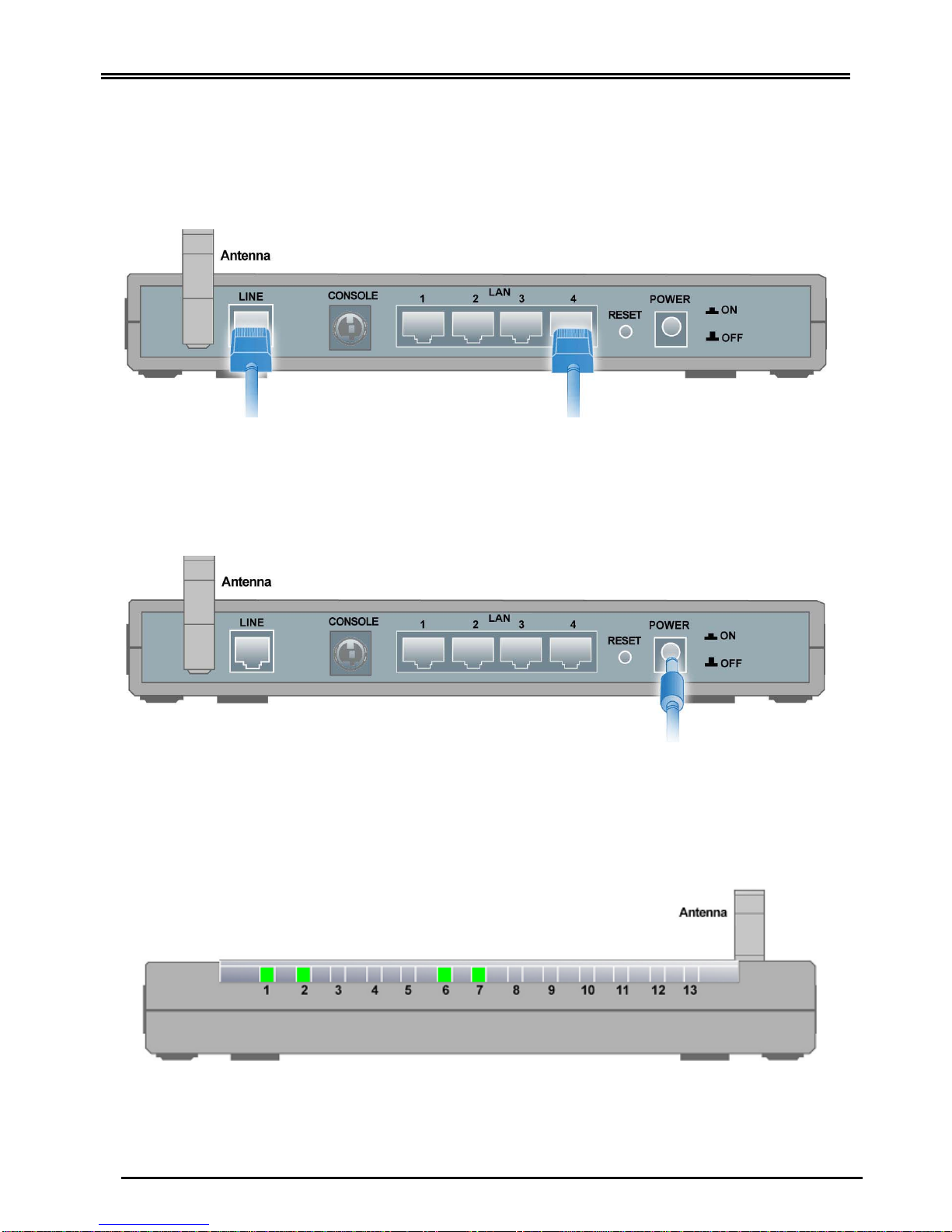

Connecting Your ADSL Router

1. Connect the Router to a LAN (Local Area Network) and the ADSL/telephone (LINE) network.

2. Power on the device.

3. Make sure the PWR, SYS and WLAN LEDs are lit steadily and that the relevant LAN LED

is lit.

myGuard 802.11g Security ADSL Router

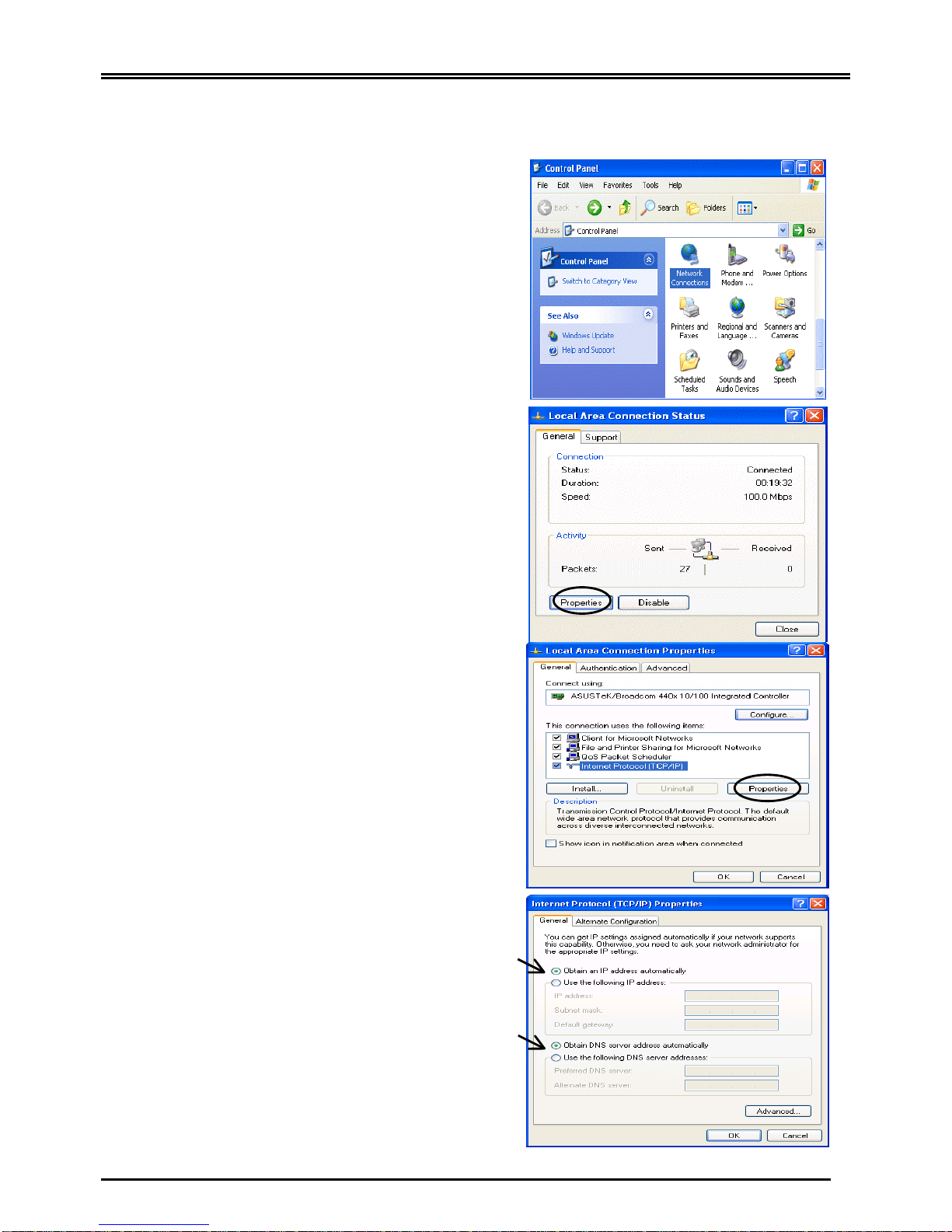

Configuring PC in Windows XP

1. Go to Start / Control Panel (in Classic View).

In the Control Panel, double-click on Network

Connections.

2. Double-click Local Area Connection.

3. In the Local Area Connection Status

window, click Properties.

4. Select Internet Protocol (TCP/IP) and click

Properties.

5. Select the Obtain an IP address

automatically and the Obtain DNS server

address automatically radio buttons.

6. Click OK to finish the configuration.

Quick Start Guide

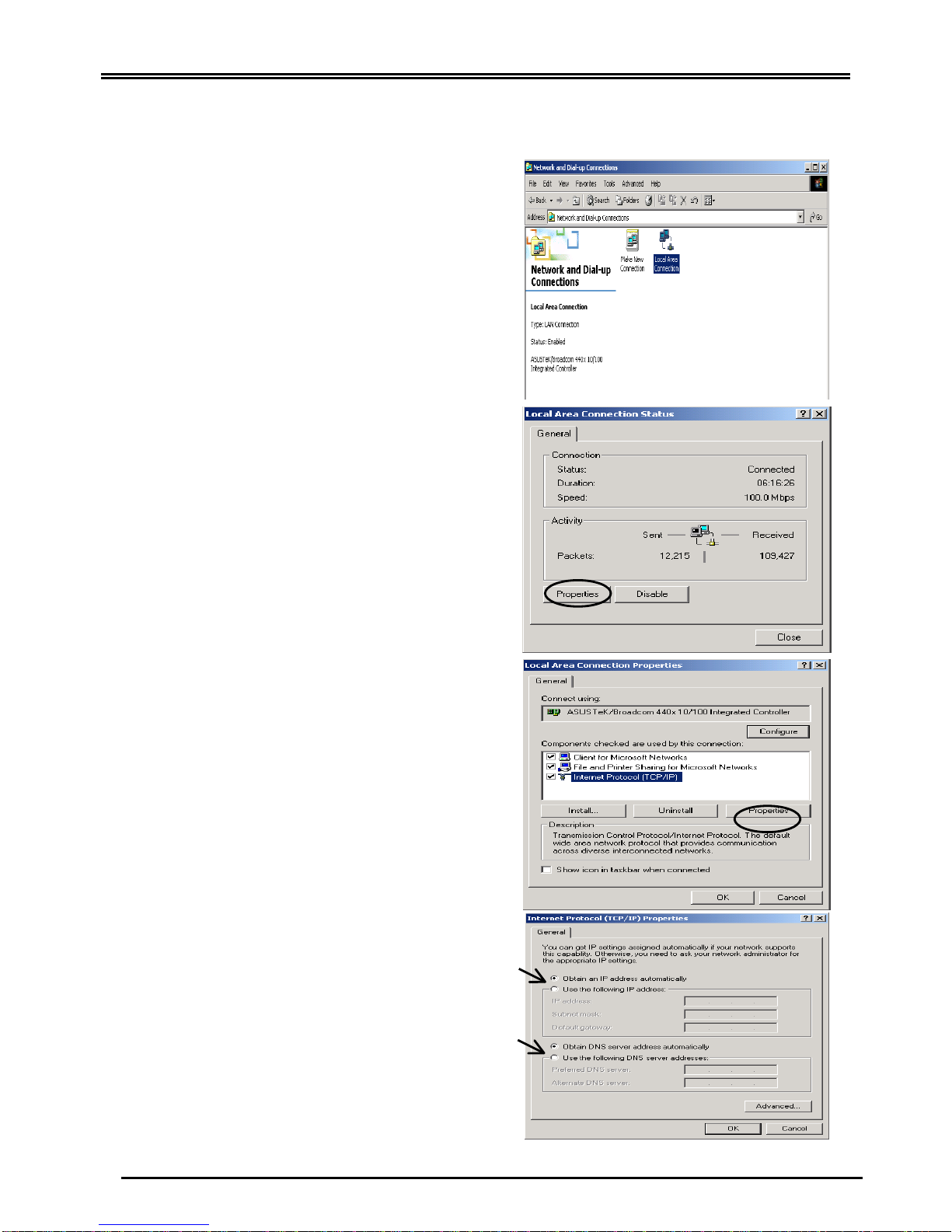

Configuring PC in Windows 2000

1. Go to Start / Settings / Control Panel. In the

Control Panel, double-click on Network and

Dial-up Connections.

2. Double-click Local Area Connection.

3. In the Local Area Connection Status window

click Properties.

4. Select Internet Protocol (TCP/IP) and click

Properties.

5. Select the Obtain an IP address

automatically and the Obtain DNS server

address automatically radio buttons.

6. Click OK to finish the configuration.

myGuard 802.11g Security ADSL Router

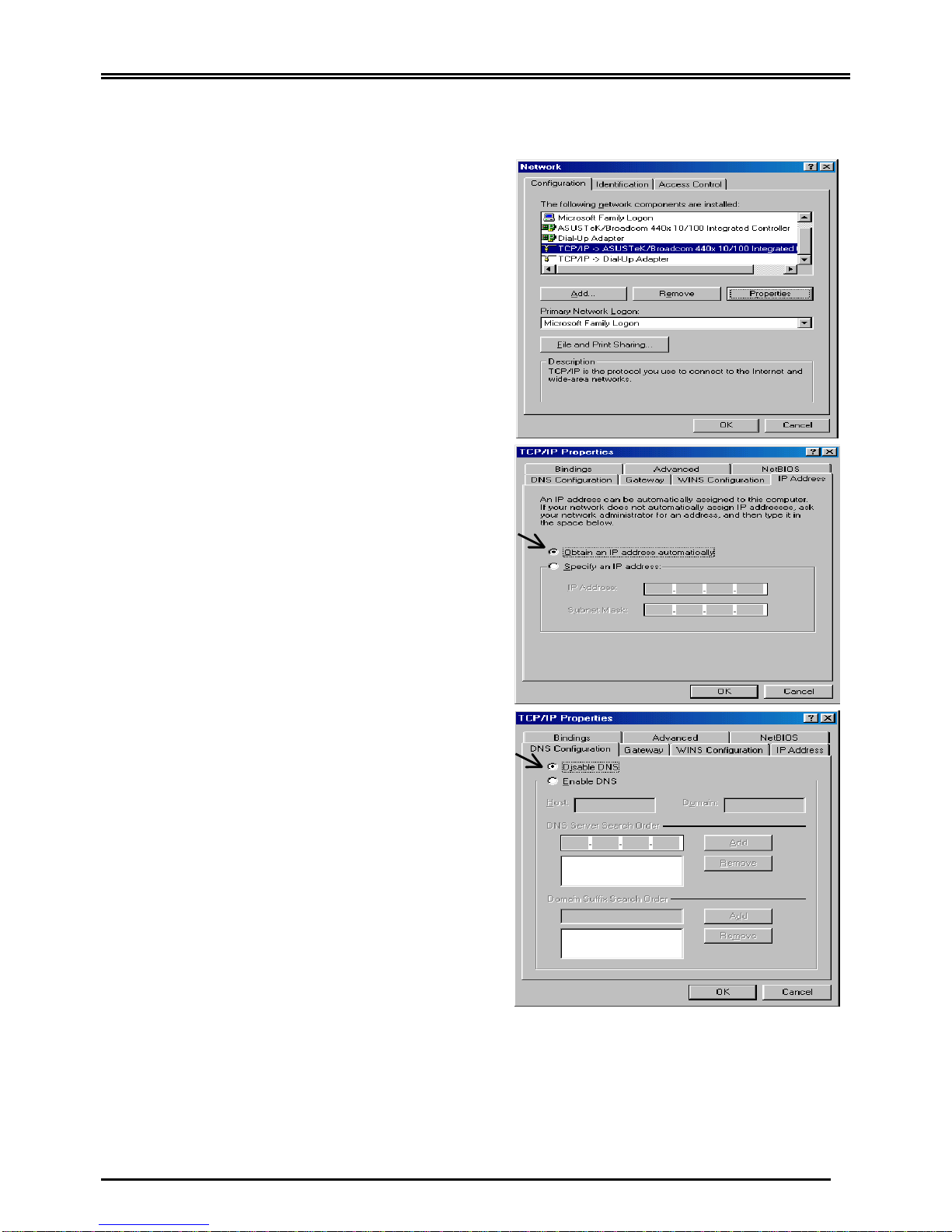

Configuring PC in Windows 98/Me

1. Go to Start / Settings / Control Panel. In the

Control Panel, double-click on Network and

choose the Configuration tab.

2. Select TCP/IP ->

NE2000 Compatible, or the name of your

Network Interface Card (NIC) in your PC.

3. Select the Obtain an IP address

automatically radio button.

4. Then select the DNS Configuration tab.

5. Select the Disable DNS radio button and click

OK to finish the configuration.

Quick Start Guide

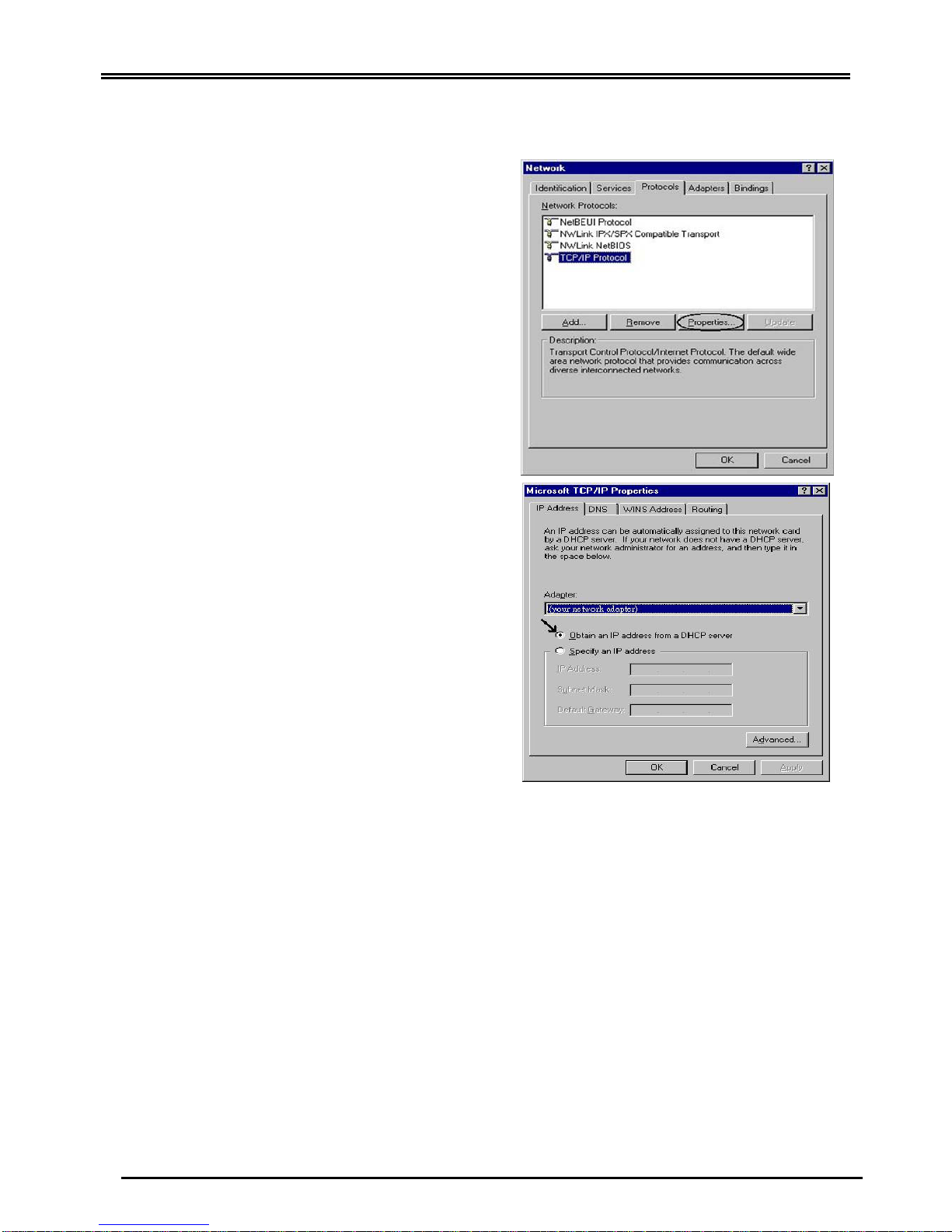

Configuring PC in Windows NT4.0

1. Go to Start / Settings / Control Panel. In the

Control Panel, double-click on Network and

choose the Protocols tab.

2. Select TCP/IP Protocol and click Properties.

3. Select the Obtain an IP address from a

DHCP server radio button and click OK.
