BiPAC 7300(G)

(802.11g) ADSL2+ Router

Quick Start Guide

Billion BiPAC 7300(G) ADSL2+ Router

For more detailed instructions on configuring and using

the (802.11g) ADSL2+ Router, please refer to the on-line

manual.

Package Contents

BiPAC 7300(G) ADSL2+ Router

CD-ROM containing the on-line manual

RJ-11 ADSL/telephone Cable

Ethernet (CAT-5 LAN) Cable

AC-DC power adapter (12VDC, 1A)

This Quick Start Guide

Warning

 Do not use the router in high humidity or high temperatures.

 Do not use the same power source for the router as othe

equipment.

 Do not open or repair the case yourself. If the router are too hot,

turn off the power immediately and have it repaired at a qualified

service center.

 Avoid using this product and all accessories outdoors.

ttention

 Place the router on a stable surface.

 Only use the power adapter that comes with the package. Using

a different voltage rating power adaptor may damage the router.

Quick Start Guide

The Front LEDs

BiPAC 7300

BiPAC 7300G

LED Meaning

1 PPP : Lit steady when there is a PPPoA / PPPoE connection.

2 ADSL: Lit when successfully connected to an ADSL DSLAM (“linesync”).

3 LAN Port: Lit when connected to an Ethernet device.

Green for 100Mbps; Orange for 10Mbps.

Blinking when data is Transmitted / Received.

4 WLAN :

(7300G

only)

Lit green when the wireless connection is established.

Flashes when sending/receiving data.

5 SYS : Lit when the system is ready.

6 PWR : Lit when power is ON.

Billion BiPAC 7300(G) ADSL2+ Router

The Rear Ports

BiPAC 7300

2 4

BiPAC 7300G

5 4

Port Meaning

1 Power Switch Power ON/OFF switch

2 PWR Connect the supplied power adapter to this jack.

3 RESET

(Emergency/Fai

lure Recovery)

1.After the device is powered on, press it to perform Failure

recover for a dead routers:

Simply hold the Emergency/Failure Recovery Button” when power

on the routers and download the Application if necessary.

2.Perform the Emergency Recover for the missing Password

case:(Using LEDs indications)

Simply hold the Emergency/Failure Recovery Button, when router

can be accessed from GUI, until the LEDs all turn Off, turn On and

then Turn Off. Then, router will perform configuration factory reset

and router reboot.

4 LAN

(RJ-45

connector)

Connect a UTP Ethernet cable (Cat-5 or Cat-5e) to one of the four

LAN ports when connecting to a PC or an office/home network of

10Mbps or 100Mbps.

5 ADSL

(LINE) Connect the supplied RJ-11 (“telephone”) cable to this port when

connecting to the ADSL/telephone network.

Quick Start Guide

Connecting BiPAC 7300

1. Connect the Router to a LAN (Local Area Network) and the ADSL/telephone (LINE) network.

2. Power on the device.

3. Make sure the PWR and SYS LEDs are lit steadily and that the relevant LAN LED is lit.

Billion BiPAC 7300(G) ADSL2+ Router

Connecting BiPAC 7300G

1. Connect the Router to a LAN (Local Area Network) and the ADSL/telephone (LINE) network.

2. Power on the device.

3. Make sure the PWR, SYS, and WLAN LEDs are lit steadily and that the relevant LAN LED is

lit.

Quick Start Guide

Configuring PC in Windows XP

1. Go to Start / Control Panel (in Classic

View). In the Control Panel, double-click on

Network Connections

2. Double-click Local Area Connection.

3. In the Local Area Connection Status

window, click Properties.

4. Select Internet Protocol (TCP/IP) and click

Properties.

5. Select the Obtain an IP address

automatically and the Obtain DNS server

address automatically radio buttons.

6. Click OK to finish the configuration.

Billion BiPAC 7300(G) ADSL2+ Router

Configuring PC in Windows 2000

1. Go to Start / Settings / Control Panel. In the Control

Panel, double-click on Network and Dial-up

Connections.

2. Double-click Local Area Connection.

3. In the Local Area Connection Status

window click Properties.

4. Select Internet Protocol (TCP/IP) and click

Properties.

5. Select the Obtain an IP address

automatically and the Obtain DNS server

address automatically radio buttons.

6. Click OK to finish the configuration.

Quick Start Guide

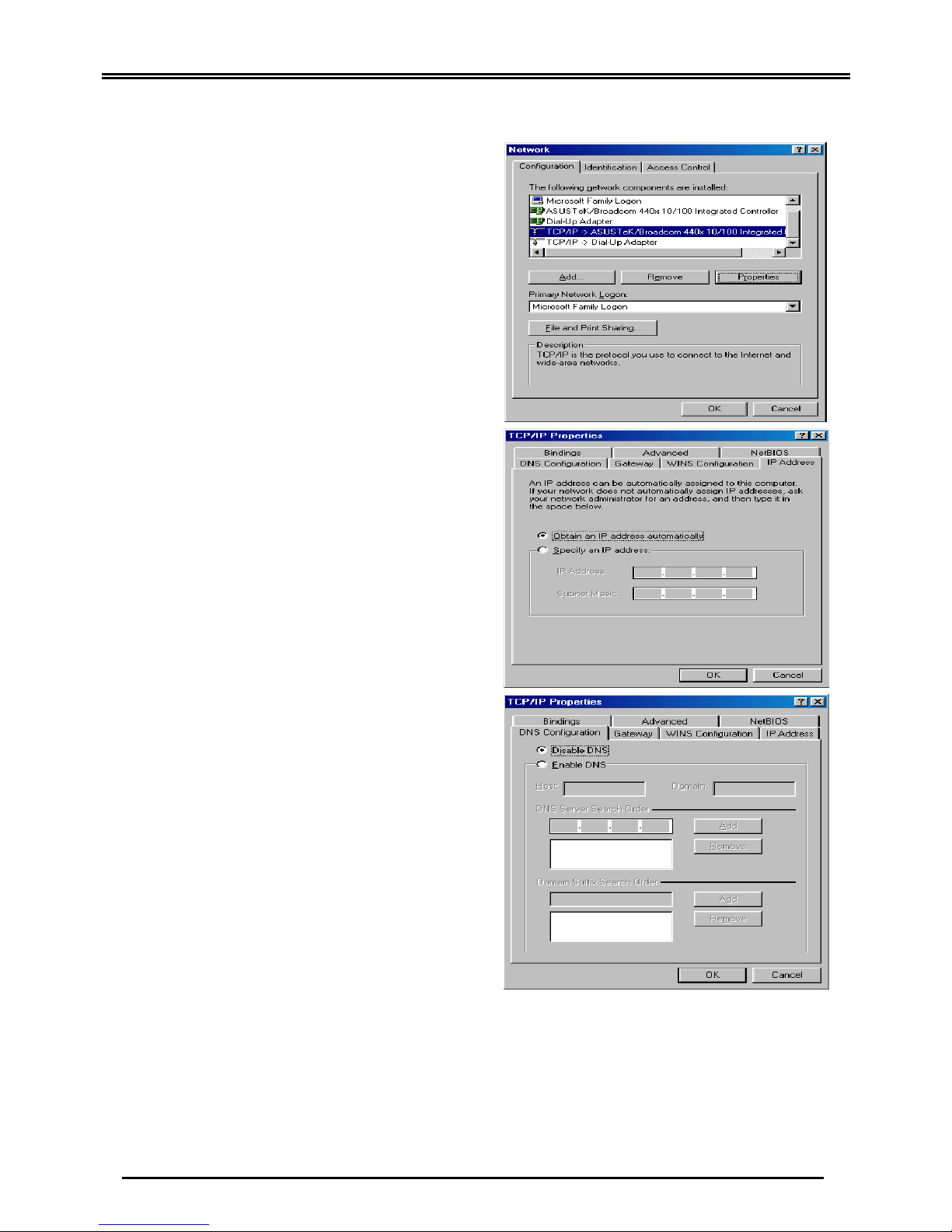

Configuring PC in Windows 98/Me

1. Go to Start / Settings / Control Panel. In

the Control Panel, double-click on Network

and choose the Configuration tab.

2. Select TCP/IP ->

NE2000 Compatible, or the name of your

Network Interface Card (NIC) in your PC.

3. Select the Obtain an IP address

automatically radio button.

4. Then select the DNS Configuration tab.

5. Select the Disable DNS radio button and

click OK to finish the configuration.
