BiPAC 6404VP/VGP

VoIP/(802.11g) Broadband Firewall

Router

Quick Start Guide

VoIP/(802.11g) Broadband Firewall Router

or more detailed instructions on con

urin

and usin

VoIP/(802.11g) Broadband Firewall

outer, please re

er to the

on-line manual.

Package Contents

VoIP/(802.11g) Broadband Firewall Router

CD-ROM containing the online manual

Ethernet (CAT-5 LAN) Cable

Console Kit (RJ45-RS232)

AC-DC power adapter (BiPAC 6404VP - 12V DC, 1A) (BiPAC 6404VGP – 12V DC 1.2A)

This Quick Start Guide

 Do not use this router in high humidity or high temperatures.

 Do not use the same power source for this router as othe

equipment.

 Do not open or repair the case yourself. If this router is too hot,

turn off the power immediately and have it repaired at a qualified

service center.

Warning  Avoid using this product and all accessories outdoors.

 Place this router on a stable surface.

 Only use th

differ e power adapter that comes with the package. Using a

ent voltage rating power adaptor may damage this router.

ttention

Quick Start Guide

The Front LEDs

LED Meaning

1 PWR Lit when power is ON.

2 SYS Lit when the system is ready.

3 WAN Lit when connected to an ADSL modem or Cable modem's

Ethernet port well

4 – 6 Lit when connected to an Ethernet device.

Green for 100Mbps; Orange for 10Mbps.

LAN Port

1X — 3X

(RJ-45 connector) Blinking when data is Transmitted / Received.

7 WLAN Lit green when the wireless connection is established.

(Wireless Router only) Flashes when sending/receiving data.

8 – 9 Phone

1X — 2X

(RJ-11 connector) Lit green when the phone is off-hook.

10 LINE Lit when the inbound and outbound calls transmitted

through PSTN.

VoIP Port Lit when the SIP Registration is OK.

1X — 2X

(RJ-11 connector) Green for Phone 1; Orange for Phone 2.

13 PPP

Lit Green when there is a PPPoA / PPPoE connection.

VoIP/(802.11g) Broadband Firewall Router

The Rear Ports

3 1

8 7 4

The LAN 3 can be connected to the computer and console cable. You need a special

console kit in this package to connect the LAN cable of Port 3 when connecting to a PC’s

RS-232 port (9-pin serial port).

Port Meaning

1 Power Switch Power ON/OFF switch

2 PWR Connect the supplied power adapter to this jack.

3 RESET

After the device is powered on, press it to reset the

device or restore to factory default settings.

1-3 seconds: reset the device

6 seconds above, and power off, power on the device:

restore to factory default settings (this is used when you

can not login to the router, e.g. forgot the password)

4 WAN WAN 10/100M Ethernet port (with auto crossover

support); connect xDSL/Cable modem here.

5 LAN

1X — 3X

(RJ-45 connector)

Connect a UTP Ethernet cable (Cat-5 or Cat-5e) to one of

the three LAN ports when connecting to a PC or an

office/home network of 10Mbps or 100Mbps.

Phone

1X ─2X

(RJ-11 connector)

Connect RJ-11 cable to this port when connecting to an

analog phone set.

7 LINE Connect RJ-11 cable to this port when connecting to the

telephone wall jack.

Antenna Connect the detachable antenna to this port.

8 (Wireless Router only)

Quick Start Guide

Connecting Your Broadband Router

1. (a) ATA Mode: Connect the ATA to a WAN (Connect to ADSL modem/router).

(b) Broadband Router Mode: Connect the Router to a LAN (Local Area Network) and WAN

(Connect to Cable or ADSL modem).

2. Power on the device.

3. Make sure the PWR and SYS LEDs are lit steadily and that the WAN and relevant LAN LED are lit.

4. Connect an RJ11 cable to VoIP port when connecting to an analog phone set.

5. Connect RJ-11 cable to LINE Port when connecting to the telephone wall jack

ATA Mode

Broadband Router Mode

VoIP/(802.11g) Broadband Firewall Router

Configuring PC in Windows XP

1. Go to Start / Control Panel (in Classic

View). In the Control Panel, double-click on

Network Connections

2. Double-click Local Area Connection.

3. In the Local Area Connection Status

window, click Properties.

4. Select Internet Protocol (TCP/IP) and click

Properties.

5. Select the Obtain an IP address

automatically and the Obtain DNS server

address automatically radio buttons.

6. Click OK to finish the configuration.

Quick Start Guide

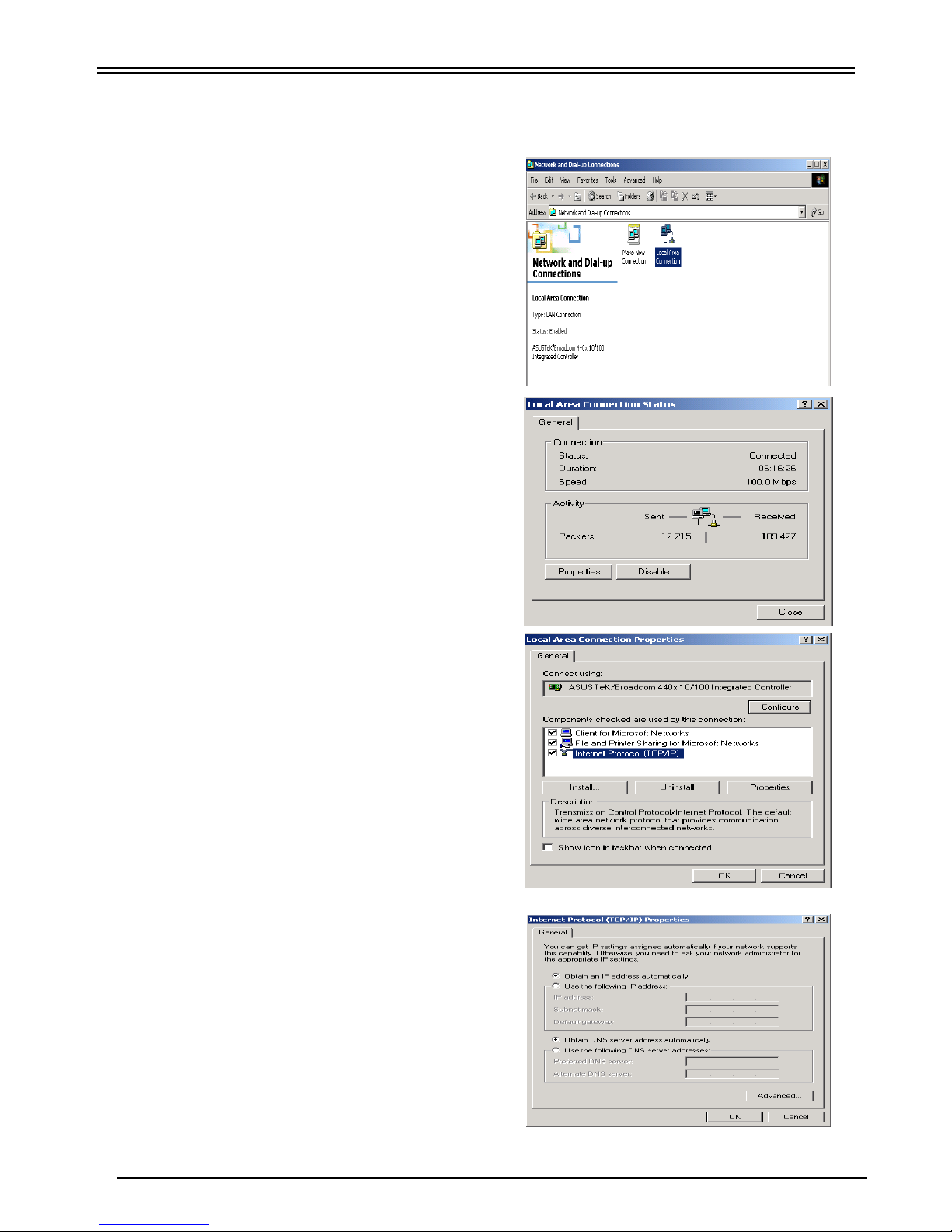

Configuring PC in Windows 2000

1. Go to Start / Settings / Control Panel. In the

Control Panel, double-click on Network and

Dial-up Connections.

2. Double-click Local Area Connection.

3. In the Local Area Connection Status

window click Properties.

4. Select Internet Protocol (TCP/IP) and click

Properties.

5. Select the Obtain an IP address

automatically and the Obtain DNS server

address automatically radio buttons.

6. Click OK to finish the configuration.

VoIP/(802.11g) Broadband Firewall Router

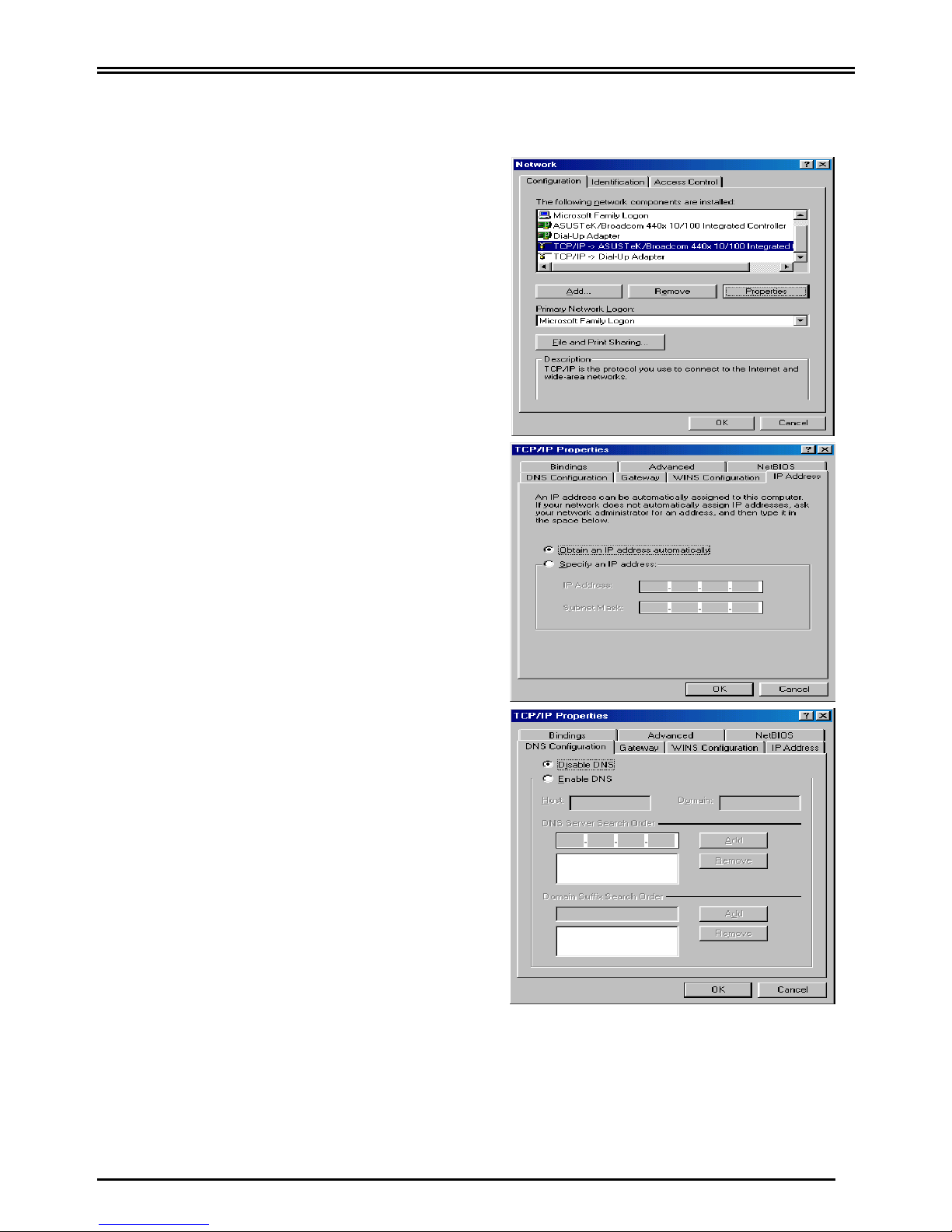

Configuring PC in Windows 98/Me

1. Go to Start / Settings / Control Panel. In

the Control Panel, double-click on Network

and choose the Configuration tab.

2. Select TCP/IP ->

NE2000 Compatible, or the name of your

Network Interface Card (NIC) in your PC.

3. Select the Obtain an IP address

automatically radio button.

4. Then select the DNS Configuration tab.

5. Select the Disable DNS radio button and

click OK to finish the configuration.

Quick Start Guide

Configuring PC in Windows NT4.0

1. Go to Start / Settings / Control Panel. In the

Control Panel, double-click on Network and

choose the Protocols tab.

2. Select TCP/IP Protocol and click Properties.

3. Select the Obtain an IP address from a

DHCP server radio button and click OK.
