Billion BiPAC 7401VP/VGP Manuale utente

BiPAC 7401VP/VGP

VoIP/(802.11g) ADSL2+ Router

Quick Start Guide

Billion VoIP/(802.11g) ADSL2+ Router

 Do not use this router in high humidity or high temperatures.

 Do not use the same power source for this router as other

equipment.

 Do not open or repair the case yourself. If this router is too hot,

turn off the power immediately and have it repaired at a qualified

service center.

 Avoid using this product and all accessories outdoors.

For more detailed instructions on configuring and usin

Billion VoIP/(802.11g) ADSL2+ Router, please refer to the on-

line manual.

Package Contents

VoIP/(802.11g) ADSL2+ Router

CD-ROM containing the user manual

RJ-11 ADSL/telephone Cable

Ethernet (CAT-5 LAN) Cable

Console tool

Adetachable Antenna (Wireless router only)

AC-DC power adapter (12VDC, 1A)

This Quick Start Guide

Warning

 Place this router on a stable surface.

 Only use th

different voltage rating pow

e power adapter that comes with the package. Using a

er adaptor may damage this router.

ttention

Quick Start Guide

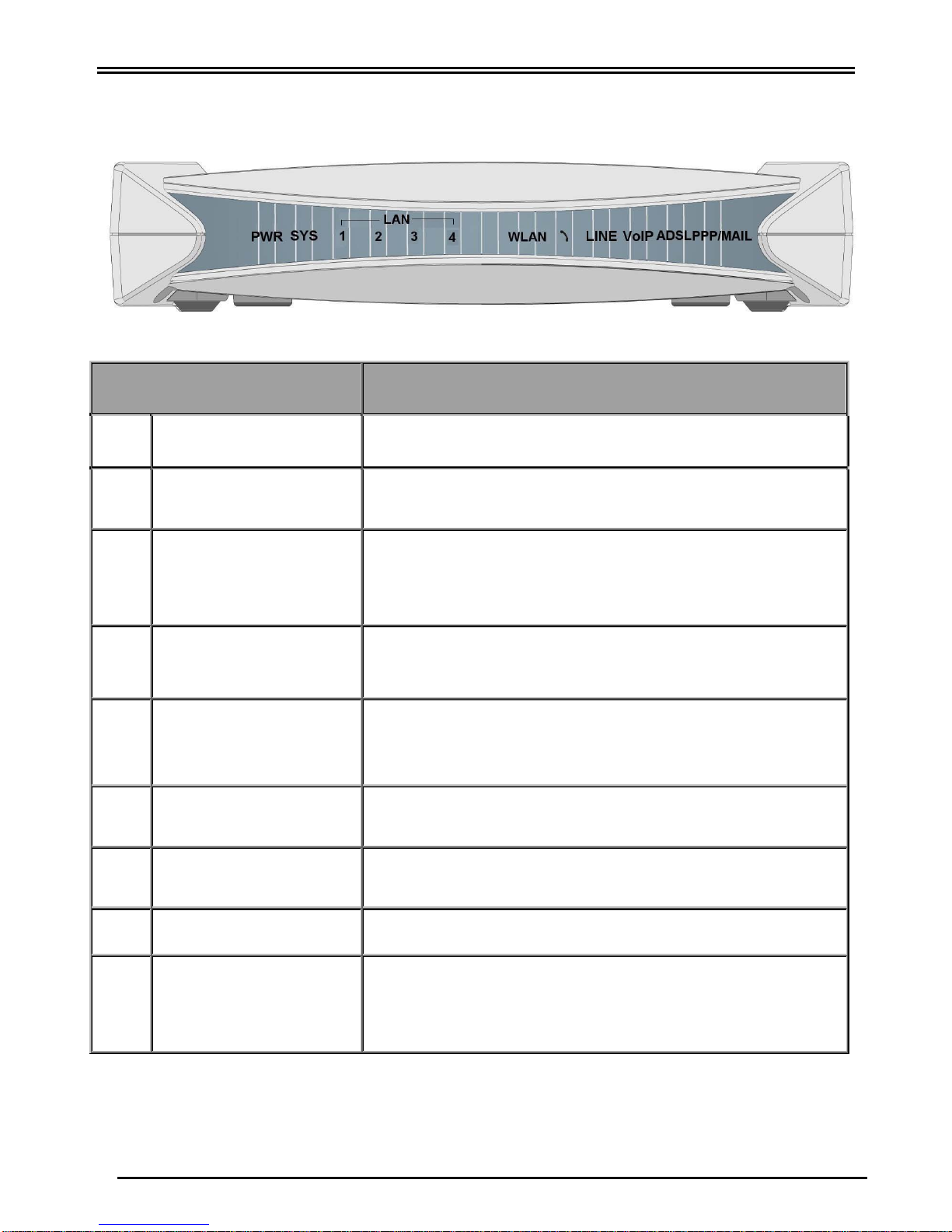

The Front LEDs

LED Meaning

1 PWR Lit when power is ON.

2 SYS Lit when the system is ready.

3 – 6 Lit when connected to an Ethernet device.

Green for 100Mbps; Orange for 10Mbps.

LAN Port

1X — 4X

(RJ-45 connector) Blinking when data is Transmitted / Received.

8 WLAN Lit green when the wireless connection is established.

(Wireless router only) Flashes when sending/receiving data.

9 Phone

(RJ-11 connector) Lit green when the phone is off-hook.

10 LINE Lit when the inbound and outbound calls transmitted

through PSTN.

11 VoIP Lit when SIP registration is OK.

12 ADSL Lit when successfully connected to an ADSL DSLAM

(“linesync”).

13 PPP / MAIL

Lit steady when there is a PPPoA / PPPoE connection.

Lit and flashed periodically when there is email in the Inbox.

Billion VoIP/(802.11g) ADSL2+ Router

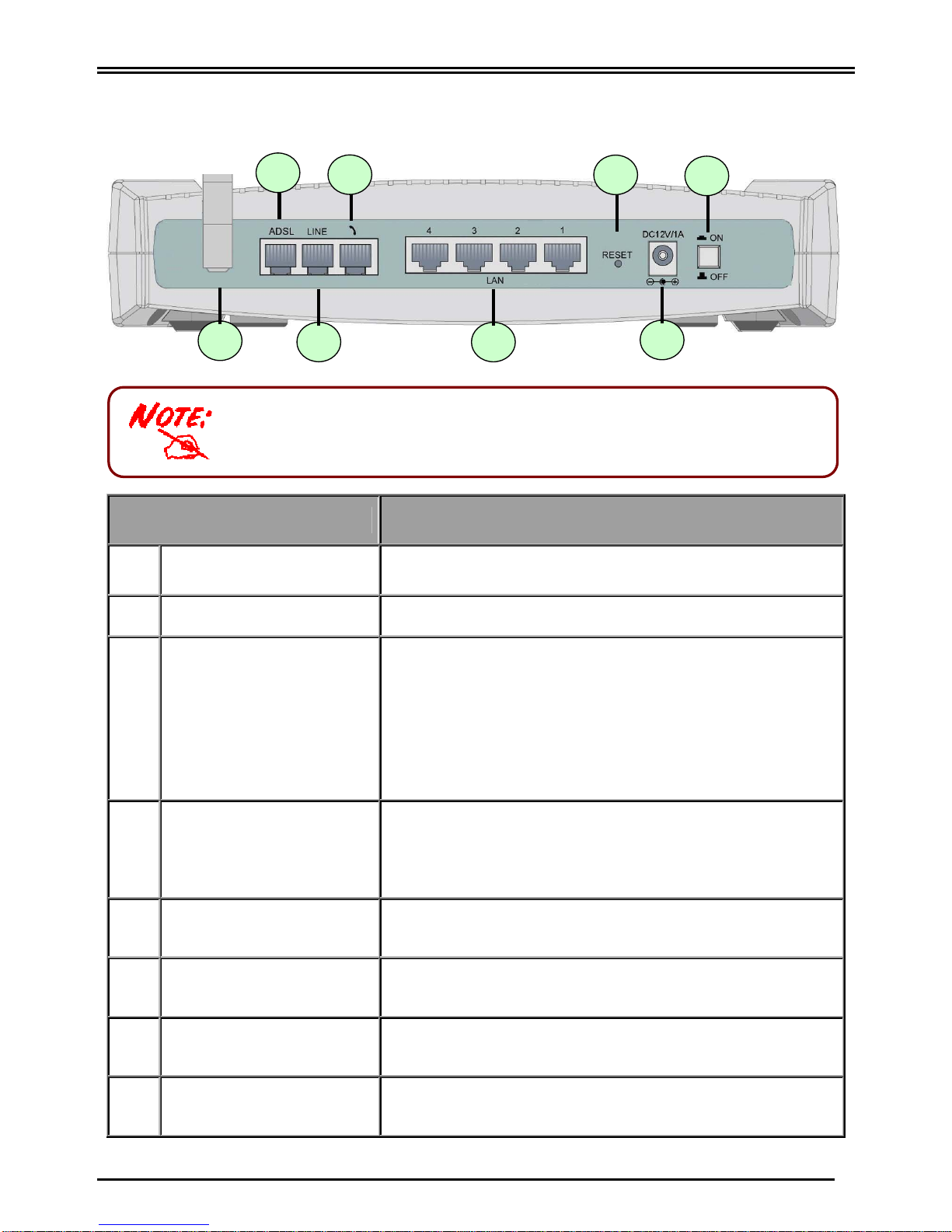

The Rear Ports

6 5 31

8 7 4

The Ethernet Port # 4 can be connected to the computer and console. You need a special

console tool which is included in this package to connect the LAN cable of Port 4 when

connecting to a PC’s RS-232 port (9-pin serial port).

Port Meaning

1 Power Switch Power ON/OFF switch

2 Power Connect the supplied power adapter to this jack.

3 RESET

After the device is powered on, press it to reset the device or

restore to factory default settings.

1-3 seconds: reset the device

6 seconds above, and power off, power on the device: restore to

factory default settings (this is used when you can not login to

the router, e.g. forgot the password)

4 LAN

1X — 4X

(RJ-45 connector)

Connect a UTP Ethernet cable (Cat-5 or Cat-5e) to one of the

four LAN ports when connecting to a PC or an office/home

network of 10Mbps or 100Mbps.

5 Phone

(RJ-11 connector) Connect RJ-11 cable to this port when connecting to an analog

phone set.

6 LINE Connect RJ-11 cable to this port when connecting to the

telephone wall jack.

7 ADSL Connect the supplied RJ-11 (“telephone”) cable to this port

when connecting to the ADSL/telephone network.

8 Antenna

(Wireless router only) Connect the detachable antenna to this port.

Quick Start Guide

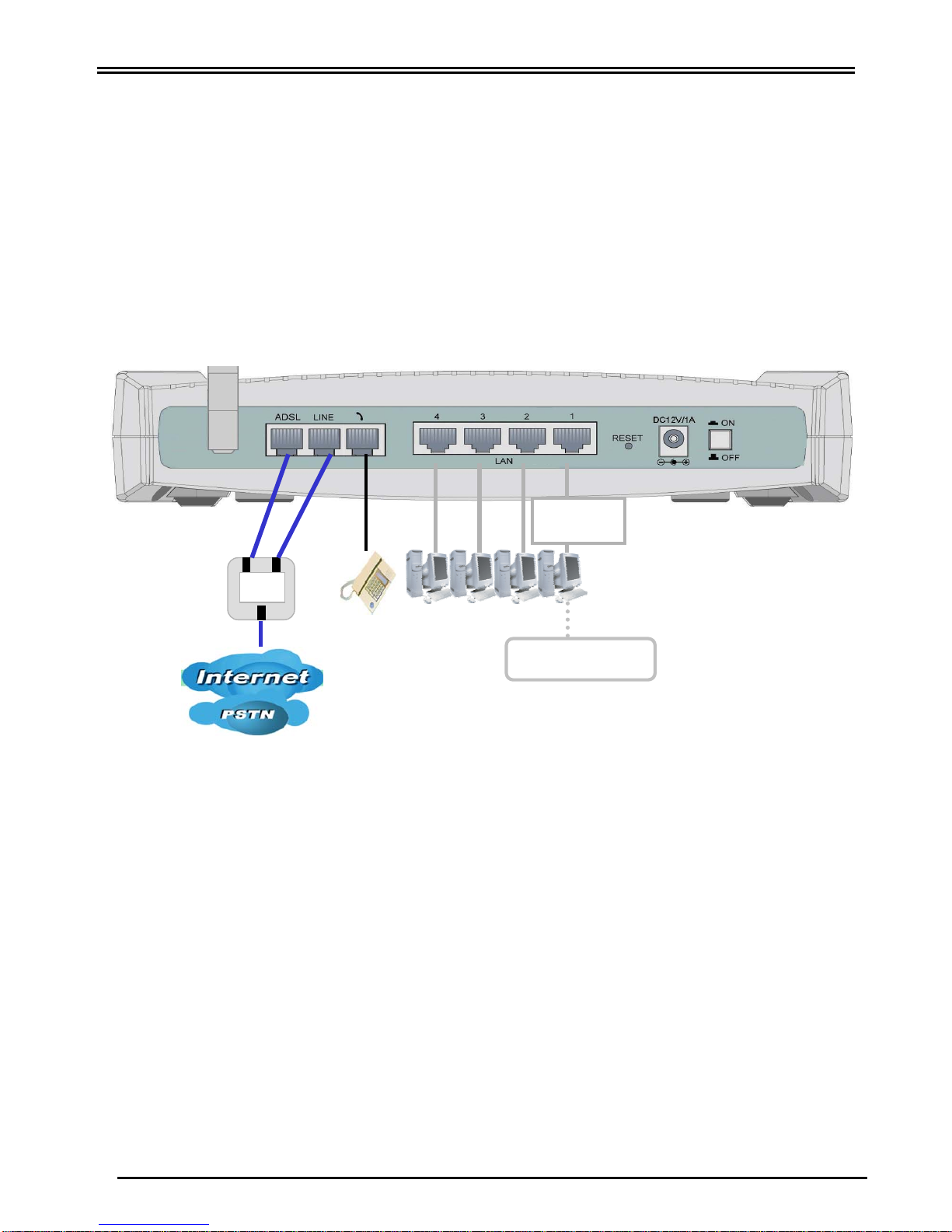

Connecting Your ADSL Router

1. Connect this router to a LAN (Local Area Network) and the ADSL/telephone (ADSL) network.

2. Power on the device.

3. Make sure the PWR and SYS LEDs are lit steadily and that the LAN LED is lit.

4. Connect an RJ11 cable to VoIP port when connecting to an analog phone set.

5. Connect RJ-11 cable to LINE Port when connecting to the telephone wall jack.

Connect more

computers

Analog Phone

ADSL

Splitter

ADSL Phone

Line

Switching/

HUB

(802.11g is not supported in BiPAC 7401VP)

Billion VoIP/(802.11g) ADSL2+ Router

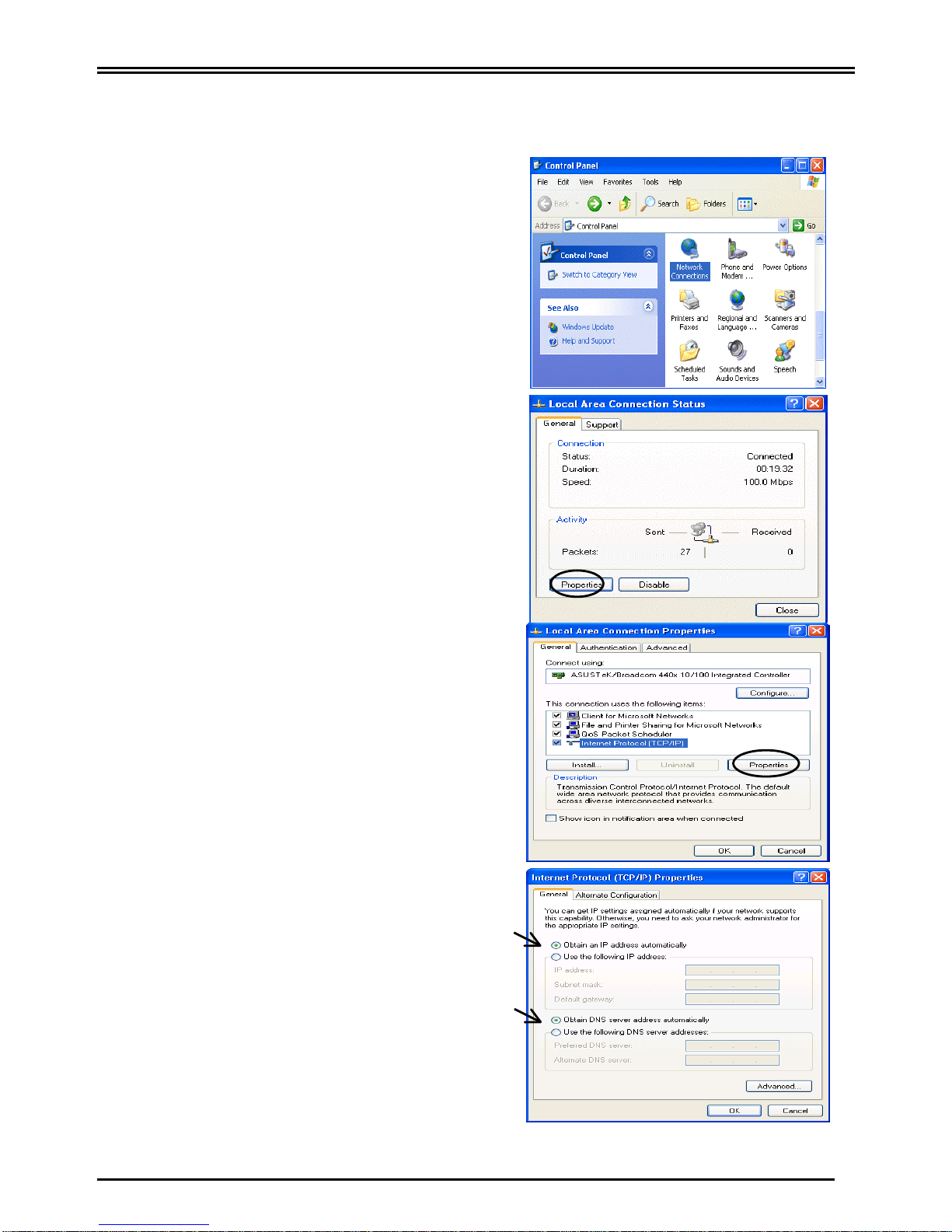

Configuring PC in Windows XP

1. Go to Start / Control Panel (in Classic

View). In the Control Panel, double-click on

Network Connections

2. Double-click Local Area Connection.

3. In the Local Area Connection Status

window, click Properties.

4. Select Internet Protocol (TCP/IP) and click

Properties.

5. Select the Obtain an IP address

automatically and the Obtain DNS server

address automatically radio buttons.

6. Click OK to finish the configuration.

Quick Start Guide

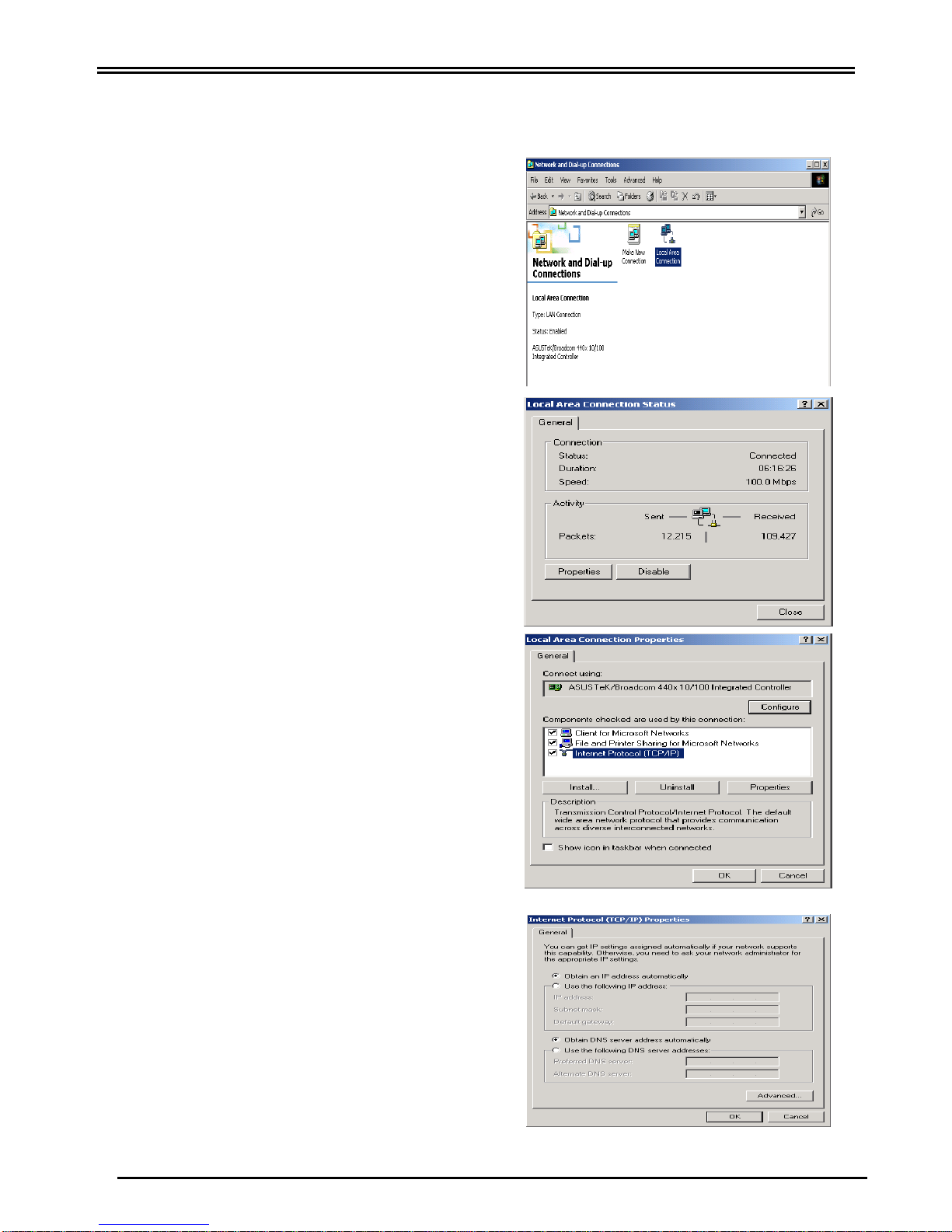

Configuring PC in Windows 2000

1. Go to Start / Settings / Control Panel. In the

Control Panel, double-click on Network and

Dial-up Connections.

2. Double-click Local Area Connection.

3. In the Local Area Connection Status

window click Properties.

4. Select Internet Protocol (TCP/IP) and click

Properties.

5. Select the Obtain an IP address

automatically and the Obtain DNS server

address automatically radio buttons.

6. Click OK to finish the configuration.

Billion VoIP/(802.11g) ADSL2+ Router

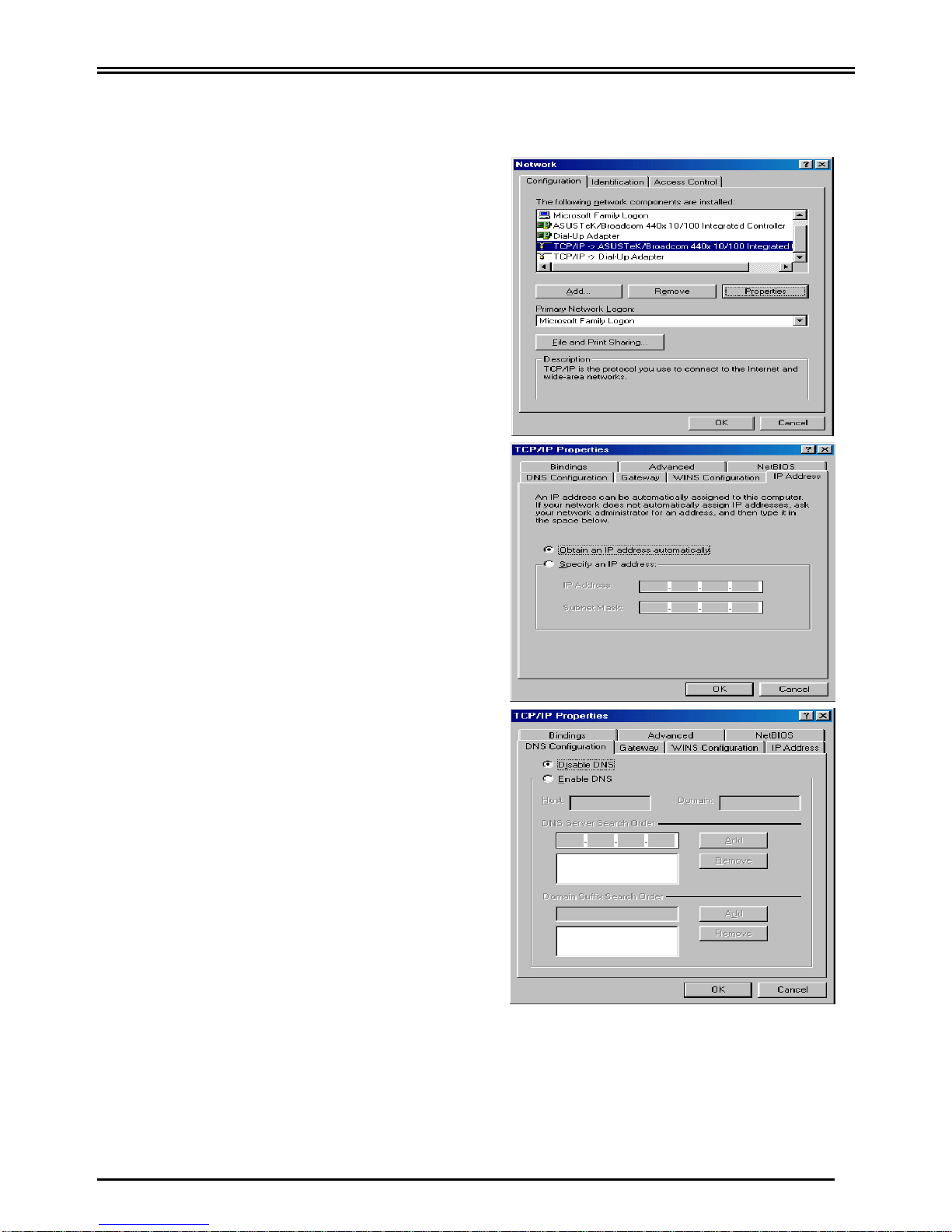

Configuring PC in Windows 98/Me

1. Go to Start / Settings / Control Panel. In

the Control Panel, double-click on Network

and choose the Configuration tab.

2. Select TCP/IP ->

NE2000 Compatible, or the name of your

Network Interface Card (NIC) in your PC.

3. Select the Obtain an IP address

automatically radio button.

4. Then select the DNS Configuration tab.

5. Select the Disable DNS radio button and

click OK to finish the configuration.

Quick Start Guide

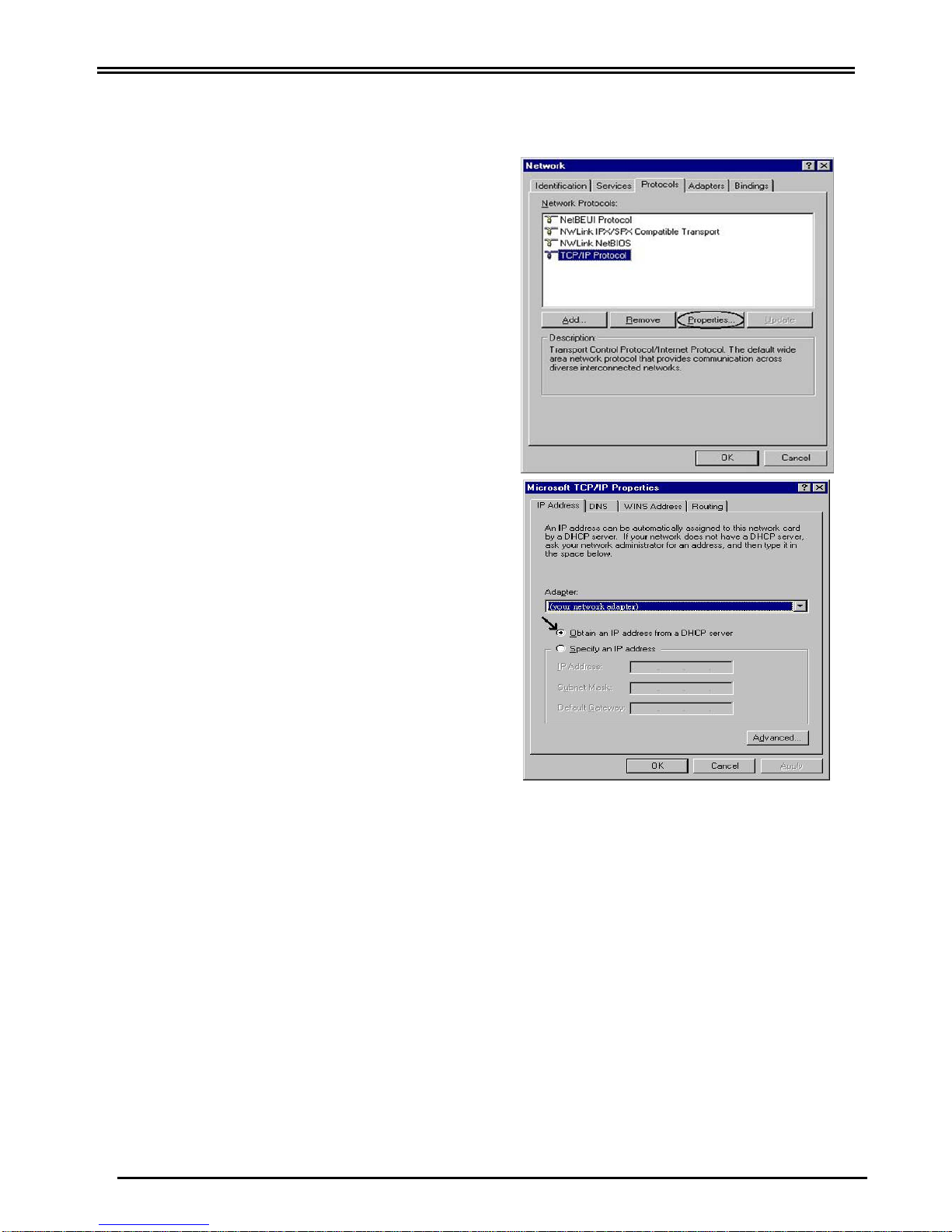

Configuring PC in Windows NT4.0

1. Go to Start / Settings / Control Panel. In the

Control Panel, double-click on Network and

choose the Protocols tab.

2. Select TCP/IP Protocol and click Properties.

3. Select the Obtain an IP address from a

DHCP server radio button and click OK.
