SRP-275 PRINTER Aug 1, 2004 Impact Receipt Printer

Windows Driver User’s Manual

SRP–275 Impact Receipt Printer

SRP-275 PRINTER 1 Impact Receipt Printer

Contents

1. Foreword … 2

2. Operating Environment … 2

3. Installing the Driver … 3

3.1 Download windows driver from website … 3

3.2 Install windows driver with autoinstaller … 3

3.3 Printer settings … 5

4. Main Specifications ... 6

4.1 Printer Fonts … 6

4.2 Special Functions ... 7

4.3 Resolutions … 8

4.4 Paper Sizes … 8

5. Controlling the Printer from VB … 9

5.1 Selecting the Printer Driver … 9

5.2 Printing Text … 9

5.3 Opening the Cash Drawer … 10

5.4 Cutting the Paper … 10

6. Using the SRP-275 Printer from WordPad … 11

6.1 WordPad Environment … 11

6.2 Printing Text … 11

6.3 Opening the Cash Drawer … 12

6.4 Cutting the Paper … 13

7. Using the SRP-275 Printer Properties … 14

7.1 Additional Commands … 14

SRP-275 PRINTER 2 Impact Receipt Printer

1. Foreword

This manual explains how to install and use Windows printer drivers for SAMSUNG SRP-275

printers. These drivers make it possible for Windows applications to print to SAMSUNG

BIXOLON SRP-275 printers. Please read this manual carefully so that you can take full

advantage of the driver’s capabilities.

2. Operating Environment

The SAMSUNG BIXOLON SRP-275 printer drivers can run on any of the following operating

systems.

-Microsoft Windows 95

-Microsoft Windows 98

-Microsoft Windows ME

-Microsoft Windows NT 4.0

-Microsoft Windows 2000

-Microsoft Windows XP

-Microsoft Windows 2003 Server

SRP-275 PRINTER 3 Impact Receipt Printer

3. Installing the Driver

3.1 Download windows driver from website

(1) Connect our website(http://www.samsungminiprinters.com)

(2) Select language

(3) Click “Download” tab of “Support & Service”

(4) Download “Windows Driver” of SRP-275 section.

3.2 Install windows driver with autoinstaller

(1) Double click “SRP-275_V3.1.1E.exe” file.

(2) Installer program extract files to current folder and installation start.

(3) Click “Next” button.

SRP-275 PRINTER 4 Impact Receipt Printer

(4) Select OS Type and click “Next” button.

SRP-275 PRINTER 5 Impact Receipt Printer

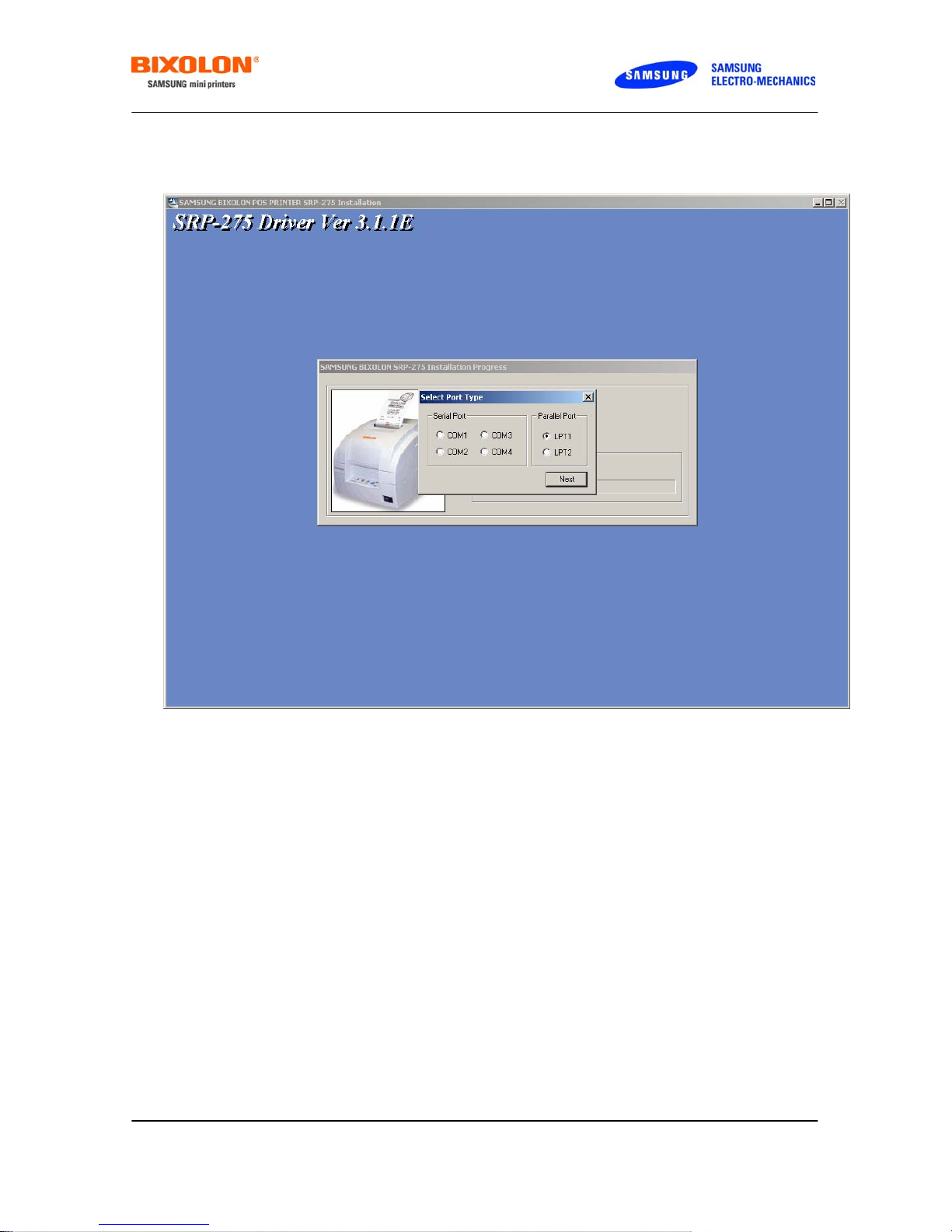

(5) Select port type and click “Next” button.

(6) When installation finished, you must reboot your system.

3.3 Printer Settings

This section is explained the way of following Printer Settings.

- Printer Resolution

- Paper Size

- Orientation

In Windows 95/98/ME, this can be set in the printer’s “Properties” dialog.

In Windows NT4.0, it can be set in the printer’s “Document Default” dialog.

In Windows 2000/XP, it can be set in the printer’s “Printing Preferences” dialog.

SRP-275 PRINTER 6 Impact Receipt Printer

4. Main Specifications

4.1 Printer Fonts

These drivers support use of printer fonts as well as Windows fonts. Use of printer fonts permits

faster printing. Available printer fonts are listed below.

“Built-in fonts of a printer” can be specified with the application programs. The “built-in fonts”

are as follows.

- Printer Font ( type A, Small )

- Printer Font ( type B, Small )

The font names what the user can choose in to the application are as follows.

2 types of character-height can be chosen in each font.

Six kinds of the FontAXxX, the FontAXxX [Ext.], the FontAXxX[255], FontBXxX, the FontBXxX

[Ext.], the FontBXxX[255]. The character code of 128 bytes of 80H - FFH varies in the

difference in these printer fonts. FontAXxX font, FontBXxX font support an Latin1 character

code(Code Page 16 :WPC 1252). and, FonAXxX [Ext.] font, FontBXxX[Ext.] support

International character code(Code Page 0 : 437). And FonAXxX [255] font,

FontBXxX[255] support specified character code(Code Page 255) for additional font in

firmware.

Printer Fonts Character size(dot) Sizes (point)

FontA1x1 FontA1x1[Ext.] FontA1x1[255] FontA1x1(9x9) 9

FontA1x2 FontA1x2[Ext.] FontA1x2[255] FontA1x2(9x18) 18

FontA2x1 FontA2x1[Ext.] FontA2x1[255] FontA2x1(18x9) 9

FontA2x2 FontA2x2[Ext.] FontA2x2[255] FontA2x2(18x18) 18

FontB1x1 FontB1x1[Ext.] FontB1x1[255] FontB1x1(7x9) 9

FontB1x2 FontB1x2[Ext.] FontB1x2[255] FontB1x2(7x18) 18

FontB2x1 FontB2x1[Ext.] FontB2x1[255] FontB2x1(14x9) 9

FontB2x2 FontB2x2[Ext.] FontB2x2[255] FontB2x2(14x18) 18

Printer font for special function Function Size(pont/dot)

FontControl

- Open Drawer 1/2

- Cut receipt

- Cut receipt(without paper feeding)

- Justification(Left/Center/Right)

- Output HT,Output LF, Output CR

- Print NV image

( 9 / 9x9 )

SRP-275 PRINTER 7 Impact Receipt Printer

4.2 Special Functions

The SRP-275 Printer can be used to execute a variety of special non-printing functions, as

indicated in the table below.

You can execute these functions by selecting the printer’s special “FontControl” font and then

sending the appropriate character code to the driver. ( Note that you cannot use the

“FontControl” font to print normal characters. )

Character Special Function Note

5 HT is output

6 LF is output

7 CR is output

a Open Drawer 2 (50ms drive pulse width)

b Open Drawer 2 (100ms drive pulse width)

c Open Drawer 2 (150ms drive pulse width)

d Open Drawer 2 (200ms drive pulse width)

e Open Drawer 2 (250ms drive pulse width)

g Cut Receipt (partial cut) without paper feeding

w Text is aligned left

x Text is centered

y Text is aligned right

A Open Drawer 1 (50ms drive pulse width)

B Open Drawer 1 (100ms drive pulse width)

C Open Drawer 1 (150ms drive pulse width)

D Open Drawer 1 (200ms drive pulse width)

E Open Drawer 1 (250ms drive pulse width)

G Print NV 1st image

H Print NV 2nd image

I Print NV 3rd image

J Print NV 4th image

K Print NV 5th image

P Cut Receipt (partial cut)

SRP-275 PRINTER 8 Impact Receipt Printer

4.3 Resolutions

The resolution settings supported by SRP-275 printer are as follows

- 160 ×72

- 160 ×144

- 80 ×72

4.4 Paper Sizes

The paper sizes supported by SRP-275 printer are as follows.

- 76 ×3276 mm[275]

- 69.5 ×3276 mm[275]

- 57.5 ×3276 mm[275]

- 76 ×297 mm[275]

- 69.5 ×297 mm[275]

- 57.5 ×297 mm[275]

- Custom Size (Windows 9x support)

The following table shows the recommended margins for SRP-275 printer. Refer to this

table when setting margins from your printing applications.

Margins Printer

Area

Printer

Left[mm] Right[mm] Top[mm] Bottom[mm] Width[mm]

SRP-275 0 0 0 0 63.5

SRP-275 PRINTER 9 Impact Receipt Printer

5. Controlling the Printer from VB

This section shows how you can control the SRP-275 Printer using Visual

Basic(Version 6.0). Note that the SRP-275 Printer drivers include sample Visual Basic

programs that provide additional examples.

5.1 Selecting the Printer Driver

The following code establishes the specified printer driver as your "default printer."

♦VISUAL BASIC

For Each prnPrinter In Printers

If prnPrinter.DeviceName = “SAMSUNG SRP-275” Then

Set Printer = prnPrinter

Exit For

End If

5.2 Printing Text

The following code prints a text string using a Windows font, and then prints another text string

using a printer font. Each string gives the name and size of the font being used.

♦VISUAL BASIC

‘Print in Windows font

Printer.FontSize = 9

Printer.FontName = “Arial”

Printer.Print “Arial”

‘Print in printer font

Printer.FontSize = 9

Printer.FontName = “FontA1x1”

Printer.Print “FontA1x1”

Printer.EndDoc
