RMT 85

19" Sliding Pivoting Keyboard

with Mouse Tray

Description

The 19" Sliding Pivoting Keyboard with Mouse Tray is designed for 19" EIA mounting applications. This 20.625"W x

9.5"D tray uses adjustable four-point 19" EIA mounting to swivel, rotate, and slide in sideways in case the keyboard is too

wide for the rack. (See the illustrations below.) Keyboard tray slides provide 19" of travel.

The mouse tray can be mounted on either the left- or right-hand side. The Tray also includes a cushioned wrist rest.

❷(pivoting, with mouse on right) ❹

❶❸ (pivoting, with mouse on left)

What’s Included

• (1) Keyboard tray with adjustable brackets

• (1) Wrist pad

• (8) 12-24 Mounting screws

• (8) 10-32 Mounting screws

• (8) M6-16 Cage nuts

Installation See the other side of this page for installation instructions.

1000 Park Drive • Lawrence, PA 15055 • 724-746-5500 • Fax 724-746-0746

1) Remove the four mounting brackets from the assembled shelf by removing the four screws per bracket

(two on the top and two on the bottom).

2) Mount the four mounting brackets on the mounting rails (at the desired height) as shown in Figure 1

using two 10-32 screws per bracket. Tighten the screws.

3) Slide the shelf onto the mounting brackets so that the mounting brackets are inside the mounting

channels, as shown in Figure 2.

4) Replace the four screws per mounting bracket (two in the top and two in the bottom) so that the shelf is

now secured to the mounting brackets. (See Figure 2.) Tighten all screws.

5) Attach wrist pad to keyboard tray by removing double-sided tape and placing firmly to tray.

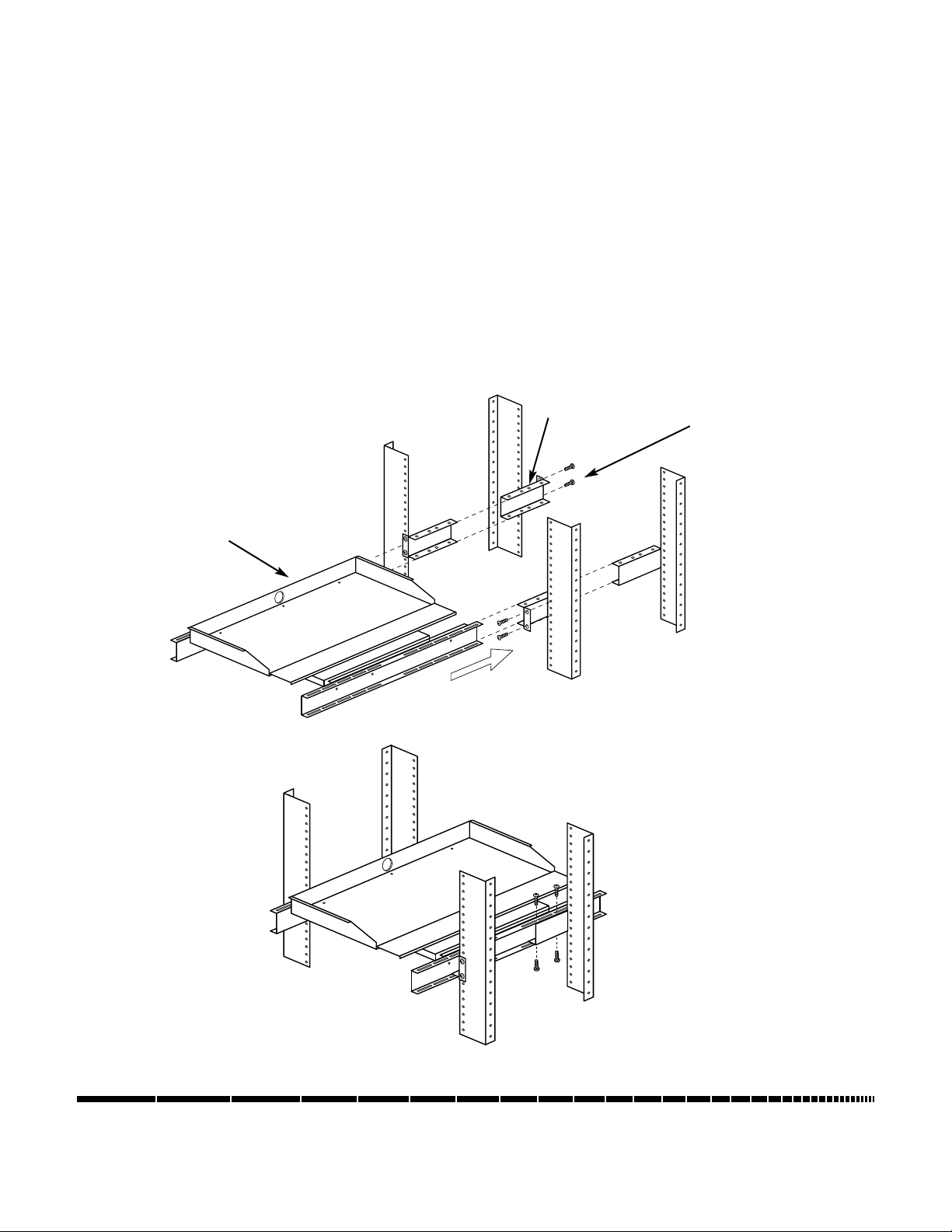

Figure 1

Figure 2

Mounting

brackets Mounting

screws

Shelf

assembly
